Qasair DR-200/45 (119) 200 Bend 45

Qasair DR-200/45 (124) 200 Bend 45

$150.00
available online
SKU: DR-200/45-(124)
Brand: Qasair
Barcode: 0080687343317
Why You’ll Love It
  • Correct Qasair system fit: Purpose-designed for 200mm-diameter round ducting rather than adapted from generic ductwork.
  • Rigid, non-flammable construction: Supports a safer, specification-led extraction installation.
  • Performance-conscious design: Helps preserve the duct size required for effective airflow.
  • Made in Australia: Manufactured as part of Qasair’s coordinated ducting range.
Ideal For
  • Homeowners completing a Qasair rangehood installation who want the ductwork matched to the appliance rather than improvised
  • Kitchen projects where maintaining the correct single-motor duct size is important for dependable extraction performance
  • Renovations requiring a purpose-designed round duct bend to resolve the planned duct route cleanly
  • Installers and designers specifying rigid, non-flammable metal ducting that vents cooking fumes safely outdoors
View details

Product Overview

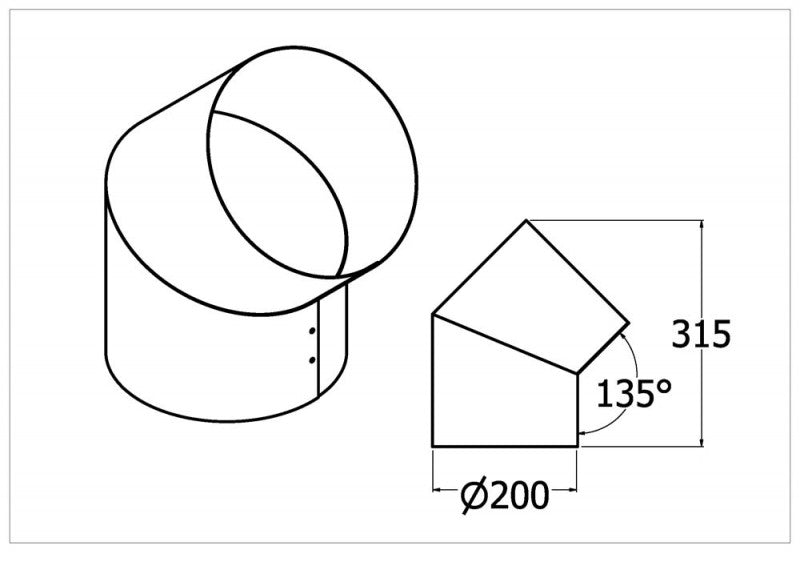

The Qasair DR-200/45 (124) 200 Bend 45 is a purpose-designed round duct bend for 200mm-diameter round ducting. It forms part of Qasair’s coordinated rigid-metal ducting system, helping installers create an appropriately sized extraction path without reducing the duct cross-sectional area specified for the rangehood.

Its 45° configuration redirects the duct run while maintaining compatibility with the relevant single-motor system. Qasair duct pieces are CAD-designed, manufactured in Australia from zinc-alume and intended for correctly sealed, non-flammable installations vented to the outside atmosphere.

Product Details & Specifications

Product Features
  • Purpose-built Qasair compatibility: Designed for 200mm-diameter round ducting to maintain the correct connection through the extraction path.
  • 45° directional change: Provides the required change in direction while retaining the stated 200mm-diameter round ducting configuration.
  • Rigid metal construction: Zinc-alume construction provides a non-flammable alternative to flexible or plastic ducting.
  • Maintains the intended duct format: Supports the single-motor system without deliberately reducing the duct size.
  • Australian made: Qasair ducting is manufactured in Ringwood, Victoria.
Programmes / Functions
Product Specifications
  • Brand: Qasair
  • Model: DR-200/45
  • Product type: Round Duct Bend
  • Ducting system: single motor Qasair ducting
  • Material: Zinc-alume rigid metal
  • Construction: CAD-designed, non-flammable duct component
  • Country of manufacture: Australia
  • Duct format: 200mm diameter
  • Bend angle: 45°
Product Measurements
  • Duct connection: 200mm diameter
  • Direction change: 45°
Product Weight
Installation & Requirements
  • Professional planning recommended: Confirm the complete duct route, rangehood outlet and compatible component sequence before installation.
  • Vent to outside atmosphere: The rangehood duct run must discharge outdoors and must not terminate in a ceiling or wall cavity.
  • Do not reduce duct size: Maintain the duct cross-sectional area specified for the single-motor rangehood system.
  • Use rigid, non-flammable ducting: Do not substitute flexible ducting or plastic PVC pipe.
  • Seal every joint: Fit and seal all connections with suitable duct tape or silicone so fumes cannot escape into the building.
Colour/Finishes
  • Zinc Alume
Warranty
  • Standard warranty: 36 months from the consumer’s date of purchase against defects in materials and workmanship.
  • Conditions: The product must be used for personal, domestic and household purposes and installed in accordance with Qasair instructions.
  • Installation responsibility: Incorrect duct sizing, excessive duct runs or failure to follow installation requirements may affect performance and warranty coverage.
  • Consumer guarantees: Warranty benefits are provided in addition to rights and remedies available under Australian Consumer Law.
Country Of Origin
Extra Information

This component is intended to be selected as part of a complete Qasair ducting design rather than as a universal fitting. The model code, motor configuration and adjoining duct format should all be checked before ordering.

Effective duct design is critical to rangehood performance. Qasair advises planning the route early, avoiding unnecessary restrictions and using correctly sized rigid metal ductwork throughout the installation.
Included Products / Accessories
  • 1 × Qasair DR-200/45 round duct bend
Manuals & Files
