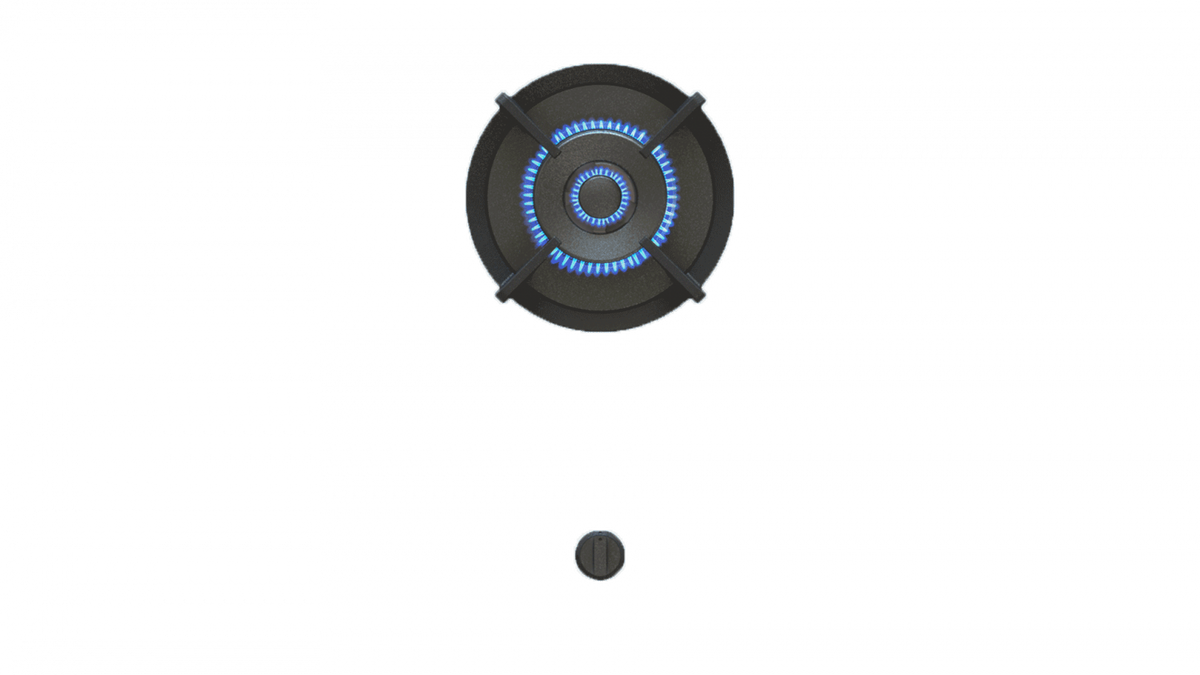

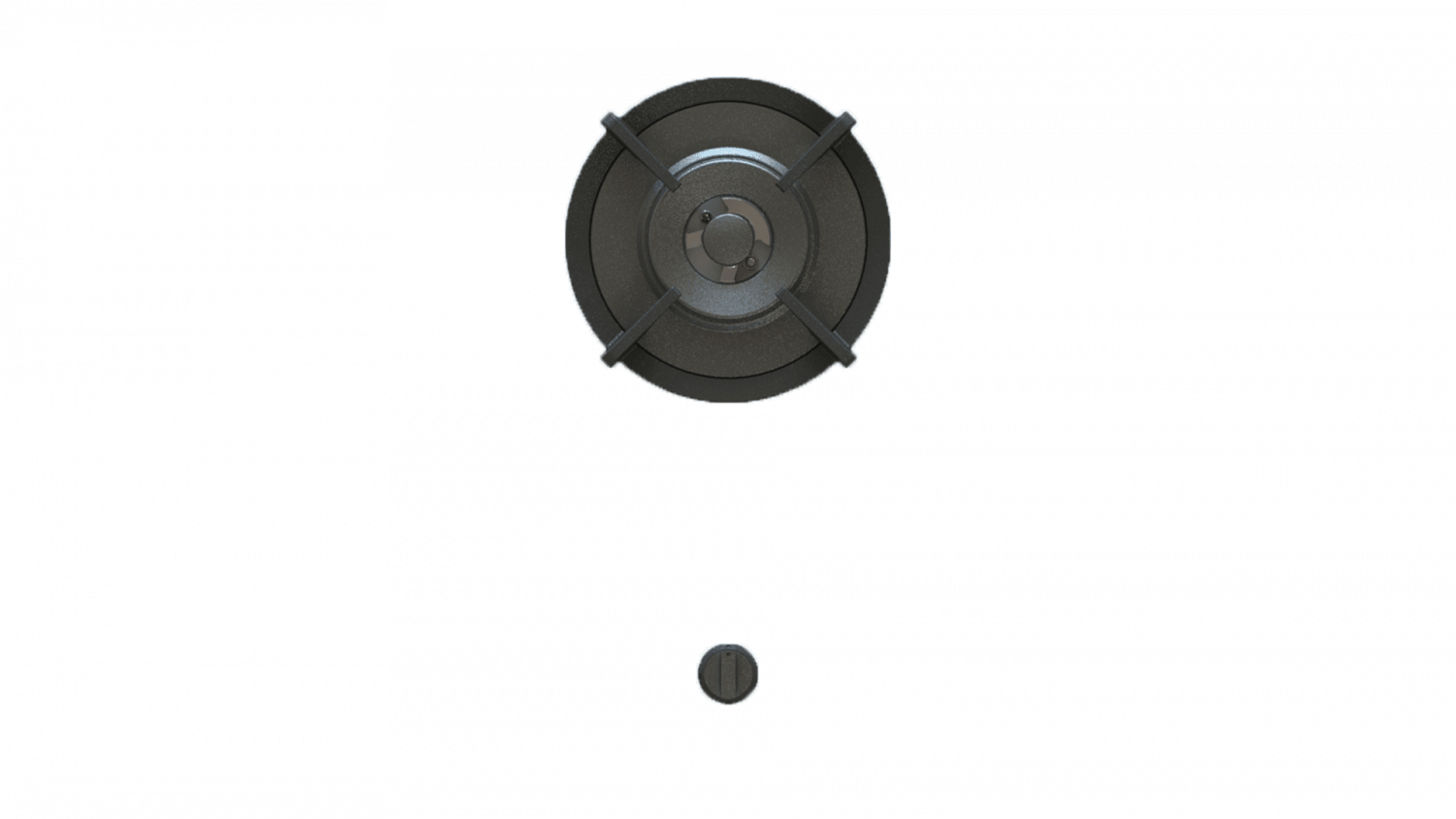

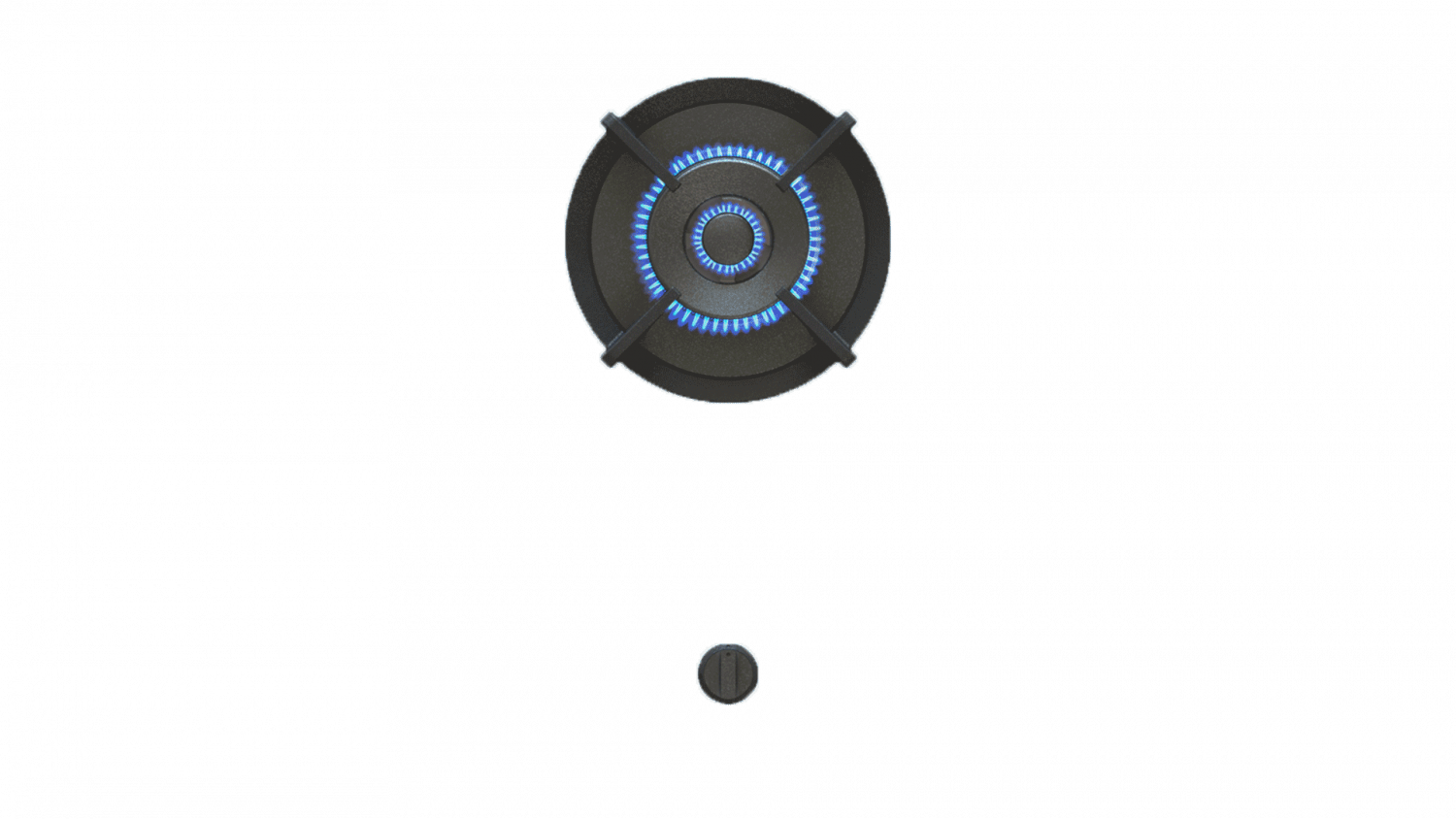

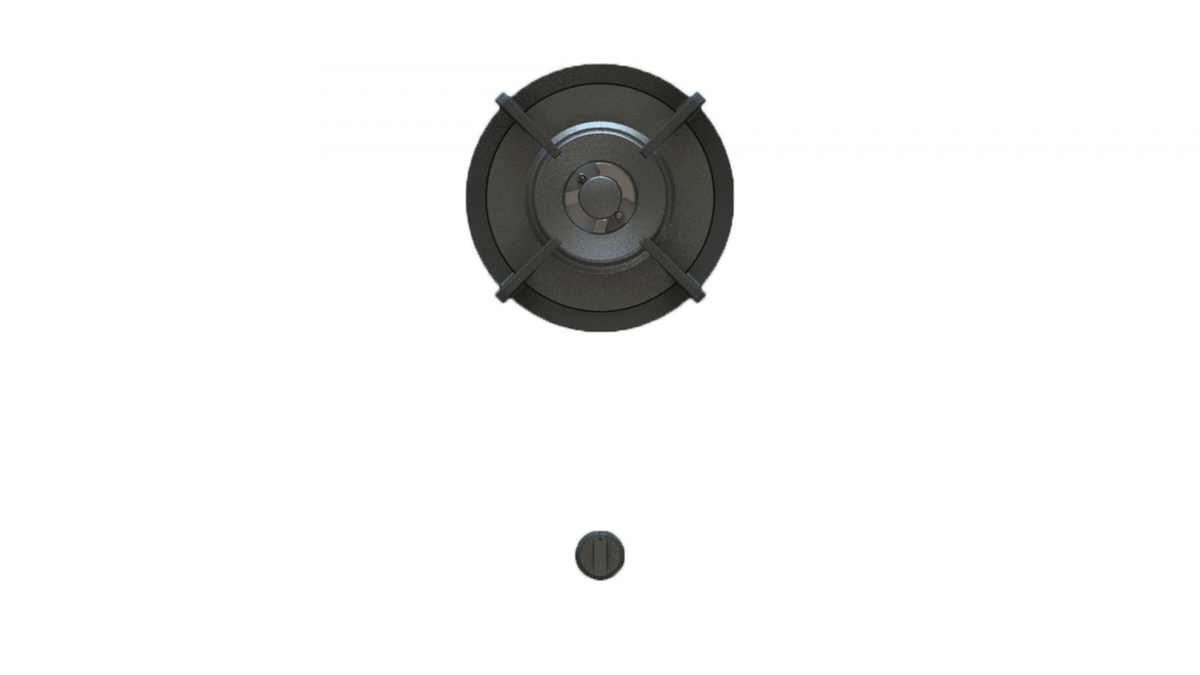

PITT Cooking AIR Model with 1 Gas Hob

• Powerful burner range – Delivers 0.2 kW to 5 kW (682–17,061 Btu/h, 0.7–18 MJ) for everything from delicate simmering to high-heat wok cooking.
• Two design editions – Choose between Professional (brass) for a traditional, durable look or Black (full black) for sleek modern styling.
• Top-side controls – Easy access and ergonomic placement for smooth cooking adjustments.
• Integrated wok ring – Provides stability and versatility for high-heat wok dishes.
• Automatic spark ignition – Convenient and safe ignition every time you cook.
• Flame protection system – Automatically cuts off gas if the flame goes out, enhancing safety.
• Compact module dimensions – Measuring 213 x 503 x 89 mm, designed to fit neatly into a variety of kitchen layouts.
• Flexible installation – Fits worktops 4–35 mm thick, with a minimum cabinet width of 300 mm, and includes support bar guidance for secure fitting.
• Durable construction – Weighs 7.5 kg, built with premium materials for long-lasting performance.
• Versatile gas compatibility – Suitable for natural gas and LPG (bottled gas) with ½" external thread connection.
• Dual power options – Operates on 220V–110V mains power or a 1.5V battery for ignition flexibility.

Specifications:

• Type of burners: 1x 0,2-5 kW • 1x 682 - 17061 Btu/h • 1x 0,7 - 18 MJ
• Editions: Professional (brass) | Black (full black)
• The controls: Top Side
• Module dimensions (LxBxH): 213 x 503 x 89 mm | 19 13/16" x 8 6/16" x 3 1/2"
• Automatic spark ignition: ✓
• Flame protection: ✓
• Weight: 7.5 kg
• Wok ring: ✓

Design Instructions (Cabinet/Countertop):

• Minimum worktop depth: 600 mm / 23 5/8"
• Minimum cabinet width: 300 mm / 1113/16 "
• Worktop thickness (original material): 4-35 mm / 5/32-13/8 "
• Minimum C-measurement: 50 mm / 131/32 "
• Support bar needed?: ✓

Gas & Electricity:

• Type of gas suitable: Natural gas, LPG (Bottled gas)
• Type of gas connection: ½" external threads
• Position gas connection: Top corner, right
• Voltage: 220V-110V (default) / 1,5V (battery)
• Cord length: 1500 mm / 591/16 "

Warranty coverage

Haus Group Australia is the company behind Whispair, Spezialist, and PITT Cooking. A curated portfolio of premium kitchen ventilation and cooking appliances. All products are backed by a comprehensive 5-year manufacturer's warranty covering parts and labour, giving you confidence in the engineering and quality behind every product.

Whispair rangehoods

• All rangehoods: 5 years — Parts and labour
• Remote fan motor: 10 years — Replacement warranty

Spezialist cooking surfaces

• All cooking surfaces: 5 years — Parts and labour

PITT Cooking cooktops

• All gas and induction cooktops: 5 years — Parts and labour

Proof of purchase is required for all warranty claims. The warranty applies to the original purchaser only and is not transferable.

What's covered

• Manufacturing defects in materials and workmanship
• Repair or replacement of faulty products or parts within the applicable warranty period
• Parts and labour costs within the 5-year warranty period

What's not covered

• Incorrect installation or failure to follow manufacturer installation instructions
• Misuse, neglect, or accidental damage
• Commercial use of domestic appliances
• Damage caused by chemicals, excessive heat, or environmental conditions
• Consumables such as filters, globes, and batteries
• Repairs or modifications carried out by unauthorised parties
• Use of parts or accessories not approved by Haus Group

Conditions

• Must be installed by a licensed electrician or licensed gas plumber as appropriate
• Must be installed and used in accordance with manufacturer instructions
• Products must be inspected for damage within 14 days of delivery
• Proof of purchase must be provided with all claims
• Warranty applies to the original purchaser only

Making a claim

Contact Haus Group Australia's service team on 03 8593 9600 or email service@hausgroup.com.au. Please have your proof of purchase ready when submitting your claim.

Australian Consumer Law

Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if they fail to be of acceptable quality and the failure does not amount to a major failure.
