Product Description
Product Overview:
The Oliveri VE1125 Venice Wall Mixer with Diverter combines a concealed single-lever mixer and integrated diverter in one clean wall-mounted control. Its crisp Venice handle profile and separate diverter button allow water to be directed between two compatible outlets, such as a bath spout and hand shower or two shower functions.
Constructed with a brass body, zinc handle and stainless-steel lever, the mixer uses a 35mm ceramic-disc cartridge for smooth flow and temperature adjustment. Four coordinated finishes make it easy to integrate with matching Venice tapware and bathroom fittings.
Product Features:
- Integrated diverter: Directs water between two separately selected compatible outlets.
- Concealed installation: Keeps the working body behind the finished wall.
- Ceramic-disc cartridge: 35mm cartridge provides smooth mixer control.
- Compact Venice styling: Clean lever and diverter layout suits contemporary interiors.
- Four coordinated finishes: Match related Venice products.
Colour / Finishes:

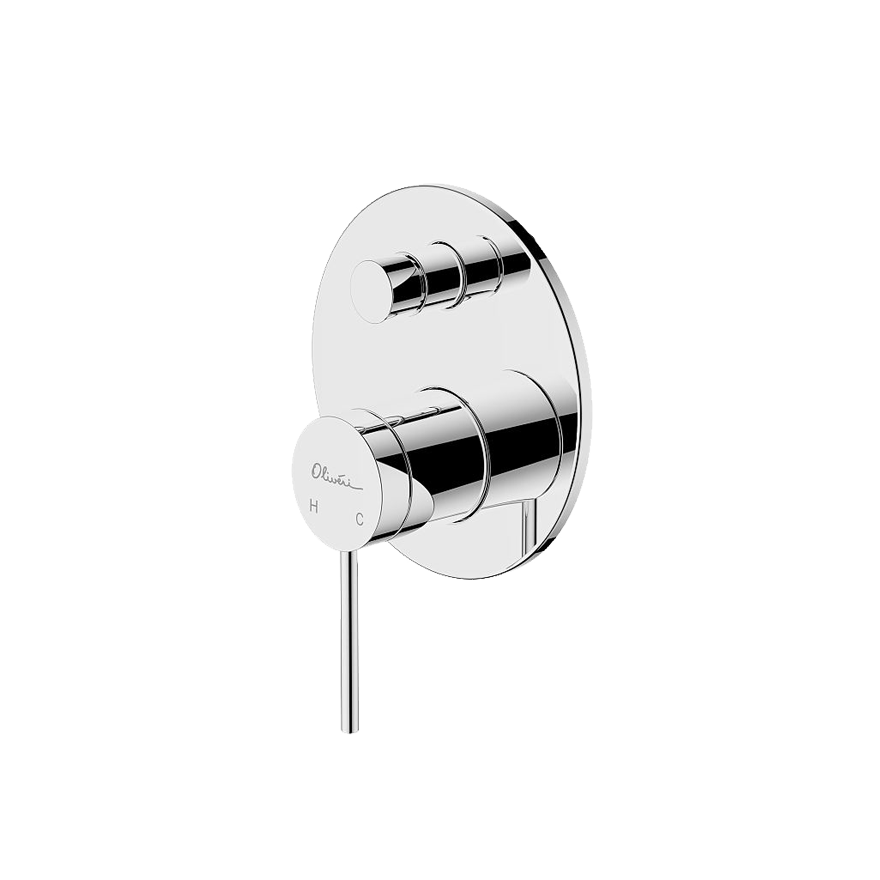

- Chrome - VE112500CR

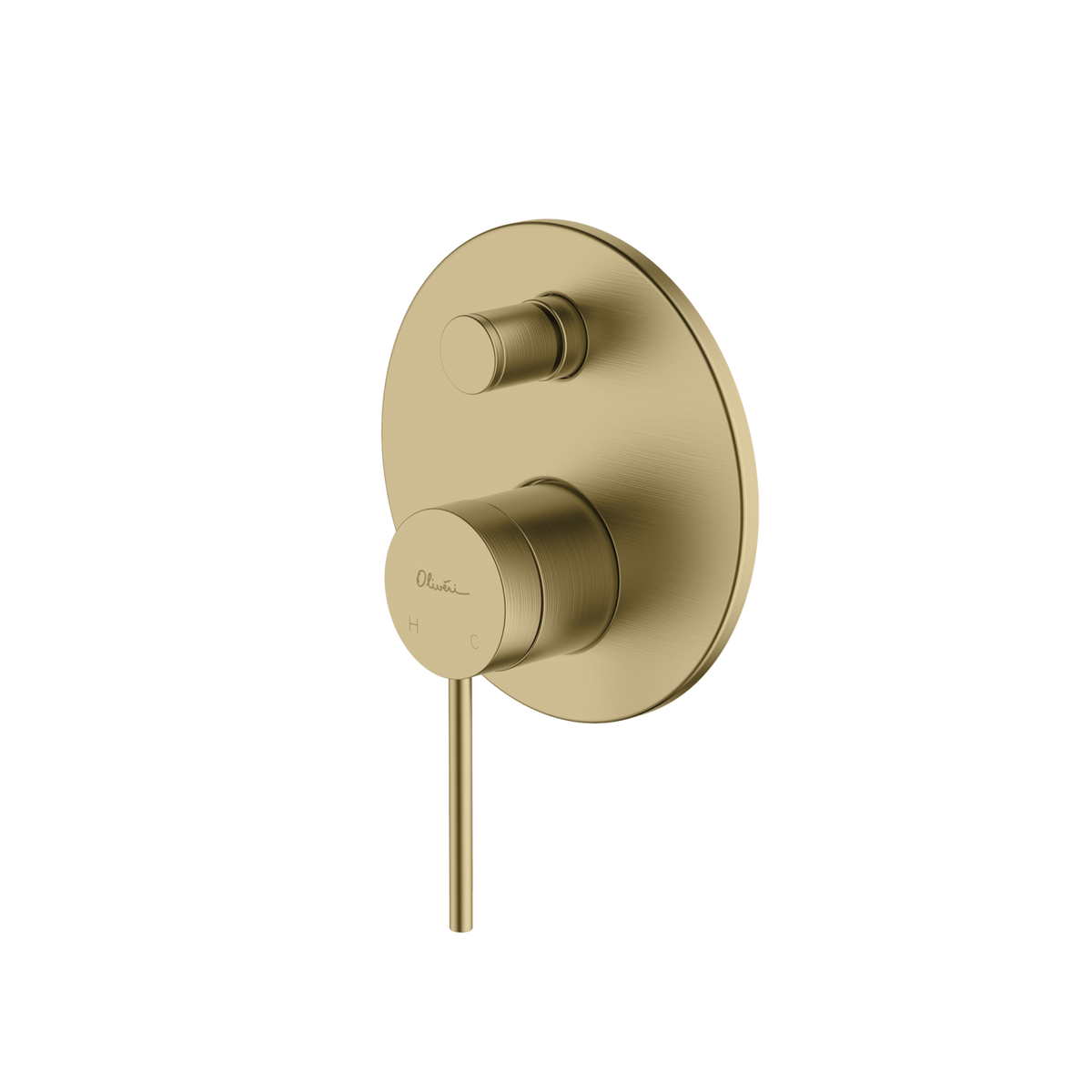

- Classic Gold - VE112503CG
- Brushed Nickel - VE112504BN
- Matte Black - VE112516MB
Programmes / Functions:
- Mixer control: Single lever adjusts water flow and temperature.
- Two-way diversion: Integrated diverter selects between two connected outlets.
Cleaning & Maintenance:
- Routine cleaning: Use mild liquid detergent or warm soapy water with a soft cloth.
- Rinse and dry: Remove residue and dry after cleaning.
- Protect the finish: Avoid cream, citrus, abrasive and acid-based cleaners.
- Function checks: Operate the diverter regularly and address leaks promptly.
Specifications:
- Brand: Oliveri
- Model family: VE1125
- Collection: Venice
- Product type: Wall mixer with diverter
- Installation: Concealed wall mounted
- Material: Brass body, zinc handle and stainless-steel lever
- Cartridge: 35mm ceramic disc
- Water supply: Mains
- Operating pressure: 150–500kPa
- Temperature rating: 1–65°C
- WELS: Not applicable; outlets are selected separately
Product Measurements:
- Faceplate height: 183mm
- Faceplate width: 64mm
- Handle projection: 124mm
- Connection: Four G1/2 ports
Product Weight:
- Net product weight: 1.8kg
Installation & Requirements:
- Licensed installation: Must be installed by a licensed plumber before wall finishing.
- Two outlets: Plan and connect two compatible outlet functions to the diverter.
- Wall set-out: Confirm the 0–21mm installation tolerance against the finished wall.
- Operating conditions: Suitable for 150–500kPa and temperatures from 1–65°C.
Extra Information:
The integrated diverter makes the VE1125 useful where one mixed-water supply needs to serve two functions without adding a separate selector control. Common arrangements include a bath spout with a hand shower or a fixed shower head with a secondary handpiece.
This mixer does not include the outlets themselves, so each connected component must be selected to suit the installation and desired flow performance. Confirm the plumbing layout and finished-wall depth before rough-in because the concealed body becomes difficult to reposition after wall completion.
Included Products / Accessories:
- Venice wall mixer with diverter: Concealed body and visible control components in the selected finish.
- Installation components: Manufacturer-supplied parts required for assembly.
- Not included: Shower heads, hand showers, hoses and bath or basin spouts.
Warranty:
Oliveri products are backed by a comprehensive manufacturer's warranty, including lifetime cover on selected stainless steel kitchen sinks, laundry tubs and basins, 20 years on selected vitreous china basins and toilets, and 15 years on selected bathroom tapware and shower bodies. Warranty periods vary by product category and are in addition to your rights under the Australian Consumer Law. Refer to the Oliveri Warranty page for full terms and conditions.
