Product Description

Product Overview:

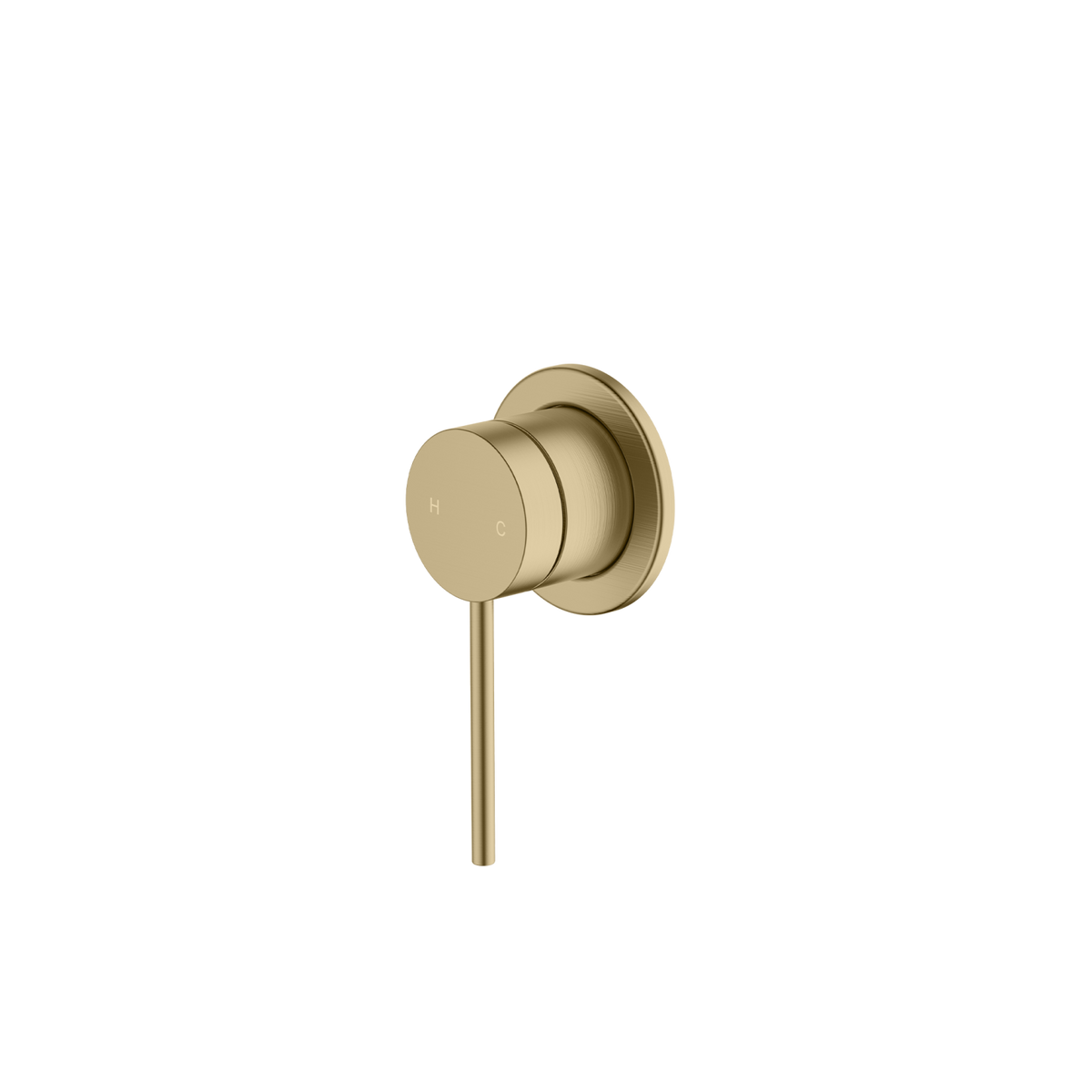

The Oliveri VE1115-TK Venice Wall Mixer Trim Kit gives a compatible Series 2 concealed mixer body the collection’s crisp pin-lever styling. Its slim handle, compact 44mm wall plate and understated profile create a refined control point for a bath, shower or other separately selected outlet.

This is a trim-only product designed for use with the Oliveri UNI-A2-BY in-wall body, which is sold separately. The interchangeable kit includes the visible backplate, handle, cartridge sleeve and dome cover in one of five coordinated Venice finishes.

Product Features:

• Trim kit only: Completes a compatible UNI-A2-BY concealed wall-mixer body.
• Compact pin-lever design: Clean 44mm circular wall plate and slim handle.
• Interchangeable Series 2 format: Supports late-stage finish selection.
• Five Venice finishes: Coordinates with matching tapware and accessories.

Colour / Finishes:

• Chrome - VE111500FCR-TK
• Classic Gold - VE111503FCG-TK
• Brushed Nickel - VE111504FBN-TK
• Gunmetal - VE111505FGM-TK
• Matte Black - VE111516FMB-TK

Cleaning & Maintenance:

• Routine cleaning: Use mild liquid detergent or warm soapy water with a soft cloth.
• Rinse and dry: Remove residue and dry after cleaning.
• Protect the finish: Avoid cream, citrus, abrasive and acid-based cleaners.
• Regular checks: Address visible leaks or loose components promptly.

Specifications:

• Brand: Oliveri
• Model family: VE1115-TK
• Collection: Venice
• Product type: Wall mixer trim kit
• Installation: Wall mounted
• Compatibility: Oliveri UNI-A2-BY in-wall body
• Material: Lead-free brass body, zinc handle and stainless-steel lever

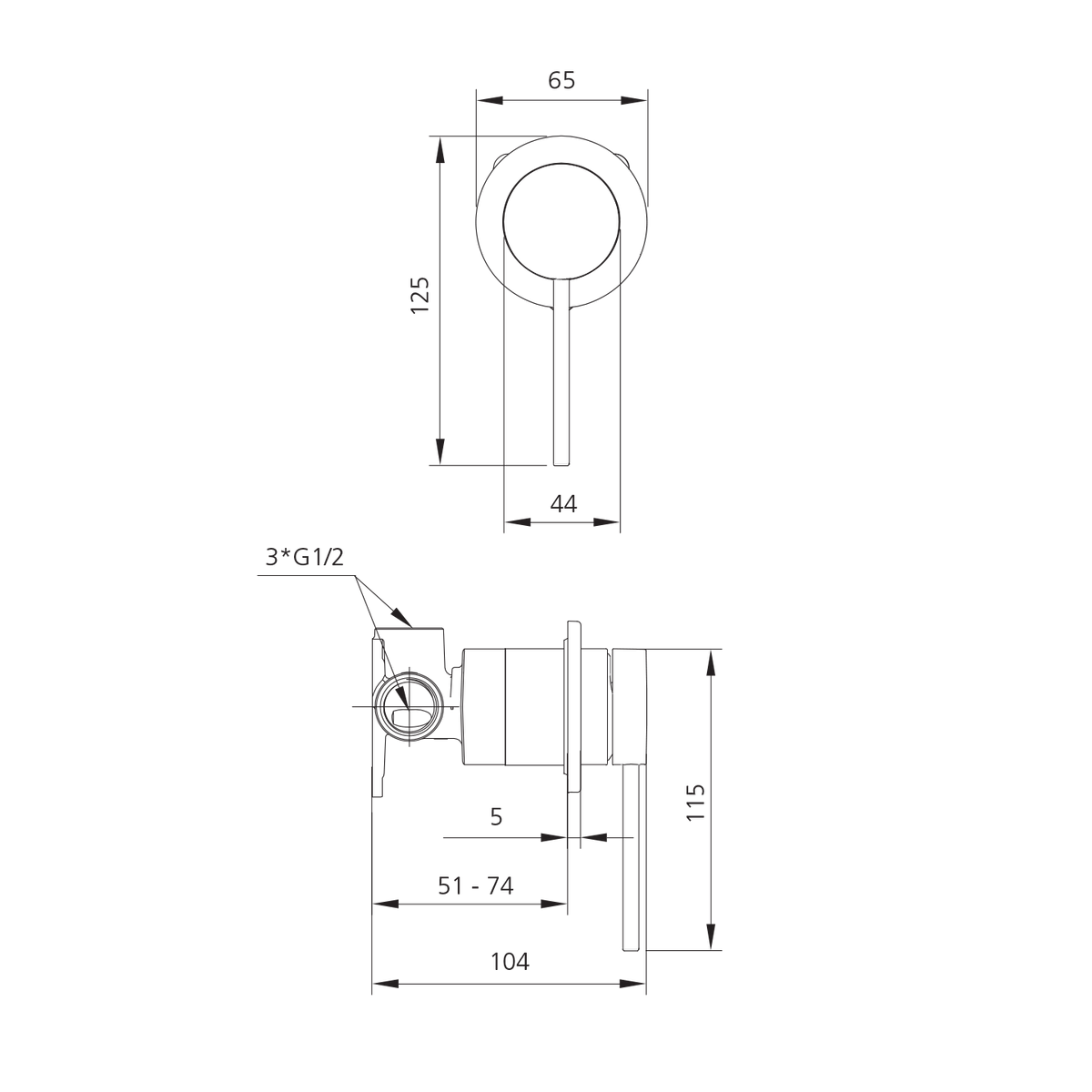

Product Measurements:

• Wall plate diameter: 44mm
• Handle projection when assembled: 74–115mm

Product Weight:

• Net product weight: 0.3kg

Installation & Requirements:

• Required body: Must be fitted to an Oliveri UNI-A2-BY in-wall body, sold separately.
• Licensed installation: Final fit-off must be completed by a licensed plumber.
• Compatibility check: Confirm the concealed body and wall set-out before ordering.
• Outlet required: Pair with a suitable separate bath, basin or shower outlet.

Extra Information:

The VE1115-TK lets the visible finish be selected after the concealed Series 2 body has been installed, making it well suited to staged renovations where first-fix plumbing precedes final colour decisions.

This trim kit controls water flow and temperature but does not include an outlet or the concealed body. Confirm the existing body is the UNI-A2-BY Series 2 model and select a compatible outlet appropriate to the intended application.

Included Products / Accessories:

• Venice backplate: Compact circular wall trim.
• Pin-lever handle: Visible control in the selected finish.
• Cartridge sleeve and dome cover: Components required for final fit-off.
• Not included: UNI-A2-BY in-wall body and water outlet.

Warranty:

Oliveri products are backed by a comprehensive manufacturer's warranty, including lifetime cover on selected stainless steel kitchen sinks, laundry tubs and basins, 20 years on selected vitreous china basins and toilets, and 15 years on selected bathroom tapware and shower bodies. Warranty periods vary by product category and are in addition to your rights under the Australian Consumer Law. Refer to the Oliveri Warranty page for full terms and conditions.

Downloads / Product Files:

• VE111500FCR-TK SPECIFICATIONS SHEET (PDF)

• VE111503FCG-TK SPECIFICATIONS SHEET (PDF)

• VE111504FBN-TK SPECIFICATIONS SHEET (PDF)

• VE111505FGM-TK SPECIFICATIONS SHEET (PDF)

• VE111516FMB-TK SPECIFICATIONS SHEET (PDF)

• INSTALLATION GUIDE (PDF)
