Product Description
Product Overview:
The Oliveri VE1085 Venice Straight Wall Mixer Set Complete combines a separate pin-lever wall mixer and straight spout in one coordinated package. Its clean horizontal form and 182–204mm adjustable spout projection create a refined architectural solution for contemporary basins and baths.
Supplied complete with the universal Series 2 in-wall body and interchangeable Venice trim kit, the set is constructed from lead-free brass with a 35mm ceramic-disc cartridge. A WELS 6 Star 4.5L/min aerator is installed, with an optional WELS 5 Star 6L/min aerator included for flow flexibility.
Product Features:
- Complete installation set: Includes the Series 2 in-wall body and Venice trim kit.
- Adjustable straight spout: Provides a finished projection of 182–204mm.
- WELS: 6 Stars at 4.5 litres per min
- Interchangeable trim: Universal body supports compatible Paris, Venice and London trim kits.
- Five coordinated finishes: Match the broader Venice collection.
Colour / Finishes:
- Gunmetal - VE108505FGM

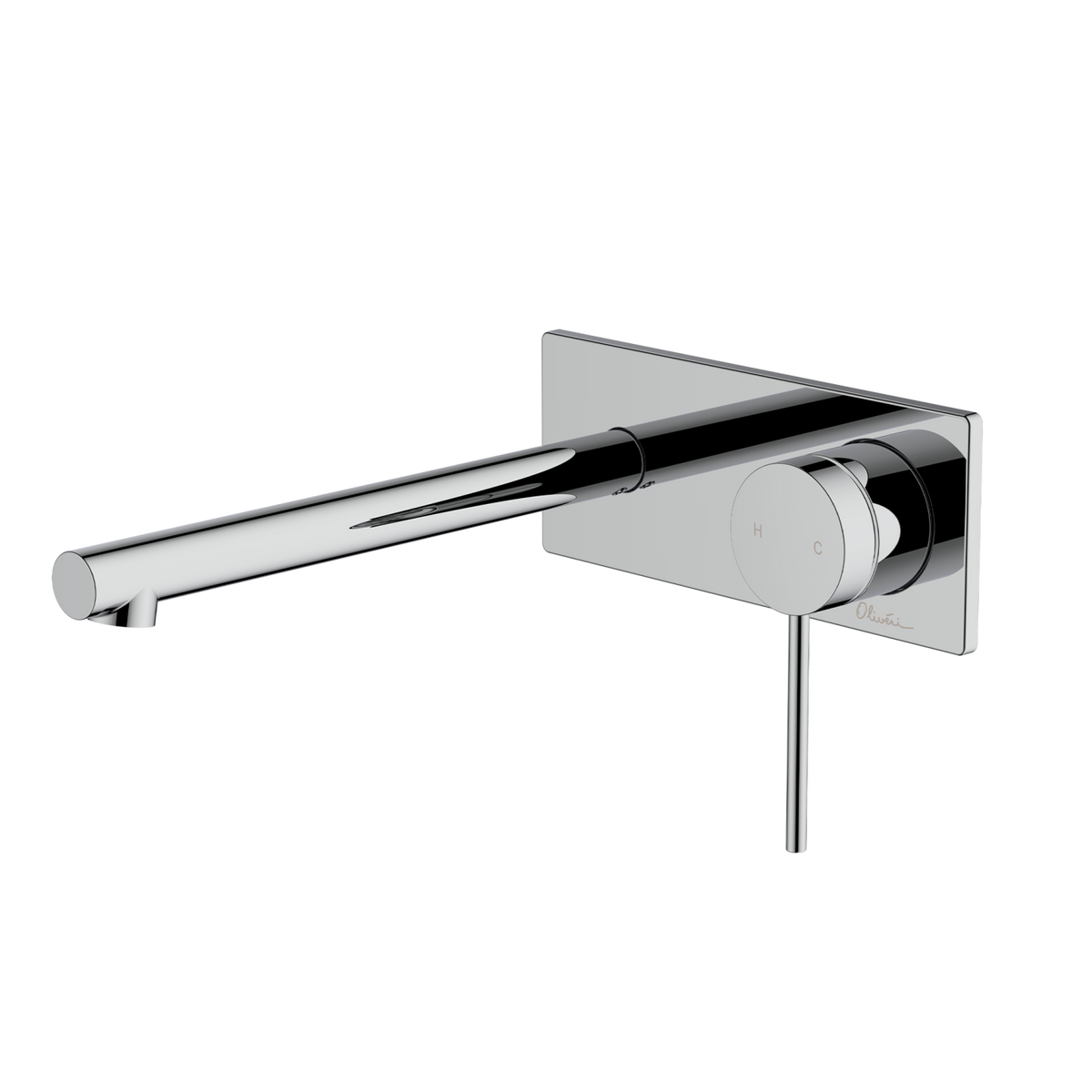

- Chrome - VE108500FCR

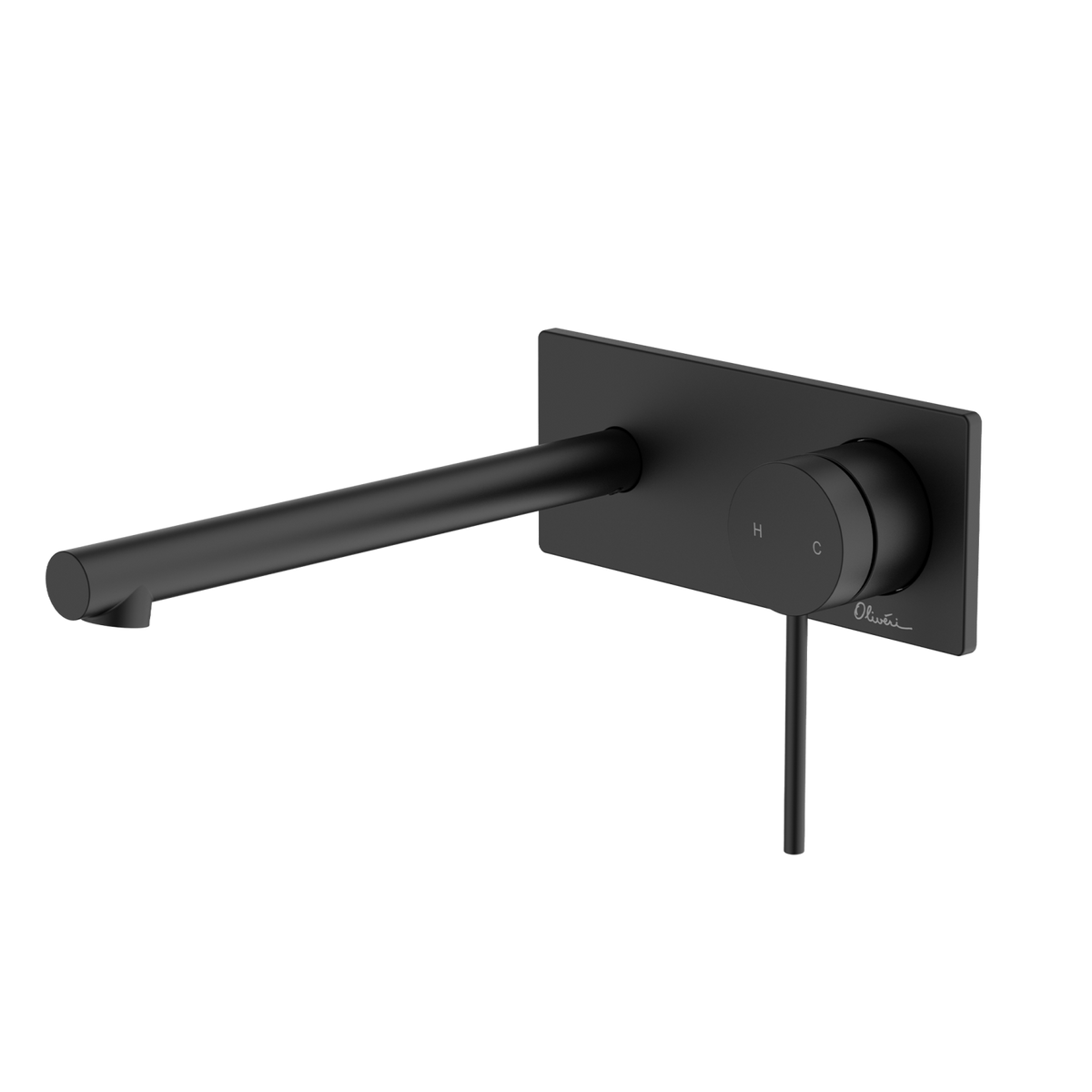

- Matte Black - VE108516FMB
- Classic Gold - VE108503FCG

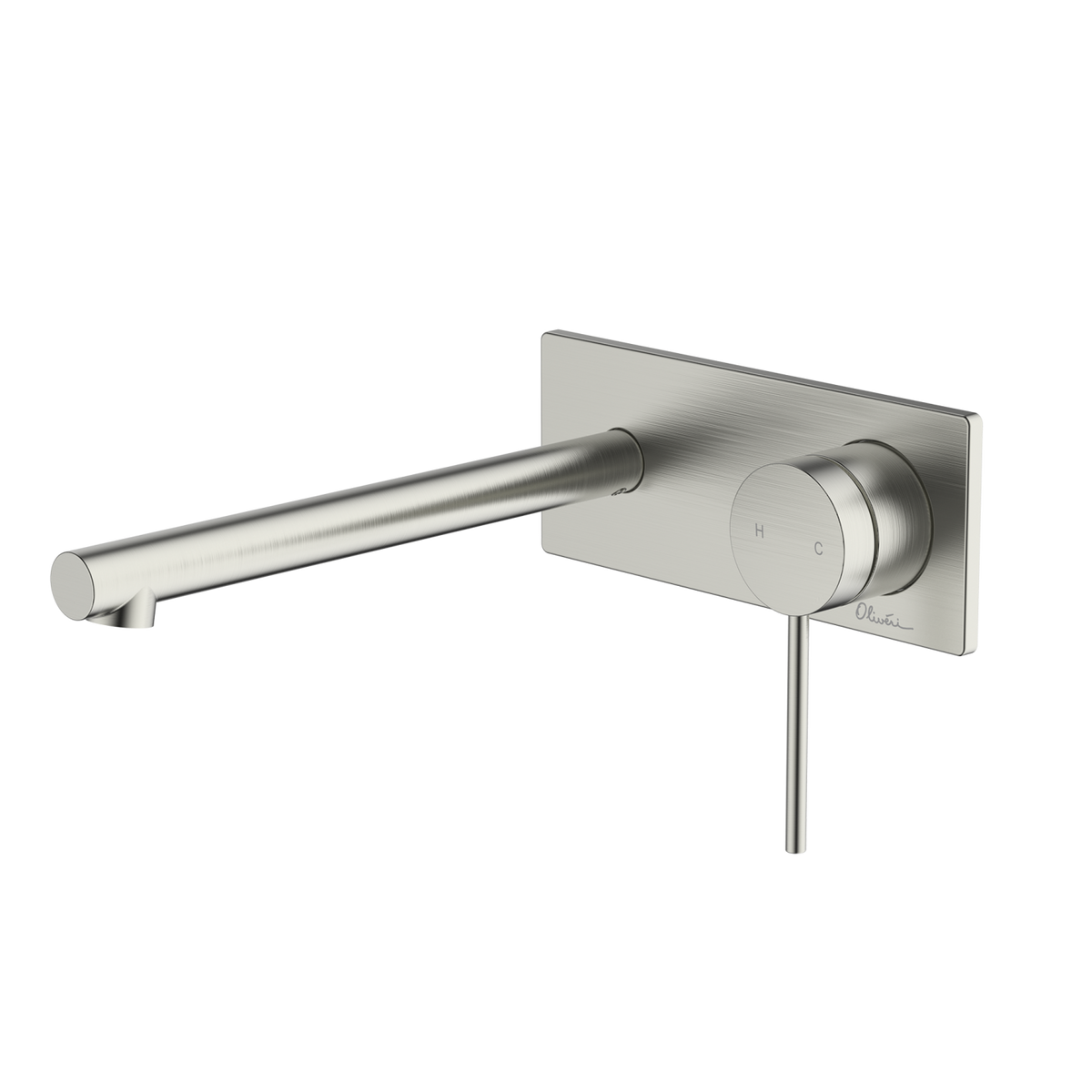

- Brushed Nickel - VE108504FBN
Cleaning & Maintenance:
- Routine cleaning: Use mild liquid detergent or warm soapy water with a soft cloth.
- Rinse and dry: Remove residue and dry the finish after cleaning.
- Protect the surface: Do not use cream, citrus, abrasive or acid-based cleaners.
- Aerator care: Retain the certified flow regulator when servicing or changing the aerator.
Specifications:
- Brand: Oliveri
- Model family: VE1085
- Collection: Venice
- Product type: Complete wall mixer set
- Installation: Wall mounted
- Material: Lead-free brass body, zinc handle and stainless-steel lever
- Cartridge: 35mm ceramic-disc cartridge
- Water supply: Mains
- Operating pressure: 150–500kPa
- Temperature rating: 1–65°C
- WELS: 6 Stars at 4.5 litres per min
- WELS registrations: T43990
- WELS licence number: 1416
- Compliance: In accordance with AS/NZS 6400

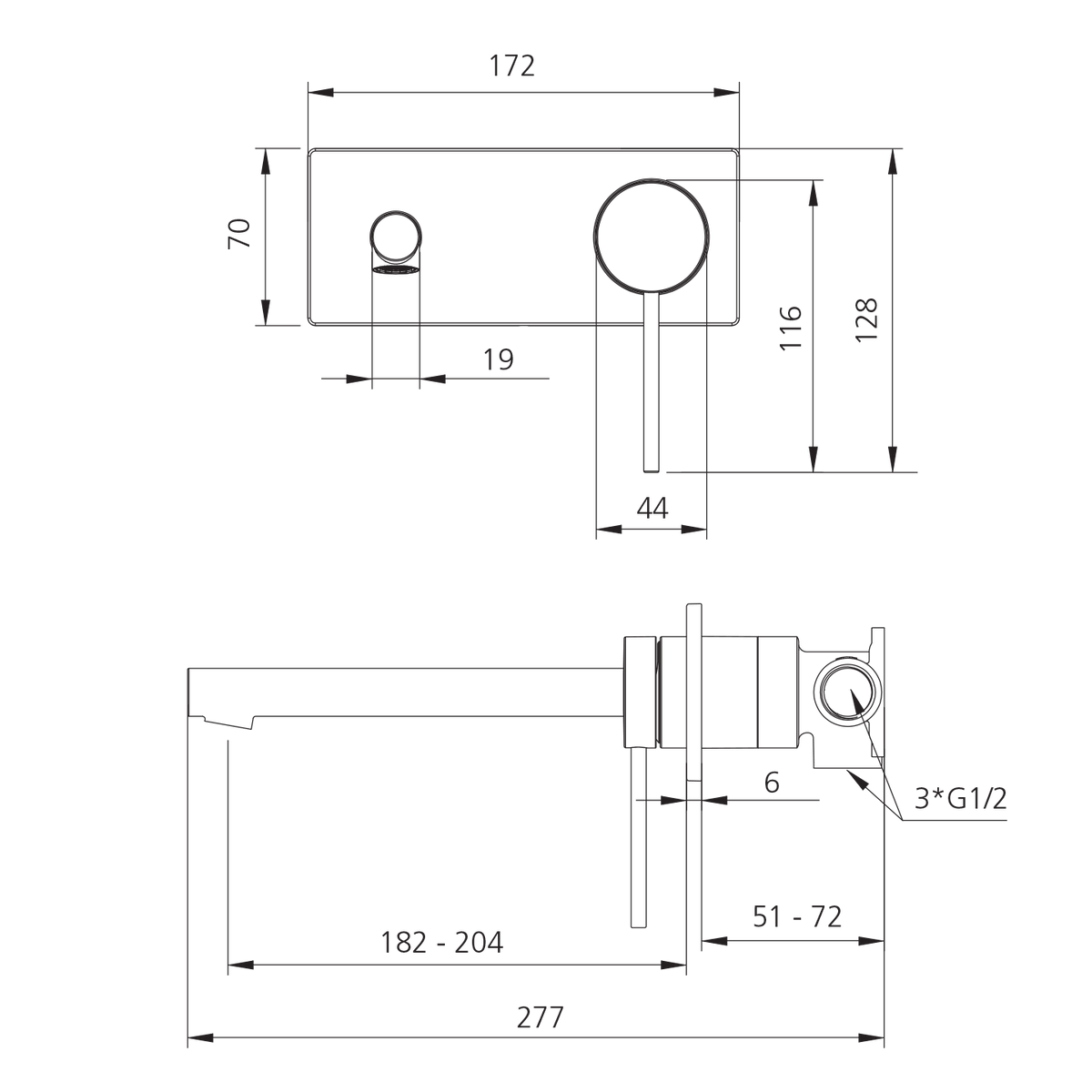

Product Measurements:
- Finished spout projection: 182–204mm
- Mixer handle projection: 72–115mm
- Wall plates: 44mm diameter
- Mixer-to-spout centre distance: 277mm
Product Weight:
- Net product weight: 1.46kg
Installation & Requirements:
- Licensed installation: Must be installed by a licensed plumber before wall finishing.
- In-wall body: The included UNI-C2-BY Series 2 body must be positioned to the installation guide.
- Set-out: Confirm finished-wall depth, 277mm centres and the spout water landing point before rough-in.
- Operating conditions: Suitable for mains pressure from 150–500kPa and water temperatures from 1–65°C.
Extra Information:
The VE1085 separates the water control from the outlet to keep the basin or bath deck clear and create a deliberate architectural feature on the wall. Its adjustable spout projection helps the installer coordinate the final outlet position with the selected fixture and wall build-up.
Because the complete set includes both the universal in-wall body and the visible Venice trim, it provides everything needed for a new installation. The interchangeable Series 2 platform also gives compatible Paris, Venice and London trim options greater flexibility during future design updates.
Included Products / Accessories:
- UNI-C2-BY in-wall body: Universal Series 2 concealed mixer body.
- Venice trim kit: Straight spout, wall mixer handle and wall plates in the selected finish.
- 6 Star aerator: Installed for 4.5L/min operation.
- 5 Star aerator: Included for optional 6L/min operation.
Warranty:
Oliveri products are backed by a comprehensive manufacturer's warranty, including lifetime cover on selected stainless steel kitchen sinks, laundry tubs and basins, 20 years on selected vitreous china basins and toilets, and 15 years on selected bathroom tapware and shower bodies. Warranty periods vary by product category and are in addition to your rights under the Australian Consumer Law. Refer to the Oliveri Warranty page for full terms and conditions.
