Product Description
Product Overview:

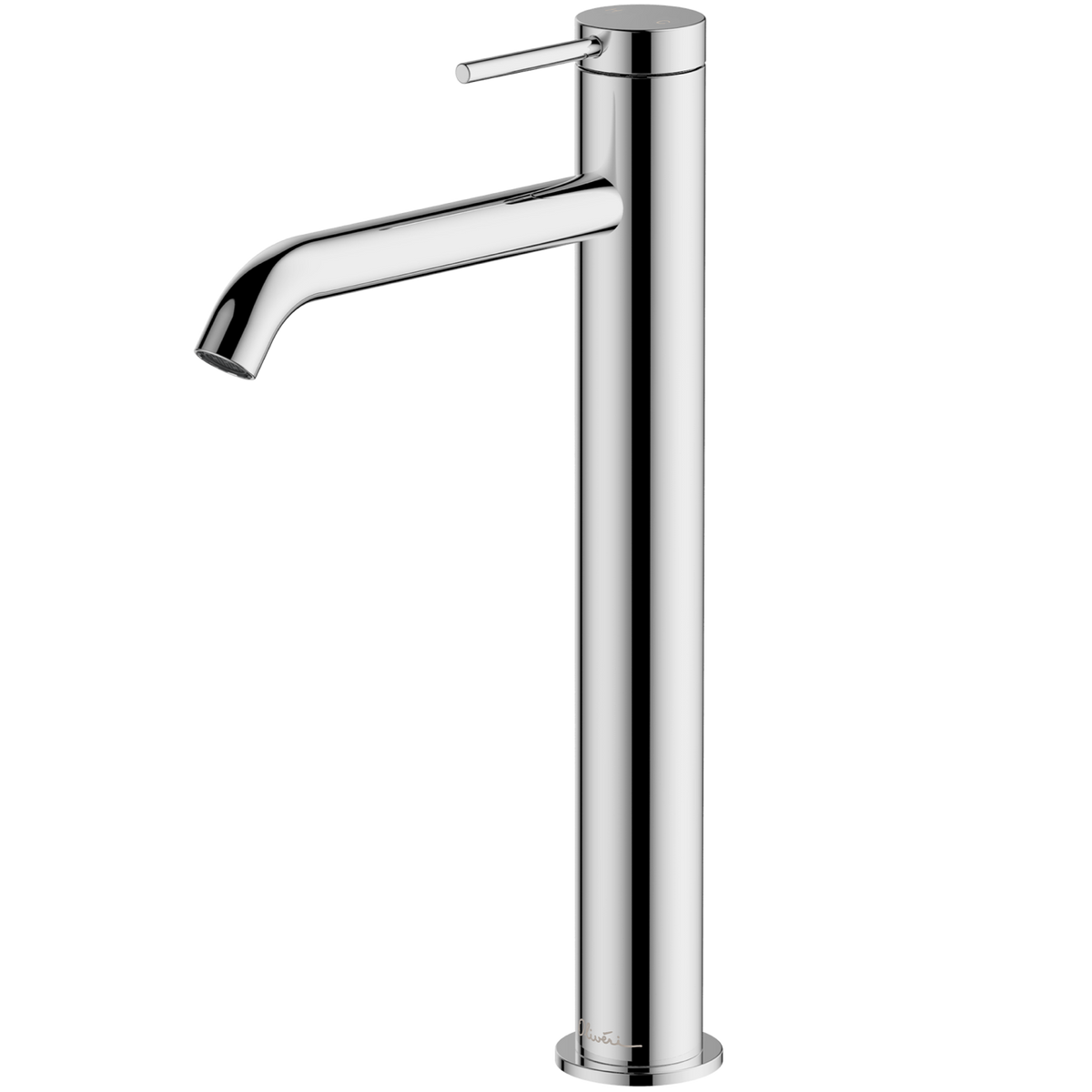

The Oliveri VE104 Venice Curved Tower Basin Mixer brings the collection’s graceful, flowing design to above-counter and vessel basins. Its elevated 318mm profile and gently arched outlet create generous clearance, while the slim pin-style lever keeps the silhouette refined and easy to operate.
Made from lead-free brass with a durable zinc handle and stainless-steel lever, the tower mixer uses a 25mm Kerox ceramic disc cartridge for smooth everyday control. It is supplied with a WELS 6 Star, 4.5L/min aerator installed and an alternative WELS 5 Star, 6L/min aerator, allowing a choice of certified water flow.
Product Features:
- Elevated tower-mixer format: The 318mm profile and 241mm outlet height are designed for compatible above-counter basins.
- Graceful curved Venice styling: A sweeping outlet and slim pin-style lever bring a refined focal point to taller basin settings.
- Generous 165mm spout reach: Positions the water stream comfortably over compatible vessel basins while retaining useful hand clearance.
- Dual WELS configuration: Supplied with a 6 Star 4.5L/min aerator installed and an alternative 5 Star 6L/min aerator.
- Smooth ceramic-disc control: A 25mm Kerox cartridge supports precise, dependable adjustment of flow and temperature.
- Lead-free construction: Lead-free brass bodywork, a zinc handle and stainless-steel lever provide a durable everyday assembly.
- Mains-pressure compatibility: Designed for 150–500kPa water pressure and operating temperatures between 1°C and 65°C.
- Five coordinated finishes: Available in Chrome, Brushed Nickel, Classic Gold, Gunmetal and Matte Black.
Colour / Finishes:
- Chrome - VE104500FCR

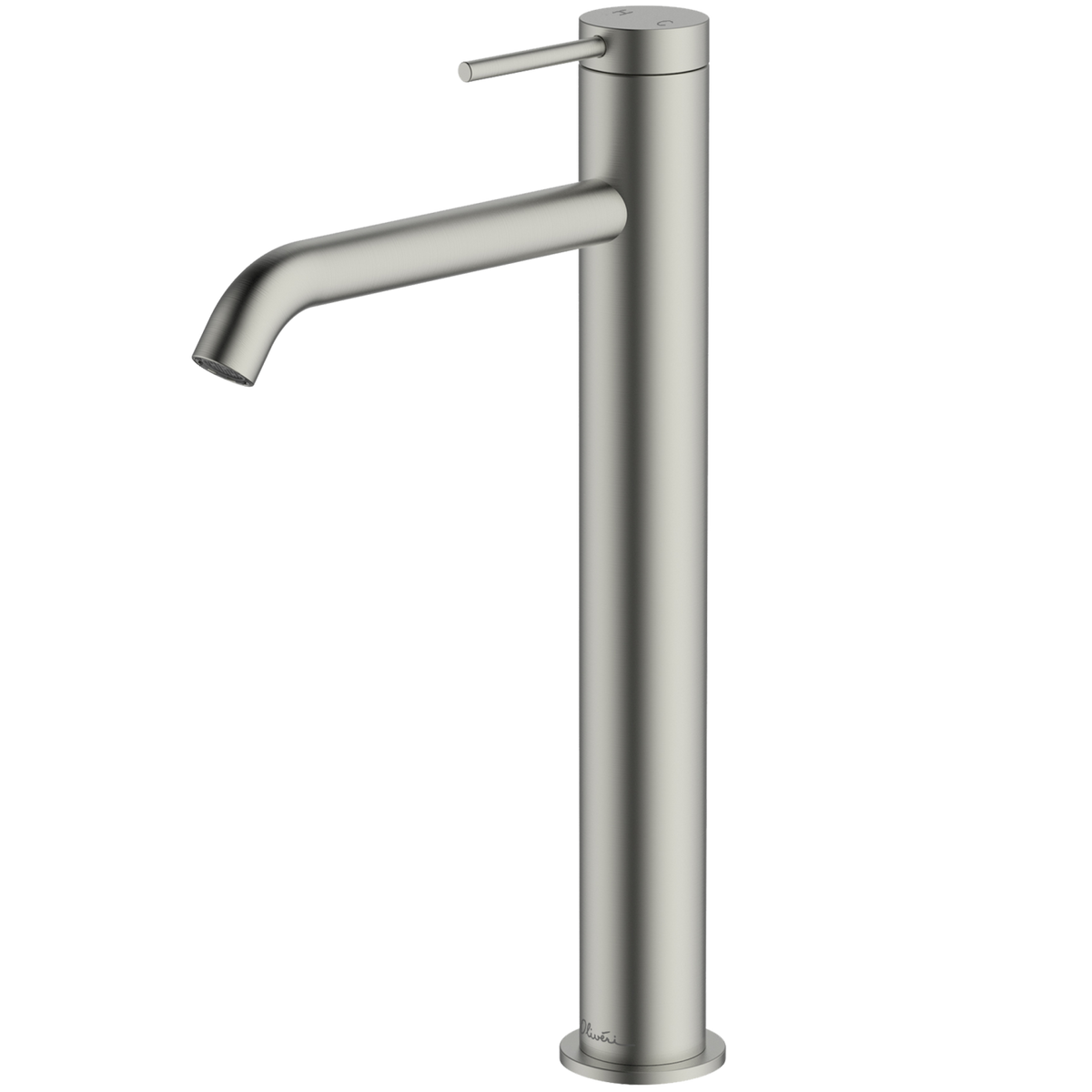

- Brushed Nickel - VE104504FBN
- Classic Gold - VE104503FCG
- Gunmetal - VE104505FGM

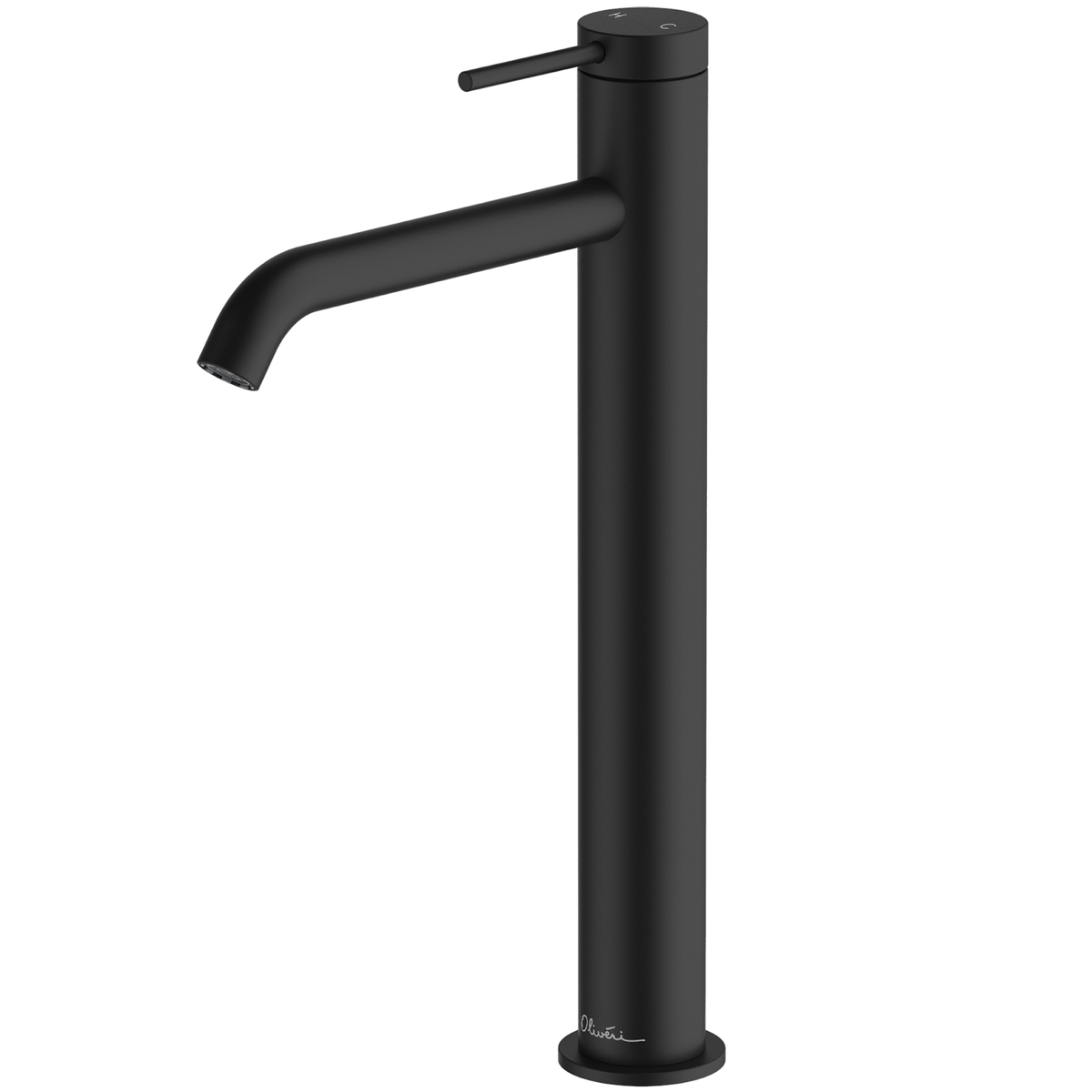

- Matte Black - VE104506FMB
Cleaning & Maintenance:
- Clean with mild liquid detergent or warm soapy water and a soft cloth.
- Rinse and dry after cleaning.
- Avoid cream, citrus, abrasive and acid-based cleaners.
- Retain the certified flow regulator when cleaning or changing aerators.
Specifications:
- Installation: Counter mounted for above-counter basin applications
- Material: Lead-free brass body, zinc handle and stainless-steel lever
- Cartridge: 25mm Kerox ceramic disc
- Water supply: Mains
- Operating pressure: 150–500kPa
- WELS rating: 6 Stars at 4.5L/min
- WELS registration: T43985
- WELS licence: 1416
- Compliance: In accordance with AS/NZS 6400

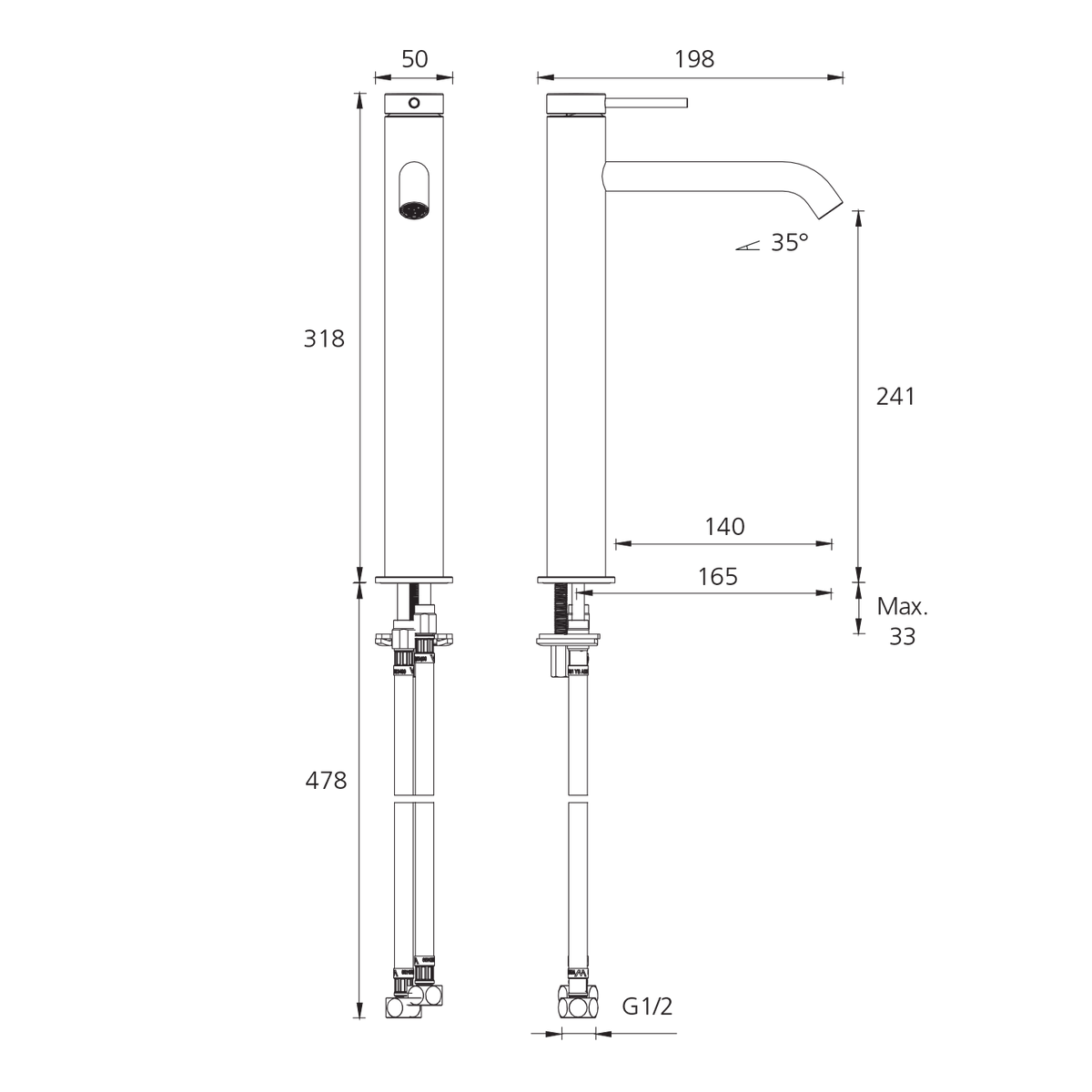

Product Measurements:
- Mixer Height: 318mm
- Overall Projection: 198mm
- Outlet Height: 241mm
- Spout Reach: 165mm
- Aerator Reach: 140mm
- Base Diameter: 50mm
- Spout Angle: 35°
- Maximum Mounting Thickness: 33mm
Product Weight:
- Net Product Weight: 1.6kg
Installation & Requirements:
- Must be installed by a licensed plumber.
- Suitable for mains-pressure systems between 150 and 500kPa.
- Confirm the basin height, mixer position, outlet reach and water landing point before drilling.
- Fit pressure reduction where supply can exceed 500kPa.
Extra Information:
The elevated VE104 is designed to sit beside an above-counter basin, providing comfortable clearance while preserving the soft, flowing Venice aesthetic. Careful positioning is important so the outlet lands centrally within the bowl and avoids splash at the basin edge.
The installed 6 Star aerator supports efficient 4.5L/min use, while the included 5 Star aerator provides an optional 6L/min stream. Match the selected finish with other Venice tapware and accessories for a considered bathroom scheme.
Included Products / Accessories:
- Venice curved tower basin mixer in selected finish
- WELS 6 Star, 4.5L/min aerator installed
- Alternative WELS 5 Star, 6L/min aerator
- Flexible tails and installation components supplied by Oliveri
Warranty:
Oliveri products are backed by a comprehensive manufacturer's warranty, including lifetime cover on selected stainless steel kitchen sinks, laundry tubs and basins, 20 years on selected vitreous china basins and toilets, and 15 years on selected bathroom tapware and shower bodies. Warranty periods vary by product category and are in addition to your rights under the Australian Consumer Law. Refer to the Oliveri Warranty page for full terms and conditions.
Downloads / Product Files:
