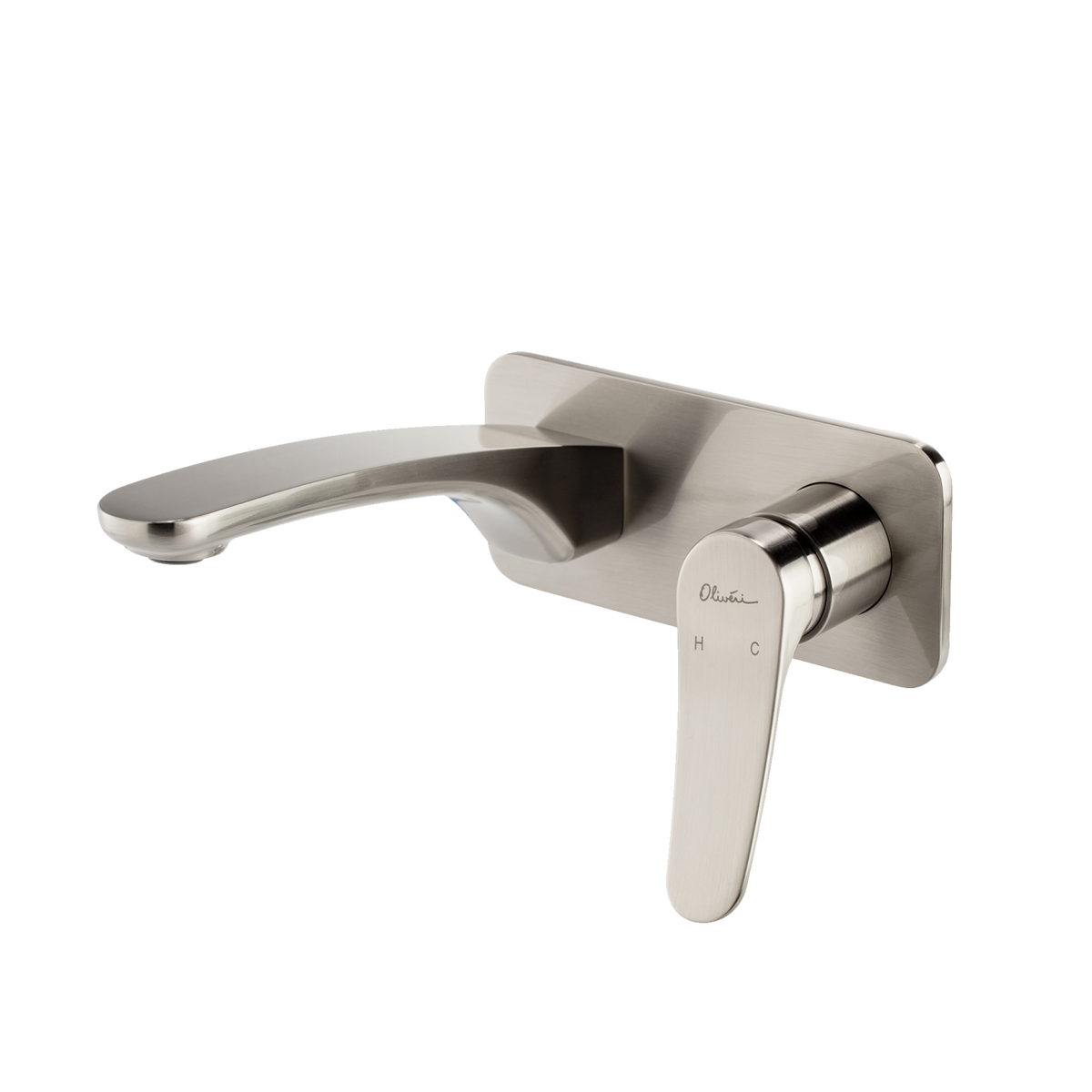

Oliveri VA305 Verona Wall Mixer Set

Sale price $540.54 Regular price $693.00
available online
Color: Brushed Nickel
SKU: VA305502BN
Brand: Oliveri
Barcode: 9324974023294
Why You’ll Love It
  • Everything required in one set: The concealed body and matching Verona trim arrive together for confident compatibility.
  • Finish flexibility after installation: Compatible Verona colours can be changed later without replacing the in-wall body.
  • A clean architectural result: Separate wall-mounted control and outlet keep the basin or bath surround beautifully uncluttered.
  • Efficient, reassuring performance: Lead-free brass, ceramic control and a 5 Star WELS outlet support comfortable daily use.
Ideal For
  • New builds and full renovations: Ideal when the concealed body can be planned and installed during first-fix plumbing.
  • Designers wanting future flexibility: The interchangeable Verona trim system leaves room for later finish changes.
  • Streamlined vanity layouts: Wall mounting frees surface space and creates a refined, easy-to-clean basin area.
  • Coordinated Verona bathrooms: Six finishes connect naturally with matching mixers, showers and accessories.
Lead Time
Order Type: Standard Order
Estimated Lead Time: 3 - 5 Business days from date of order
Delivered by: 8Appliances
These are usual lead times and can occasionally change. If this happens, we'll reach out to keep you posted. This doesn't include courier delivery time to your address. Once your order leaves the warehouse, delivery runs on your chosen courier's timeframe.

Water rating
Water Consumption: 6 litres per min
Registration Number: T43012
Licence number: 1416

Product Overview

The Oliveri VA305 Verona Wall Mixer Set combines a concealed SERIES 1 in-wall body with the complete Verona mixer and wall-outlet trim kit. Its soft curves and uplifted paddle lever create a refined wall-mounted solution for a streamlined basin or bath area.

The Verona unibody platform allows the visible trim colour to be changed later between compatible Verona finishes without replacing the concealed body. This gives renovators flexibility to update the room’s finish while retaining the original first-fix plumbing foundation.

Constructed from lead-free brass with a zinc handle and 35mm Kerox ceramic-disc cartridge, the set is designed for smooth everyday control. The outlet is WELS 5 Star rated at 6L/min under registration T43012 and operates on mains water between 150 and 500kPa.

Product Details & Specifications

Product Features
  • Complete SERIES 1 wall-mixer set: Includes the UNI-C1-BY concealed body together with the coordinated Verona mixer and fixed wall outlet trim.
  • Integrated wall-mounted design: The mixer and outlet sit on a coordinated backplate, creating a clean installation while leaving the basin or bath deck clear.
  • Practical set-out: A 265mm overall projection and 100mm outlet-to-mixer centre spacing support accurate planning and a comfortable water landing point.
  • Water-efficient performance: WELS 5 Star rated at 6 litres per minute under registration T43012 for efficient everyday basin or bath use.
  • Interchangeable Verona trim: Compatible Verona SERIES 1 finish trims can be changed later without replacing the concealed in-wall body.
  • Smooth ceramic-disc control: A 35mm Kerox cartridge supports precise, dependable adjustment of water flow and temperature.
  • Built for Australian conditions: Lead-free brass construction is designed for mains-pressure systems from 150–500kPa and water temperatures from 1°C to 65°C.
  • Six coordinated finishes: Available in Chrome, Brushed Nickel, Classic Gold, Gunmetal, Matte Black and Satin White to suit the wider Verona collection.
Programmes / Functions
Product Specifications
  • Brand: Oliveri
  • Model: VA305
  • Range: Verona
  • Product type: Complete wall mixer set
  • Series: SERIES 1
  • Concealed body: UNI-C1-BY
  • Material: Lead-free brass body and zinc handle
  • Cartridge: 35mm Kerox ceramic disc
  • WELS rating: 5 Stars, 6L/min
  • WELS registration: T43012
  • Water supply: Mains
  • Operating pressure: 150–500kPa
  • Installation: Wall concealed

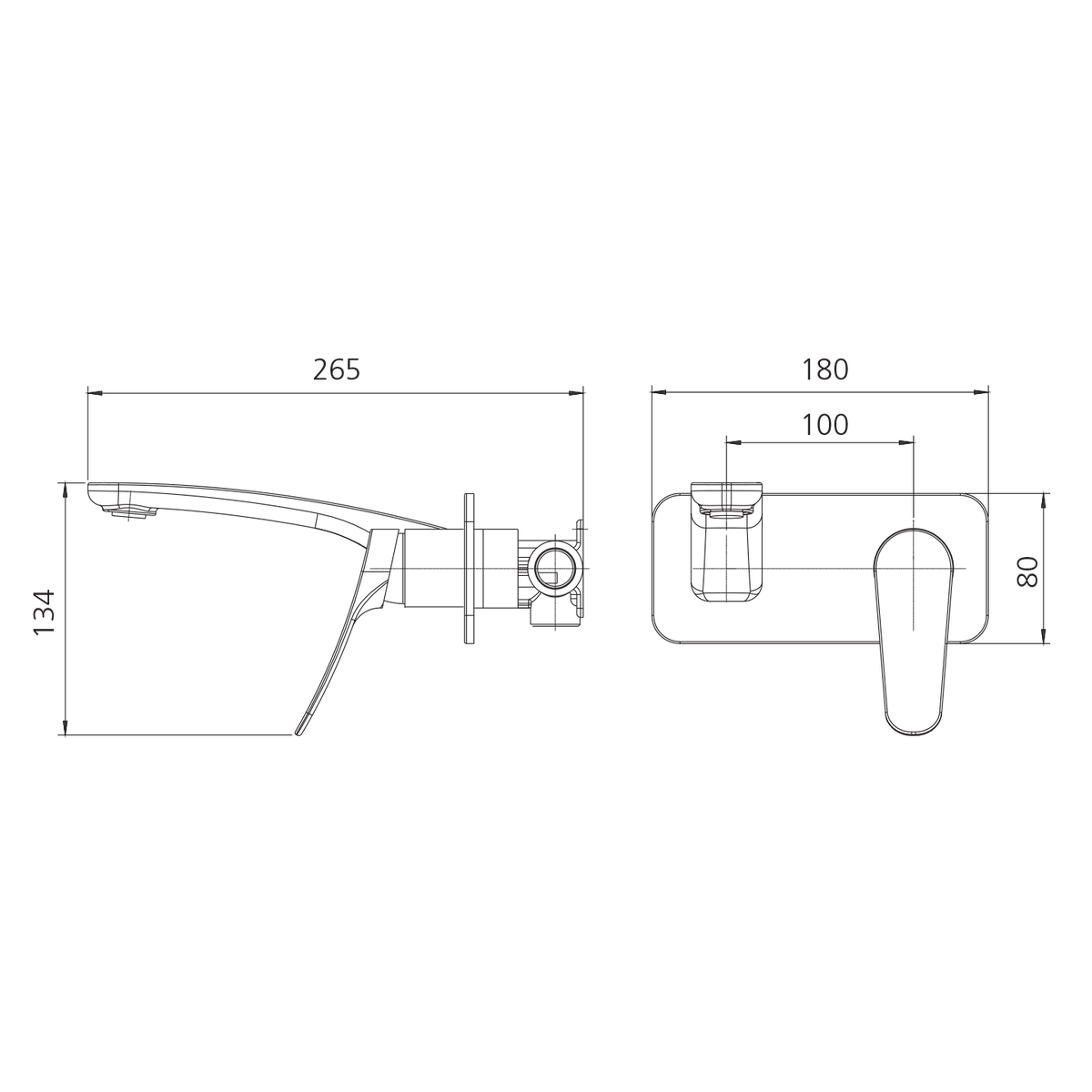

Product Measurements
  • Overall projection: 265mm
  • Overall height: 134mm
  • Backplate width: 180mm
  • Backplate height: 80mm
  • Outlet-to-mixer centre distance: 100mm
Product Weight
  • 1.97 kg
Installation & Requirements
  • Licensed installation: Must be installed by a licensed plumber to Oliveri instructions and applicable standards.
  • First-fix planning: Install the UNI-C1-BY body at the correct finished-wall depth before lining or tiling.
  • Verona compatibility: SERIES 1 body accepts compatible Verona wall mixer set trim kits only.
  • Pressure control: Install a pressure-reducing device where supply pressure can exceed 500kPa.
  • Positioning: Confirm outlet reach, basin or bath location and water landing point before closing the wall.
Colour/Finishes
  • Brushed Nickel

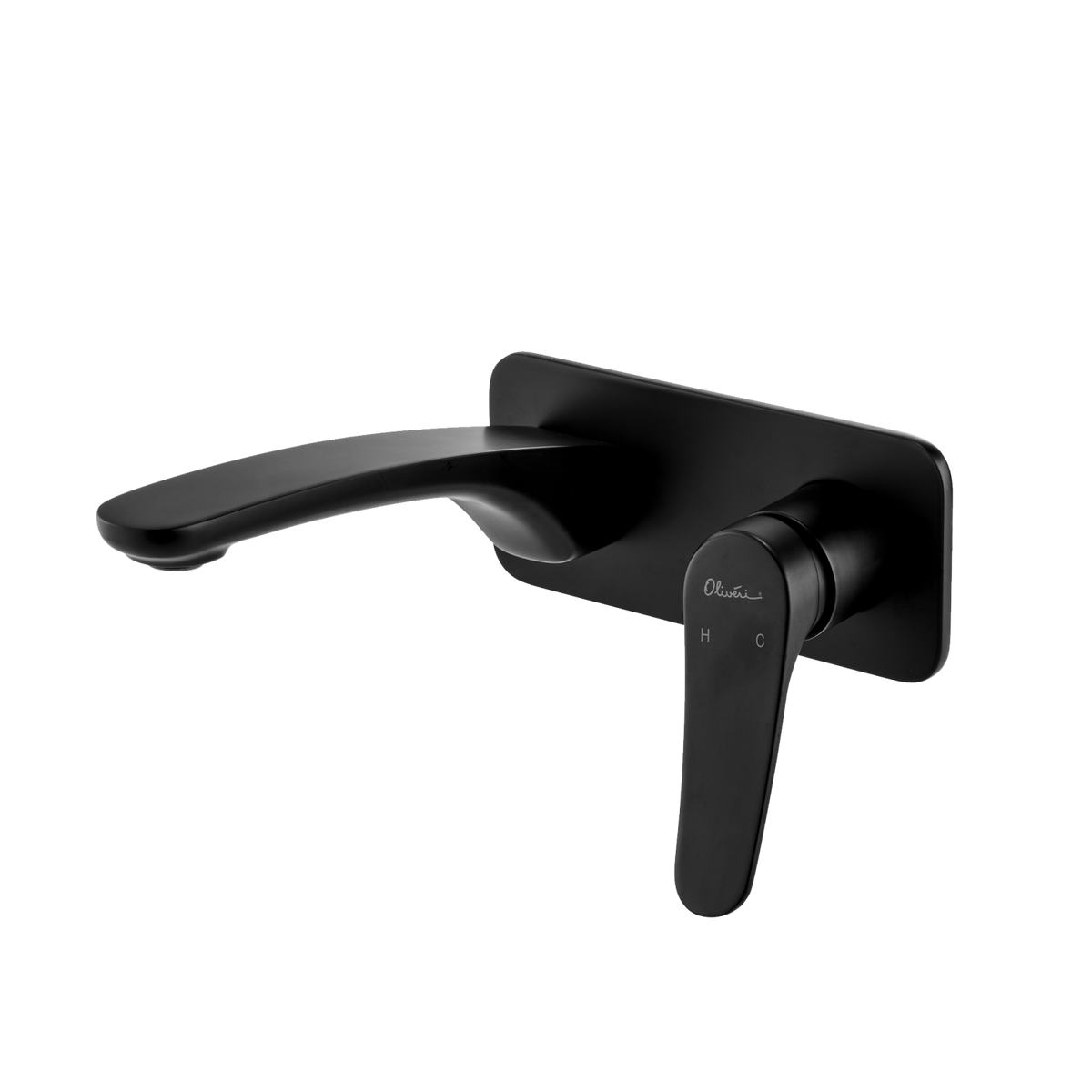

  • Matte Black

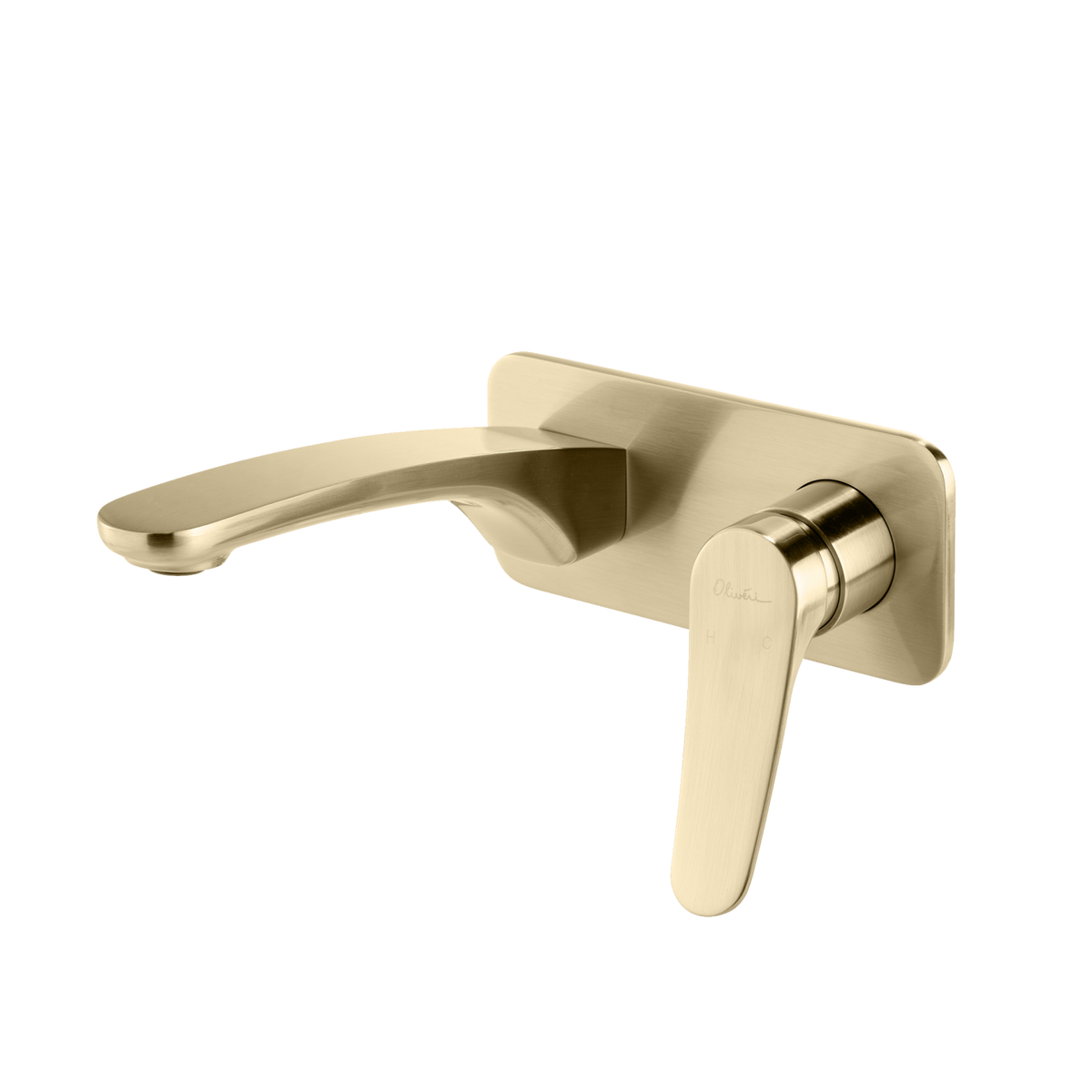

  • Classic Gold

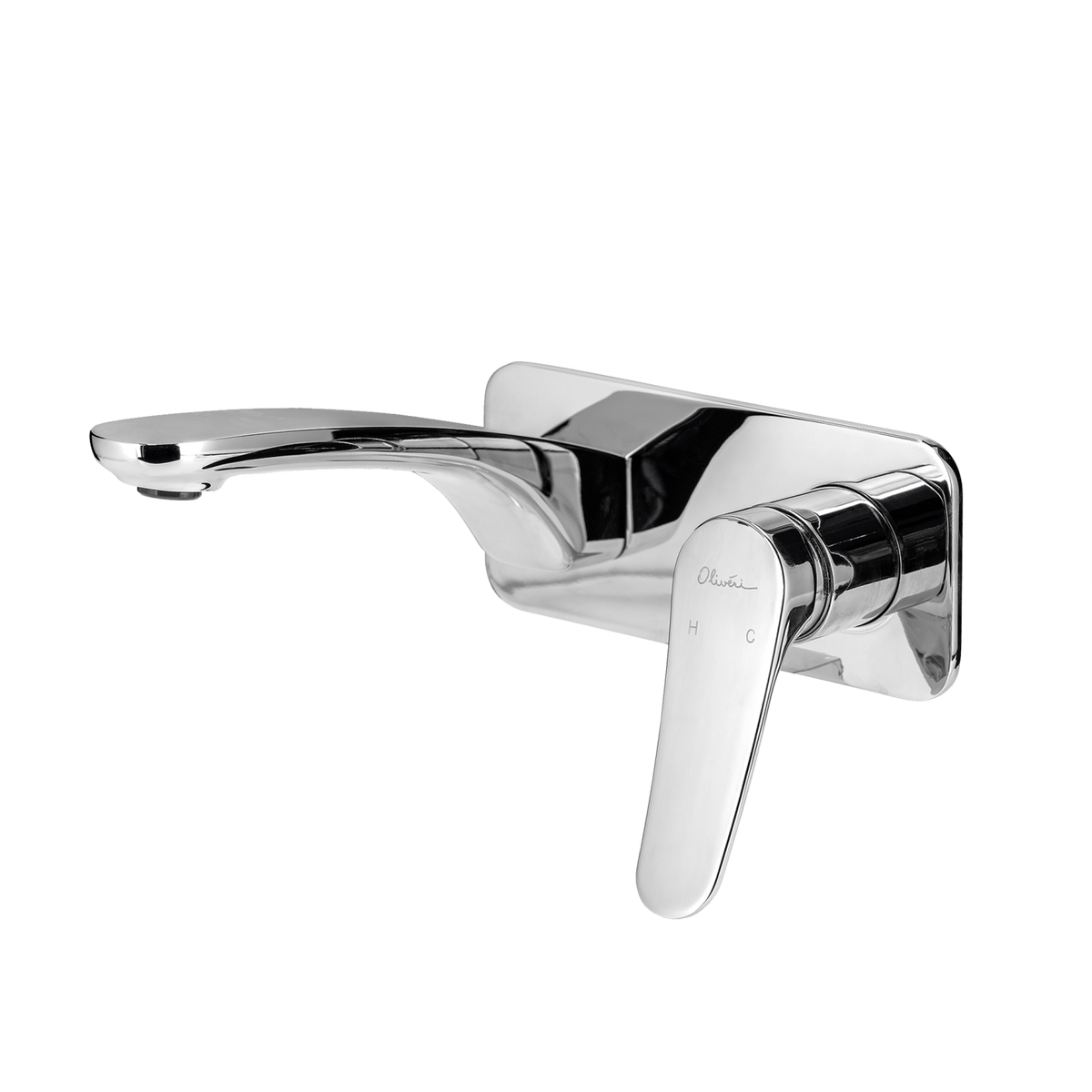

  • Chrome

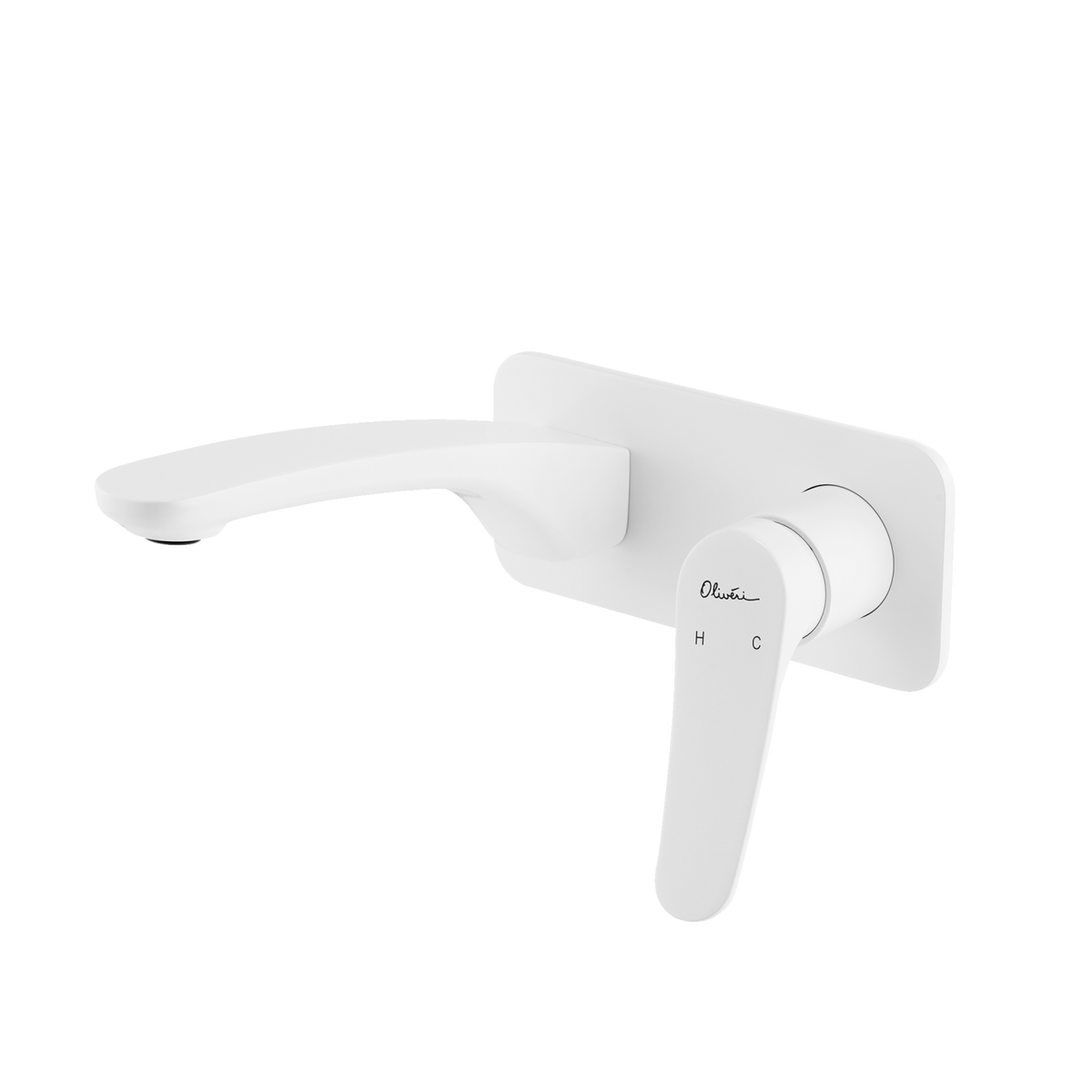

  • Satin White

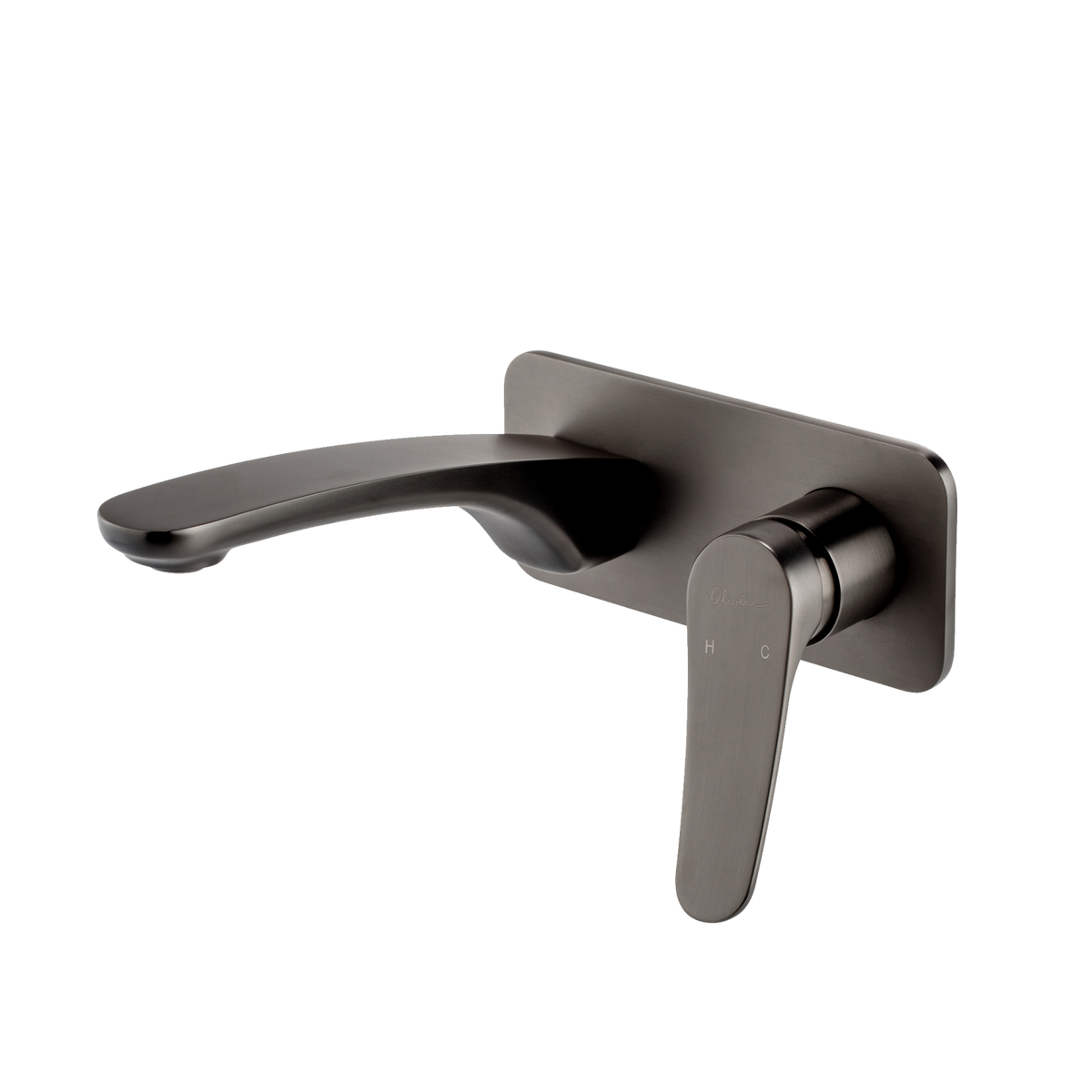

  • Gunmetal
Warranty

Warranty coverage

Oliveri products are backed by a comprehensive manufacturer's warranty, reflecting the enduring quality of their Australian kitchen, bathroom, and laundry products.

Domestic warranty periods apply. Commercial periods differ. Applies to products purchased after 1st March 2022.

Kitchen sinks & laundry tubs

  • Stainless steel sinks & tubs: Lifetime — Replacement product, original purchaser only
  • Basket waste & accessories: 1 year — Replacement parts

Basins

  • Vitreous china basins: 20 years — Replacement parts, 1 year labour
  • Stainless steel & Terzofoco basins: Lifetime — Replacement bowl, original purchaser only

Bathroom tapware

  • Cartridge & body: 15 years — Replacement parts, 1 year labour
  • Chrome finish: 15 years — Replacement parts, 1 year labour
  • PVD finish: 10 years — Replacement parts, 1 year labour
  • Other finishes & seals: 5 years — Replacement parts, 1 year labour

Kitchen tapware

  • Premium ranges (Vilo, Pepe, Essente 316) — cartridge: 15 years — Replacement parts, 1 year labour
  • Premium ranges — body & chrome finish: 7 years — Replacement parts and labour
  • Standard ranges — cartridge: 10 years — Replacement parts, 1 year labour
  • Standard ranges — body & chrome finish: 7 years — Replacement parts and labour

Showers

  • Main body: 15 years — Replacement parts, 1 year labour
  • Chrome finish: 7 years — Replacement parts, 1 year labour
  • Non-chrome/coloured finish & shower head: 5 years — Replacement parts, 1 year labour
  • Hoses, seals & O-rings: 2 years — Replacement parts, 1 year labour

Toilets

  • Vitreous china cistern & pan: 20 years — Replacement parts, 1 year labour
  • Toilet seat: 5 years — Replacement parts, 1 year labour
  • Valves & fittings: 2 years — Replacement parts, 1 year labour

Baths

  • Island & inset bath shell: 15 years — Replacement parts, 1 year labour
  • Freestanding bath shell: 10 years — Replacement parts, 1 year labour

Bathroom accessories

  • Parts & chrome finish: 7 years — Replacement parts, 1 year labour
  • Non-chrome/coloured finish: 5 years — Replacement parts, 1 year labour

Proof of purchase is required for all claims. The lifetime warranty applies to the original purchaser only and is not transferable.

What's covered

  • Manufacturing defects in materials and workmanship
  • Repair or replacement of faulty products within the applicable warranty period
  • Replacement of defective parts

What's not covered

  • Scratching or general surface finish deterioration from normal use
  • Incorrect installation or failure to follow manufacturer guidelines
  • Misuse, abuse, accidental damage, or neglect
  • Use of abrasive, acidic, or harsh chemical cleaning products
  • Damage from excess water pressure (over 500kPa) or water temperature
  • Normal wear and tear, including seals and O-rings
  • Repairs or modifications carried out by unauthorised parties
  • Products with visible faults installed without prior reporting

Conditions

  • Must be installed by a licensed plumber, tradesperson, or electrician as appropriate
  • Must be installed in accordance with Australian Standards and manufacturer instructions
  • Water pressure must not exceed 500kPa
  • Products must be inspected for damage before installation
  • Braided stainless steel flexible hoses must be inspected every 12 months
  • Proof of purchase must be provided with all claims
  • The warranty applies to the original purchaser only

Making a claim

To make a warranty claim, contact Oliveri directly by phone or email. Please have your proof of purchase, photos of the product and defect, and installer details ready when submitting your claim.

Australian Consumer Law

Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if they fail to be of acceptable quality and the failure does not amount to a major failure.

Country Of Origin
Extra Information

Buying the complete VA305 set gives the installer the concealed body required at first fix and the matching trim needed at completion. This reduces compatibility uncertainty while preserving the flexibility of Oliveri’s SERIES 1 Verona platform.

The interchangeable trim concept is especially useful for projects where the final colour decision is made after tiles, cabinetry and other fittings are selected. Future finish changes remain limited to compatible Verona SERIES 1 wall mixer set trims.

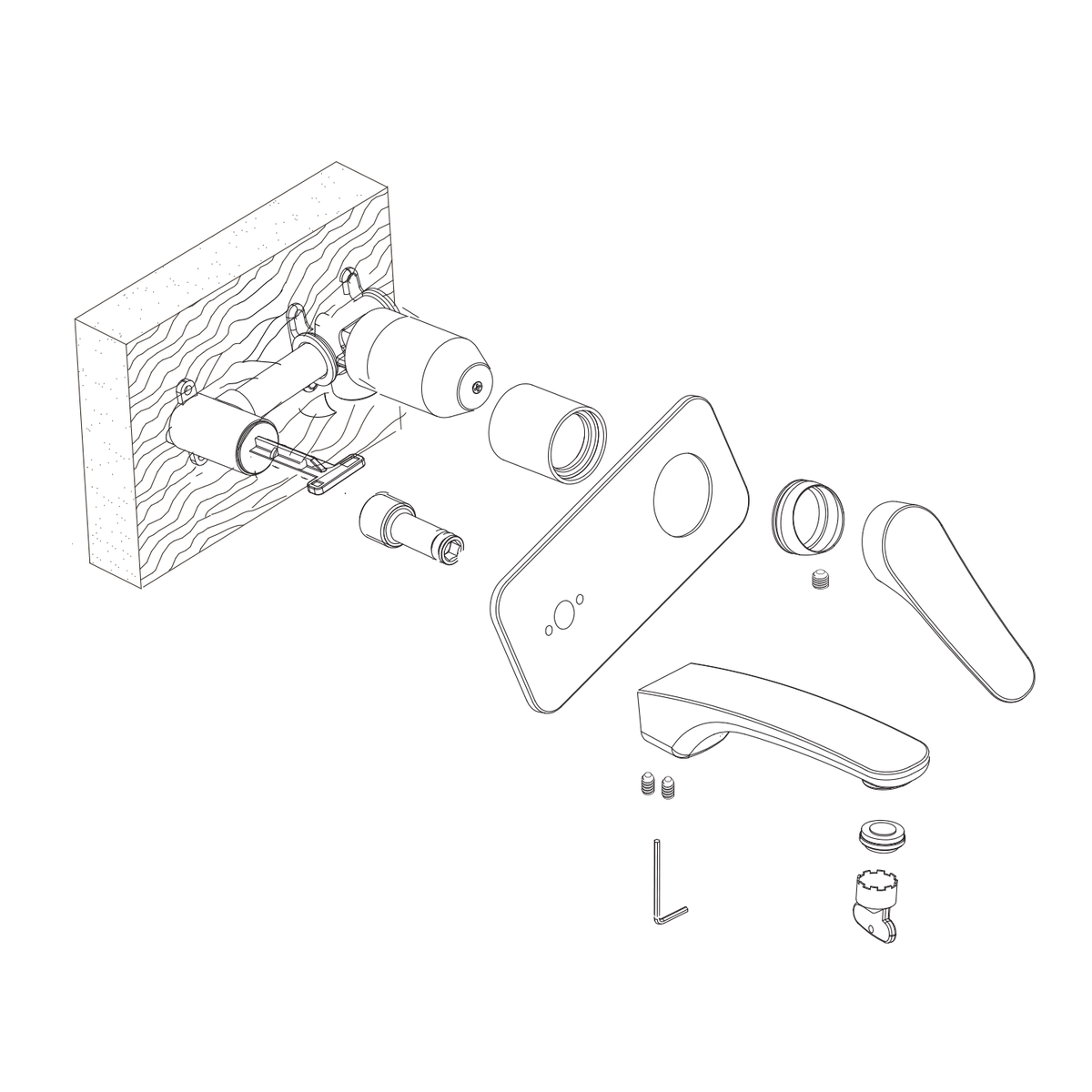

Included Products / Accessories
  • UNI-C1-BY in-wall body: Concealed lead-free brass mixer body with 35mm Kerox cartridge.
  • Verona trim kit: Mixer handle, wall plates and fixed wall outlet in the selected finish.
  • Installation components: Supplied fittings required for the complete set.

Disclaimer

Product images are for illustrative and presentation purposes only. Any accessories, fittings, or additional items shown may not be included with the product unless explicitly stated in the product description. Please refer to the product specifications and inclusions for full details.
