Product Description
Product Overview:
The Oliveri VA305-TK Verona Wall Mixer Set Trim Kit completes a compatible SERIES 1 concealed body with a coordinated mixer control and fixed wall outlet. Soft curves and the uplifted paddle lever give the installation Verona’s refined character while wall mounting keeps the basin or bath surround beautifully uncluttered.
Designed for the Oliveri UNI-C1-BY in-wall body, the trim-only set is ideal where first-fix plumbing is already installed or where the visible finish is selected later. Its fixed outlet delivers WELS 5 Star efficiency at 6 litres per minute, and six finishes coordinate with the wider Verona bathroom collection.
Product Features:
- Trim-kit-only wall-mixer set: Completes a separately installed Oliveri UNI-C1-BY SERIES 1 concealed body.
- Integrated mixer and outlet presentation: Combines the Verona paddle-lever control and fixed wall outlet on a coordinated 180mm-wide backplate.
- Practical 265mm projection: Provides generous outlet reach for compatible wall-mounted basin layouts.
- Water-efficient performance: WELS 5 Star rated at 6L/min under registration T43012 for efficient everyday basin use.
- Late-stage finish selection: Allows the visible trim to be fitted after tiles and surrounding finishes are complete.
- Future finish flexibility: Compatible Verona trim colours can be changed without replacing the concealed UNI-C1-BY body.
- Lead-free construction: Lead-free brass body components and a durable zinc handle support dependable daily operation.
- Six coordinated finishes: Available in Chrome, Brushed Nickel, Classic Gold, Gunmetal, Matte Black and Satin White.
Colour / Finishes:

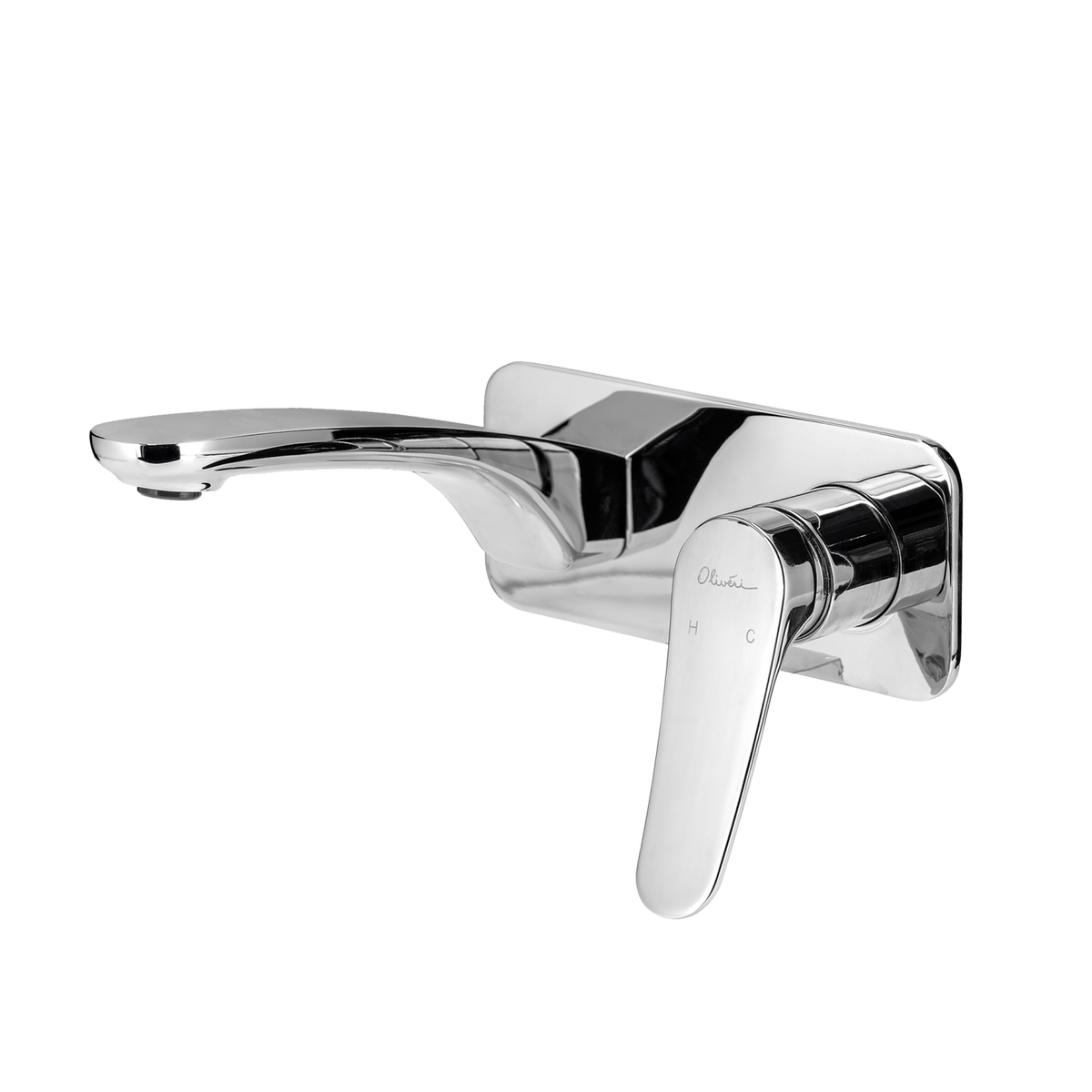

- Chrome - VA305500CR-TK

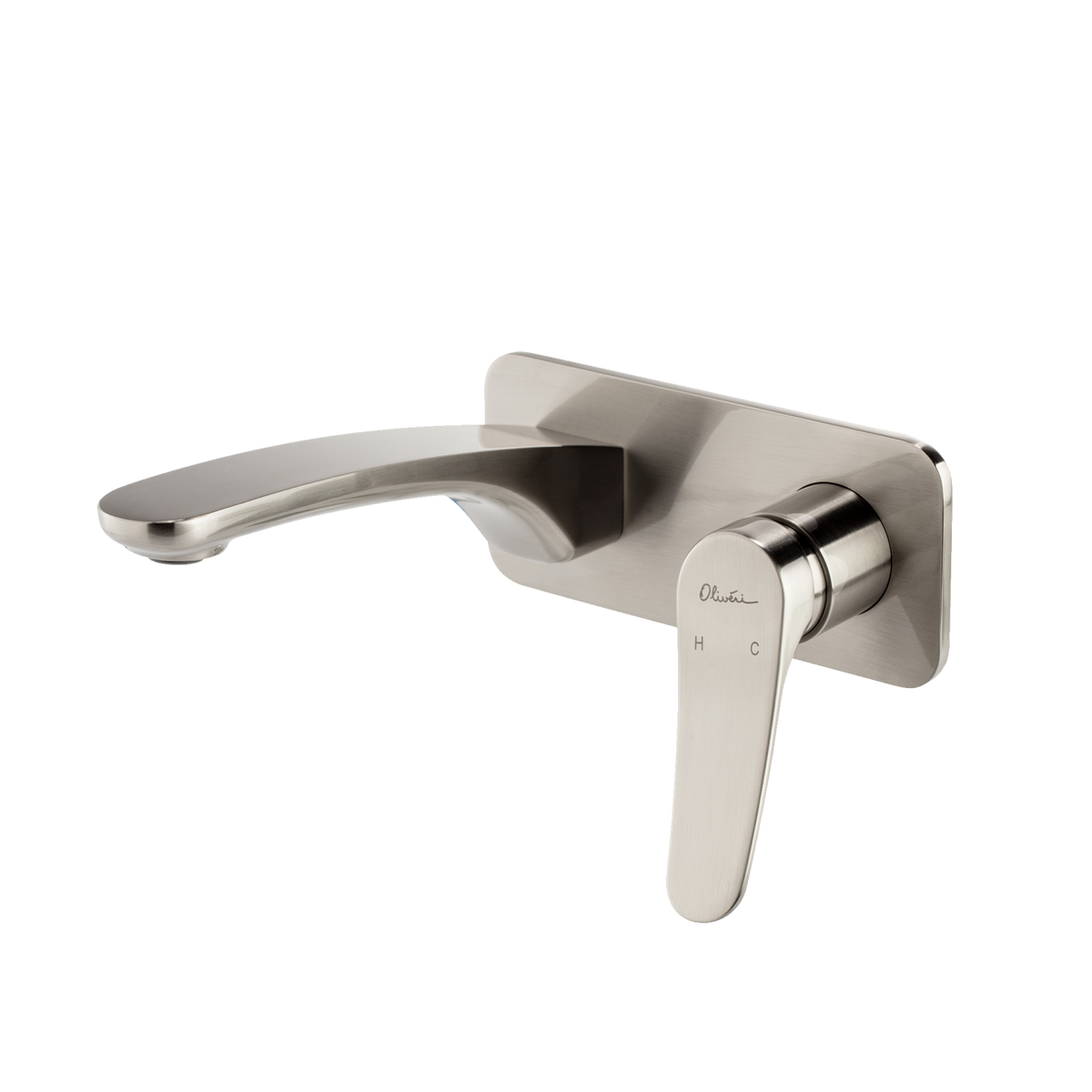

- Brushed Nickel - VA305502BN-TK

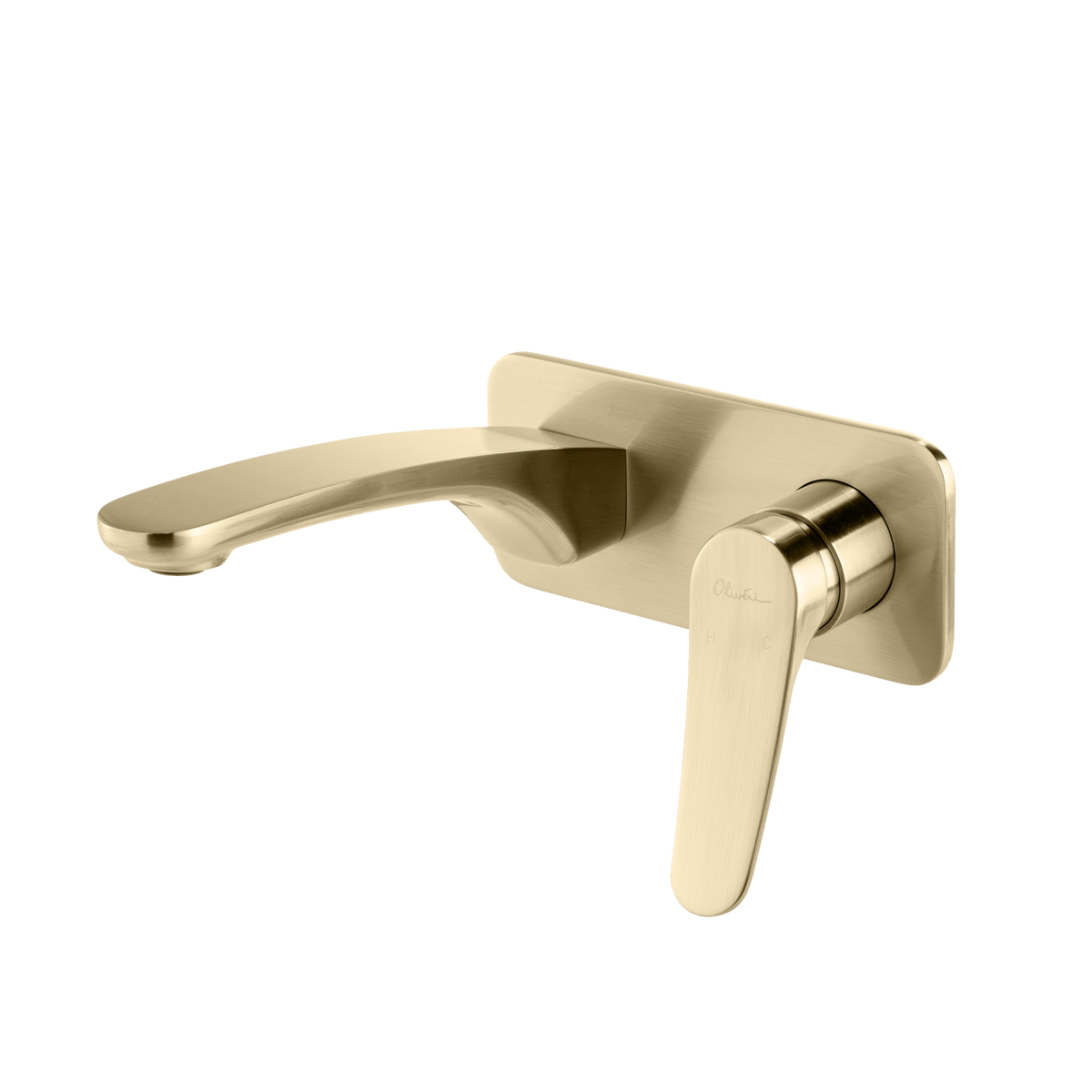

- Classic Gold - VA305503CG-TK

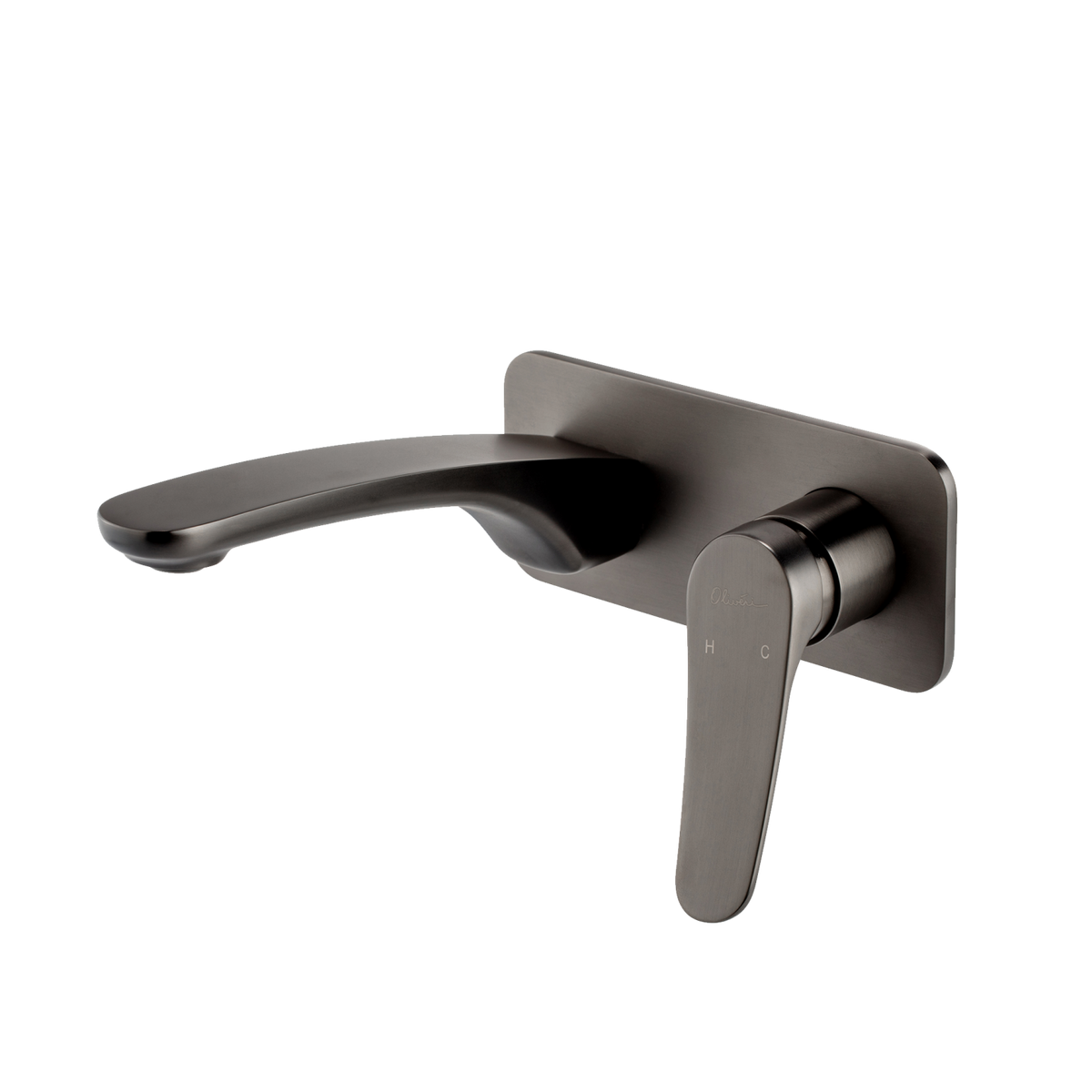

- Gunmetal - VA305505GM-TK

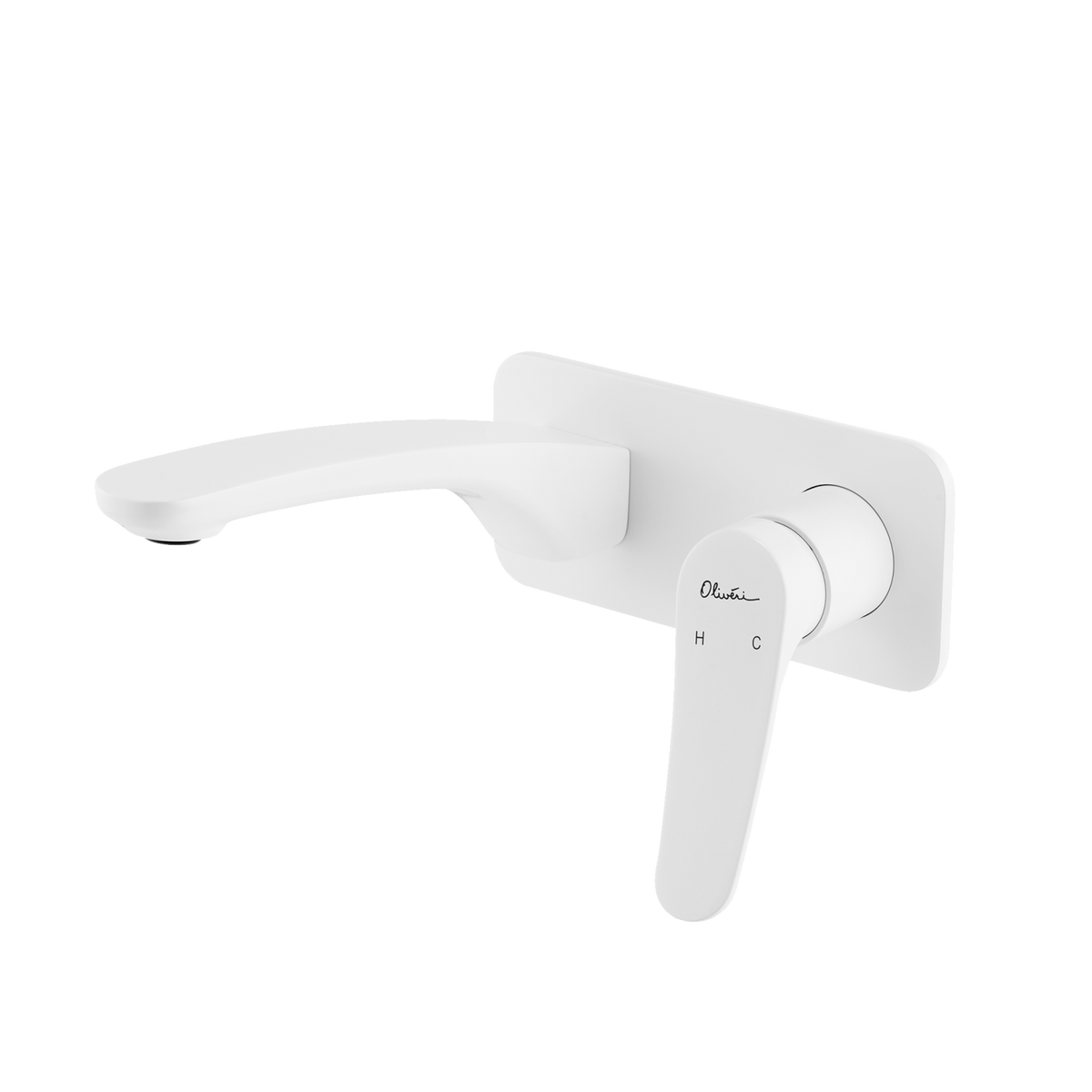

- Satin White - VA305507WH-TK

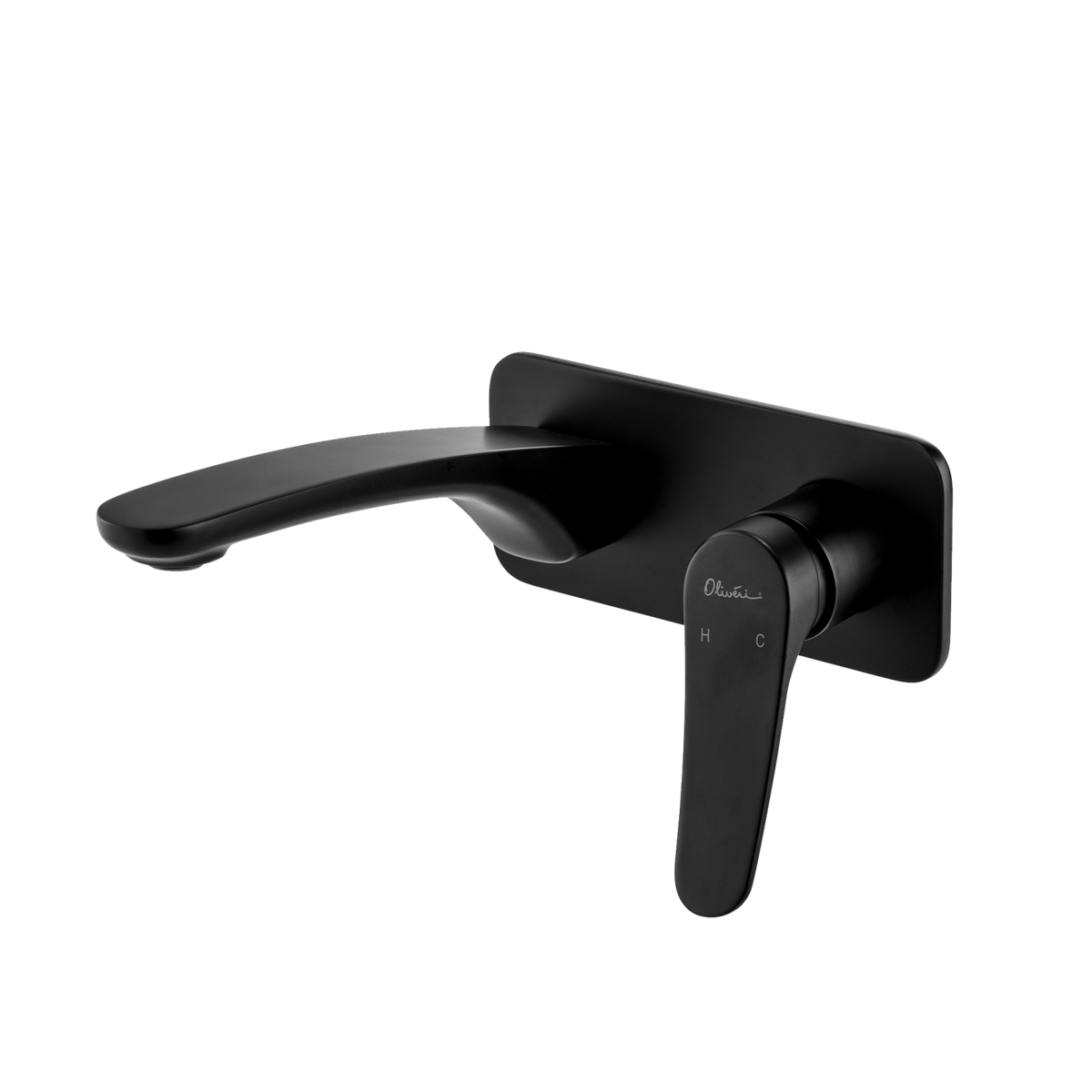

- Matte Black - VA305516MB-TK
Cleaning & Maintenance:
- Clean with warm soapy water and a soft cloth.
- Rinse and dry after cleaning.
- Avoid abrasive or acid-based products.
- Keep the outlet aerator clear while retaining the certified flow regulator.
Specifications:
- Product type: Wall mixer set trim kit only
- Compatibility: Oliveri UNI-C1-BY SERIES 1 in-wall body
- Material: Lead-free brass and zinc components
- Installation: Wall mounted
- WELS rating: 5 Stars, 6L/min
- WELS registration: T43012
- Licence number: 1416
- In accordance with AS/NZS 6400

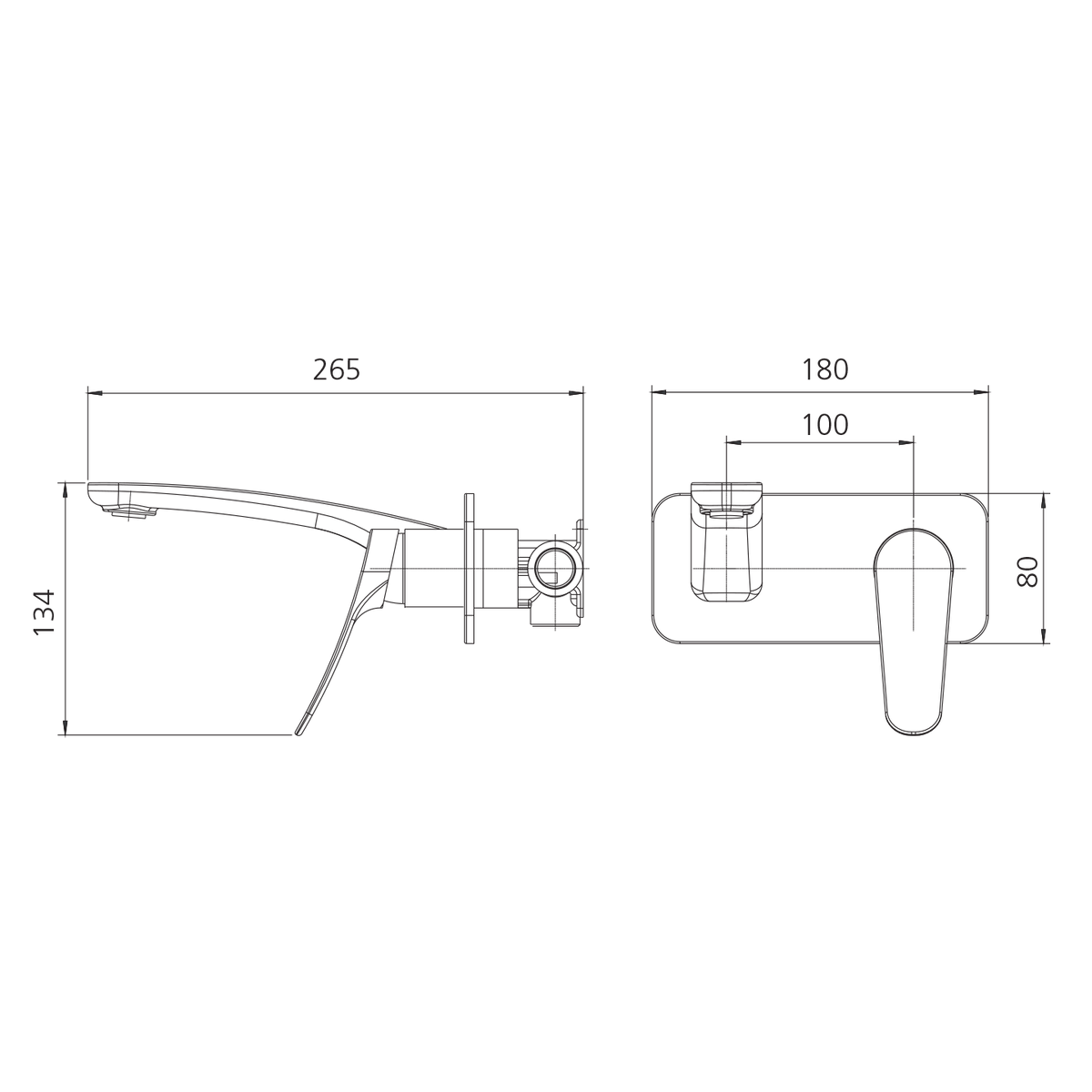

Product Measurements:
- Overall Projection: 265mm
- Overall Height: 134mm
- Backplate Width: 180mm
- Backplate Height: 80mm
- Outlet-to-Mixer Centre Distance: 100mm
Product Weight:
- Net Product Weight: 1.22kg

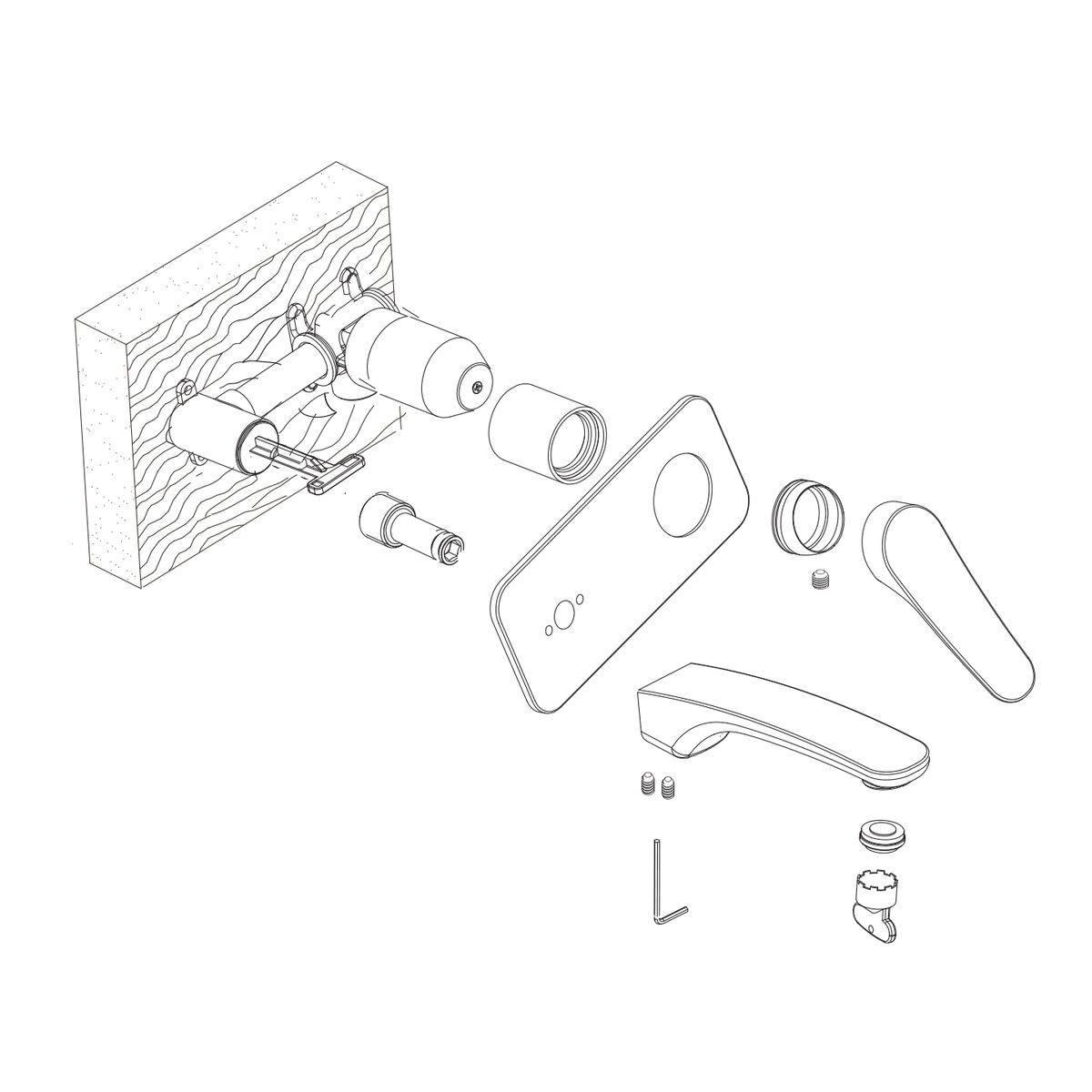

Installation & Requirements:
- Requires a separately installed UNI-C1-BY concealed body.
- Must be fitted by a licensed plumber.
- Confirm outlet reach, water landing point and finished-wall set-out.
- This trim set cannot operate independently.
Extra Information:
The VA305-TK separates the visible mixer-and-outlet trim from the concealed body needed during first fix. This allows the final finish to be chosen after tiles, cabinetry and other fittings are confirmed while maintaining compatibility with the planned Verona SERIES 1 system.
Compatible trim can also be changed later without replacing the concealed body. The WELS-rated outlet must retain its supplied aerator and flow regulator to preserve certified water efficiency.
Included Products / Accessories:
- Verona mixer faceplate and paddle handle
- Fixed wall outlet with WELS-rated aerator
- Trim installation components supplied by Oliveri
Warranty:
Oliveri products are backed by a comprehensive manufacturer's warranty, including lifetime cover on selected stainless steel kitchen sinks, laundry tubs and basins, 20 years on selected vitreous china basins and toilets, and 15 years on selected bathroom tapware and shower bodies. Warranty periods vary by product category and are in addition to your rights under the Australian Consumer Law. Refer to the Oliveri Warranty page for full terms and conditions.
