Product Description
Product Overview:
The Oliveri VA304-TK Verona Wall Mixer with Diverter Trim Kit completes a compatible SERIES 1 concealed diverter body with the visible controls that define the Verona collection. Its softly rounded forms and uplifted paddle lever create a refined finish while a dedicated diverter control lets the installed system switch between two connected outlets.
Designed specifically for the Oliveri UNI-B1-BY in-wall body, this trim-only package is ideal when first-fix plumbing is already installed or when the visible colour is selected later in the project. Six finishes make it simple to coordinate the mixer with surrounding Verona tapware and bathroom fittings.
Product Features:
- Trim-kit-only diverter package: Completes a separately installed Oliveri UNI-B1-BY SERIES 1 concealed mixer-with-diverter body.
- Two-outlet control: Provides visible mixer and diverter controls for directing water between two connected outlets.
- Soft Verona styling: Rounded forms and the uplifted paddle lever coordinate with the wider Verona bathroom collection.
- Late-stage finish selection: Keeps decorative trim protected during construction and allows the final colour to be selected after surrounding finishes.
- Future finish flexibility: Compatible Verona trim colours can be changed later without disturbing the concealed plumbing body.
- Structured wall presentation: The 80mm × 180mm faceplate integrates the mixer and diverter controls in one clean vertical format.
- Premium component construction: Lead-free brass and zinc components provide a durable, reassuring visible control assembly.
- Six coordinated finishes: Available in Chrome, Brushed Nickel, Classic Gold, Gunmetal, Matte Black and Satin White.
Colour / Finishes:

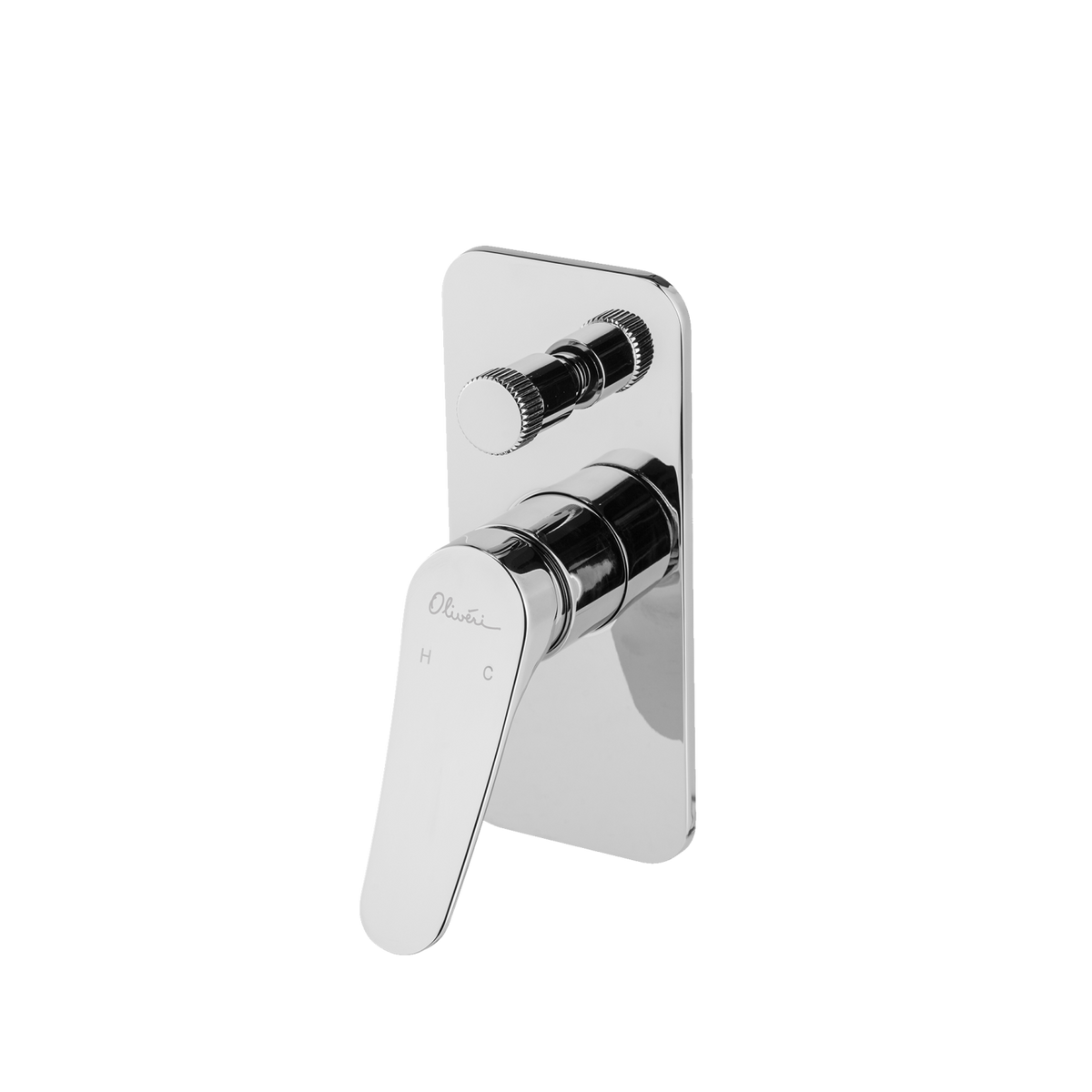

- Chrome - VA304500CR-TK

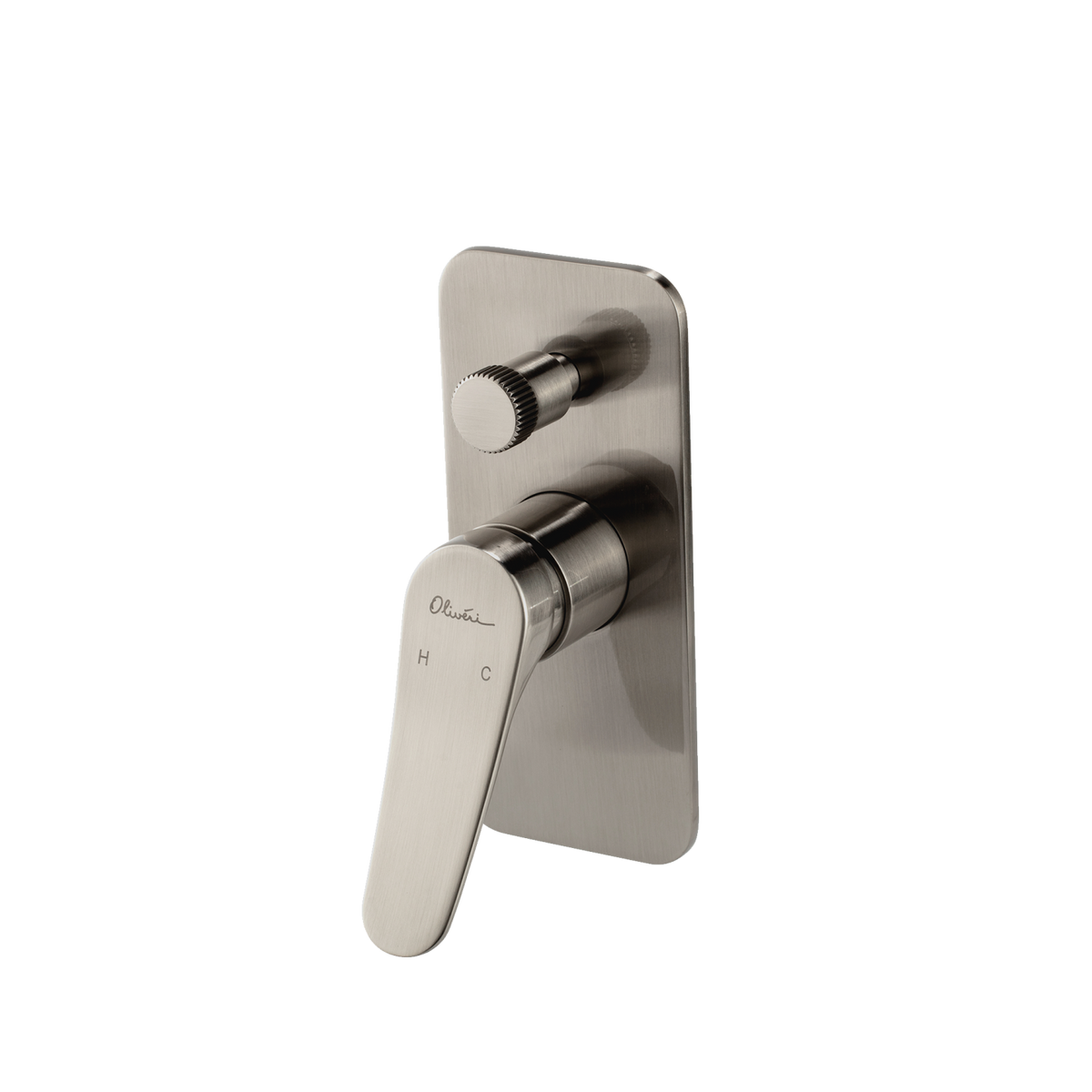

- Brushed Nickel - VA304502BN-TK

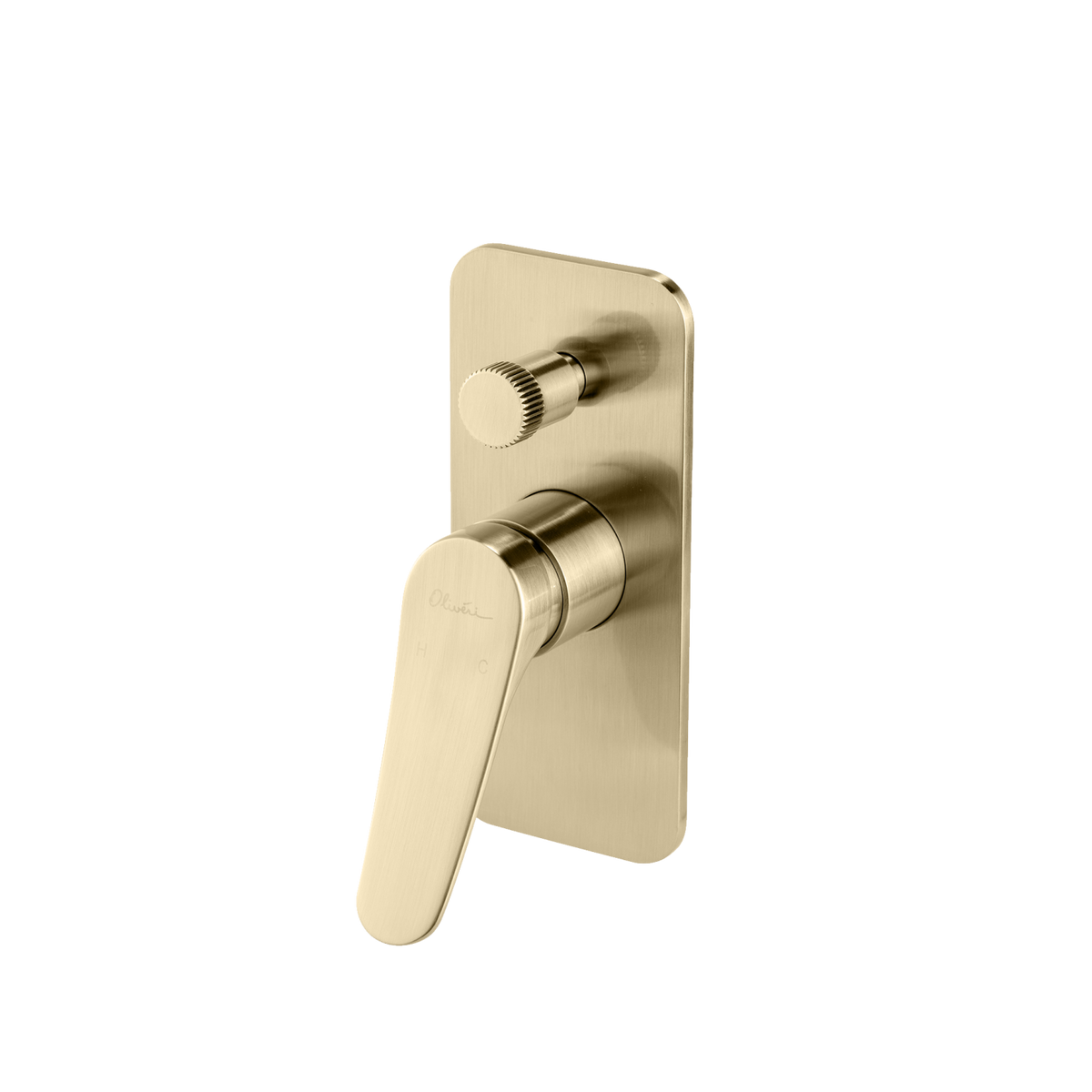

- Classic Gold - VA304503CG-TK

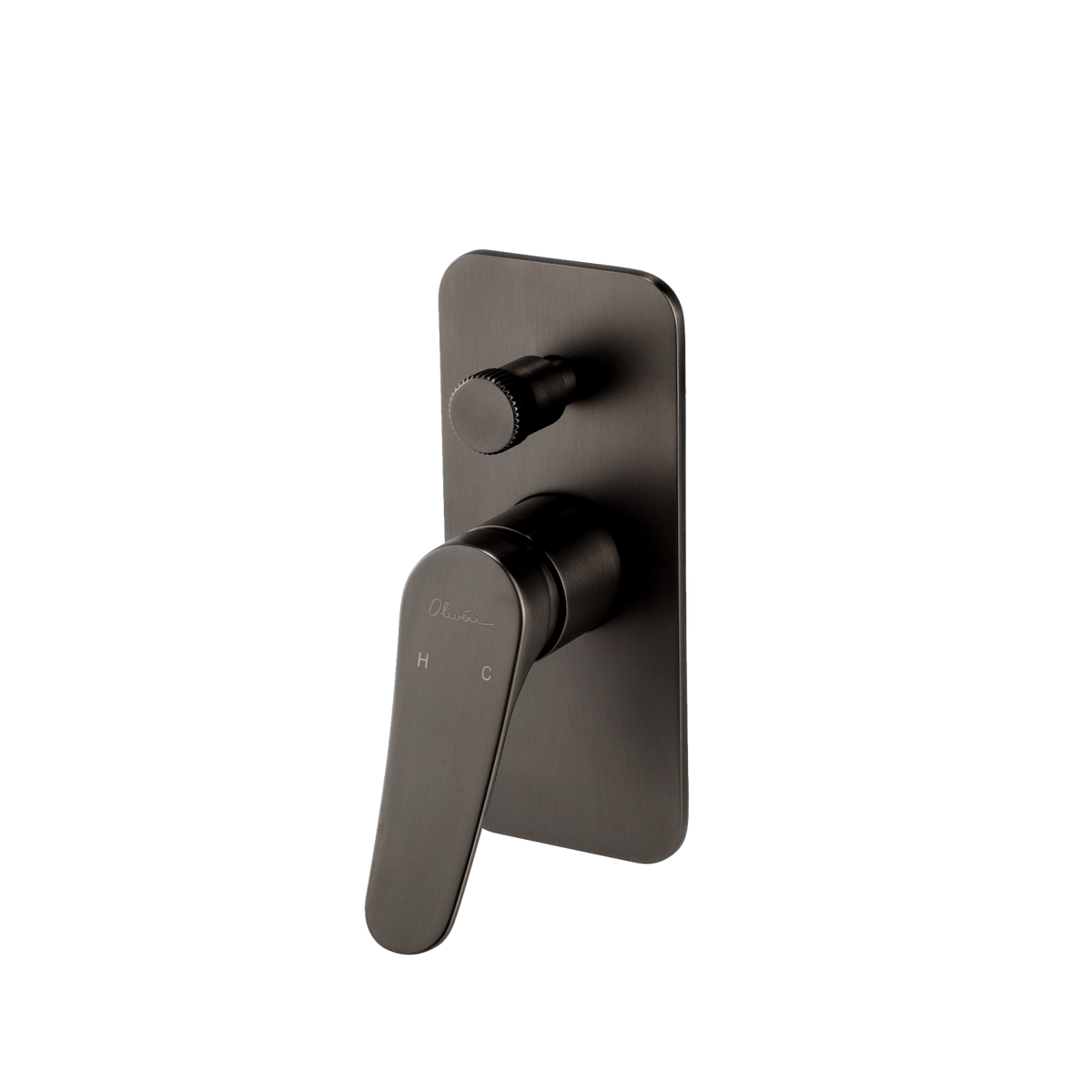

- Gunmetal - VA304505GM-TK

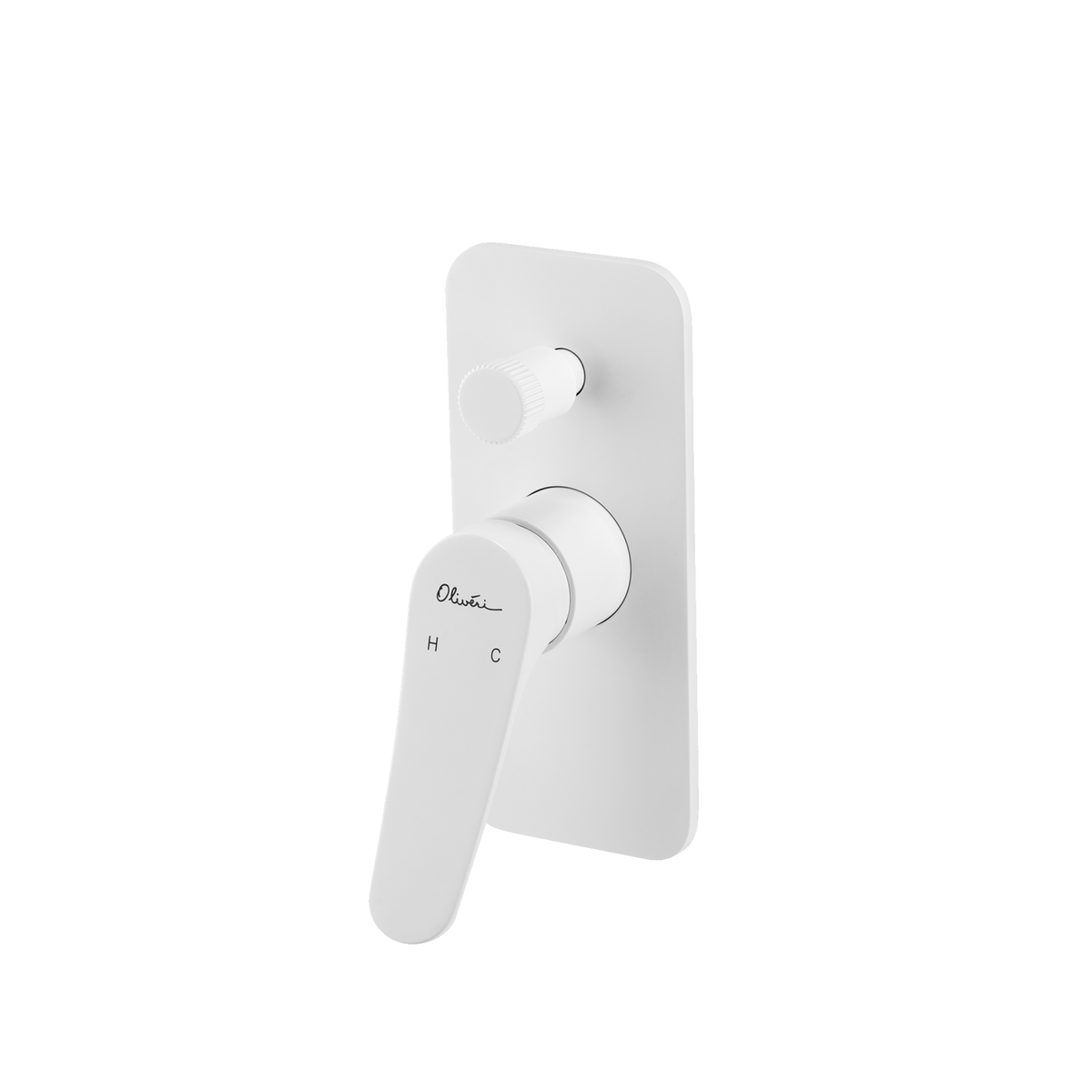

- Satin White - VA304507WH-TK

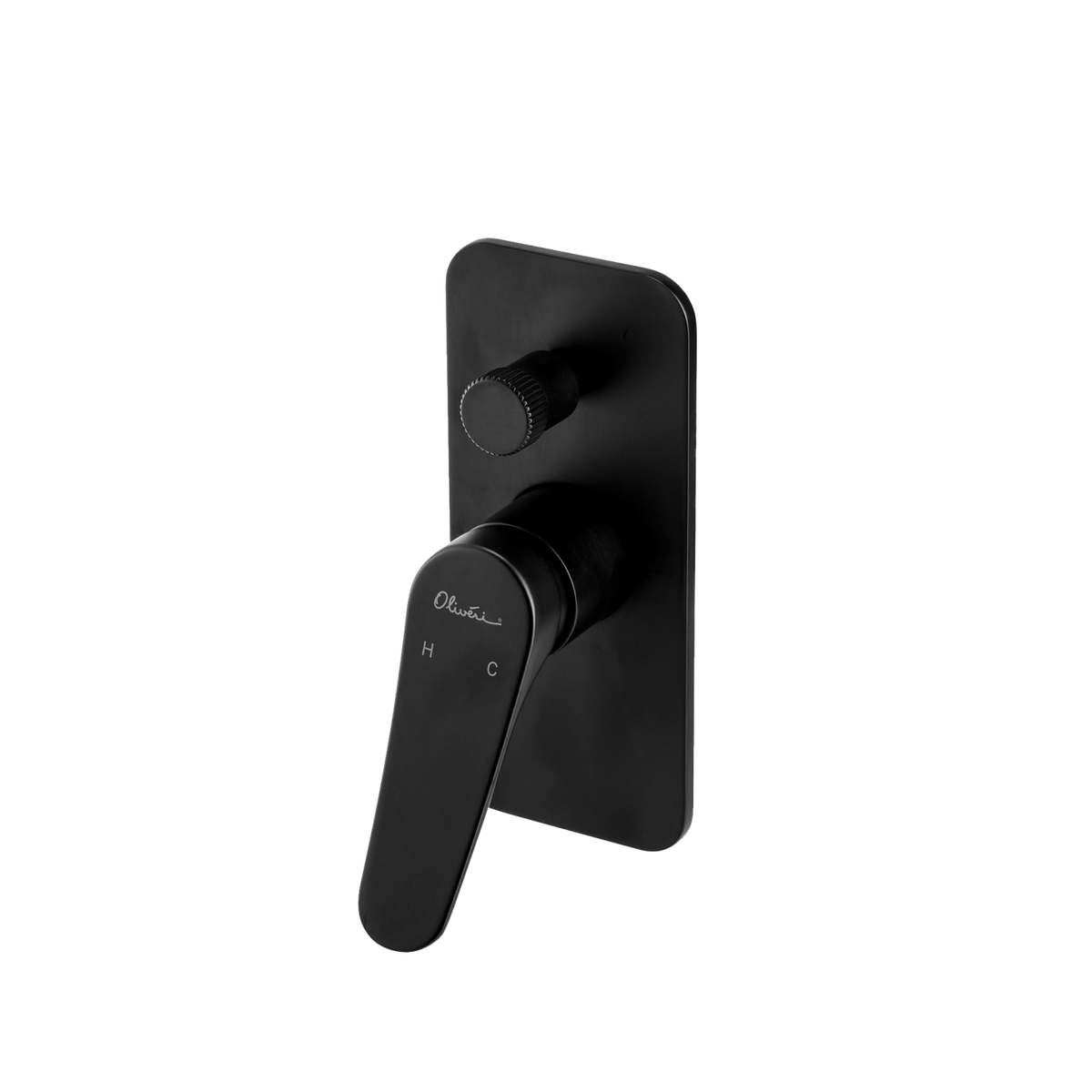

- Matte Black - VA304516MB-TK
Programmes / Functions:
- Mixer trim controls water temperature and flow through the installed UNI-B1-BY body
- Diverter trim switches between two connected outlet circuits
Cleaning & Maintenance:
- Use warm soapy water and a soft cloth.
- Rinse and dry after cleaning.
- Avoid abrasive, acidic or harsh chemical products.
Specifications:
- Product type: Mixer-with-diverter trim kit only
- Range: Verona SERIES 1
- Compatibility: Oliveri UNI-B1-BY in-wall body
- Installation: Wall mounted
- Materials: Lead-free brass and zinc components

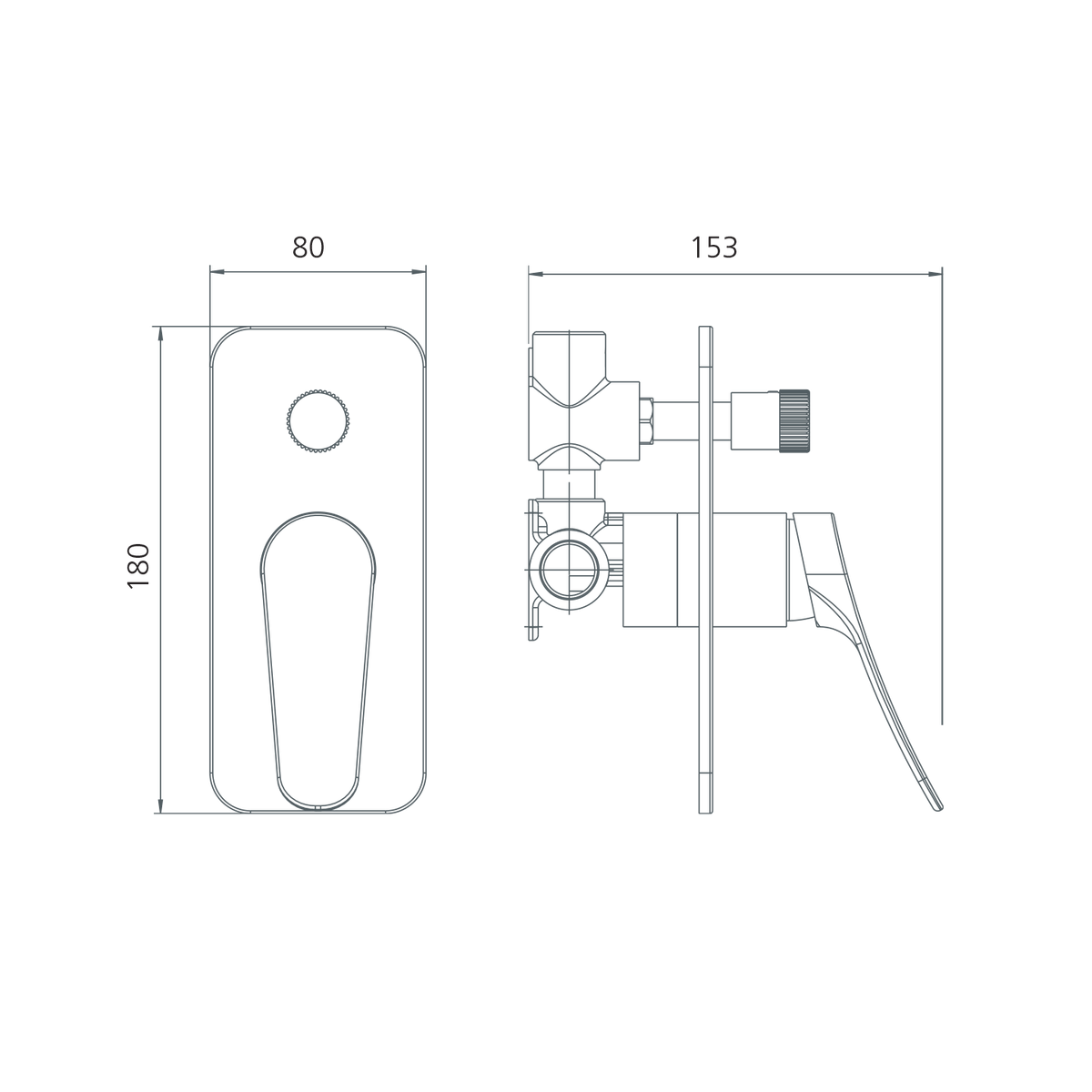

Product Measurements:
- Faceplate Width: 80mm
- Faceplate Height: 180mm
- Overall Installed Depth: 153mm
Product Weight:
- Net Product Weight: 1.02kg
Installation & Requirements:
- Requires the separately installed Oliveri UNI-B1-BY SERIES 1 body.
- Must be fitted by a licensed plumber.
- Confirm the concealed body model and finished-wall set-out.
- This trim kit cannot operate without its compatible concealed body and two planned outlet circuits.
Extra Information:
The VA304-TK is intended for projects where the UNI-B1-BY concealed mixer-and-diverter body is installed during first fix. Keeping the trim separate allows the visible finish to be selected after tiles, cabinetry and other fittings are confirmed.
Compatible Verona SERIES 1 trim can also be changed later without replacing the concealed body. Because the kit is purpose-specific, verify the installed body model and outlet configuration before ordering.
Included Products / Accessories:
- Verona mixer faceplate and paddle handle
- Verona diverter control trim
- Trim installation components supplied by Oliveri
Warranty:
Oliveri products are backed by a comprehensive manufacturer's warranty, including lifetime cover on selected stainless steel kitchen sinks, laundry tubs and basins, 20 years on selected vitreous china basins and toilets, and 15 years on selected bathroom tapware and shower bodies. Warranty periods vary by product category and are in addition to your rights under the Australian Consumer Law. Refer to the Oliveri Warranty page for full terms and conditions.
