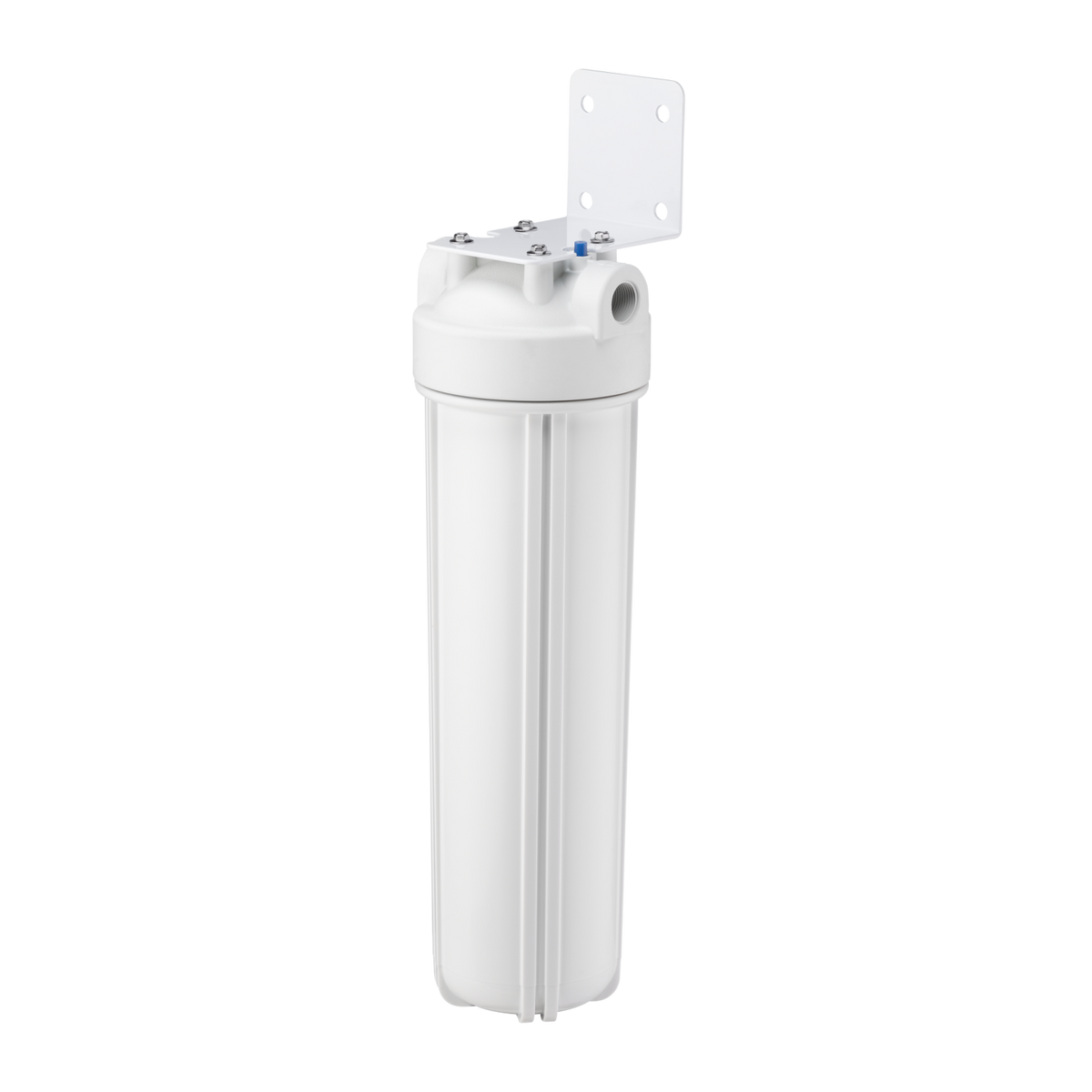

Oliveri K-T-WH20S HiFlow Single 20-inch Whole of House Water Filtration System

• Whole-home point-of-entry filtration: Treats mains water before it reaches household outlets.
• 5-micron carbon filtration: Helps reduce sediment, chlorine, unpleasant tastes and odours.
• Up to 60L/min flow: Supports everyday household water use while filtering at the entry point.
• WaterMark Certified Lead Free: Tested for safe drinking-water contact and compliant installation.
• Service-friendly housing: Includes the cartridge wrench and mounting hardware needed for ongoing access.

• Whole-home filtration: Treats mains water at the point of entry before distribution to household outlets.
• Carbon filtration: Reduces sediment, chlorine, unwanted tastes and odours down to a nominal 5-micron rating.
• High-flow delivery: Supports flow rates up to 60L/min, noting that flow rate affects filter performance.
• Serviceable cartridge system: The filter cartridge is designed for periodic replacement using the included wrench.

• Brand: Oliveri
• Collection: HiFlow
• Model: K-T-WH20S
• Product Type: Single 20-inch whole of house water filtration system
• Filtration Rating: 5 micron
• Included Cartridge: 20-inch carbon filter cartridge
• Maximum Flow Rate: 60L/min
• Operating Pressure: 100–500kPa
• Maximum Pressure: 880kPa
• Operating Temperature: 4.4–40°C
• Maximum Ambient Temperature: 50°C
• Inlet / Outlet Connection: 1-inch BSP
• Cartridge Service Life: Approximately 6–12 months, subject to water conditions and use
• Replacement Carbon Cartridge: C-T-JUMBO20C
• Compatible Sediment Cartridge: C-T-JUMBO20S
• Certification: WaterMark Certified Lead Free; complies with AS 3497 and NSF/ANSI Standard 42
• Warranty: 10 years, excluding the filter cartridge

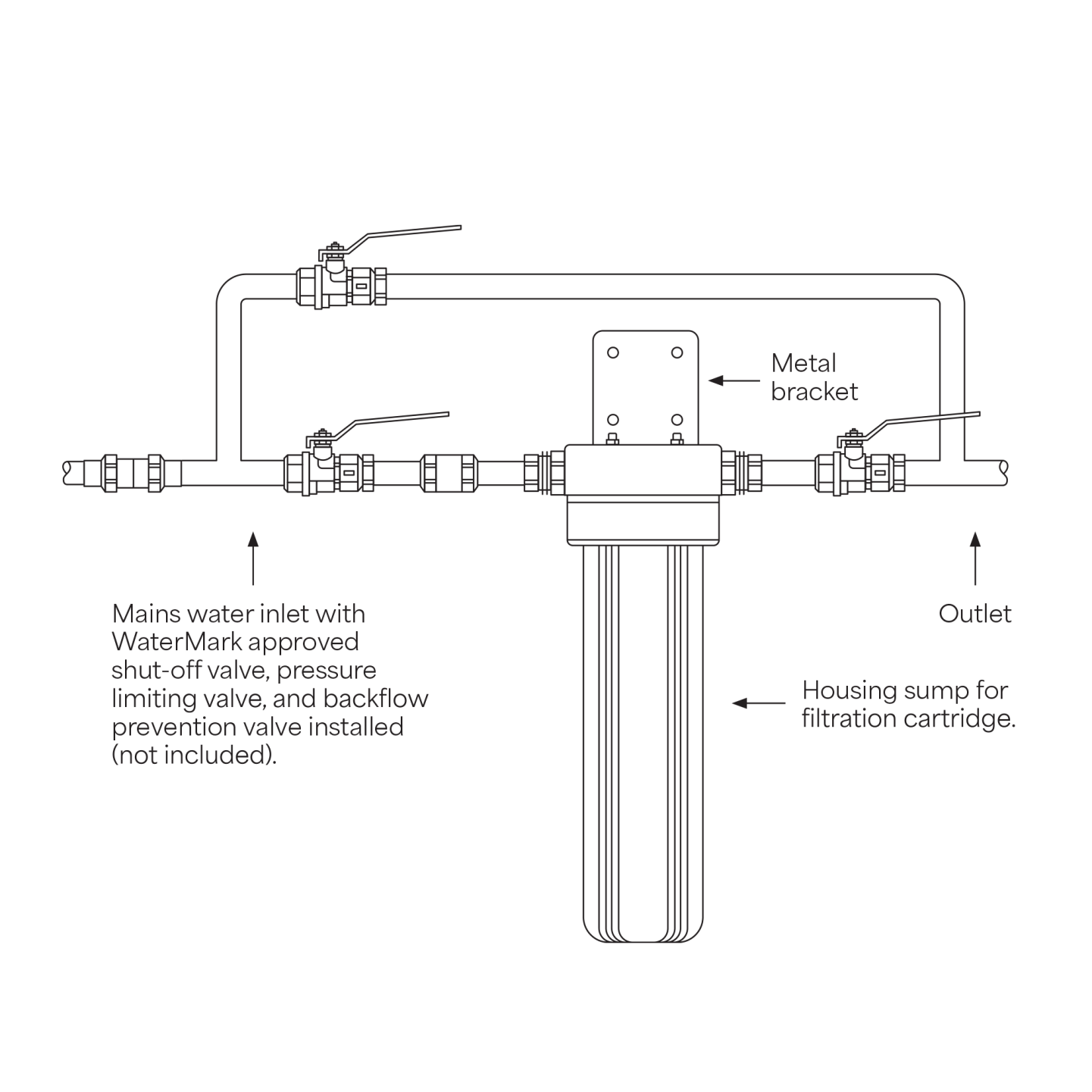

• Licensed installation: A licensed plumber must install the system in accordance with local plumbing laws and the supplied manual.
• Connection point: Install on the cold mains supply at the point of entry.
• Required valves: A WaterMark-approved shut-off valve, pressure limiting valve and backflow prevention valve are required and not included.
• Operating pressure: Maintain 100–500kPa and install an approved pressure limiting valve where supply pressure exceeds 500kPa.
• Connections: Use the 1-inch BSP inlet and outlet with fittings appropriate to the selected pipework.
• Location: Install in a sheltered, accessible position protected from direct sunlight, freezing and excessive heat.
• Service access: Leave sufficient clearance beneath the housing for cartridge replacement.

Warranty coverage

Oliveri products are backed by a comprehensive manufacturer's warranty, reflecting the enduring quality of their Australian kitchen, bathroom, and laundry products.

Domestic warranty periods apply. Commercial periods differ. Applies to products purchased after 1st March 2022.

Kitchen sinks & laundry tubs

• Stainless steel sinks & tubs: Lifetime — Replacement product, original purchaser only
• Basket waste & accessories: 1 year — Replacement parts

Basins

• Vitreous china basins: 20 years — Replacement parts, 1 year labour
• Stainless steel & Terzofoco basins: Lifetime — Replacement bowl, original purchaser only

Bathroom tapware

• Cartridge & body: 15 years — Replacement parts, 1 year labour
• Chrome finish: 15 years — Replacement parts, 1 year labour
• PVD finish: 10 years — Replacement parts, 1 year labour
• Other finishes & seals: 5 years — Replacement parts, 1 year labour

Kitchen tapware

• Premium ranges (Vilo, Pepe, Essente 316) — cartridge: 15 years — Replacement parts, 1 year labour
• Premium ranges — body & chrome finish: 7 years — Replacement parts and labour
• Standard ranges — cartridge: 10 years — Replacement parts, 1 year labour
• Standard ranges — body & chrome finish: 7 years — Replacement parts and labour

Showers

• Main body: 15 years — Replacement parts, 1 year labour
• Chrome finish: 7 years — Replacement parts, 1 year labour
• Non-chrome/coloured finish & shower head: 5 years — Replacement parts, 1 year labour
• Hoses, seals & O-rings: 2 years — Replacement parts, 1 year labour

Toilets

• Vitreous china cistern & pan: 20 years — Replacement parts, 1 year labour
• Toilet seat: 5 years — Replacement parts, 1 year labour
• Valves & fittings: 2 years — Replacement parts, 1 year labour

Baths

• Island & inset bath shell: 15 years — Replacement parts, 1 year labour
• Freestanding bath shell: 10 years — Replacement parts, 1 year labour

Bathroom accessories

• Parts & chrome finish: 7 years — Replacement parts, 1 year labour
• Non-chrome/coloured finish: 5 years — Replacement parts, 1 year labour

Proof of purchase is required for all claims. The lifetime warranty applies to the original purchaser only and is not transferable.

What's covered

• Manufacturing defects in materials and workmanship
• Repair or replacement of faulty products within the applicable warranty period
• Replacement of defective parts

What's not covered

• Scratching or general surface finish deterioration from normal use
• Incorrect installation or failure to follow manufacturer guidelines
• Misuse, abuse, accidental damage, or neglect
• Use of abrasive, acidic, or harsh chemical cleaning products
• Damage from excess water pressure (over 500kPa) or water temperature
• Normal wear and tear, including seals and O-rings
• Repairs or modifications carried out by unauthorised parties
• Products with visible faults installed without prior reporting

Conditions

• Must be installed by a licensed plumber, tradesperson, or electrician as appropriate
• Must be installed in accordance with Australian Standards and manufacturer instructions
• Water pressure must not exceed 500kPa
• Products must be inspected for damage before installation
• Braided stainless steel flexible hoses must be inspected every 12 months
• Proof of purchase must be provided with all claims
• The warranty applies to the original purchaser only

Making a claim

To make a warranty claim, contact Oliveri directly by phone or email. Please have your proof of purchase, photos of the product and defect, and installer details ready when submitting your claim.

Australian Consumer Law

Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if they fail to be of acceptable quality and the failure does not amount to a major failure.

By filtering at the mains entry point, the K-T-WH20S supports water quality across the household rather than serving only one kitchen tap. This makes it appealing for homes seeking filtered water for drinking and food preparation as well as bathing, laundry and other everyday water uses.

Filter performance and cartridge life depend on incoming water quality, pressure, flow and household demand. The system should therefore be installed where it remains easy to isolate, inspect and service, with replacement cartridges selected to suit the desired filtration function and local water conditions.

• One 20-inch whole of house filter housing
• One 5-micron, 20-inch carbon filter cartridge
• Mounting bracket and screw set
• Cartridge housing wrench
• Installation and operation manual

• SPECIFICATIONS SHEET (PDF)
• INSTALLATION AND USER GUIDE (PDF)
