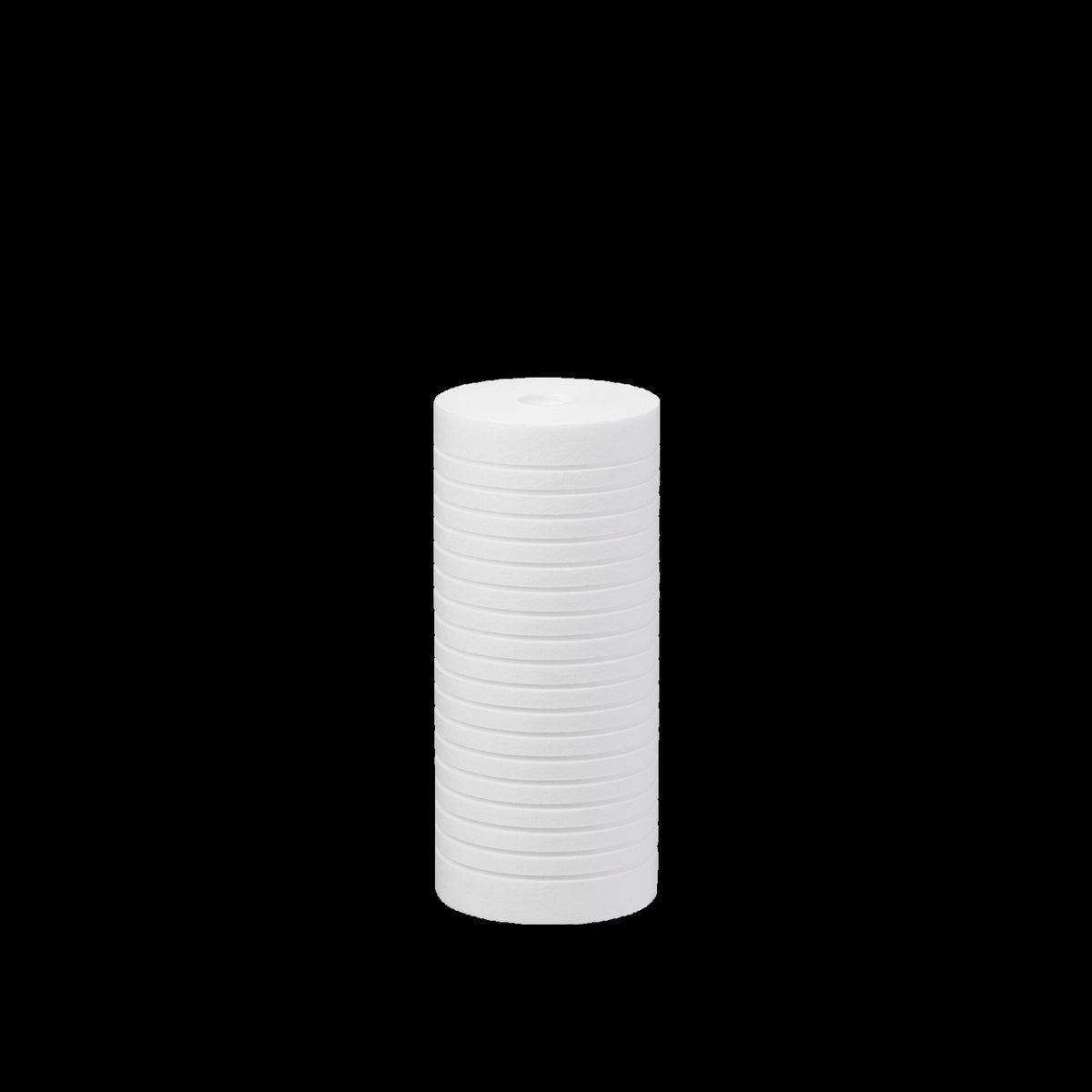

Oliveri C-T-JUMBO10S HiFlow 10-inch Whole of House Replacement Sediment Filter

• Purpose-built replacement: Fits compatible Oliveri HiFlow 10-inch whole-of-house systems.
• 5-micron sediment capture: Helps remove rust, dirt, particles and suspended impurities.
• Virgin polypropylene media: Uses 100% pure, chemical-free filter material.
• Expanded filtration area: Grooved construction provides up to 80% more surface area than standard sediment filters.
• Household flow support: Rated for flow rates up to 30L/min.

• Sediment reduction: Captures rust, dirt and other particulate impurities from the incoming water supply.
• Depth-graded filtration: Uses layered polypropylene media to support particle capture through the cartridge depth.
• High-surface-area performance: The grooved exterior increases filtration area and dirt-holding capacity.
• Whole-home compatibility: Supports point-of-entry filtration in compatible HiFlow 10-inch systems.

• Brand: Oliveri
• Collection: HiFlow
• Model: C-T-JUMBO10S
• Product Type: 10-inch whole of house replacement sediment filter cartridge
• Filter Material: Virgin polypropylene
• Filtration Rating: 5 micron nominal
• Maximum Flow Rate: 30L/min
• Operating Pressure: 100–500kPa
• Maximum Pressure: 880kPa
• Operating Temperature: 4.4–40°C
• Maximum Ambient Temperature: 50°C
• Recommended Service Life: Approximately 3–6 months, subject to water conditions and use
• Compatible Systems: K-T-WH10S and K-T-WH10T

• System compatibility: Use only in compatible Oliveri HiFlow 10-inch filtration housings.
• Isolation: Shut off the incoming supply and relieve system pressure before removing the housing sump.
• Housing access: Use the system’s supplied housing wrench and follow the official replacement procedure.
• Reassembly: Seat the cartridge correctly and ensure the housing seal is clean and properly positioned.
• Initial flush: Flush the new cartridge as directed before normal use.

Warranty coverage

Oliveri products are backed by a comprehensive manufacturer's warranty, reflecting the enduring quality of their Australian kitchen, bathroom, and laundry products.

Domestic warranty periods apply. Commercial periods differ. Applies to products purchased after 1st March 2022.

Kitchen sinks & laundry tubs

• Stainless steel sinks & tubs: Lifetime — Replacement product, original purchaser only
• Basket waste & accessories: 1 year — Replacement parts

Basins

• Vitreous china basins: 20 years — Replacement parts, 1 year labour
• Stainless steel & Terzofoco basins: Lifetime — Replacement bowl, original purchaser only

Bathroom tapware

• Cartridge & body: 15 years — Replacement parts, 1 year labour
• Chrome finish: 15 years — Replacement parts, 1 year labour
• PVD finish: 10 years — Replacement parts, 1 year labour
• Other finishes & seals: 5 years — Replacement parts, 1 year labour

Kitchen tapware

• Premium ranges (Vilo, Pepe, Essente 316) — cartridge: 15 years — Replacement parts, 1 year labour
• Premium ranges — body & chrome finish: 7 years — Replacement parts and labour
• Standard ranges — cartridge: 10 years — Replacement parts, 1 year labour
• Standard ranges — body & chrome finish: 7 years — Replacement parts and labour

Showers

• Main body: 15 years — Replacement parts, 1 year labour
• Chrome finish: 7 years — Replacement parts, 1 year labour
• Non-chrome/coloured finish & shower head: 5 years — Replacement parts, 1 year labour
• Hoses, seals & O-rings: 2 years — Replacement parts, 1 year labour

Toilets

• Vitreous china cistern & pan: 20 years — Replacement parts, 1 year labour
• Toilet seat: 5 years — Replacement parts, 1 year labour
• Valves & fittings: 2 years — Replacement parts, 1 year labour

Baths

• Island & inset bath shell: 15 years — Replacement parts, 1 year labour
• Freestanding bath shell: 10 years — Replacement parts, 1 year labour

Bathroom accessories

• Parts & chrome finish: 7 years — Replacement parts, 1 year labour
• Non-chrome/coloured finish: 5 years — Replacement parts, 1 year labour

Proof of purchase is required for all claims. The lifetime warranty applies to the original purchaser only and is not transferable.

What's covered

• Manufacturing defects in materials and workmanship
• Repair or replacement of faulty products within the applicable warranty period
• Replacement of defective parts

What's not covered

• Scratching or general surface finish deterioration from normal use
• Incorrect installation or failure to follow manufacturer guidelines
• Misuse, abuse, accidental damage, or neglect
• Use of abrasive, acidic, or harsh chemical cleaning products
• Damage from excess water pressure (over 500kPa) or water temperature
• Normal wear and tear, including seals and O-rings
• Repairs or modifications carried out by unauthorised parties
• Products with visible faults installed without prior reporting

Conditions

• Must be installed by a licensed plumber, tradesperson, or electrician as appropriate
• Must be installed in accordance with Australian Standards and manufacturer instructions
• Water pressure must not exceed 500kPa
• Products must be inspected for damage before installation
• Braided stainless steel flexible hoses must be inspected every 12 months
• Proof of purchase must be provided with all claims
• The warranty applies to the original purchaser only

Making a claim

To make a warranty claim, contact Oliveri directly by phone or email. Please have your proof of purchase, photos of the product and defect, and installer details ready when submitting your claim.

Australian Consumer Law

Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if they fail to be of acceptable quality and the failure does not amount to a major failure.

Sediment cartridges provide an important first line of defence for a whole-home filtration system by intercepting visible and fine particulate matter before it reaches downstream fixtures or a second-stage carbon cartridge. Timely replacement helps maintain flow and prevents accumulated debris from limiting system performance.

The recommended 3–6 month replacement interval is a guide rather than a fixed lifespan. Households with higher water demand or elevated sediment levels may need more frequent changes, so reductions in flow, visible discolouration or local water conditions should also inform the maintenance schedule.

• One Oliveri C-T-JUMBO10S HiFlow 10-inch replacement sediment filter cartridge

• SPECIFICATIONS SHEET (PDF)
• INSTALLATION AND USER GUIDE (PDF)
