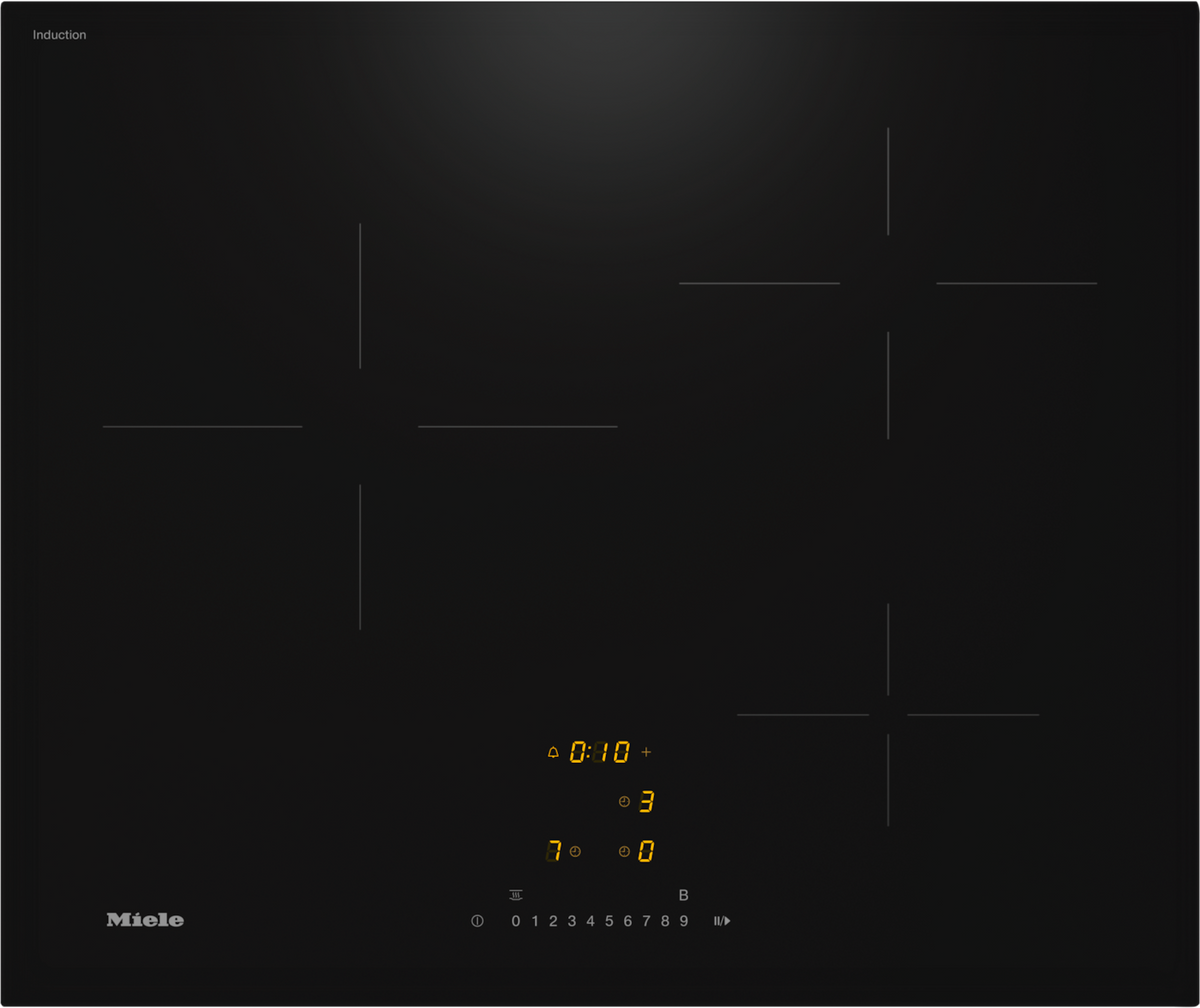

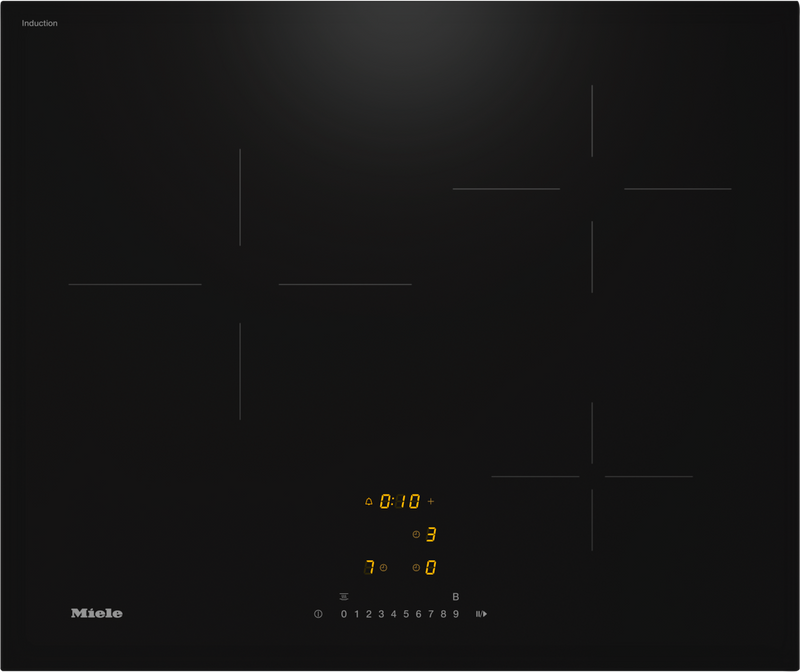

Miele KM 7220 FL Induction Cooktop

• Intuitive ComfortSelect Controls: Adjust power levels and settings effortlessly using Miele’s clear numerical keybank. Each cooking zone is controlled directly, ensuring precise, responsive temperature management.
• Rimless Glass Ceramic Surface: Crafted from durable, black glass ceramic, the KM 7220 FL offers a sleek, easy-to-clean surface that resists scratches and spills while maintaining a refined, modern aesthetic.
• Convenient Functions for Everyday Cooking: Enjoy added practicality with the Stop & Go, Keeping Warm, Recall, and Auto Heat-Up functions — ideal for multitasking or short breaks during cooking.
• Permanent Pan Detection: Simply place your cookware on the surface — the cooktop detects pan position and size automatically, activating the relevant control for efficient, targeted heating.
• Advanced Safety Features: Peace of mind is guaranteed with a system lock, safety switch-off, overheating protection, and a residual heat indicator, ensuring total safety during and after use.
• Plug & Cook Simplicity: Supplied with a mains plug for quick, straightforward installation — no electrician required for standard 230 V connections.

Technical Data:

• Dimensions (H x W x D) in mm: 53 x 620 x 520
• Dimensions in mm (width): 620
• Dimensions in mm (height): 53
• Casing height incl. connection box in mm: 53
• Cut-out dimensions (W x D) with surface-mounted installation in mm: 560 mm x 500 mm
• Cut-out dimensions (W x D) with flush-fit installation in mm: 600/624 x 500/524
• Dimensions in mm (depth): 520
• Cutout dimensions in mm (width) with surface-mounted installation: 560 mm
• Cutout dimensions in mm (depth) with surface-mounted installation: 500 mm
• Internal cutout dimensions in mm (width) with flush installation: 600
• Internal cutout dimensions in mm (depth) with flush installation: 500
• External cutout dimensions in mm (width) with flush installation: 624
• External cutout dimensions in mm (depth) with flush installation: 524
• Weight in kg: 9
• Total rated load in kW: 3.45
• Voltage in V: 230
• Frequency in Hz: 50
• Length of supply lead in m: 2

2nd Cooking Zone/Cooking Area:

• Position: rear right
• Type: Dual-circuit ring
• Size in mm: 110-220
• Max. rating in W: 2300
• Max. Booster power rating in W: 3000

1st Cooking Zone/Cooking Area:

• Position: Left
• Type: Dual-circuit ring
• Size in mm: Ø 140-280
• Max. rating in W: 2300
• Max. Booster power rating in W: 3000

User Convenience:

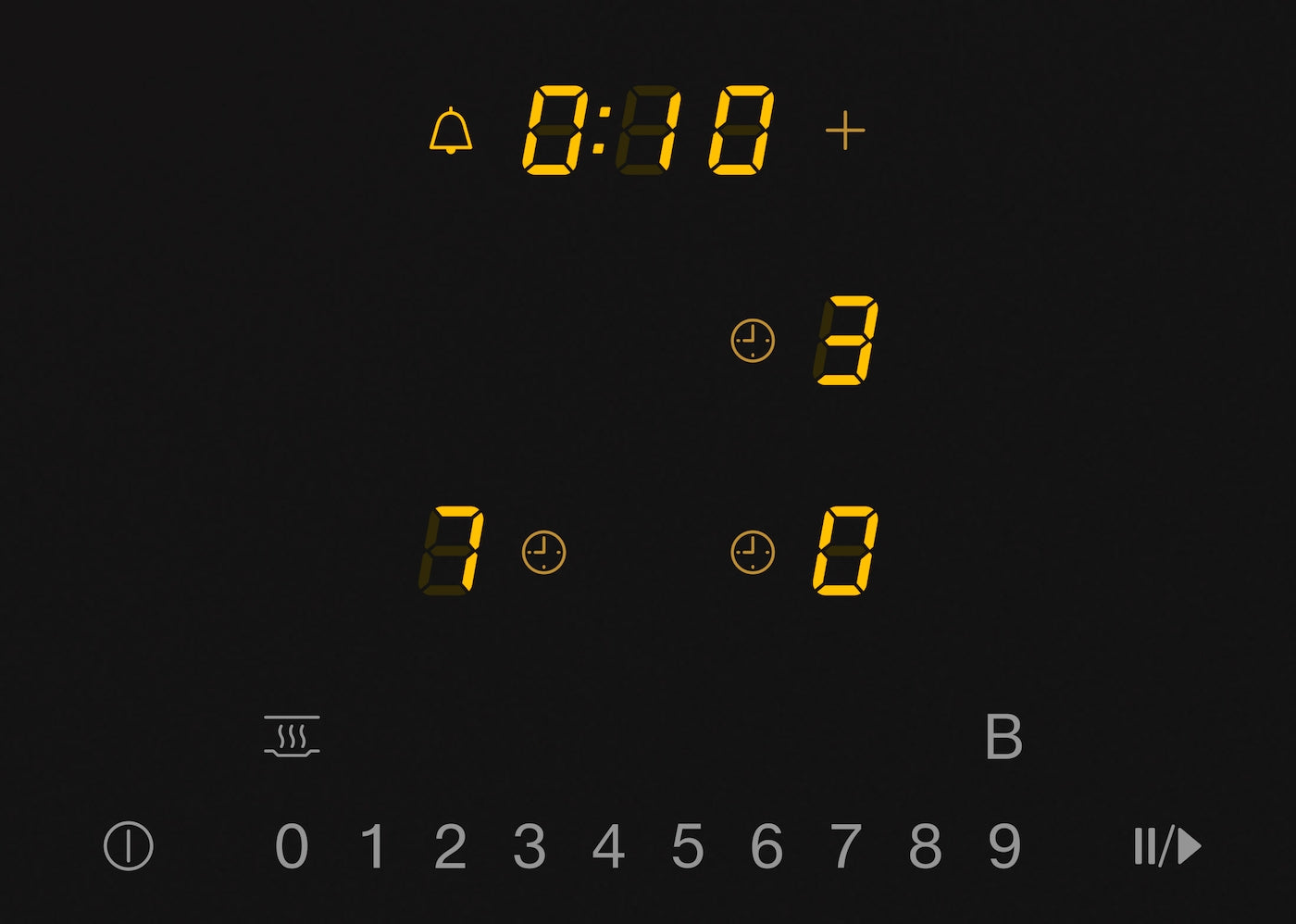

• Operation via sensor controls: ComfortSelect
• Display colour: Yellow
• Permanent pan recognition
• Pan and pan size recognition
• Stop & Go function
• Recall function
• Minute minder
• Safety switch-off
• Auto Heat-up
• Keeping warm
• Individual setting options (e.g. buzzers)

Construction Type:

• Independent of cooker

Design:

• Elegant glass ceramic surface
• Ceramic surface colour: Black
• Flush
• Surface-mounted installation

3rd Cooking Zone/Cooking Area:

• Position: front right
• Type: Dual-circuit ring
• Size in mm: Ø 90-160
• Max. rating in W: 1350
• Max. Booster power rating in W: 1850

Heating Type:

• Heating type: Induction

Cleaning Convenience:

• Easy-to-clean ceramic glass

Safety:

• Safety switch-off
• Lock function
• System lock
• Integrated cooling fan
• Overheating protection
• Residual heat indicator

Efficiency & Sustainability:

• Residual heat utilisation

Cooking Zone Details:

• Number of cooking zones: 3
• Number of cooking areas: 0
• Maximum number of pans: 3

Every Miele cooktop is backed by a 2-year parts and labour manufacturer’s warranty, covering defects in materials and workmanship.

For long-term peace of mind, you can extend this protection with a Miele Service Certificate (MSC):

• 5-Year Warranty from delivery: $269 (Inc. GST) per appliance
• 10-Year Warranty from delivery: $649 (Inc. GST) per appliance

Extended warranty benefits include:

• New-for-old replacement if a repair is not viable
• Installation and removal for replacement units
• Food spoilage reimbursement (up to $300)
• Dry cleaning allowance (up to $150)
• $50 CareCollection voucher for Miele accessories
• Transferable cover for future owners

For ongoing care, Miele also offers a Professional Preventative Maintenance Service ($199 per visit), which includes a performance check, software updates, and professional cleaning advice to ensure your cooktop continues performing at its best.

Safety functions - For greater safety and security

• Best protection in every situation: the system lock provides reliable protection against accidental or unauthorised switching on. If a cooking zone has been operating at the same power level for an unusually long time or there is no pan on the cooktop, it will switch off automatically. The residual heat indicator is another useful feature: it reminds you not to touch the cooking zones when they are still hot.

Convenient additional functions - Added convenience

• Added convenience when cooking: with the Stop & Go function all cooking zones can be reduced to power level 1 at the press of a button, allowing you to leave the cooktop unattended for a short time. The Keeping warm function keeps food at serving temperature. As an extra benefit, you can set the timer so the cooking zone switches off automatically when the time has elapsed. The Recall function ensures that your settings are saved for 10 seconds.

Permanent pan detection - Set down your pan and get cooking

• All you have to do is switch on the cooktop – if there is already a pan on a cooking zone, the corresponding control element will be activated automatically. So there is no need to switch on the individual cooking zones manually. The size of the pan is also detected automatically to ensure particularly efficient energy usage.
