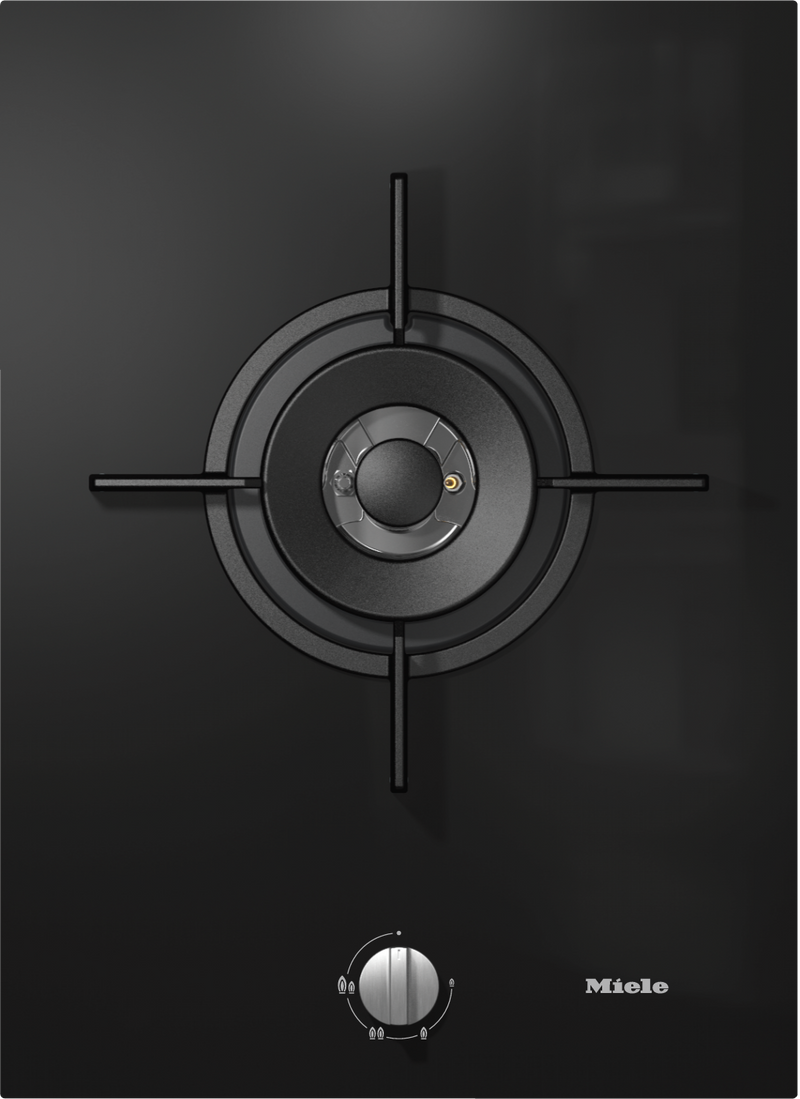

Miele CS 7101-1 FL SmartLine Element With A Wok Burner

• Dual Wok Burner – Achieve professional wok cooking results with two independently adjustable flame rings and up to 4.5 kW of power.
• GasStop Safety – Automatic flame failure monitoring shuts off gas if the flame is extinguished, ensuring maximum safety.
• ComfortClean Pot Rests – Cast-iron grates are dishwasher-safe for quick and convenient cleaning.
• Single-Handed Electronic Ignition – Effortless ignition with easy, one-hand rotary control operation.
• Premium Metal Knobs – Durable, high-quality controls for intuitive and precise flame adjustment.
• Sleek SmartLine Design – Elegant black glass-ceramic surface designed for either flush or raised installation.
• Easy Maintenance – Smooth, glass-ceramic top resists residue and wipes clean with ease.

Technical Data:

• Dimensions (W x H x D) in mm: 378 x 92 x 520
• Dimensions in mm (width): 378
• Dimensions in mm (height): 92
• Casing height incl. connection box in mm: 92
• Cut-out dimensions (W x D) with surface-mounted installation in mm: 358 mm x 500 mm
• Dimensions in mm (depth): 520
• Cutout dimensions in mm (width) with surface-mounted installation: 358 mm
• Cutout dimensions in mm (depth) with surface-mounted installation: 500 mm
• Internal cutout dimensions in mm (width) with flush installation: 358
• Internal cutout dimensions in mm (depth) with flush installation: 500
• External cutout dimensions in mm (width) with flush installation: 382
• External cutout dimensions in mm (depth) with flush installation: 524
• Weight in kg: 7
• Total rated load in kW: 4.5
• Position of gas connection: Hinten links
• Voltage in V: 230
• Frequency in Hz: 50-60
• Length of supply lead in m: 2

1st Cooking Zone/Cooking Area:

• Position: Centred
• Type: Dual wok burner
• Size in mm: Ø 300
• Max. rating in W: 4400

Gas Burner Power Rating:

• Dual wok burner in kW: 4.44

User Convenience:

• Operation via sensor controls: Knob
• Operation via dials
• Electronic ignition with single-hand operation

Accessories Supplied:

• CSFG 7000 FlameGuard
• Mains cable
• Wok ring

Design:

• Elegant glass ceramic surface
• Ceramic surface colour: Black
• Flush
• Surface-mounted installation
• Cast-iron pot rests (matt black enamelled)

Construction Type:

• SmartLine

Heating Type:

• Heating type: Gas

Cleaning Convenience:

• Easy-to-clean ceramic glass
• Dishwasher-proof pot rests

Safety:

• GasStop

Cooking Zone Details:

• Number of cooking zones: 1

Every Miele cooktop is backed by a 2-year parts and labour manufacturer’s warranty, covering defects in materials and workmanship.

For long-term peace of mind, you can extend this protection with a Miele Service Certificate (MSC):

• 5-Year Warranty from delivery: $269 (Inc. GST) per appliance
• 10-Year Warranty from delivery: $649 (Inc. GST) per appliance

Extended warranty benefits include:

• New-for-old replacement if a repair is not viable
• Installation and removal for replacement units
• Food spoilage reimbursement (up to $300)
• Dry cleaning allowance (up to $150)
• $50 CareCollection voucher for Miele accessories
• Transferable cover for future owners

For ongoing care, Miele also offers a Professional Preventative Maintenance Service ($199 per visit), which includes a performance check, software updates, and professional cleaning advice to ensure your cooktop continues performing at its best.

GasStop - Flame failure monitor for maximum safety

• All Miele gas cooktops are equipped with thermo-electric flame failure monitors. If the gas flame is temporarily extinguished, e.g. because a pan boils over or due to a draught, a flame failure device will stop the supply of gas.

Wok burner - Perfect wok cooking on gas

• Gas cooktops and wok cooking – a perfect match. Our dual wok burner has two separate flame rings and the high output required for cooking with a wok.

ComfortClean pot rests - Efficiently protects and makes cleaning easier

• Miele gas cooktops are equipped with grates which can be cleaned in the dishwasher. This makes cleaning and maintenance of the Miele gas cooktop particularly easy, and saves time.

Metal knobs - Design in detail

• The high-quality controls not only feel good, they also enable intuitive operation of the gas elements.

Electronic ignition with single-handed operation - Easy ignition of the flame

• The burners ignite automatically thanks to sophisticated technology. The rotary control dials can be easily turned with one hand and held during ignition.

• OPERATING INSTRUCTIONS (PDF)
• WARRANTY BOOKLET (PDF)
