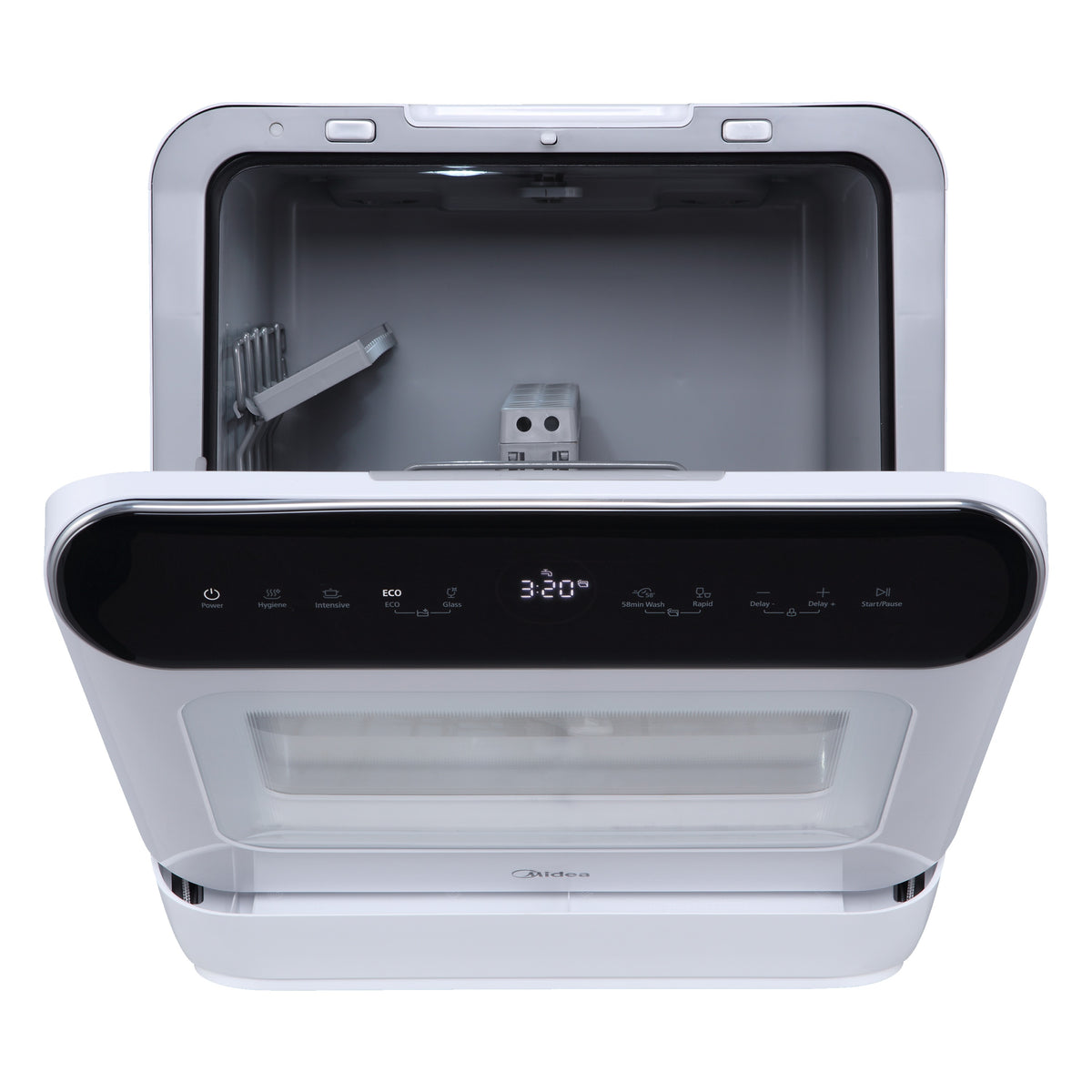

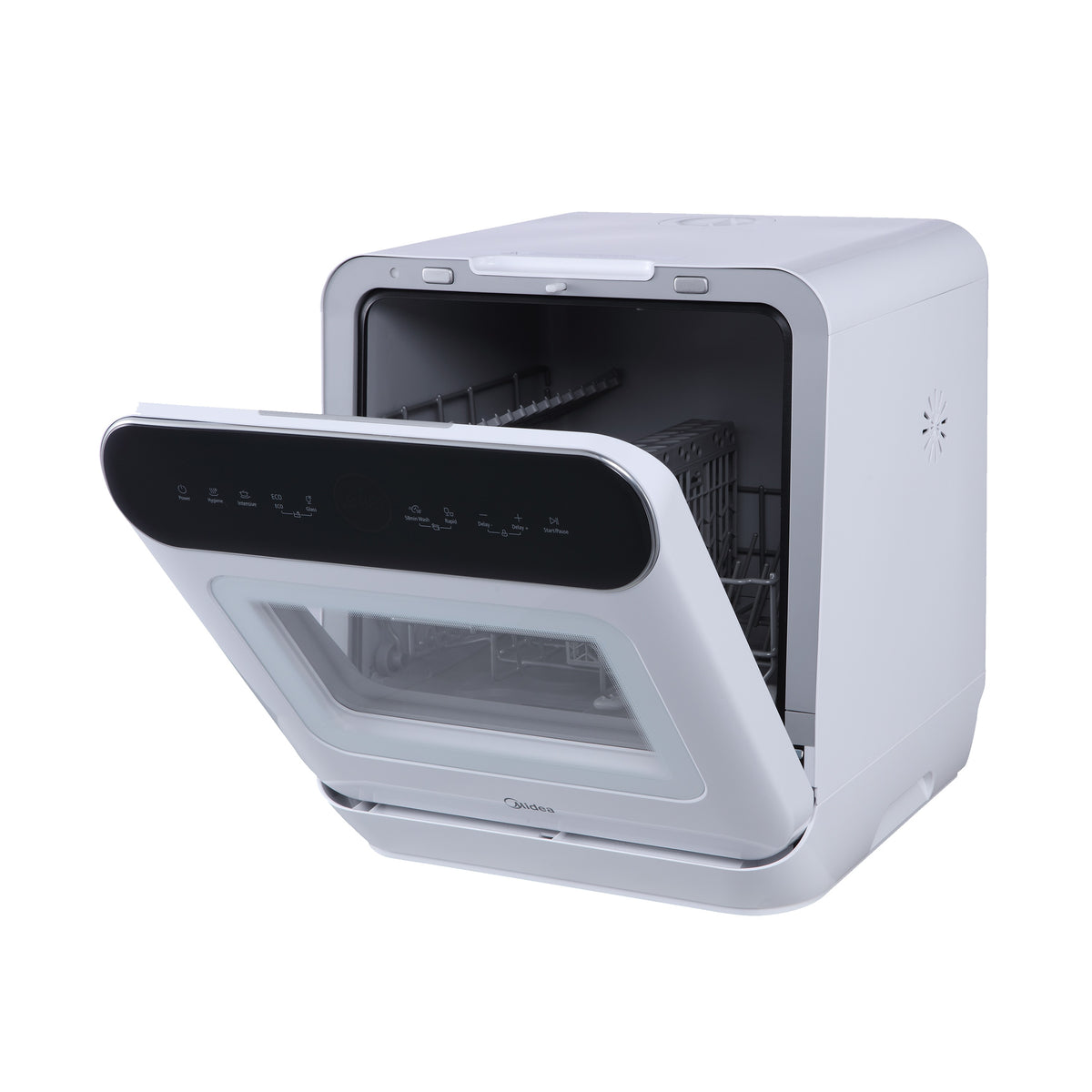

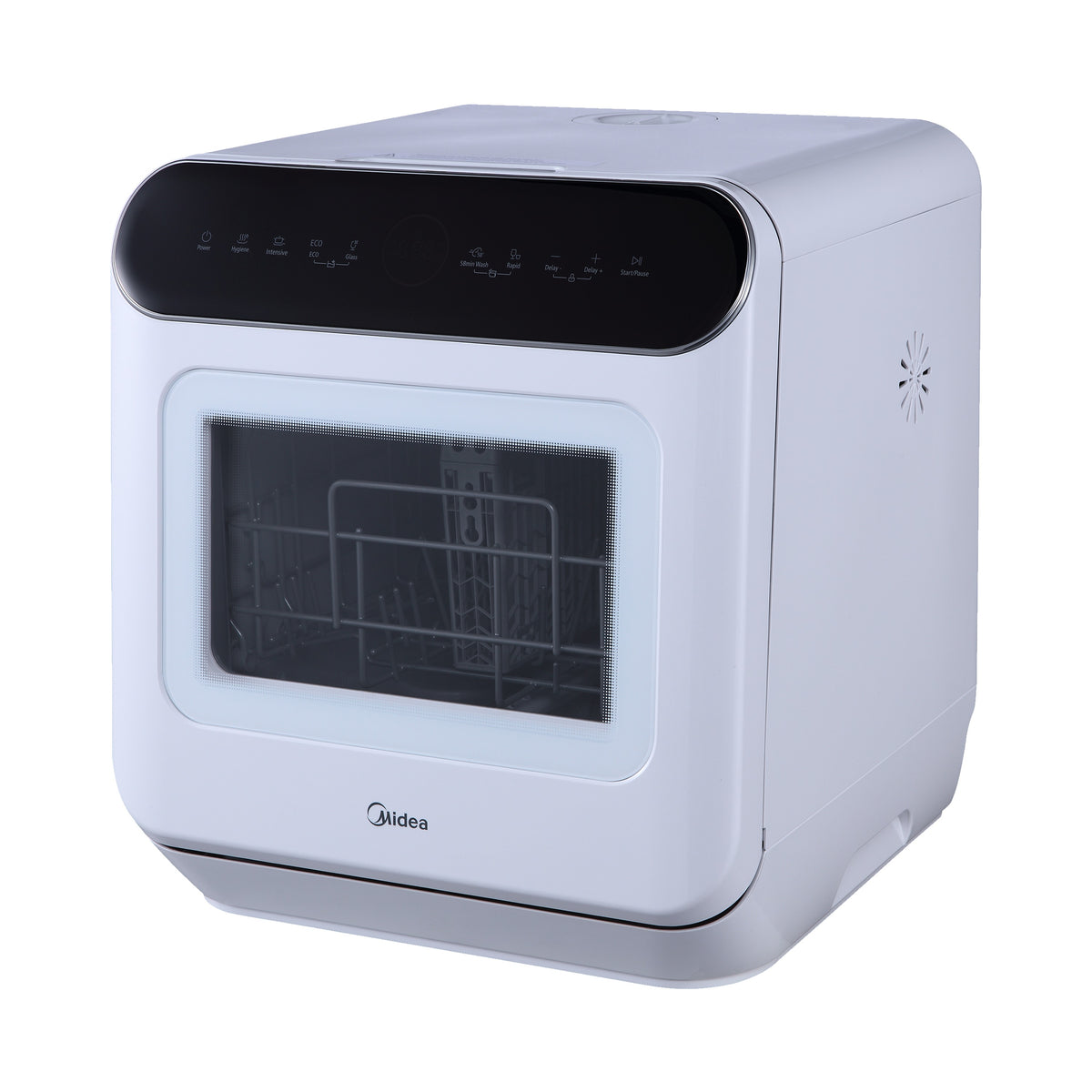

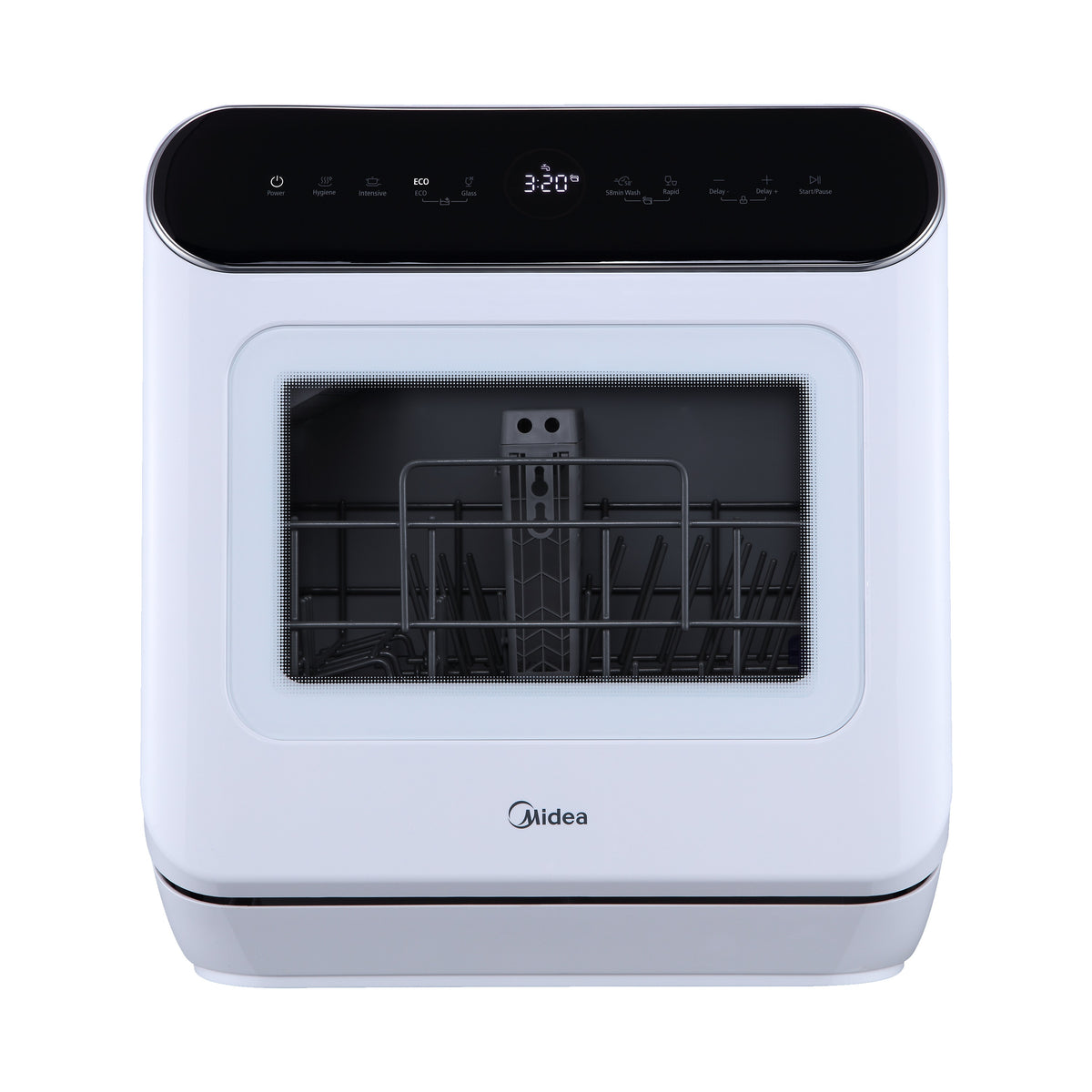

Midea MDWMINIPLUS 3 Place Setting White Benchtop Mini Dishwasher Plus

• Installation-free: no plumbing and no tradesperson. Connect directly to a tap or fill the built-in water tank manually, and set up in minutes.
• Compact practicality: fits up to 3 place settings and plates up to 270mm in diameter, in a footprint of 420mm wide by 435mm deep.
• Hygiene wash cycle: a high-temperature wash of over 70°C helps eliminate bacteria, ideal for baby bottles, chopping boards and items that need an extra level of hygiene.
• Auto-open door: the door opens automatically after washing to release steam and improve natural drying. It can be switched off by holding the 58min Wash and Rapid buttons for 3 seconds.
• Seven programmes: Hygiene, Intensive, ECO, Glass, Self Clean, 58min Wash and Rapid, including a 29 minute Rapid wash.
• Delay start: delay the start of a wash by up to 24 hours, in one hour steps.
• Child lock: locks the buttons on the control panel, except the Power button.
• 3 Star WELS water rating and 1 Star energy rating: 4.9 litres per ECO wash and 144 kWh per year.

Programme guide (per the Midea user manual):

• ECO: the standard programme, suitable for normally soiled tableware and the most efficient in combined energy and water consumption. It is the test cycle under AS/NZS 2007.1 and runs for 200 minutes using 0.368 kWh and 4.9 litres.
• Hygiene: sanitises dishes and glassware, with a highest water temperature of 70°C. It runs for 170 minutes using 0.548 kWh and 5.0 litres.
• Intensive: for the heaviest soiled crockery, and normally soiled pots, pans and dishes with dried-on food. It runs for 177 minutes using 0.527 kWh and 5.0 litres.
• Glass: for lightly soiled crockery and glass. It runs for 90 minutes using 0.421 kWh and 4.9 litres.
• 58min Wash: for normally soiled loads that need a 58 minute wash, using 0.415 kWh and 4.1 litres.
• Rapid: a shorter wash for lightly soiled loads that do not need drying. It runs for 29 minutes using 0.041 kWh and 4.4 litres.
• Self Clean: cleans the dishwasher itself. Press and hold the ECO and Glass buttons together for 3 seconds. It runs for 77 minutes using 0.548 kWh and 4.0 litres.
• Detergent dosing: the table lists 3g to 6g of detergent depending on the programme. Programme duration, energy and water use are indicative except for the ECO programme.

Functions:

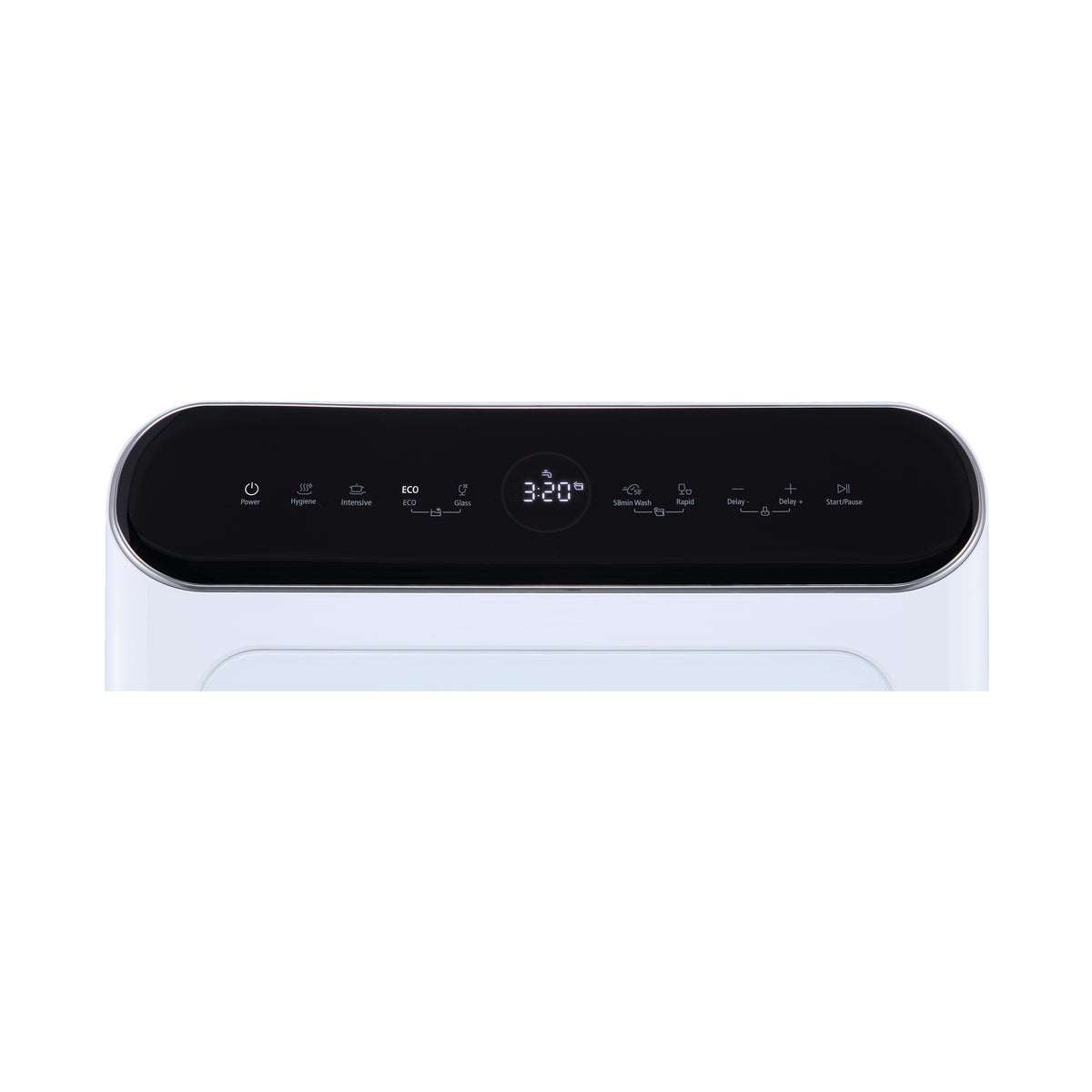

• Power: press to turn the dishwasher on or off.
• Delay - and Delay +: reduce or increase the delay before washing starts, by one hour per press, up to 24 hours.
• Child lock: press and hold the Delay - and Delay + buttons together for 3 seconds to lock or unlock the control panel buttons.
• Auto open: press and hold the 58min Wash and Rapid buttons for 3 seconds to turn the automatic door opening on or off. The door must not be blocked when this is on.
• Start/Pause: press to start after selecting a programme or delay time. If the programme has been paused by opening the door, press and hold for 3 seconds to cancel it.
• Screen: shows the remaining time, delay time and any error code. A water faucet indicator lights if the water supply is closed.
• Light ring: turns red if the water temperature is over 59°C.
• Adding water: press the Power button first, then either connect the inlet hose to the tap or open the cap and fill the tank by hand. The machine beeps for 3 seconds when the tank is full.
• Forced drainage: in standby, press and hold the Hygiene and Rapid buttons together for 3 seconds to drain the water tank.
• Changing a programme mid-cycle: only possible if it has been running for a short time, because the detergent may already have been released. Pause, then hold any programme button for more than 3 seconds to return to standby and select the new programme.
• Adding a forgotten dish: press Start/Pause, wait for the spray arms to stop, open the door completely, add the dish, close the door and press Start/Pause. The dishwasher continues after 10 seconds. Opening the door mid-cycle can release hot steam.
• Automatic standby: to save energy, the appliance switches off automatically after 15 minutes without any user interaction.
• Error codes: E1 and E3 cover water inlet, flow meter, drain valve or pump faults and not reaching the required temperature or a heating element fault. E4 is an overflow or leak, and Ed is a communication fault. If overflow occurs, turn off the main water supply before calling for service.

• Model: MDWMINIPLUS
• Type: 3 Place Setting Benchtop Mini Dishwasher
• Capacity: 3 place settings, plates up to 270mm in diameter
• Display: Screen
• Controls: Button
• Programmes: 7 (Hygiene, Intensive, ECO, Glass, Self Clean, 58min Wash, Rapid)
• Auxiliary functions: Delay Start (up to 24 hours), Child Lock, Auto Open Door
• Drying system: Natural, with the door opening automatically after the cycle
• Installation: Benchtop, no plumbing required
• Water supply: Direct tap connection, or fill the tank manually
• Water Rating: 3 Star
• Water consumption: 4.9 litres per wash
• Energy Rating: 1 Star
• Energy Consumption: 144 kWh per year
• Eco Programme: 0.368 kWh and 4.9 litres per cycle, 200 minutes
• Registration Number: D02873 (WELS)
• Licence Number: 1925
• Energy Rating Registration Number: ADW1071
• Noise Level: 58dB(A)
• Power Input: 730-860W
• Voltage: 220-240V~ 50Hz
• Electrical Connection: 10A socket
• Water Pressure: 0.04 - 1.0 MPa
• Colour: White

• Installation type: benchtop, with no plumbing or tradesperson needed. Place it on a stable, level surface near a tap, a sink or bucket for the drain hose, and a power socket.
• Positioning: the back should rest against the wall behind it. The water supply and drain hoses can be positioned to the right or left side to suit the setup.
• Water inlet: connect the cold water supply hose to a threaded 3/4 inch connector and fasten it tightly, or open the cap and fill the tank manually. Use the new hose set supplied and do not reuse old hose sets. If the supplied hose does not fit your tap, adapters are available from a plumbing supplier.
• Water drain: put the end of the drain hose into a sink or bucket, or fix it with the suction cups, avoiding kinks and squashing. If the sink is more than 1m higher than the bottom of the dishwasher, excess water may remain in the hose and must be drained into a container of at least 6 litres held lower than the dishwasher. A drain hose extension must not be longer than 4 metres.
• Water supply: water pressure of 0.04 - 1.0 MPa.
• Electrical: 220-240V~ 50Hz, with a 10A 250V socket. The socket must be earthed correctly. Use a 10A time delay fuse or circuit breaker on a separate circuit serving only this appliance. Do not use an extension cord or adapter plug, never cut or remove the earthing connection from the power cord, and disconnect the power before installing. A damaged supply cord must be replaced by the manufacturer, its service agent or a similarly qualified person.
• Caravans and RVs: if you use the dishwasher in an RV, use it after the RV has stopped and is stable.
• Unpacking: check the packaging and appliance on arrival to make sure everything is intact, and contact the retailer if there is any damage.

Warranty coverage

Midea is one of the world's leading home appliance brands, now operating as a direct subsidiary in Australia with offices in Melbourne. Every Midea product is backed by a comprehensive manufacturer's warranty, giving you confidence in the quality and performance of every appliance.

Warranty periods apply to domestic use only. Commercial use is not covered unless otherwise specified.

Air conditioning

• Split wall mounted & ducted systems: 7 years — Parts and labour
• Portable air conditioners: 2 years — Parts and labour
• Accessories (remote controls, filters): 12 months — Replacement

Hot water systems

• Tank: 7 years — Replacement
• Compressor: 5 years — Replacement
• Parts & labour (servicing): 2 years

Kitchen appliances, laundry, refrigeration & small appliances

• Standard warranty: 2 years — Parts and labour
• Extended warranty (selected models): Up to 6 years — Register within 30 days of purchase at midea.com/au
• Accessories: 3 months — Replacement

Proof of purchase is required for all warranty claims. For the extended 6-year warranty, product must be registered within 30 days of purchase. Products purchased from authorised retailers only.

What's covered

• Manufacturing defects in materials and workmanship
• Repair or replacement of defective products or parts within the warranty period
• Replaced parts or products assume the remaining warranty period of the original

What's not covered

• Incorrect installation or failure to follow manufacturer guidelines
• Misuse, accidental damage, abuse, or neglect
• Damage caused by power surges or incorrect electrical/gas supply
• Use of the product for commercial purposes
• Damage caused by unauthorised repairs or modifications
• Normal wear and tear
• Products purchased outside of Australia or from unauthorised retailers
• Accessories beyond their specified warranty period

Conditions

• Air conditioners must be installed by a licensed electrician or licensed refrigeration mechanic
• Cooktops and ovens must be installed by a licensed electrician or licensed gas plumber
• Products must be used and maintained in accordance with manufacturer instructions
• Air conditioners require annual servicing (domestic) to maintain warranty coverage
• Register selected appliances within 30 days at midea.com/au to activate the extended warranty
• Proof of purchase must be provided with all claims

Making a claim

Contact Midea Customer Service on 1800 511 806 or email customercare.au@support.midea.com, Monday to Friday, 9:00am–5:00pm AEST. Claims can also be lodged online at midea.com/au/support. Please have your proof of purchase, model number, and serial number ready when submitting your claim.

Australian Consumer Law

Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if they fail to be of acceptable quality and the failure does not amount to a major failure.

Use only detergent and liquid rinse aid designed for automatic dishwashers, and never use soap, laundry detergent or hand washing detergent. Dishwasher detergents are strongly alkaline and can be dangerous if swallowed, so keep them away from skin, eyes and children. Add the detergent just before starting. The rinse aid is released in the final rinse to prevent water droplets, spots and streaks and to improve drying.

Scrape off large food residue but avoid pre-rinsing, which increases water and energy use. Place items by size, working from the two sides to the middle, and tilt cutlery to improve cleaning. Face hollow items downwards, keep items from nesting or touching, make sure the spray arms can rotate freely and do not overload it. The maximum is 3 place settings. Knives and sharp utensils must be loaded with their points facing down or placed horizontally. Wooden, horn, china or mother-of-pearl handled cutlery, plastic that is not heat resistant, bonded or glued items, pewter, copper, crystal glass, rusting steel and wooden platters are not suitable. Items will be hot after the programme, so wait about 15 minutes before unloading and empty the lower basket first. The appliance is for indoor household and similar use only, such as staff kitchens, farm houses and hotel or bed and breakfast environments.

Per the user manual, spare parts are available for seven years after the last unit of the model is placed on the market for the motor, pumps, heating elements, hoses, valves, filters, printed circuit boards, displays and sensors, and for ten years for door hinges and seals, spray arms, drain filters and interior racks and baskets.

• Dishwasher: 1 x MDWMINIPLUS 3 place setting white benchtop mini dishwasher.

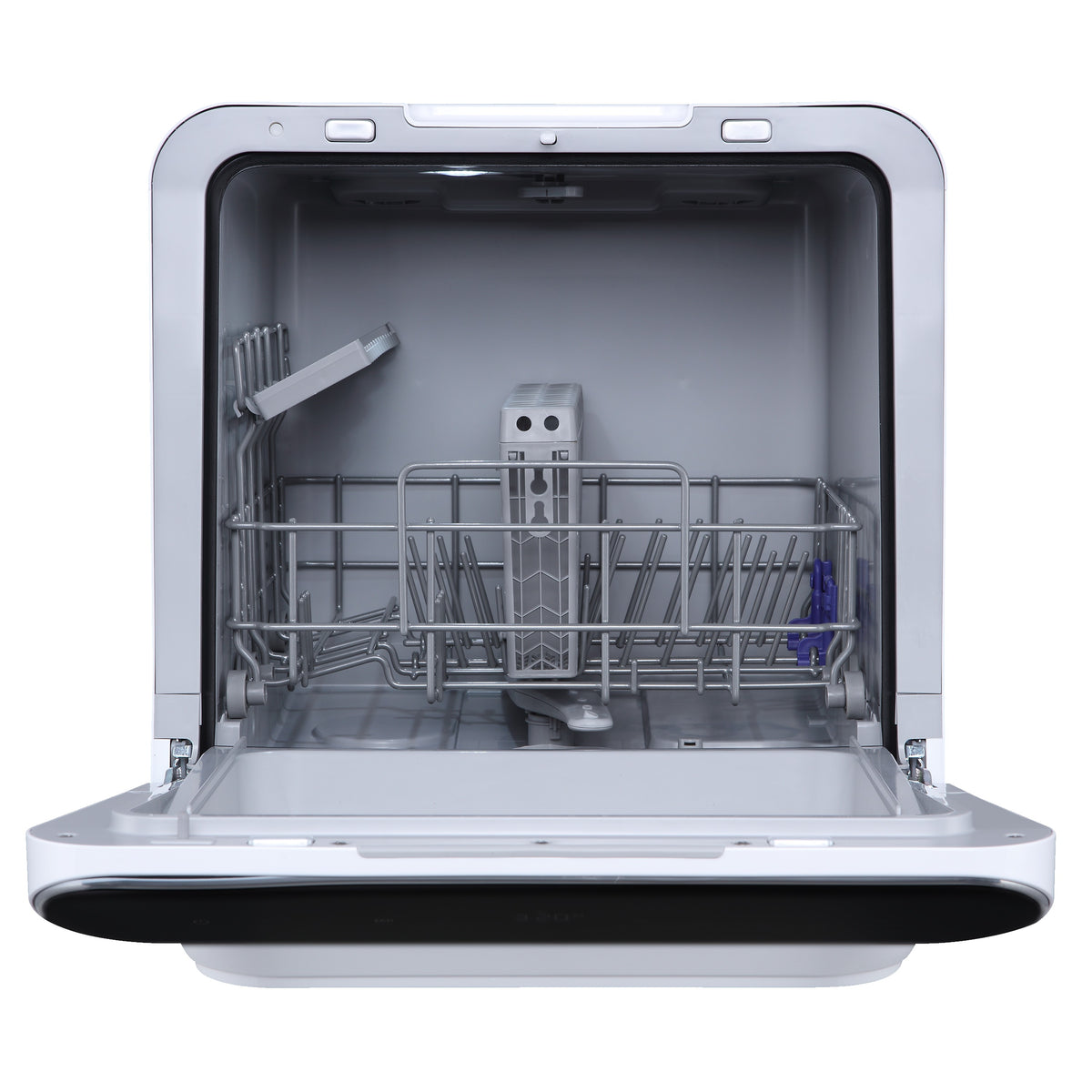

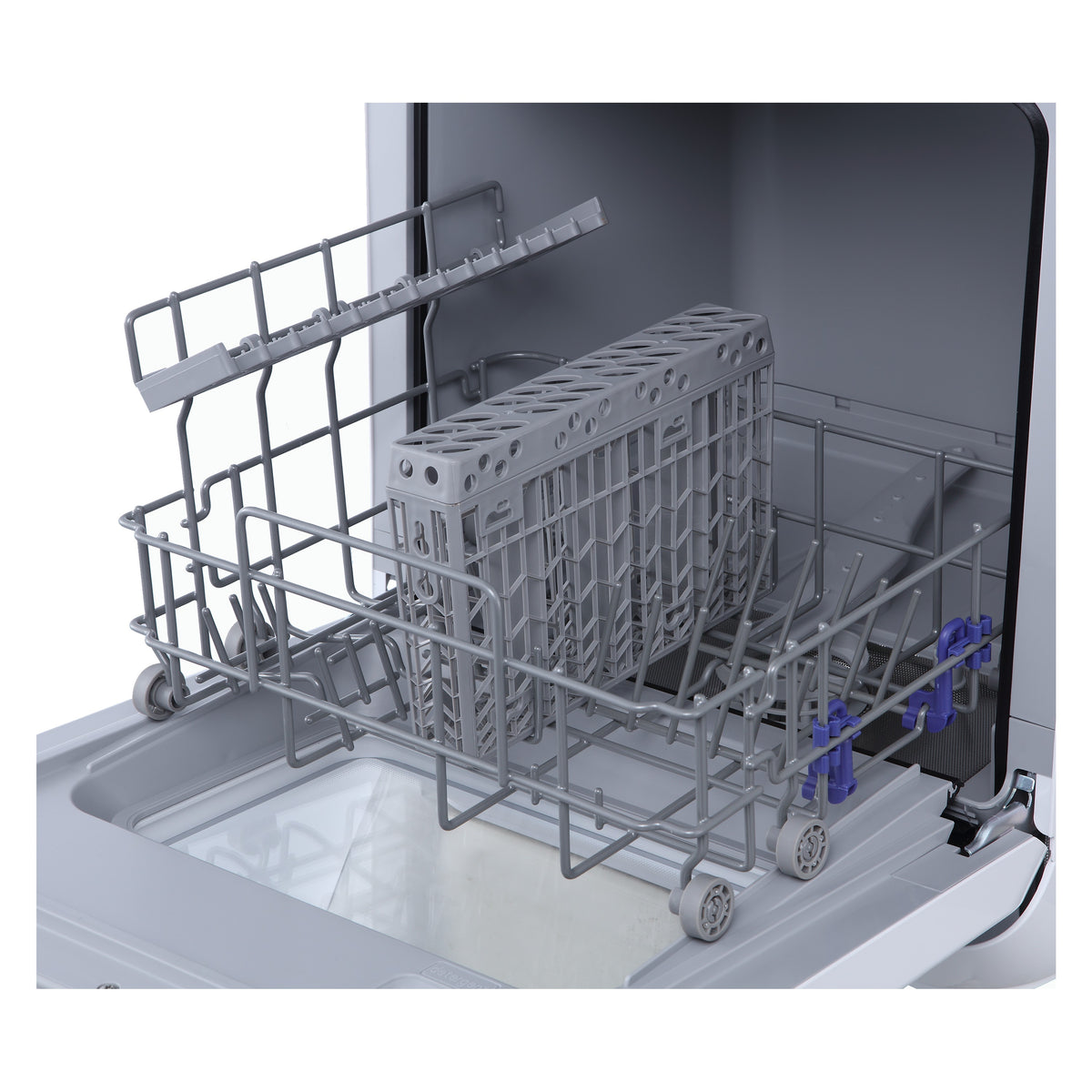

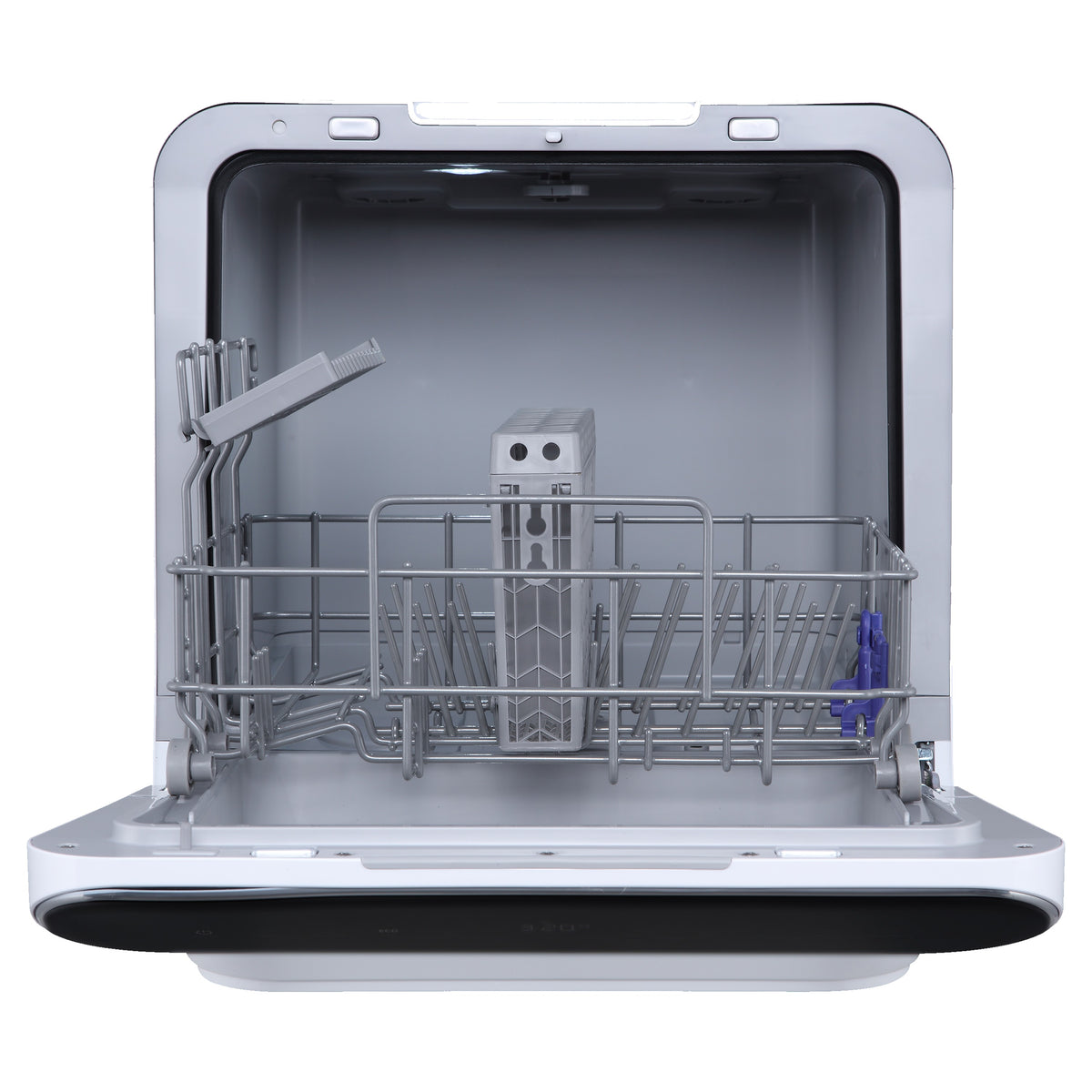

• Baskets: tableware basket, fruit basket and cutlery basket.
• Water accessories: water tray and water bottle.
• Hoses and cord: inlet hose, drain pipe and power cord with plug.
• Documentation: user manual.
