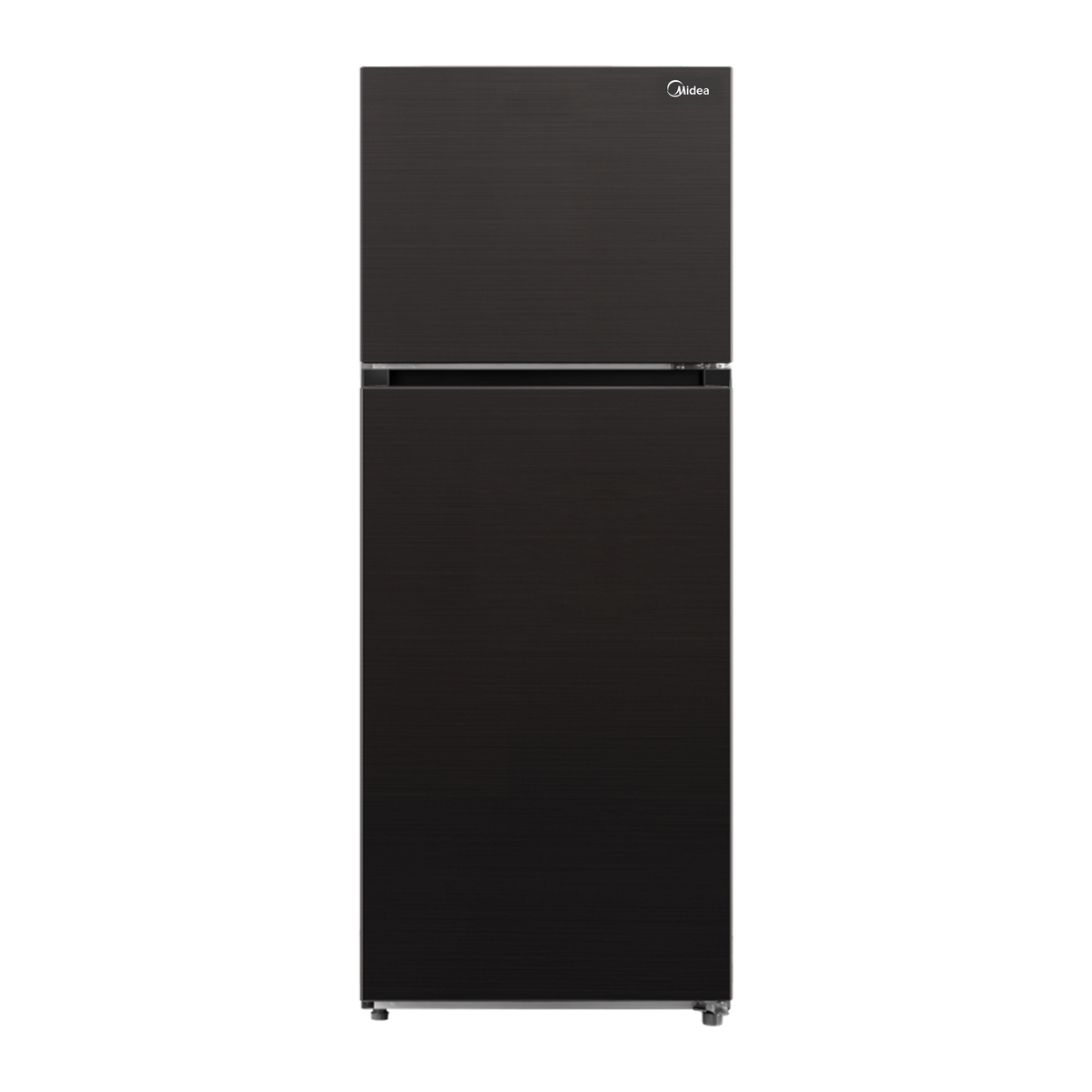

Midea MDRT490MTF45AP 338L Dark Stainless Top Mount Fridge

• 338L capacity: 254L of fridge space and 84L of freezer space in a 595mm wide cabinet.
• One-Touch Climate Control: adjust the fridge temperature with a single button across four settings.

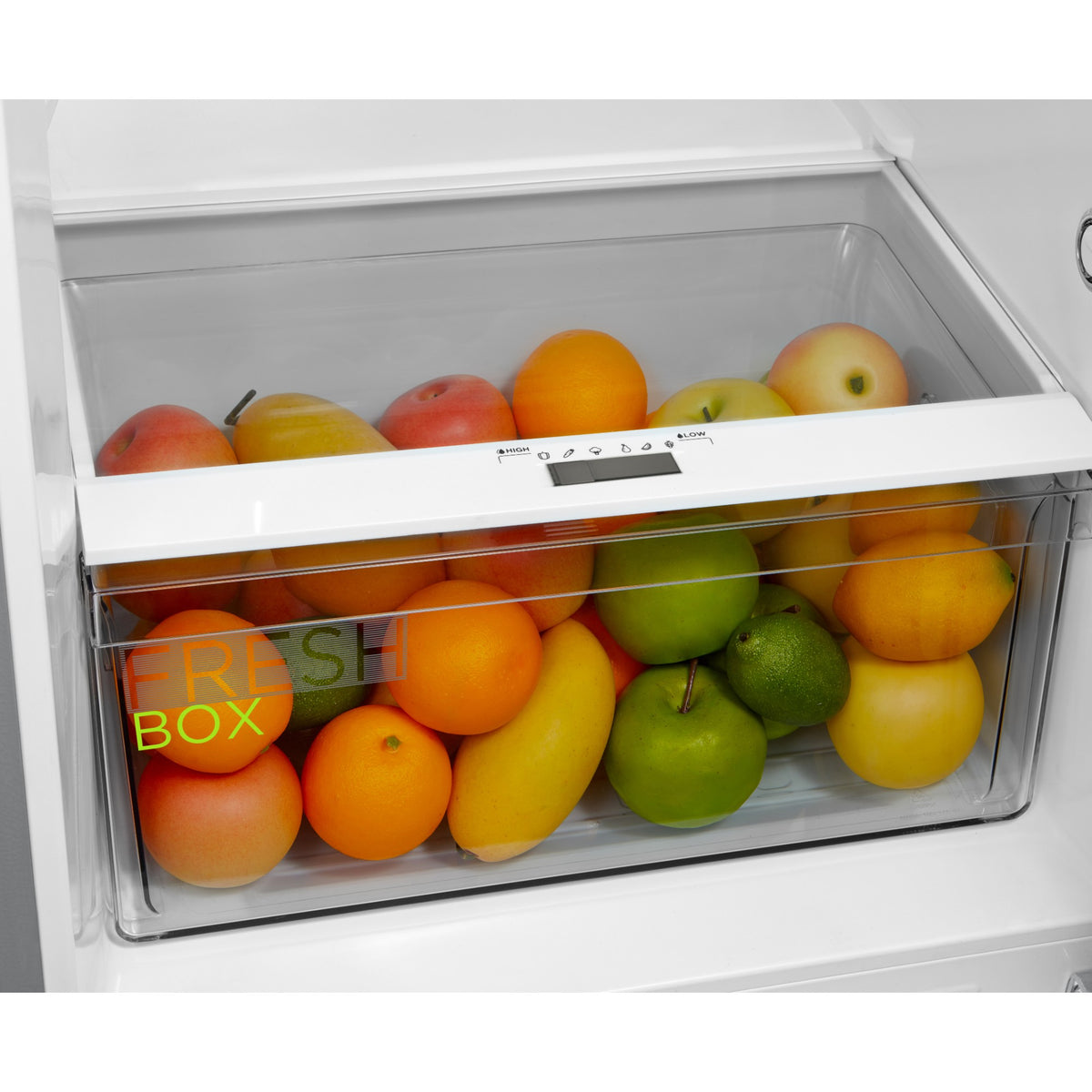

• Humidity Control: humidity-controlled crisper to help keep fruit and vegetables fresh.
• Active-C Fresh: a Midea fresh-keeping feature listed for this model.
• Chill Zone: a Midea chilled storage feature listed for this model.
• Smart Sensors: temperature sensors monitor the fridge and freezer (including the defrost sensor) to maintain consistent cooling.
• Mega Ice Box: a Midea ice storage feature listed for this model.
• Reversible doors: the door hinges can be swapped to the other side to suit your kitchen.
• Automatic defrosting: air-cooled design that defrosts automatically.
• Inverter compressor: an inverter compressor for efficient, quiet cooling.
• 4 star energy rating: efficient running costs for everyday use.
• Deodoriser: built-in deodoriser helps keep the fridge smelling fresh.

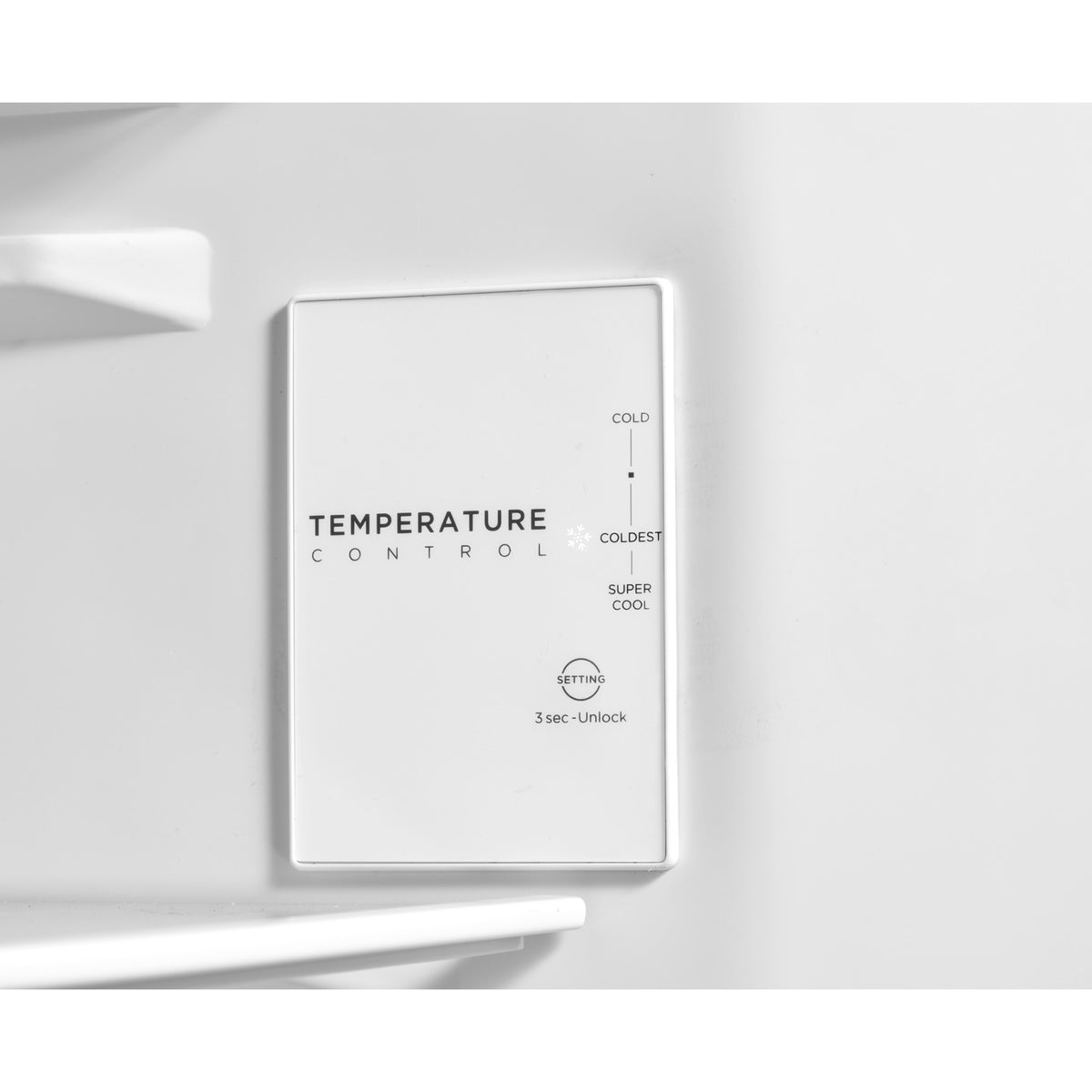

• Fridge temperature settings: One button cycles through four settings: Setting 1 (Cold), Setting 2 (Mid), Setting 3 (Coldest) and Setting 4 (Super Cool). The fridge starts on Setting 3 when first powered on.
• Freezer damper slider: Move the damper slider to the left to lower the freezer temperature. Midea recommends keeping it in the initial position for best use.
• Control panel lock: The panel locks automatically after 15 seconds without use. Press and hold the temperature button for 3 seconds to unlock.
• Fault indication: Indicator lights show faults with the fridge temperature sensor, freezer defrost sensor or ambient temperature sensor.

• Model: MDRT490MTF45AP
• Category: Top mount fridge freezer
• Total Capacity: 338L
• Fridge Volume: 254L
• Freezer Volume: 84L
• Number of Doors: 2
• Colour: Dark Stainless
• Compressor: Inverter
• Defrosting: Automatic (air-cooled)
• Energy Rating: 4 Star
• Energy Consumption: 293 kWh per year
• Rated Voltage: 220-240V ~ 50Hz
• Rated Current: 1.2A
• Rated Defrost Power: 175W

• Installation type: Freestanding installation.
• Placement: Install on a flat, level floor in a well-ventilated position, away from heat sources such as cookers and radiators.
• Clearances: Allow more than 100mm at both sides and the top, and no more than 75mm between the back and the wall.
• Space required: Allow for the 595 x 1724 x 695 mm body size plus room for the doors to open (997mm overall width and 1137mm depth with the doors open 135°).
• Delivery access: At 595mm wide, measure doorways and hallways before delivery.
• Levelling: Adjust the levelling feet so the front sits slightly higher than the rear to help the doors close.
• Door reversal: The door hinges can be reversed to open from the other side; the manual includes a step-by-step reversal guide.
• Power supply: Requires a 220-240V, 50Hz power supply.
• First use: Wait 2 to 3 hours after connecting to power before loading food.
• Water connection: No water connection is required.

Warranty coverage

Midea is one of the world's leading home appliance brands, now operating as a direct subsidiary in Australia with offices in Melbourne. Every Midea product is backed by a comprehensive manufacturer's warranty, giving you confidence in the quality and performance of every appliance.

Warranty periods apply to domestic use only. Commercial use is not covered unless otherwise specified.

Air conditioning

• Split wall mounted & ducted systems: 7 years — Parts and labour
• Portable air conditioners: 2 years — Parts and labour
• Accessories (remote controls, filters): 12 months — Replacement

Hot water systems

• Tank: 7 years — Replacement
• Compressor: 5 years — Replacement
• Parts & labour (servicing): 2 years

Kitchen appliances, laundry, refrigeration & small appliances

• Standard warranty: 2 years — Parts and labour
• Extended warranty (selected models): Up to 6 years — Register within 30 days of purchase at midea.com/au
• Accessories: 3 months — Replacement

Proof of purchase is required for all warranty claims. For the extended 6-year warranty, product must be registered within 30 days of purchase. Products purchased from authorised retailers only.

What's covered

• Manufacturing defects in materials and workmanship
• Repair or replacement of defective products or parts within the warranty period
• Replaced parts or products assume the remaining warranty period of the original

What's not covered

• Incorrect installation or failure to follow manufacturer guidelines
• Misuse, accidental damage, abuse, or neglect
• Damage caused by power surges or incorrect electrical/gas supply
• Use of the product for commercial purposes
• Damage caused by unauthorised repairs or modifications
• Normal wear and tear
• Products purchased outside of Australia or from unauthorised retailers
• Accessories beyond their specified warranty period

Conditions

• Products must be used and maintained in accordance with manufacturer instructions
• Register selected appliances within 30 days at midea.com/au to activate the extended warranty
• Proof of purchase must be provided with all claims

Making a claim

Contact Midea Customer Service on 1800 511 806 or email customercare.au@support.midea.com, Monday to Friday, 9:00am–5:00pm AEST. Claims can also be lodged online at midea.com/au/support. Please have your proof of purchase, model number, and serial number ready when submitting your claim.

Australian Consumer Law

Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if they fail to be of acceptable quality and the failure does not amount to a major failure.

The MDRT490MTF45AP is a compact top mount fridge freezer that fits a 595mm wide space. It uses an air-cooling (frost-free) principle with automatic defrosting, and a damper slider in the freezer lets you fine-tune the freezer temperature. The fridge setting button offers Cold, Mid, Coldest and Super Cool, and the fridge starts on the Coldest setting when first powered on.

Midea lists One-Touch Climate Control, Humidity Control, Active-C Fresh, Chill Zone, Smart Sensors and Mega Ice Box for this model. We will add further detail on these features when Midea supplies the full specification sheet.

For best results, allow warm food to cool before storing it, keep the door gaskets clean and intact, and avoid blocking the air outlet. Use the freezer star classification markings to guide storage times, and do not keep frozen food longer than three months if no storage time is stated on the packaging. Actual performance varies with ambient temperature, load and how often the doors are opened.

• Fridge freezer: 1 x Midea MDRT490MTF45AP 338L top mount fridge freezer in dark stainless.

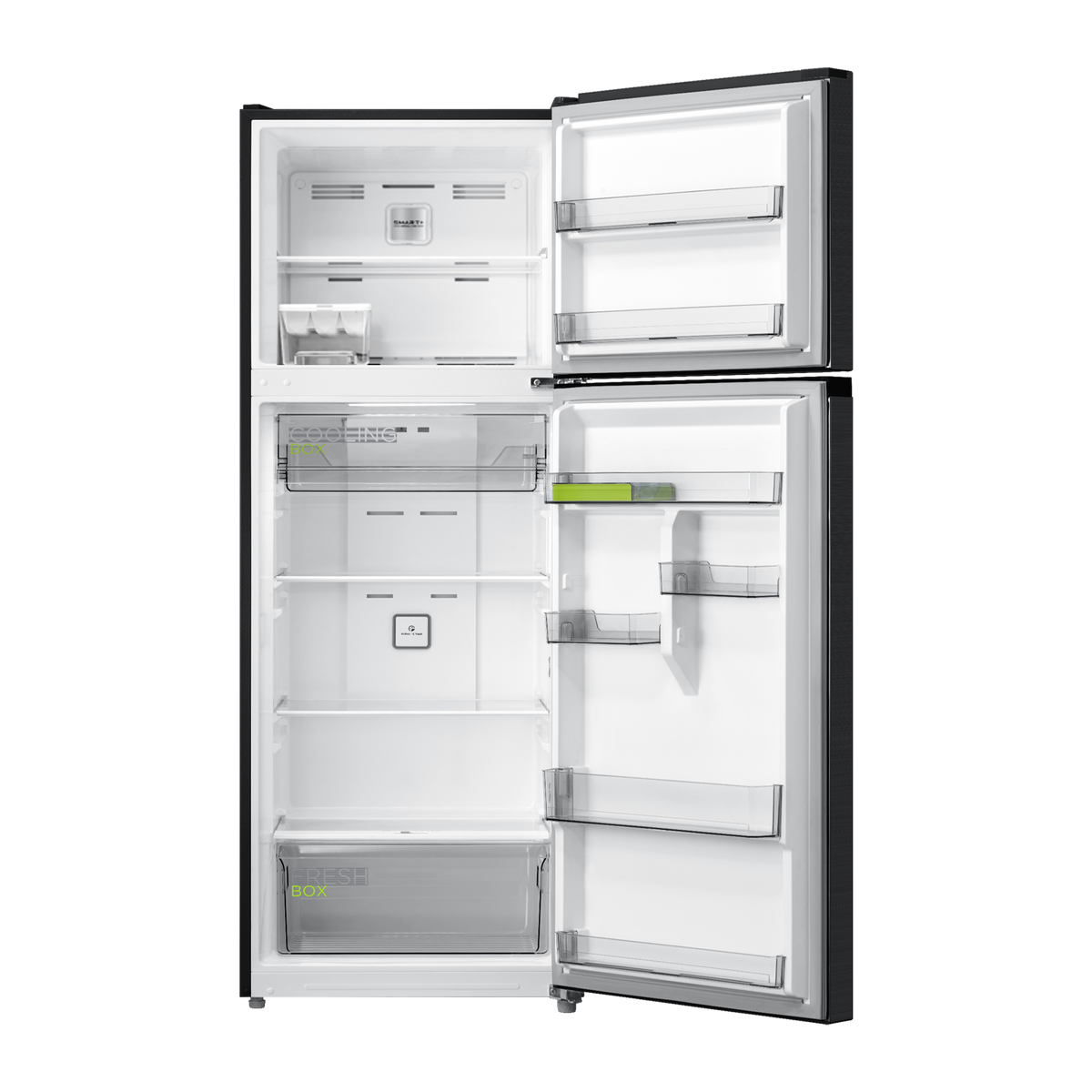

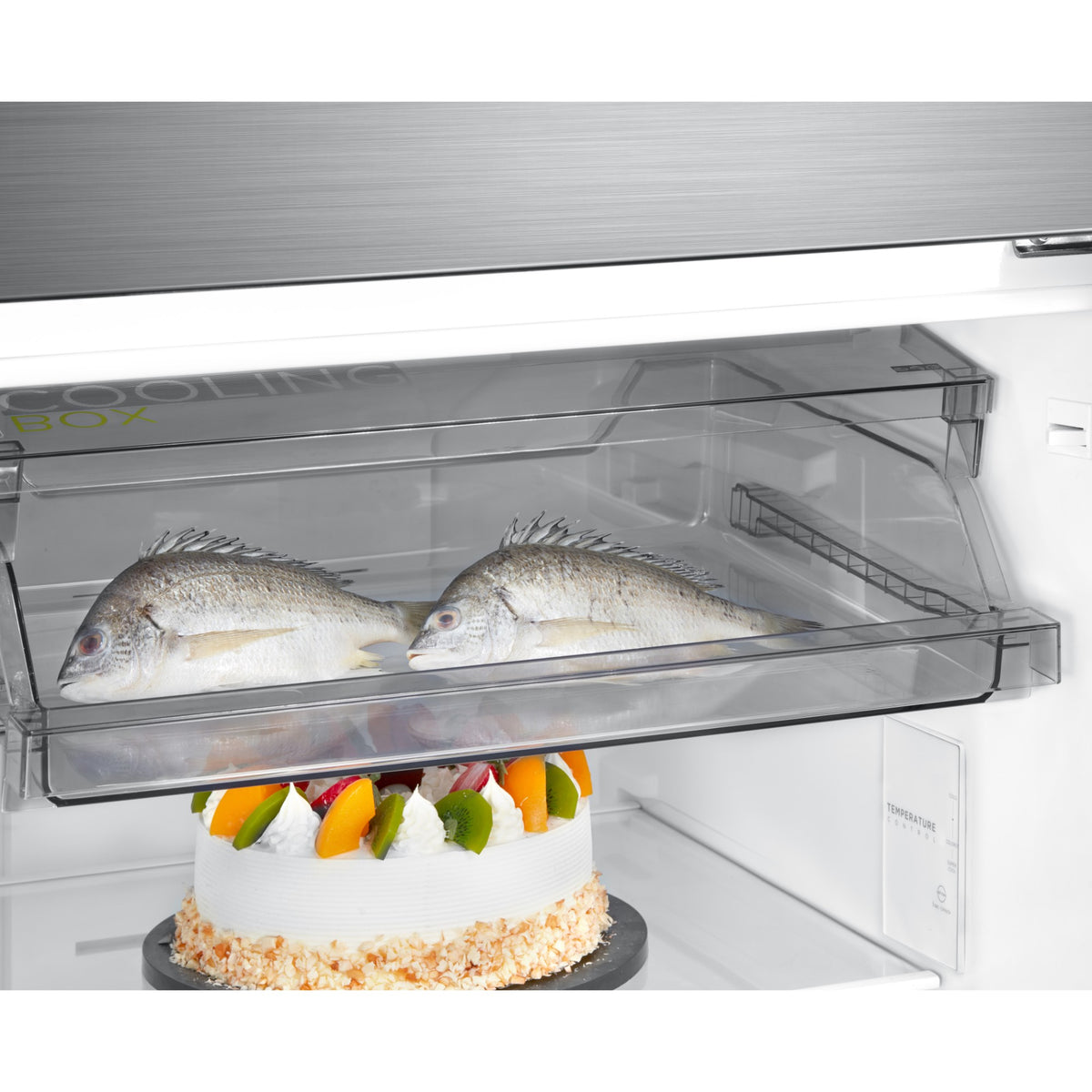

• Fittings: Freezer shelf, refrigerator shelves, cooling box, fruit and vegetable box, deodoriser and door trays.
• Door reversal kit: Hinge kit parts for reversing the doors.
• Documentation: User manual.

• MDRT490MTF45AP USER MANUAL (PDF)
