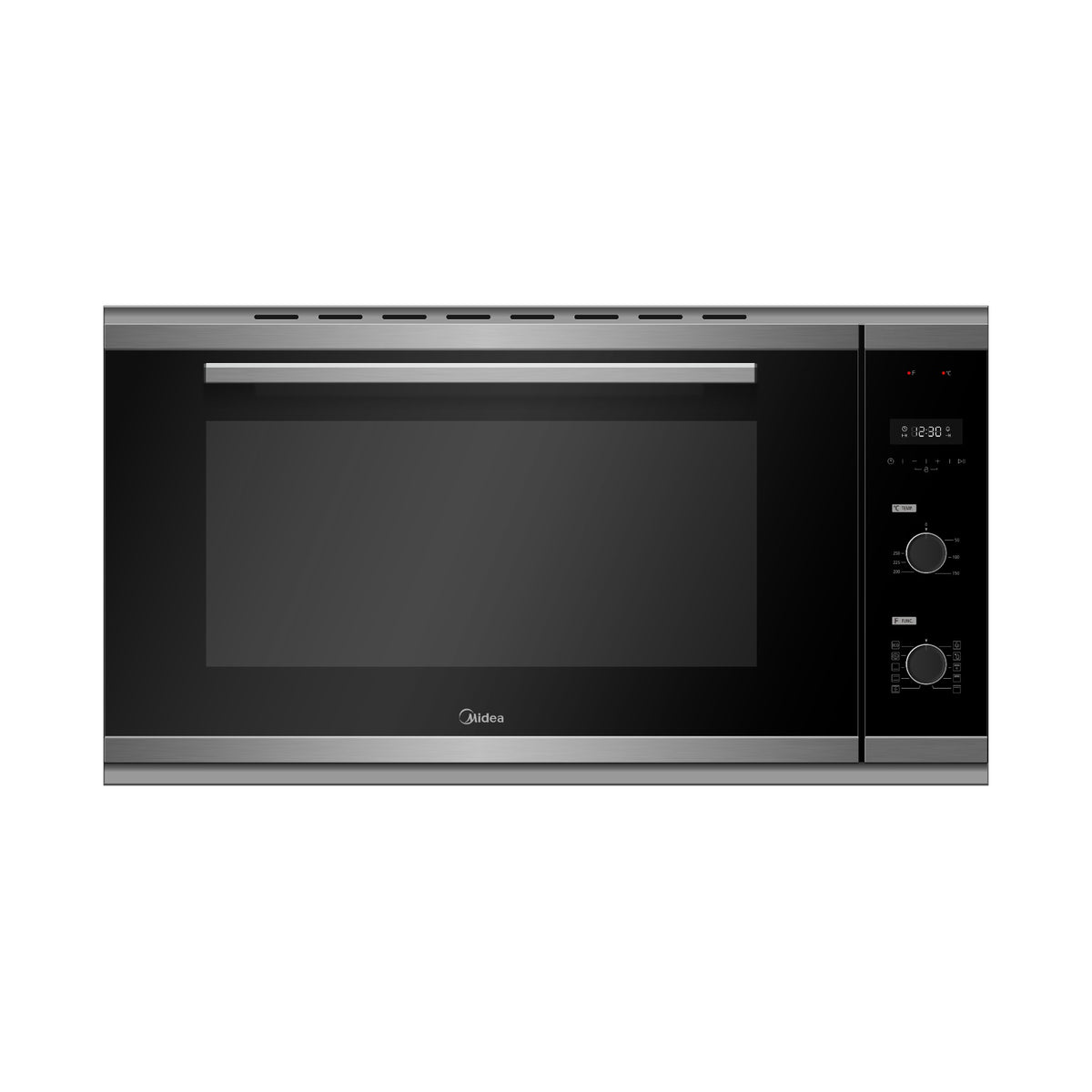

Midea 93M90D0 90cm 9 Function Black Glass Built-In Oven

• Triple glazed glass door: offers excellent heat insulation, keeping the outer surface cooler and safer during operation, and the door can be removed for cleaning.
• Forced cooling system: helps maintain a safe exterior temperature even when the oven is running at high heat.
• Fast preheating: reduces wait times so you can start cooking sooner, which suits busy schedules.
• 5 shelf positions: offers flexibility to suit different dish sizes and cooking methods.
• 93L capacity and 3.0kW output: a spacious cavity and generous power for family meals, roasts and entertaining.
• Knob controls with LED screen: intuitive knob controls for the function and temperature, with an LED screen for simple and precise operation.
• 30 - 250 degrees C temperature range: covers gentle warming and defrosting through to high heat baking, roasting and grilling.
• Digital timer: set an alarm, a cooking duration or an end time, with a 24 hour clock on the display.
• ECO function: works like the 3D Convection function but cooks without using the oven lamps, allowing energy savings.
• Lock function: press the lock button for 3 seconds to lock the controls and prevent accidental changes.
• Oven lamps: interior lamps stay on while the oven is working, and can be switched on by themselves using the function selector.

• Oven Lamp: switches on the lamp without a cooking function.
• Defrost: thaws meat, poultry, bread and desserts, with the fan causing warm air to wrap around the food.
• Double Grilling with Fan: the inner and outer top heating elements work with the fan, suited to grilling a large amount of meat.
• Double Grilling: the inner and outer top heating elements work together, suited to grilling large quantities.
• Grill (small): normal grilling using only the inner part of the top heating element, directing heat down onto the food.
• Convection with Fan: quick, even cooking using the top and bottom heating elements and the fan, ideal for baking flans and sweets and for roasting.
• Convection: for baking and roasting food on one rack position only, with heat distributed evenly from the top and bottom.
• Bottom Heater: for baking cakes with a crisp bottom and for preserving foods, with heat distributed from the bottom.
• 3D Convection: for sweets and biscuits on 1 and 2 levels, with the fan distributing heat generated by the circular heating element on the rear wall of the oven.
• ECO: equivalent to the 3D Convection function but allows cooking without using the oven lamps, allowing energy savings.

• Model: 93M90D0 (full model code 93M90D0-E113300)
• Oven type: Built-in electric multifunction oven
• Capacity: 93L
• Functions: 9 oven functions plus oven lamp
• Max power: 3.0kW
• Voltage: 220-240V, 50-60Hz
• Temperature range: 30 - 250 degrees C
• Controls: Knob controls with LED screen
• Timer: Digital 24 hour electronic clock timer with alarm, duration and end time
• Shelf positions: 5
• Door: Triple glazed, removable
• Cooling: Forced cooling system
• Lighting: Interior oven lamps
• Electrical connection: Three-pole supply cable with free terminals (hard wired), 3 x 1.5mm2
• Safety: Lock function

• Installer requirement: must be installed by a licensed electrician, following the manufacturer's installation instructions.
• Power supply: 220-240V, supplied with a three-pole power cable with free terminals for a hard wired connection. If the oven is connected permanently to the mains, a device ensuring disconnection from the mains with a contact opening distance of at least 3mm must be installed. The oven must be earthed (Brown = Live, Blue = Neutral, Yellow-Green = Earth), and if the power cable is replaced it must be 3 x 1.5mm2, type H05VV-F or H05RR-F.
• Cabinet cut-out: 860mm wide, 475-477mm high and 550-560mm deep, with a 60mm diameter hole through which the electric cable of the oven must pass.
• Ventilation: do not cover the ventilation slots above the oven door, otherwise the oven will overheat. Hot air escapes through these slots.

Warranty coverage

Midea is one of the world's leading home appliance brands, now operating as a direct subsidiary in Australia with offices in Melbourne. Every Midea product is backed by a comprehensive manufacturer's warranty, giving you confidence in the quality and performance of every appliance.

Warranty periods apply to domestic use only. Commercial use is not covered unless otherwise specified.

Air conditioning

• Split wall mounted & ducted systems: 7 years — Parts and labour
• Portable air conditioners: 2 years — Parts and labour
• Accessories (remote controls, filters): 12 months — Replacement

Hot water systems

• Tank: 7 years — Replacement
• Compressor: 5 years — Replacement
• Parts & labour (servicing): 2 years

Kitchen appliances, laundry, refrigeration & small appliances

• Standard warranty: 2 years — Parts and labour
• Extended warranty (selected models): Up to 6 years — Register within 30 days of purchase at midea.com/au
• Accessories: 3 months — Replacement

Proof of purchase is required for all warranty claims. For the extended 6-year warranty, product must be registered within 30 days of purchase. Products purchased from authorised retailers only.

What's covered

• Manufacturing defects in materials and workmanship
• Repair or replacement of defective products or parts within the warranty period
• Replaced parts or products assume the remaining warranty period of the original

What's not covered

• Incorrect installation or failure to follow manufacturer guidelines
• Misuse, accidental damage, abuse, or neglect
• Damage caused by power surges or incorrect electrical/gas supply
• Use of the product for commercial purposes
• Damage caused by unauthorised repairs or modifications
• Normal wear and tear
• Products purchased outside of Australia or from unauthorised retailers
• Accessories beyond their specified warranty period

Conditions

• Air conditioners must be installed by a licensed electrician or licensed refrigeration mechanic
• Cooktops and ovens must be installed by a licensed electrician or licensed gas plumber
• Products must be used and maintained in accordance with manufacturer instructions
• Air conditioners require annual servicing (domestic) to maintain warranty coverage
• Register selected appliances within 30 days at midea.com/au to activate the extended warranty
• Proof of purchase must be provided with all claims

Making a claim

Contact Midea Customer Service on 1800 511 806 or email customercare.au@support.midea.com, Monday to Friday, 9:00am–5:00pm AEST. Claims can also be lodged online at midea.com/au/support. Please have your proof of purchase, model number, and serial number ready when submitting your claim.

Australian Consumer Law

Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if they fail to be of acceptable quality and the failure does not amount to a major failure.

The digital timer offers more than a simple countdown. Set an alarm from 1 minute up to 23 hours 59 minutes, which counts down on the display and buzzes when finished, or set a cooking duration so the oven switches itself off at the end. Combining a duration with an end time delays the start so that cooking finishes when you want it to. The 24 hour clock keeps the time of day, and pressing the lock button for 3 seconds locks the controls until you unlock them the same way.

In ECO mode the oven lamps are off to save energy; to switch them on, set the selector to the 3D Convection function, then turn it back to ECO to continue low-energy cooking. A cooling fan switches on and off as needed. Accessories can be inserted at five different levels, and the cooking guide table in the user manual gives the ideal position, temperature and time for each dish.

The oven is designed for normal household use, not professional use. When it is first used it can produce an unpleasant odour and smoke and the accessories may get hotter than usual, which is not a malfunction, but make sure the airflow in the room is adequate. Midea recommends a routine service call yearly to keep the oven operating at peak performance.

• Oven: 1 x Midea 93M90D0 90cm built-in oven in black glass.
• Wire rack: 1 x wire rack, used as a support for baking pans, pastry tins and containers, or for grilling meat and fish and toasting bread.
• Dripping pan: 1 x dripping pan, used to collect the juices of grilled foods or for cooking foods directly.
