Product Description

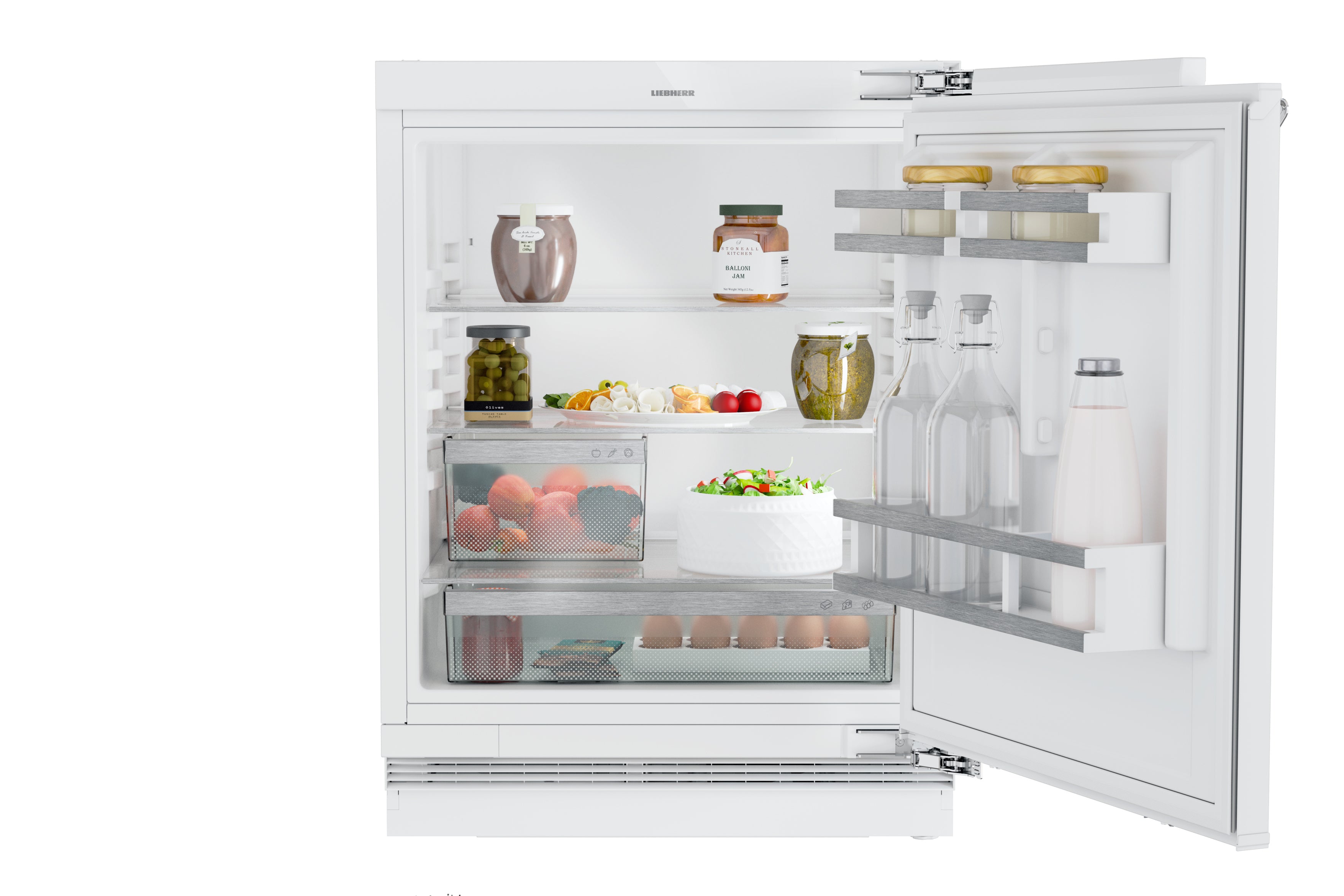

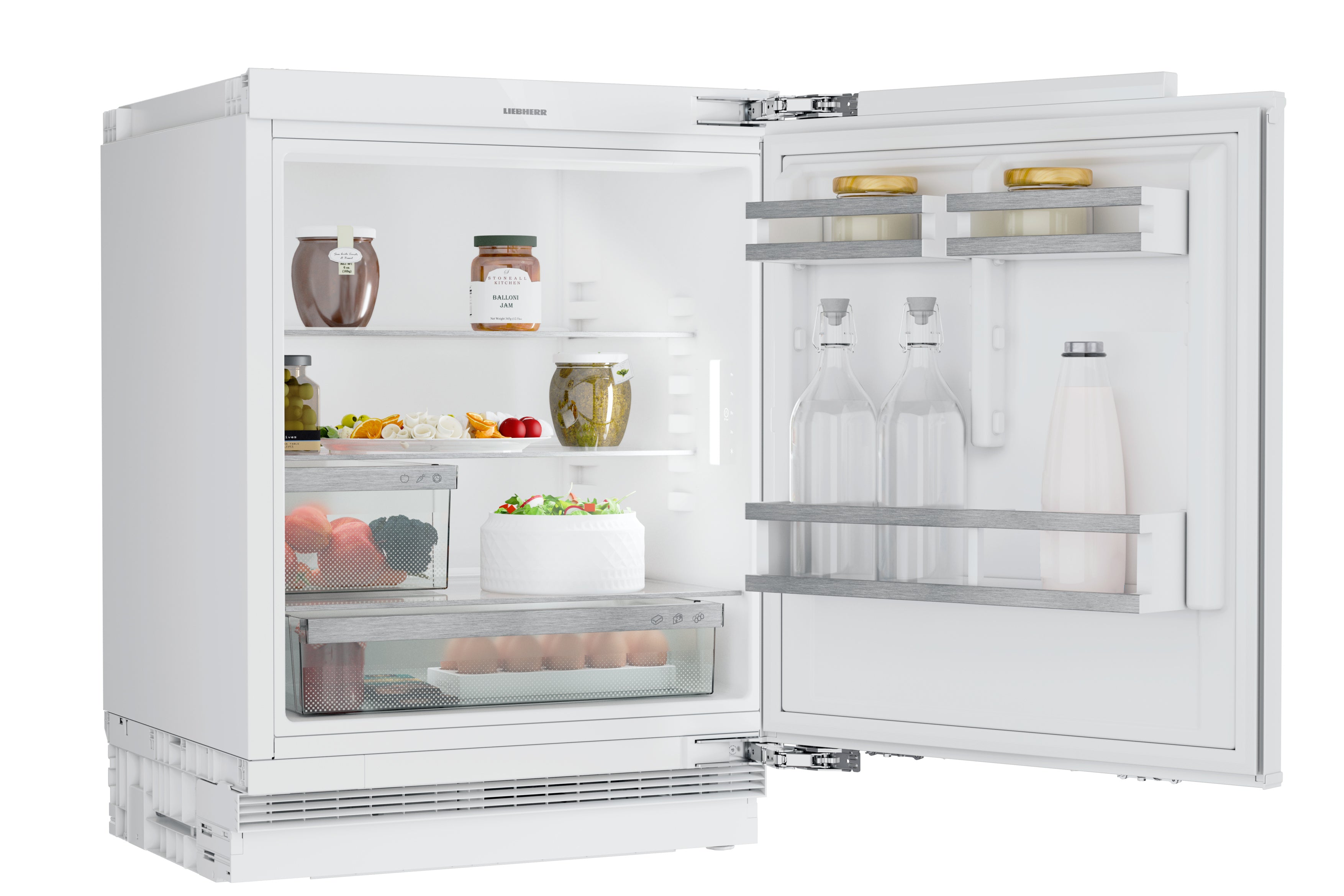

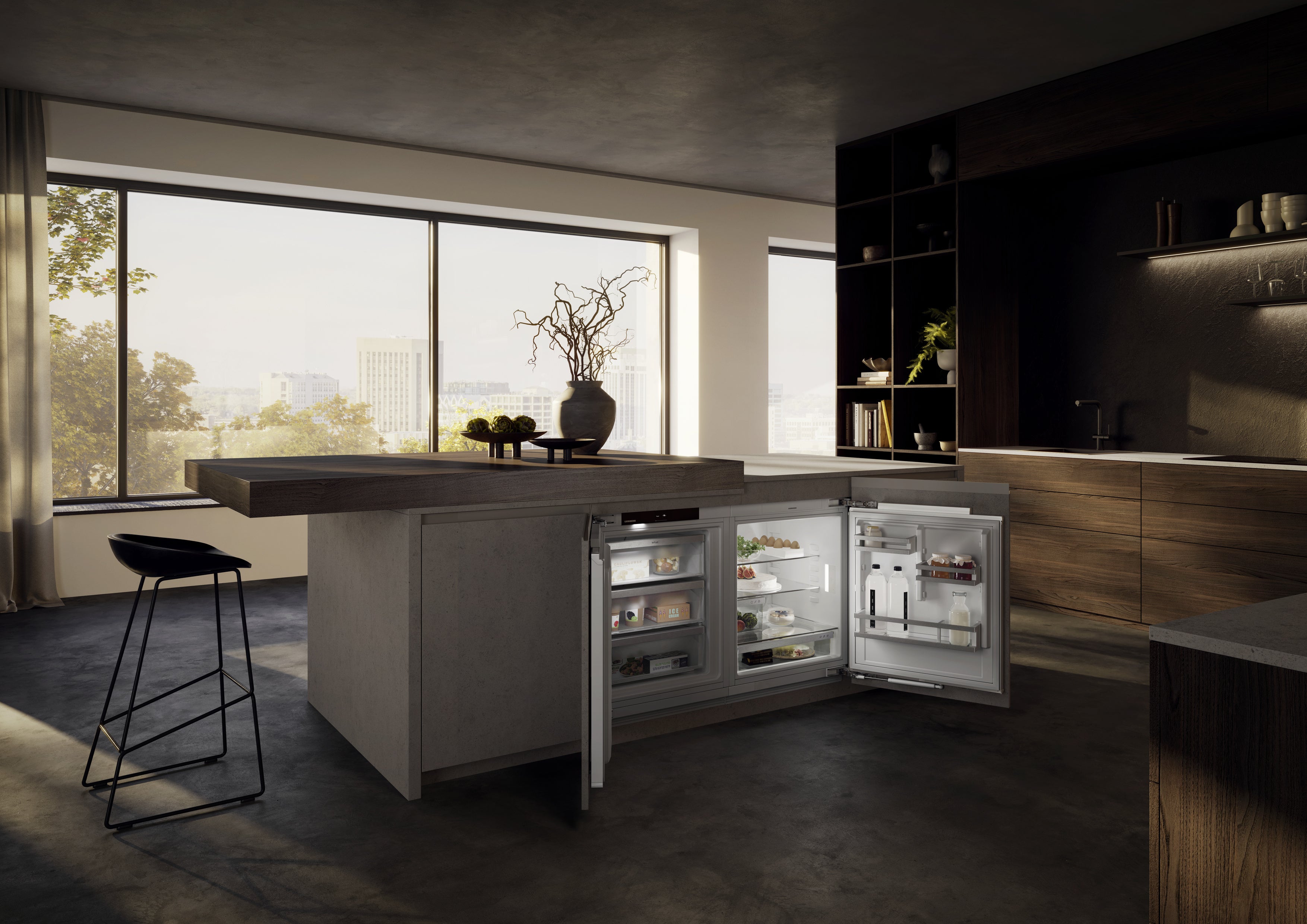

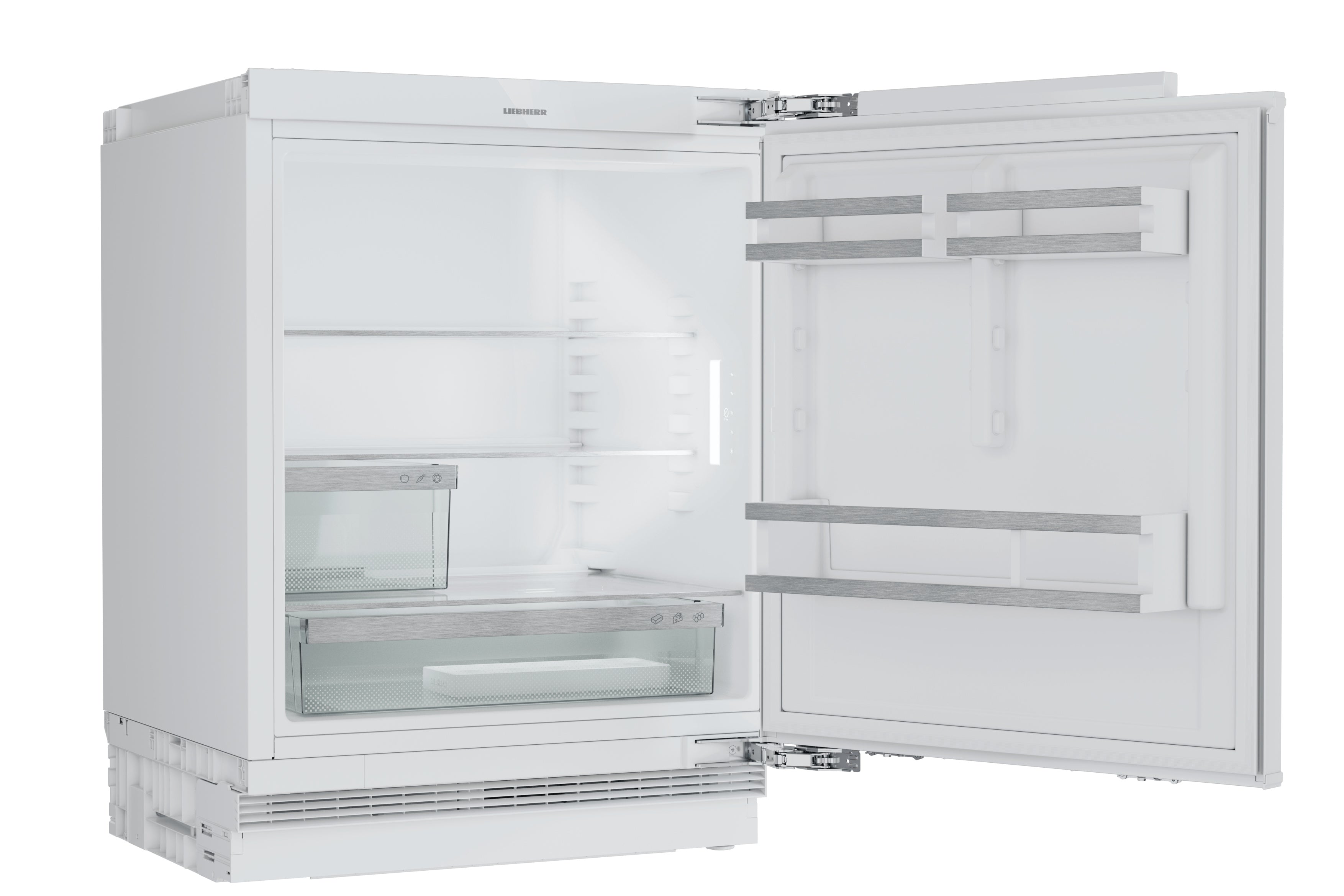

Refrigerator suitable for undercounter installation

• Aperture dimensions height/width/depth: 82 - 88 / 60 / 56.0 cm
• Gross capacity, total: 127 Litres
• Total volume: 127 Litres
• Connectivity solution: —

FEATURES:

Fruit and Vegetable box

• The Fruit and Vegetable box offers a convenient and organized solution for your fresh produce. With its compact yet spacious design, it provides ample room for fruits and vegetables. The transparent construction allows for easy visibility and quick access, while the easy-to-clean surface ensures hassle-free maintenance. Perfect for those who value freshness and organization in their refrigerator.

TouchControl

• A gentle finger tap and you set your Liebherr to 3, 5, 7 or 9° with TouchControl. So simple – and efficient, as the sleek button is integrated into the interior, creating more space for all your fresh goods.

LED light inside

• The LED side lighting illuminates the interior from the side – providing a good overview of your food. Another highlight: the LEDs are positioned in front of the glass shelves so that even a full refrigerator is well lit.

GlassLine shelves

• If you store a carafe or tall container in the refrigerator, you don't want to have to remove an entire glass shelf. And why should you? Because there are separable glass shelves. Simply slide the front half of the glass shelf under the back half. This allows you to place higher containers at the front and still have enough space for other food.

Universalbox

• The Universalbox makes the perfect home for small food items: Tubes or small cans, for example, can be stored safely and clearly in the bottom drawer. The transparent box not only offers plenty of space but is also easily accessible. And the robust surface is particularly easy to clean – saving time and effort.

Half Door Racks

• Enjoy even more flexibility and convenience when storing your food: The two half door racks can be moved and adjusted in height as required. This means that e.g. cans or small screw-top jars find a safe and easily accessible place. Plus, the stainless steel look trim gives the racks an elegant look.

Convenient height adjustment glass shelves

• Do you need a large container to go in the fridge? If so, simply adjust the heights at which you insert the glass shelves. The convenient height adjustment means this can be done quickly and individually – even with food stored on the shelves.

SoftSystem

• From breakfast to a midnight snack – a fridge needs to be open and closed on many occasions. And your Liebherr makes this a lot of fun. With the SoftSystem, your fridge door closes softly and safely, and in a way which is pleasantly quiet and light. Bottles stored in the inside door remain securely in place – nothing rattles or wobbles.

Glass shelves with stainless-steel-look decorative trim

• Clear, bright and attractive – this is the look and feel that awaits you every time you open your Liebherr. This is provided for example by means of transparent glass shelves made of safety glass. You can adjust their height quickly and easily in one simple step. Decorative trim with a stainless steel look rounds off the attractive visual appearance.

Egg tray

• Do you want to store eggs in your refrigerator safely and without a box? This is no problem with the egg tray. This will store up to 10 chicken eggs, keeping them stable and protected, and well cooled. The tray fits both in the inside door and on the glass shelves.

SuperCool

• You want your fridge to maintain the optimum temperature, even if you have just put shopping in from the market which has been warmed by the sun? This is a case for SuperCool. Once activated, your Liebherr boosts its performance until the fresh food is as cool as the rest of the contents. SuperCool then switches off automatically.

Height-adjustable feet

• The height adjustable feet allow Liebherr appliances to be aligned, ensuring the appliance is level on most surfaces.

Dishwasher-safe features

• The features of your Liebherr are practical in two ways: Not only do they simplify everyday use, they are also very easy to clean. Does the butter dish, FlexSystem or ice cube tray need to be cleaned? Just put them in the dishwasher. Then you’ll have more time for other things.

Display lock

• An illuminated display is a magnet for children's hands – your Liebherr also knows that. That's why there is the display lock. It ensures the settings on your refrigerator are not changed unintentionally. You can also, of course, simply deactivate the display lock.

Door alarm

• The door alarm of your Liebherr makes sure that you don’t unnecessarily use energy and that food doesn’t go off: if the appliance door stays open for too long an alarm goes off – flashing light and a warning tone. You decide what “too long” means: depending on the settings the door alarm comes on after one, two or three minutes.

Replaceable door seal

• Do you think the door seal on your Liebherr needs to be replaced after a few years? This is very easy to do yourself. The replaceable door seal can be removed in a few simple steps – and the new seal is just as easy to insert. As a result, this part of the refrigerator is always spotless and hygienically clean.

Reversible door hinges

• The appliances are factory fitted with door hinges on the right. The reversible door hinges permit optimum use of the appliance wherever it is located.

SabbathMode

• Am Sabbath ruhen alle Aktivitäten – das gilt auch für elektrische Geräte. Darauf nimmt Ihr Liebherr Rücksicht. Im SabbathMode ist die gesamte Beleuchtung des Kühlschranks ausgeschaltet, ebenso alle Töne, Geräusche und das Display. Nach 80 Stunden deaktiviert sich der SabbathMode.

TECHNICAL DATA:

General Product Information:

• Model type: Refrigerator suitable for undercounter installation

• GTIN: 9005382259610

• Series: pure

Output & Consumption:

• Humidity range: ✔

• Energy consumption per year: 72 kWh/a

• Net capacity, total: 126 Litres

• Gross capacity, total: 127 Litres

• Energy consumption in 24h: 0.197 kWh / 24h

• Energy consumption (kWh/yr): 90
• Star rating: 5.0
• Climate class: SN-T

• Voltage: 220-240 V ~

• Frequency: 50/60 Hz

• Connection rating: 2.0 A

Control & Functions:

• Malfunction: Warning signal: optical and acoustical

• Control: Minimal UI

• Control unit: Touch

• Number of temperature zones: 1

• Number of regulated refrigeration circuits: 1

• Child proofing: ✔

• Temperature display: Refrigerator

• SuperCool: Adjustable on appliance

• Door alarm, cooling: Adjustable on appliance

• Door alarm, freezing: —

• BottleTimer: —

• Connectivity solution: —

• NightMode: —

• Display lock: Adjustable on appliance

Refrigerator Compartment:

• Adjustable temperature range, refrigerator compartment: +2 °C to +9 °C

• Refrigerator compartment climate zones: Half fruit and vegetable compartment

• Number of BioFresh safes: 0

• Interior light of BioFresh safe: —

• Defrosting method: automatic

• Forced air cooling: —

• FreshAir filter: —

• Pull-out system drawer, refrigerator compartment: —

• SoftSystem: SoftSystem

• Illumination cooling compartment: LED lighting, right, integrated in the UI

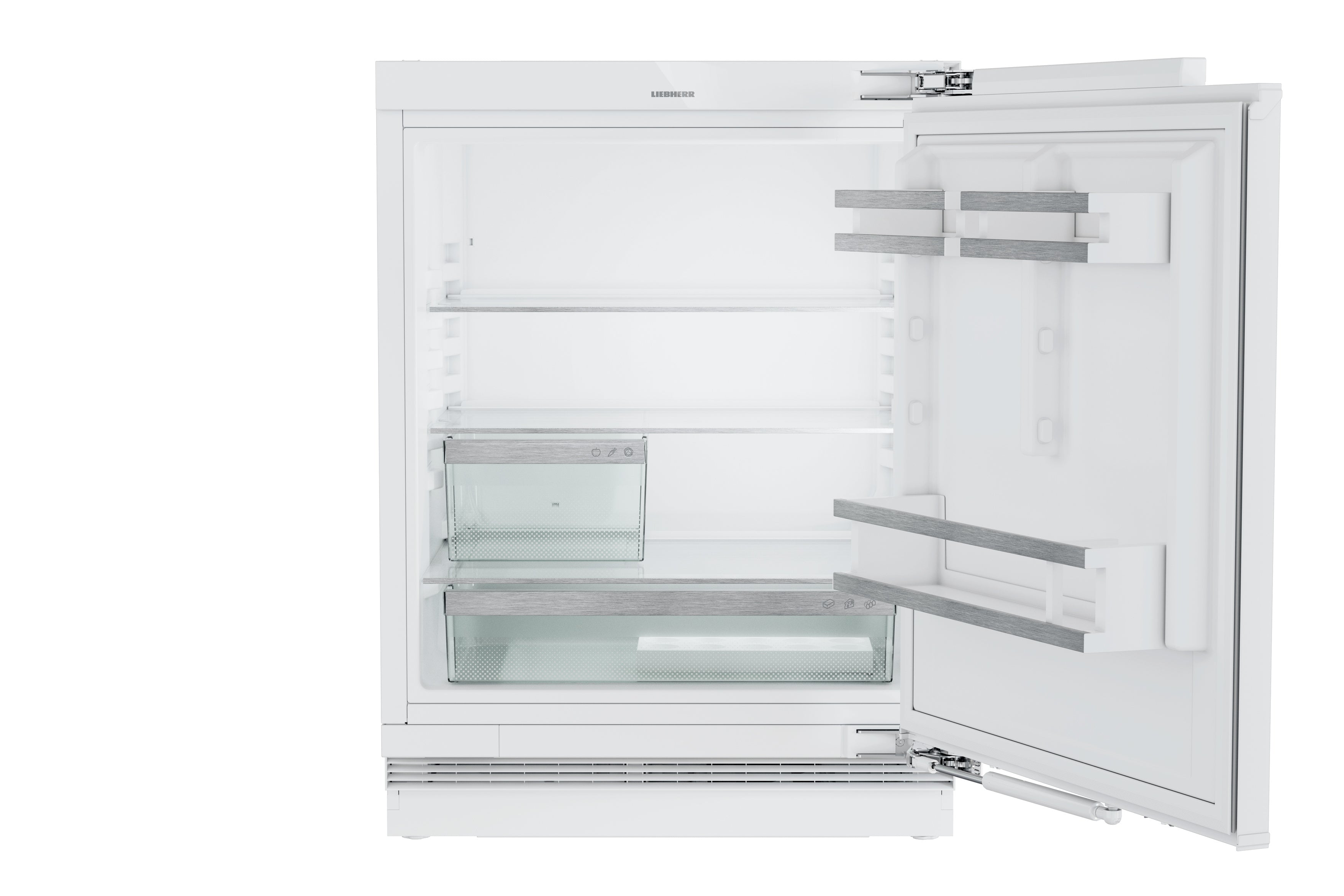

• Number of storage shelves, refrigerator compartment: 3

• Of which separable: 0

• of which height-adjustable: 2

• Bottle storage: —

• Bottle rack: 1

• Number of can racks: 2

• Egg tray: 10 eggs

• Type of door rack Cooling compartment: Bottle and can rack

• Height-adjustable inner door shelf: Gradual adjustment

• Pull-out unit: —

Design & Materials:

• Material inner door rack: White plastic

• Storage shelf material, refrigerator compartment: Glass

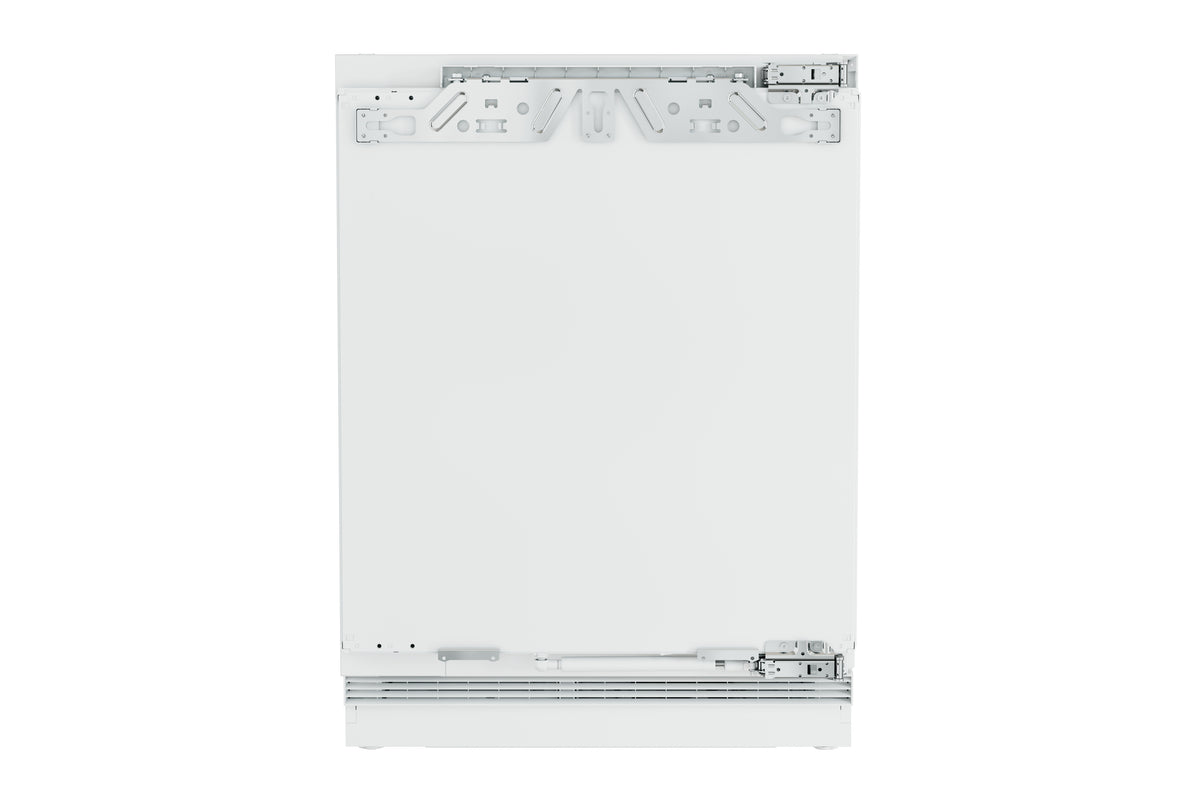

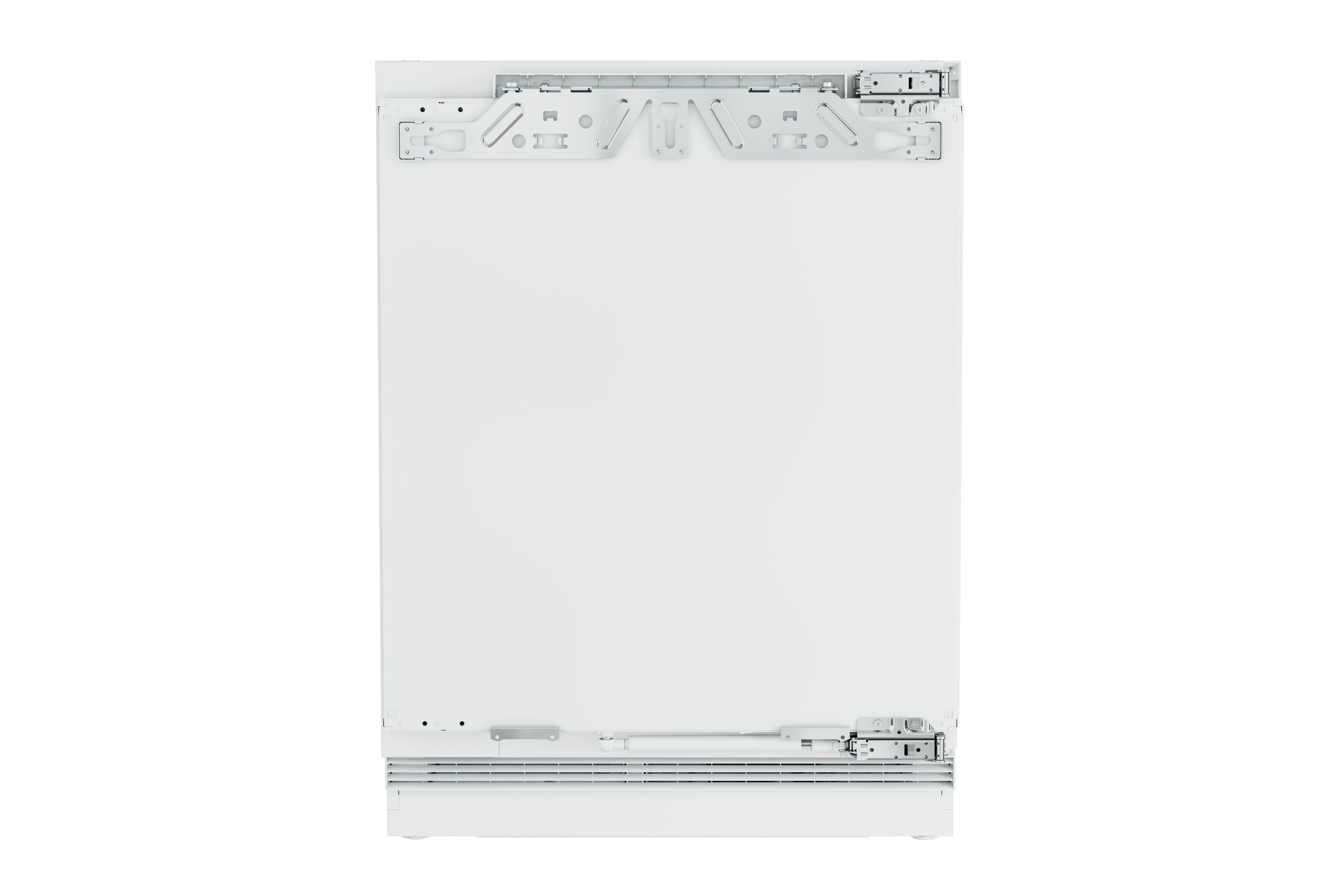

• Door material: Full-panel door

Set-Up & Installation:

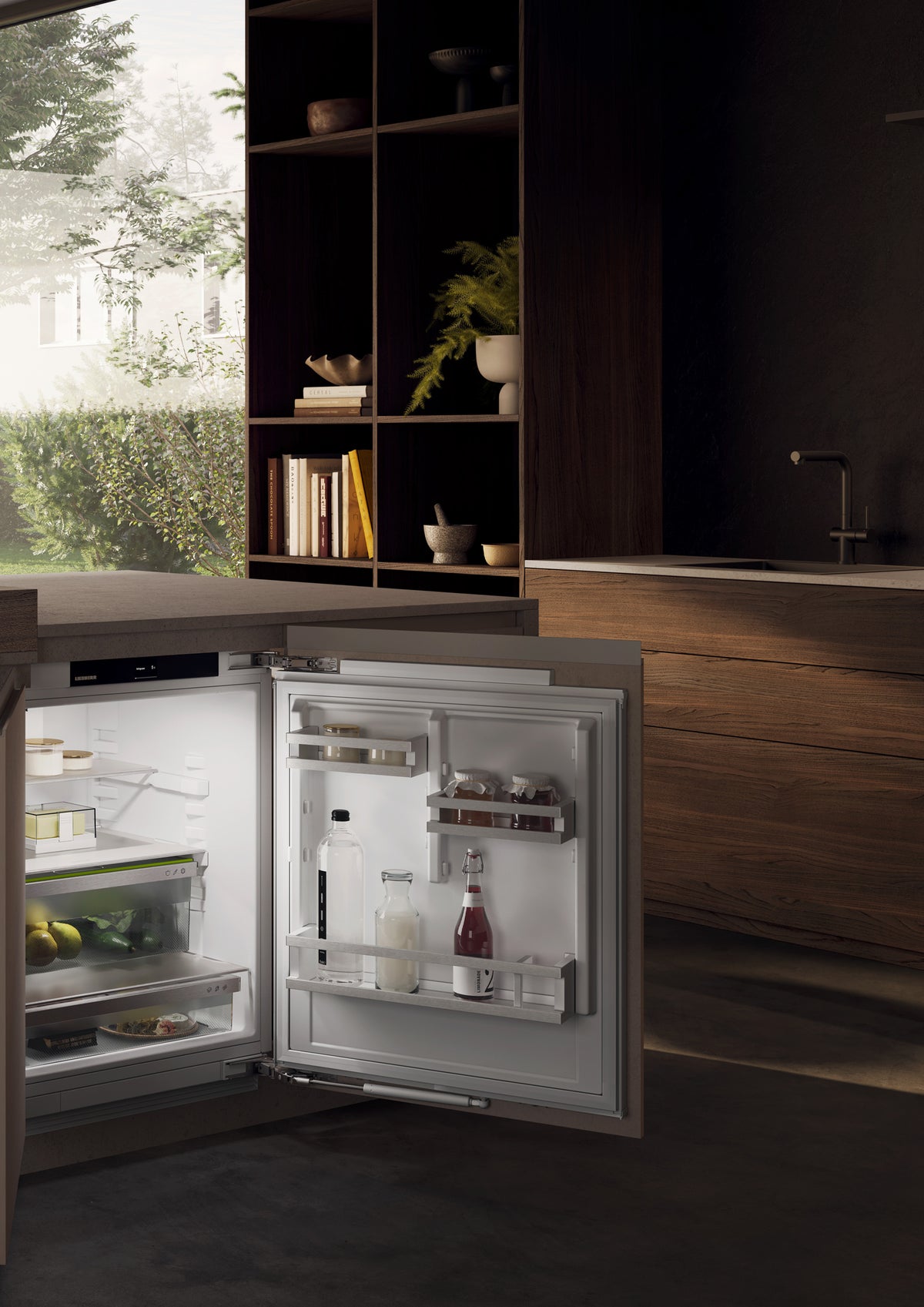

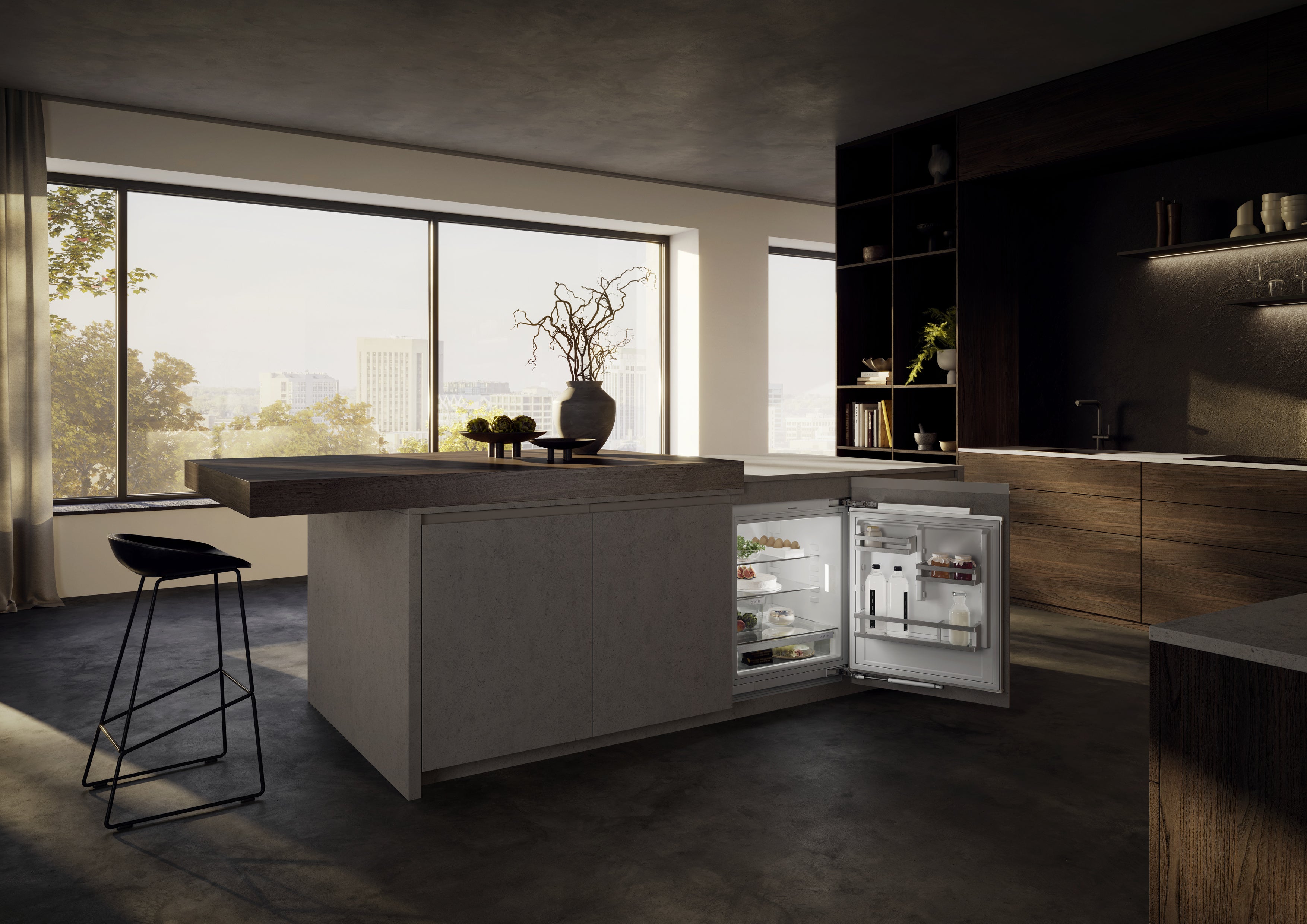

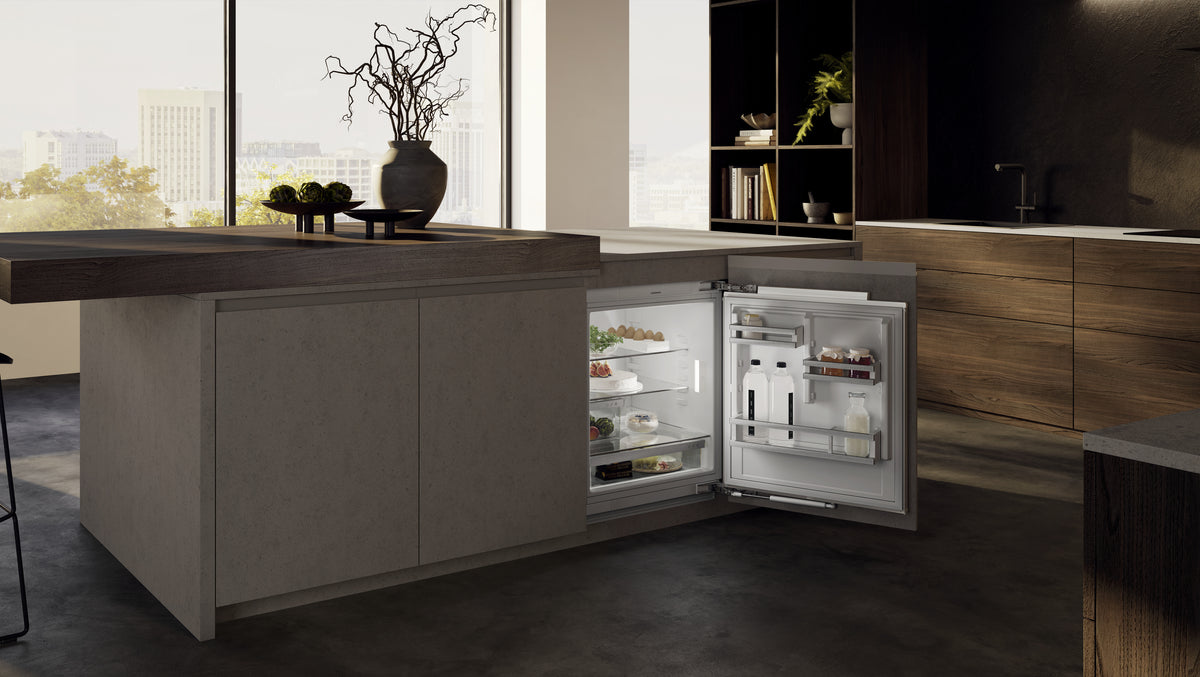

• Type of installation: Under-worktop

• Door assembly: Fixed door

• Max. kitchen unit door weight: 10

• Door hinges: Right

• Door hinge replacement: Possible for customer

• Door opening angle: 115°

• Door seal: Replaceable

• Height-adjustable feet: 4

• Levelling bars: —

• Number of levelling bars: 0

• Ventilation: Base ventilation

• Plug type: Australia

• Connector cable (length): 2,200 mm

Specifications:

• Total volume: 127 l

• Aperture dimensions height/width/depth: 82 - 88 / 60 / 56.0 cm

• Exterior dimensions: height/width/depth (with packaging): 890.0 / 615.0 / 710.0 mm

• Exterior dimensions: height/width/depth: 81.9 / 59.7 / 55.6 cm
• Weight (without packaging): 34.20 kg

• Weight (with packaging): 36.50 kg

• Volume, refrigerator compartments: 127 l

• Gross volume cooling: 127 l

• Refrigerator compartment: 127 l
