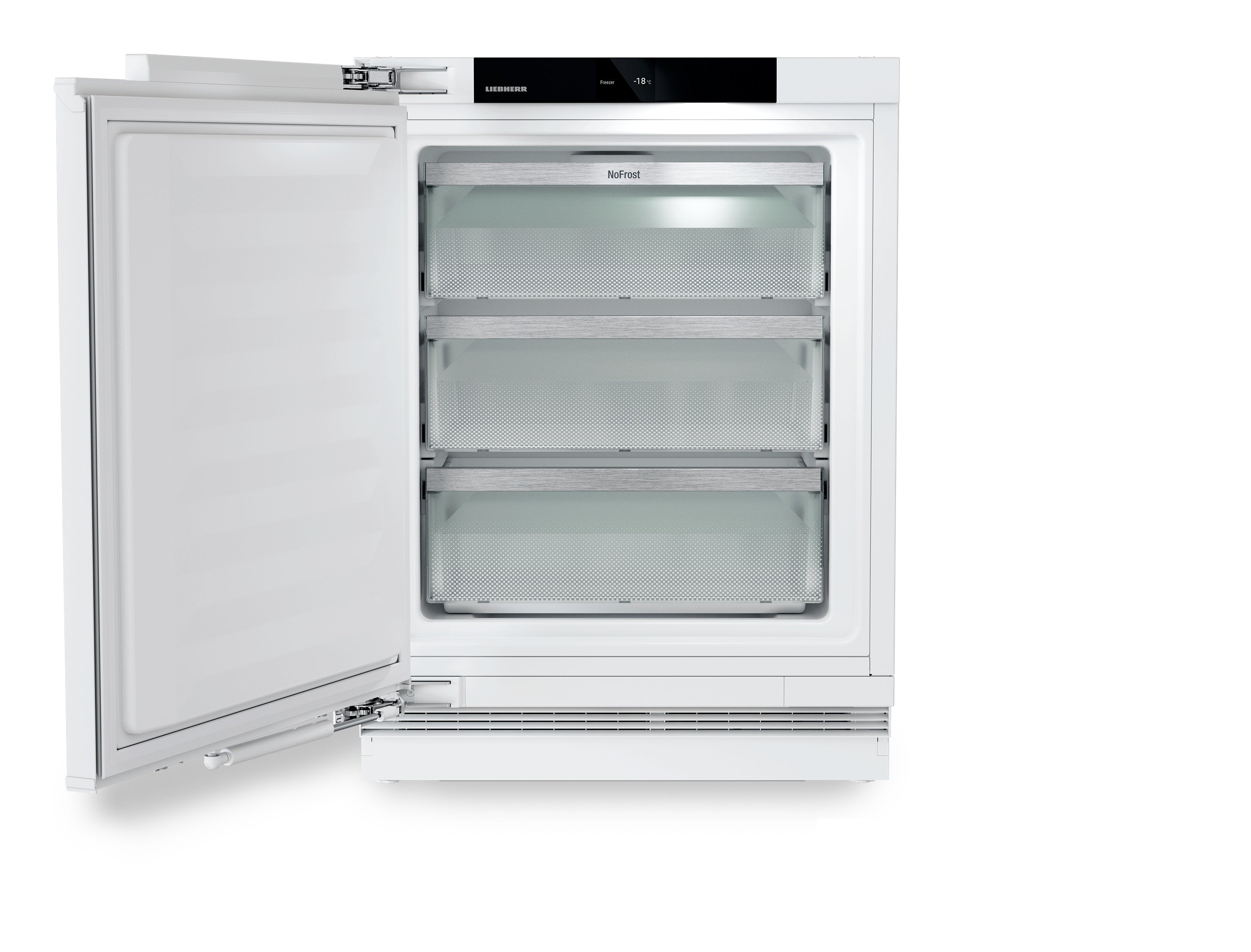

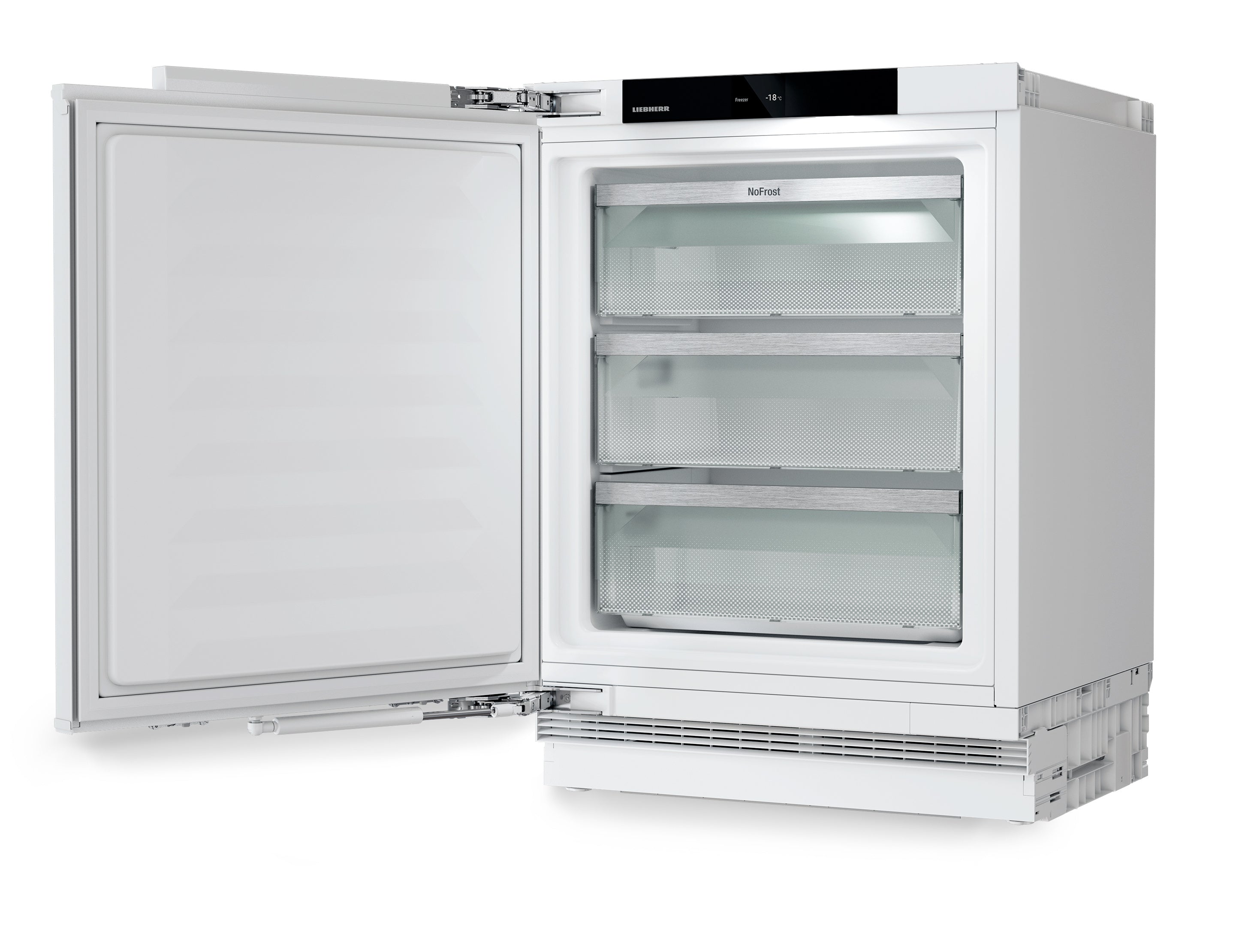

Product Description

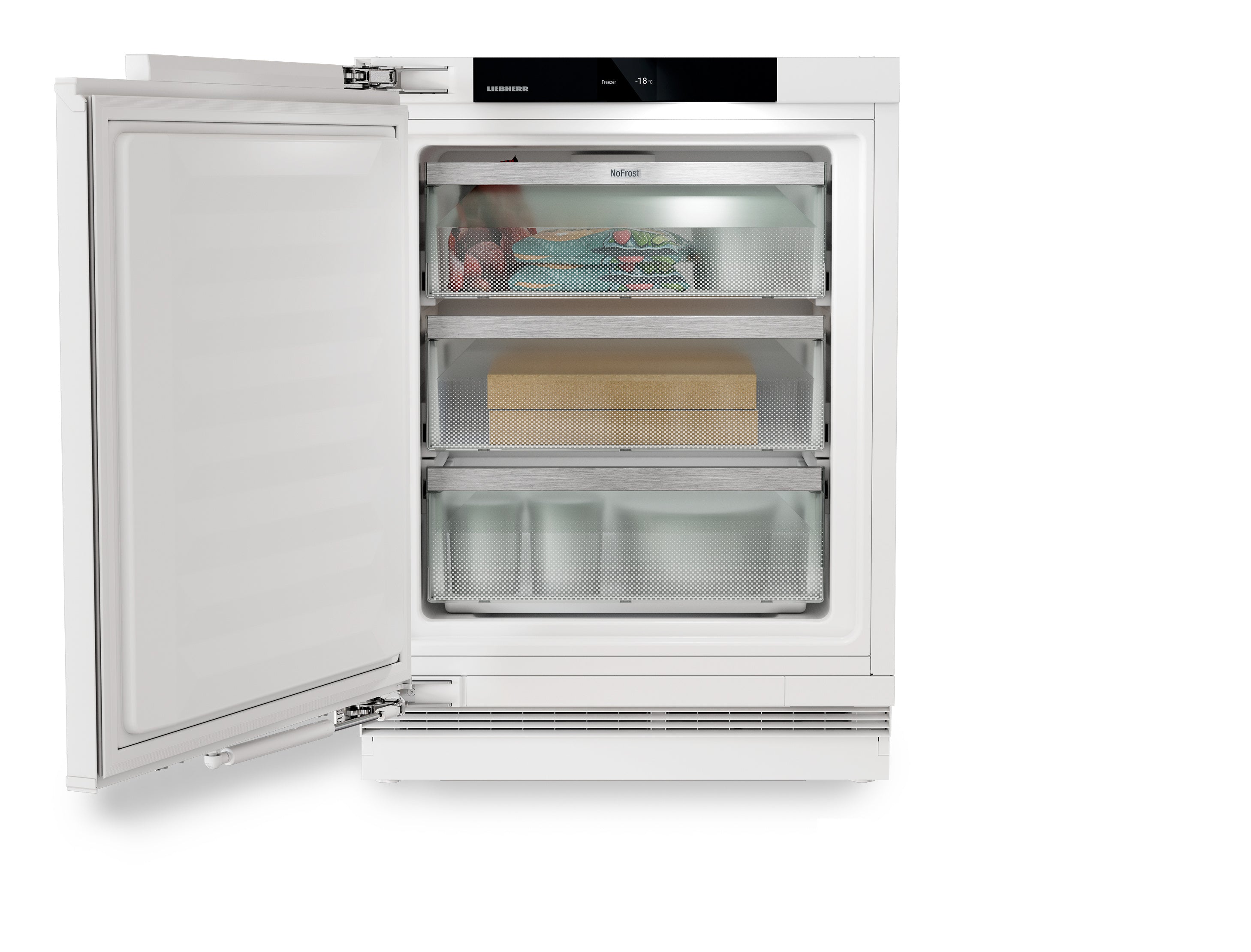

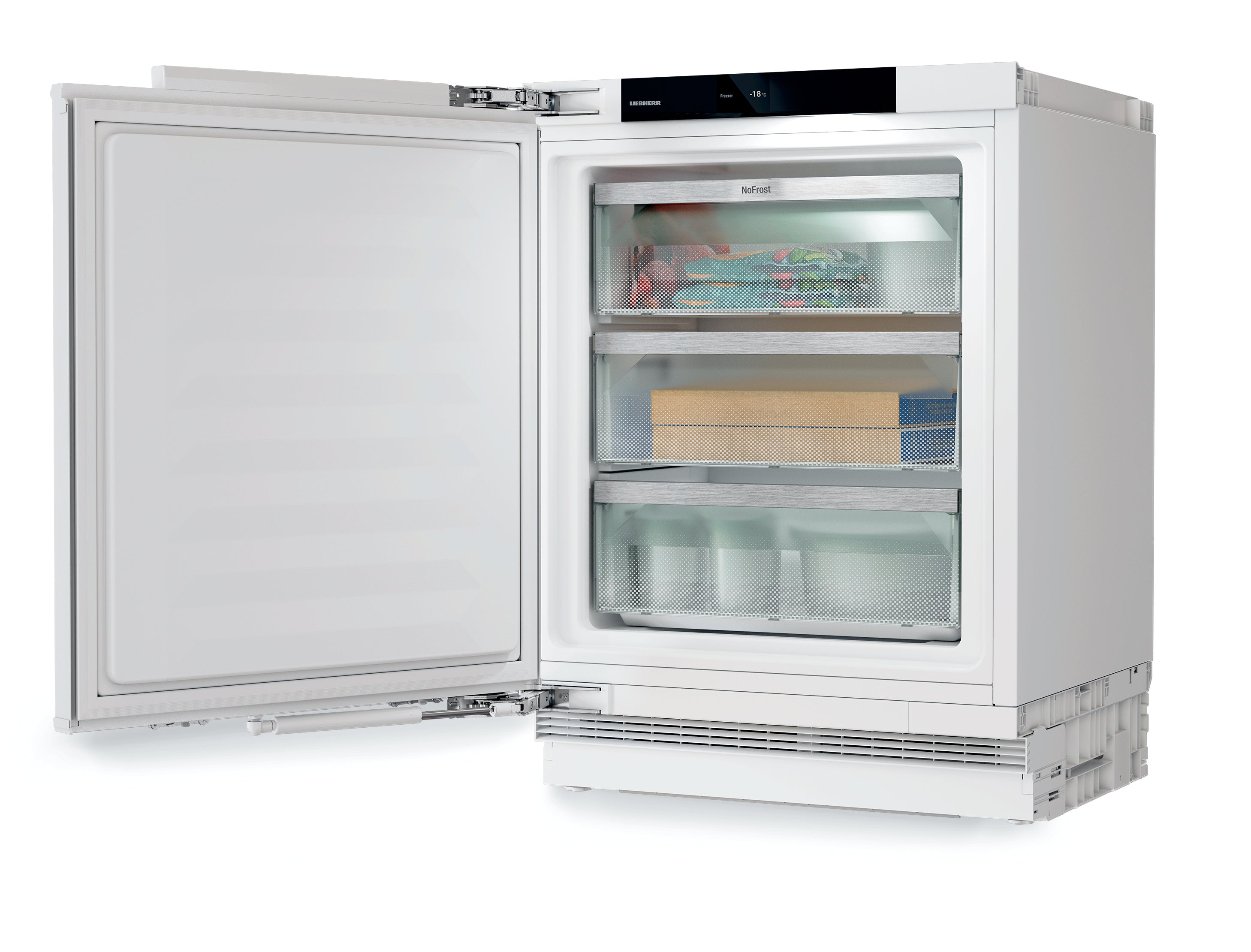

Freezer suitable for undercounter installation with NoFrost

• Aperture dimensions height/width/depth: 82 - 88 / 60 / 56.0 cm
• Total volume: 74 Litres
• Noise level: 34 dB

FEATURES:

NoFrost

• When you open your freezer, you want to see frozen food – and certainly not ice and frost. NoFrost protects the freezer compartment from unwanted icing, which consumes a lot of energy and can be expensive. NoFrost means no more tedious and time-consuming defrosting of the freezer compartment, more time for other things – and saving money.

Touch & Swipe display

• Control of your Liebherr at your fingertips: thanks to the Touch & Swipe display, you can operate your refrigerator intuitively and with ease. Simply select functions such as SuperCool on the colour display by tapping and swiping. The temperature is controlled just as easily. And, what if you are not actively using the display? Well, it then shows you the actual temperature.

LED freezer compartment lighting

• When you open the drawers in your Liebherr freezer, not only are you welcomed by the sight of your food, but also by the attractive lighting. This is provided by powerful, long-life, environmentally-friendly LEDs. The lighting makes it even easier to see all of the contents and is also a unique design element.

VarioSpace

• All freezers with NoFrost and SmartFrost feature drawers which can be conveniently removed.This results in VarioSpace – the practical system for extra storage space so that space can be created quickly even for larger frozen food items

Height-adjustable feet

• The height adjustable feet allow Liebherr appliances to be aligned, ensuring the appliance is level on most surfaces.

Dishwasher-safe features

• The features of your Liebherr are practical in two ways: Not only do they simplify everyday use, they are also very easy to clean. Does the butter dish, FlexSystem or ice cube tray need to be cleaned? Just put them in the dishwasher. Then you’ll have more time for other things.

Display lock

• An illuminated display is a magnet for children's hands – your Liebherr also knows that. That's why there is the display lock. It ensures the settings on your refrigerator are not changed unintentionally. You can also, of course, simply deactivate the display lock.

Door alarm

• The door alarm of your Liebherr makes sure that you don’t unnecessarily use energy and that food doesn’t go off: if the appliance door stays open for too long an alarm goes off – flashing light and a warning tone. You decide what “too long” means: depending on the settings the door alarm comes on after one, two or three minutes.

Power failure alarm

• Your Liebherr is a real guardian angel for your food. In the event of a power failure, it reliably sounds the alarm. Not only do you hear the alarm, but you can also see it. The display shows the highest temperature reached in the freezing compartment. However, you are never alerted unnecessarily. If there is no critical rise in temperature during a brief power failure, the alarm will not go off.

Replaceable door seal

• Do you think the door seal on your Liebherr needs to be replaced after a few years? This is very easy to do yourself. The replaceable door seal can be removed in a few simple steps – and the new seal is just as easy to insert. As a result, this part of the refrigerator is always spotless and hygienically clean.

Reversible door hinges

• The appliances are factory fitted with door hinges on the right. The reversible door hinges permit optimum use of the appliance wherever it is located.

SabbathMode

• Am Sabbath ruhen alle Aktivitäten – das gilt auch für elektrische Geräte. Darauf nimmt Ihr Liebherr Rücksicht. Im SabbathMode ist die gesamte Beleuchtung des Kühlschranks ausgeschaltet, ebenso alle Töne, Geräusche und das Display. Nach 80 Stunden deaktiviert sich der SabbathMode.

Integrated rails for freezer drawers

• Experience the convenience of our integrated rails for freezer drawers. These rails ensure that your drawers slide out smoothly, preventing any scratches and providing additional guidance and security. With a pull-out stop, the drawers remain stable and won’t fall out or tilt, even at a door opening angle of 90°. Enjoy effortless access to your frozen goods.

TECHNICAL DATA:

General Product Information:

• Model type: Freezer suitable for undercounter installation with NoFrost

• GTIN: 9005382260012

• Series: prime

Output & Consumption:

• Climate class: SN-T

• Humidity range: ✔

• Noise level: 34 dB

• Voltage: 220-240 V ~

• Frequency: 50/60 Hz

• Connection rating: 2.0 A 133 W

• Energy consumption per year: 104 kWh/a

• Energy rating: 5.5

Control & Functions:

• Control: 2,4“ TFT colour display, Touch & Swipe display

• Control unit: Touch & Swipe

• Number of temperature zones: 1

• Number of regulated refrigeration circuits: 1

• Temperature display: Freezer

• SuperCool: —

• SuperFrost: Adjustable on appliance and via app

• Door alarm, freezing: Adjustable on appliance and via app

• BottleTimer: Adjustable on app

• IceCubeTimer: —

• NightMode: Adjustable on app

• Display lock: Adjustable on appliance

• Malfunction: Warning signal: optical and acoustical

• Child proofing: ✔

Freezer Compartment:

• Temperature range freezer compartment: -15 °C to -28 °C

• Defrosting method: automatic

• No. of drawers in freezer compartment: 3

• Drawer pull-out system, freezer compartment: Integrated drawer guide

• Interior light, freezer compartment: LED lighting, integrated in the UI

• VarioSpace: ✔

• Ice cube tray: Ice cube tray with lid

• Number of ice cube trays: 0

• Star-rating: 4

Set-up & installation:

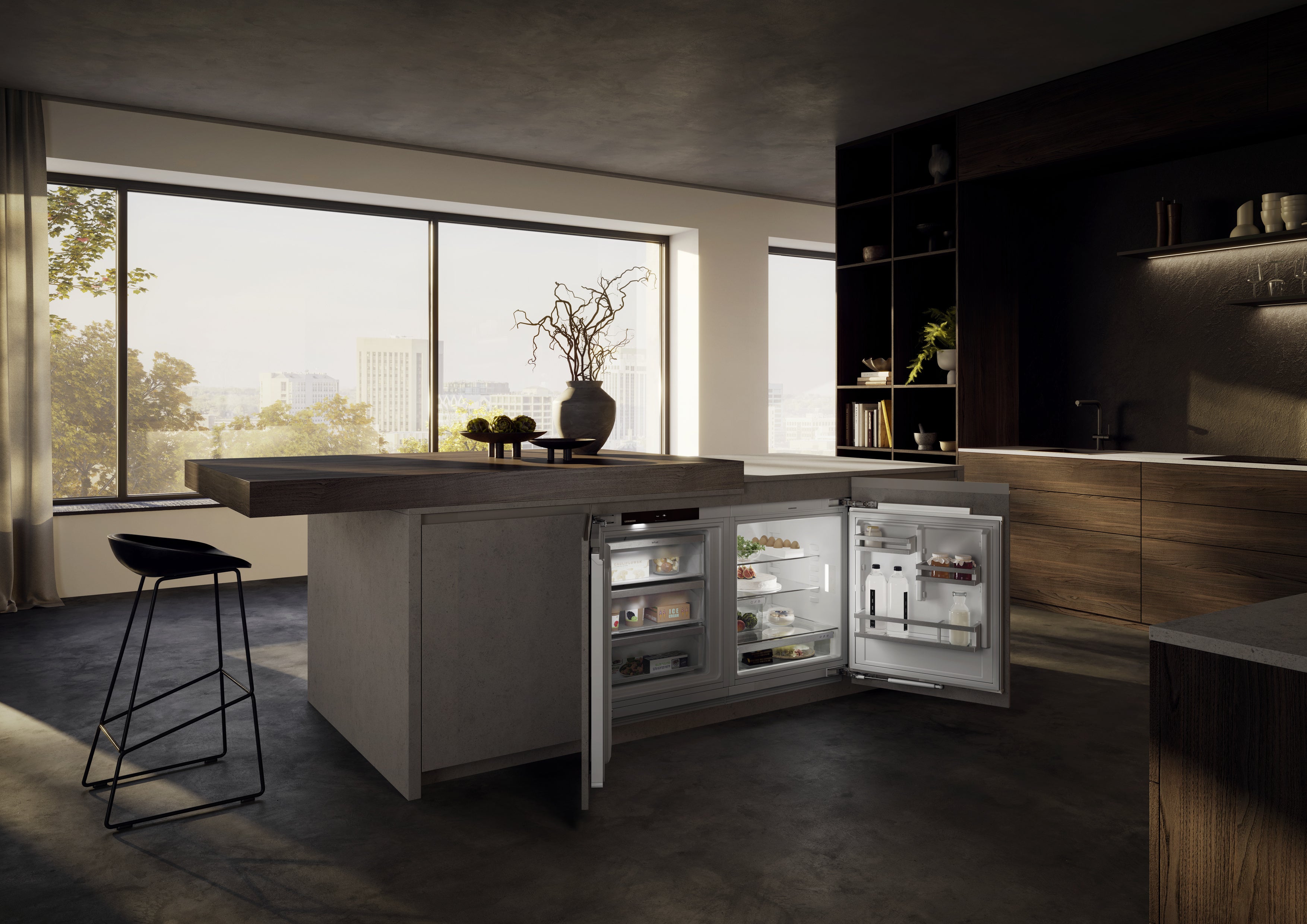

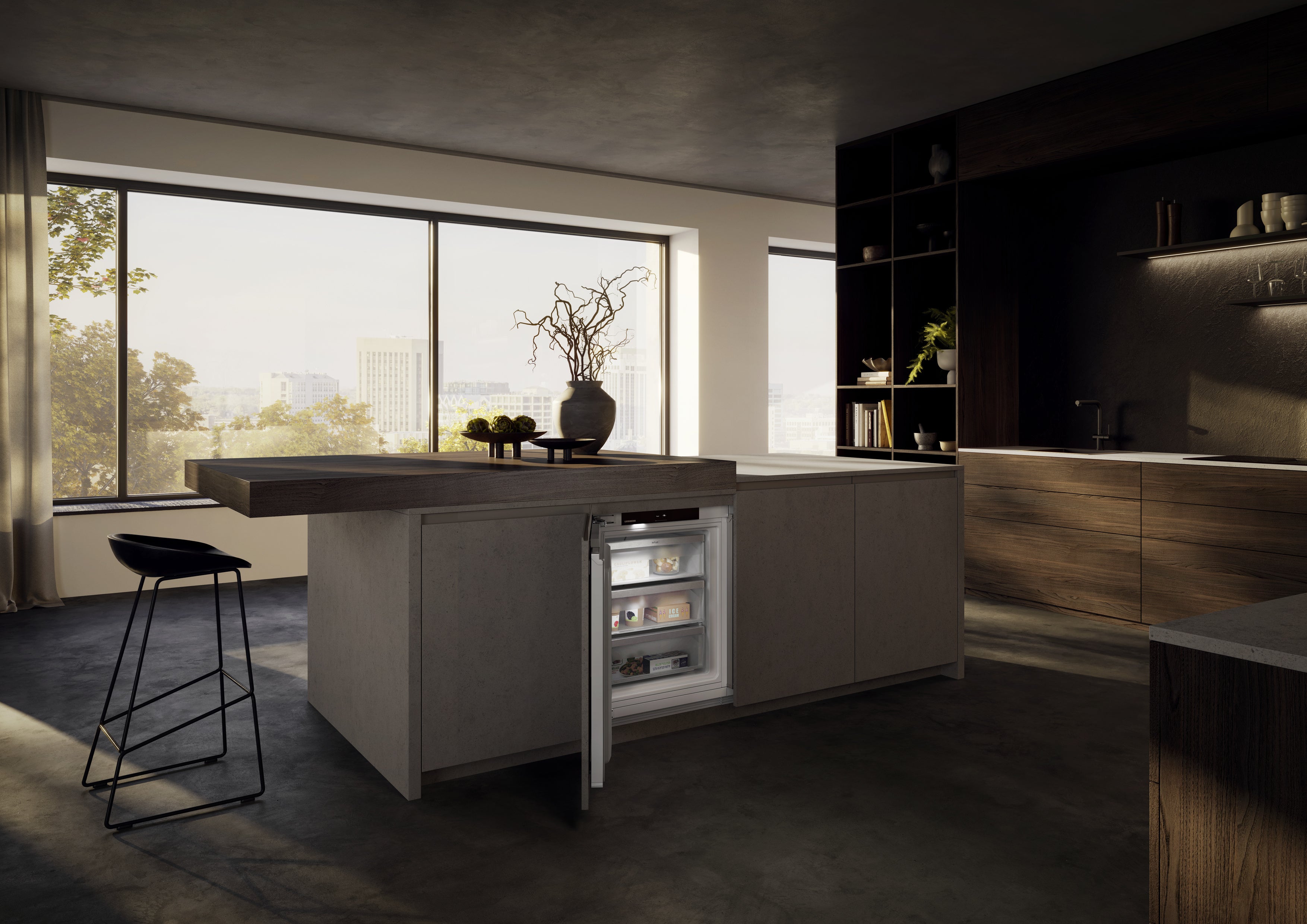

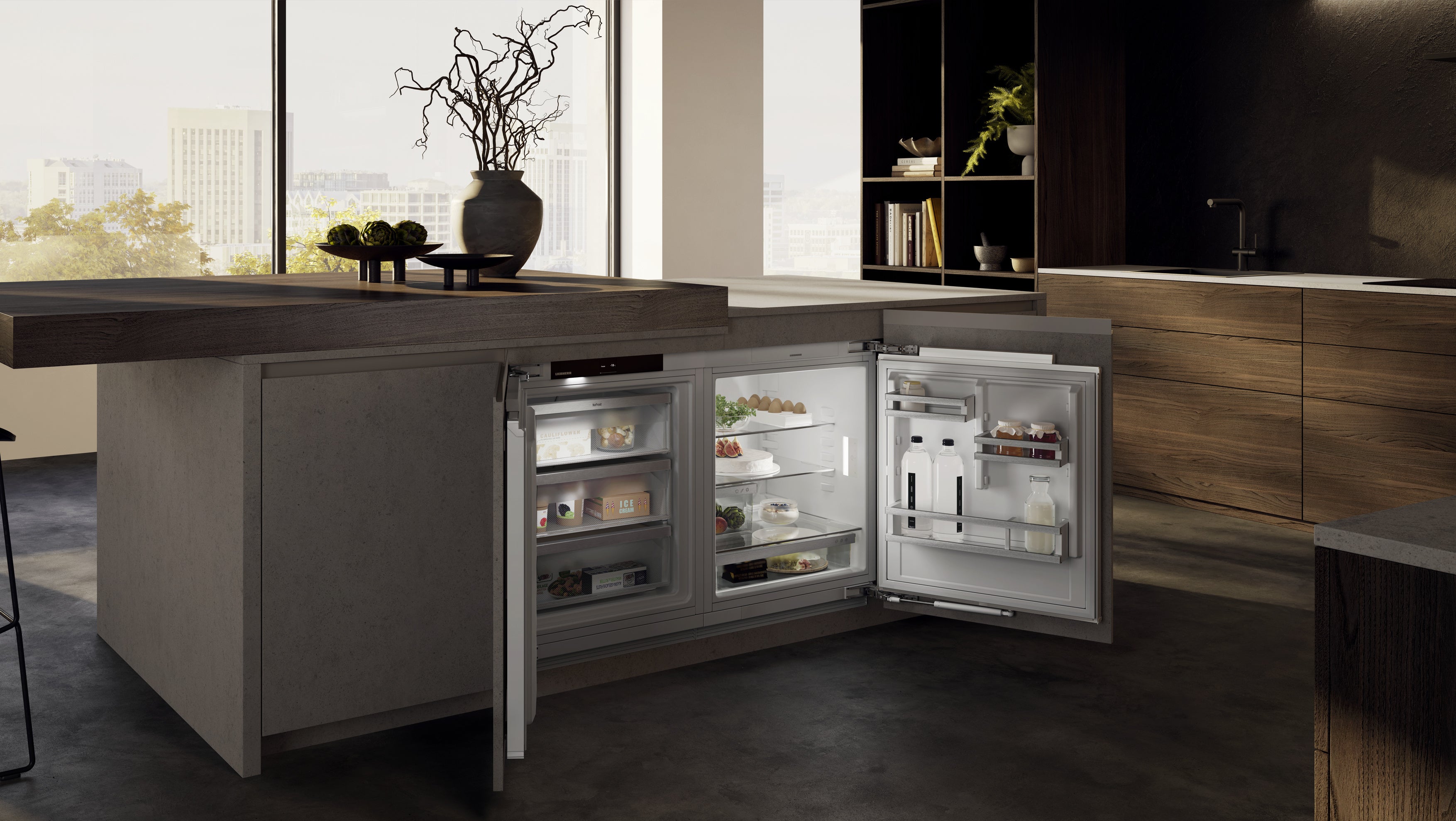

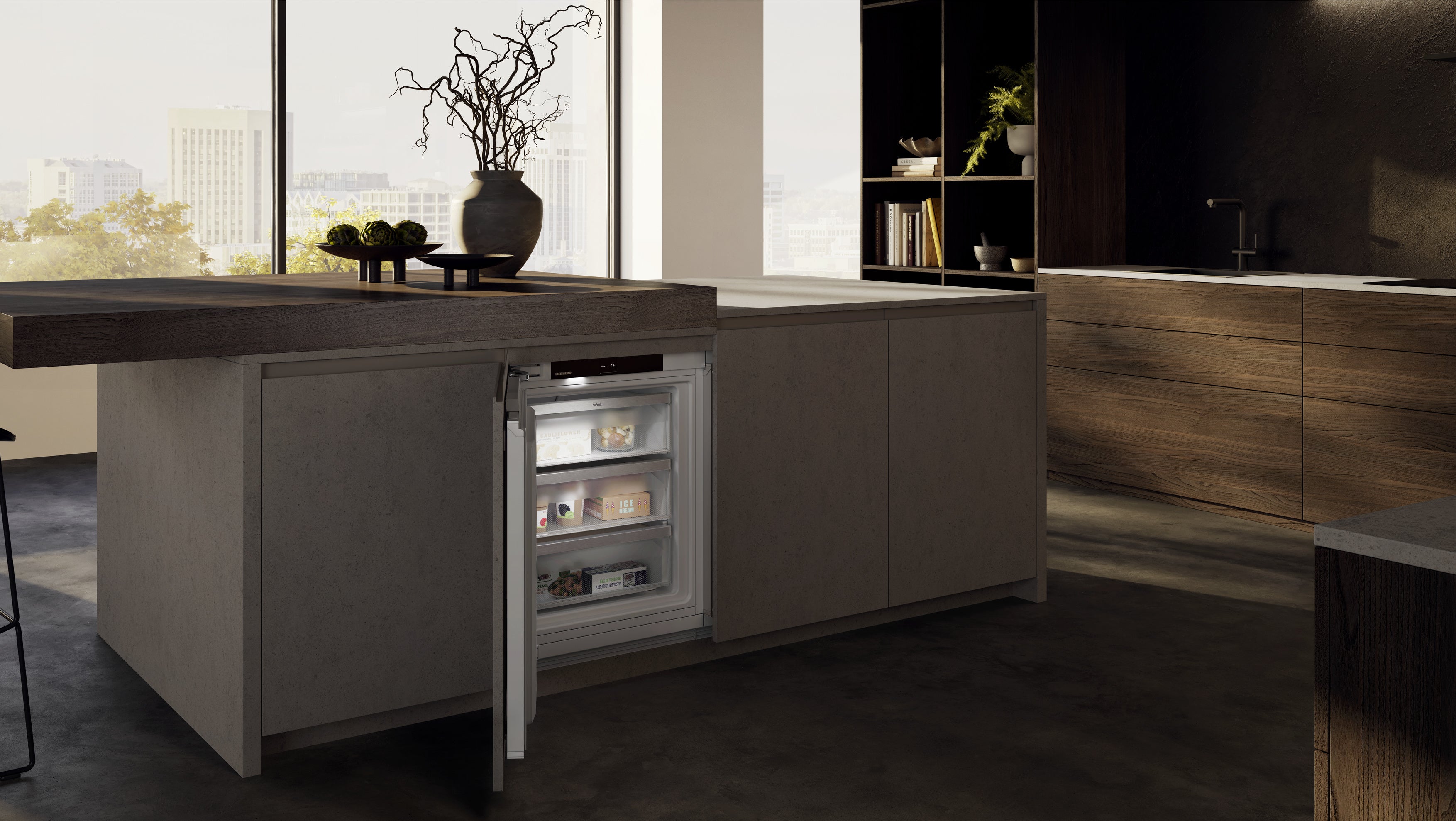

• Type of installation: Under-worktop

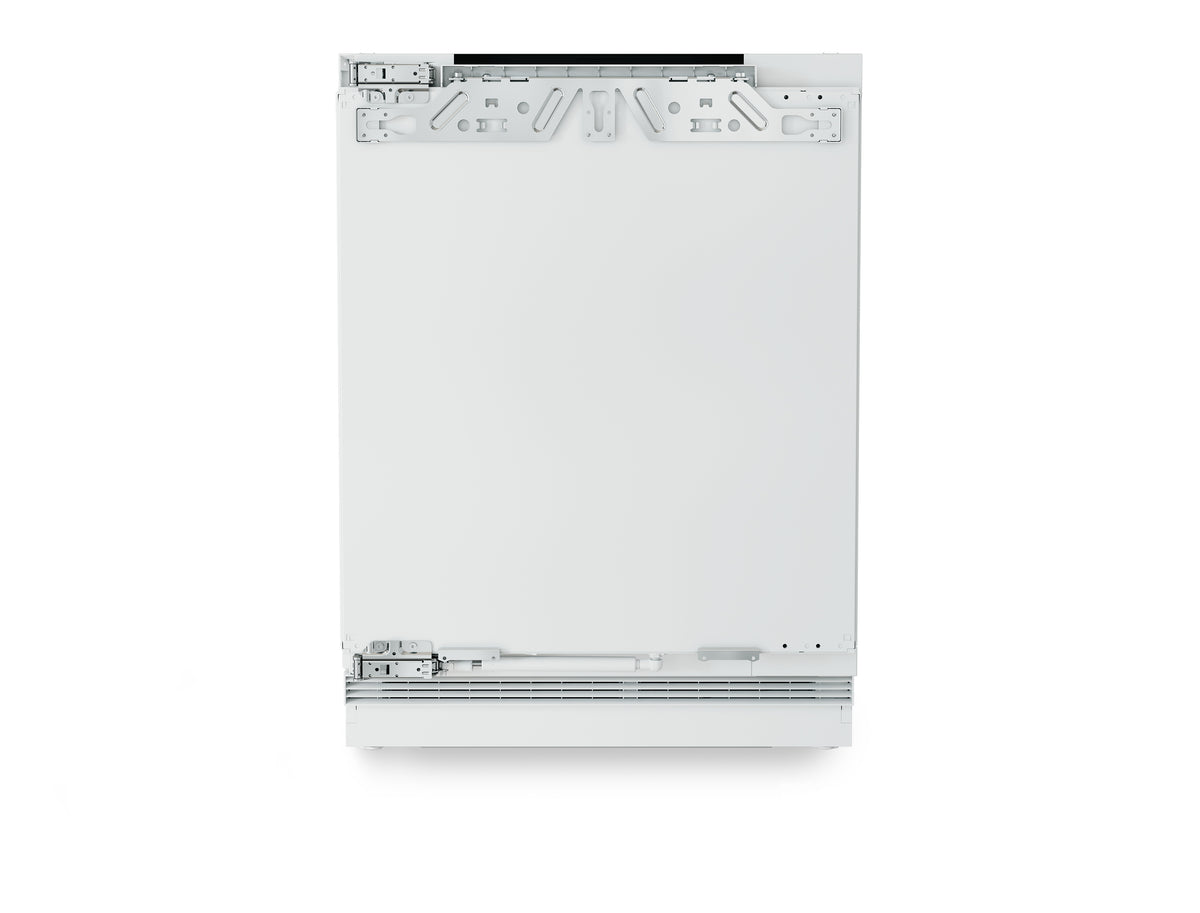

• Door assembly: Fixed door

• Max. kitchen unit door weight: 10

• Door hinges: Right

• Door hinge replacement: Possible for customer

• Door opening angle: 115°

• Door seal: Replaceable

• Height-adjustable feet: 4

• Levelling bars: —

• Number of levelling bars: 0

• Ventilation: Base ventilation

• decor frame: —

• Plug type: Australia

• Connector cable (length): 2,200 mm

Specifications:

• Total volume: 74 Litres

• Exterior dimensions: height/width/depth: 81.9 / 59.7 / 55.6 cm

• Volume, freezer compartments: 74 l

• Of which 4-star compartment: 74.3 l

• Aperture dimensions height/width/depth: 82 - 88 / 60 / 56.0 cm

• Exterior dimensions: height/width/depth (with packaging): 890.0 / 615.0 / 710.0 mm

• Weight (without packaging): 34.40 kg

• Weight (with packaging): 36.90 kg
