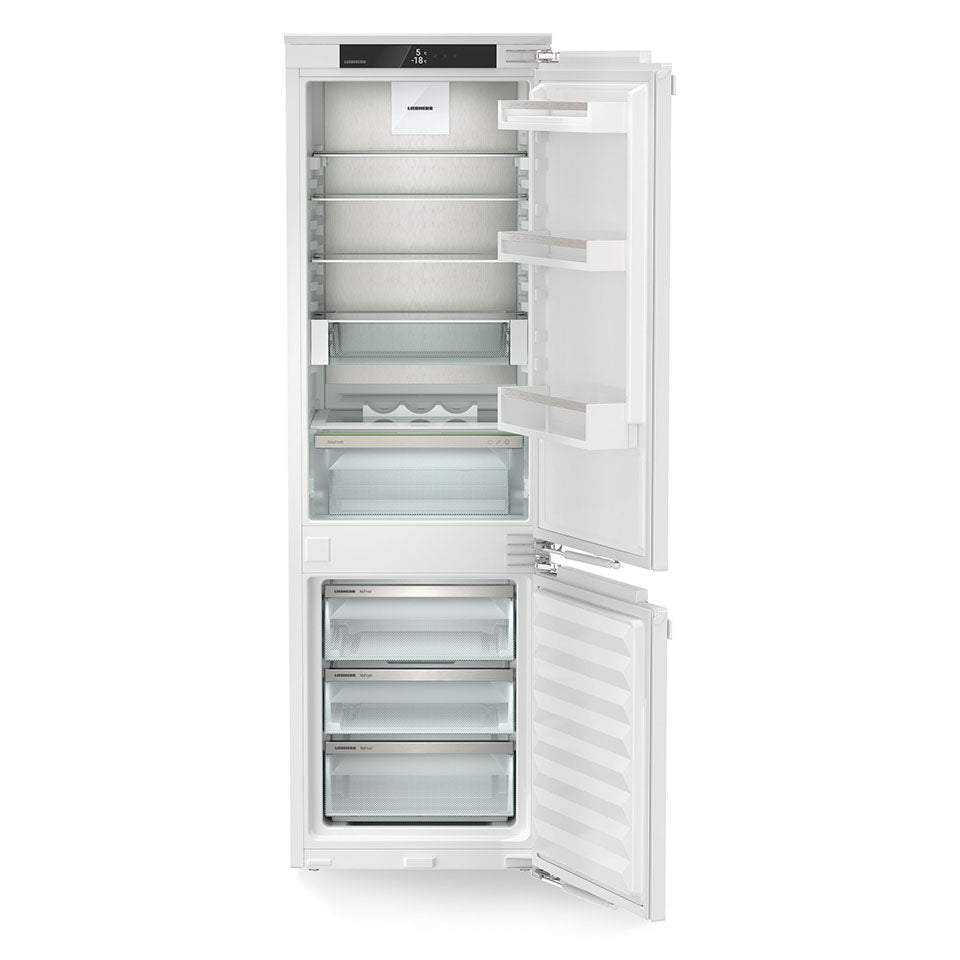

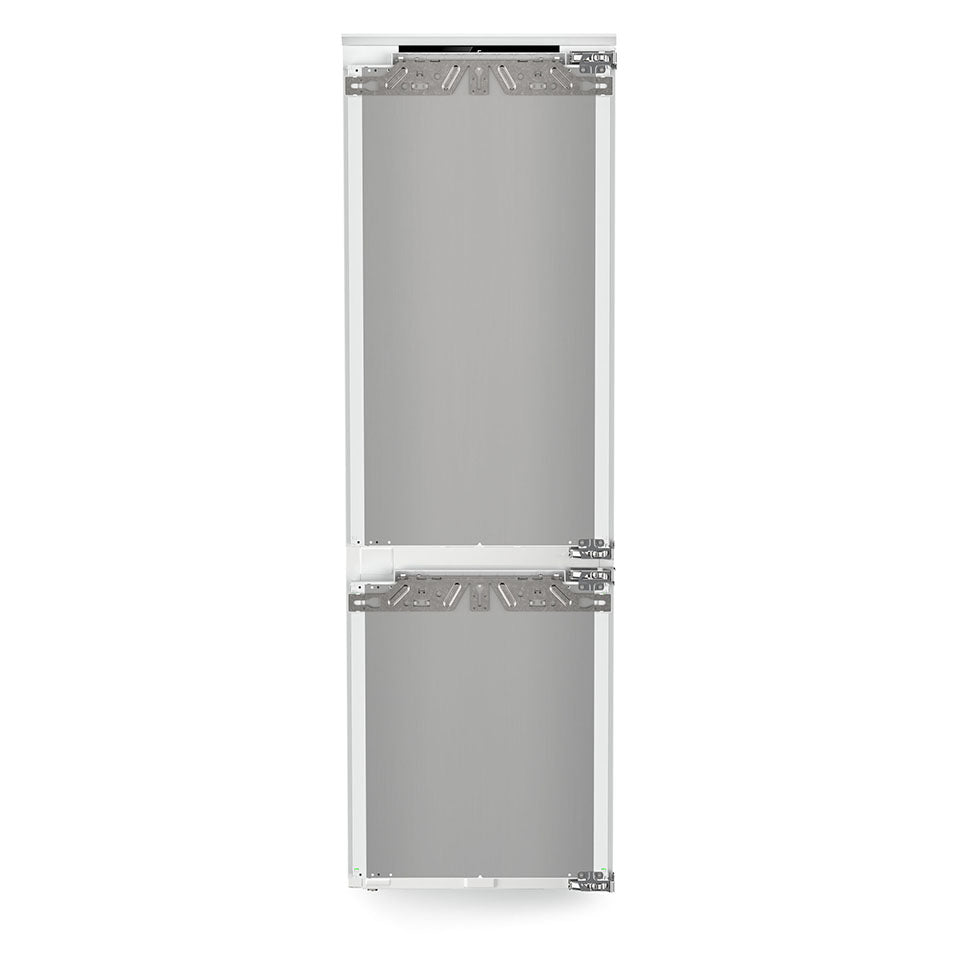

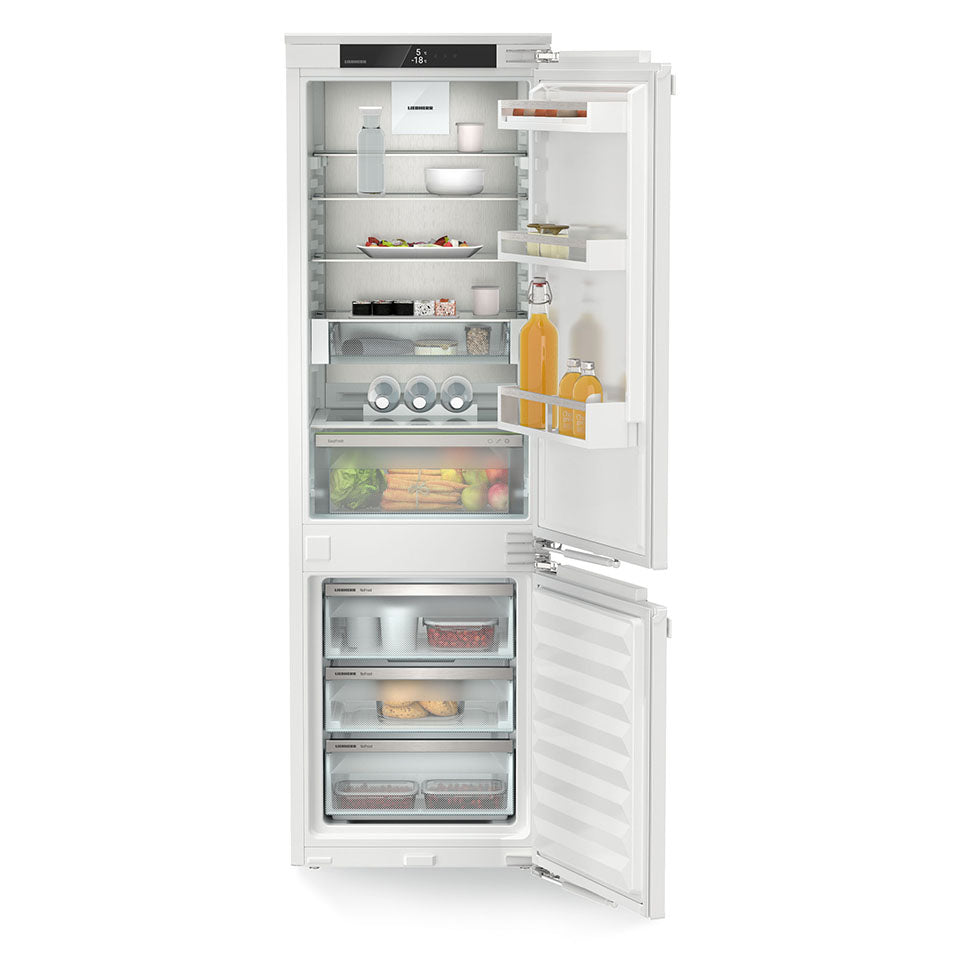

Liebherr ICNh 5123 Integrated 'Plus' Fridge/Freezer

• EasyFresh: The guarantee of market freshness in the home is our EasyFresh-Safe. Whether it’s unpackaged vegetables or fruit, this ensures optimal storage for everything. Thanks to the air-tight closure, the food causes the humidity in the safe to rise. This keeps the food fresh for a long time.
• DuoCooling: DuoCooling uses two completely separate refrigeration circuits to ensure no air is exchanged between the fridge and freezer compartments. The food neither dries out nor is odour transferred. This means throwing less away, shopping less often, but saving more and greater enjoyment.
• Touch display: Fingertip control: the touch display enables easy and intuitive operation of your Liebherr. All functions are clearly arranged on the display. By gently tapping a finger, for example, you can easily select the functions or check the current temperature of your refrigerator.
• SmartSteel rear wall: The rear wall in elegant SmartSteel gives your Liebherr a stylish look and feel. Your food will also love SmartSteel as stainless steel is food-safe and hygienic. SmartSteel also reduces the visibility of fingerprints – making the appearance even more pleasing.
• SoftSystem: From breakfast to a midnight snack – a fridge needs to be open and closed on many occasions. And your Liebherr makes this is a lot of fun. With the SoftSystem, your fridge door closes softly and safely, and in a way which is pleasantly quiet and light. Bottles stored in the inside door remain securely in place – nothing rattles or wobbles.
• Space for baking tray: Do you want to keep that home-baked fruit pie fresh? Or maybe a prepared pizza to be baked later on? If so, simply slide your baking tray into your Liebherr ¬- it has plenty of space for storing a baking tray. Really convenient – you can slide the baking tray in and out when the door is opened at 90°.
• VarioSpace: Looking for somewhere to safely store a multi-tiered ice cream cake until the summer party? No problem for your Liebherr freezer: it knows that sometimes you just need more space. Thanks to VarioSpace, you can simply remove individual freezer drawers – and voilà: here’s your extra-high storage space!

• PowerCooling system: Do you want to be sure that the cold is distributed as evenly as possible in your refrigerator? If so, the PowerCooling system is what you need. The fan – as powerful as it is quiet – distributes the cold air efficiently throughout the entire refrigeration compartment.
• SuperSilent: Shhh – listen carefully. Your Liebherr is so quiet that you have to strain your ears to hear it. How is this achieved? All refrigeration components such as compressors, valves, fans and evaporators are optimised and perfectly adapted to one another. This means you only hear what you want to hear in your kitchen.
• LED ceiling lighting: The LED ceiling lighting illuminates the interior from above – providing a good overview of your food. Another highlight: the LEDs are positioned in front of the glass shelves so that even a full refrigerator is well lit.
• VarioSafe: Do you want a clearly arranged place for small food items such as yoghurt pots, jam jars or tubes? Your Liebherr provides this with the VarioSafe. It not only creates order, but is also highly adaptable. Simply place the two-stage height-adjustable VarioSafe in the refrigerator where it suits you best.
• Door shelf: Do you want a safe storage area for your drinks or food? And do you still want to reach them easily? Our height-adjustable door shelves offer you both – thanks to the safety glass shelves and stainless steel rails. The sliding and removable bottle holder also ensures that your bottles are held securely.
• Separable glass shelf: If you store a carafe or tall container in the refrigerator, you don't want to have to remove an entire glass shelf. And why should you? Because there are separable glass shelves. Simply slide the front half of the glass shelf under the back half. This allows you to place higher containers at the front and still have enough space for other food.
• Convenient height adjustment for glass shelves: Do you need a large container to go in the fridge? If so, simply adjust the heights at which you insert the glass shelves. The convenient height adjustment means this can be done quickly and individually – even with food stored on the shelves.
• EasyFresh with integrated drawer runner: The integrated drawer slides with pull-out stop mean your EasyFresh safe can be opened and closed really easily. A further plus in terms of convenience: the running rails close the safe reliably. This means your chilled food is always stored under optimum conditions.
• 3 bottle shelf: Now your bottles stay where they should. The 3 bottle shelf securely holds three bottles in your fridge ready to be used. The bottle shelf fits on every glass shelf and is therefore very flexible. And if you need the space for other reasons, simply take the shelf out of the fridge.
• FreshAir activated charcoal filter: The smell of some foods is sometimes less pleasant. However, this is no problem for your Liebherr. Thanks to FreshAir activated carbon filters, there is always fresh air in the interior. The filter is located right on the air flow in the fan housing and neutralises odours as far as possible. The display reminds you to change the filter.
• Egg tray: Do you want to store eggs in your refrigerator safely and without a box? This is no problem with the egg tray. This will store up to 10 chicken eggs, keeping them stable and protected, and well cooled. The tray fits both in the inside door and on the glass shelves.
• Replaceable door seal: Do you think the door seal on your Liebherr needs to be replaced after a few years? This is very easy to do yourself. The replaceable door seal can be removed in a few simple steps – and the new seal is just as easy to insert. As a result, this part of the refrigerator is always spotless and hygienically clean.
• Dishwasher-safe features: The features of your Liebherr are practical in two ways: Not only do they simplify everyday use, they are also very easy to clean. Does the butter dish, FlexSystem or ice cube tray need to be cleaned? Just put them in the dishwasher. Then you’ll have more time for other things.

GENERAL PRODUCT INFORMATION:

• Model type: Integrated fridge-freezer with EasyFresh and NoFrost
• GTIN: 4016803117636
• Series: plus

OUTPUT & CONSUMPTION:

• Humidity range: Yes
• Energy consumption per year: 176 kWh/a
• Climate class: SN-T
• Noise level: 34 dB
• Energy rating: 5.5
• Voltage: 220-240 V ~
• Frequency: 50-60 Hz
• Connection rating: 1.4 A 183 W

CONTROLS & FUNCTIONS:

• Control: Monochrome LC display , touch display
• Control unit: Touch
• Number of temperature zones: 3
• Number of regulated refrigeration circuits: 2
• Temperature display: Fridge & freezing compartment
• Front frame heating: Refrigerator and freezer compartment
• BottleTimer: —

REFRIGERATOR COMPARTMENT:

• Adjustable temperature range: +2 °C to +9 °C
• Moisture regulation: DuoCooling
• Refrigerator compartment climate zones: EasyFresh
• Defrosting method: automatic
• Forced air cooling: Yes
• FreshAir filter: in valve
• Pull-out system drawer, refrigerator compartment: Integrated drawer guide
• SoftSystem: SoftSystem
• Illumination cooling compartment: LED ceiling lighting
• Number of storage shelves, refrigerator compartment: 6
• Of which separable: 1
• of which height-adjustable: 5
• VarioSafe: Yes
• OpenStage drawers: —
• Bottle storage: 3-bottle shelf
• Bottle rack: 1
• Number of can racks: 2
• VarioBox: —
• VarioBoxes: 0
• Egg tray: 10 eggs
• Type of door rack Cooling compartment: Bottle and can rack
• Height-adjustable inner door shelf: Gradual adjustment

FREEZER COMPARTMENT:

• Adjustable temperature range: -15 °C to -26 °C
• Freezer compartment position: Bottom
• Defrosting method: automatic
• Storage time in case of fault according to GS *: 9 h
• Freezing capacity in 24 hours according to GS *: 6.00 kg / 24h
• No. of drawers in freezer compartment: 3
• FrostSafe: Drawers closed on all sides with transparent front
• Drawer pull-out system, freezer compartment: Drawer on safety glass
• Interior light, freezer compartment: —
• VarioSpace: Yes
• IceMaker safe lighting: —
• Ice cube tray: —
• Number of ice cube trays: 1
• Number of water filters: 0
• Freezer tray: 0
• Star-rating: 4

DESIGN & MATERIALS:

• Dry rear panel: Yes
• Inner back wall material: stainless steel with SmartSteel
• Inner door décor: —
• Material inner door rack: White plastic
• Storage shelf material, refrigerator compartment: Glass
• Material of adjustable shelves in the freezer compartment: Glass
• Door material: Steel

SETUP & INSTALLATION:

• Type of installation: Designed for integrated use
• Door assembly: Fixed door
• Max. kitchen unit door weight: 18/12
• Door hinges: Right
• Door hinge replacement: Possible for customer
• Door opening angle: 115°
• Door seal: Replaceable
• Height-adjustable feet: 2
• Levelling bars: Yes
• Number of levelling bars: 2
• Ventilation: Ventilation grates
• Plug type: Australia
• Connector cable (length): 2,200 mm

SPECIFICATIONS:

• Total volume: 253 l
• Aperture dimensions height/width/depth: 177.2 - 178.8 / 56 - 57 / 55.0 cm
• Height / Width / Depth (with packaging): 1,829.0 / 572.0 / 622.0 mm
• Dimensions H/W/D: 177 / 55.9 / 54.6 cm
• Weight (without packaging): 66.9 kg
• Weight (with packaging): 74.4 kg
• Volume, refrigerator compartments: 183 l
• Volume, freezer compartments: 70 l
• Of which 4-star compartment: 69.9 l
• Of which 4-star compartment: 69.9 l

• Warranty: 5-Year Warranty for Household Appliances in Australia

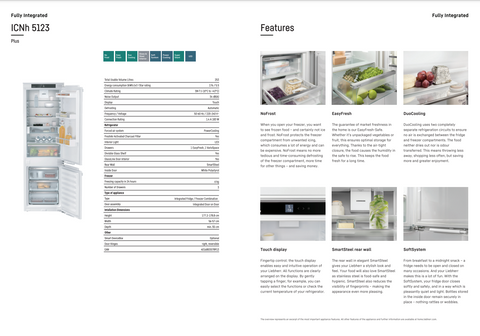

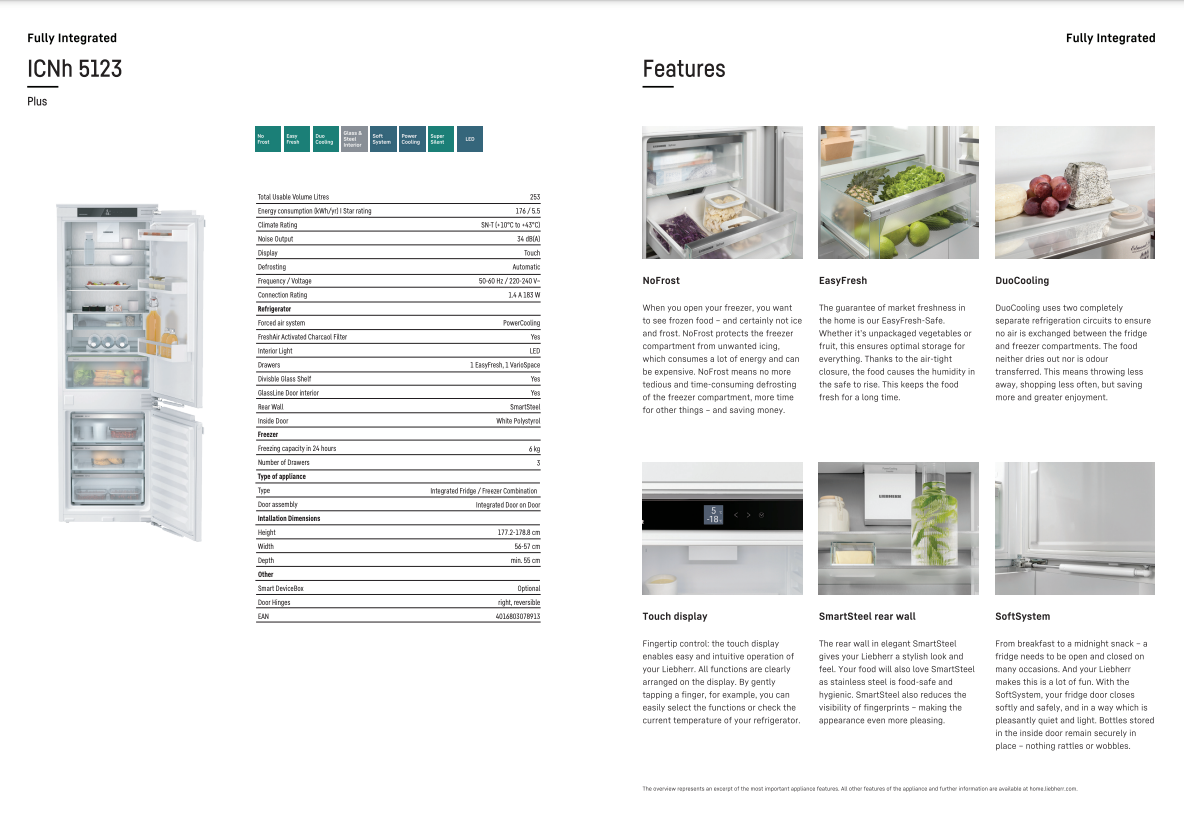

SPECIFICATIONS SHEET
