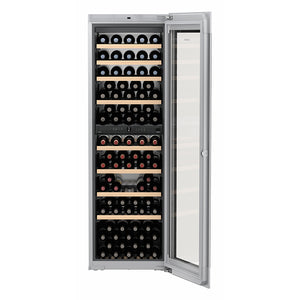

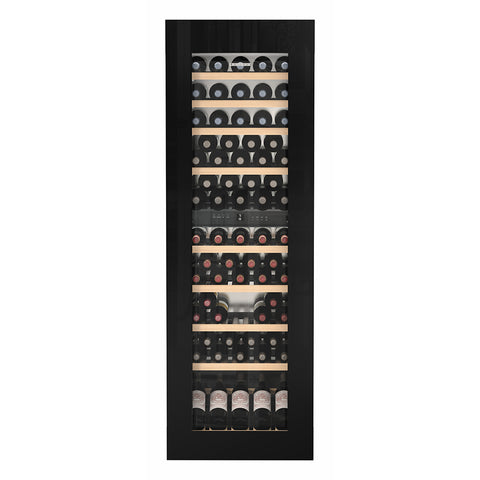

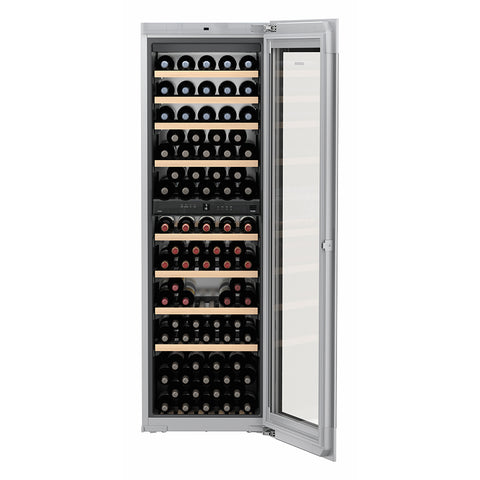

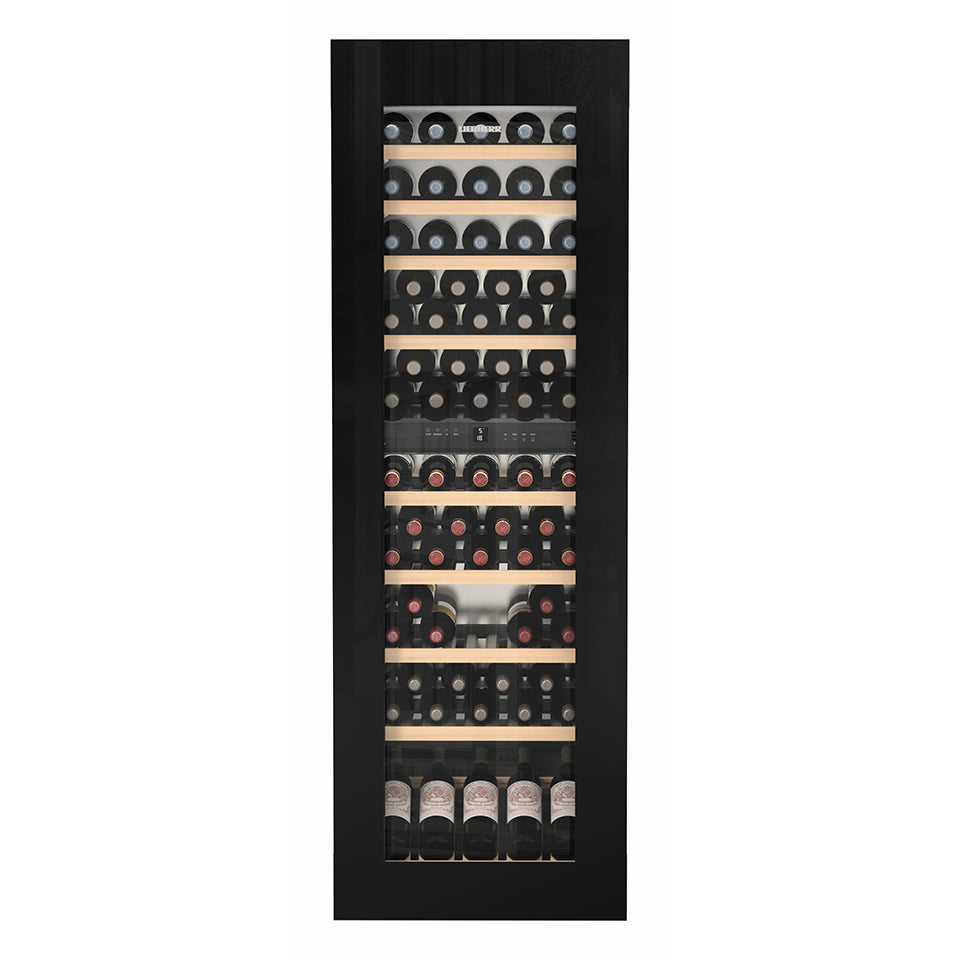

Liebherr EWTgb 3583 Built-in Dual Zone Wine Cellar

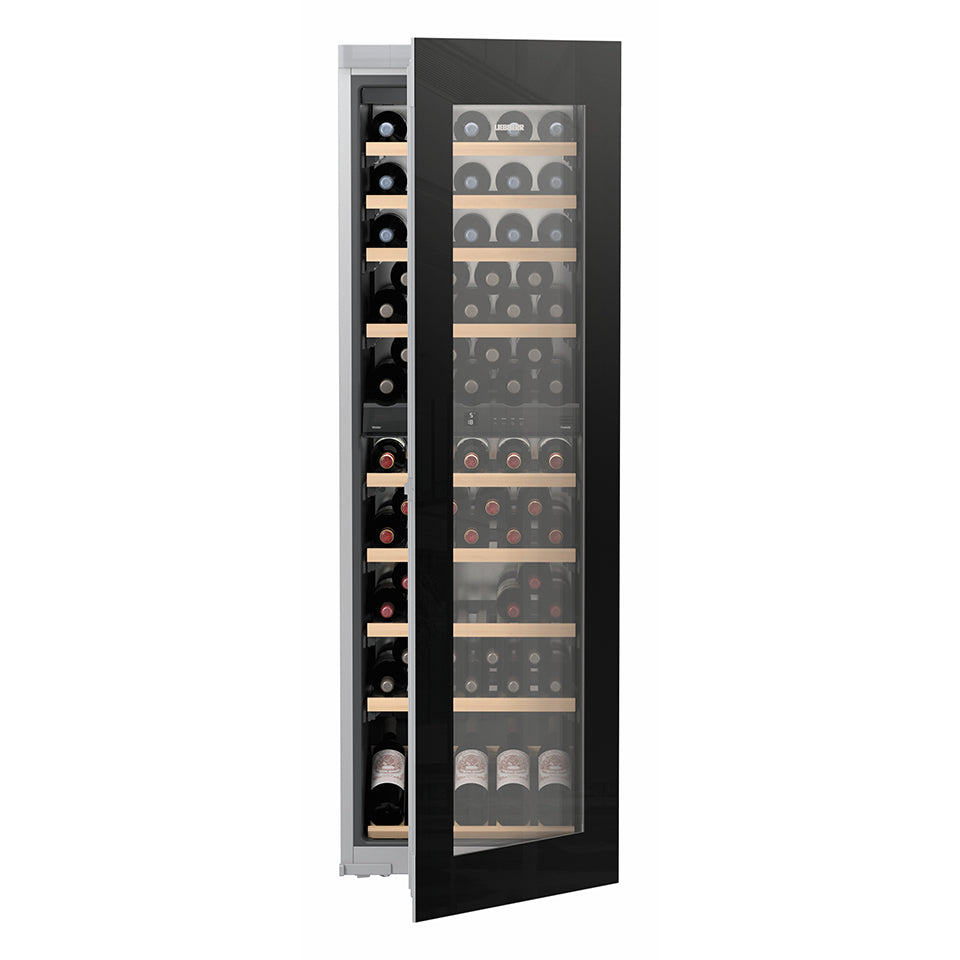

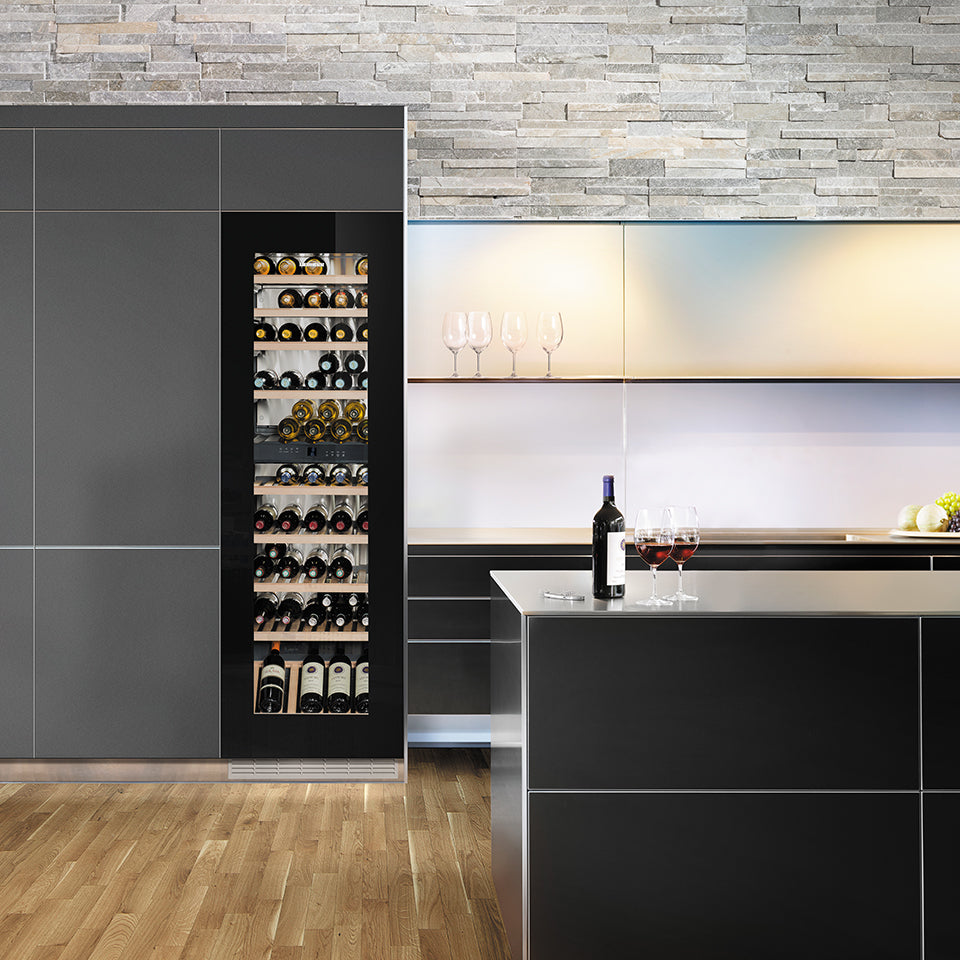

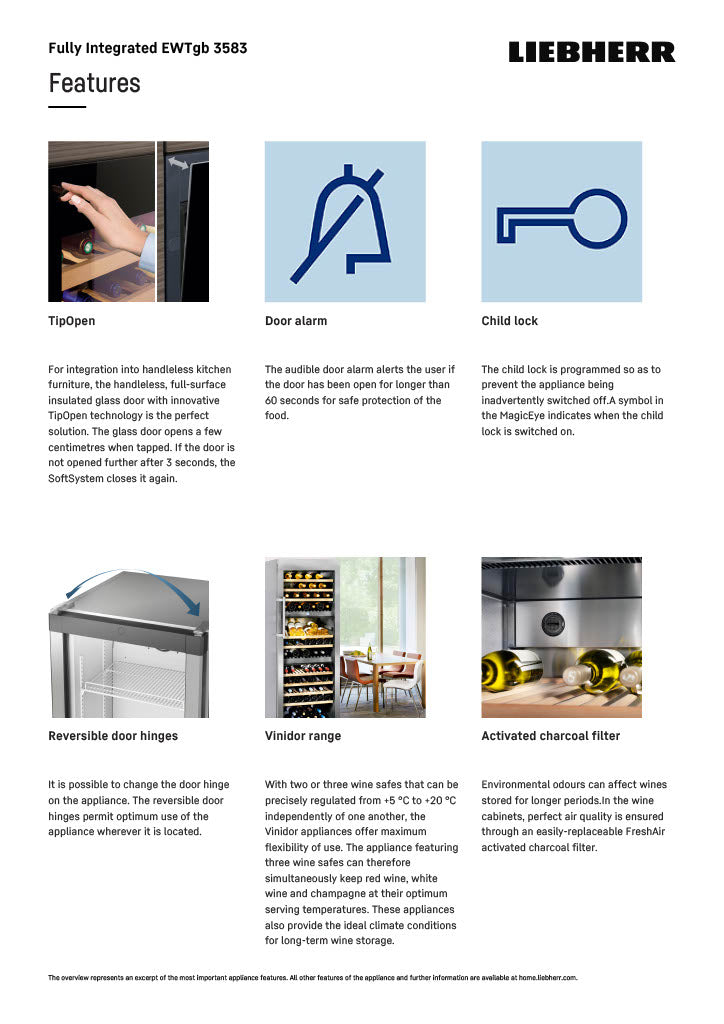

• TipOpen: For integration into handleless kitchen furniture, the handleless, full-surface insulated glass door with innovative TipOpen technology is the perfect solution. The glass door opens a few centimetres when tapped. If the door is not opened further after 3 seconds, the SoftSystem closes it again.
• Door alarm: The audible door alarm alerts the user if the door has been open for longer than 60 seconds for safe protection of the food.
• Child lock: The child lock is programmed so as to prevent the appliance being inadvertently switched off.A symbol in the MagicEye indicates when the child lock is switched on.
• Reversible door hinges: It is possible to change the door hinge on the appliance. The reversible door hinges permit optimum use of the appliance wherever it is located.
• Vinidor range: With two or three wine safes that can be precisely regulated from +5°C to +20°C independently of one another, the Vinidor appliances offer maximum flexibility of use. The appliance featuring three wine safes can therefore simultaneously keep red wine, white wine and champagne at their optimum serving temperatures. These appliances also provide the ideal climate conditions for long-term wine storage.
• Activated charcoal filter: Environmental odours can affect wines stored for longer periods.In the wine fridge, perfect air quality is ensured through an easily-replaceable FreshAir activated charcoal filter.
• Low-vibration storage: Even slight vibrations can disturb the wine maturing process and prevent the tannins from settling. Specially developed, exceptionally low-vibration compressors in all the wine fridge mean that the wine is optimally stored.
• Ideal humidity: Maintaining the proper humidity is an important aspect for the storage of wines. In this way, corks remain supple and do not dry out. Wine should be stored in a horizontal position to keep the corks moist from the inside. With over 50 % air humidity, wine fridge guarantee the perfect conditions. The air humidity can be controlled as required in the wine storage cabinets by pressing the ventilation button.
• Insulated glass door: Wine bottles are in most cases tinted because UV light has a damaging effect on wine maturation. However, the bottles alone are insufficient protection. In order to minimise the exposure to radiation, Liebherr wine fridge feature special UV-resistant glass. In this way, stocks of wine can be protected and simultaneously stylishly showcased.

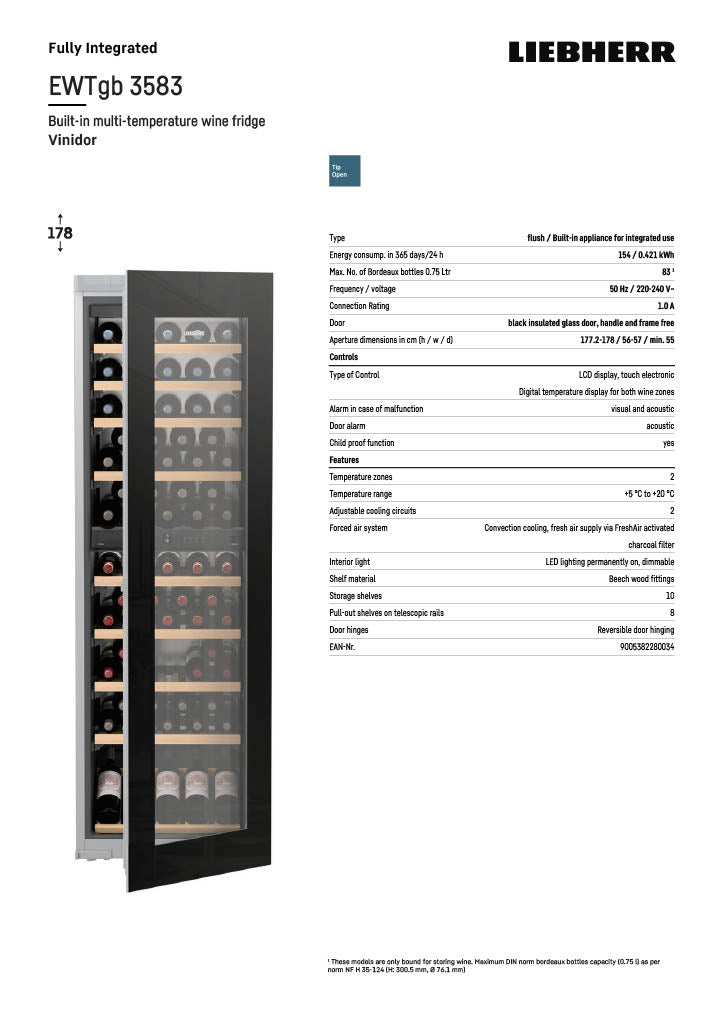

GENERAL PRODUCT INFORMATION:

• Model type: Built-in multi-temperature wine fridge
• GTIN: 9005382282571

OUTPUT & CONSUMPTION:

• Voltage: 220-240 V ~
• Frequency: 50 Hz
• Connection rating: 1.0 A

CONTROL & FUNCTIONS:

• Control unit: Touch
• Temperature display: Wine compartment
• Malfunction: Warning signal: optical and acoustical
• Door open: Warning signal, wine storage compartment: audible
• Child proofing: Yes

WINE STORAGE COMPARTMENT:

• SoftSystem: SoftSystem
• TipOpen: Yes
• Forced air cooling: Yes
• Maximum number of 0.75 l Bordeaux bottles *: 83
• Lighting: Continuously dimmable LED light
• dimmable: Yes
• permanently activated: Yes

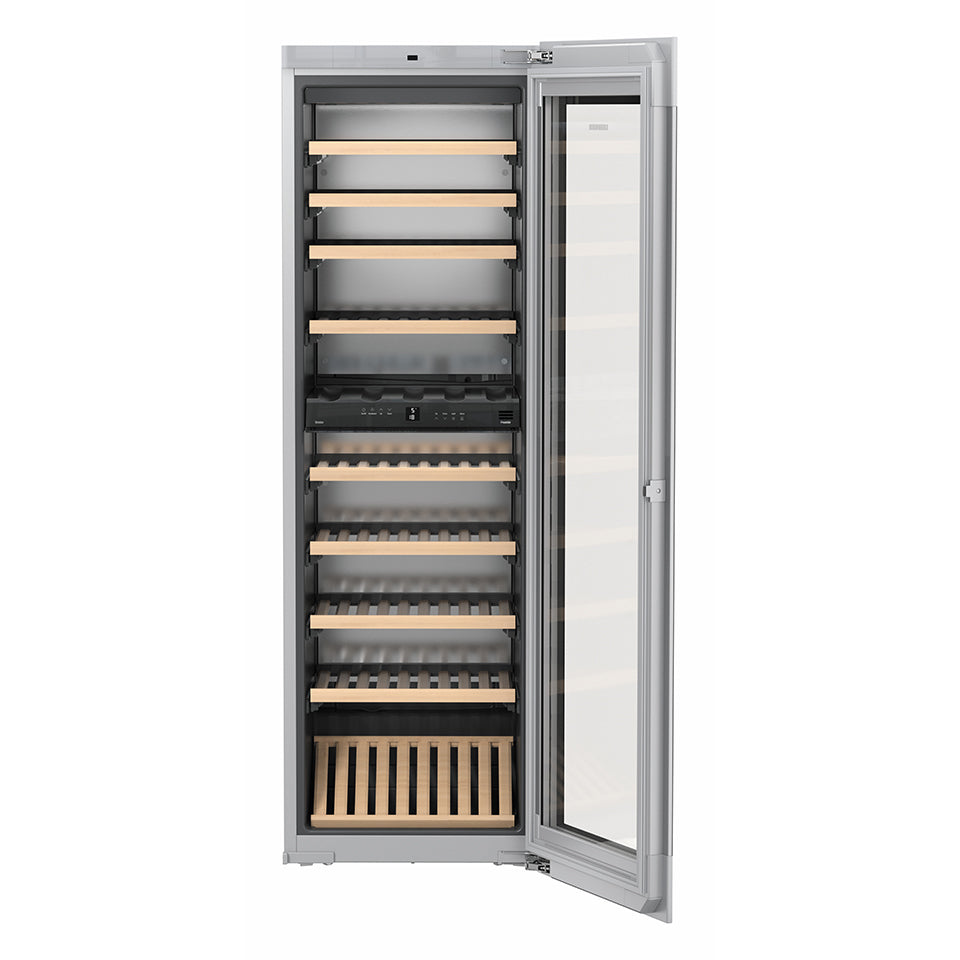

• Number of storage shelves: 10
• of which can be pulled out on telescopic rails: 8
• Number of shelves in wine compartment, of which presentation shelves: 1
• Storage shelf material, wine storage compartment: Wooden pull-out shelf
• Activated charcoal filter: Yes

SETUP & INSTALLATION:

• Door assembly: Flush-mounted
• Door hinges: Right
• Height-adjustable feet: 2

SPECIFICATIONS:

• Total volume: 0 l

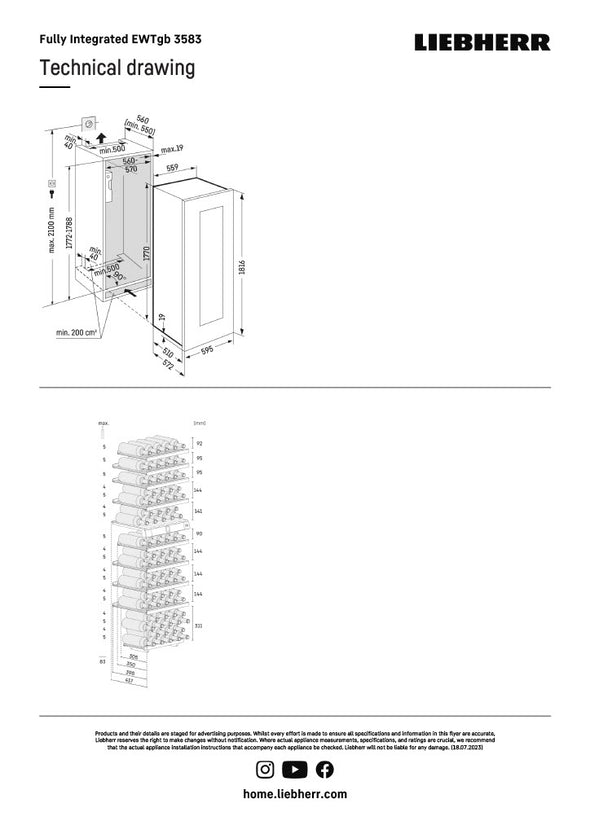

• Aperture height: 178 cm
• Dimensions H/W/D: 177 / 59.5 / 57.2 cm
• Height/width/depth (with packaging): 1,895.0 / 639.0 / 639.0 mm
• Aperture dimensions height/width/depth: 177.2 - 178 / 56 - 57 / 55.0 cm
• Weight (without packaging): 92 kg
• Weight (with packaging): 103 kg

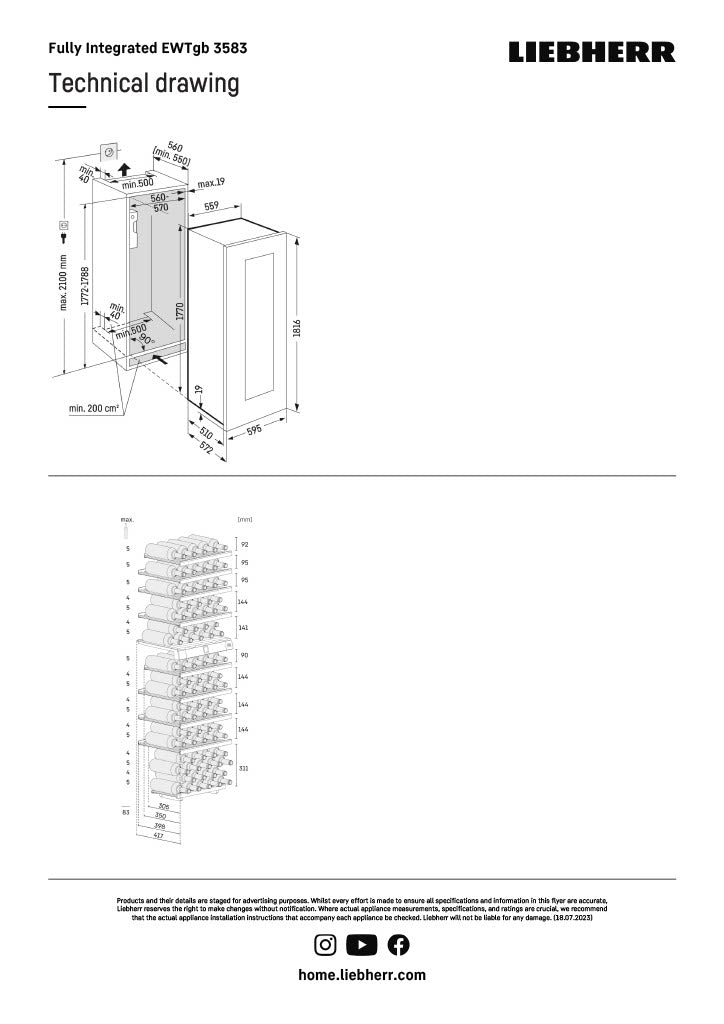

*Please note: The quantity refers to standardised 0.75 litre wine bottles. If bottles of a different size or shape are stored, the number may vary. You can find more information about this in the sketch in the download area.

Warranty Coverage

Liebherr appliances are distributed in Australia by Andi-Co Australia Pty Ltd and are backed by a comprehensive five-year manufacturer's warranty, reflecting the quality and engineering behind every product.

• All household appliances: Five years' warranty against defects in materials and workmanship when used for domestic purposes.
• Cosmetic damage: Dents, scratches and blemishes must be reported in writing within 14 days of delivery.

The warranty applies to the original purchaser and any subsequent owner during the warranty period. Registering the appliance at andico.com.au may help provide faster after-sales service. Proof of purchase is required for all warranty claims.

What's Covered

• Manufacturing defects in materials and workmanship.
• Repair or replacement of defective parts within the warranty period.
• Cosmetic damage reported in writing within 14 days of delivery.

What's Not Covered

• Incorrect installation or failure to follow the manufacturer's instructions.
• Misuse, abuse, accidental damage or neglect.
• Damage caused by power surges, electrical storms or an incorrect power supply.
• Damage caused by vermin or insect infestation.
• Normal wear and tear.
• Consumable items such as filters, light globes and batteries.
• Damage to drawers or shelves.
• Repairs or modifications carried out by unauthorised parties.
• Appliances purchased through unauthorised resellers or third-party auction websites.

Conditions

• The appliance must be used for domestic purposes only.
• The appliance must be installed and maintained in accordance with the manufacturer's instructions.
• Cosmetic damage must be reported in writing within 14 days of delivery.
• The warranty applies only to appliances purchased and used within Australia.
• Proof of purchase must be provided with every claim.

Making a Claim

Warranty claims should be made through the original place of purchase or directly with Andi-Co Australia. Have your proof of purchase available when submitting a claim.

Australian Consumer Law

Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if they fail to be of acceptable quality and the failure does not amount to a major failure.
