Liebherr ECN 7860 NoFrost Integrated Fridge-Freezer

• DuoCooling: Two completely separate refrigeration circuits help maintain independent refrigerator and freezer conditions while limiting odour transfer and food drying.
• Plumbed IceMaker: A fixed water connection supplies automatic ice production, with up to 1.20kg per day and 2.7kg of storage.
• NoFrost freezer: Automatic defrosting prevents unwanted ice build-up and removes the need for routine manual freezer defrosting.
• SuperCool: Rapidly chills newly stored groceries before returning automatically to the normal refrigerator temperature.
• SuperFrost: Increases freezer performance for newly added food and switches off automatically after up to 65 hours.
• SoftSystem closing: The refrigerator door closes gently and securely for quieter, more controlled everyday use.
• Fully extendible freezer drawers: Two enclosed FrostSafe drawers run on telescopic rails with a self-closing mechanism for comfortable access.

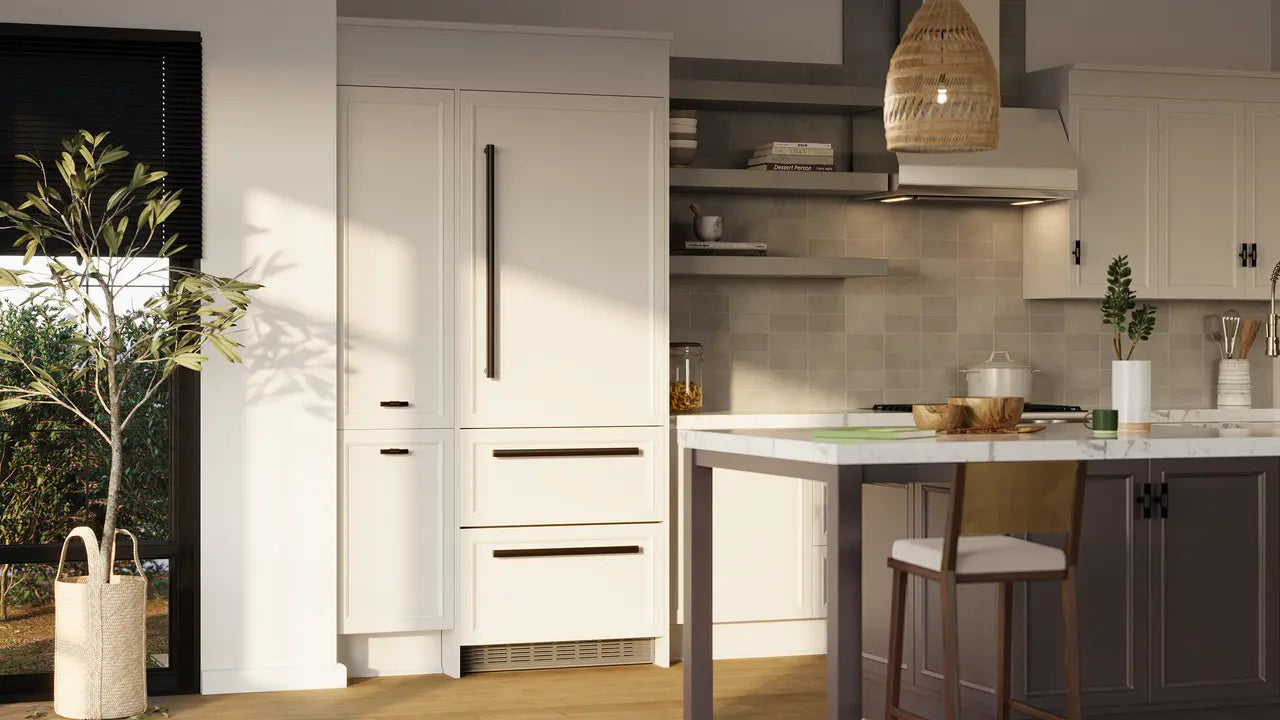

• Integrated fixed-door design: Designed for a 762mm-wide cabinetry aperture with coordinated furniture fronts and base ventilation.

• SuperCool: Builds additional cold reserves to chill newly stored food quickly, then returns automatically to normal operation.
• SuperFrost: Temporarily increases freezing capacity to protect temperatures when fresh food is added.
• MaxIce: Supports increased ice production when extra ice is needed for entertaining or larger gatherings.
• Child Lock: Helps prevent unintended control changes or accidental switch-off.

• Product Type: Integrated bottom-mount fridge/freezer
• Model: ECN 7860
• Total Volume: 402L
• Refrigerator Volume: 277L
• Freezer Volume: 125L
• Energy Rating: 4 stars
• Energy Consumption: 309kWh per year
• Climate Class: SN-T
• Noise Level: 39dB
• Refrigerator Temperature Range: +2°C to +6°C
• Freezer Temperature Range: -14°C to -27°C
• Temperature Zones: 2
• Refrigeration Circuits: 2
• Refrigerator Shelves: 4, including 3 height-adjustable and 1 separable shelf
• Freezer Drawers: 2 FrostSafe drawers
• IceMaker: Fixed water connection
• Ice Production: 1.20kg per 24 hours
• Ice Storage Capacity: 2.7kg
• Door Assembly: Fixed door
• Door Hinge: Right; reversal by customer service only
• Door Opening Angle: 115°
• Voltage: 220–240V~
• Frequency: 50/60Hz
• Connection Rating: 1.5A, 190.1W
• GTIN: 9005382271339

• Cabinetry: Provide an installation aperture of 762mmW × 635mmD × 2032–2072mmH and follow the supplied design guide.
• Door Installation: Use the fixed-door mounting arrangement and observe the maximum furniture-front weights of 27 / 10 / 10kg.
• Ventilation: Provide unobstructed base ventilation exactly as specified in the installation documentation.
• Water Connection: Connect the IceMaker to a suitable fixed water supply using the reinforced flexible hose and follow local plumbing requirements.
• Electrical Connection: Provide an accessible Australian power outlet suitable for 220–240V, 50/60Hz operation.
• Professional Installation: Cabinetry, appliance, electrical and water connections must be completed by suitably qualified trades in accordance with the supplied instructions.

Warranty Coverage

Liebherr appliances are distributed in Australia by Andi-Co Australia Pty Ltd and are backed by a comprehensive five-year manufacturer's warranty, reflecting the quality and engineering behind every product.

• All household appliances: Five years' warranty against defects in materials and workmanship when used for domestic purposes.
• Cosmetic damage: Dents, scratches and blemishes must be reported in writing within 14 days of delivery.

The warranty applies to the original purchaser and any subsequent owner during the warranty period. Registering the appliance at andico.com.au may help provide faster after-sales service. Proof of purchase is required for all warranty claims.

What's Covered

• Manufacturing defects in materials and workmanship.
• Repair or replacement of defective parts within the warranty period.
• Cosmetic damage reported in writing within 14 days of delivery.

What's Not Covered

• Incorrect installation or failure to follow the manufacturer's instructions.
• Misuse, abuse, accidental damage or neglect.
• Damage caused by power surges, electrical storms or an incorrect power supply.
• Damage caused by vermin or insect infestation.
• Normal wear and tear.
• Consumable items such as filters, light globes and batteries.
• Damage to drawers or shelves.
• Repairs or modifications carried out by unauthorised parties.
• Appliances purchased through unauthorised resellers or third-party auction websites.

Conditions

• The appliance must be used for domestic purposes only.
• The appliance must be installed and maintained in accordance with the manufacturer's instructions.
• Cosmetic damage must be reported in writing within 14 days of delivery.
• The warranty applies only to appliances purchased and used within Australia.
• Proof of purchase must be provided with every claim.

Making a Claim

Warranty claims should be made through the original place of purchase or directly with Andi-Co Australia. Have your proof of purchase available when submitting a claim.

Australian Consumer Law

Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if they fail to be of acceptable quality and the failure does not amount to a major failure.

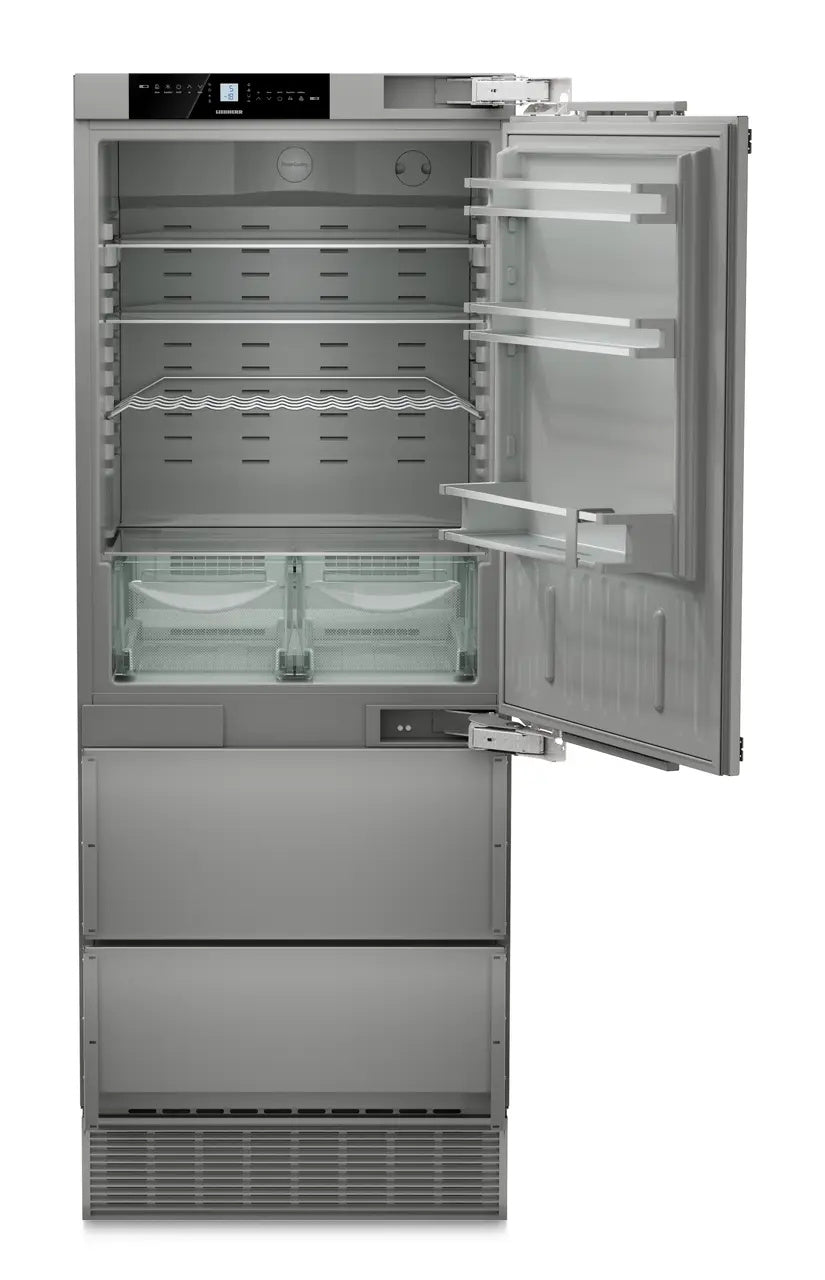

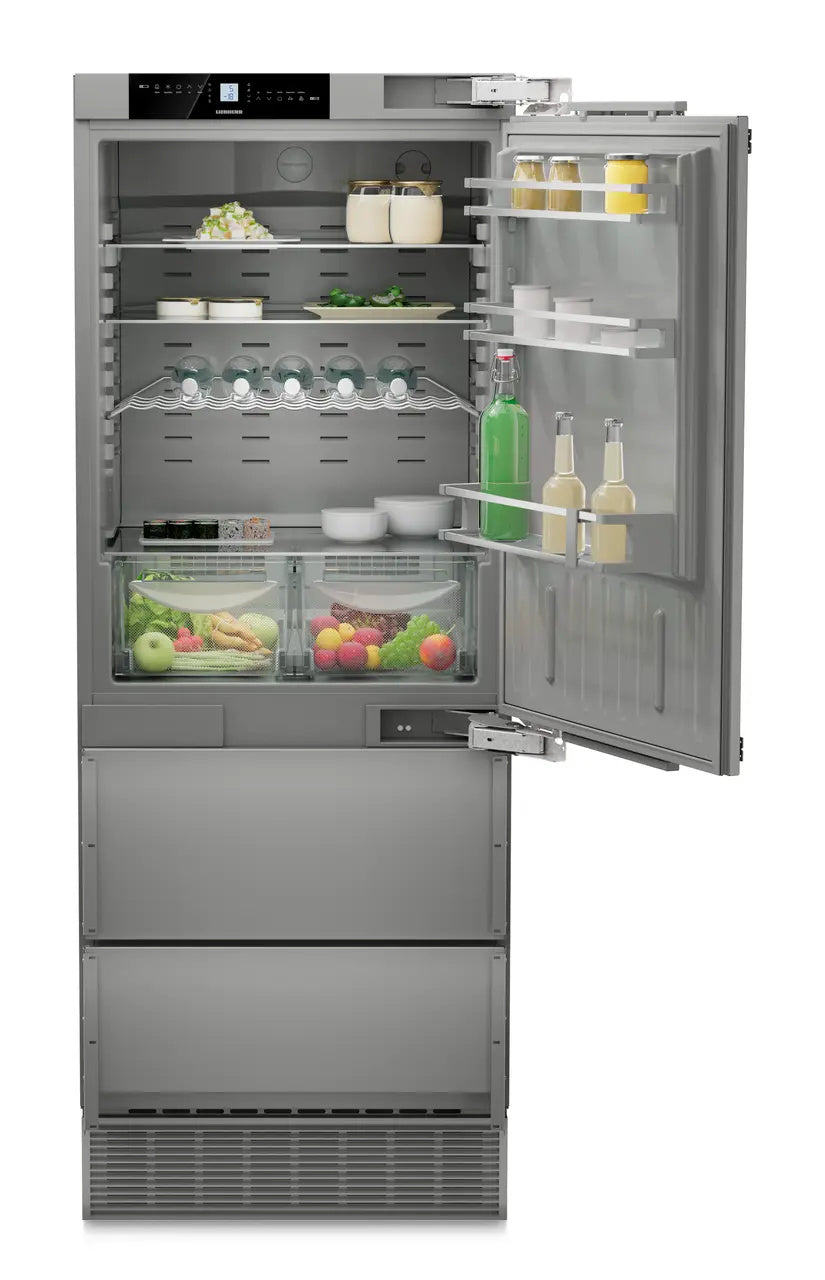

DuoCooling separates the refrigerator and freezer air circuits, helping each compartment maintain its own temperature without transferring odours or drying out refrigerated food. Four glass shelves, gradual door-rack adjustment and a dedicated bottle rack support flexible organisation in the 277-litre refrigerator.

The bottom freezer uses two enclosed FrostSafe drawers on fully extendible telescopic rails. NoFrost prevents routine ice build-up, while SuperFrost helps protect frozen-food temperatures when a fresh grocery load is added. The fixed-water IceMaker stores up to 2.7kg of ice for everyday use and entertaining.

Because the ECN 7860 is a fully integrated appliance, cabinetry dimensions, furniture-front weights, ventilation, water supply and service access must be confirmed before installation. The supplied specification, design, assembly and operating documents should be provided to the cabinetmaker and installer during planning.

• Integrated Fridge-Freezer: One Liebherr ECN 7860 appliance with refrigerator and NoFrost bottom-freezer compartments.
• IceMaker Connection: Fixed-water IceMaker system with reinforced flexible hose.
• Water Filter: One water filter for the IceMaker supply system.
• Storage Components: Four refrigerator shelves, bottle rack, door storage and two FrostSafe freezer drawers.

• SPECIFICATIONS SHEET (PDF)
• OPERATING INSTRUCTIONS (PDF)
• ASSEMBLY & INSTALLATION INSTRUCTIONS (PDF)
• DESIGN GUIDE (PDF)
• SAFETY INFORMATION (PDF)
• DIMENSIONAL DRAWING (JPG)
