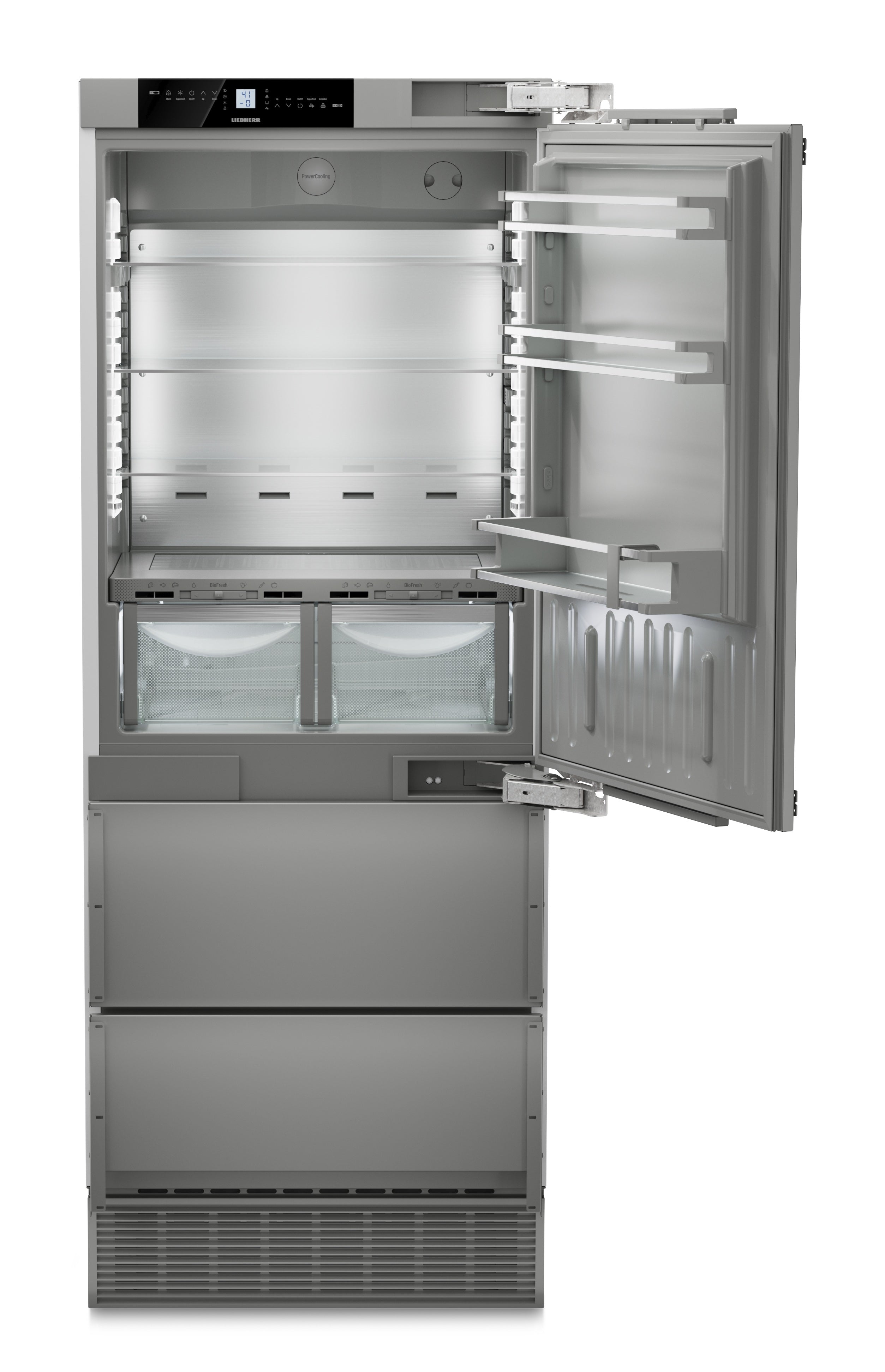

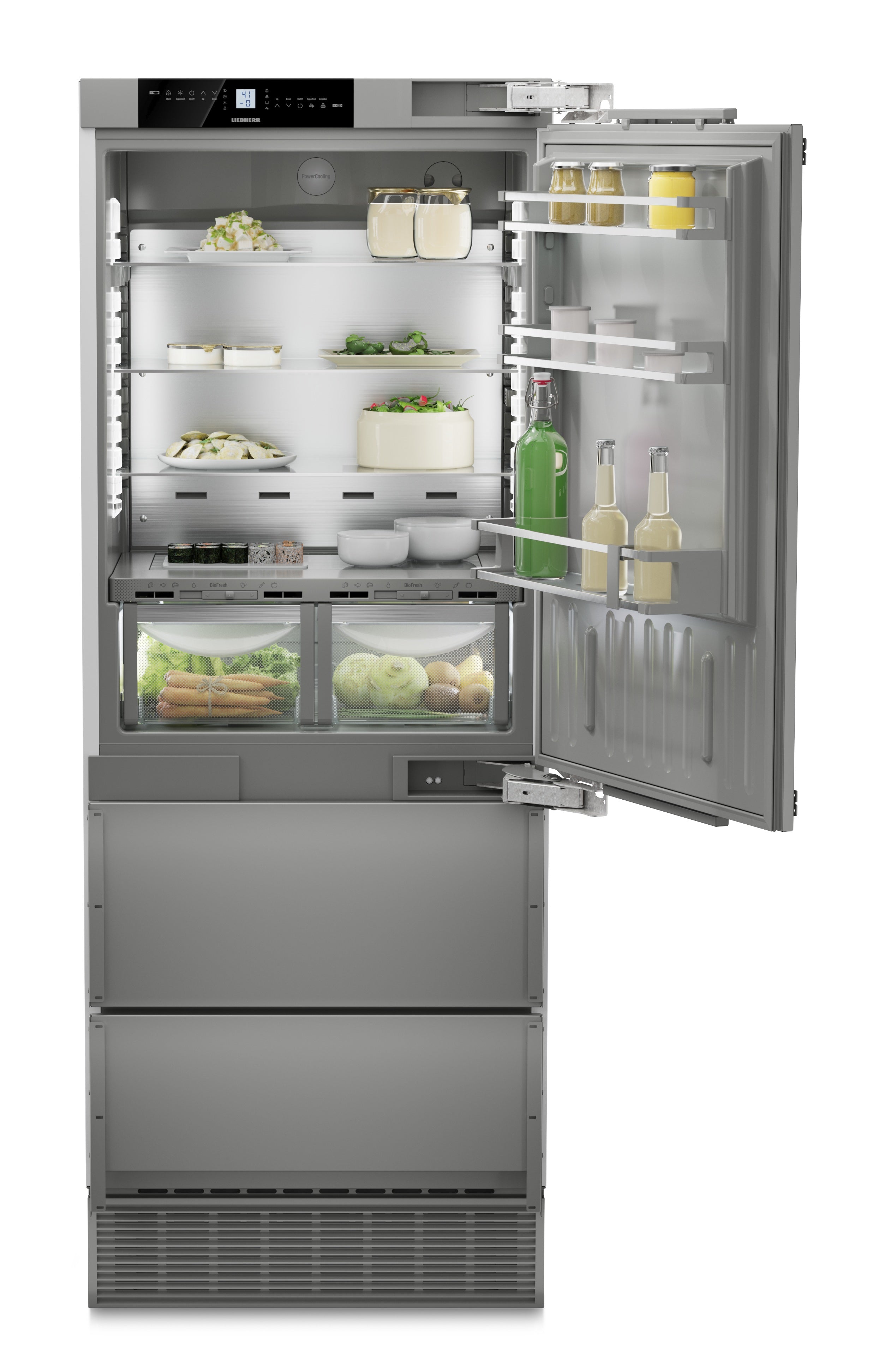

Liebherr ECBN 7870 BioFresh NoFrost Integrated Fridge/Freezer

• BioFresh freshness storage: Two dedicated safes provide tailored low-temperature conditions for meat, dairy, fruit and vegetables.
• DuoCooling: Independent refrigerator and freezer circuits reduce air exchange, food drying and odour transfer.

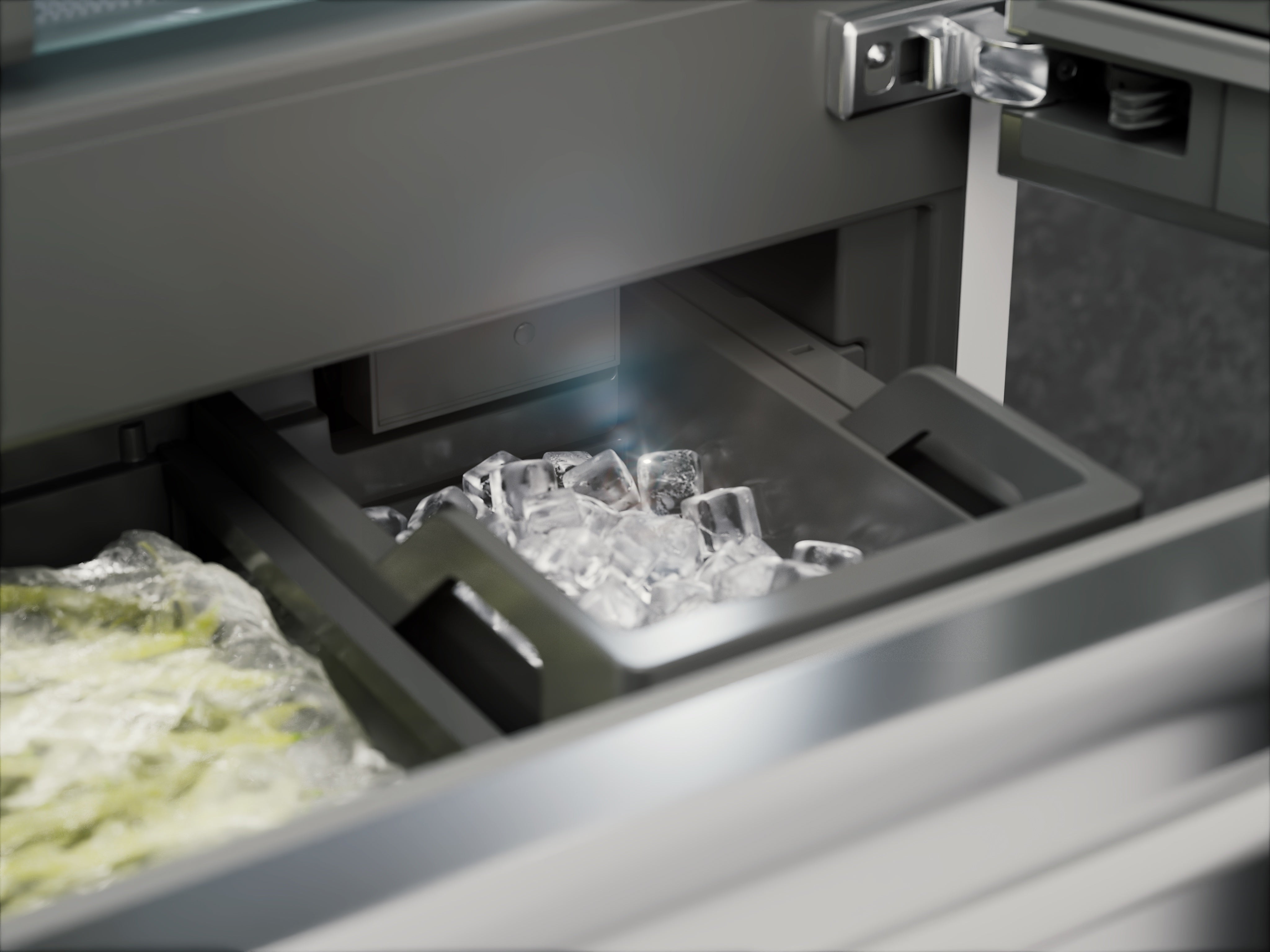

• Plumbed IceMaker: Produces up to 1.20kg of ice per day, or up to 2.70kg with MaxIce, with 2.7kg storage capacity.
• NoFrost freezer: Automatic defrosting prevents unwanted ice build-up and removes the need for manual freezer defrosting.
• SoftSystem closing: The refrigerator door closes gently and securely for refined everyday use.
• Fully extendible freezer drawers: Two FrostSafe drawers run on telescopic rails with self-closing for comfortable access.

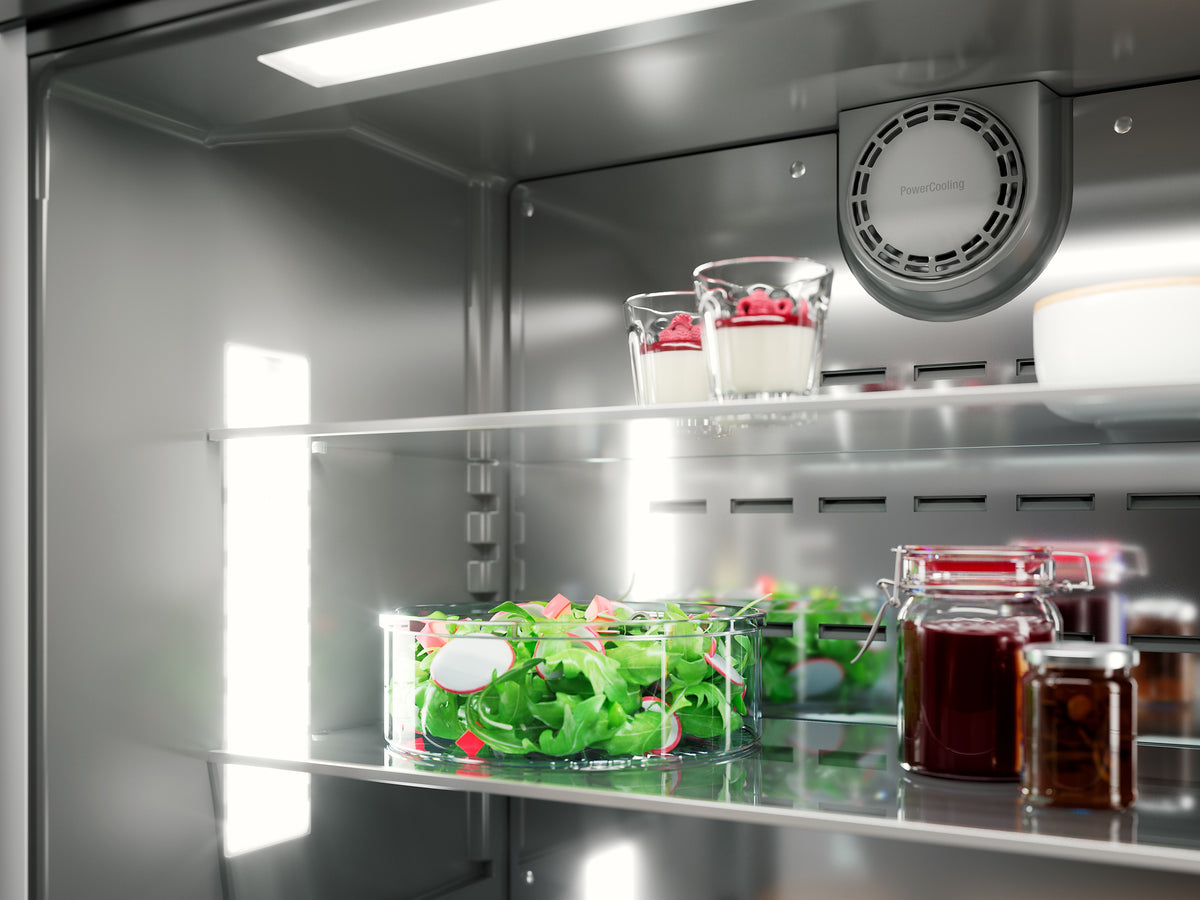

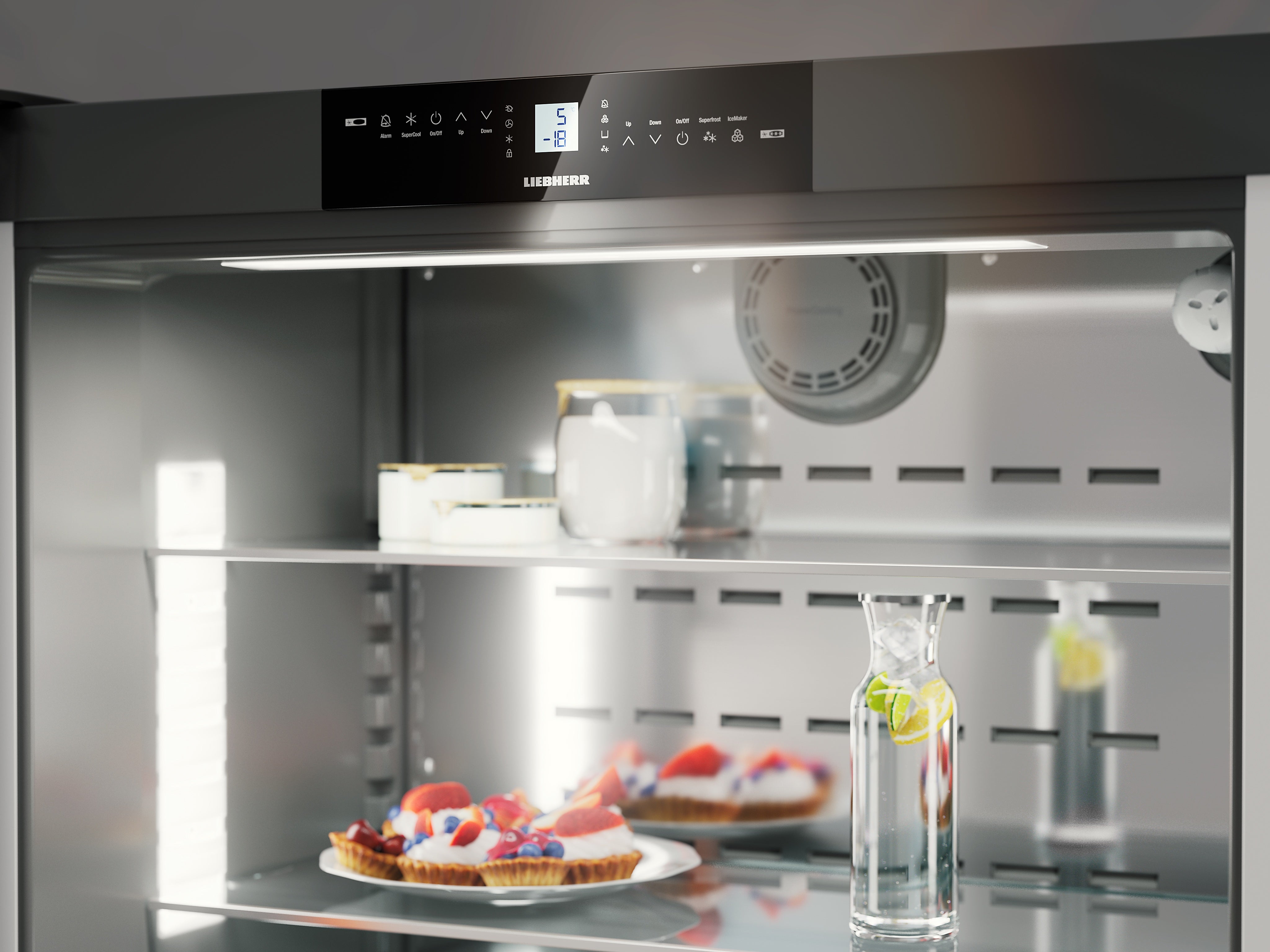

• Efficient LED lighting: Dual LED light columns and dedicated BioFresh lighting illuminate stored food clearly.

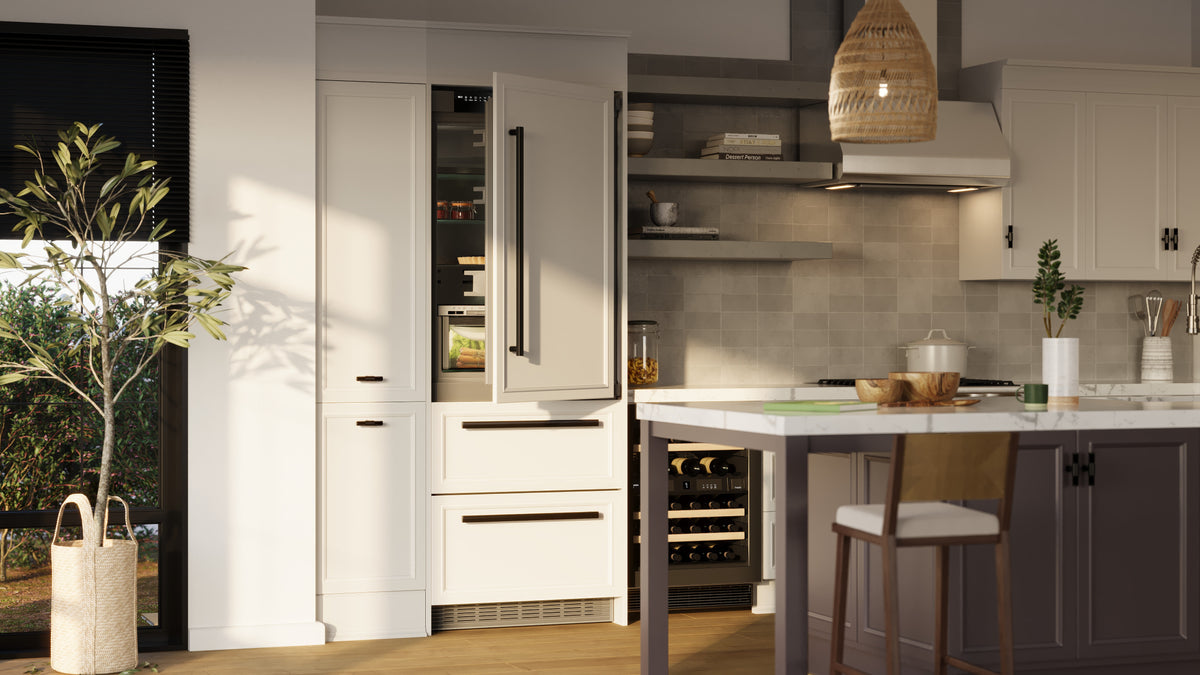

• Integrated fixed-door design: Designed for a 762mm-wide cabinetry aperture with base ventilation and coordinated furniture fronts.

• SuperCool: Rapidly lowers the refrigerator temperature for newly stored groceries before returning automatically to normal operation.
• SuperFrost: Accelerates freezing for newly added food and switches off automatically after up to 65 hours.
• MaxIce: Increases automatic ice production to as much as 2.70kg per 24 hours when additional ice is required.
• Child Lock: Helps prevent unintended control changes or accidental switch-off.

• Product Type: Integrated bottom-mount fridge/freezer
• Model: ECBN 7870
• Total Volume: 402L
• Refrigerator Volume: 277L
• BioFresh Volume: 62.1L
• Freezer Volume: 125L
• Energy Rating: 4 stars
• Energy Consumption: 326kWh per year
• Climate Class: SN-T
• Noise Level: 39dB
• Refrigerator Temperature Range: +3°C to +7°C
• Freezer Temperature Range: -14°C to -27°C
• Refrigeration Circuits: 2
• BioFresh Safes: 2

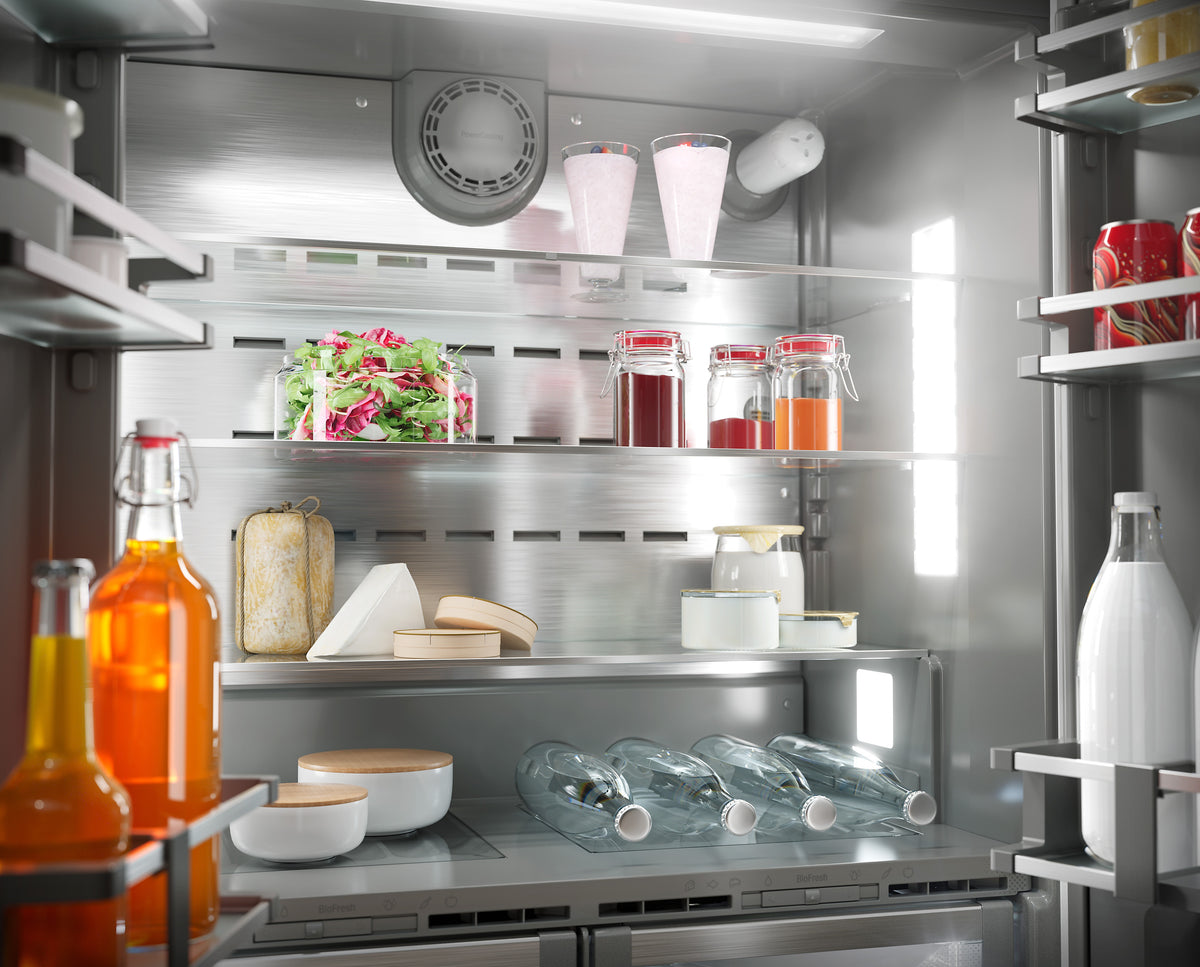

• Refrigerator Shelves: 4, including 3 height-adjustable and 1 separable shelf
• Freezer Drawers: 2 FrostSafe drawers
• IceMaker: Fixed water connection
• Ice Production: 1.20kg per 24 hours; up to 2.70kg with MaxIce
• Ice Storage Capacity: 2.7kg

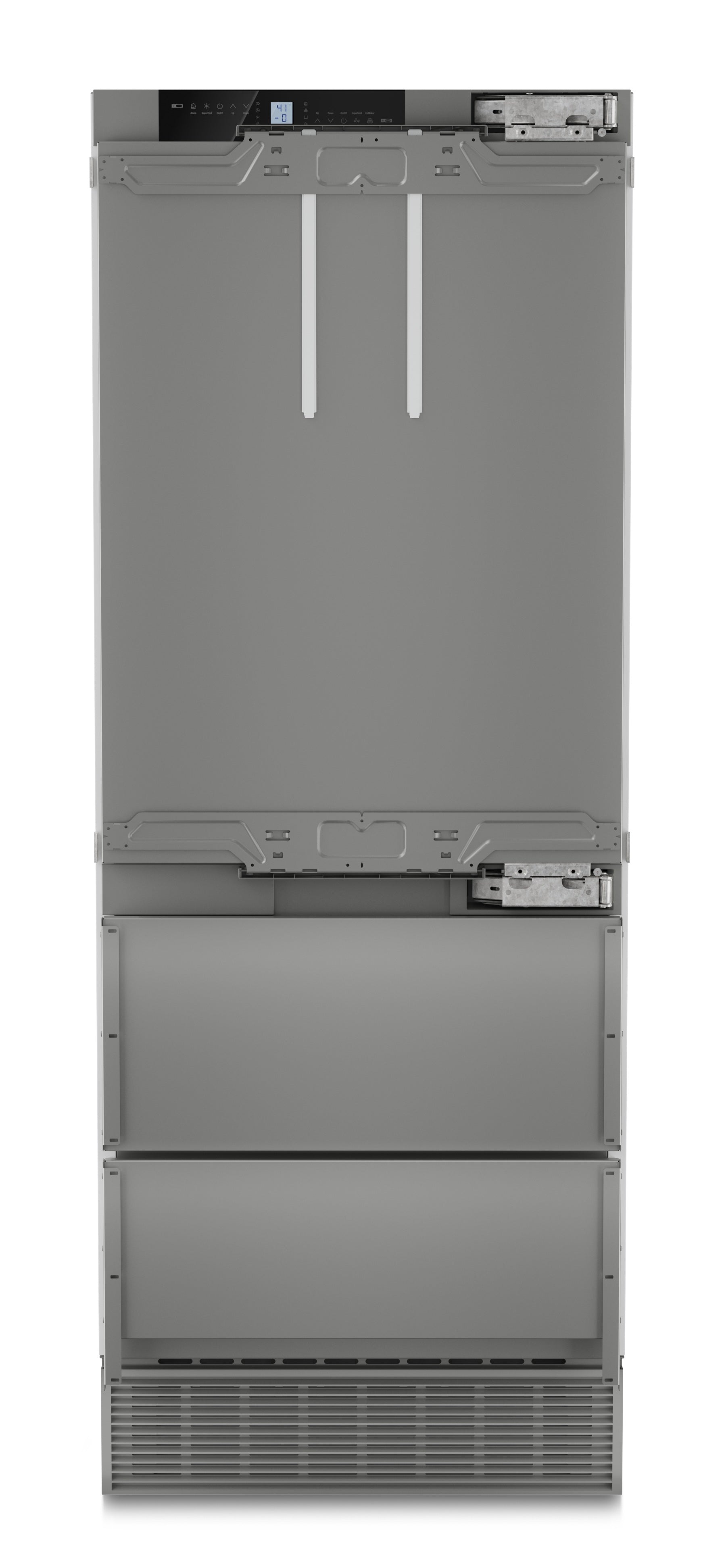

• Door Assembly: Fixed door
• Door Hinge: Right; reversal by customer service only
• Door Opening Angle: 115°
• Voltage: 220–240V~
• Frequency: 50/60Hz
• Connection Rating: 1.5A, 190.1W
• GTIN: 9005382271117

• Cabinetry: Provide an installation aperture of 762mmW × 635mmD × 2032–2072mmH and follow the supplied design guide.

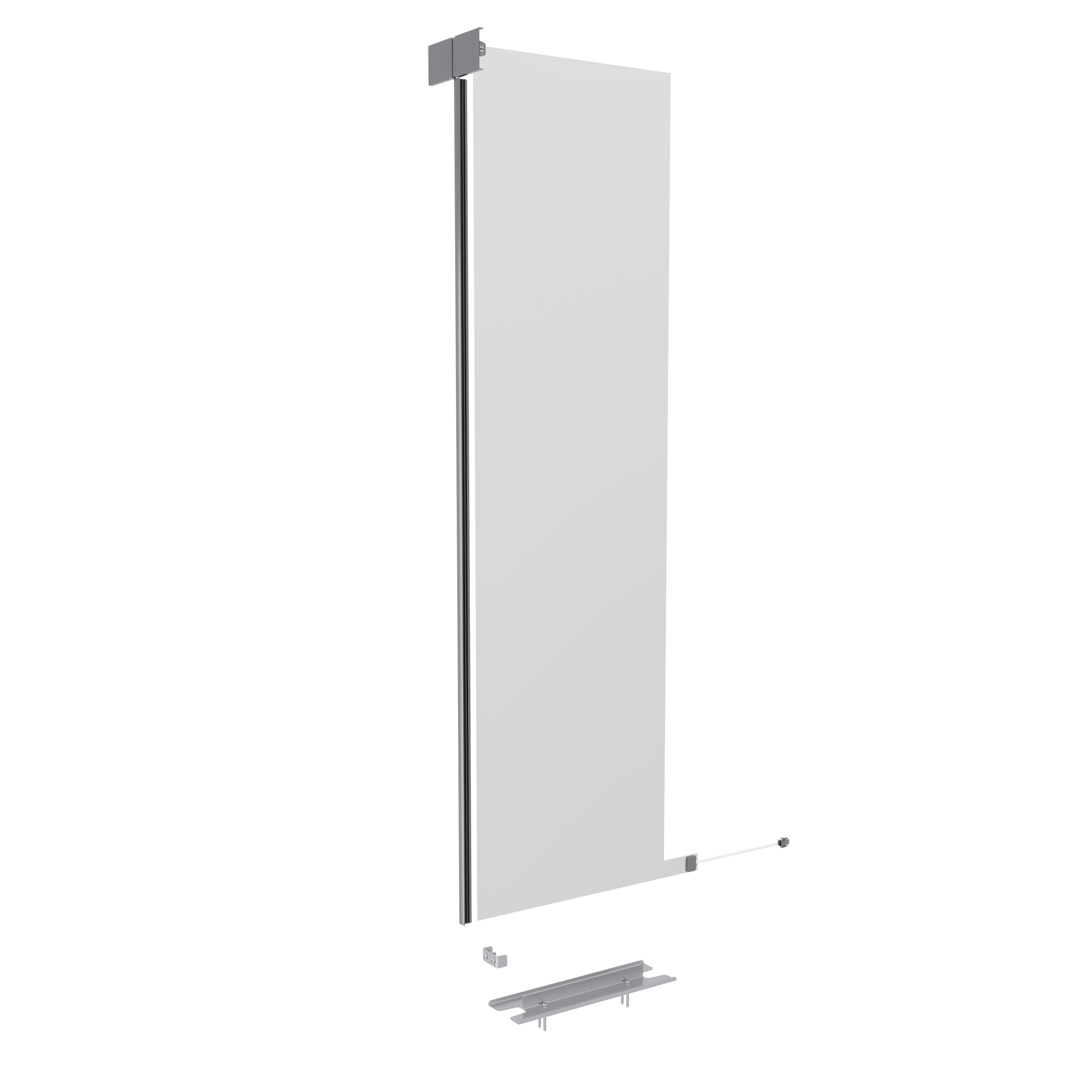

• Door Installation: Use the fixed-door mounting arrangement and observe the maximum furniture-front weights of 27 / 12 / 12kg.
• Ventilation: Provide unobstructed base ventilation exactly as specified in the installation documentation.
• Water Connection: Connect the IceMaker to a suitable fixed water supply using the reinforced flexible hose and follow local plumbing requirements.
• Electrical Connection: Provide an accessible Australian power outlet suitable for 220–240V, 50/60Hz operation.
• Professional Installation: Cabinetry, appliance, electrical and water connections must be completed by suitably qualified trades in accordance with the supplied instructions.

Liebherr Warranty

Brand Introduction

Liebherr appliances are distributed in Australia by Andi-Co Australia Pty Ltd and are backed by a comprehensive five-year manufacturer's warranty, reflecting the quality and engineering behind every product.

Warranty Coverage

• All household appliances: Five years' warranty against defects in materials and workmanship when used for domestic purposes.
• Cosmetic damage: Dents, scratches and blemishes must be reported in writing within 14 days of delivery.

The warranty applies to the original purchaser and any subsequent owner during the warranty period. Registering the appliance at andico.com.au may help provide faster after-sales service. Proof of purchase is required for all warranty claims.

What's Covered

• Manufacturing defects in materials and workmanship.
• Repair or replacement of defective parts within the warranty period.
• Cosmetic damage reported in writing within 14 days of delivery.

What's Not Covered

• Incorrect installation or failure to follow the manufacturer's instructions.
• Misuse, abuse, accidental damage or neglect.
• Damage caused by power surges, electrical storms or an incorrect power supply.
• Damage caused by vermin or insect infestation.
• Normal wear and tear.
• Consumable items such as filters, light globes and batteries.
• Damage to drawers or shelves.
• Repairs or modifications carried out by unauthorised parties.
• Appliances purchased through unauthorised resellers or third-party auction websites.

Conditions

• The appliance must be used for domestic purposes only.
• The appliance must be installed and maintained in accordance with the manufacturer's instructions.
• Cosmetic damage must be reported in writing within 14 days of delivery.
• The warranty applies only to appliances purchased and used within Australia.
• Proof of purchase must be provided with every claim.

Making a Claim

Warranty claims should be made through the original place of purchase or directly with Andi-Co Australia by calling 1800 685 899. Have your proof of purchase available when submitting a claim.

Australian Consumer Law

Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if they fail to be of acceptable quality and the failure does not amount to a major failure.

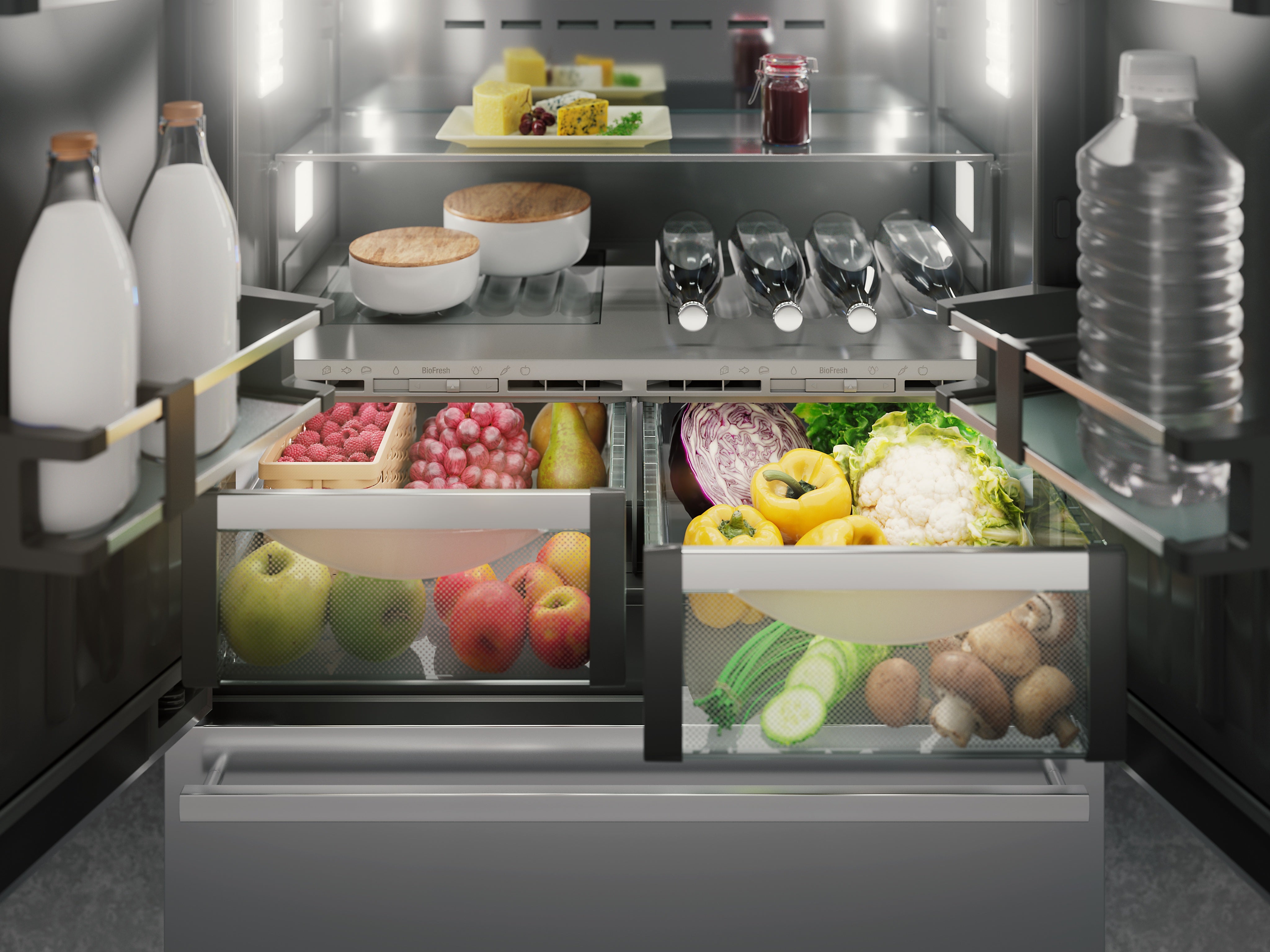

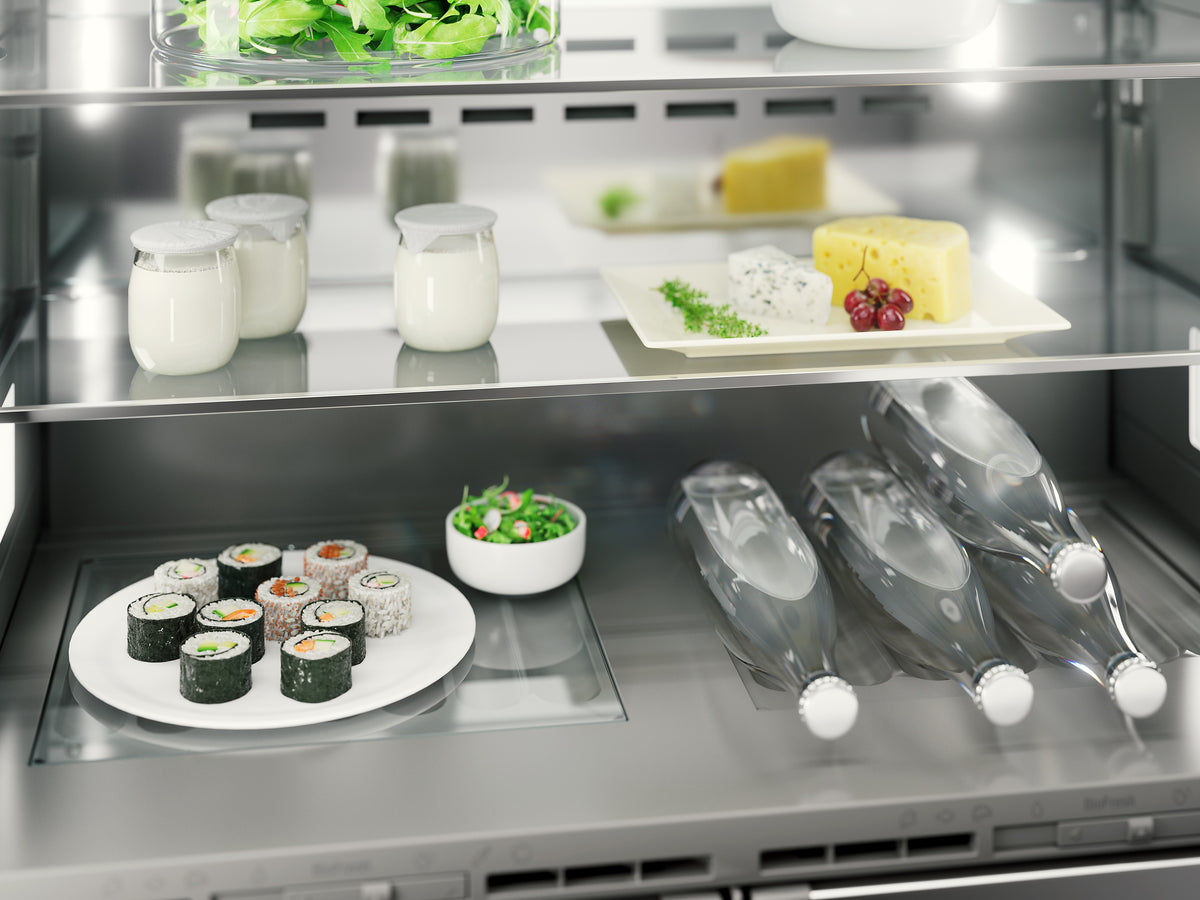

BioFresh divides fresh-food storage into two purpose-specific environments. The Meat & Dairy safe operates close to 0°C, while the Fruit & Vegetable safe supports higher humidity for produce. Together with DuoCooling, these zones help shoppers organise food by its preferred storage conditions rather than relying on a single general-purpose refrigerator compartment.

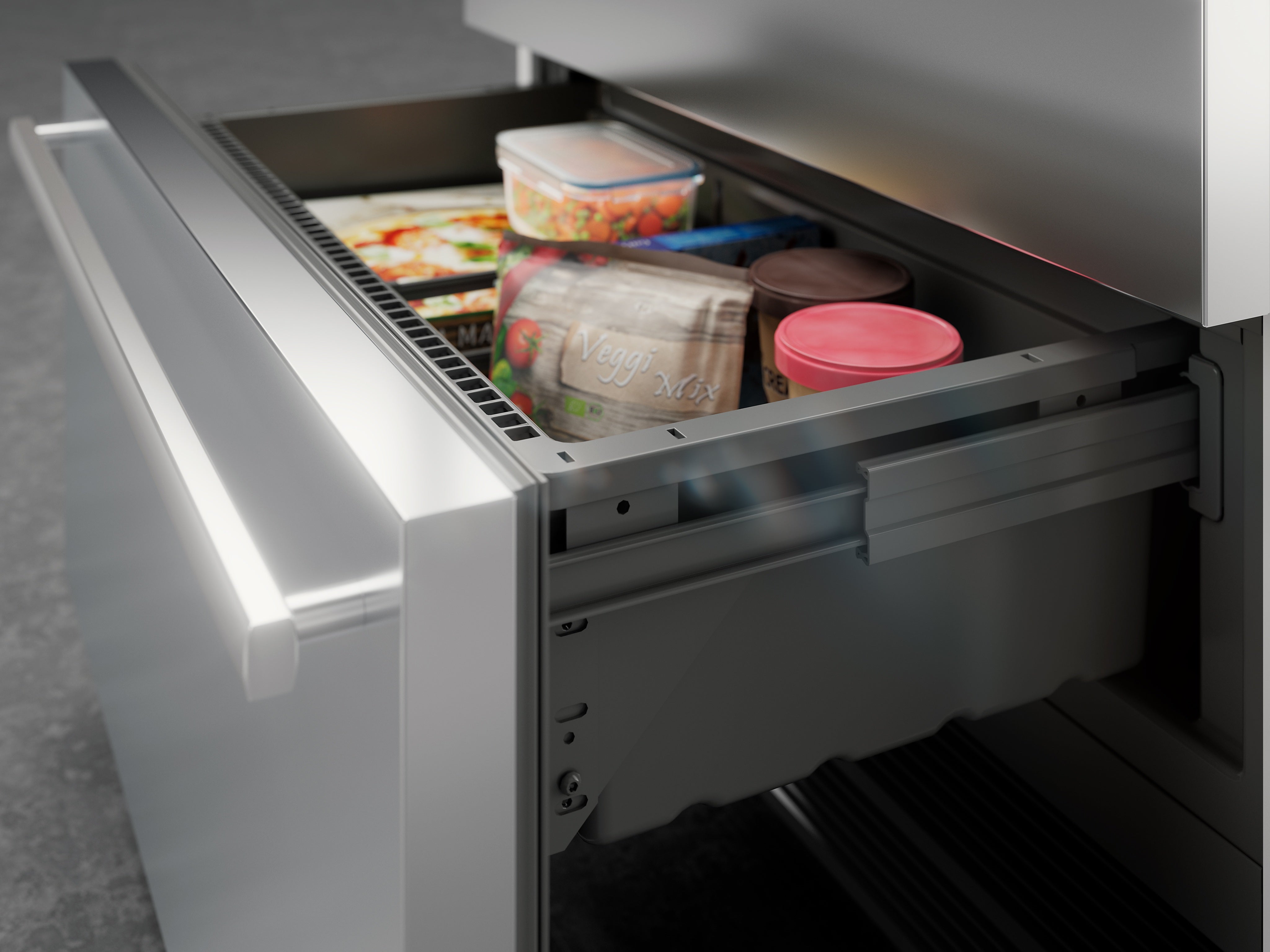

The bottom freezer uses two enclosed FrostSafe drawers on fully extendible telescopic rails. NoFrost prevents routine ice build-up, while SuperFrost helps protect frozen food temperatures when new groceries are loaded. The fixed-water IceMaker can increase production through MaxIce when entertaining or preparing for larger gatherings.

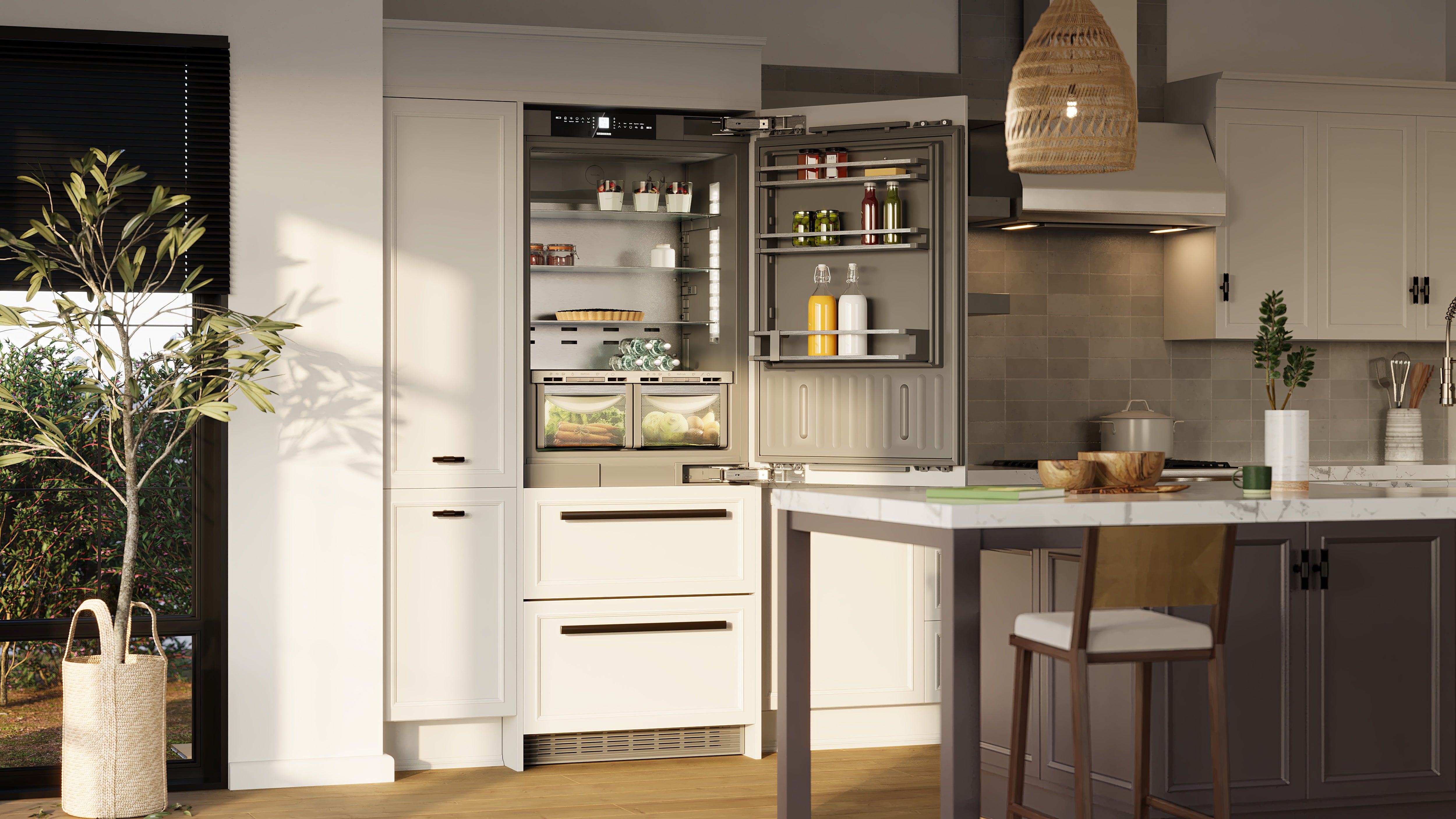

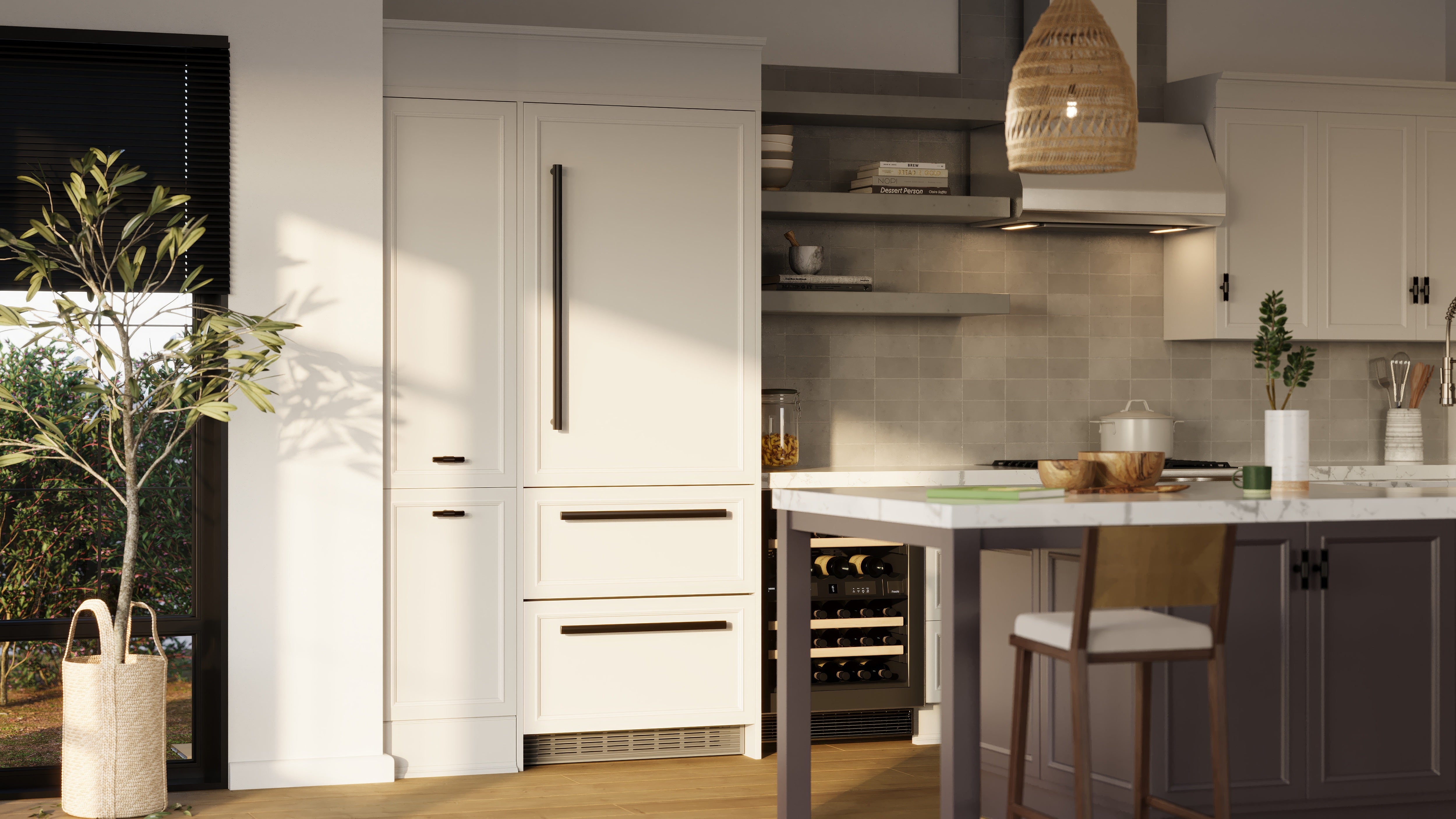

Because the ECBN 7870 is a fully integrated appliance, cabinetry dimensions, furniture-front weights, ventilation and service access must be confirmed before installation. The supplied specification, design, assembly and operating documents should be provided to the cabinetmaker and installer during planning.

• Integrated Fridge/Freezer: One Liebherr ECBN 7870 appliance with refrigerator, BioFresh and NoFrost freezer compartments.
• IceMaker Connection: Fixed-water IceMaker system with reinforced flexible hose.
• Water Filter: One water filter for the IceMaker supply system.
• Storage Components: Four refrigerator shelves, two BioFresh safes and two FrostSafe freezer drawers.
