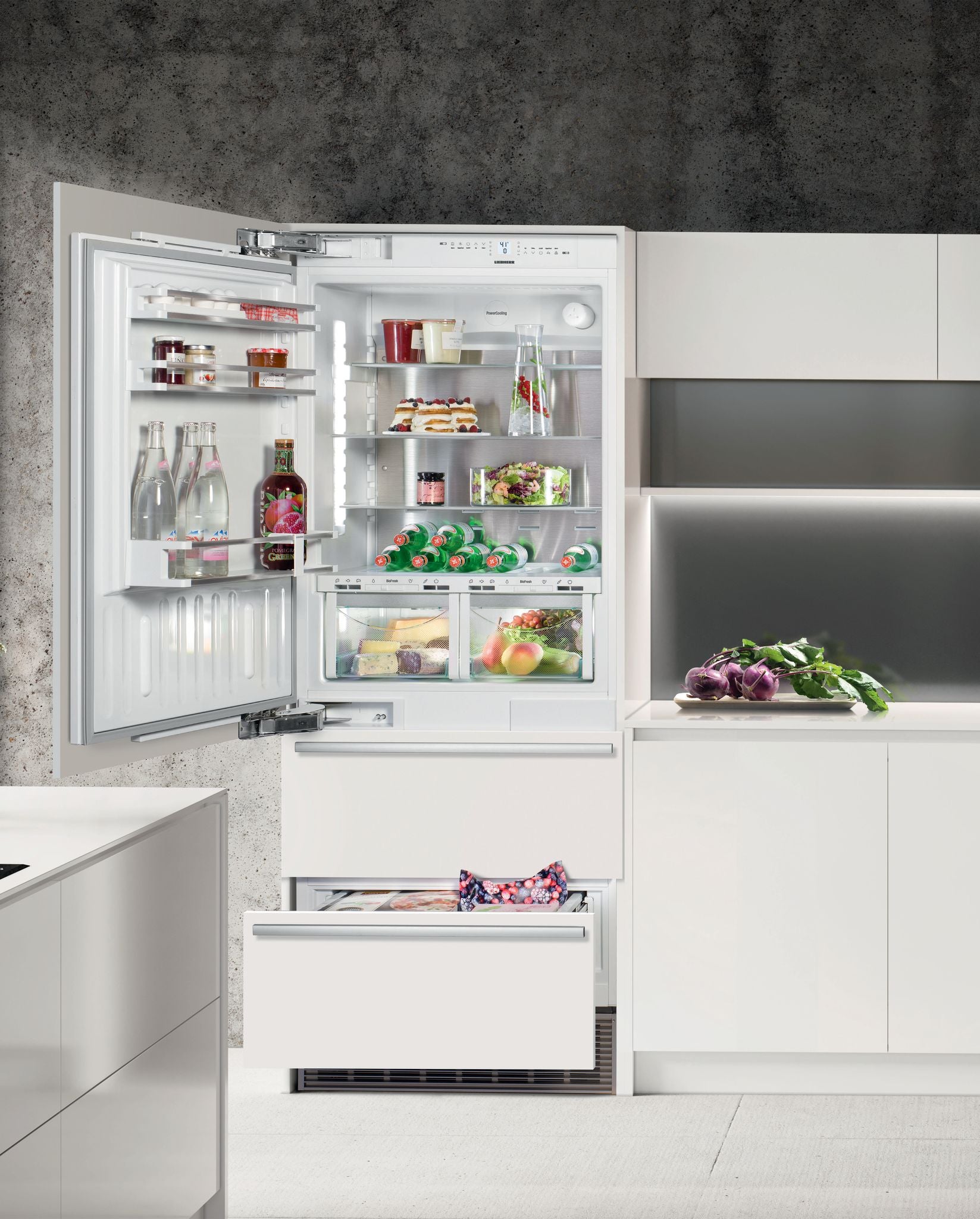

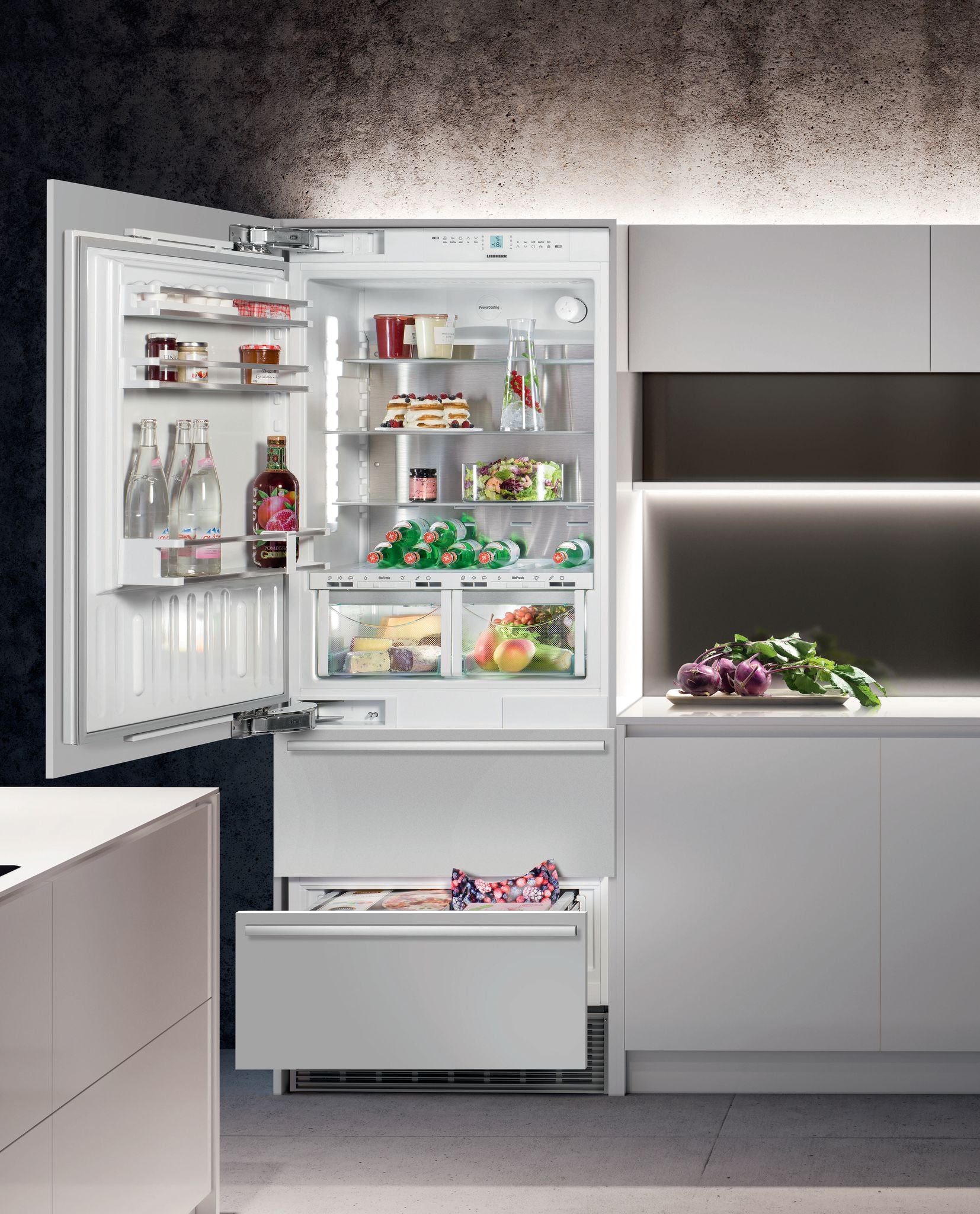

Liebherr ECBN 5066 PremiumPlus BioFresh NoFrost Integrated Fridge-Freezer

• BioFresh: Two BioFresh safes maintain temperatures just above 0 °C to help preserve vitamins, aroma and appearance for longer.
• DuoCooling: Two separate refrigeration circuits prevent air exchange between the refrigerator and freezer compartments, reducing drying and odour transfer.
• Plumbed-in IceMaker: A fixed water connection supplies the automatic IceMaker, with 2.7 kg of ice-cube storage.
• NoFrost: Automatic frost prevention removes the need for manual freezer defrosting.
• SuperCool: Rapidly chills newly stored food before automatically returning the refrigerator to its normal operating temperature.
• SuperFrost: Rapidly freezes newly added food before automatically returning the freezer to its normal operating temperature.
• PowerCooling: High-performance forced-air cooling distributes cold air evenly throughout the refrigerator compartment.
• LED interior lighting: Dual LED light columns illuminate the refrigerator, with separate LED lighting for the BioFresh safes and freezer compartment.
• Door and temperature alarms: Audible and visual alerts warn of an open door or unexpected temperature deviation.
• Child lock: Helps prevent the appliance from being switched off inadvertently.

• SuperCool: Temporarily increases refrigerator cooling capacity for newly stored food.
• SuperFrost: Temporarily lowers the freezer temperature to -32 °C for rapid freezing.
• Child lock: Prevents unintended appliance switch-off.
• Door alarm: Sounds when the refrigerator door remains open for more than 60 seconds.
• Temperature alarm: Provides visual and audible notification of unexpected temperature changes.

• Model: ECBN 5066
• Series: PremiumPlus
• Appliance type: Fully integrated combined refrigerator-freezer with BioFresh and NoFrost
• Total volume: 402 L
• Refrigerator volume: 277 L
• Freezer volume: 125 L
• BioFresh volume: 62.1 L
• Four-star compartment volume: 124.6 L
• Energy rating: 4.5 stars
• Annual energy consumption: 304 kWh
• Temperature zones: 3
• Refrigerator temperature range: +3 °C to +9 °C
• Freezer temperature range: -14 °C to -28 °C
• BioFresh safes: 2
• Refrigerator shelves: 4, including 1 separable and 3 height-adjustable shelves
• Freezer drawers: 2
• Ice-cube storage: 2.7 kg
• Door hinge: Right
• Door opening angle: 115°
• Electrical supply: 220-240 V, 50 Hz
• Connection rating: 1.5 A / 194 W
• GTIN: 9005382259115

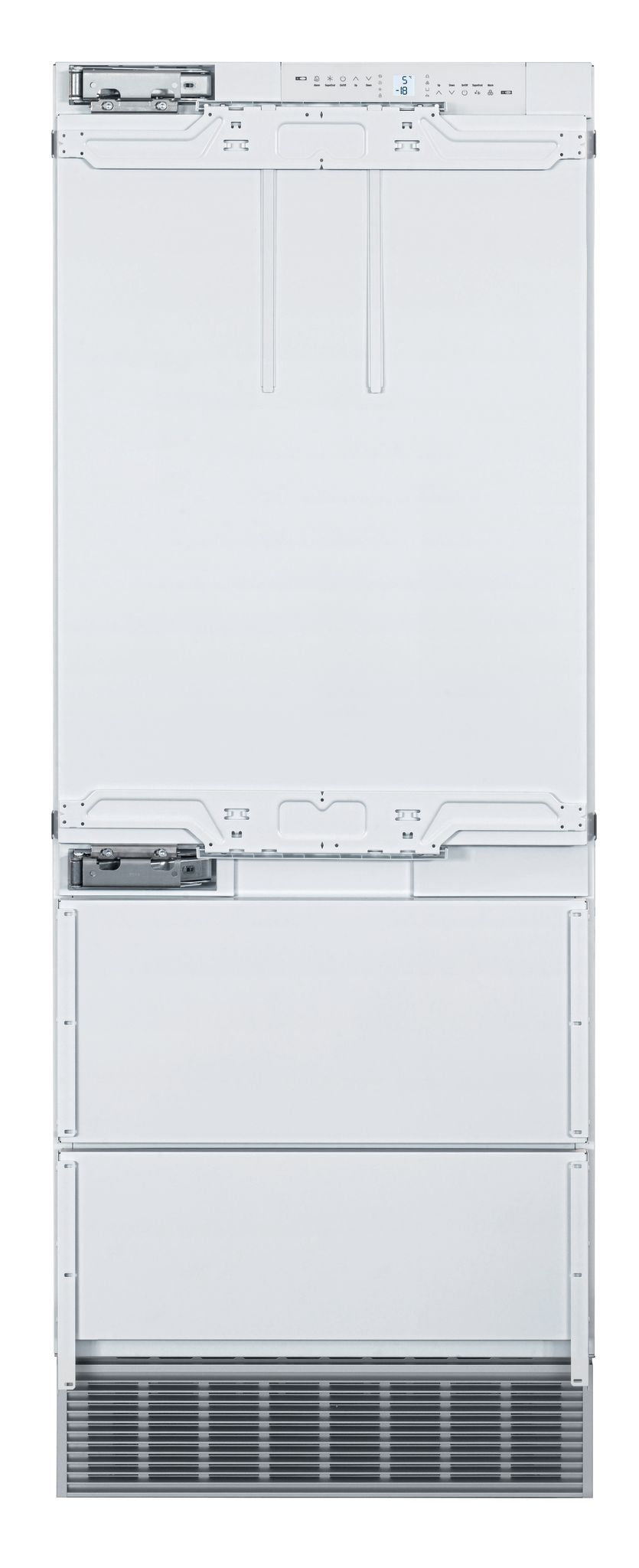

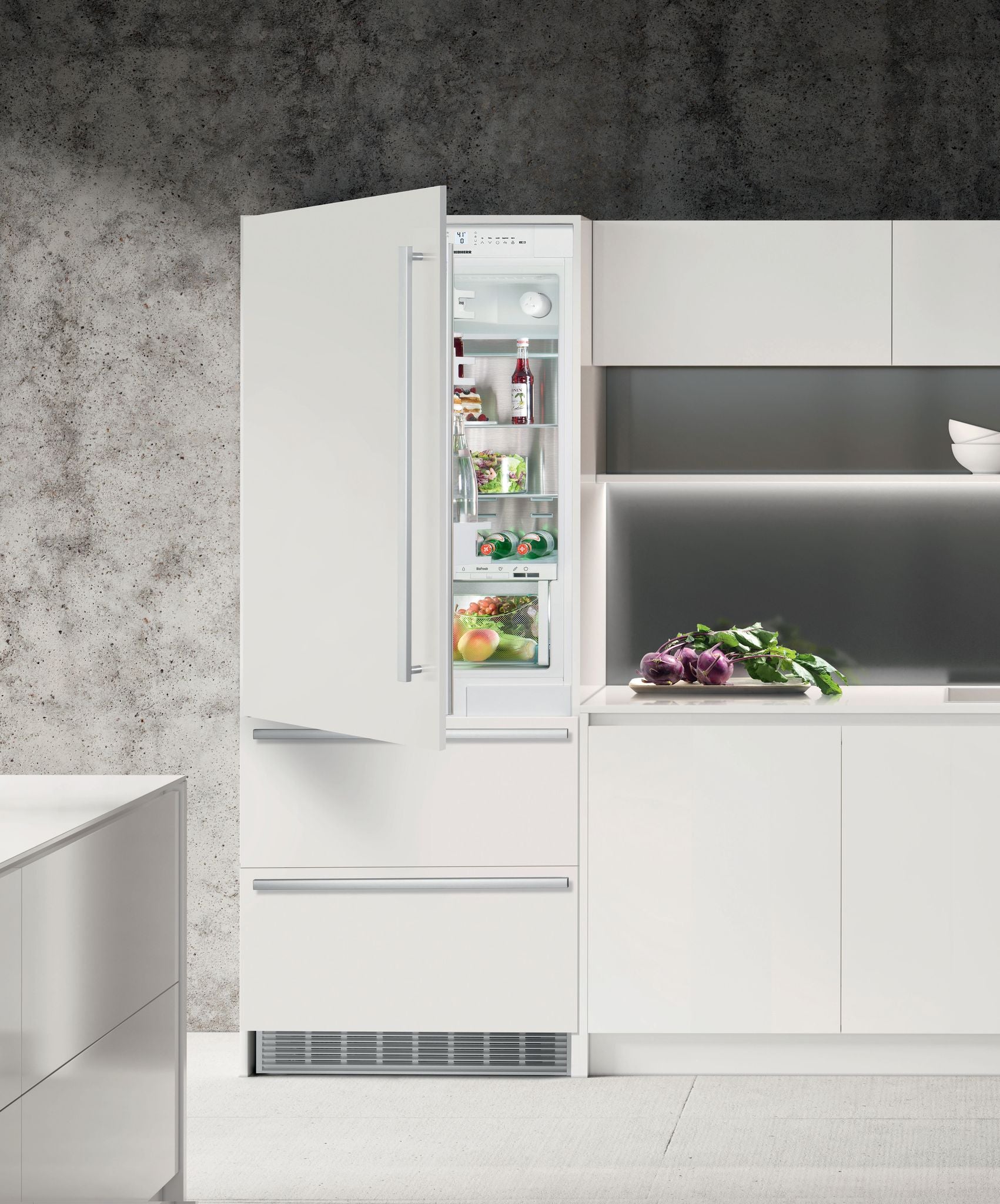

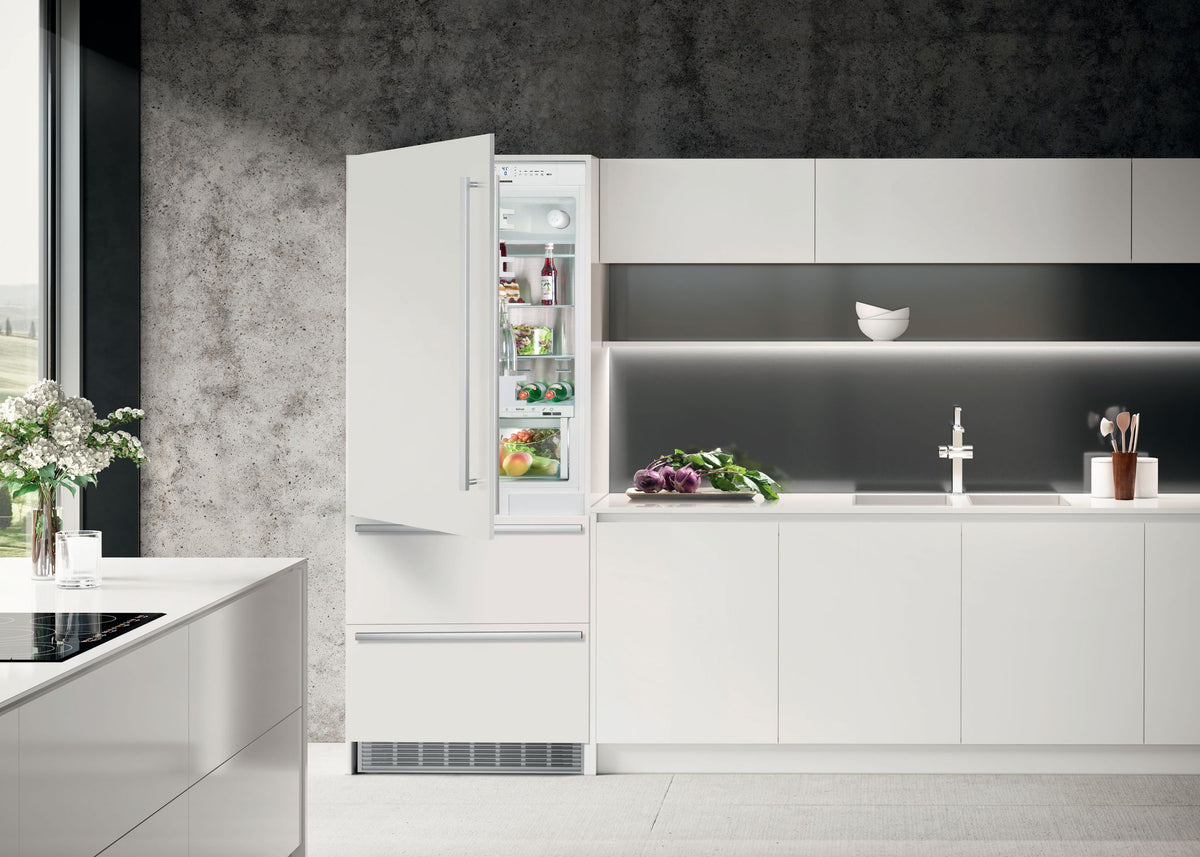

• Installation type: Fully integrated fixed-door installation.
• Ventilation: Base ventilation is required.
• Water connection: A fixed mains-water connection is required for the plumbed-in IceMaker.
• Water pressure: 1.5-6 bar, or 2.8-6 bar when the supplied water filter is installed.
• Power connection: Australian plug with a 2,600 mm connector cable.
• Maximum cabinetry door weights: 27 kg refrigerator door, 10 kg upper freezer drawer and 10 kg lower freezer drawer.
• Cabinetry panels and handles: Decorative door panels and handles are required separately.

Warranty Coverage

Liebherr appliances are distributed in Australia by Andi-Co Australia Pty Ltd and are backed by a comprehensive five-year manufacturer's warranty, reflecting the quality and engineering behind every product.

• All household appliances: Five years' warranty against defects in materials and workmanship when used for domestic purposes.
• Cosmetic damage: Dents, scratches and blemishes must be reported in writing within 14 days of delivery.

The warranty applies to the original purchaser and any subsequent owner during the warranty period. Registering the appliance at andico.com.au may help provide faster after-sales service. Proof of purchase is required for all warranty claims.

What's Covered

• Manufacturing defects in materials and workmanship.
• Repair or replacement of defective parts within the warranty period.
• Cosmetic damage reported in writing within 14 days of delivery.

What's Not Covered

• Incorrect installation or failure to follow the manufacturer's instructions.
• Misuse, abuse, accidental damage or neglect.
• Damage caused by power surges, electrical storms or an incorrect power supply.
• Damage caused by vermin or insect infestation.
• Normal wear and tear.
• Consumable items such as filters, light globes and batteries.
• Damage to drawers or shelves.
• Repairs or modifications carried out by unauthorised parties.
• Appliances purchased through unauthorised resellers or third-party auction websites.

Conditions

• The appliance must be used for domestic purposes only.
• The appliance must be installed and maintained in accordance with the manufacturer's instructions.
• Cosmetic damage must be reported in writing within 14 days of delivery.
• The warranty applies only to appliances purchased and used within Australia.
• Proof of purchase must be provided with every claim.

Making a Claim

Warranty claims should be made through the original place of purchase or directly with Andi-Co Australia. Have your proof of purchase available when submitting a claim.

Australian Consumer Law

Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if they fail to be of acceptable quality and the failure does not amount to a major failure.

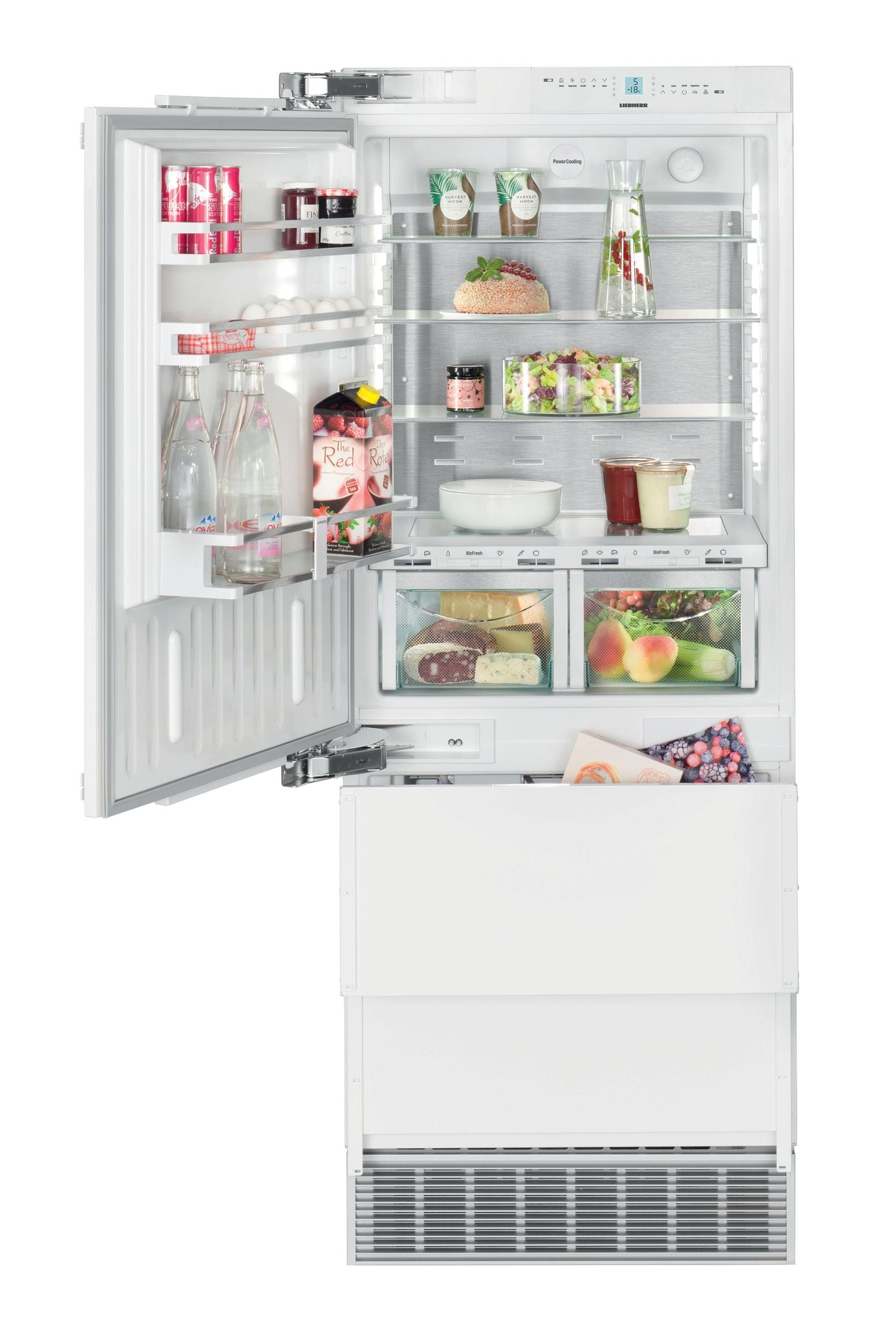

The refrigerator includes four glass shelves, a bottle rack and two can racks. One shelf is separable to accommodate taller containers, while three shelves can be height-adjusted to suit changing storage requirements.

The first three batches of ice should not be consumed after commissioning, and initial ice production may take up to 24 hours. Installation and commissioning must follow the supplied Liebherr documentation.

• Water filter: Supplied for the plumbed water connection.
• Water supply hose: 3 m stainless-steel hose supplied.
• Anti-tipping bracket: Supplied for installation.
• Ventilation grille: Supplied for base ventilation.
• Freezer drawer partition: Supplied in the accessory pack.
