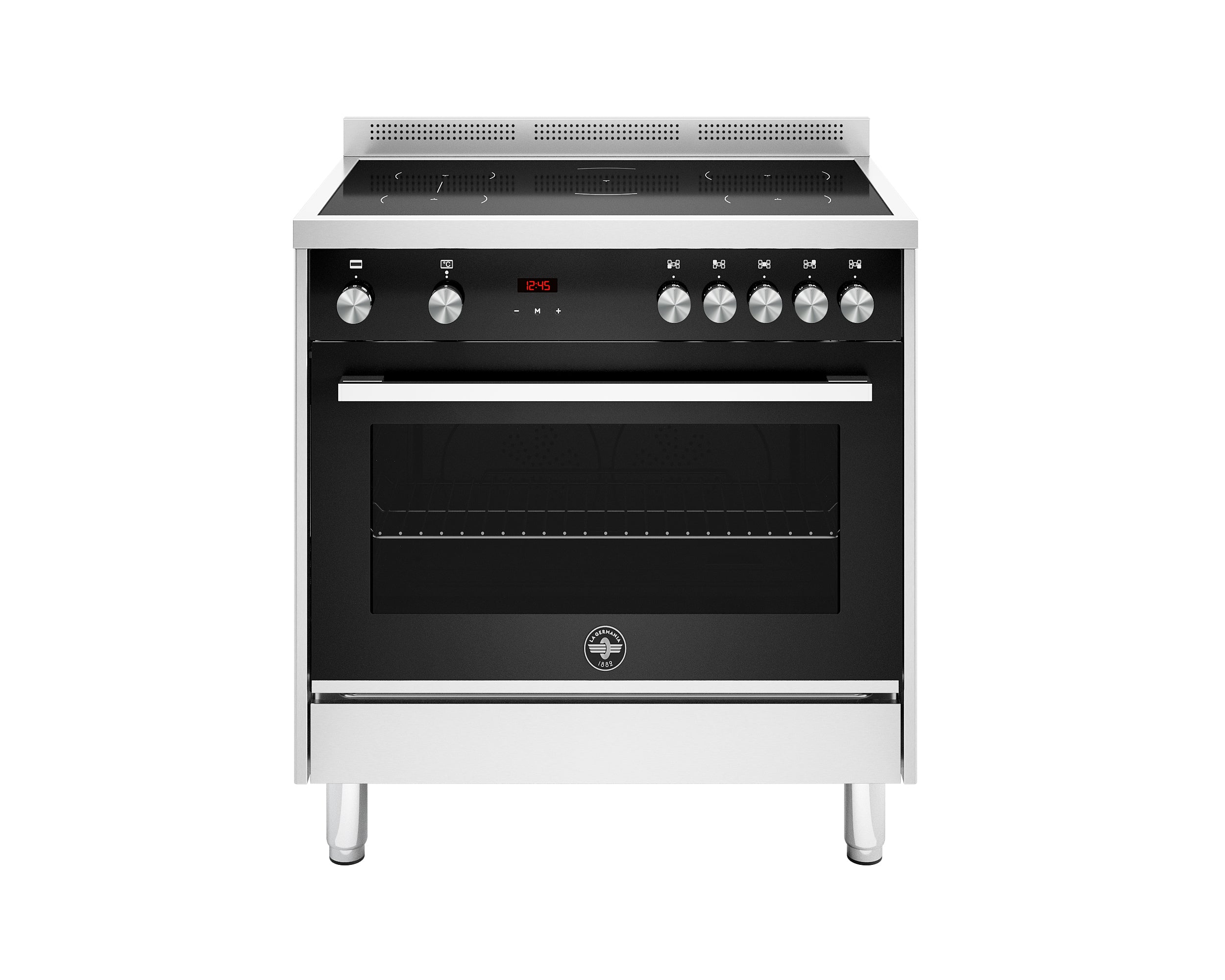

La Germania TUS90IND60LAX 90cm Black Glass/Stainless Steel Multi Electric Oven Induction Cooker

Worktop Features

• Size and Type: 90cm induction cooking surface designed for versatility in modern kitchens, accommodating various pot sizes.
• Cooking Zones: Five induction heating zones with a booster function for rapid heating, ensuring efficient cooking.
• Pot Detection: Smart pot detection technology automatically activates the heating zones when cookware is placed on them, enhancing energy efficiency.
• Residual Heat Indicators: Each zone features a residual heat indicator to inform users when the surface is still hot, promoting safety.
• Design and Controls: A stylish combination of black glass and stainless steel, with metal-coated knobs for durability and ease of use.

Oven Features

• Capacity and Functions: The electric oven boasts a generous 147-liter capacity and includes 11 multifunction cooking options, such as bake, convection, grill, defrost, and turbo/pizza mode.
• Temperature Control: A digital programmer provides precise temperature settings, making it easy to achieve desired cooking results.
• Inner Door Design: The triple-glass inner door enhances insulation and safety, while the wide extractable inner glass allows for easy cleaning.
• Cooling Fan: Integrated cooling fan helps maintain optimal oven temperatures and ensures safety during use.

Additional Features

• Shelving Options: The oven includes five levels with one telescopic slide shelf for easy access, two premium wire shelves for versatile cooking, and a deep enameled tray for easy clean-up.
• Oven Lighting: Dual oven lights provide clear visibility for monitoring cooking progress, making it easy to check on dishes without opening the door.
• Soft-Close Door: Features a soft-closing door hinge for gentle and secure closure, preventing slamming.
• Storage Compartment: A convenient flap storage compartment offers additional space for organizing kitchen essentials.
• Stability and Finish: Constructed with sturdy stainless steel legs for stability and a toekick panel for a polished look, enhancing overall kitchen aesthetics.

Worktop:

• Size: 90
• Cooking zones: 5
• Worktop type: induction
• Worktop design: stainless steel squared + glass
• Worktop controls: knobs
• Knobs: metal coated
• Burner type: -
• Pan supports: -
• Booster: on all zones
• One-hand ignition: yes
• Upstand: yes
• Oven Cavity:
• Oven fuel: electric
• Oven type: electric multifunction
• Oven grill type: electric
• Oven functions: bake, bottom bake, convection, convection bake, defrosting, fast preheating, grill, proofing, turbo grill, turbo/pizza function, upper bake
• Overall volume: 147 L
• Oven controls: digital programmer
• Inner oven door: triple
• Cooling fan: yes
• Oven levels: 5
• Telescopic slide shelves: 1
• Wire-shelves: 2 - premium
• Tray: 1 deep enameled
• Oven lights: 2
• Door hinge: soft closing

Bottom:

• Storage compartment: flap
• Legs: stainless steel
• Toekick panel: 1

Technical Specifications:

• Electrical requirements: 220-240V~/380-415V3N~ 50/60Hz - 10900 WW

• Warranty: 2 Year Manufacture's Warranty

TUS90IND60LAX MANUAL

TUS90IND60LAX INSTALLATION DRAWING
