Kleenmaid OMF9642X 90cm 128 Litre Multifunction Oven

• XL 128 litre capacity: 112 litre net and 128 litre gross internal volume for family meals and large-scale entertaining.
• 11 functions and 12 automatic programmes: covers baking, roasting, grilling, pizza, pastry, defrosting, slow cooking and food warming.

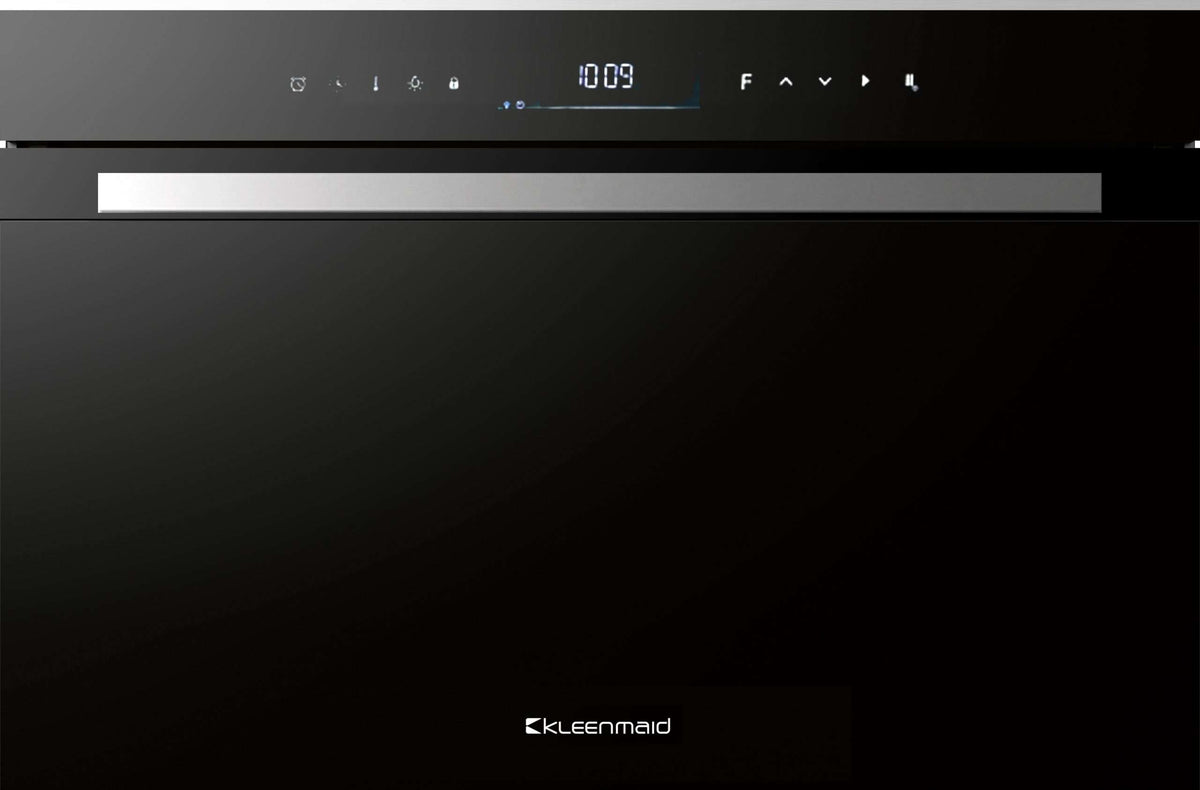

• Electronic Intelli-Logic touch controls: precision touch control with Precision Plus control and programmed cooking, so you can set the start time and duration and cook in your absence.
• Boost rapid heating: heats the oven to 150°C in just 4 minutes.

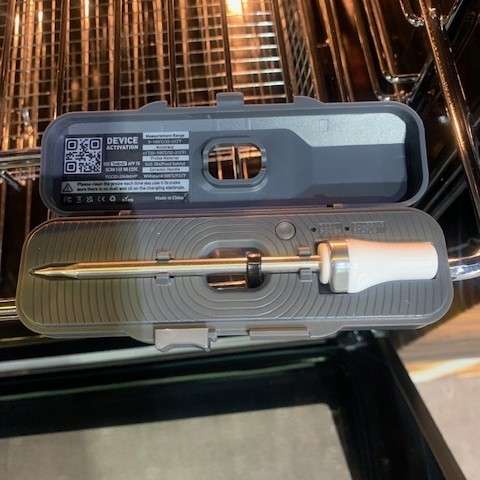

• Wireless meat probe: monitors core temperature for precise results.
• Convection hot air frying: air fry capable, supplied with an air fryer basket.
• Dual THERMAflow8 fans: a uniquely engineered fan blade profile and speed with an efficient fan shield design to deliver heated air evenly for consistent cooking.
• Dual point, high-mount lighting: clear visibility across all 5 cooking levels.
• Thermal reflective glass and removable glass panes: retains heat within the oven, with easy-access fully removable glass panes for cleaning.
• EzyKleen enamel: easy-clean oven cavity enamel.
• Premium soft-close door: controlled, quiet door closing.
• Child safety lock: prevents unintended operation.
• Power save mode: helps reduce energy consumption.

• Defrost (F-1): air circulation at room temperature thaws frozen food without heat.
• Double Grill (F-2): inner and outer top elements operate together, suited to grilling larger quantities.
• Pastry, Lower Element Heating (F-3): adds extra browning to the bases of pizzas, pies and pastries, and suits warming meals and slow cooking dishes such as casseroles and stews.
• Pizza, Fan Forced with Lower Element (F-4): rear hot air element and lower element operate together, suited to pizza, quiche and cheesecake. Preheat before baking.
• Convection Baking, Fan Forced (F-5): the fan circulates heat evenly for faster, more economical cooking on several levels at once. Used with the air fryer basket for convection hot air frying.
• Intensive Cooking, Upper and Lower Elements with Fan (F-6): uniform heat penetration that browns the outside without drying the inside.
• Traditional Cooking, Upper and Lower Elements (F-7): routine baking and roasting on a single level.
• Fan Assisted Double Grill (F-8): both top elements operate with the fan, suited to grilling large amounts of meat.
• Grill (F-9): the grill element alone for small amounts of food and browning.
• Boost Preheat (F-10): preheats the oven quickly before baking.
• Automatic programmes (P-1 to P-9): Warming (65°C), Dough Proofing (40°C), Toast, Pizza, Chicken Leg, Bread, Cake, Beef, and ECO Energy Saving Baking.
• Meat probe programmes (P-10 to P-12): Chicken + Probe, Pork + Probe, and Beef or Lamb + Probe, which stop automatically when the food reaches the set core temperature.

• Model: OMF9642X
• Oven type: Built-in electric multifunction oven
• Capacity: 112 L net volume; 128 L gross internal volume
• Functions: 11 functions plus 12 automatic programmes
• Cooking levels: 5
• Controls: Electronic Intelli-Logic touch controls
• Voltage: 220–240 V~, 50/60 Hz
• Rated power: 2790–3320 W
• Heating elements: upper outer 1100 W; upper inner/grill 1400 W; lower 1000 W; rear circular 1950 W
• Energy efficiency: Class A
• Rapid heating: Boost to 150°C in 4 minutes
• Lighting: dual point, high mount
• Plug and cord: standard 230 V 15 A plug and cord supplied

• Installer requirement: must be installed and earthed by a suitably qualified electrician, following the manufacturer's installation instructions. Two people are required to install the oven.
• Power supply: supplied with a standard 230 V 15 A plug and cord. Connect to a standard 15 A switched GPO protected by a minimum 16 A circuit breaker. If permanently connected to the mains, an isolating switch with a contact gap of at least 3 mm must be provided.

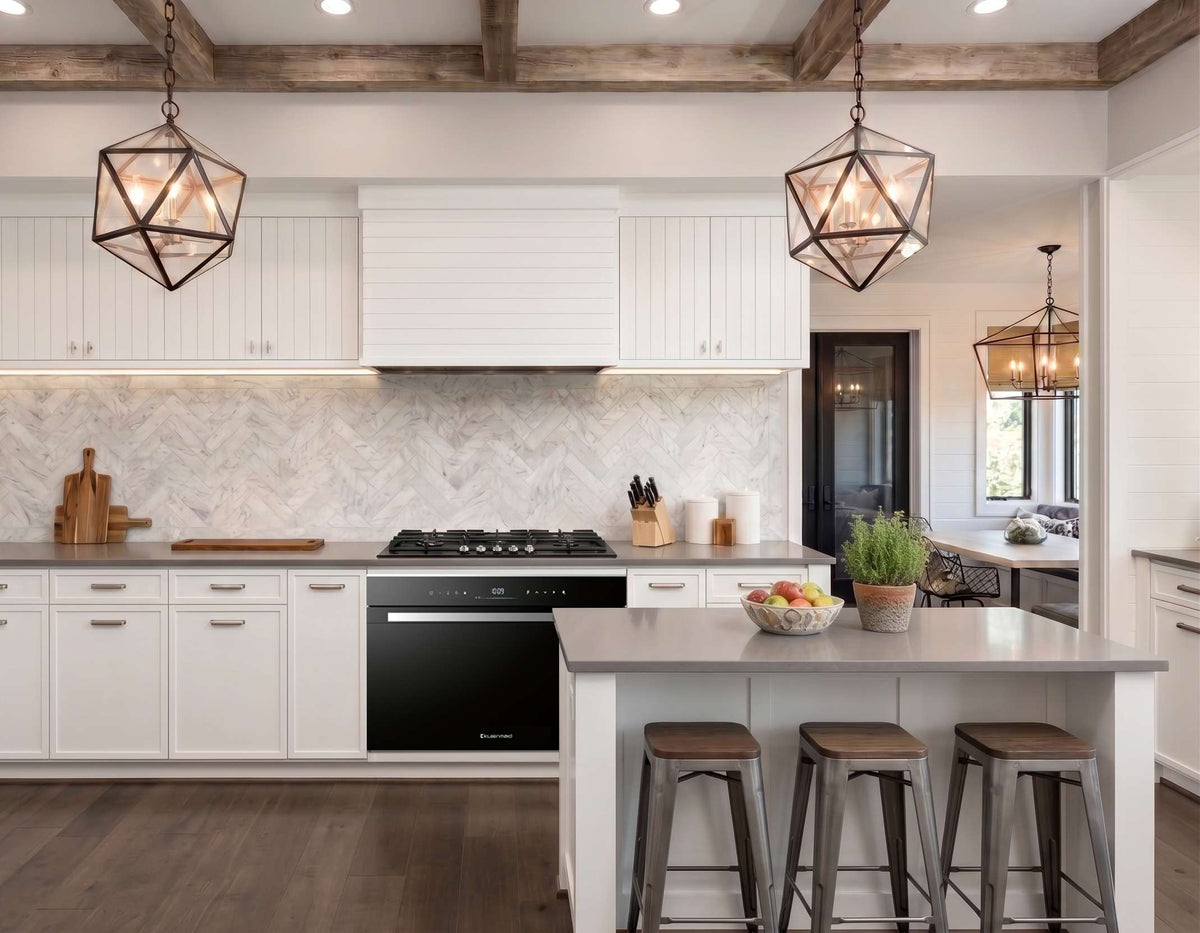

• Installation location: can be installed under a benchtop, under a cooktop or in a column cabinet, but not behind a decorative door.

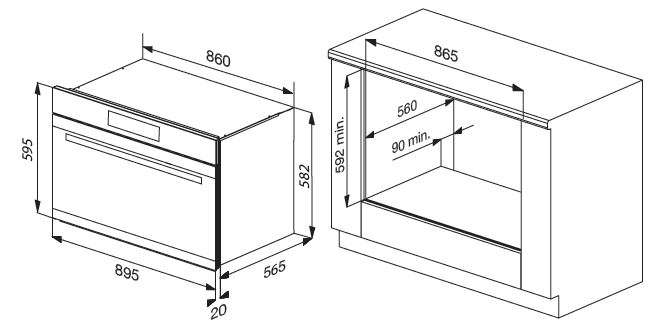

• Clearances: at least 45 mm rear clearance, and the rear and bottom of the cabinet need an opening of approximately 90 mm for ventilation. The glass fascia should be set back 20 mm from the niche front.
• Cabinetry: adjacent cabinetry must be heat-resistant and strong enough to bear the weight of the oven. The oven is fixed to the cabinet with the 2 screws supplied.

Warranty coverage

Kleenmaid is a 100% Australian-owned appliance brand with over 40 years of history. Every Kleenmaid appliance is backed by a 5 year factory warranty covering parts and labour, supported by a highly skilled national service network.

• All Kleenmaid appliances: 5 years — Parts and labour, domestic use
• Commercial use: 1 year — Parts and labour

Proof of purchase is required for all warranty claims. Register your product at kleenmaid.com.au to ensure faster after-sales service. Travel costs outside a service agent's normal area of service are not covered and are payable by the customer.

What's covered

• Manufacturing defects in materials and workmanship
• All parts and labour required to rectify a covered fault
• In-home service where available within the service agent's normal area

What's not covered

• Damage caused by incorrect installation or failure to follow manufacturer instructions
• Misuse, accidental damage, or neglect
• Normal wear and tear
• Damage caused during transportation
• Travel costs outside the service agent's normal service area
• Repairs or modifications carried out by unauthorised parties
• Commercial use beyond the 1-year commercial warranty period

Conditions

• Cooktops and ovens must be installed by a licensed electrician or licensed gas plumber
• Must be installed and used in accordance with manufacturer instructions
• Fault must be notified to Kleenmaid within the warranty period
• Proof of purchase must be provided with all claims
• Warranty applies to appliances purchased and used within Australia only

Making a claim

Contact Kleenmaid on (02) 9310 1207 or submit a service request at kleenmaid.com.au. Please have your proof of purchase and appliance model details ready when submitting your claim.

Australian Consumer Law

Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if they fail to be of acceptable quality and the failure does not amount to a major failure.

Dual THERMAflow8 combines a uniquely engineered fan blade profile and speed with an efficient fan shield design to deliver heated air evenly through the oven, giving consistent results across all five cooking levels. Thermal reflective glass keeps the heat inside the oven rather than losing it through the door, and the Boost function brings the oven to 150°C in just 4 minutes when you need to get started quickly.

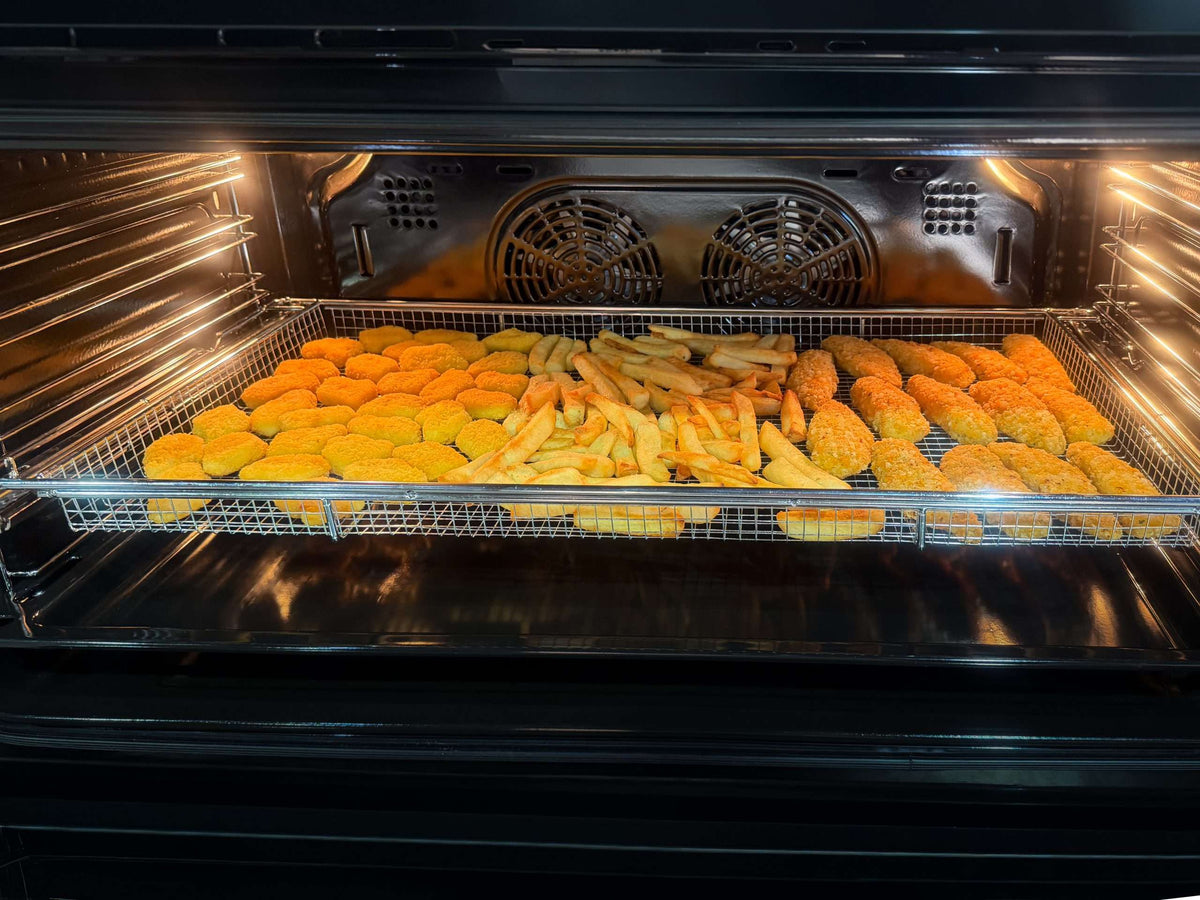

For convection hot air frying, select the Convection Baking: Fan Forced function (the air fryer basket may also be used with functions F-5 and F-6), place the food in the supplied wire air fryer basket and position it on a shelf. Preheat the oven to the recommended temperature before adding the food, and do not use the packet directions written for an air fryer appliance. With the wireless meat probe, the oven stops cooking automatically once the food reaches the core temperature you set, and the meat probe programmes (P-10 to P-12) must be paired successfully before they can be selected.

Before first use, carry out the recommended preparation procedures in the user manual. In Automatic Programme mode the oven does not need to be preheated, as each programme has a preset temperature and cooking time. The OMF9642X shares its user manual with the black OMF9642K. Kleenmaid is a 100% Australian-owned brand supported by a national service network, and you can register your warranty or make a claim using the QR code in the user manual or at kleenmaid.com.au.

• 1 x tray with EzyKleen enamel
• 1 x grill pan insert
• 2 x wire grills
• 1 x air fryer basket
• 1 level of fully adjustable, fully extendable telescopic guides
• Wireless meat probe
• 2 x fixing screws with washers

• SPECIFICATION SHEET
• USER MANUAL
