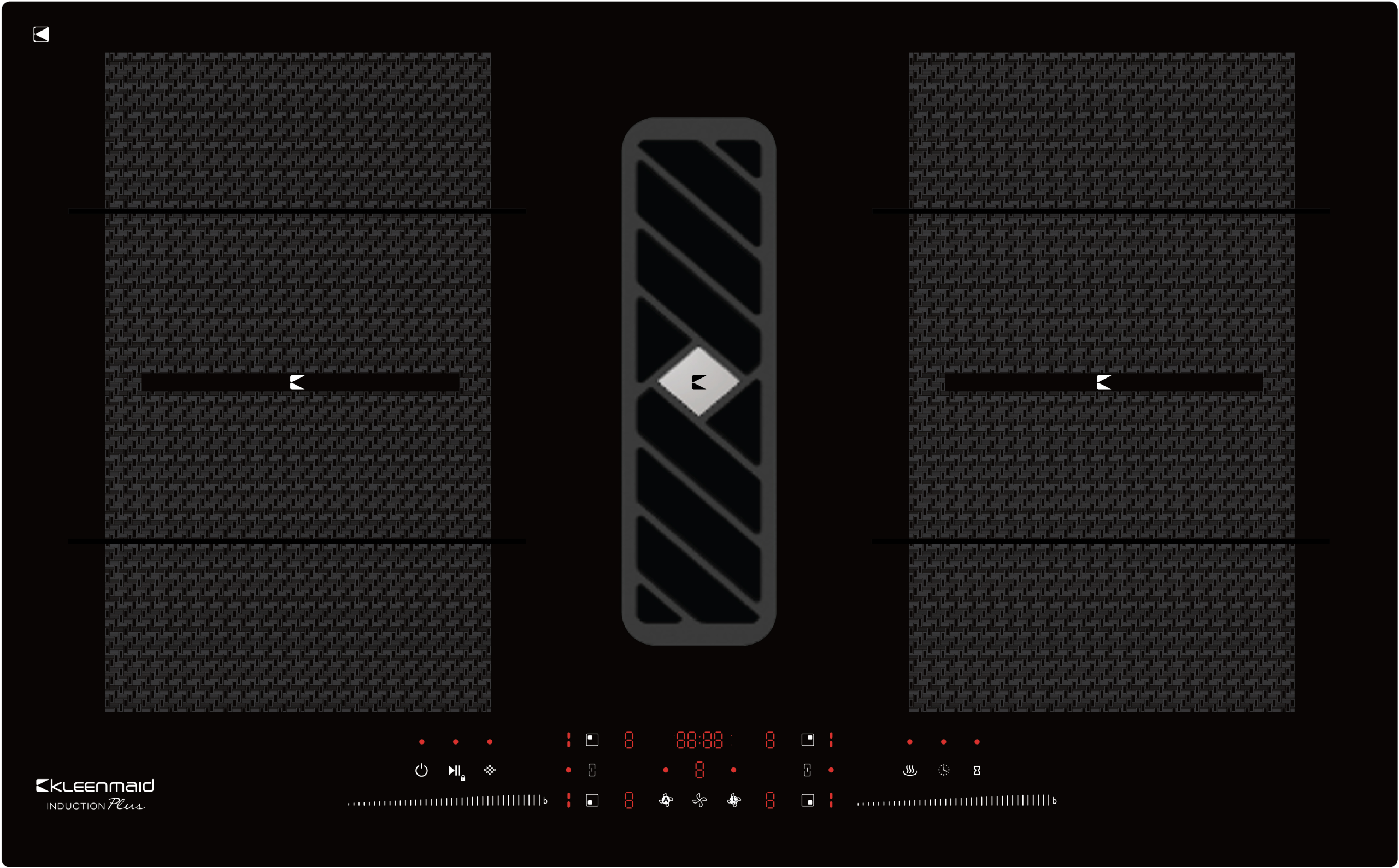

Product Description

The ICTFX9042 is a 90cm Induction Cooktop with an inbuilt down draft rangehood. This hybrid cooktop with integrated ventilation system is perfect where you need a cooktop with air extraction to remove odours and capture cooking grease but you do not want to see the rangehood.

The Cooktop:

The induction cooktop, with Total Input Power of 7.4kW, is crafted with quartz grey graphics, and built from recyclable arsenic free glass. The glass is beautifully finished with elegant bevelled edges. It has eight induction elements and six cooking zones. Slider touch controls manage 9 power levels, and a Bridging function on all zones provides for simultaneous operation of two zones with a single controller. Bridging is ideal for cast iron griddle cooking which turns your cooktop into an indoor BBQ.

If your culinary delights include dishes made with delicate sauces or melted chocolate this cooktop with sustained low temperature technology is ideal for you. It also has a Pause/Resume function which means means you can quickly delay cooking without losing your settings should you need to leave the kitchen.

Other safety features of the induction cooktop include Auto-Stop, in case of accidental start, long absence, overflow, or overheating, Voltage Power Guard which is an advanced protection against ‘dirty power’ surges and a child safety lock.

The Down Draft Rangehood:

The high-performance rangehood ventilation system, although extracting at a rate of 900 m3/h, is remarkably quiet with a 54dbA noise level. This is due to the UltraFlow ducting system which is three times more effective than traditional flexible ducting. Operation of the rangehood extraction system is by touch control via the cooktop surface. There are 9 auto set extraction speeds, including boost. The rangehood has a five-layer dishwasher safe aluminium grease filter in an easy-to-remove cassette.

The ICTFX9042 comes with our 5-year full parts and labour warranty, and is supported by our highly skilled national service network.

OVERVIEW:

Features:

• Child Safety Lock

• UltraFlow Ducting

• Glass Surface or Flush Mounted

• 6 Cooking Zones
• Total Input Power 7.4kW- the absolute key to induction cooktop performance

• Residual Heat Indicators - A safety sensor indicating surface is hot to touch

• 100% Australian Owned
• Whisper Quiet

• Arsenic Free Glass

• 5 year warranty
• Voltage Power Guard
• Pause & Resume Function
• Bridge Function
• Auto stop

Functions:

The ICTFX9042 is a 90cm Induction Cooktop with an inbuilt Air Extraction System or rangehood. This hybrid cooktop with integrated ventilation system is perfect where you need a cooktop with air extraction to remove odours and capture cooking grease but you do not want to see the rangehood.

The Cooktop:

• Induction cooktop with quartz grey graphics

• Bevelled edges 15mm x 5mm

• Eight induction elements with six cooking zones

• High power 7.4kW

• Slider touch control - nine levels and seven timers

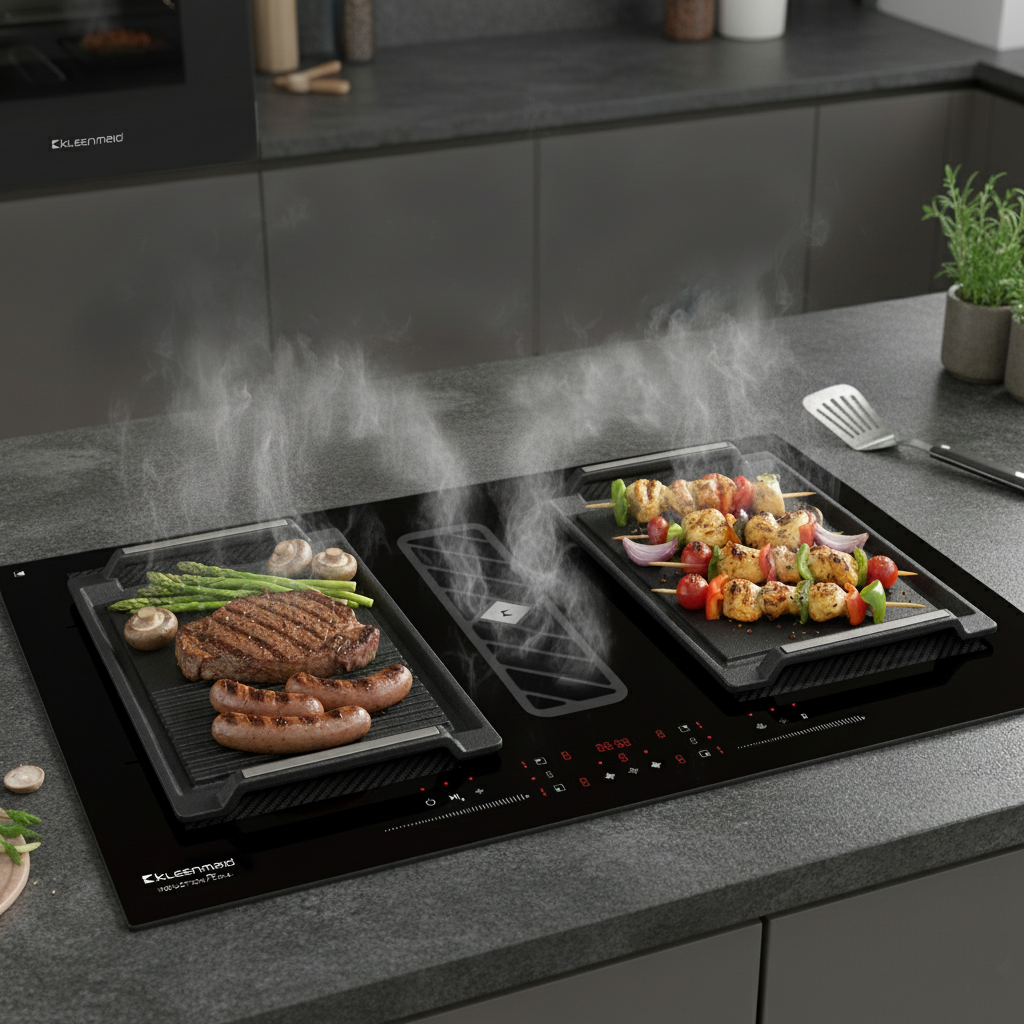

• Auto-Bridge function allows for BBQ griddle plate cooking. Order optional CIG4523 griddle plate

• Pause resume function

• Auto-Stop in case of accidental start, long absence, overflow over temperature

• Power adapts automatically to the pot size

• Residual heat indicators with Voltage Power Guard

• SLTT. Sustained Low Temperature Technology for delicate cooking

The Inbuilt Rangehood:

• High performance 900 m3/h with 9 auto set extraction speeds
• 54 dBA low noise due to UltraFlow ducting
• Compact engineering allows for installation within a standard 600mm bench
• Ideal for island bench installation (Optional recirculating kit ICTFXRK available)
• The UltraFlow ducting system is three times more effective than traditional flexible ducting
• Touch control via the cooktop surface
• Five-layer dishwasher safe aluminium grease filter in easy-to-remove cassette


Note: Ducted-out mode is the standard installation mode. Installation in recirculating mode requires purchase of the optional kit ICTFXRK which includes the carbon filter.

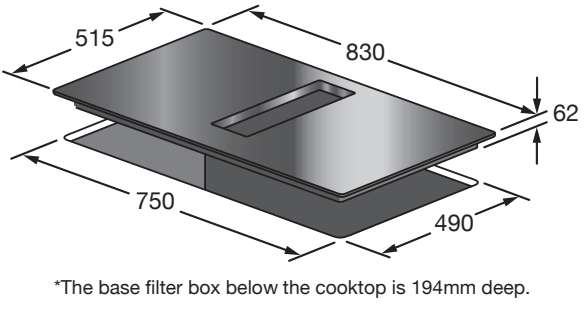

Dimensions:

• 830mm (w) x 62mm (h) x 515mm (d)


Controls:

• Slider touch control: yes

Cut out (W x D mm):

• Depth: 490

• Width: 750

Technical characteristics:

• Induction surface: Arsenic free glass

• Power Levels: 9

• Power Supply: 220-240V~, 50-60Hz

• Total Power Cooktop (W): 7400 W

• Total Power Air Extractor (W): 180 W

• Front/Back cooking zones max power (W): 2200 W

• Front/Back cooking zones boost power (W): 3700 W

• Airflow level max power with boost: 900m3/h

• No. of Elements: 8

DOWNLOADS:

• SPECIFICATIONS SHEET (PDF)

• USER MANUAL (PDF)
