Kleenmaid HCSUB511 UltraTap 5 Filtration and Enhancement System

• Five water choices from one tap: Filtered boiling, chilled and sparkling water alongside unfiltered mains hot and cold water.
• Adjustable filtered water temperatures: Set boiling water between 85°C and 98°C and chilled or sparkling water between 5°C and 15°C.

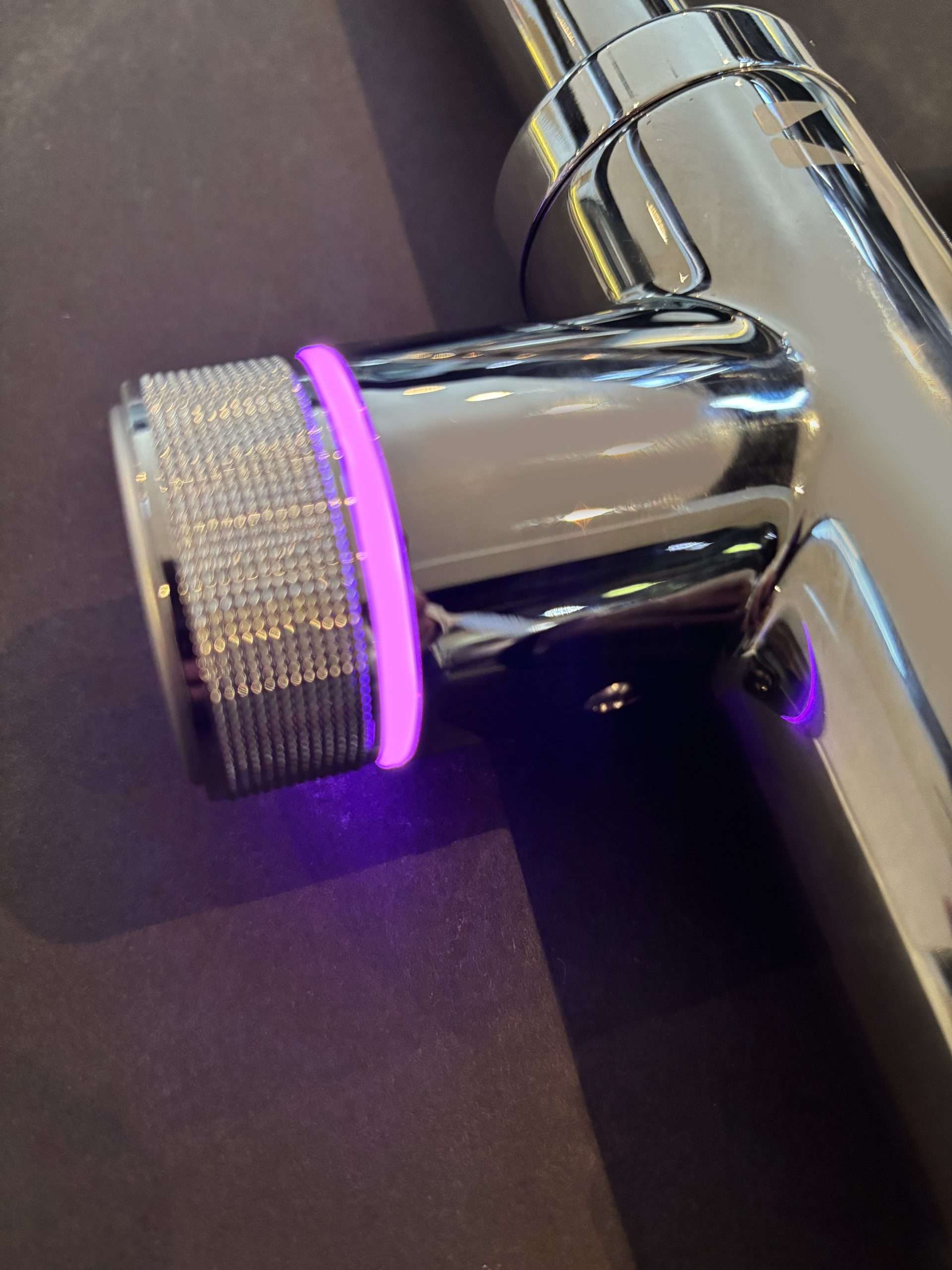

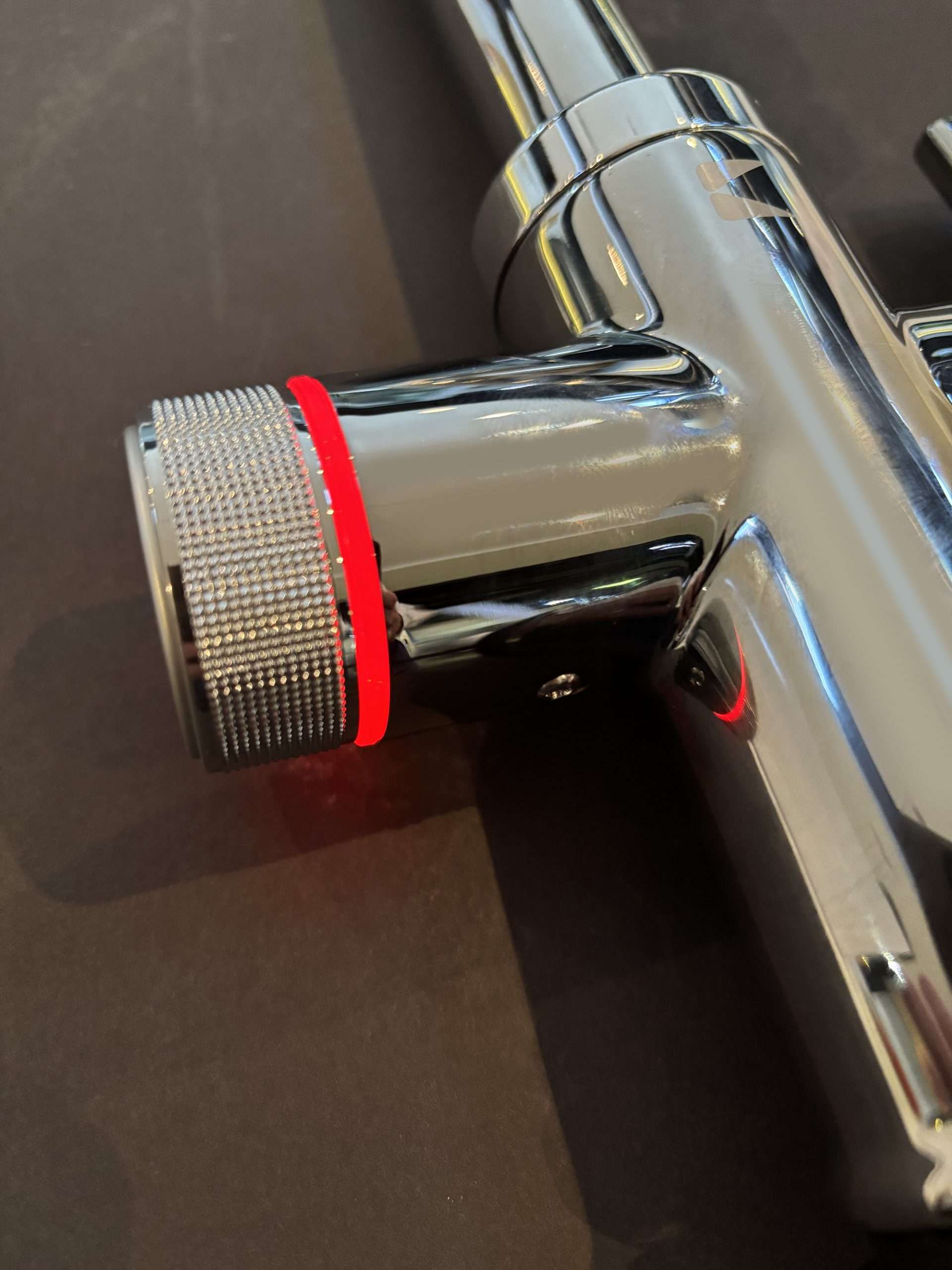

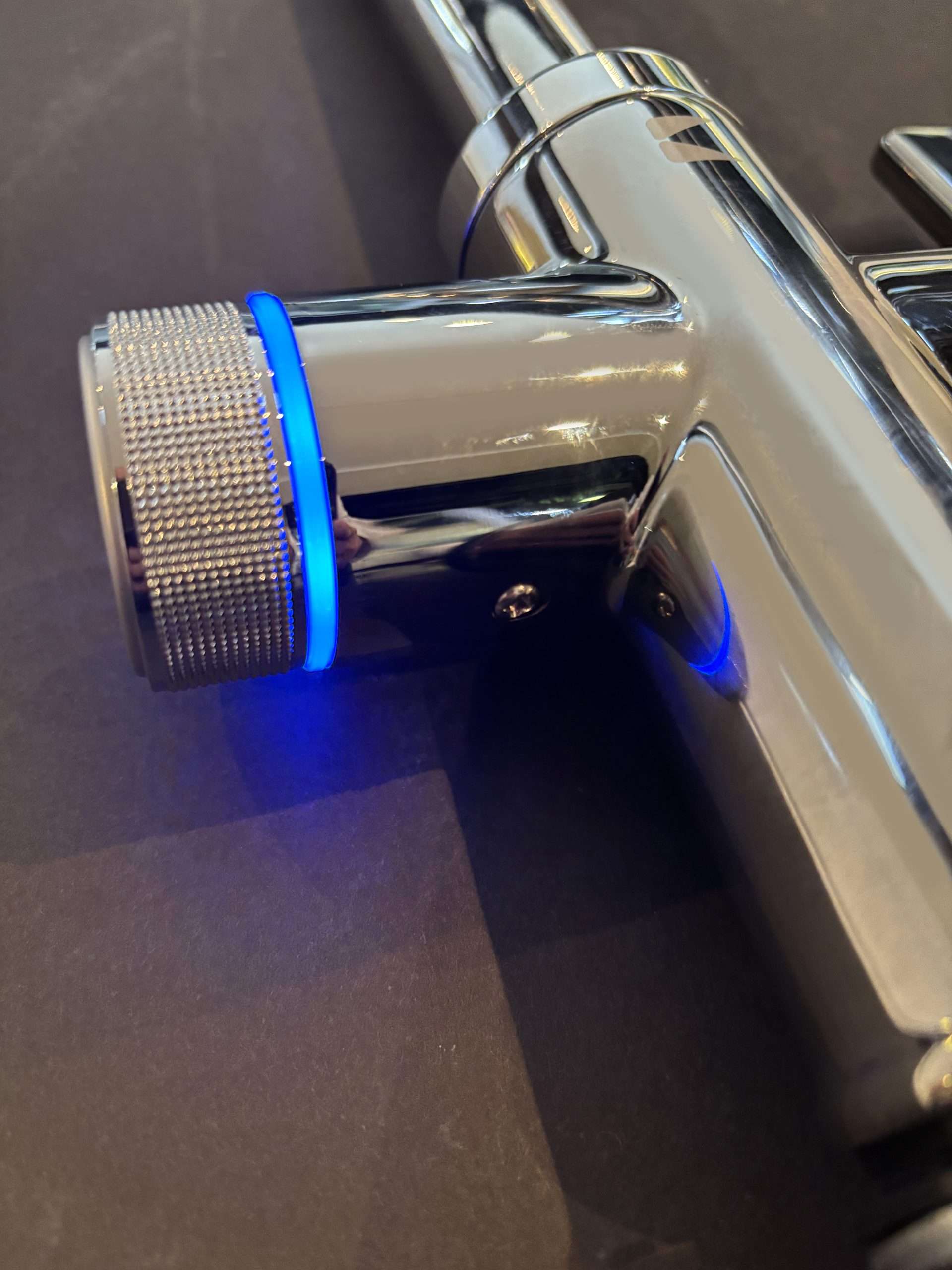

• Colour-enhanced LED control centre: Clearly identifies operating modes and makes everyday selection straightforward.

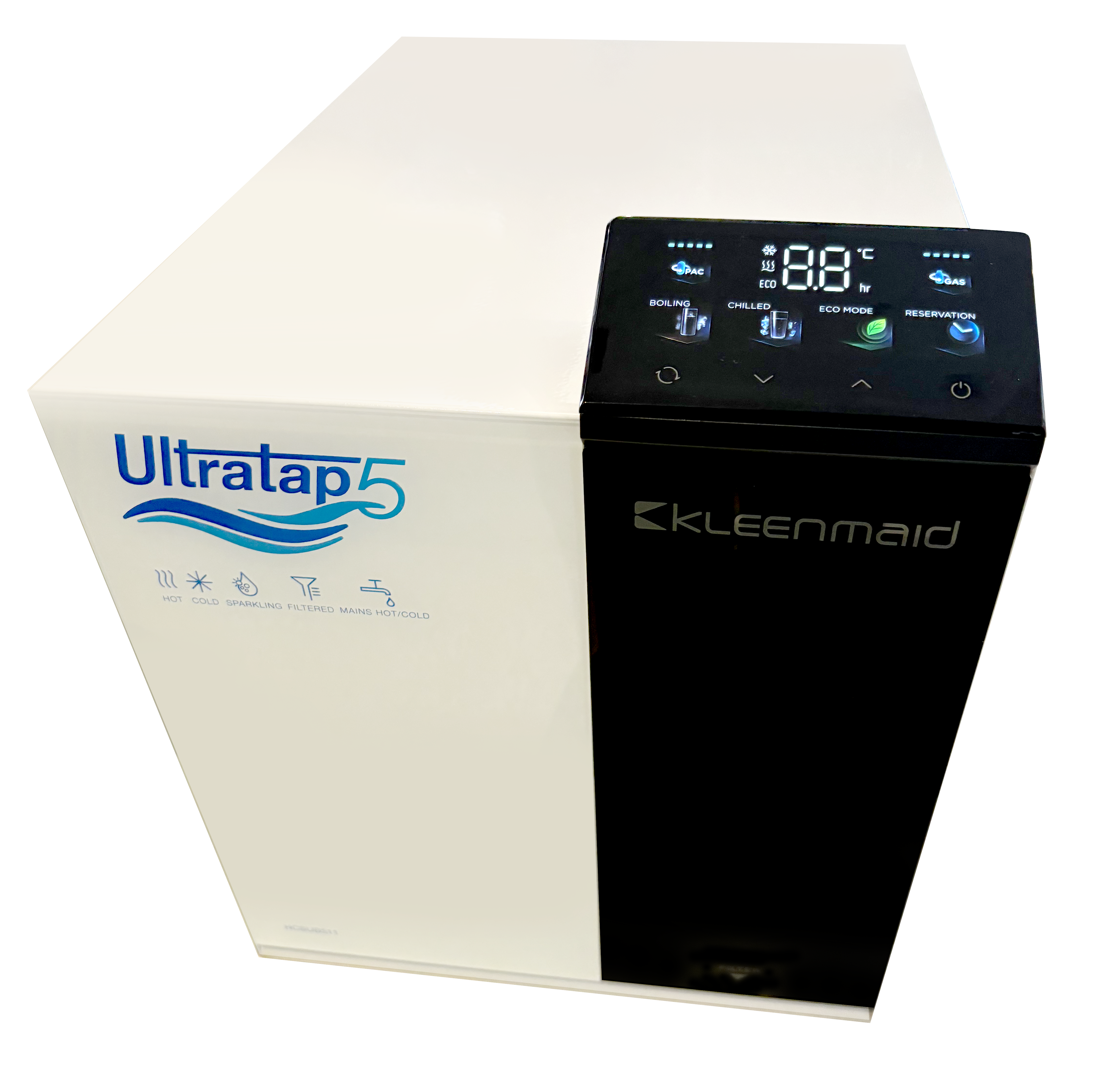

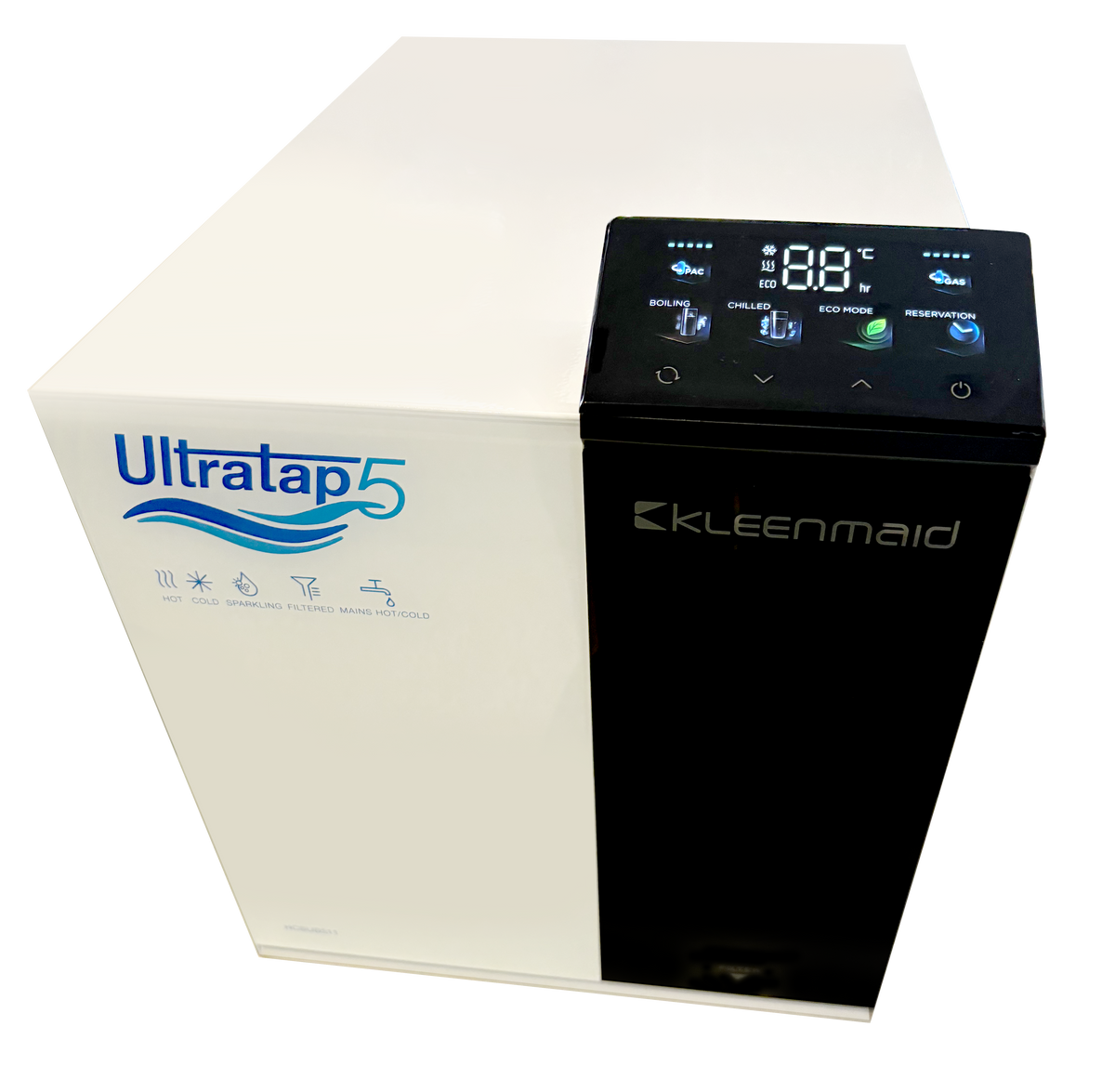

• Integrated underbench system: Combines heating, chilling, carbonation and filtration in a compact control unit.
• Replacement reminders: Dedicated indicators advise when the water filter or CO₂ cylinder requires attention.

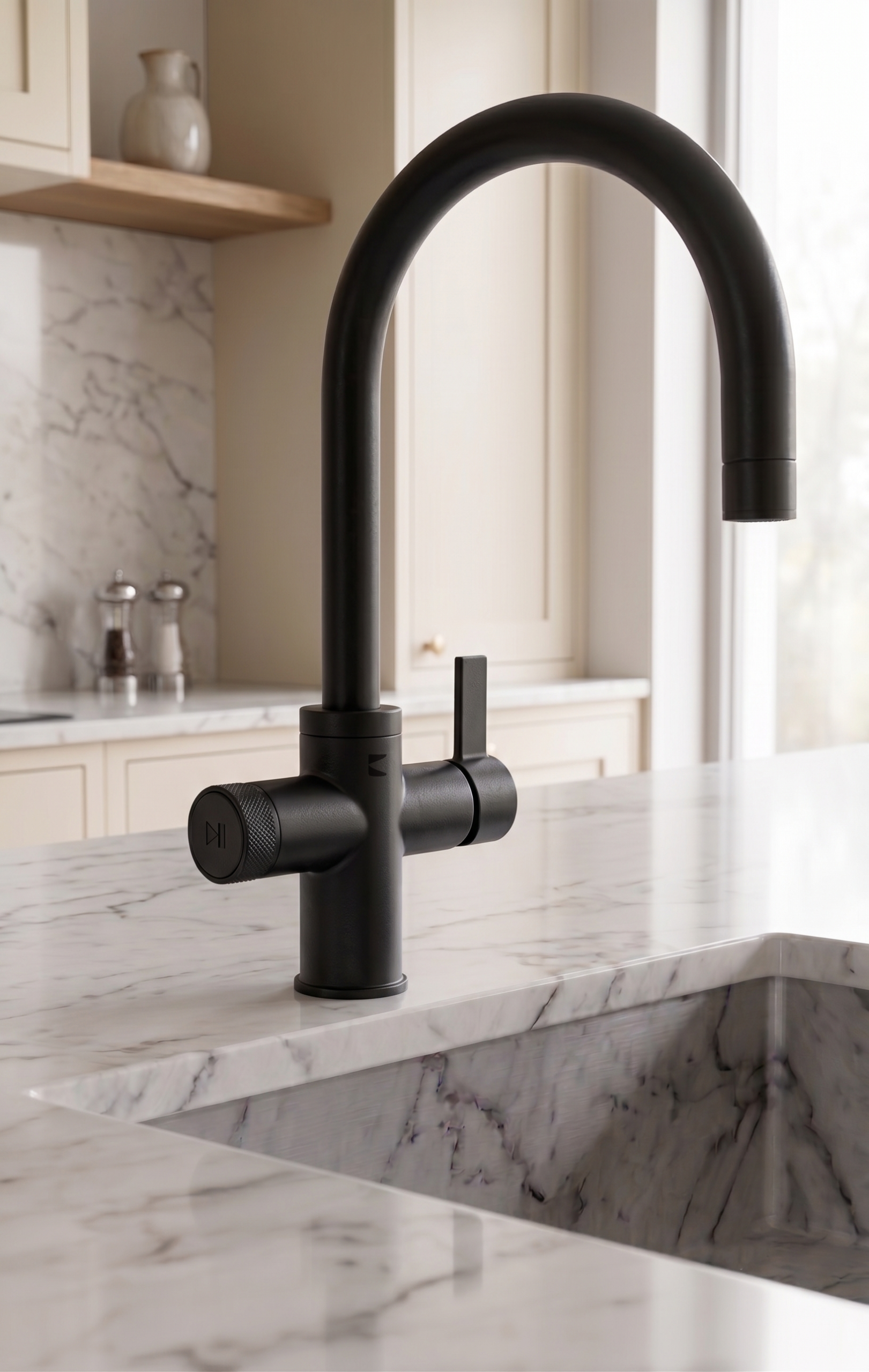

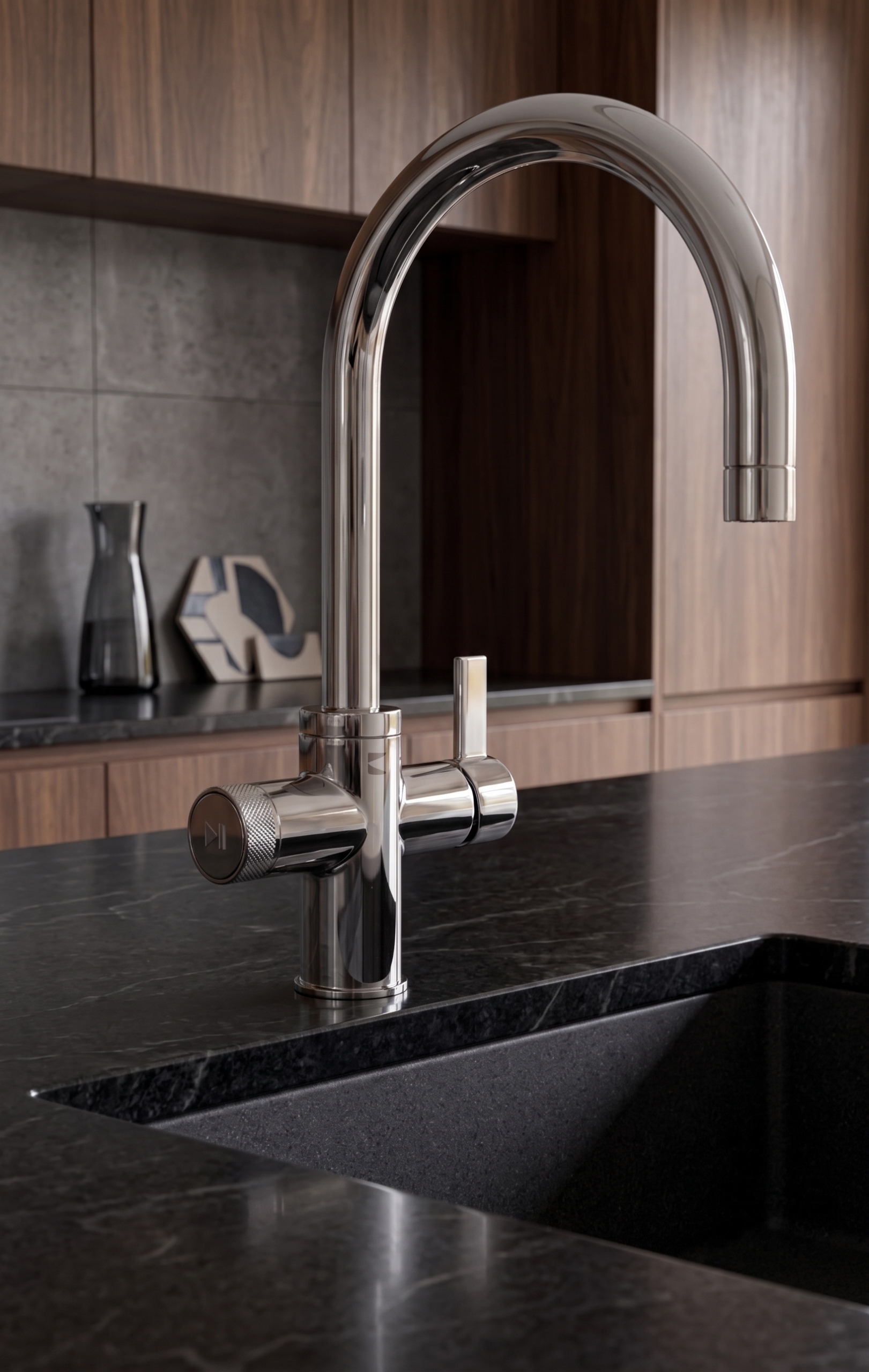

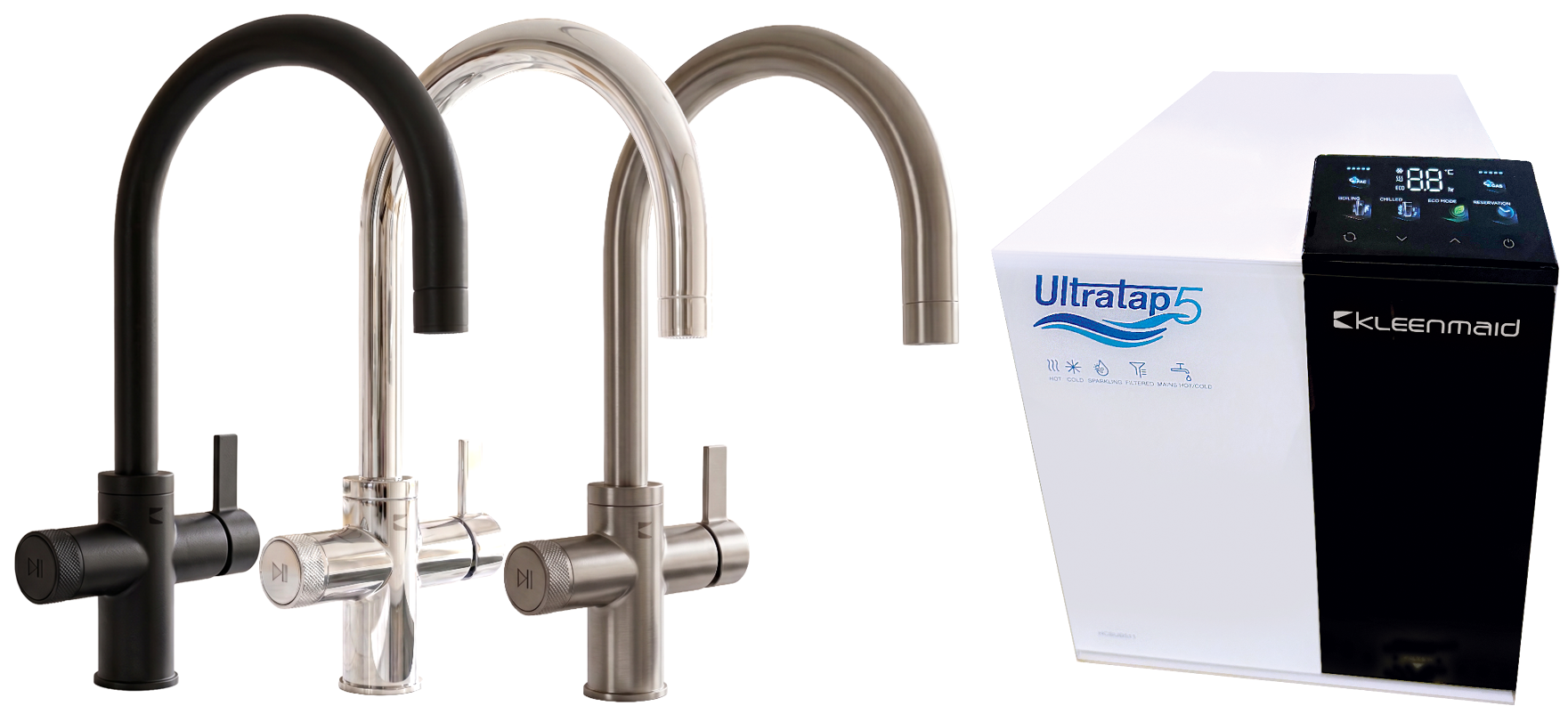

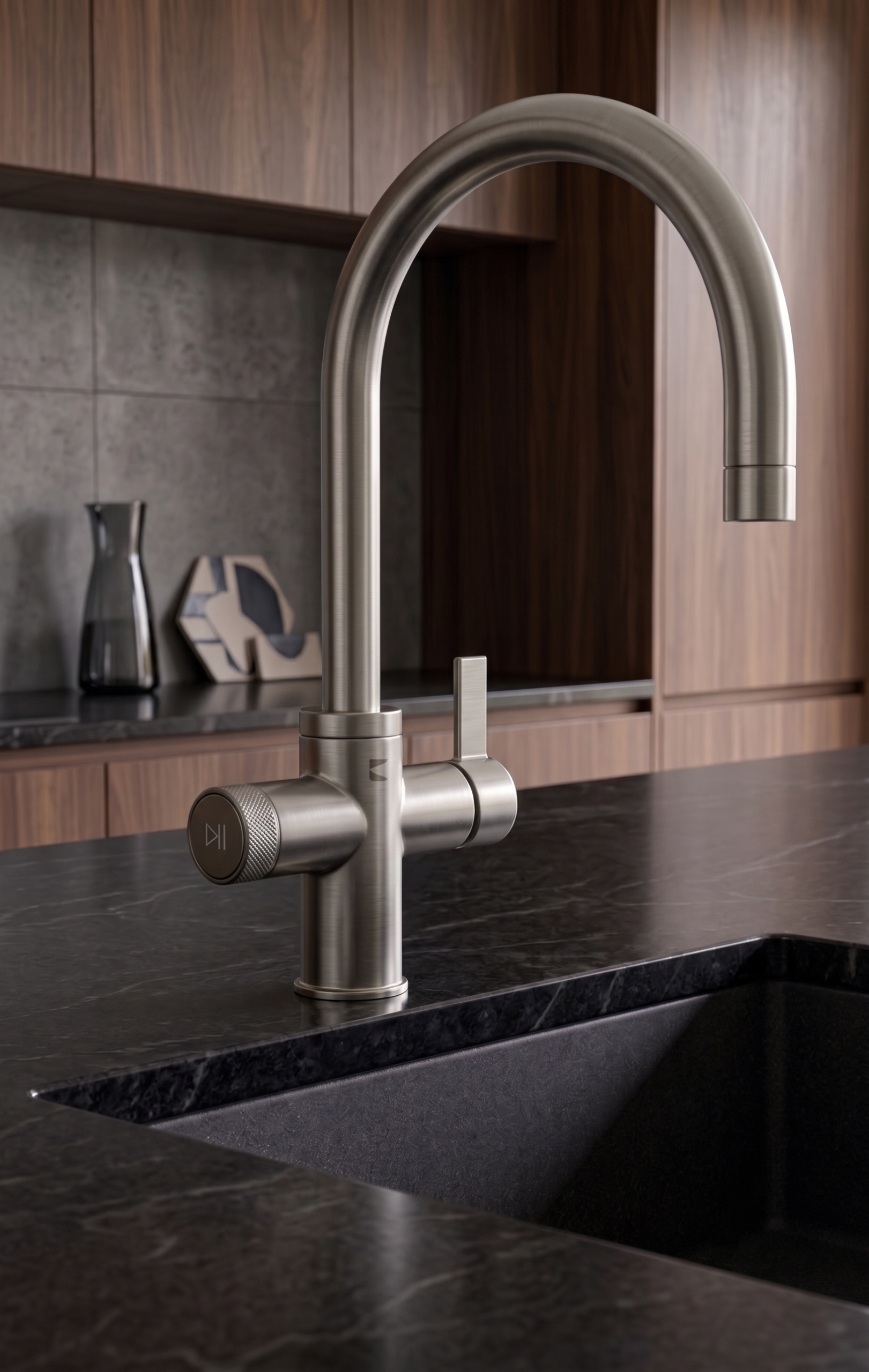

• Three tap finishes: Choose Chrome, Brushed Nickel or Matte Black to suit the kitchen palette.
• WaterMark certified: Certified under WaterMark certificate WM-032245 for the Australian plumbing market.
• 10A plug connection: Designed for connection to a standard dedicated power outlet in accordance with the installation instructions.

• Filtered Boiling Water: Adjustable from 85°C to 98°C with a 3 litre tank.
• Filtered Chilled Water: Adjustable from 5°C to 15°C with a 2.2 litre tank.
• Filtered Sparkling Water: Carbonates filtered chilled water between 5°C and 15°C using a compatible standard CO₂ cylinder.
• Mains Hot Water: Supplies unfiltered hot water from the household plumbing connection.
• Mains Cold Water: Supplies unfiltered cold water from the household plumbing connection.
• Filter Replacement Indicator: Provides a visual reminder when the KMHCSF filter requires replacement.
• CO₂ Replacement Indicator: Advises when the connected carbonation cylinder needs replacing.

• Model: HCSUB511
• Product type: 5-in-1 underbench water filtration and enhancement system
• Water selections: Filtered boiling, filtered chilled, filtered sparkling, unfiltered mains hot and unfiltered mains cold
• Control interface: Colour-enhanced LED control centre
• Boiling temperature / capacity: 85°C–98°C / 3 L
• Chilled temperature / capacity: 5°C–15°C / 2.2 L
• Sparkling temperature / capacity: 5°C–15°C / 0.8 L
• Replacement filter: Kleenmaid KMHCSF
• CO₂ cylinder: Compatible standard cylinder required; not supplied
• Rated power: 1700 W
• Electrical connection: 220–240 V, 50/60 Hz, 10 A plug
• Water inlet pressure: 0.15–0.68 MPa
• WaterMark certificate: WM-032245
• Lead-free certification: Listed as a lead-free product under WaterMark certificate 032245

• Installation type: Bench-mounted tap with an underbench filtration and enhancement unit.
• Professional installation: Must be completed by appropriately qualified plumbing and electrical tradespeople in accordance with the user manual and local requirements.
• Electrical supply: Requires an accessible 220–240 V, 50/60 Hz, 10 A outlet.
• Water pressure: Incoming water pressure must remain within 0.15–0.68 MPa.
• Cabinet allowance: Provide at least 520 mm width, 560 mm depth and 415 mm height, with adequate ventilation and service access.
• Bench preparation: Provide a 33–38 mm diameter mounting hole through a benchtop no thicker than 40 mm.
• Component positioning: Keep the tap and underbench unit within the maximum connection distance stated in the installation guide.
• Drainage: Use the drainage and connection arrangement shown in the user manual.
• Carbonation supply: A compatible standard CO₂ cylinder is required for sparkling water and is not included.

Warranty coverage

Kleenmaid is a 100% Australian-owned appliance brand with over 40 years of history. Every Kleenmaid appliance is backed by a 5 year factory warranty covering parts and labour, supported by a highly skilled national service network.

• All Kleenmaid appliances: 5 years — Parts and labour, domestic use
• Commercial use: 1 year — Parts and labour

Proof of purchase is required for all warranty claims. Register your product at kleenmaid.com.au to ensure faster after-sales service. Travel costs outside a service agent's normal area of service are not covered and are payable by the customer.

What's covered

• Manufacturing defects in materials and workmanship
• All parts and labour required to rectify a covered fault
• In-home service where available within the service agent's normal area

What's not covered

• Damage caused by incorrect installation or failure to follow manufacturer instructions
• Misuse, accidental damage, or neglect
• Normal wear and tear
• Damage caused during transportation
• Travel costs outside the service agent's normal service area
• Repairs or modifications carried out by unauthorised parties
• Commercial use beyond the 1-year commercial warranty period

Conditions

• Cooktops and ovens must be installed by a licensed electrician or licensed gas plumber
• Must be installed and used in accordance with manufacturer instructions
• Fault must be notified to Kleenmaid within the warranty period
• Proof of purchase must be provided with all claims
• Warranty applies to appliances purchased and used within Australia only

Making a claim

Contact Kleenmaid on (02) 9310 1207 or submit a service request at kleenmaid.com.au. Please have your proof of purchase and appliance model details ready when submitting your claim.

Australian Consumer Law

Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if they fail to be of acceptable quality and the failure does not amount to a major failure.

UltraTap 5 is designed as an integrated alternative to separate kettles, chilled-water dispensers and benchtop carbonators. The single-tap layout keeps the preparation area uncluttered while allowing each water mode to be selected from the same control point.

The adjustable boiling range supports drinks that benefit from temperatures below a full boil, while the chilled and sparkling settings can be adjusted to suit seasonal preferences. Separate storage capacities support different household uses without mixing the filtered water modes.

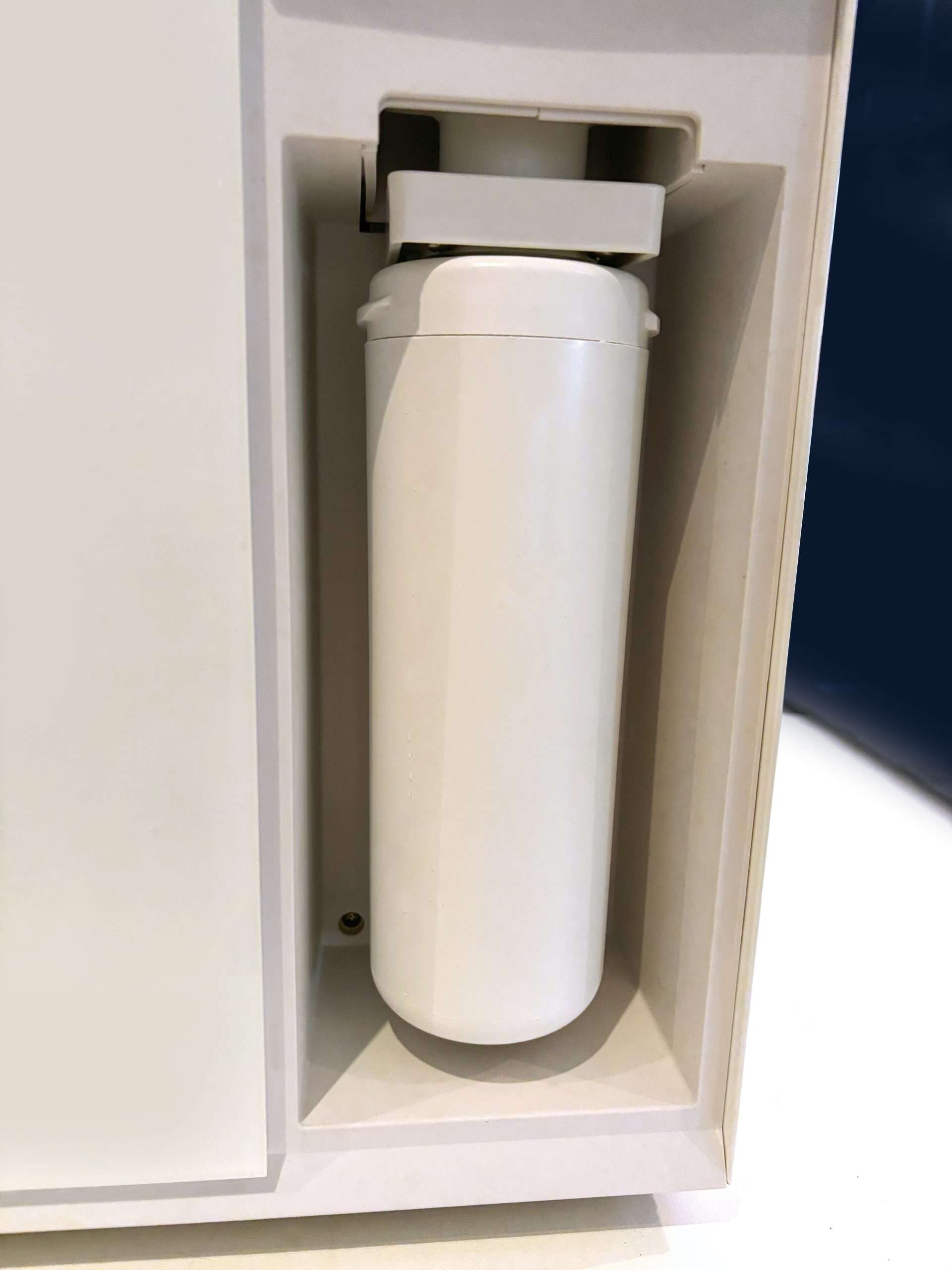

Kleenmaid's KMHCSF replacement filter is the specified service filter for this model. Filter and CO₂ indicators help make routine replacement easier to plan, while the user manual provides the required flushing, sanitation and recommissioning procedures.

Kleenmaid is an Australian-owned appliance brand. The HCSUB511 is WaterMark certified for use in Australia and supported by Kleenmaid's national service network. Final cabinetry and connection planning must be based on the current installation manual.

• UltraTap 5 underbench filtration and enhancement control unit.

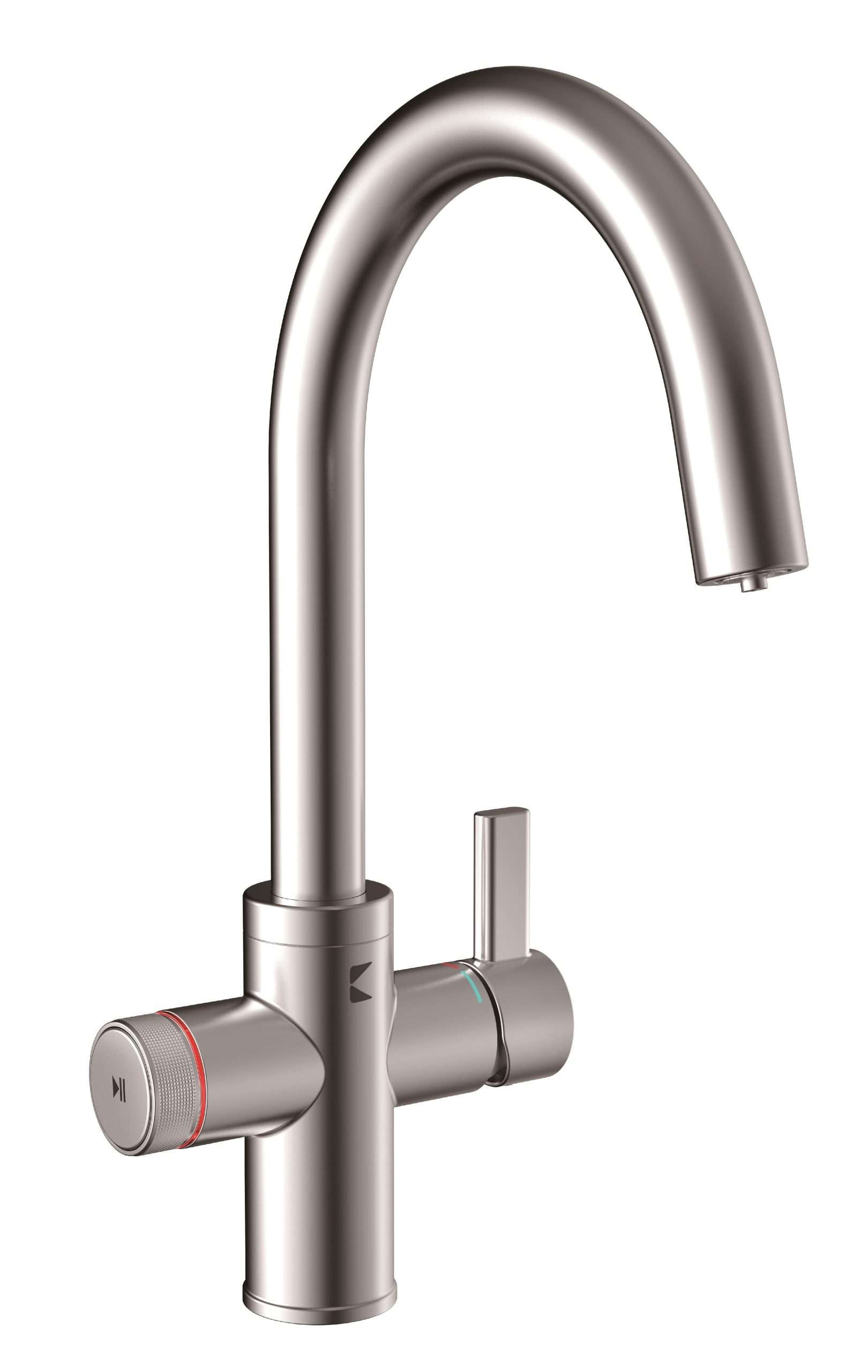

• Bench-mounted 5-in-1 tap in the selected finish.
• Kleenmaid KMHCSF general-purpose water filter.
• Water connection components supplied for the standard installation detailed in the user manual.
• Power lead with 10 A plug.
• User documentation.
• Not included: CO₂ cylinder.
