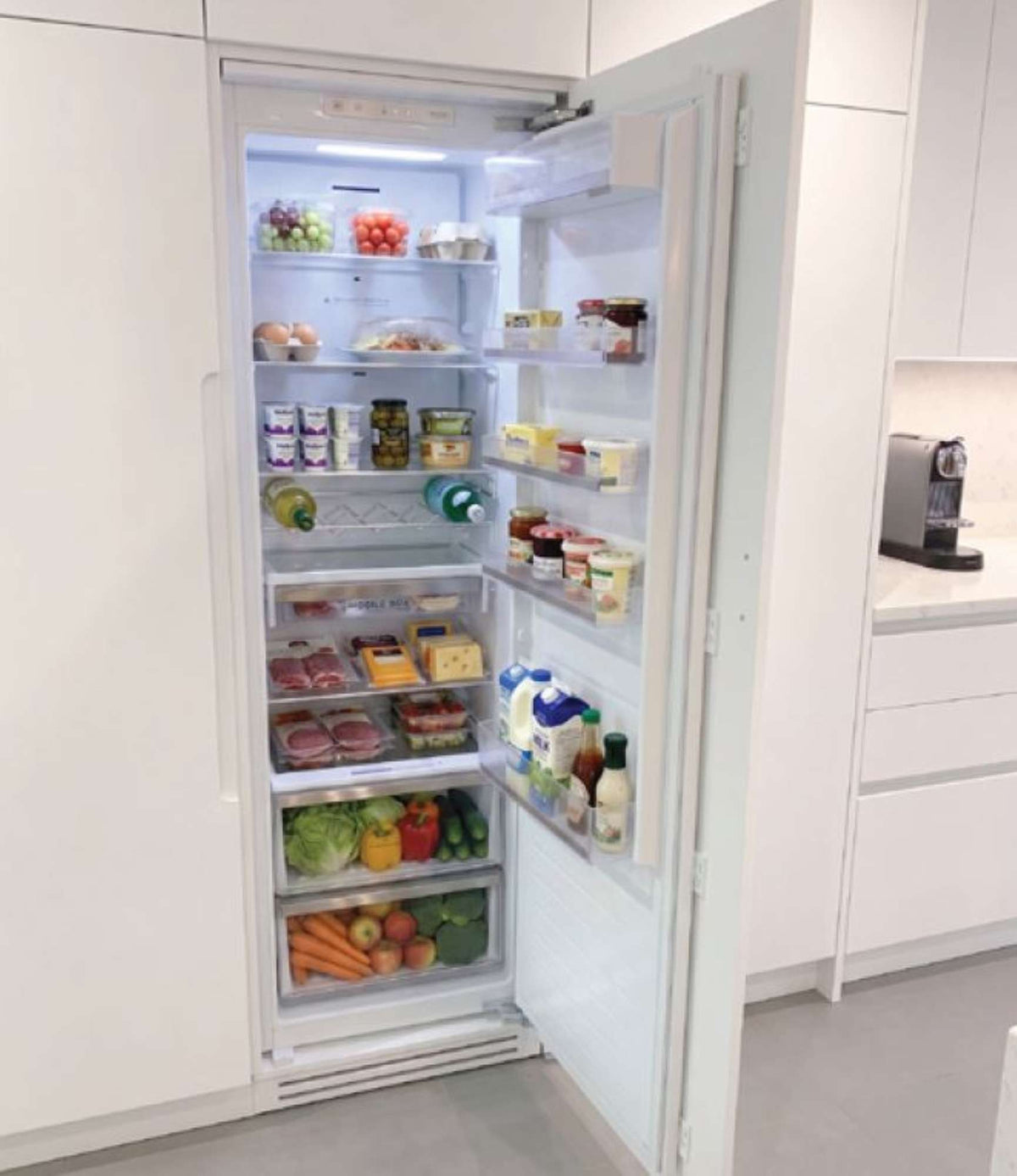

Kleenmaid CR30911 Fully Integrated Upright All Refrigerator

• 304L Total Net Storage: ample room for fresh food, drinks and everyday essentials.
• No Frost Cooling System: helps prevent ice build-up inside the refrigerator.
• ULTRACool Technology: applies extra cooling for quicker temperature recovery after new groceries are loaded.
• Brushless D.C. Fan Motor: delivers consistent, energy-efficient cooling performance.
• Ultra-Quiet Operation: just 35dB(A), ideal for open-plan living spaces.
• Toughened Glass Shelving: a strong, durable and easy-to-clean storage surface.
• Humidity-Controlled Crisper: provides the right storage environment for moisture-sensitive produce.
• Low-Humidity Crisper: a second dedicated crisper zone for different produce types.
• Wine and Beverage Rack: dedicated storage for bottles and drinks.
• Egg Holder: holds up to 12 eggs.
• Internal LED Lighting: bright, efficient illumination for easy access to food.
• Easy Electronic Touch Controls: simple management of refrigerator settings.
• 5.5-Star MEPS Energy Rating: ultra-efficient insulation helps minimise energy consumption.
• R600a Refrigerant: a low Global Warming Potential (GWP) refrigerant for a more environmentally conscious solution.
• Flexible Door Installation: left- or right-hand door opening with no additional parts required; supplied as standard with right-hand opening.
• KwikFit Installation System: enables installation in as little as 5 minutes using a screwdriver.

• Standby key: long press for 10 seconds to enter standby mode, disabling cooling and lighting; long press again for 10 seconds to restore normal operation, resuming at the previous setting after 15 seconds.
• Temperature setting key: repeatedly short press to cycle through Setting 1 (8°C), Setting 2 (4°C — factory default and recommended), Setting 3 (2°C) and Setting 4 (Super Cool); after 15 seconds with no further key presses, the refrigerator runs at the newly selected setting.
• Super Cool mode: entered by repeatedly short-pressing the Temperature setting key until Setting 4 is reached and the Super Cool indicator illuminates; rapidly chills newly added food, recommended after a big grocery shop; exits automatically after 6 hours, or immediately if the temperature or mode setting is changed, resuming at the previous setting.
• First power-on display: all LED temperature indicators illuminate for 3 seconds and a bell sounds before the display settles to show the set temperature (factory default Setting 2, 4°C).
• Fault code display: if a fault occurs, the display shows a fault code instead of the set temperature — LED “1” and “2” on: refrigerator temperature sensor circuit; LED “1” and “3” on: refrigerator defrost sensor; LED “2” and “4” on: Commcard fault; LED “1” and “4” on: ambient temperature sensor. Contact an Authorised Service Person if a fault code is displayed.
• Door-open alarm: sounds if the door is left open for more than 2 minutes; press any key to cancel.
• Control panel illumination: brightly lit while the door is open, dimming approximately 30 seconds after the door is closed; if the panel is off, a short press of any key re-illuminates it before adjusting settings.

• Model: CR30911
• Total Net Storage Capacity: 304 Litres
• Adjustable Temperature: Yes
• Rated Voltage/Frequency: 220V-240V/50Hz
• Rated Current: 0.79A
• Annual Energy Consumption: 118 kWh/a
• Daily Energy Consumption: 0.323 kWh/24hrs
• Energy Rating: 5.5 Star MEPS
• Noise Level: 35dB(A)
• Refrigerant: R600a, 37g
• Reversible Door Hinge: Yes (default right-hand opening)
• Power Supply: 10A plug and cord, ready to use

• Installation type: Fully integrated installation within kitchen cabinetry, with all parts required supplied.

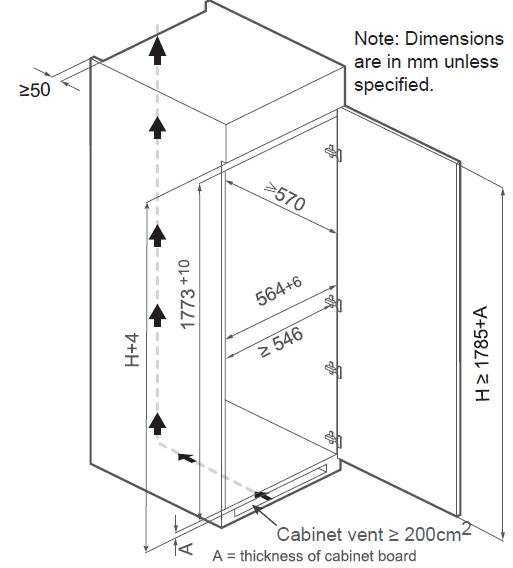

• Minimum cabinet opening: 570mm wide x 568mm deep x 1780mm internal height (min).
• Ventilation: Requires a minimum 200cm² cross-sectional ventilation inlet and outlet; insufficient ventilation can affect performance and may void warranty.
• Power supply: Requires a dedicated, grounded 220-240V, 50Hz power socket; supplied with a 10A plug and cord.
• Installation method: Kleenmaid's KwikFit system enables installation in as little as 5 minutes using a screwdriver only.
• Door hinge: Reversible between left- and right-hand opening with no additional parts required; supplied as standard with right-hand opening.
• Door panels: Not included — for illustration purposes only.

Warranty coverage

Kleenmaid is a 100% Australian-owned appliance brand with over 40 years of history. Every Kleenmaid appliance is backed by a 5 year factory warranty covering parts and labour, supported by a highly skilled national service network.

• All Kleenmaid appliances: 5 years — Parts and labour, domestic use
• Kleenmaid Vacuum Cleaners: 2 years - Parts and labour, domestic use
• Commercial use: 1 year — Parts and labour

Proof of purchase is required for all warranty claims. Register your product at kleenmaid.com.au to ensure faster after-sales service. Travel costs outside a service agent's normal area of service are not covered and are payable by the customer.

What's covered

• Manufacturing defects in materials and workmanship
• All parts and labour required to rectify a covered fault
• In-home service where available within the service agent's normal area

What's not covered

• Damage caused by incorrect installation or failure to follow manufacturer instructions
• Misuse, accidental damage, or neglect
• Normal wear and tear
• Damage caused during transportation
• Travel costs outside the service agent's normal service area
• Repairs or modifications carried out by unauthorised parties
• Commercial use beyond the 1-year commercial warranty period

Conditions

• Cooktops and ovens must be installed by a licensed electrician or licensed gas plumber
• Must be installed and used in accordance with manufacturer instructions
• Fault must be notified to Kleenmaid within the warranty period
• Proof of purchase must be provided with all claims
• Warranty applies to appliances purchased and used within Australia only

Making a claim

Contact Kleenmaid on (02) 9310 1207 or submit a service request at kleenmaid.com.au. Please have your proof of purchase and appliance model details ready when submitting your claim.

Australian Consumer Law

Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if they fail to be of acceptable quality and the failure does not amount to a major failure.

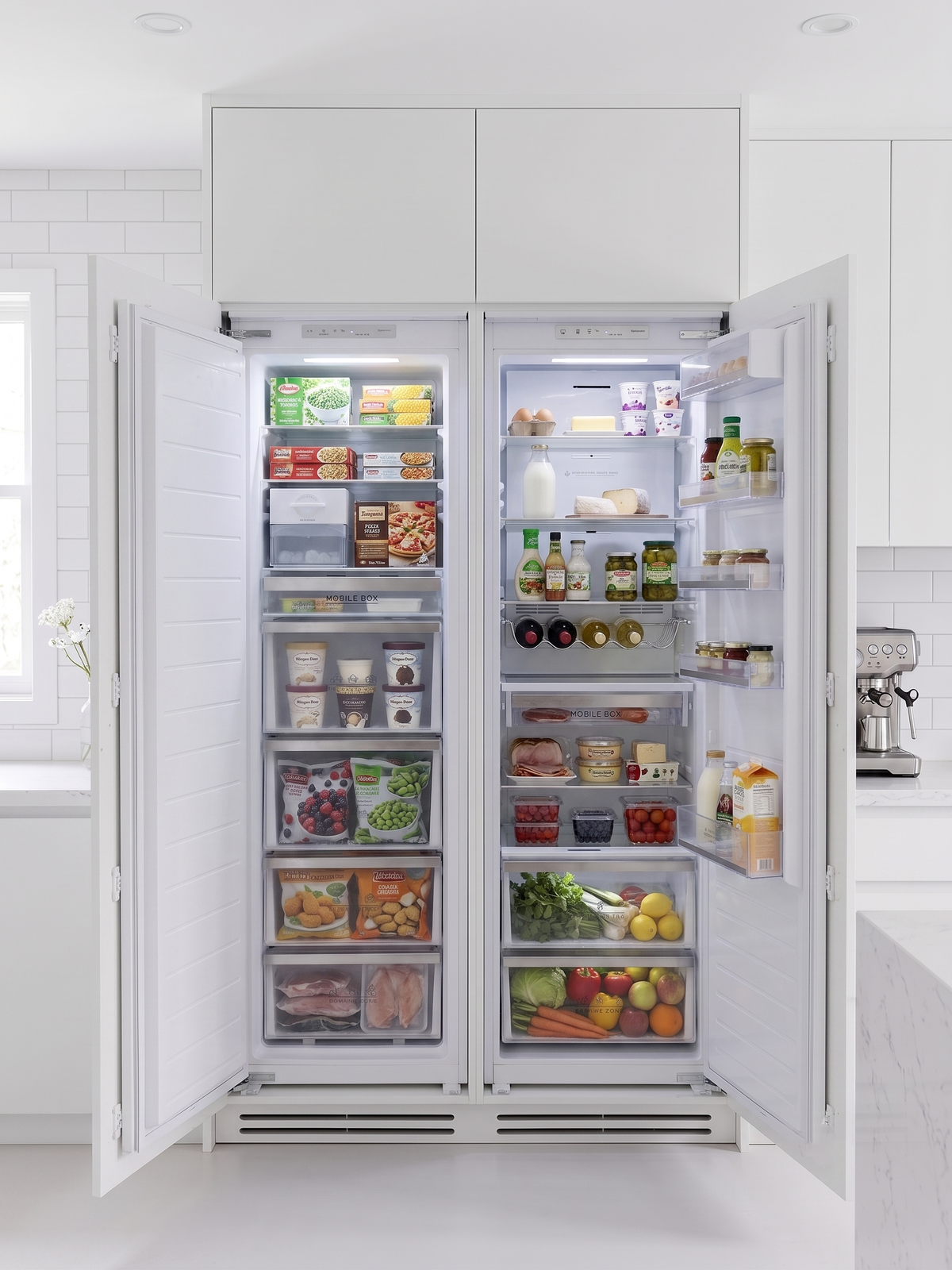

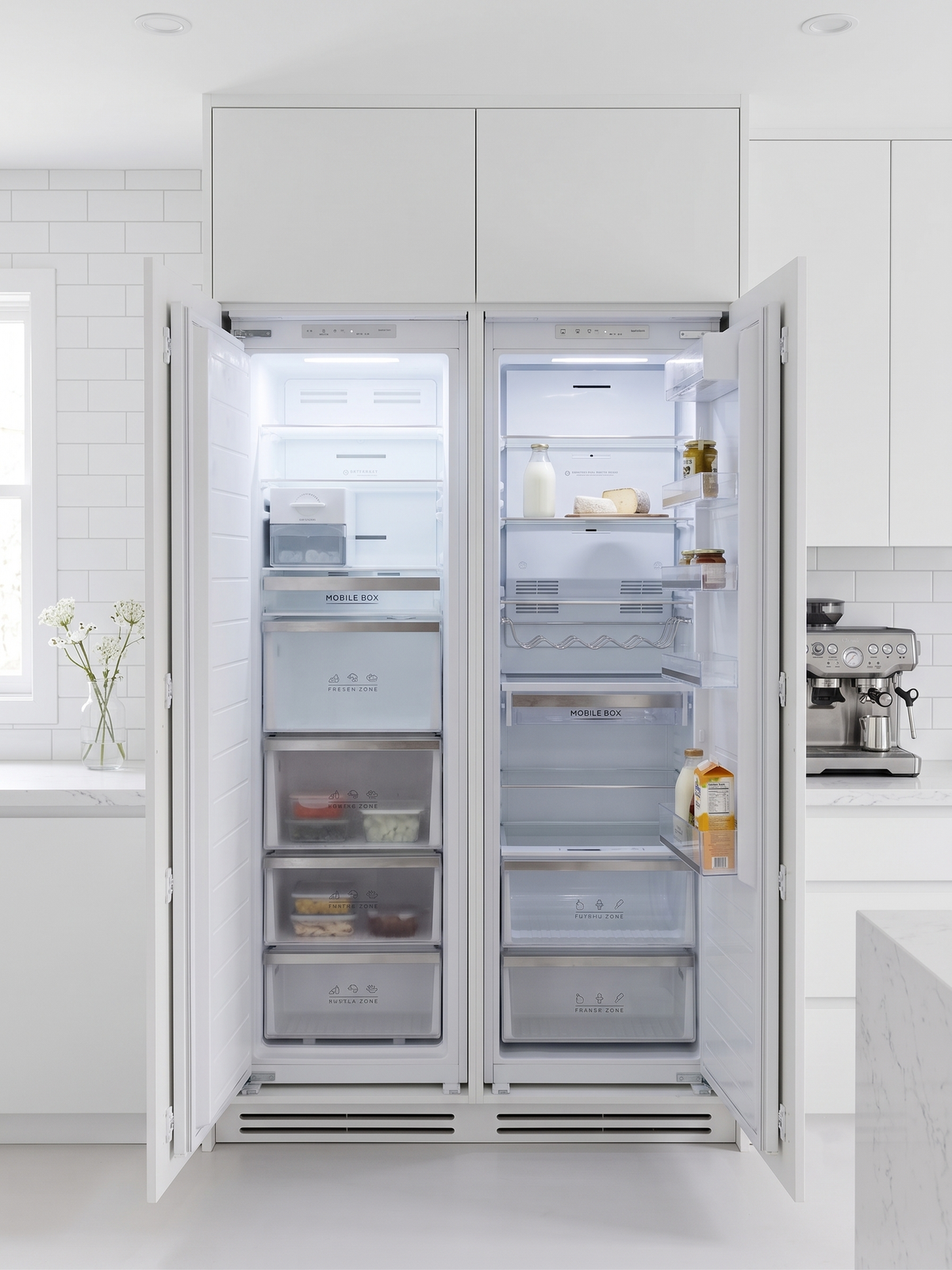

The CR30911 is part of Kleenmaid's fully integrated refrigeration collection, which also includes the matching CZ21911 upright freezer, allowing a coordinated, cohesive integrated appearance across refrigeration and freezer storage.

Due to the confinement of the cabinetry cavity, adequate ventilation is essential — insufficient ventilation can increase energy use, shorten the life of the cooling system, and cause excessive condensation that may damage surrounding cabinetry.

Door panels are not included with this appliance and are for illustration purposes only.

• Refrigerator: 1 x CR30911 Fully Integrated Upright All Refrigerator.
• Installation hardware: All parts required for integrated installation, including KwikFit fittings.
• Power cord: 10A plug and cord, ready to use.
• Documentation: User manual and warranty information.

• CR30911 PRODUCT BROCHURE (PDF)
• CR30911 USER MANUAL (PDF)
