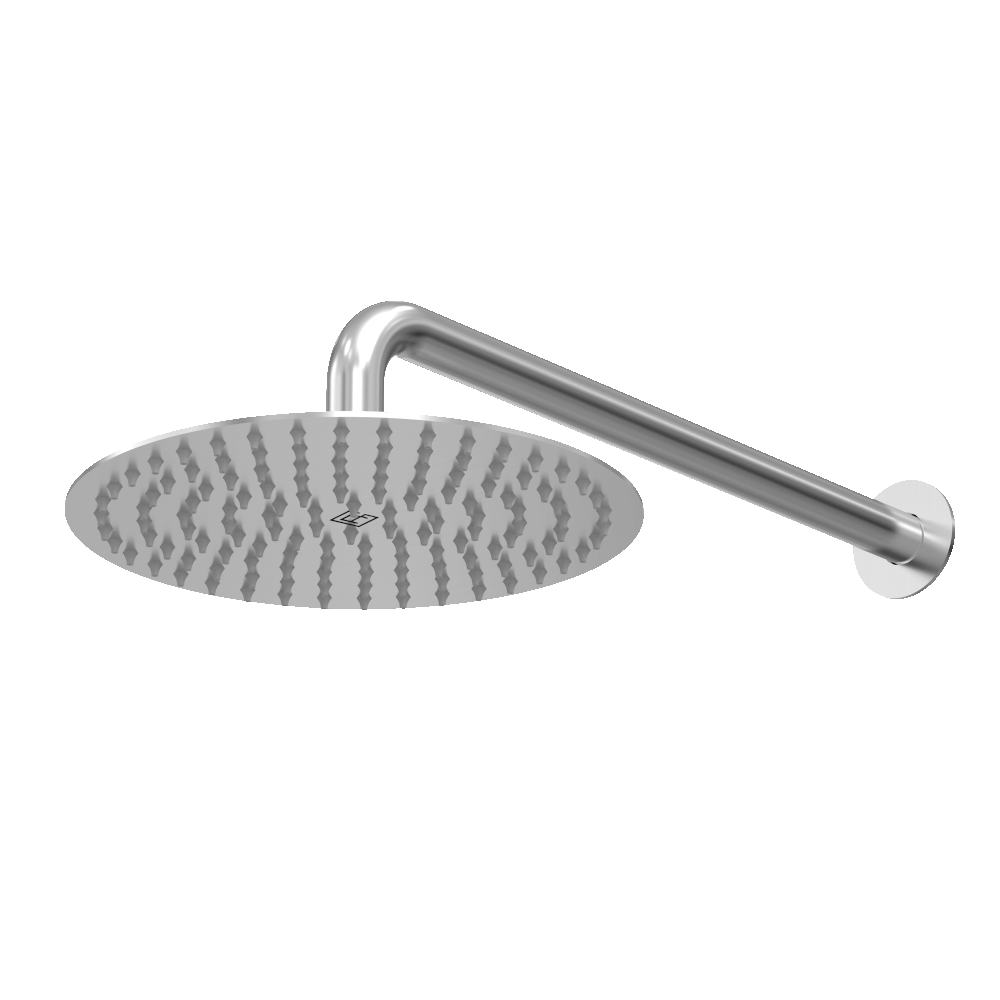

Gareth Ashton RAS12-316 316 Marine Grade Round Shower Head 250mm

• Marine grade 316 stainless steel: built for outdoor and coastal conditions.
• 250mm round head: a wide, even spray pattern.
• Horizontal arm style: a clean line from the wall.
• Swivel adjustment: angle the head after fitting.
• 3 star WELS rating: 8.5L/min flow rate, registration number S18761.
• Flow controller fitted: keeps flow consistent across the pressure range.

• Single spray pattern: a broad, rain style spray from the 250mm head.
• Adjustable angle: swivel the head up or down to suit the user.

• Product type: Wall arm shower head
• Material: Marine grade 316 stainless steel
• Head diameter: 250mm
• Shape: Round
• Arm style: Horizontal
• Operating pressure: 150 to 750kPa
• Maximum pressure: 500kPa (as marked)
• WELS rating: 3 star, 8.5L/min
• WELS registration number: S18761
• Certification: AS/NZS 3662, licence WM-032384
• Collection: Abey 316 Alfresco
• Made in: Asia

• Thread tape: apply thread tape to the wall spigot before fitting the arm.
• Filter and flow control: fit the filter, washer and flow control with the protruding side facing into the head, then tighten.
• Adjust: swivel the head to the required angle.
• Pressure: suitable for 150 to 750kPa mains supply.
• Not suitable for: gravity-fed, low or unequal pressure systems, instantaneous gas heaters, tempering valves or thermostatic mixing valves.
• Licensed plumber: installation should be by a licensed plumber.

Warranty Coverage

Gareth Ashton products are distributed in Australia by Abey Australia Pty Ltd and are backed by a comprehensive manufacturer's warranty, giving you confidence in the quality and craftsmanship of every product.

• Tapware: 10 years — Replacement of faulty products and parts, including one year's labour.
• Showers: Five years — Replacement of faulty products and parts, including one year's labour.
• Bathroom accessories: Five years — Replacement of faulty products and parts.
• Shower finishes: 10 years — PVD finish against manufacturing defects only.
• Tapware finishes: Five years — Galvanic and electroplated finishes against manufacturing defects only.

Proof of purchase is required for all warranty claims. The warranty applies to the original purchaser only and is not transferable.

What's Covered

• Manufacturing defects in materials and workmanship.
• Repair or replacement of faulty products.
• Replacement of defective parts within the applicable warranty period.

What's Not Covered

• Damage occurring during shipping, delivery or installation.
• Incorrect installation or failure to follow manufacturer guidelines.
• Misuse, abuse, accidental damage or neglect.
• Use of abrasive cleaners, steel wool or harsh chemical agents.
• Normal wear and tear or general surface deterioration.
• Scratching, denting, discolouration or finish damage from daily use.
• Repairs or modifications carried out by unauthorised parties.
• Ex-display products.

Conditions

• Tapware and showers must be installed by a licensed plumber.
• Products must be used and maintained in accordance with manufacturer instructions.
• Proof of purchase must be provided with all claims.
• The warranty applies to the original purchaser only.

Making a Claim

To make a warranty claim, contact Abey Australia directly and have your proof of purchase available. Claims should be made through the original place of purchase where possible.

Australian Consumer Law

Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if they fail to be of acceptable quality and the failure does not amount to a major failure.

Outdoor showers take more punishment than bathroom showers: sun, wind-driven salt, sand and constant humidity. The RAS12-316 is machined from marine grade 316 stainless steel, which resists the pitting and tea staining that can affect lesser grades near the coast.

A 250mm head is large enough to feel like a proper rain shower while keeping the flow at an efficient 8.5L/min, so it is a good partner for a pool shower, a beach house or a poolside bathroom.

• Shower head: 1 x RAS12-316 round shower head with horizontal arm.
• Flow control, filter and washer: supplied for fitting.
• Installation instructions: supplied in the box.
