Fienza 68706 Olivia 84cm Wide Large Single Bowl Butler Sink

• Large 67-litre single bowl: provides generous uninterrupted space for large pots, roasting trays, platters and bulky washing tasks.

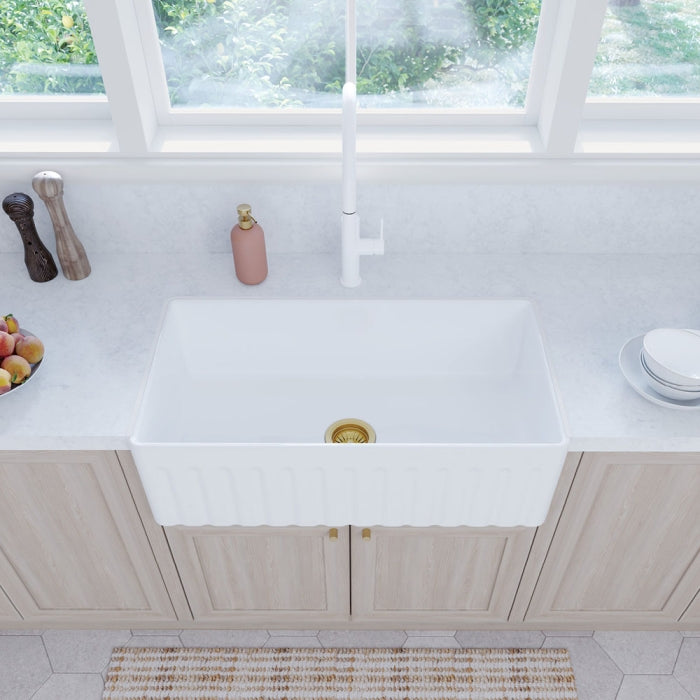

• Reversible apron front: can be installed with either the fluted face or smooth flat face visible, allowing the presentation to be selected during cabinetry planning.
• Fine fire clay ceramic: manufactured using high-quality European materials to create a substantial ceramic sink body with a fully glazed surface.
• Glazed on all sides: maintains a consistent gloss finish across the bowl, rim, apron and external surfaces that may remain exposed after installation.
• Undermount or flushmount installation: supports two integrated benchtop configurations when installed with the required structural shelving.
• Deep internal bowl: the technical drawing specifies an internal depth of approximately 235mm, providing substantial vertical clearance within the sink.
• No integrated drainer: the uninterrupted single-bowl format prioritises internal washing capacity and allows a separate benchtop drainer or accessory to be selected independently.
• Dedicated basket-waste compatibility: designed for Fienza A3SS, A3CM or A3RB basket wastes, allowing the visible waste finish to coordinate with selected tapware or surrounding fittings.

• Product type: large single-bowl butler sink
• Collection: Olivia
• Application: kitchen or laundry
• Bowl configuration: single bowl
• Material: fine fire clay ceramic
• Material source: manufactured using high-quality European materials
• Surface finish: fully glazed
• Colour: Gloss White
• Front profile: reversible fluted or flat apron front
• Installation options: undermount or flushmount
• Nominal product width: 840mm
• Capacity: 67 litres
• Tap holes: no tap holes in the sink body
• Waste opening: Ø90mm
• Basket waste: required and sold separately
• Compatible basket-waste SKUs: A3SS, A3CM or A3RB
• Structural support: permanent support shelving required
• Manufacturing tolerance: ±15mm

• Installation type: undermount or flushmount
• Cabinet support: install on permanent structural support shelving capable of carrying the sink independently of the benchtop.
• Cabinet sizing: allow for an approximately 840mm-wide sink body and confirm that the selected cabinet provides adequate internal width, structural reinforcement and plumbing clearance.
• Physical-product measurement: take all final cabinetry, benchtop and support measurements from the actual sink supplied before fabrication or cutting. The published drawing is a planning guide and must not be used as the sole basis for final cut-outs.
• Manufacturing variance: allow ±15mm variation in individual fire clay dimensions, including width, depth, height and bowl measurements.
• Apron orientation: select the fluted or flat front before final positioning and cabinetry completion, as the chosen face will be exposed towards the room.
• Waste requirement: fit one compatible basket waste; Fienza specifies A3SS, A3CM or A3RB, sold separately.
• Waste aperture: Ø90mm sink opening.
• Waste outlet compatibility: the specified Fienza basket wastes use a 50mm outlet and are approximately 90mm deep. Confirm adequate clearance below the sink for the waste body, trap and connected pipework.
• Tapware installation: install the mixer or tapware through the benchtop or a separate mounting surface, as the sink has no integrated tap platform or pre-drilled tap hole.
• Professional installation: cabinetry, benchtop and plumbing work should be completed by suitably qualified trades using the physical product and current Fienza documentation as the final reference.

Warranty coverage

Fienza is an Australian brand backed by a comprehensive manufacturer's warranty across their full range of bathroom and kitchen products, providing peace of mind and reliable after-sales support.

Residential warranty periods apply. Commercial warranty periods differ, contact Fienza for details. Labour is not included unless otherwise specified.

Mixers & tapware:

• Ceramic disc cartridges: Lifetime — Replacement parts or product, 15 years labour
• Mixer structure: Lifetime — Replacement parts or product, 1 year labour
• Chrome finish: Lifetime — Replacement parts or product, 1 year labour
• PVD finish: 10 years — Replacement parts or product, 1 year labour
• Electroplated finish: 5 years — Replacement parts or product, 1 year labour

Showers:

• Heads, arms & hand pieces (structure): Lifetime — Replacement parts or product
• Rails (structure): Lifetime — Replacement parts or product, 1 year labour on twin showers
• Chrome finish: Lifetime — Replacement parts or product
• PVD & electroplated finish: 5 years — Replacement parts or product

Bath outlets:

• Structure: Lifetime — Replacement parts or product
• Chrome, PVD & electroplated finish: 5 years — Replacement parts or product

Heated towel rails:

• Structure & chrome finish: 15 years — Replacement parts or product, 1 year labour
• PVD finish: 10 years — Replacement parts or product, 1 year labour
• Electrical components: 5 years — Replacement parts or product, 1 year labour

Basins:

• Vitreous china: 5 years — Replacement parts or product, 1 year labour
• Cast stone solid surface (structure): 25 years — Replacement parts or product, 1 year labour
• Cast stone solid surface (finish): 5 years — Replacement product or repair, 1 year labour
• Concrete: 2 years — Replacement parts, 1 year labour

Toilets:

• Vitreous china: 5 years — Replacement parts or product, 1 year labour
• R&T cisterns (tanks & frames): 5 years — Replacement parts or product, 1 year labour
• Viega/Geberit cisterns (tanks & frames): 15 years — Replacement parts or product
• Cistern valves: 3 years — Replacement parts or product, 1 year labour
• Seats, accessories & spare parts: 1 year — Replacement parts or product

Baths:

• Acrylic gloss white (shell): 10 years — Replacement product, 1 year labour
• Resin stone & cast stone solid surface (structure): 25 years — Replacement product, 1 year labour
• Resin stone & cast stone solid surface (finish): 5 years — Replacement product or repair, 1 year labour
• Bath frames & legs: 5 years — Replacement parts, 1 year labour

Sinks:

• Stainless steel & laundry stainless steel: 25 years — Replacement product, 1 year labour
• Granite sinks: 7 years — Replacement product, 1 year labour
• Fire clay ceramic: 5 years — Replacement product, 1 year labour
• PVD coloured sinks: 3 years — Replacement product, 1 year labour

Cabinetry:

• Australian made cabinets (MDF): 10 years — Replacement parts or product, 1 year labour
• Australian made cabinet drawer runners: Lifetime — Replacement parts or product, 1 year labour
• Cabinets (MDF): 5 years — Replacement parts or product, 1 year labour
• Handles, hinges & legs: 5 years — Replacement parts

Vanity tops:

• Vitreous china, poly-marble, solid surface & engineered stone: 5 years — Replacement product, 1 year labour
• Concrete tops: 2 years — Replacement parts or product, 1 year labour
• Timber tops: 1 year — Replacement product, 1 year labour

Mirrors:

• LED mirrors: 5 years — Replacement parts or product, 1 year labour
• Framed mirrors: 3 years — Replacement parts or product
• Standard & Australian made mirrors: 1 year — Replacement parts or product

Accessories:

• Structure, chrome, PVD & electroplated finish: 5 years — Replacement parts or product

Proof of purchase is required for all warranty claims. The warranty applies to the original purchaser only and is not transferable. Warranty periods apply to products purchased on or after 1st September 2023.

What's covered

• Manufacturing defects in materials and workmanship
• Repair or replacement of faulty products
• Replacement of defective parts within the applicable warranty period

What's not covered

• Products installed while incorrect or damaged — damage must be reported before installation
• Incorrect installation or failure to follow manufacturer guidelines
• Misuse, abuse, accidental damage, or neglect
• Normal wear and tear, including rubber seals, O-rings, and washers
• Use of abrasive cleaners, harsh chemicals, or unsuitable cleaning products
• Repairs or modifications carried out by unauthorised parties
• Loss or damage caused by a defective product — only the product itself is covered

Conditions

• Products must be installed by a licensed tradesperson
• Products must be installed and used in accordance with manufacturer instructions
• Products must be inspected before installation — installation is acceptance of goods
• Proof of purchase must be provided with all claims; photos may be required
• The warranty applies to the original purchaser only

Making a claim

For warranty claims after installation, contact Fienza's after-sales service team directly. Claims should be directed through the original place of purchase where possible. Please have your proof of purchase ready when submitting your claim.

Australian Consumer Law

Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if they fail to be of acceptable quality and the failure does not amount to a major failure.

Fire clay butler sinks are produced through a ceramic manufacturing process rather than fabricated to the tight tolerances associated with pressed stainless steel. Fienza therefore identifies every published dimension as a guide and specifies a ±15mm manufacturing allowance. The sink should be delivered to site before cabinetry and benchtop fabrication is finalised so the installer can establish the precise support height, apron opening, benchtop relationship and waste position from the individual product received.

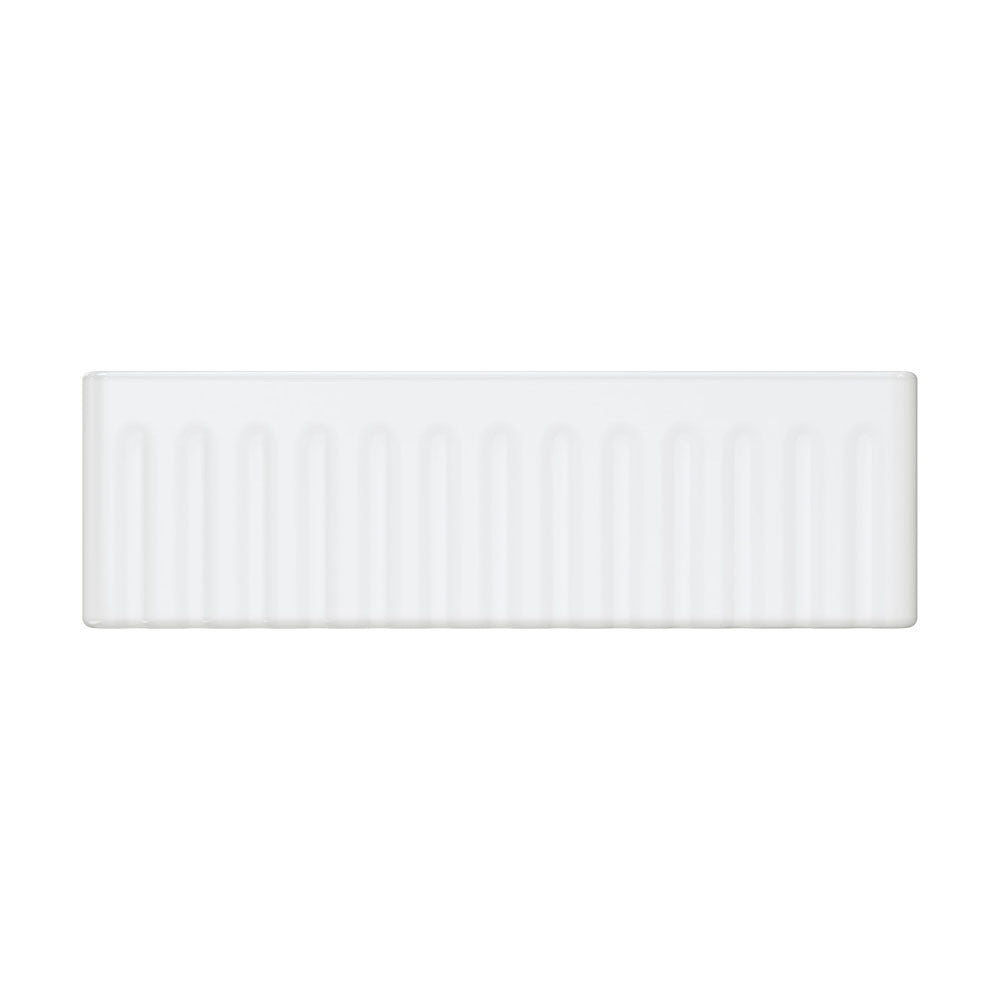

The reversible exterior changes the sink’s visual character without changing the bowl or installation requirements. The fluted side introduces a traditional farmhouse detail, while the flat side provides a simpler apron profile. Both faces are glazed, so the preferred orientation can be selected to suit the cabinetry design before the sink is secured.

A basket waste is not supplied with the sink. Fienza lists three compatible 304 stainless steel basket wastes: A3SS in Stainless Steel, A3CM in PVD Carbon Metal and A3RB in PVD Rugged Brass. Each has a removable food strainer, 118 x 89mm outer dimensions, a 50mm outlet and a 90mm overall depth.
