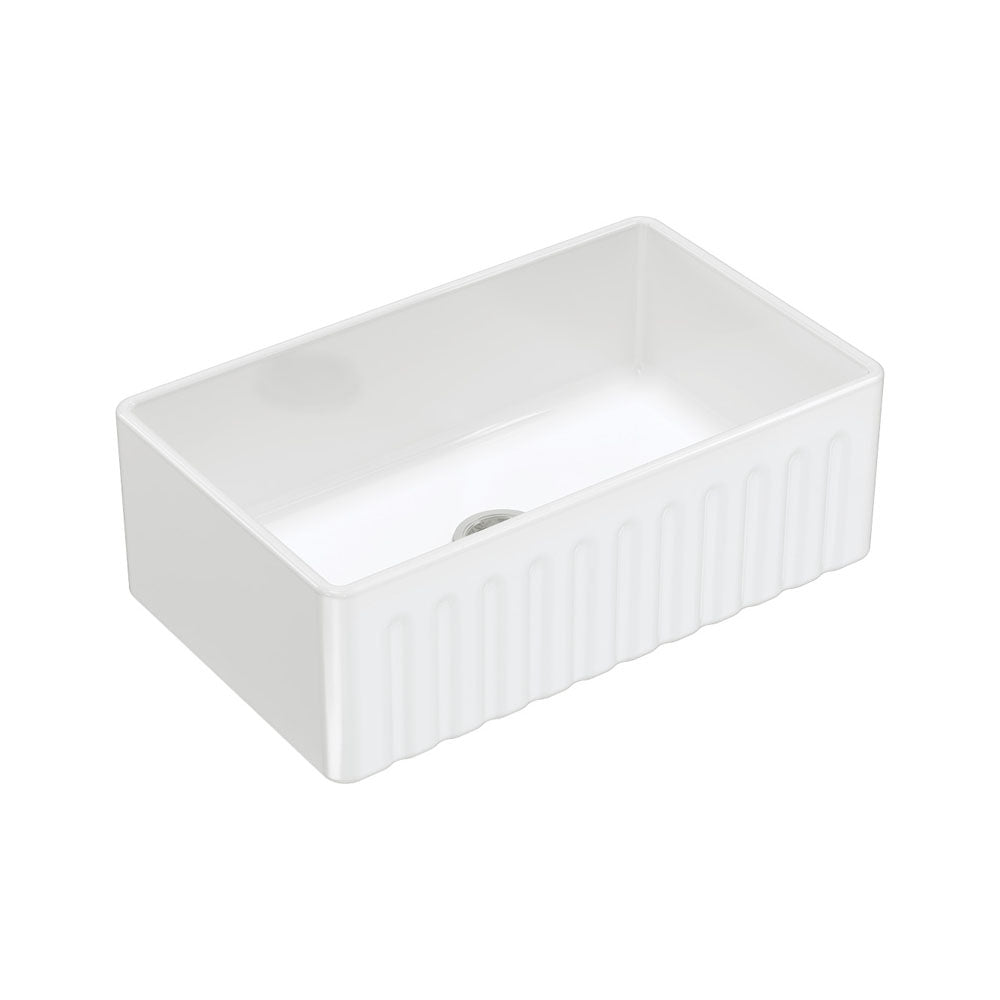

Fienza 68705 Olivia 76.5cm Wide Medium Single Bowl Butler Sink

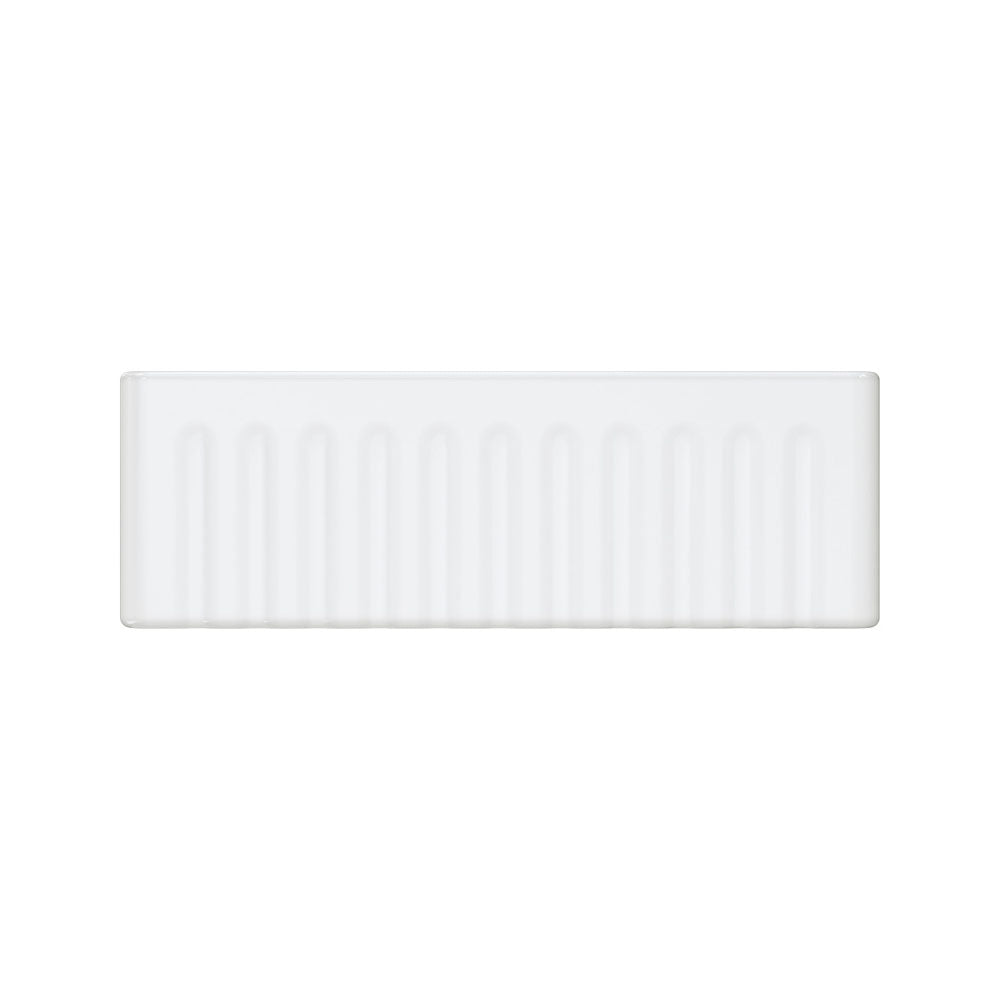

• Reversible apron front: The sink can be installed with either its fluted surface or flat surface facing forward, providing two design expressions from one sink body.
• Fine fire clay ceramic: Manufactured from fine fire clay using high-quality European materials for the substantial form and smooth glazed surface associated with traditional butler sinks.
• Glazed on all sides: The bowl, apron and external surfaces are glazed, supporting installation designs where more of the sink body remains visible.
• Generous single bowl: The 66-litre bowl provides uninterrupted space for large cookware, baking trays and bulky household items.
• Deep bowl profile: A nominal 235mm bowl depth provides substantial vertical working space within the sink.
• Medium-width format: The approximately 765mm overall width places the Olivia between compact butler sinks and larger farmhouse models, balancing bowl capacity with cabinetry requirements.
• Undermount installation: The sink can be positioned beneath the benchtop to create a defined benchtop edge above the ceramic bowl.
• Flushmount installation: The rim can also be installed level with the surrounding benchtop where the benchtop material and fabrication method permit.
• Permanent structural support: The sink is designed to sit on permanent support shelving, keeping its weight independently supported beneath the benchtop.
• Selectable waste finish: Compatible Fienza Hana basket wastes are available separately in Stainless Steel, PVD Carbon Metal and PVD Rugged Brass finishes.

• Product type: Butler sink
• Collection: Olivia
• Bowl configuration: Single bowl
• Material: Fine fire clay ceramic
• Material sourcing: Manufactured using high-quality European materials
• Finish: Gloss White
• Front surface: Reversible fluted or flat apron front
• Surface treatment: Glazed on all sides
• Nominal capacity: 66 litres
• Waste opening diameter: 90mm
• Overflow: No overflow is shown on the manufacturer technical drawing
• Tap hole: No tap hole is shown on the manufacturer technical drawing
• Waste requirement: One compatible basket waste required
• Compatible basket waste codes: A3SS, A3CM or A3RB
• Basket waste supply: Sold separately
• Installation methods: Undermount or flushmount
• Structural support: Permanent support shelving required
• Manufacturing tolerance: Allow ±15mm for fire clay ceramic manufacturing variation.

• Installation type: Undermount or flushmount
• Cabinet support: Permanent support shelving must be installed beneath the sink.
• Benchtop loading: The sink must not depend solely on the benchtop or benchtop adhesive for structural support.
• Final set-out: Measure the physical sink before preparing the cabinet, benchtop opening or support shelf.
• Dimensional allowance: Account for the manufacturer’s stated ±15mm fire clay production tolerance during cabinetry and benchtop planning.
• Sink orientation: Confirm whether the fluted or flat apron face will be presented before the sink is secured into the cabinetry.
• Waste requirement: Install one compatible basket waste with a 90mm sink opening; the waste is not supplied with the sink.
• Plumbing connection: The selected basket waste must be connected to a suitable waste system in accordance with local plumbing requirements.
• Installation sequencing: The sink should be available on site before final cabinet construction and benchtop cutting so its actual dimensions can be checked.
• Professional installation: Cabinetry, benchtop fabrication and plumbing should be completed by appropriately qualified tradespeople using the physical product and manufacturer specification sheet.

Warranty coverage

Fienza is an Australian brand backed by a comprehensive manufacturer's warranty across their full range of bathroom and kitchen products, providing peace of mind and reliable after-sales support.

Residential warranty periods apply. Commercial warranty periods differ, contact Fienza for details. Labour is not included unless otherwise specified.

Mixers & tapware:

• Ceramic disc cartridges: Lifetime — Replacement parts or product, 15 years labour
• Mixer structure: Lifetime — Replacement parts or product, 1 year labour
• Chrome finish: Lifetime — Replacement parts or product, 1 year labour
• PVD finish: 10 years — Replacement parts or product, 1 year labour
• Electroplated finish: 5 years — Replacement parts or product, 1 year labour

Showers:

• Heads, arms & hand pieces (structure): Lifetime — Replacement parts or product
• Rails (structure): Lifetime — Replacement parts or product, 1 year labour on twin showers
• Chrome finish: Lifetime — Replacement parts or product
• PVD & electroplated finish: 5 years — Replacement parts or product

Bath outlets:

• Structure: Lifetime — Replacement parts or product
• Chrome, PVD & electroplated finish: 5 years — Replacement parts or product

Heated towel rails:

• Structure & chrome finish: 15 years — Replacement parts or product, 1 year labour
• PVD finish: 10 years — Replacement parts or product, 1 year labour
• Electrical components: 5 years — Replacement parts or product, 1 year labour

Basins:

• Vitreous china: 5 years — Replacement parts or product, 1 year labour
• Cast stone solid surface (structure): 25 years — Replacement parts or product, 1 year labour
• Cast stone solid surface (finish): 5 years — Replacement product or repair, 1 year labour
• Concrete: 2 years — Replacement parts, 1 year labour

Toilets:

• Vitreous china: 5 years — Replacement parts or product, 1 year labour
• R&T cisterns (tanks & frames): 5 years — Replacement parts or product, 1 year labour
• Viega/Geberit cisterns (tanks & frames): 15 years — Replacement parts or product
• Cistern valves: 3 years — Replacement parts or product, 1 year labour
• Seats, accessories & spare parts: 1 year — Replacement parts or product

Baths:

• Acrylic gloss white (shell): 10 years — Replacement product, 1 year labour
• Resin stone & cast stone solid surface (structure): 25 years — Replacement product, 1 year labour
• Resin stone & cast stone solid surface (finish): 5 years — Replacement product or repair, 1 year labour
• Bath frames & legs: 5 years — Replacement parts, 1 year labour

Sinks:

• Stainless steel & laundry stainless steel: 25 years — Replacement product, 1 year labour
• Granite sinks: 7 years — Replacement product, 1 year labour
• Fire clay ceramic: 5 years — Replacement product, 1 year labour
• PVD coloured sinks: 3 years — Replacement product, 1 year labour

Cabinetry:

• Australian made cabinets (MDF): 10 years — Replacement parts or product, 1 year labour
• Australian made cabinet drawer runners: Lifetime — Replacement parts or product, 1 year labour
• Cabinets (MDF): 5 years — Replacement parts or product, 1 year labour
• Handles, hinges & legs: 5 years — Replacement parts

Vanity tops:

• Vitreous china, poly-marble, solid surface & engineered stone: 5 years — Replacement product, 1 year labour
• Concrete tops: 2 years — Replacement parts or product, 1 year labour
• Timber tops: 1 year — Replacement product, 1 year labour

Mirrors:

• LED mirrors: 5 years — Replacement parts or product, 1 year labour
• Framed mirrors: 3 years — Replacement parts or product
• Standard & Australian made mirrors: 1 year — Replacement parts or product

Accessories:

• Structure, chrome, PVD & electroplated finish: 5 years — Replacement parts or product

Proof of purchase is required for all warranty claims. The warranty applies to the original purchaser only and is not transferable. Warranty periods apply to products purchased on or after 1st September 2023.

What's covered

• Manufacturing defects in materials and workmanship
• Repair or replacement of faulty products
• Replacement of defective parts within the applicable warranty period

What's not covered

• Products installed while incorrect or damaged — damage must be reported before installation
• Incorrect installation or failure to follow manufacturer guidelines
• Misuse, abuse, accidental damage, or neglect
• Normal wear and tear, including rubber seals, O-rings, and washers
• Use of abrasive cleaners, harsh chemicals, or unsuitable cleaning products
• Repairs or modifications carried out by unauthorised parties
• Loss or damage caused by a defective product — only the product itself is covered

Conditions

• Products must be installed by a licensed tradesperson
• Products must be installed and used in accordance with manufacturer instructions
• Products must be inspected before installation — installation is acceptance of goods
• Proof of purchase must be provided with all claims; photos may be required
• The warranty applies to the original purchaser only

Making a claim

For warranty claims after installation, contact Fienza's after-sales service team directly. Claims should be directed through the original place of purchase where possible. Please have your proof of purchase ready when submitting your claim.

Australian Consumer Law

Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if they fail to be of acceptable quality and the failure does not amount to a major failure.

Fire clay ceramic sinks are formed and fired at high temperatures, and dimensional variation can occur between individual pieces. Fienza specifies a tolerance of ±15mm for this product and instructs installers to use the actual sink received for final specification. This requirement is particularly important for a butler sink because the apron alignment, support shelf height and benchtop opening all depend on the dimensions of the individual unit.

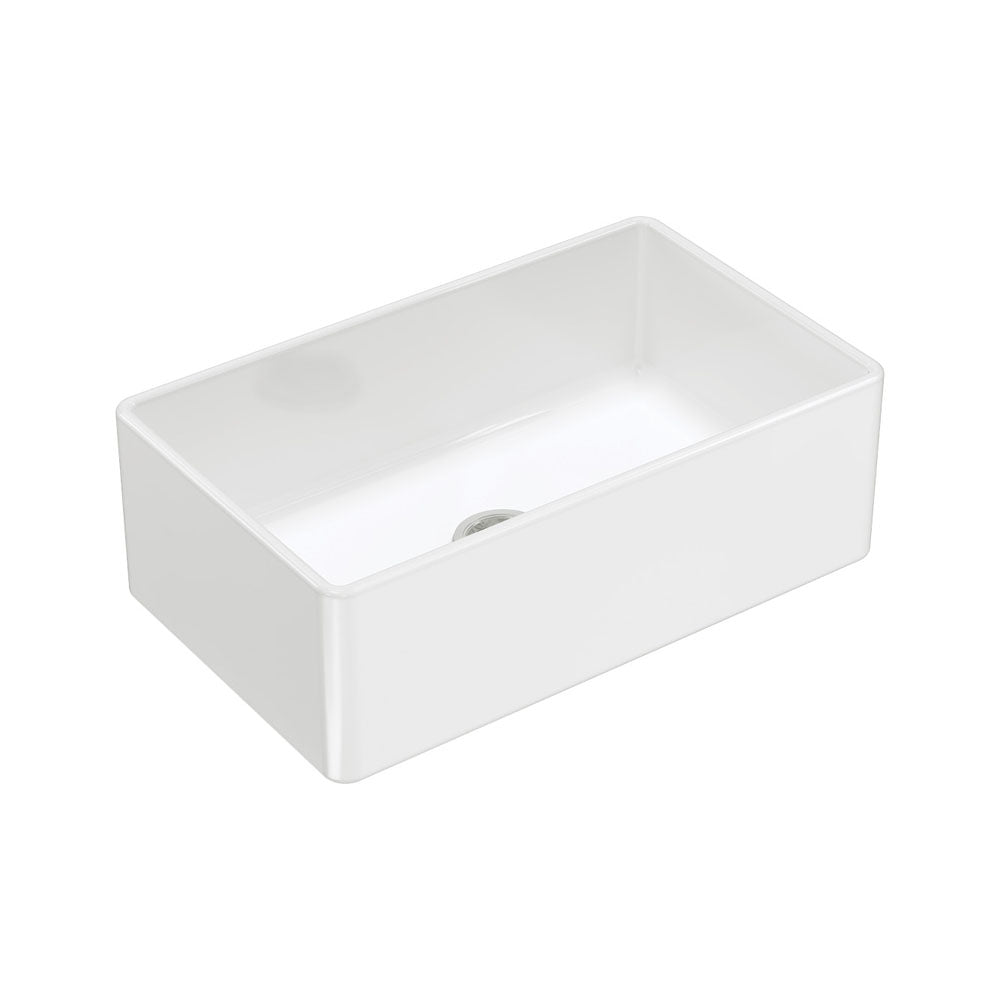

The reversible front must be considered during cabinetry planning rather than after the sink has been fixed in place. Presenting the fluted face creates a more traditional farmhouse appearance, while the flat face provides a restrained profile. Both orientations retain the same bowl capacity, measurements and installation requirements.

The Olivia does not include a basket waste. One Fienza Hana basket waste is required and must be selected separately. Compatible options include Stainless Steel A3SS, PVD Carbon Metal A3CM and PVD Rugged Brass A3RB, allowing the visible waste finish to coordinate with surrounding tapware and hardware.

Printed and on-screen colours are indicative only. The appearance of the Gloss White ceramic may vary from displayed imagery, and Fienza may modify specifications without prior notice. Final product selection and installation should therefore be based on the physical sink and the current manufacturer documentation supplied with it.
