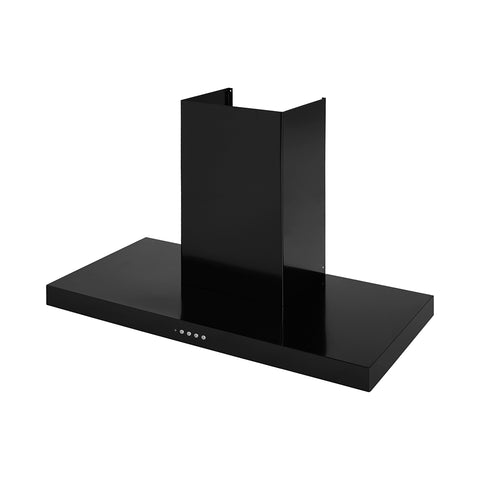

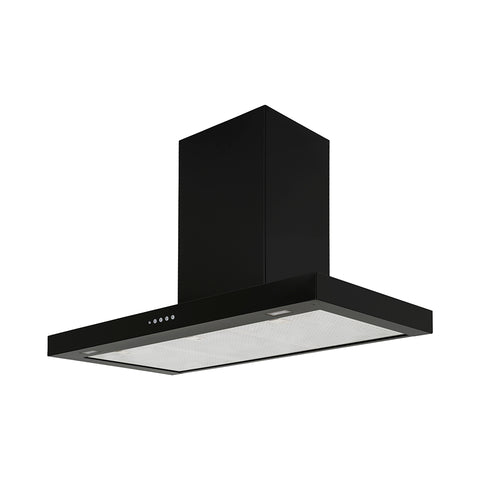

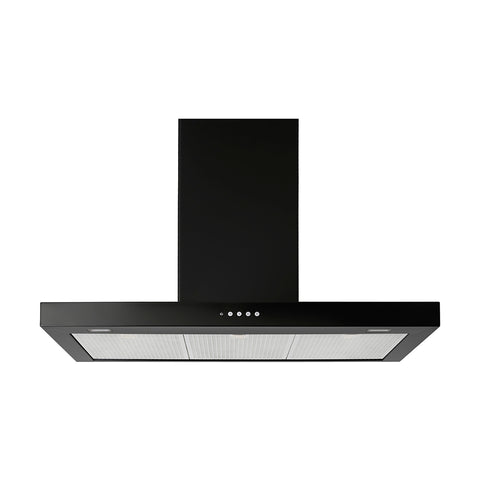

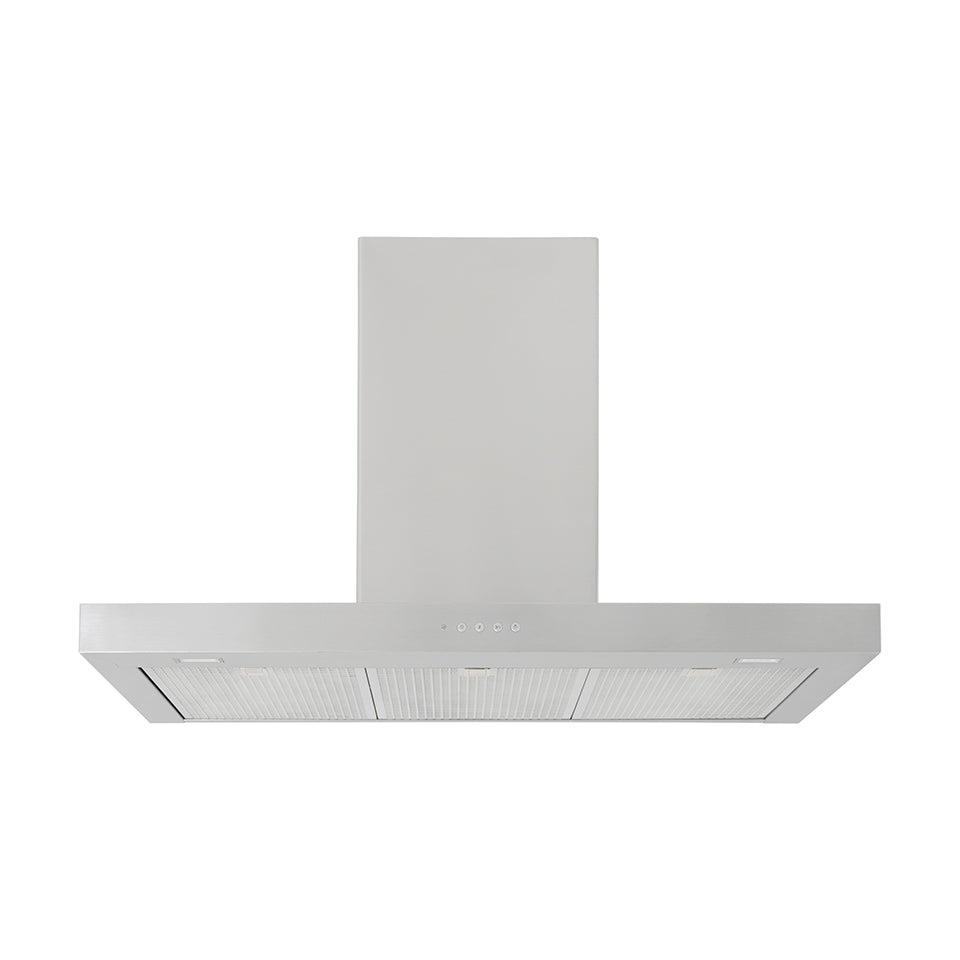

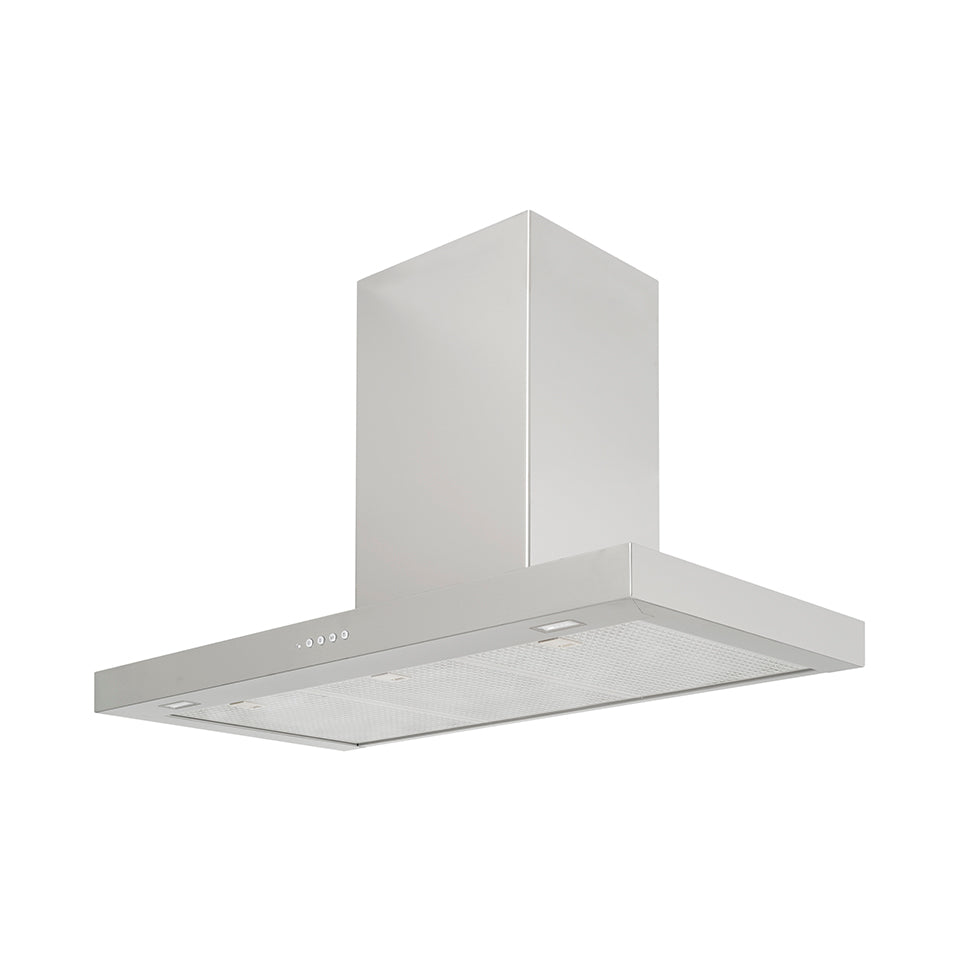

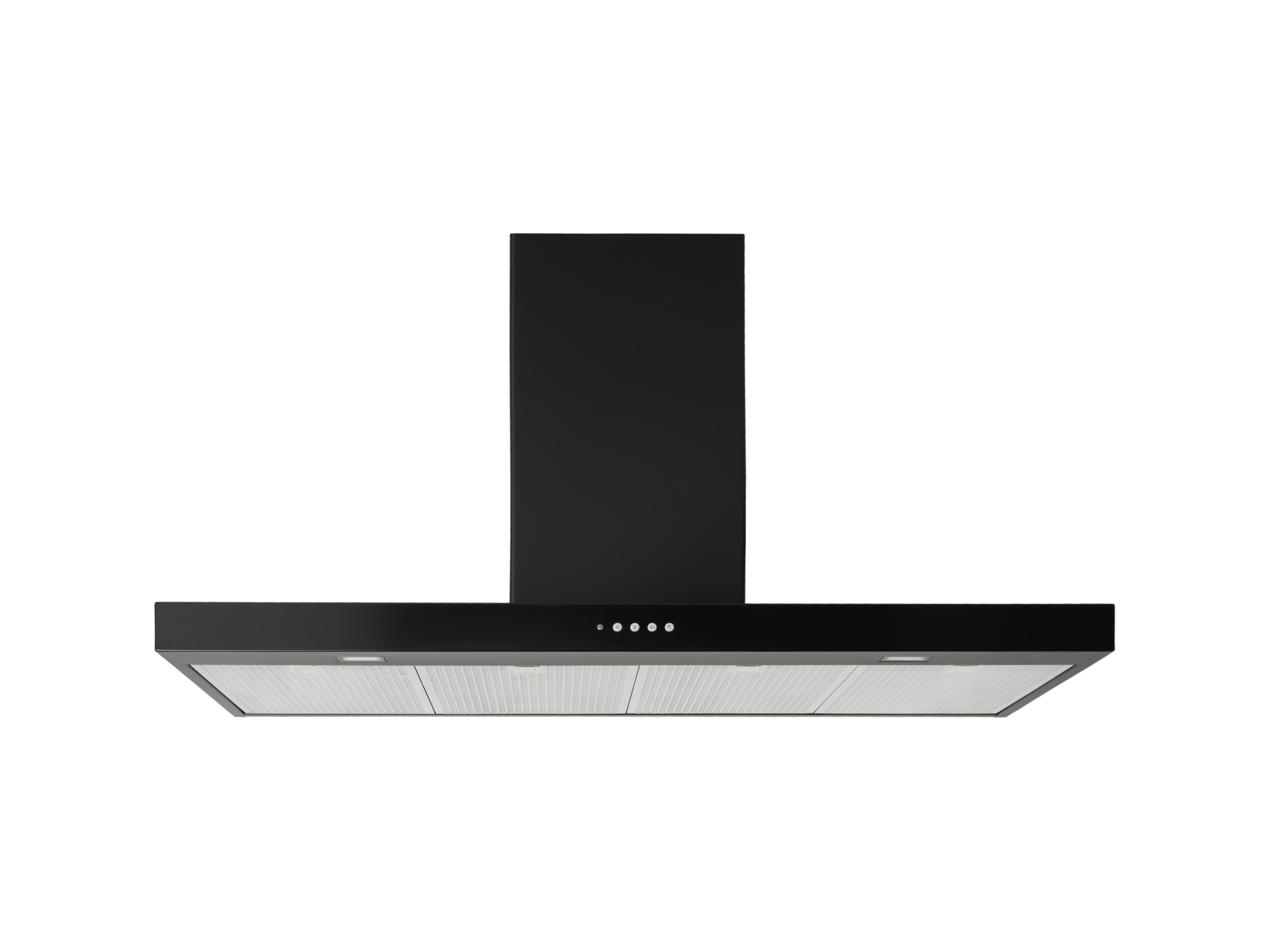

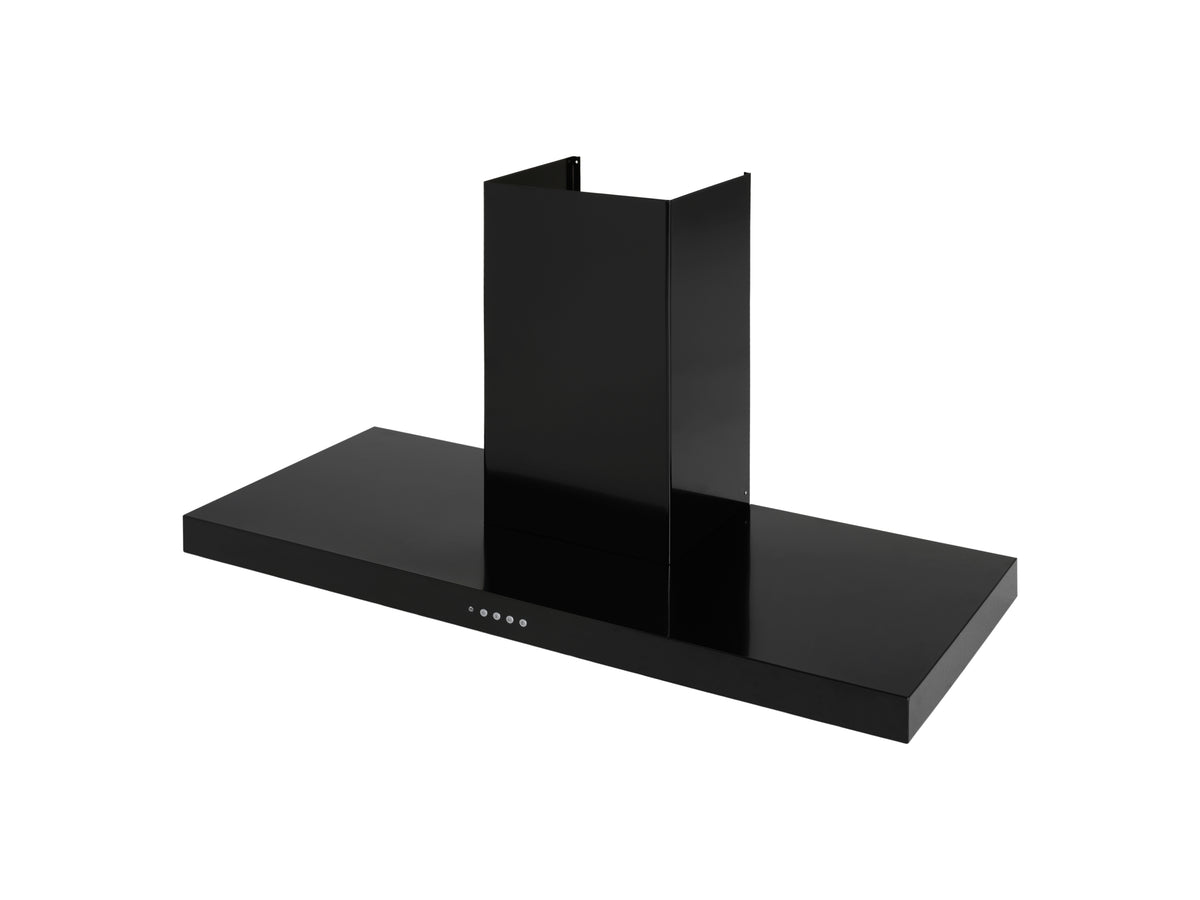

Falcon FALHDS90 90cm Infusion Canopy Rangehood

• Maximum 880m³/hr ducted extraction: Powerful intensive airflow helps clear heavy steam, smoke and cooking odours.
• Convertible ventilation: Suitable for either external ducting or recirculating operation to suit the kitchen layout.
• Three speeds plus intensive boost: Select everyday ventilation or maximum extraction for demanding cooking.
• Wide 90cm canopy: The 898mm body provides generous capture coverage above a 90cm cooking appliance.
• Push-button controls: Straightforward tactile controls provide quick access to fan speeds and lighting.
• Integrated LED lighting: Two energy-efficient LED lights provide clear illumination across the cooking surface.
• Three metal grease filters: A broad multi-filter arrangement captures airborne grease across the width of the canopy.
• Charcoal filtration included: Supports recirculating installation by helping reduce cooking odours before air returns to the room.
• Two duct outlet sizes: Compatible with 120mm or 150mm ducting to support different installation requirements.

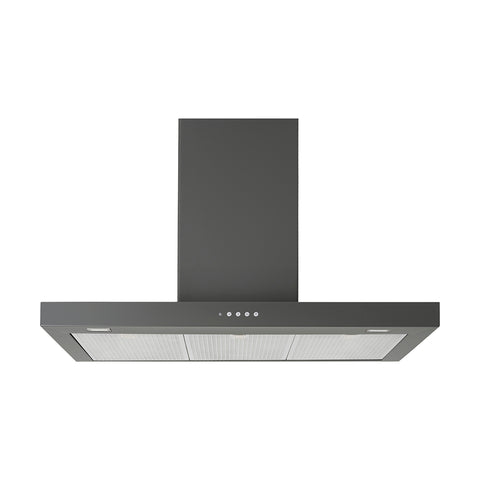

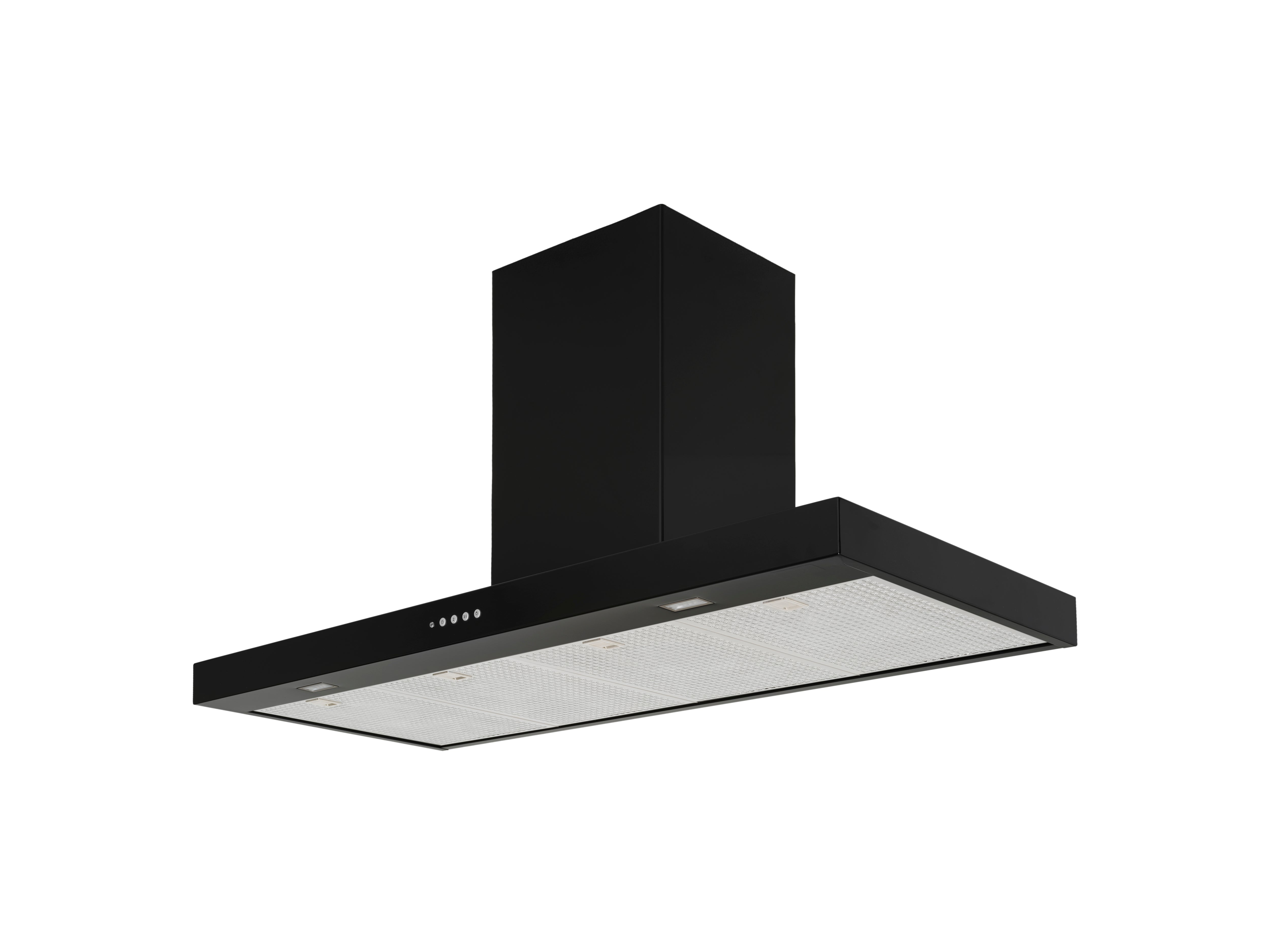

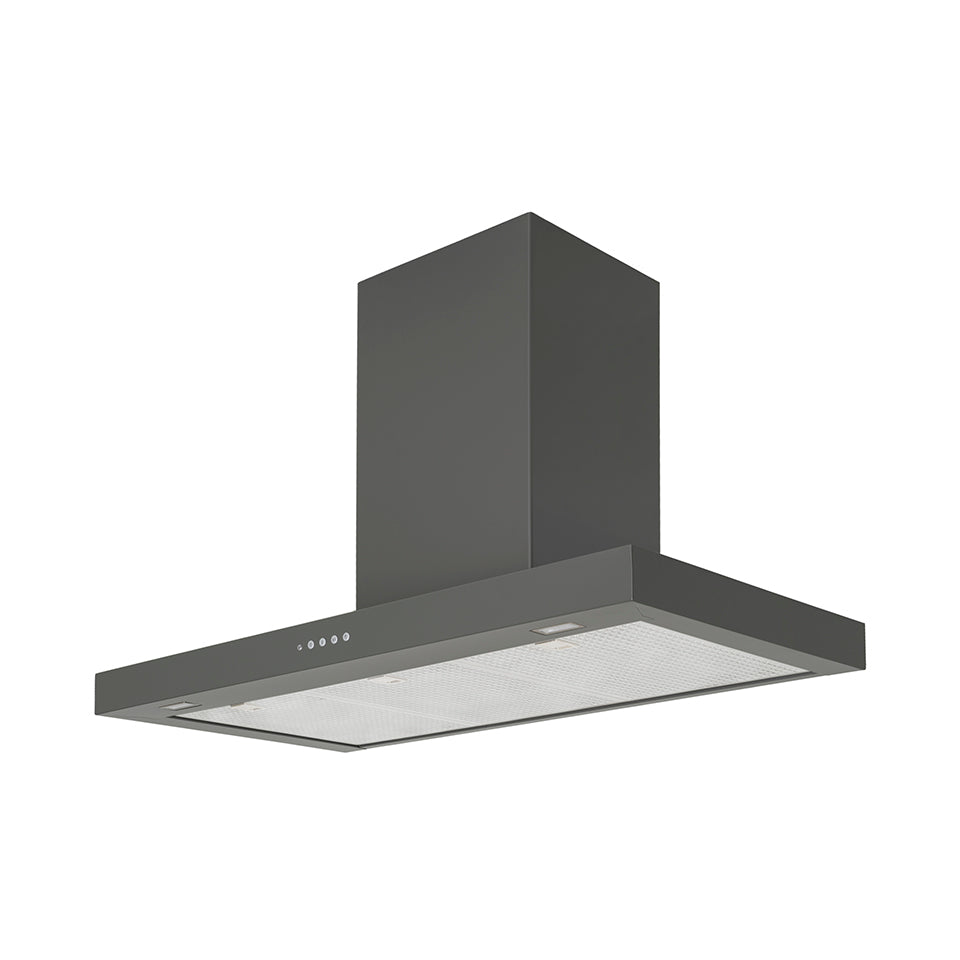

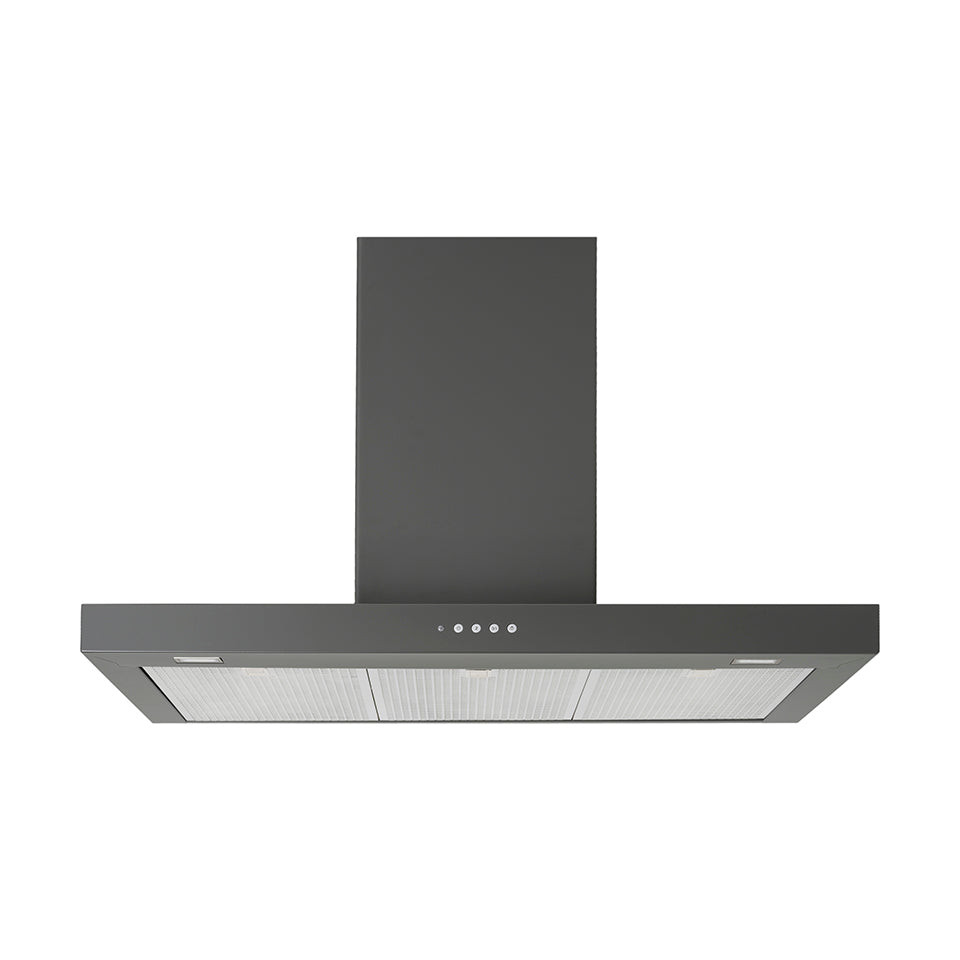

• Coordinating Falcon finishes: Available in Stainless Steel, Black and Slate to complement Falcon range cookers and kitchen cabinetry.

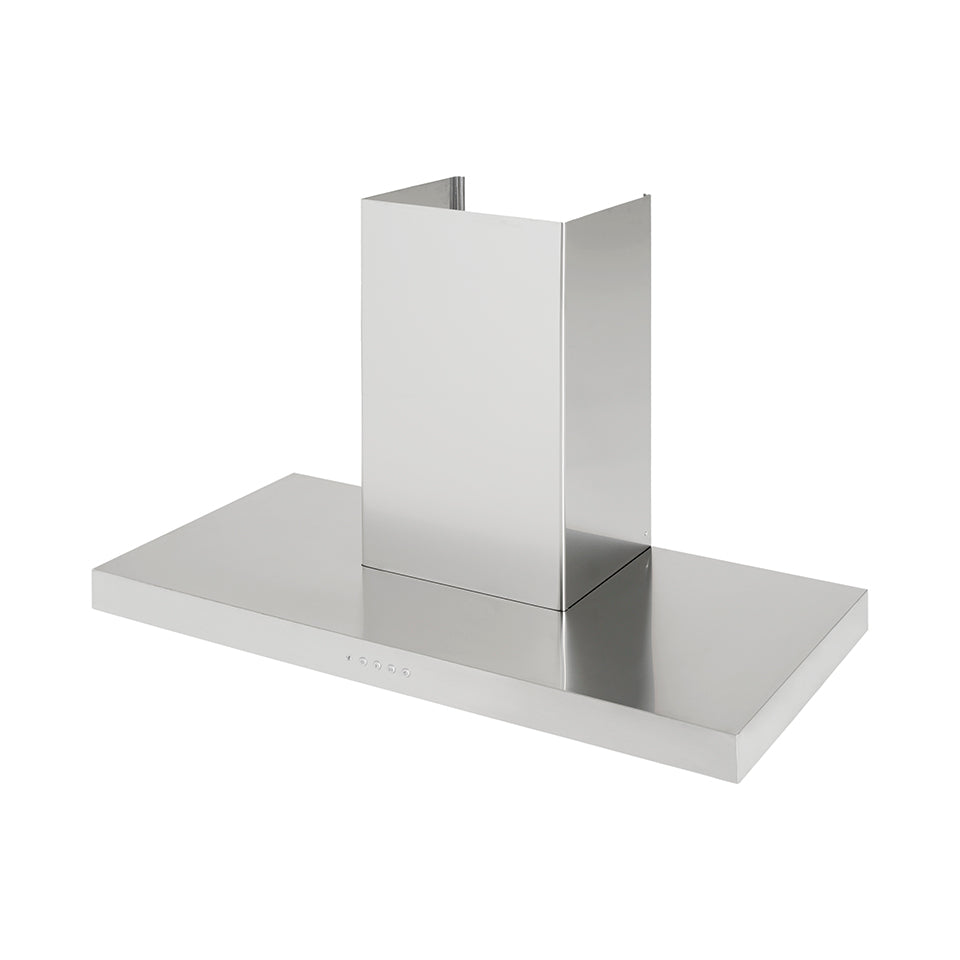

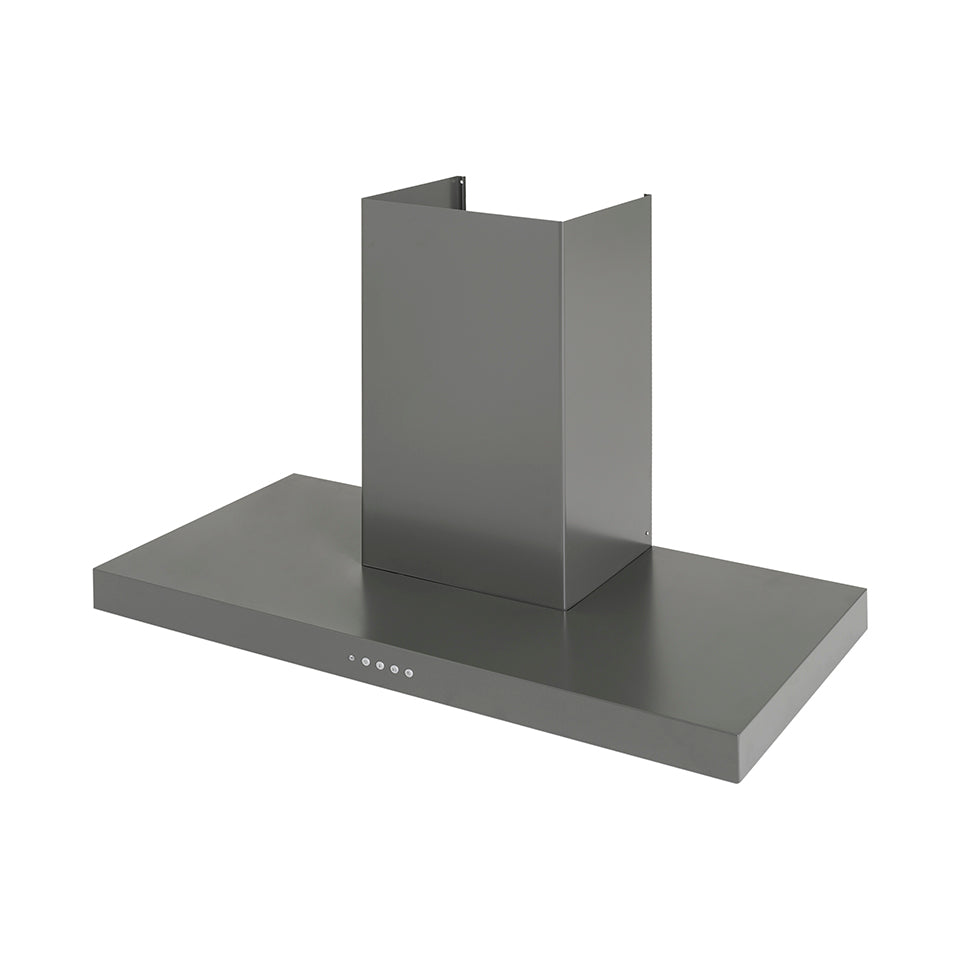

• Adjustable chimney height: The 730–1000mm height range supports a neat fit across varied ceiling and installation conditions.
• Five-year warranty: Covered by Falcon's full five-year parts-and-labour warranty for domestic use, subject to warranty conditions.

• Speed 1: Lower extraction for gentle simmering and lighter cooking vapours.
• Speed 2: Balanced everyday ventilation for regular stovetop cooking.
• Speed 3: Higher extraction for frying, boiling and more intensive cooking.
• Intensive boost: Maximum ducted airflow of up to 880m³/hr for short periods of heavy steam or smoke.
• Lighting control: Independent operation of the two integrated LED lights.

• Product type: Wall-mounted canopy rangehood
• Series: Falcon Infusion
• Width class: 90cm
• Installation type: Wall mounted
• Ventilation configuration: Convertible — ducted or recirculating
• Fan speeds: 3 plus intensive boost
• Ducted extraction rates: 370 / 590 / 780 / intensive 880m³/hr
• Recirculated extraction rates: 320 / 430 / 480 / intensive 500m³/hr
• Maximum noise levels: 59 / 68 / 74 / intensive 76dB
• Controls: Push button
• Lighting: 2 x LED
• Metal grease filters: 3
• Charcoal filters for recirculation: 1
• Air outlet sizes: 120mm / 150mm
• Available finishes: Stainless Steel, Black and Slate
• Country of origin: Italy
• Warranty: 5 years parts and labour for domestic use

• Mounting type: Wall-mounted canopy installation.
• Ventilation options: Configure for external ducting or recirculating operation.
• Duct outlet: Use compatible 120mm or 150mm ducting; 150mm ducting is preferred where the installation permits.
• Recirculating installation: Install and maintain the supplied charcoal filter when air is returned to the kitchen.
• Installation height: Confirm the required clearance above the cooking appliance and the adjustable chimney range before installation.
• Service access: Allow access to filters, controls, lighting and duct connections for future cleaning and service.
• Qualified installation: Installation must follow the manufacturer instructions and applicable electrical and building requirements.
• Planning note: Confirm wall structure, duct route, outlet position and power provision before cabinetry and splashback work is completed.

Warranty coverage

Falcon range cookers are distributed in Australia by Andi-Co Australia Pty. Ltd. and are backed by a comprehensive 5-year manufacturer's warranty covering parts and labour, giving you confidence in the craftsmanship behind every appliance.

• All Falcon appliances: 5 years — Parts and labour, domestic use
• Cosmetic damage (dents, scratches, blemishes): Must be reported in writing within 14 days of delivery

The warranty applies to the original purchaser and any subsequent owner within the warranty period. Register your appliance at andico.com.au for faster after-sales service. Proof of purchase is required for all claims.

What's covered

• Manufacturing defects in materials and workmanship
• Repair or replacement of defective parts and labour within the warranty period
• Cosmetic damage reported in writing within 14 days of delivery

What's not covered

• Incorrect installation or failure to follow manufacturer guidelines
• Misuse, abuse, accidental damage, or neglect
• Damage caused by power surges, electrical storms, or incorrect power or gas supply
• Damage caused by vermin or insect infestation
• Normal wear and tear
• Consumables such as filters, light globes, and batteries
• Damage to shelves, door seals, trivets, and pan supports
• Repairs or modifications carried out by unauthorised parties
• Appliances purchased through unauthorised resellers or third-party auction websites

Conditions

• Must be installed by a licensed electrician or licensed gas plumber — proof of approved installation may be required
• Must be used for domestic purposes only
• Must be installed and maintained in accordance with manufacturer instructions
• Cosmetic damage must be reported in writing within 14 days of delivery
• Warranty applies to appliances purchased and used within Australia only
• Proof of purchase must be provided with all claims

Making a claim

Claims should be directed through the original place of purchase or by contacting Andi-Co Australia directly on 1800 685 899. Please have your proof of purchase and proof of installation ready when submitting your claim.

Australian Consumer Law

Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if they fail to be of acceptable quality and the failure does not amount to a major failure.

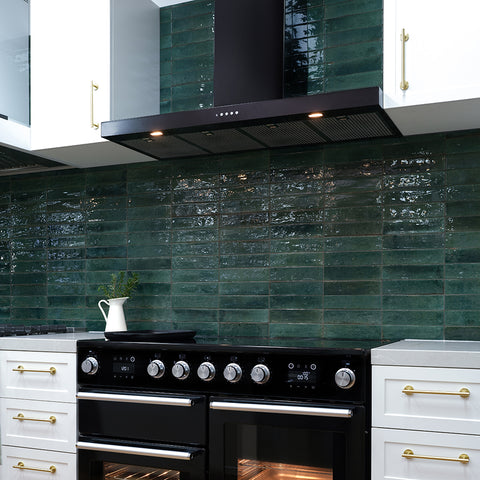

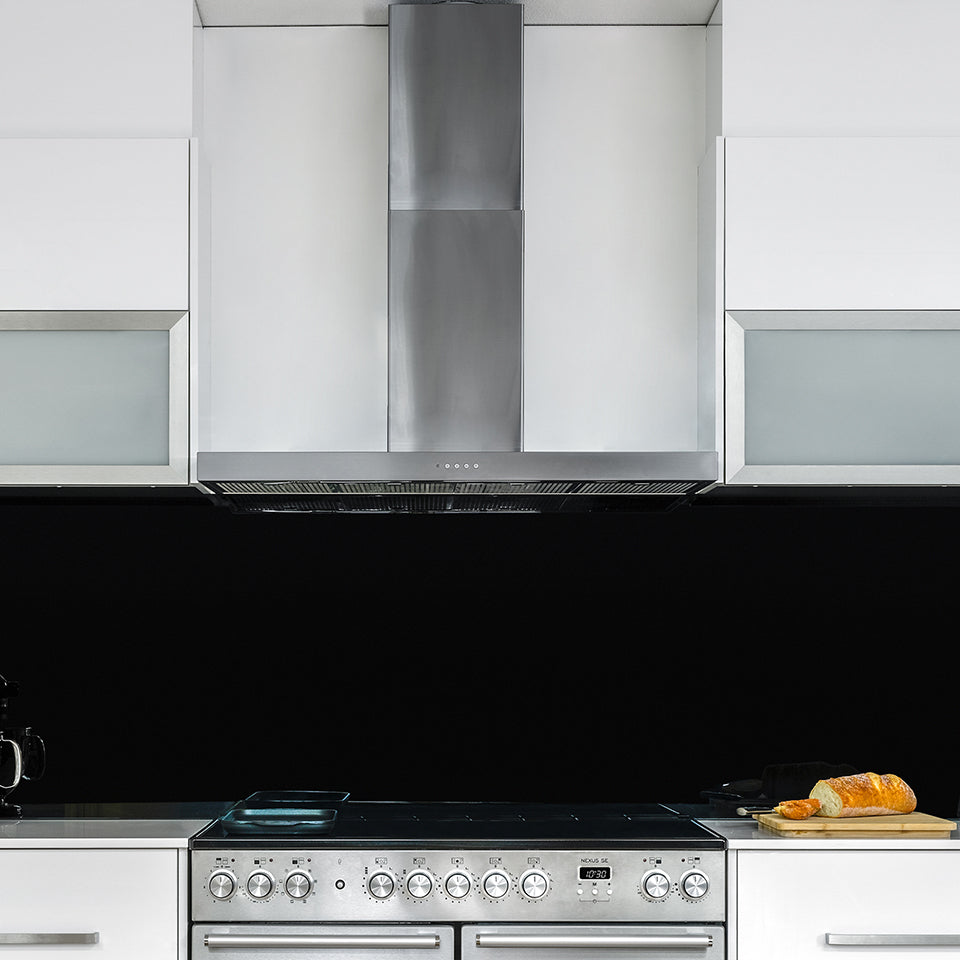

The Infusion canopy is designed as a coordinated ventilation partner for Falcon range cookers, carrying the same strong architectural presence into the cooking zone. Its choice of Stainless Steel, Black and Slate finishes allows the rangehood to either match the cooker or create a deliberate contrast within the kitchen.

Ducted installation provides the strongest extraction performance by exhausting cooking vapours outdoors. Where external ducting cannot be accommodated, the convertible design can be configured for recirculation using charcoal filtration, although airflow performance differs between ducted and recirculated operation.

Extraction performance depends on correct installation, unobstructed airflow and regular filter maintenance. A short, smooth duct route with minimal bends helps reduce resistance, while clean grease filters and timely charcoal-filter replacement support consistent ventilation and odour control.

• Falcon FALHDS90 Infusion canopy rangehood.
• Three metal grease filters.
• One charcoal filter for recirculating operation.
• Two integrated LED lights.
• Adjustable chimney / flue assembly.
• Standard mounting components supplied with the appliance.

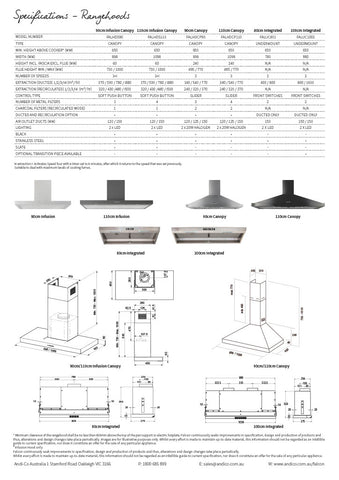

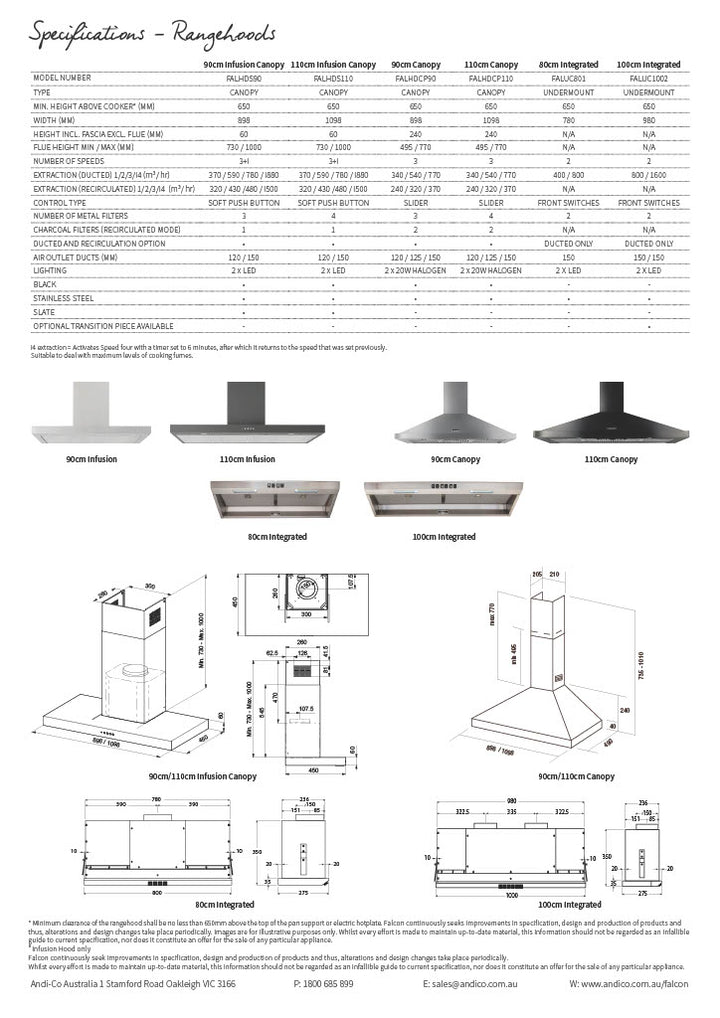

• SPECIFICATIONS (PDF)
