• 85 litre oven capacity: large-format cavity suited to family cooking and entertaining.
• Hotair cooking system: even heat distribution across one or two shelf levels.
• 7 heating methods: flexible cooking modes for baking, roasting, grilling, and pizza cooking.
• Rapid heat-up: reduces oven preheating time before cooking begins.
• Pizza setting: intensive lower heat for pizza and crisp-based dishes.
• Catalytic liners: rear and side liners absorb grease during cooking to reduce maintenance.
• Hydrolytic cleaning assistance: steam-supported cleaning function softens cooking residue.
• Level-independent telescopic rail: clip-on telescopic runner can be positioned on any shelf level.
• Pop-out rotary controls: retractable controls maintain a cleaner front appearance.
• Touch control operation: integrated touch controls with digital timer functions.
• Triple-glazed oven door: improved insulation and cooler external surface temperatures.
• Twin halogen lighting: improved visibility throughout the oven cavity.
• Integrated cooling fan: assists with external temperature management during operation.
• Child lock: prevents unintended operation changes.
• Auto power off: additional operational safety support.

• Hot Air: fan-forced heat circulation for even cooking across multiple shelf levels.
• Hot Air Gentle: lower-intensity fan-forced cooking designed for energy-efficient baking and roasting.
• Conventional Heat: traditional top and bottom heat for everyday baking and roasting.
• Conventional Gentle: reduced conventional heat mode suited to slower, gentler cooking.
• Hot Air Grilling: combines fan circulation with grill heat for roasting meats with crisp finishes.
• Full Width Grill: high-temperature grilling across the full grill area for larger quantities.
• Bottom Heating: concentrated lower heat ideal for crisping pastry bases and finishing dishes.
• Pizza Function: intensive lower heat with fan assistance for pizzas and crisp-based cooking.

• Oven type: Single built-in electric oven
• Series: Bosch Series 4
• Oven capacity: 85 L
• Number of heating methods: 7
• Temperature range: 30°C – 250°C
• Control type: Pop-out rotary controls with touch controls
• Display type: Red LED display
• Cleaning system: Hydrolytic cleaning assistance with catalytic liners
• Interior finish: GranitEnamel
• Shelf positions: 4
• Telescopic runner system: Level-independent clip rails
• Lighting type: 2 x halogen lights
• Cooling fan: Integrated
• Door glazing: Triple glazed
• Fuel type: Electric
• Maximum connected load: 3.1 kW
• Maximum current rating: 12.9 A
• Voltage: 220–240 V
• Frequency: 50 / 60 Hz
• Cord length: 1.15 m
• Plug type: No plug supplied

• Installation type: Built-in
• Connection type: Hardwired
• Electrical installation: Must be connected by a licensed electrician
• Power supply: 220–240 V / 50–60 Hz
• Connected load: 3.1 kW
• Maximum current rating: 12.9 A

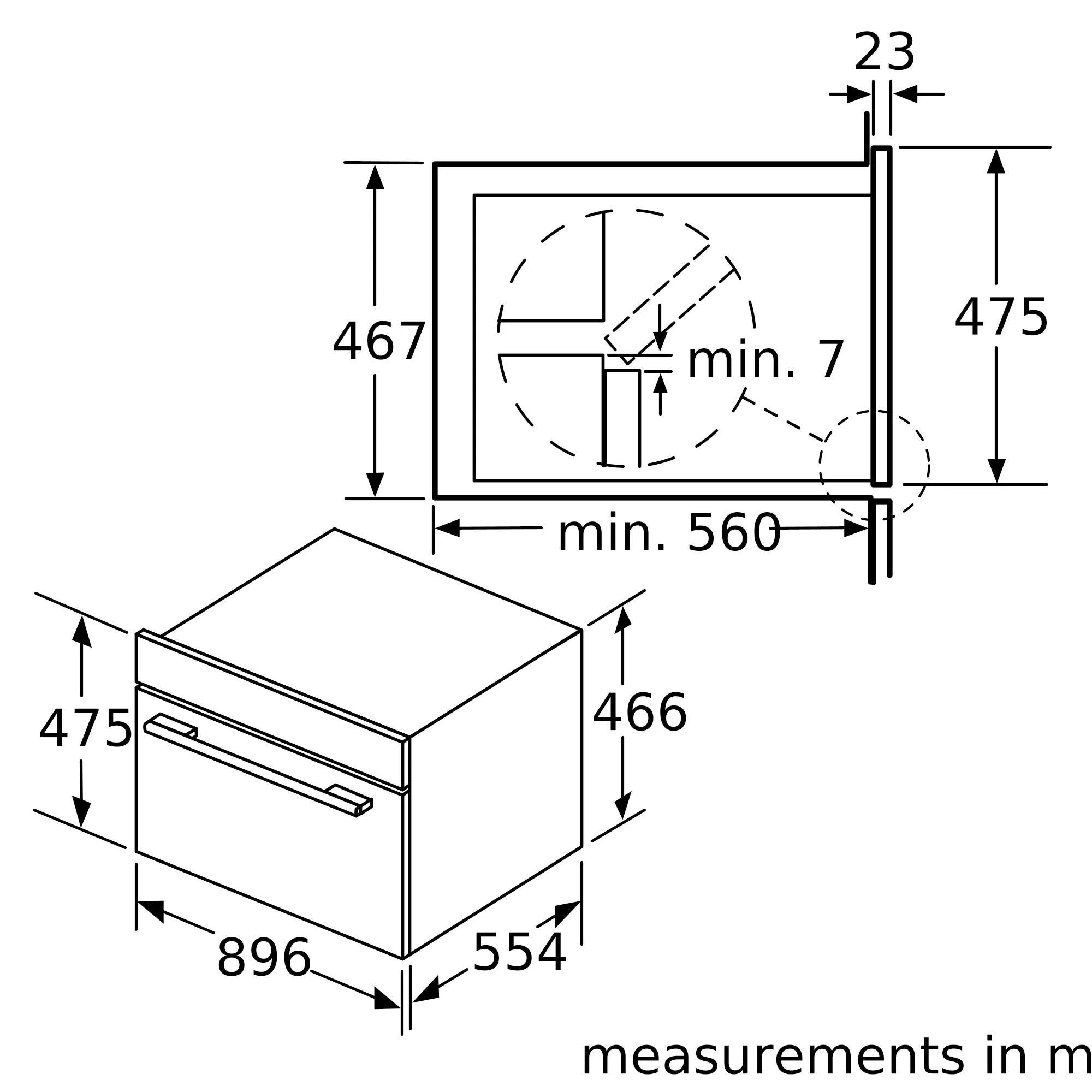

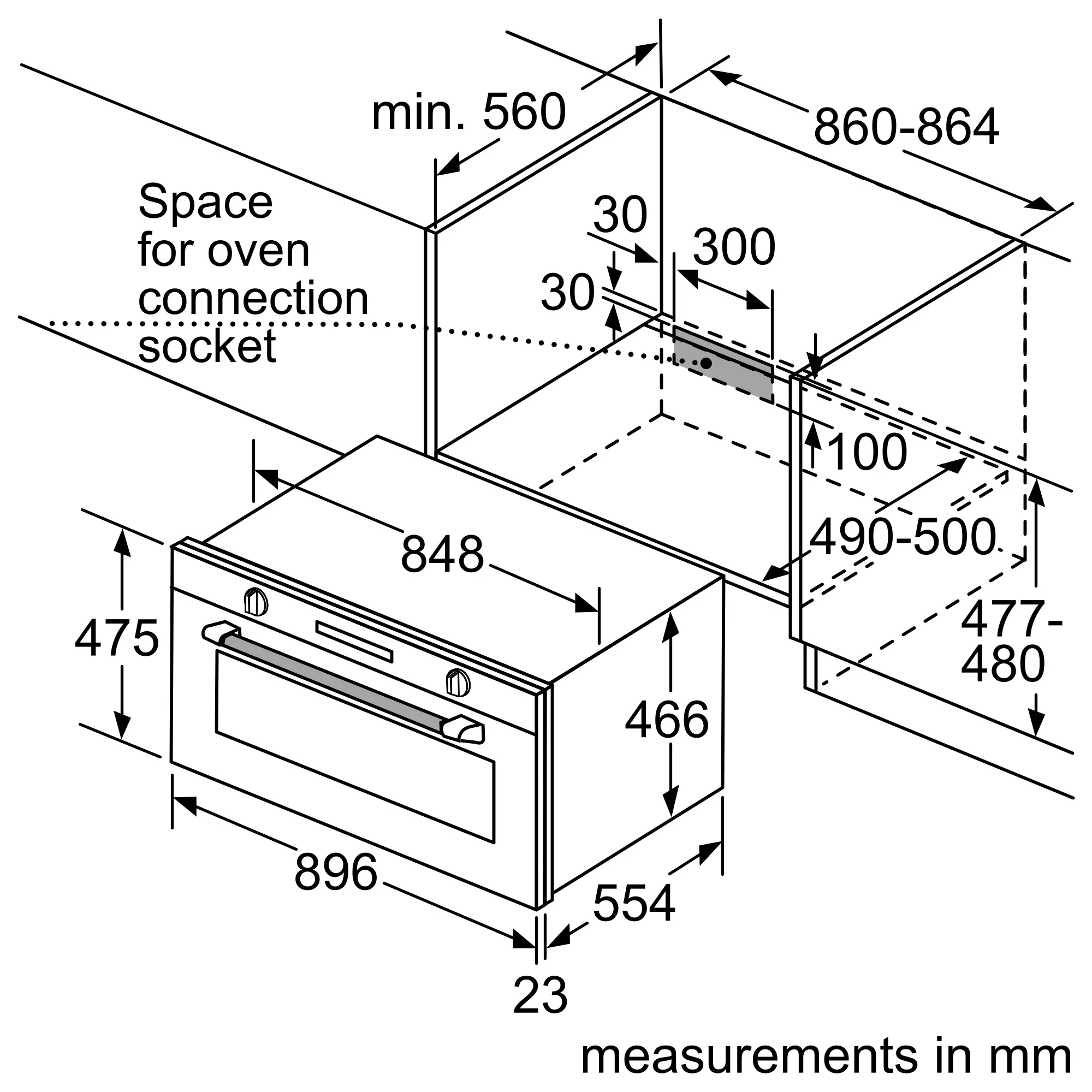

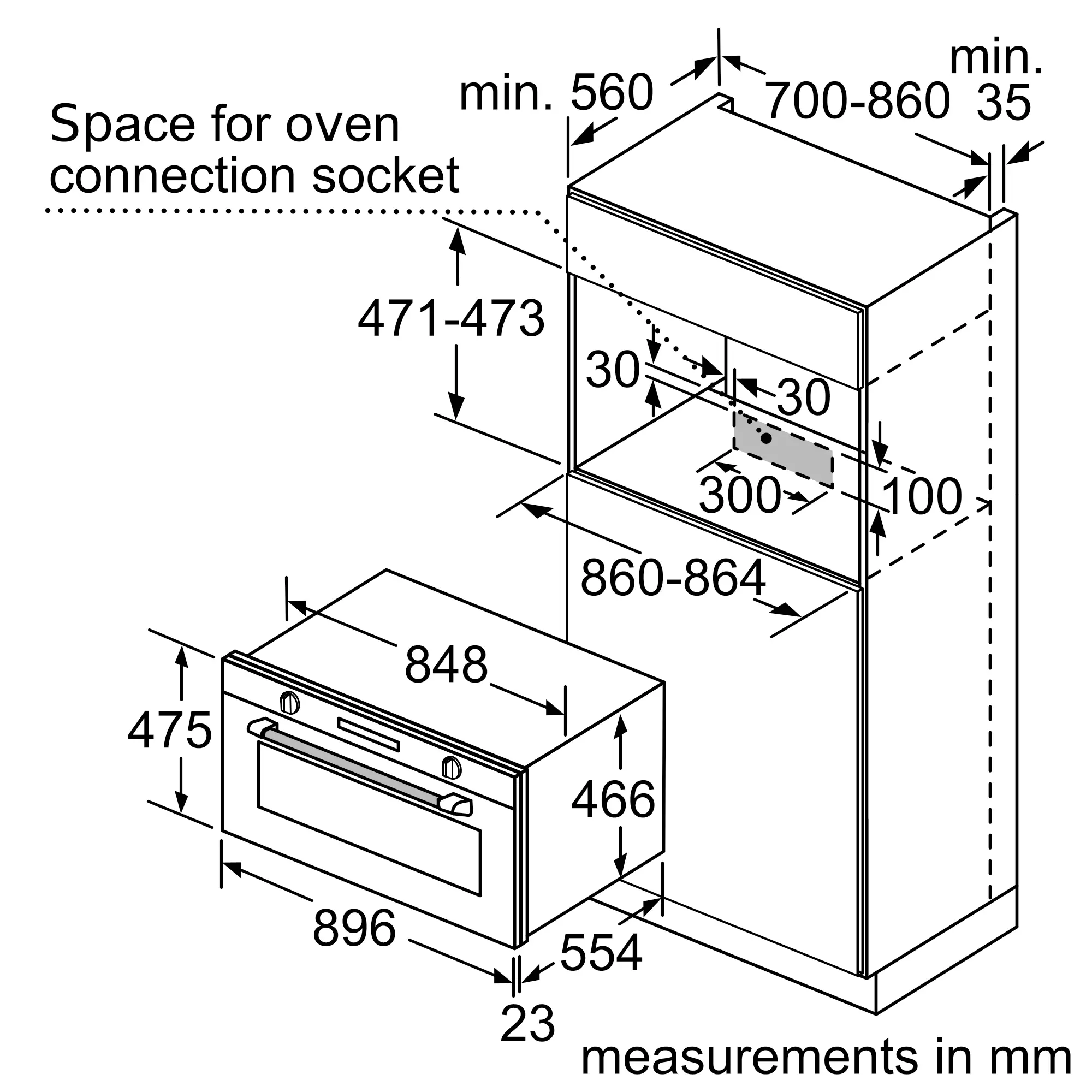

• Installation suitability: suitable for wall installation or built-under benchtop installation
• Plug supplied: No

Bosch Warranty

• Bosch appliances are backed in Australia by BSH Home Appliances Pty Ltd, providing trusted after-sales support and service nationwide.

Warranty Coverage

Domestic Use:

• Bosch appliances are covered by a 2-year manufacturer’s warranty from the date of purchase, covering defects in materials and workmanship.

Commercial Use

• If used for commercial purposes, the warranty period is limited to 3 months.
• This warranty is provided in addition to your rights under Australian Consumer Law.

What’s Covered

Under normal domestic use, the warranty includes:

• Manufacturing defects
• Repair or replacement of faulty components
• Service within Bosch’s authorised service network

For minor failures, Bosch may choose to repair or replace the appliance.

• Proof of purchase is required to make a claim.
• To lodge a claim, contact Bosch Customer Care Australia on 1300 369 744.

What’s Not Covered

The warranty does not apply to damage caused by:

• Incorrect installation or operation
• Unauthorised repairs or non-approved parts
• Incorrect power, gas or water supply
• Commercial use beyond 3 months
• Normal wear and tear (filters, seals, globes, fuses, etc.)
• Blockages, misuse, operator error or storm damage
• Delivery or installation damage
• Appliances exported outside Australia

Travel or transport costs may apply if you are located outside a Bosch service area.

Australian Consumer Law

• Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if they fail to be of acceptable quality and the failure does not amount to a major failure.

The Bosch VBC5540S0 is designed as a wide-format oven solution for larger kitchen layouts and households requiring increased cooking capacity. The 90cm cavity width supports larger roasting trays and simultaneous multi-dish cooking compared to standard 60cm ovens.

Bosch telescopic clip rails can be positioned independently across shelf levels, improving flexibility when handling heavy cookware and trays. The triple-glazed oven door improves insulation efficiency while helping reduce external surface temperatures during operation.

Hydrolytic cleaning uses steam and heat to soften light residue inside the cavity, while catalytic liners continuously absorb grease splatter during cooking cycles. Regular manual maintenance is still recommended for optimal long-term performance.

• 1 x enamel baking tray
• 1 x combination grid
• 1 x universal pan
• 1 x level-independent telescopic rail set
