Product Description

Product Overview:

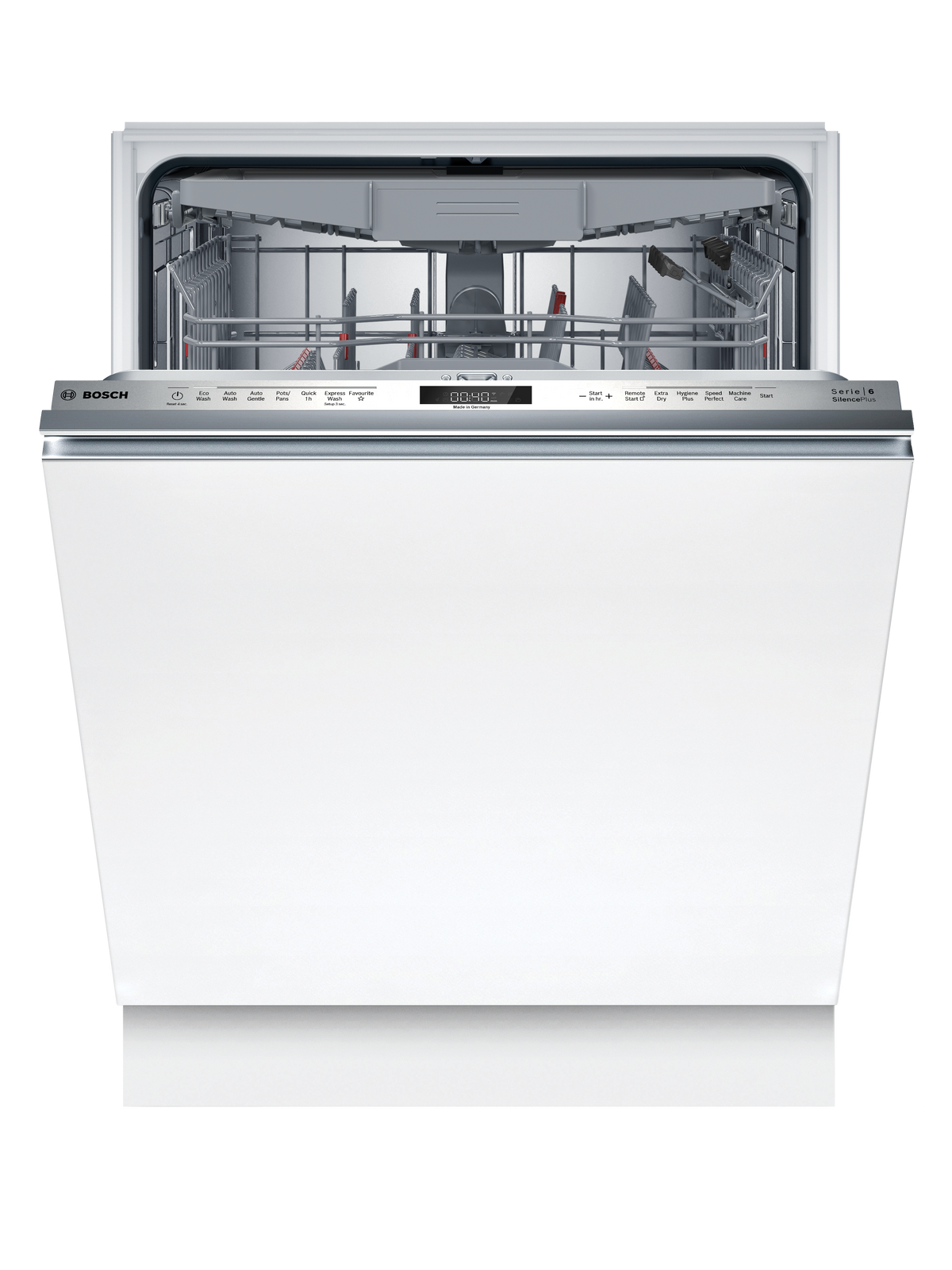

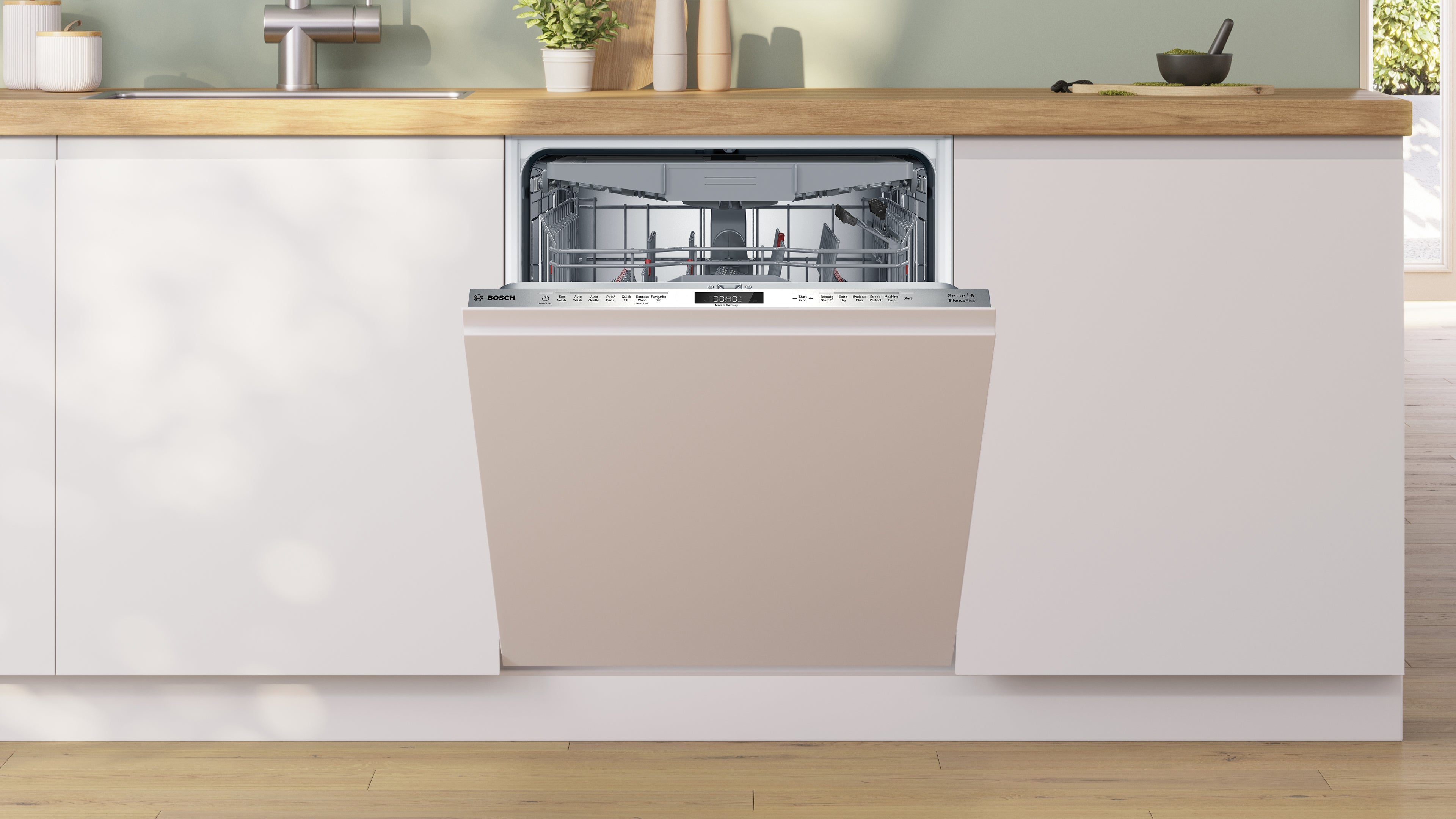

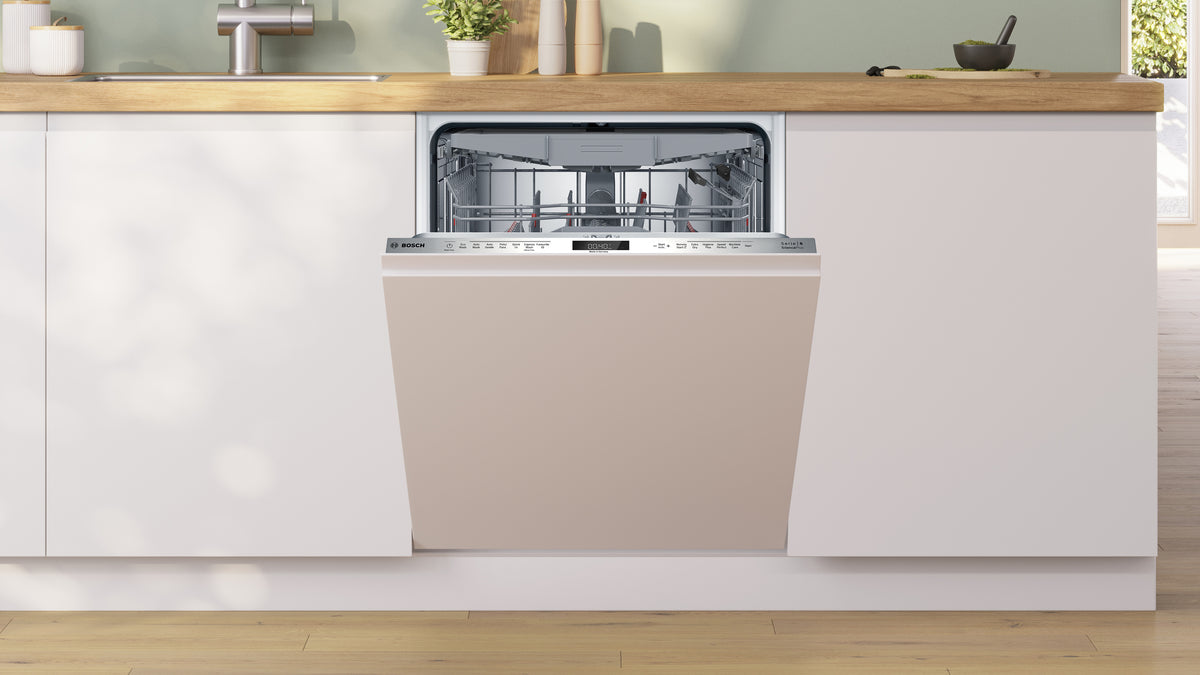

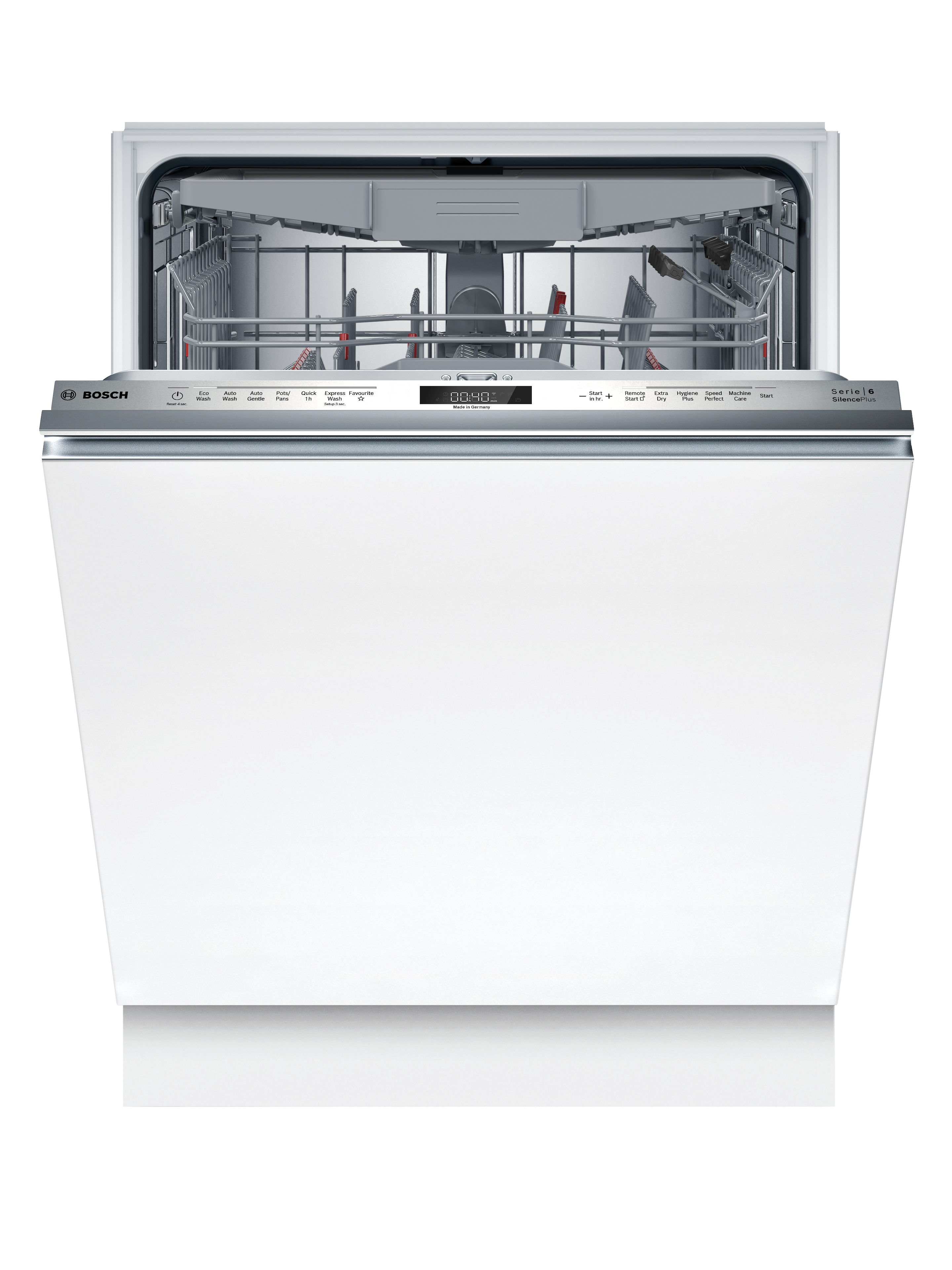

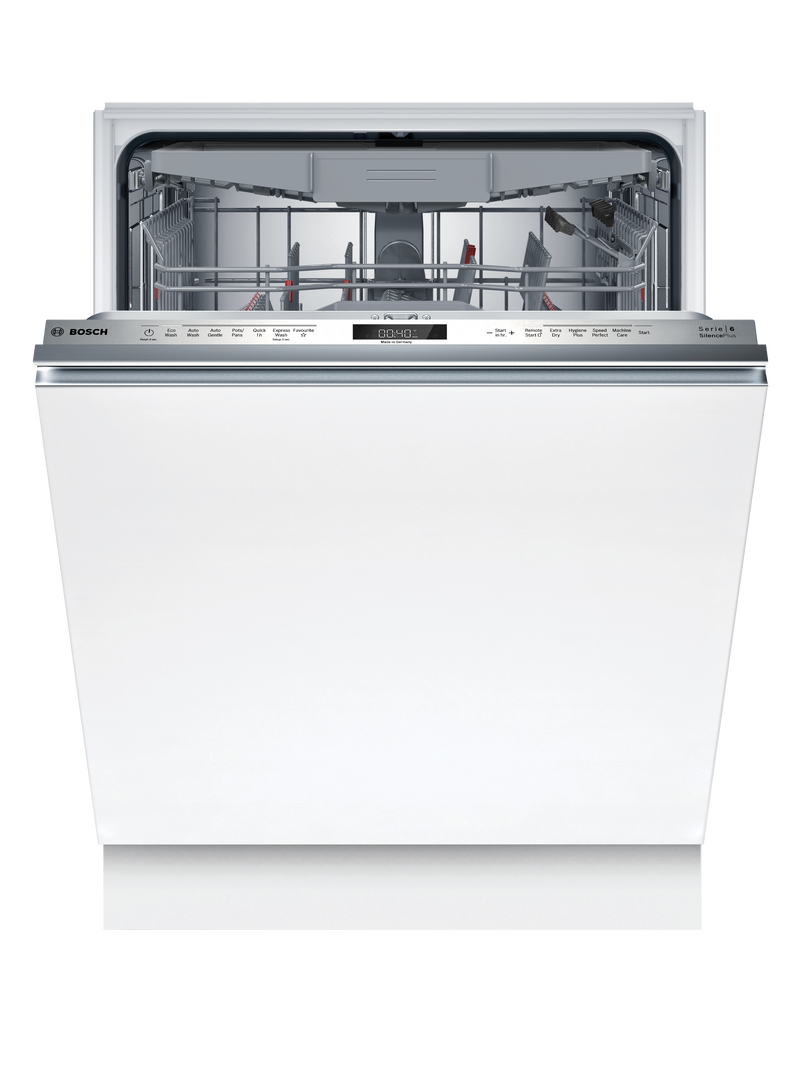

The Bosch SMV6HCX03A is a fully integrated 60cm dishwasher from the Bosch Series 6 collection, designed to integrate seamlessly behind custom kitchen cabinetry for a clean, uninterrupted kitchen aesthetic. With capacity for up to 15 place settings, it is suited to larger households and frequent entertaining while maintaining efficient water and energy consumption.

Featuring Bosch's Max Flex basket system, VarioDrawer cutlery tray, Rackmatic height-adjustable upper basket and Extra Clean Zone, the SMV6HCX03A delivers flexible loading options for everything from delicate glassware through to heavily soiled cookware. The Heat Exchanger drying system and Extra Dry function assist with improved drying performance, particularly for plastics and containers.

Home Connect connectivity provides smart control and monitoring via compatible mobile devices, while the EcoSilence Drive motor ensures quiet operation. Combined with AquaStop Plus leak protection and Bosch's German manufacturing heritage, the SMV6HCX03A is engineered for reliable everyday performance.

Product Features:

• 15 Place Setting Capacity: accommodates large family loads and entertaining requirements.

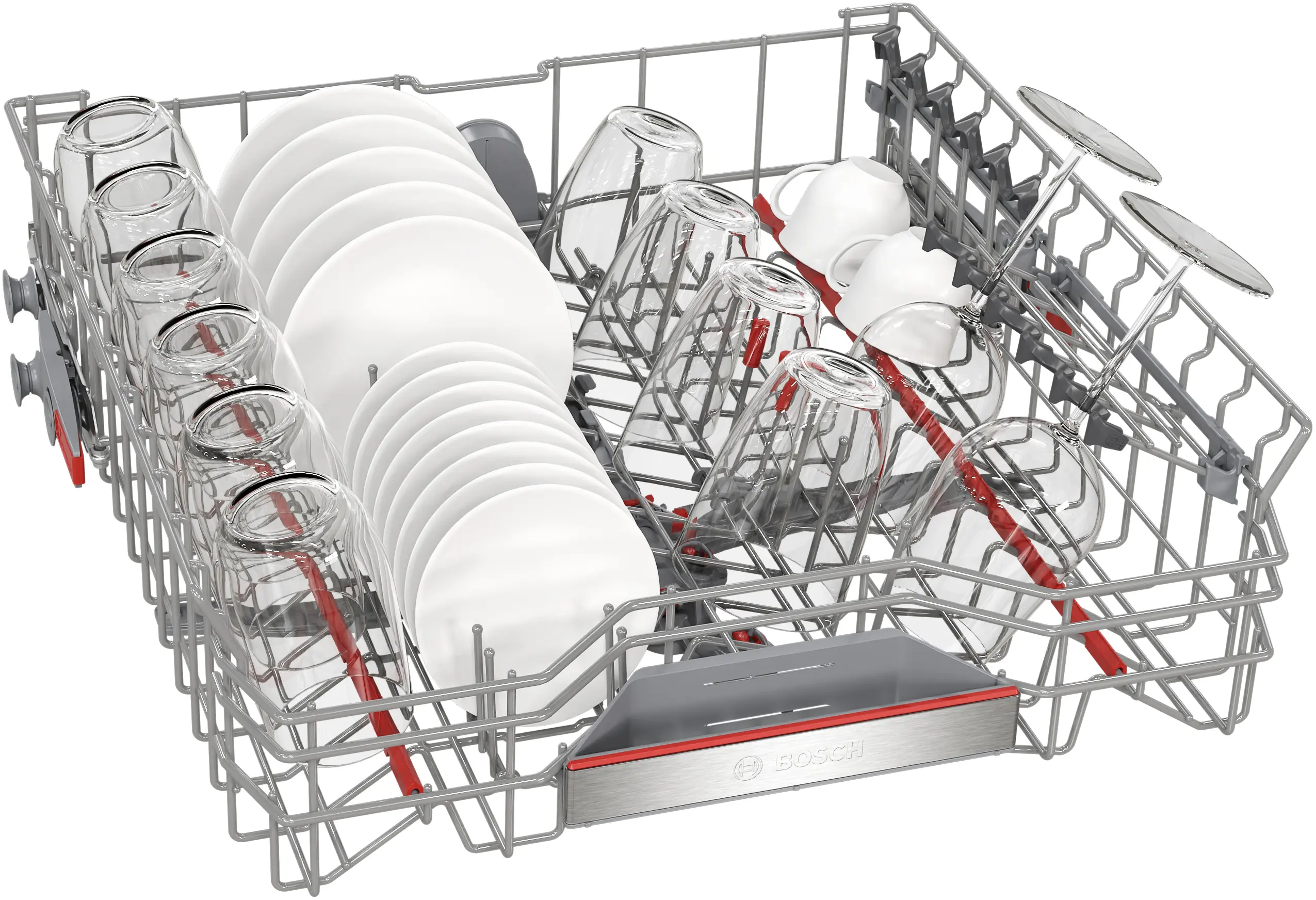

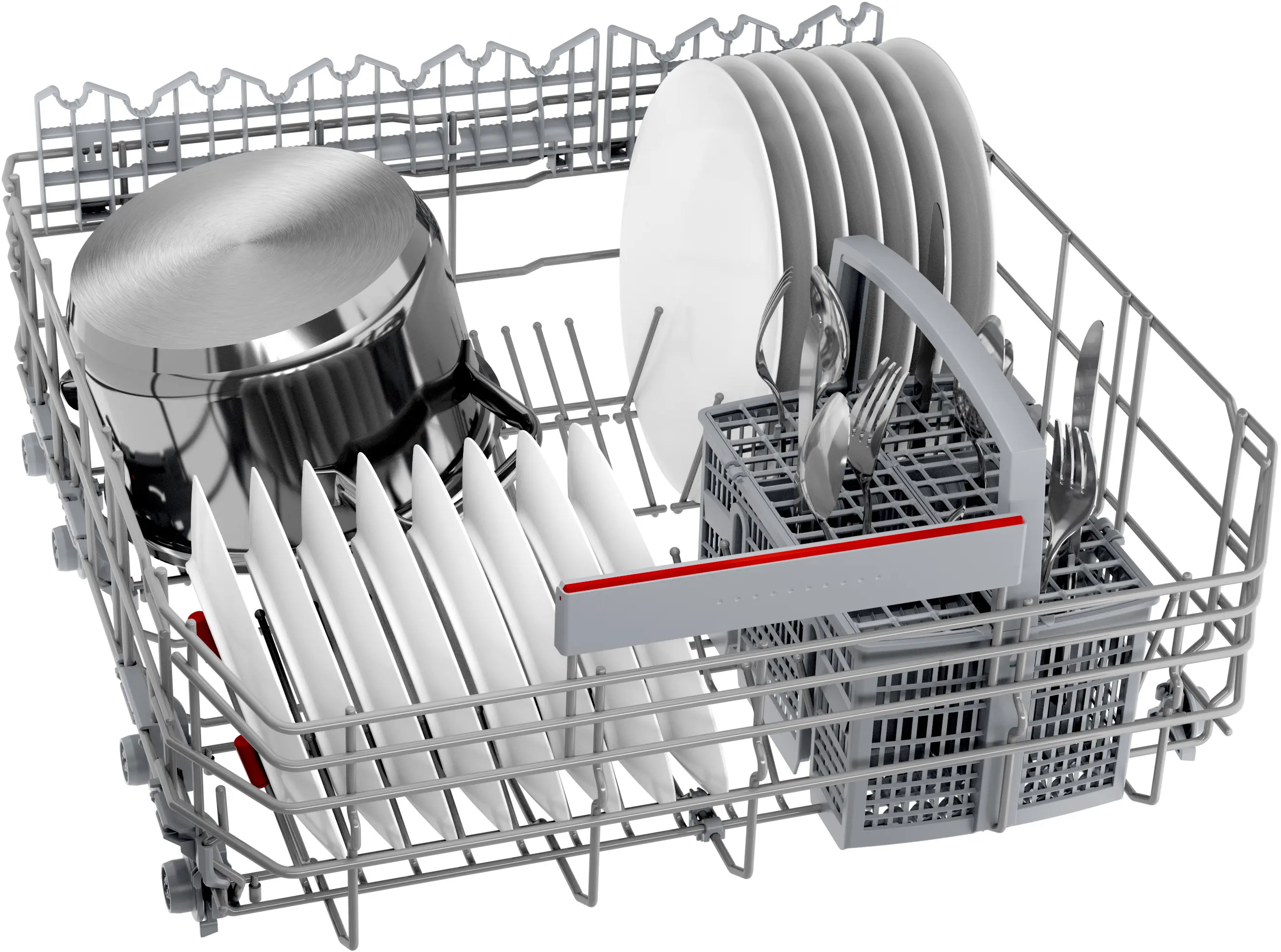

• Max Flex Basket System: flexible basket configuration with improved stability and loading versatility.

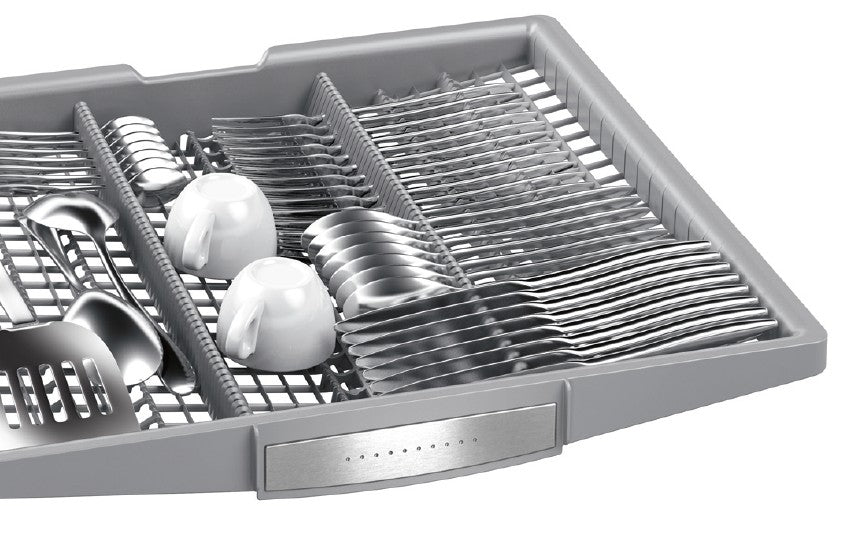

• VarioDrawer: dedicated third loading level for cutlery, utensils and smaller kitchen items.
• Rackmatic Height Adjustment: upper basket adjusts across three height positions, even when loaded.

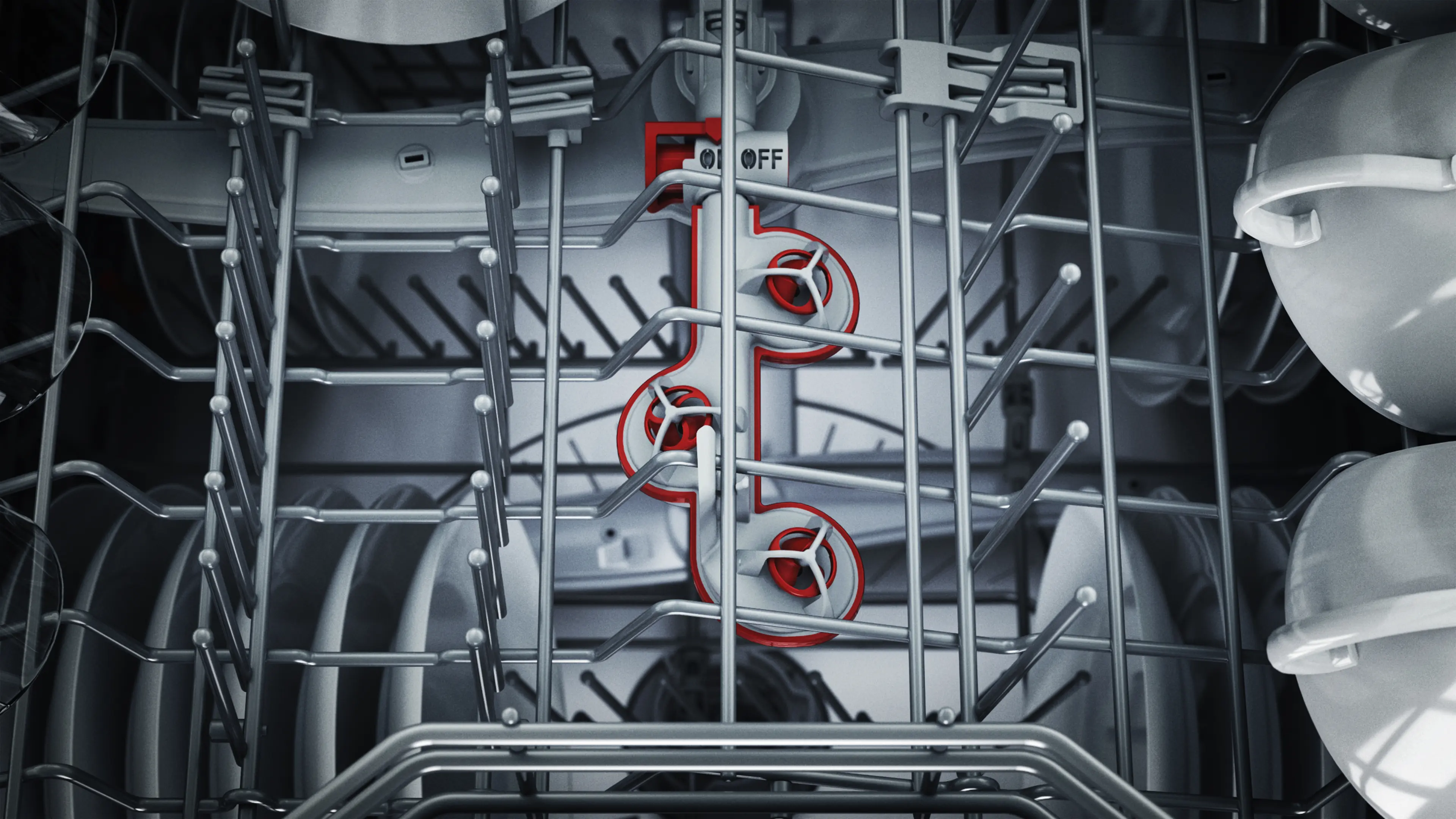

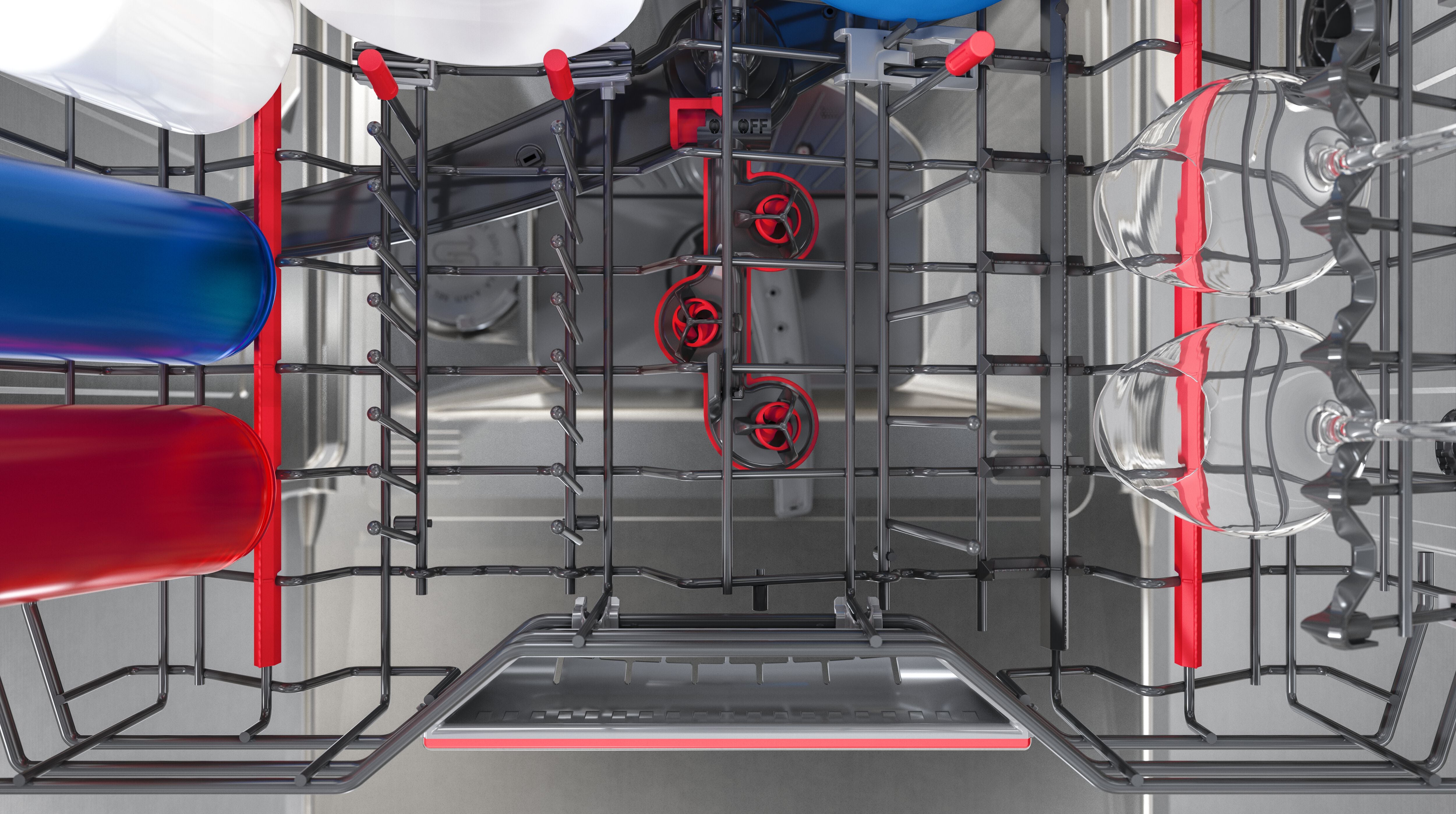

• Extra Clean Zone: increased spray intensity for heavily soiled items in the upper basket.
• Extra Dry: enhanced drying performance for difficult-to-dry items.
• EcoSilence Drive: efficient brushless motor technology engineered for quiet operation.
• Home Connect: remote monitoring and control via compatible smart devices.
• Favourite Function: save preferred programme and option combinations for one-touch selection.

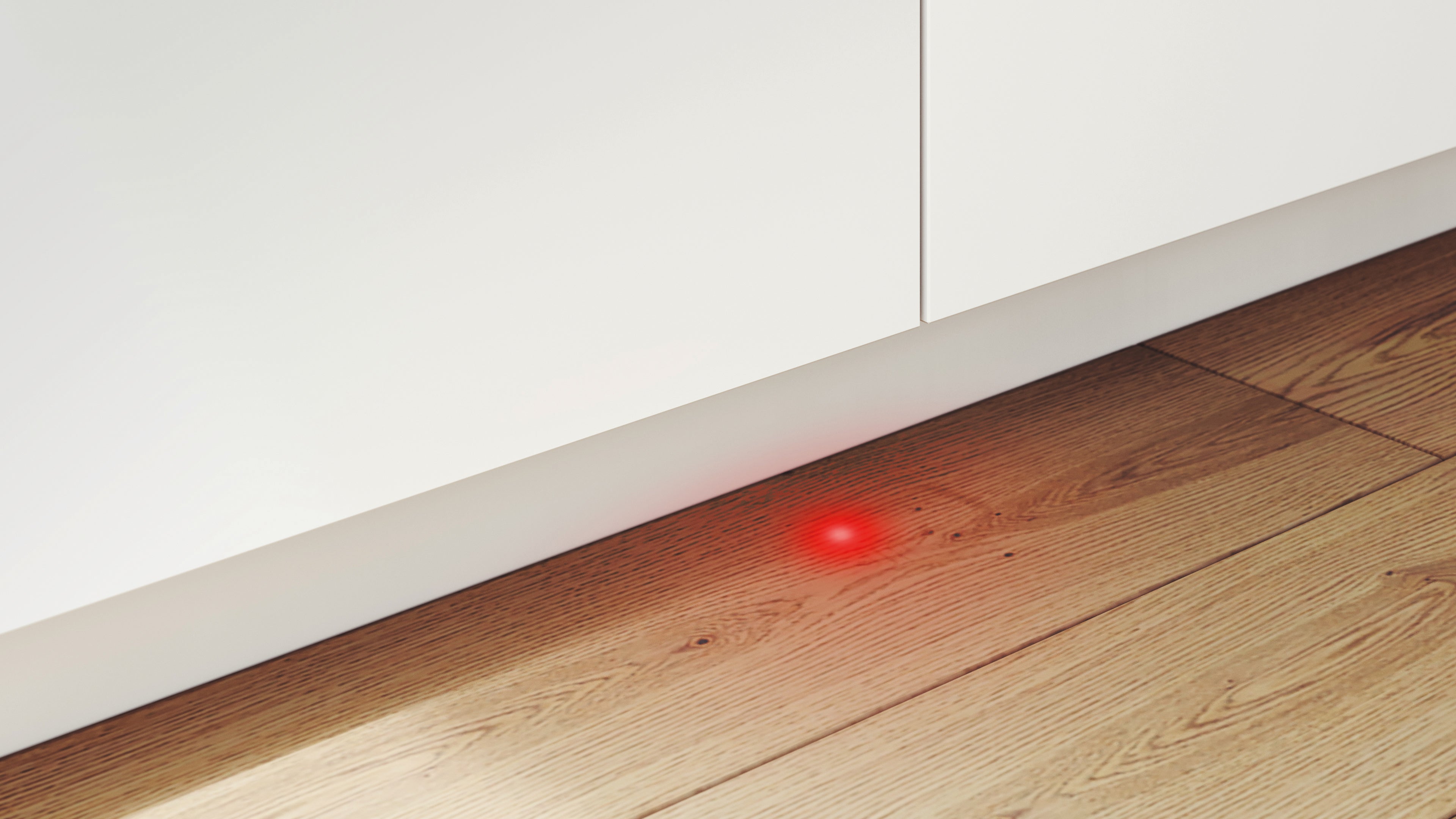

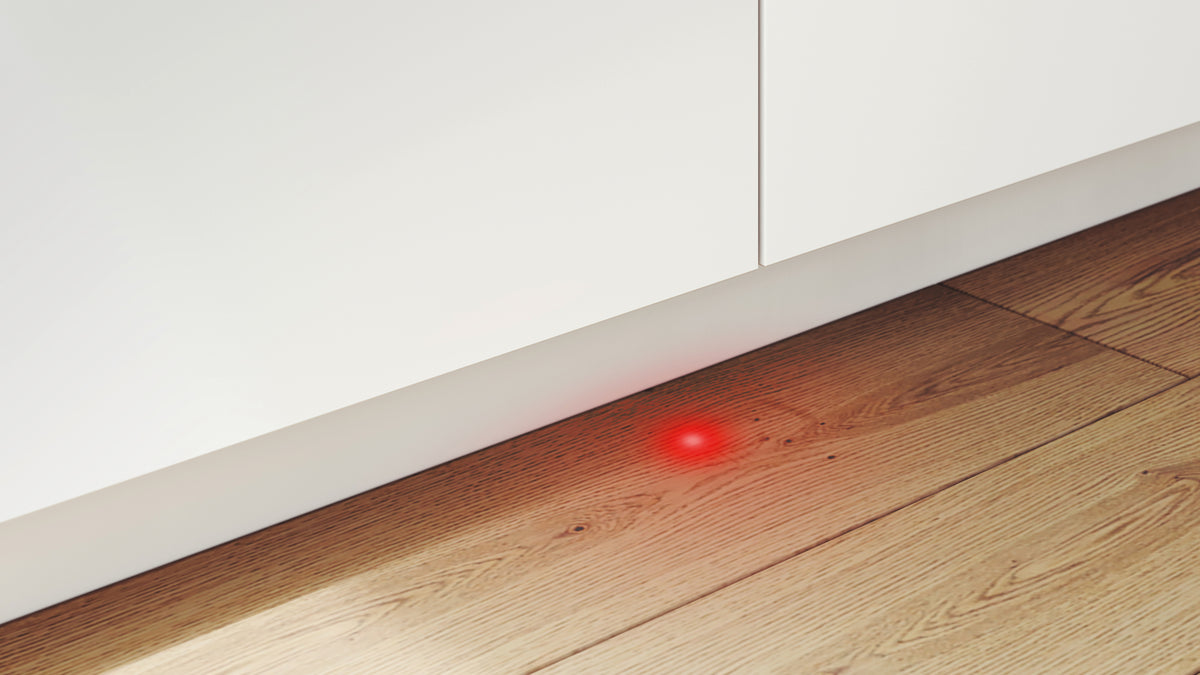

• InfoLight: projects a red light onto the floor during operation.
• AquaStop Plus: advanced anti-flood protection system.

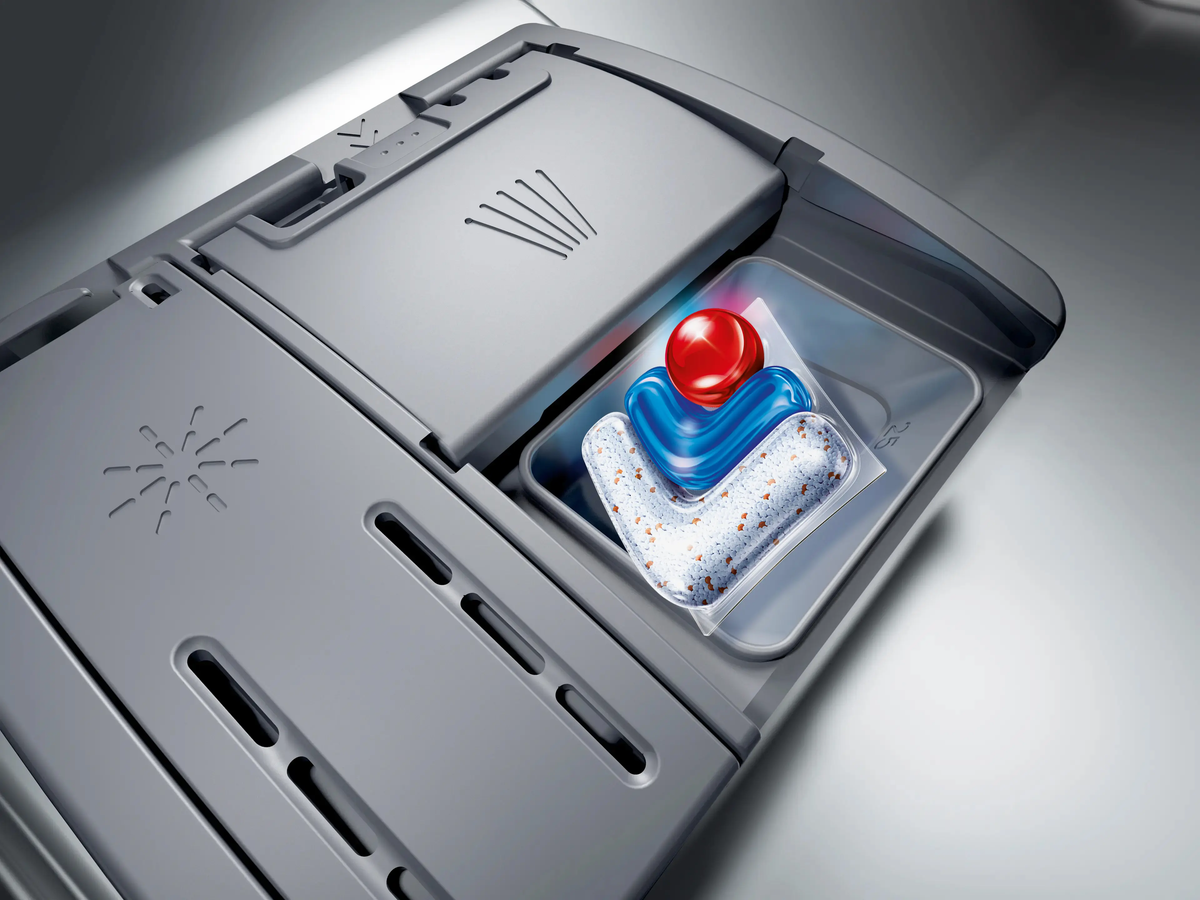

• DosageAssist: optimised detergent distribution for improved cleaning performance.
• ActiveWater Technology: intelligent water management system.
• SpeedPerfect+: reduces programme duration while maintaining cleaning performance.
• Silence On Demand: temporary noise reduction via the Home Connect app.

Colour / Finishes:

• Fully Integrated (Own Cabinetry) — SMV6HCX03A

Programmes / Functions:

• Eco 50°C: Energy-efficient programme designed for normally soiled dishes while minimising water and electricity consumption.
• Auto 45–65°C: Automatically adjusts temperature, water usage and cycle duration based on load soil levels.
• Intensive 70°C: High-temperature programme for heavily soiled pots, pans and cookware.
• Express Wash: Faster wash cycle for lightly soiled dishes requiring quick turnaround.
• Quick 1 Hour: Washes and dries everyday loads in approximately one hour.
• Favourite: Stores your preferred programme and option combination for convenient one-touch operation.
• Machine Care: Dedicated cleaning cycle designed to maintain dishwasher hygiene and performance.

Additional Options:

• SpeedPerfect+: Reduces programme duration while maintaining cleaning performance.
• Extra Dry: Enhances drying performance for plastics and difficult-to-dry items.
• Hygiene Plus: Increases final rinse temperature for enhanced hygienic cleaning.
• Extra Clean Zone: Provides additional spray intensity for heavily soiled items in the upper basket.
• Remote Start: Allows programme activation via the Home Connect app.
• Silence On Demand: Temporarily reduces operating noise through Home Connect.
• Delay Start: Schedules wash cycles up to 24 hours in advance.

Cleaning & Maintenance:

• Machine Care Programme: Assists in removing grease and detergent build-up from the dishwasher interior.

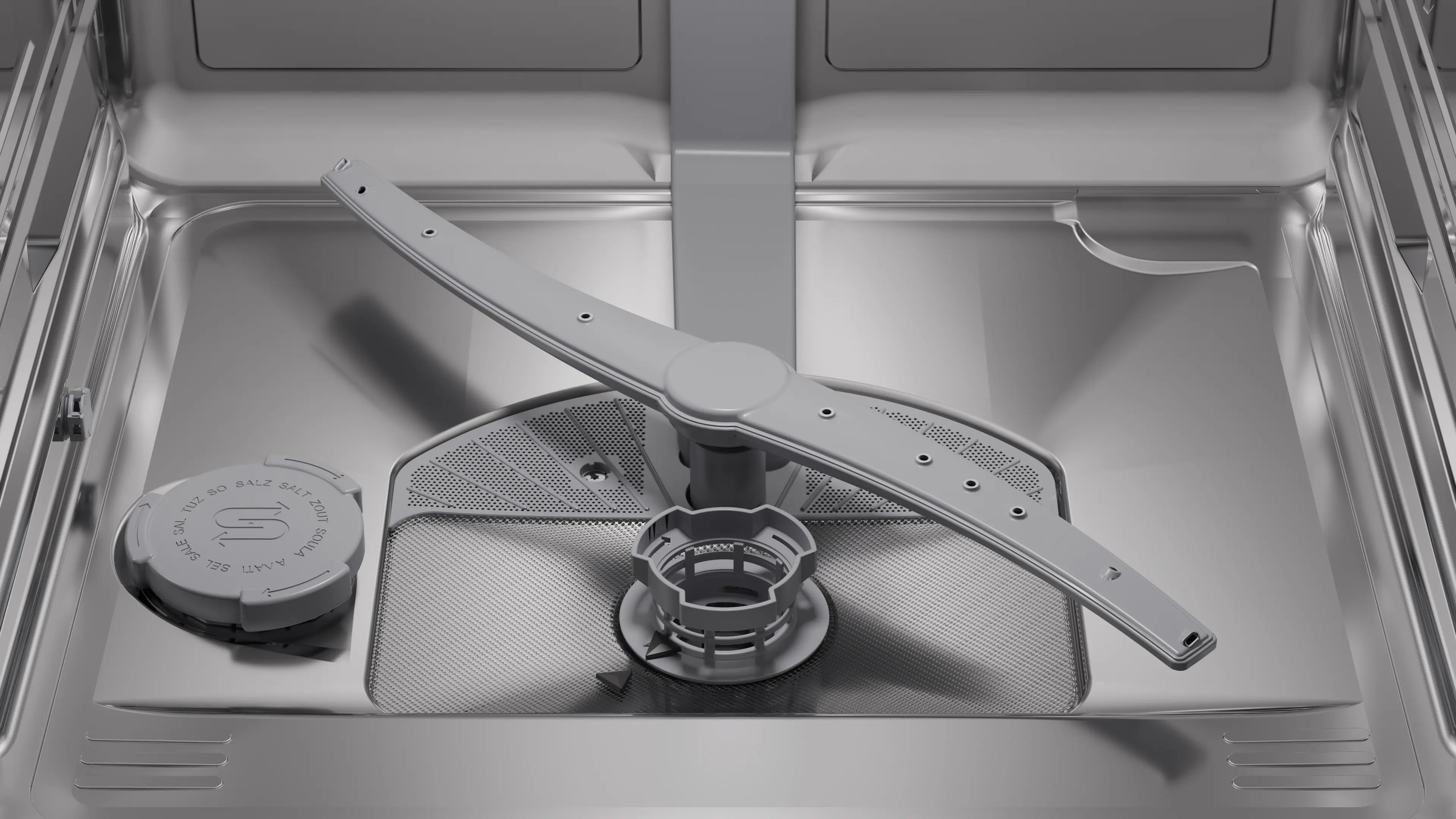

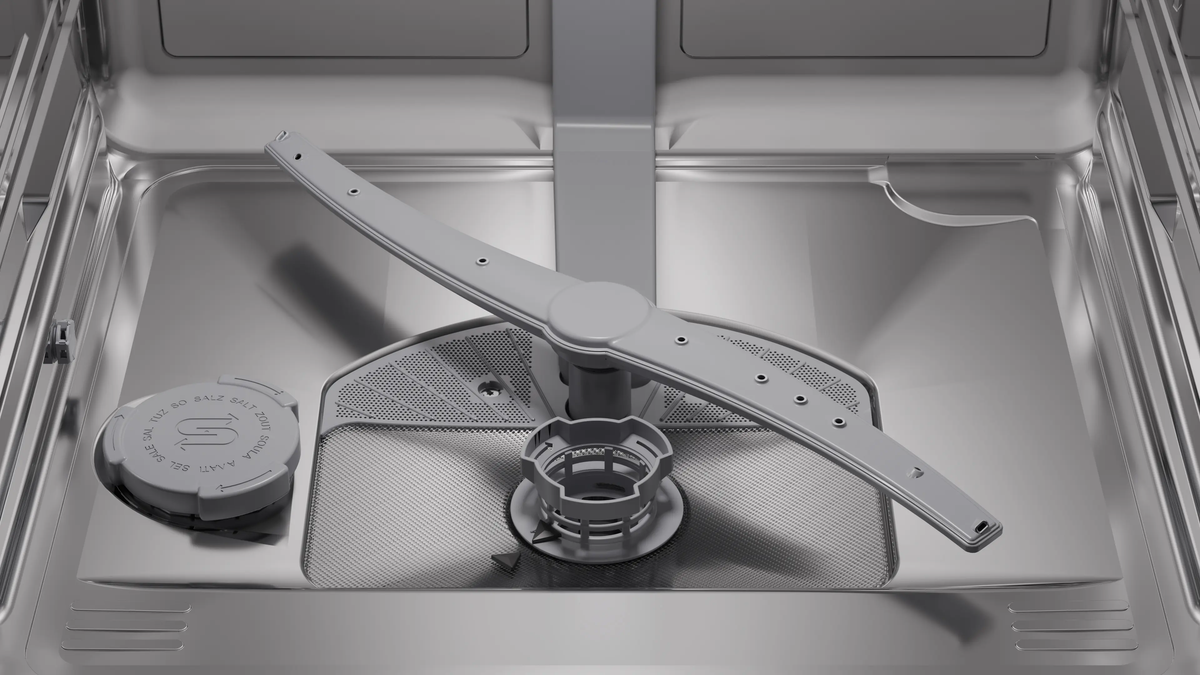

• Triple Filter System: Removable filtration system designed for straightforward cleaning and maintenance.
• Self-Cleaning Filter Support: Helps reduce food particle accumulation during operation.
• Heat Exchanger Drying: Provides efficient drying performance while helping protect delicate glassware.
• Stainless Steel Interior: Durable cavity construction designed for long-term use and easy cleaning.
• AquaStop Plus Protection: Continuously monitors water flow to help prevent leaks and water damage.
• DosageAssist System: Ensures detergent is thoroughly dissolved and distributed throughout the wash cycle.

Specifications:

• Dishwasher Type: Fully Integrated
• Series: Series 6
• Capacity: 15 Place Settings
• Number of Programmes: 7
• Basket System: Max Flex
• Cutlery Storage: VarioDrawer
• Drying System: Heat Exchanger
• Motor Type: EcoSilence Drive

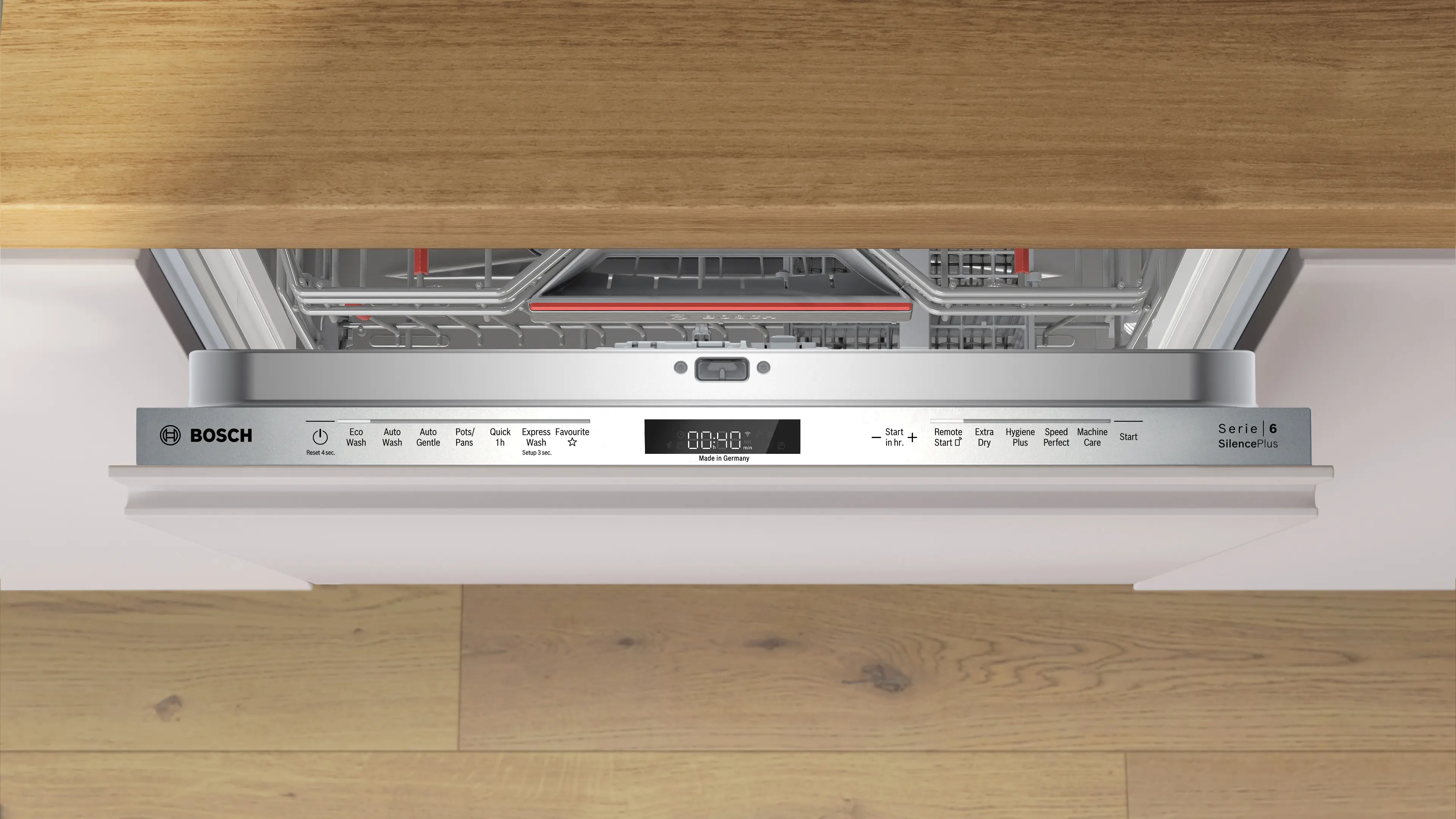

• Control Type: Electronic Touch Controls
• Connectivity: Home Connect Wi-Fi
• WELS Rating: 5.5 Star
• Water Consumption: 11 L per wash (Eco Programme)
• WELS Registration: D45707
• Energy Rating: 4 Star
• Energy Consumption: 245 kWh per annum
• Noise Level: 44 dB(A)
• Delay Start: 1–24 Hours
• Leak Protection: AquaStop Plus
• Water Management System: ActiveWater
• Tub Material: Stainless Steel
• Water Connection: Cold Water Recommended

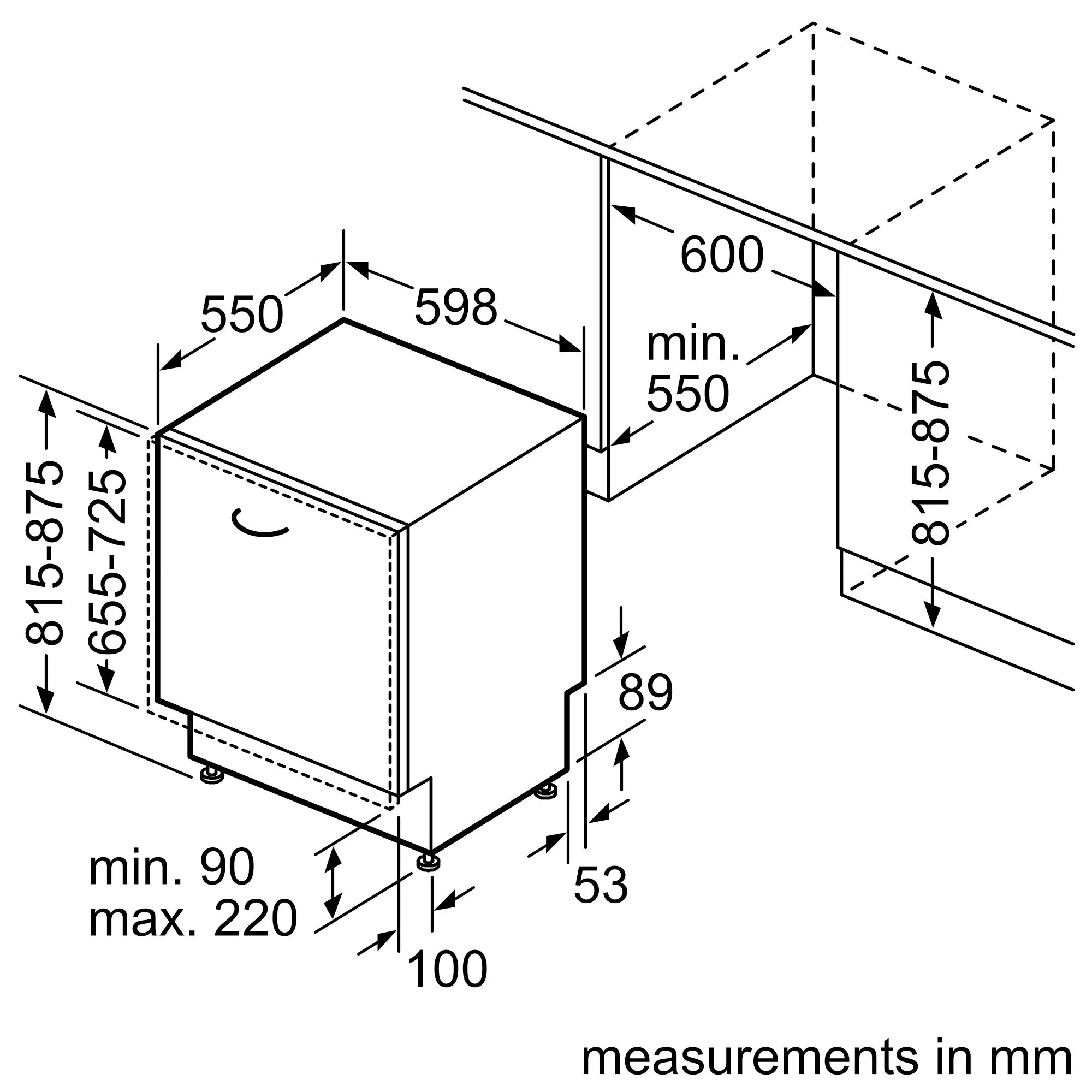

Product Measurements:

• Dimensions (W x H x D): 598 x 815 x 550 mm
• Maximum Height: 875 mm

Product Weight:

• Product Weight: 37.8 kg

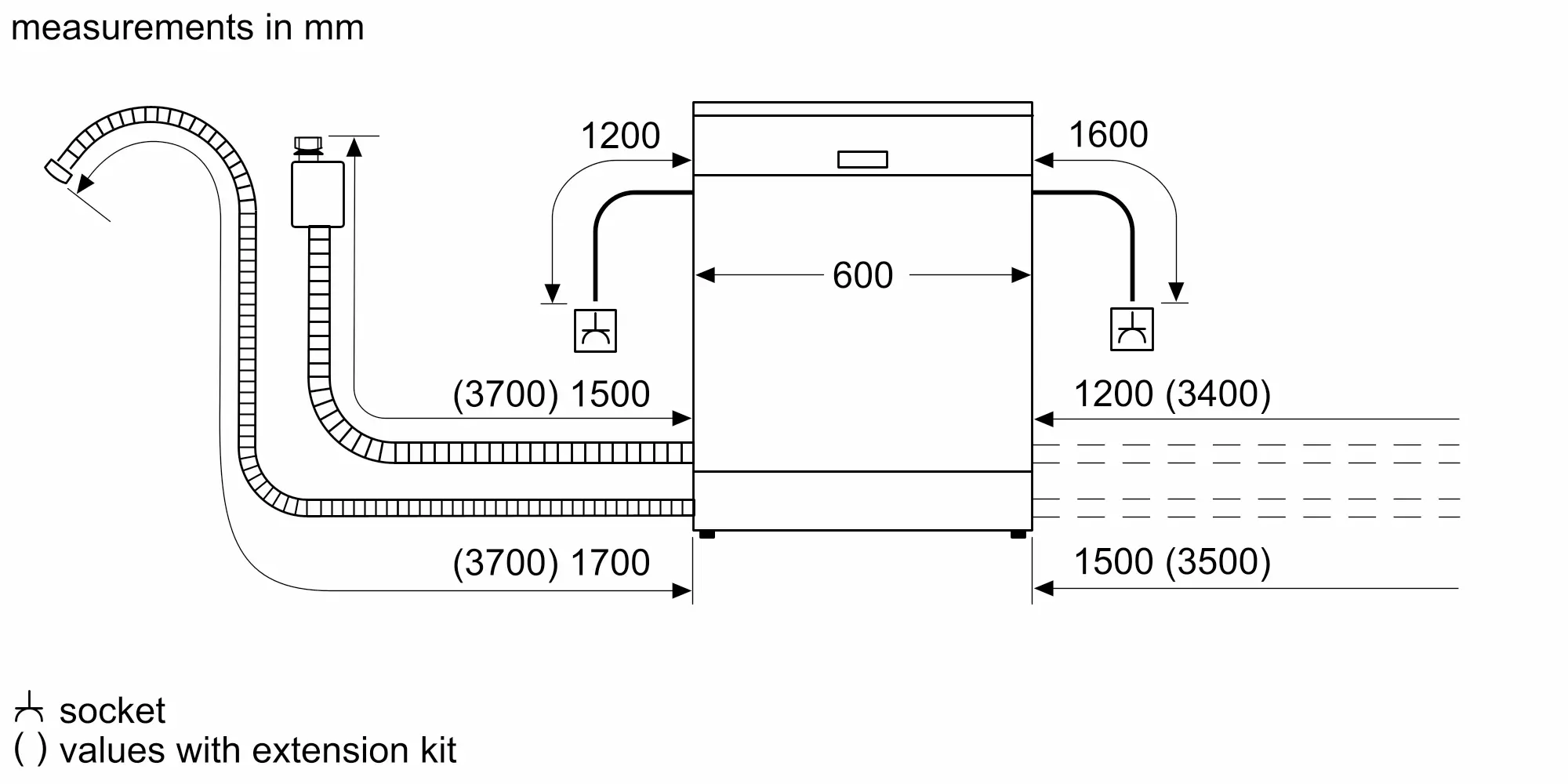

Installation & Requirements:

• Installation Type: Fully Integrated Built-In
• Cabinet Width: Suitable for standard 600 mm dishwasher cavity installations.
• Connection Type: Plug-In
• Power Supply: 240 V / 50 Hz
• Connected Load: 2400 W
• Power Outlet Requirement: 10 A standard household outlet
• Water Connection: Cold Water Inlet
• Power Cord Length: 1.75 m
• Levelling System: Adjustable rear foot mechanism
• Cabinet Door Panel: Custom cabinetry panel required and supplied separately.
• Professional Installation: Recommended to ensure correct integration and operation.

Country of Origin:

• Made in Germany

Extra Information:

Bosch's ActiveWater hydraulic system uses targeted spray technology, filtration management, and heating efficiency to optimise water and energy consumption throughout the wash cycle. The combination of Max Flex baskets and the VarioDrawer provides loading flexibility for cookware, glassware, utensils, and larger serving items.

Home Connect functionality allows compatible mobile devices to receive programme notifications, monitor cycle status, and access additional dishwasher functions. The Favourite Function can store commonly used programme combinations for one-touch operation.

The Heat Exchanger drying system assists energy-efficient drying while helping protect temperature-sensitive items such as glassware from thermal shock during the drying phase.

Included Products / Accessories:

• VarioDrawer Cutlery Tray
• Max Flex Basket System
• Water Inlet Hose
• Drain Hose
• Moisture Protection Strip
• Installation Hardware Kit
• Product Documentation

Warranty:

Backed by a 2-year manufacturer's warranty for peace of mind when installed and used according to manufacturer guidelines.
