• 14 place setting capacity: accommodates large household dishwashing loads in a single cycle.
• Fully integrated installation: designed for concealed installation behind custom cabinetry panels.
• Home Connect WiFi: compatible smart connectivity for remote monitoring and appliance control.

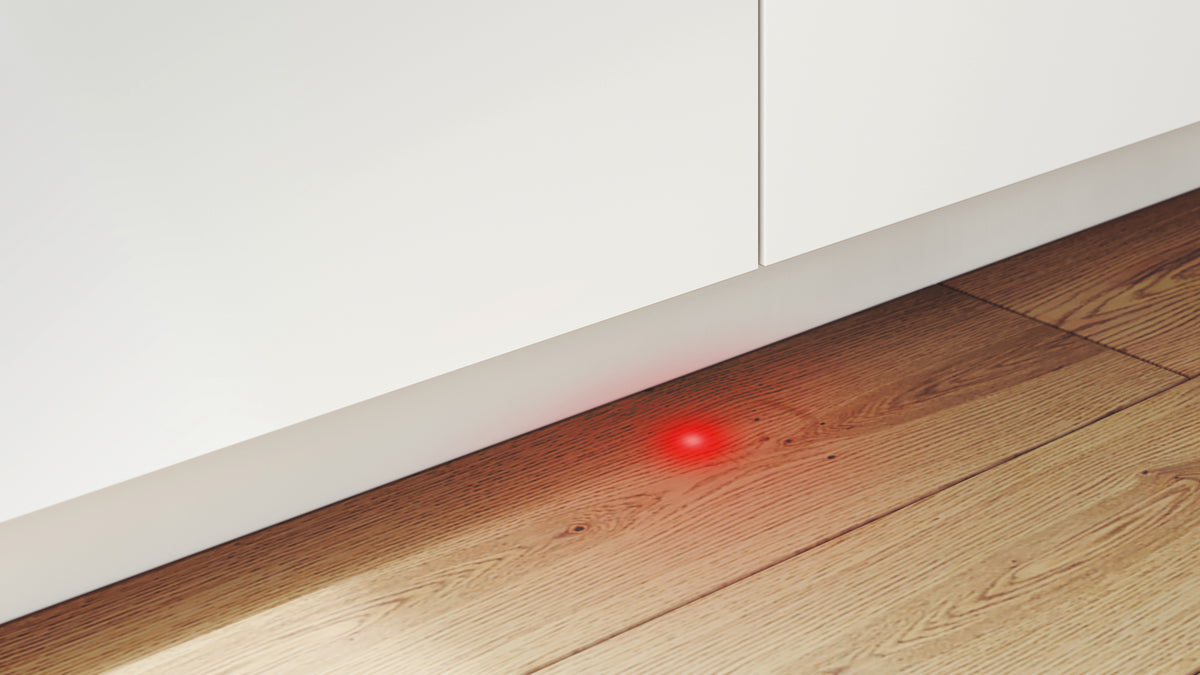

• InfoLight: red floor projection indicates active dishwasher operation.
• EcoSilence Drive motor: brushless motor technology engineered for quieter and energy-efficient operation.

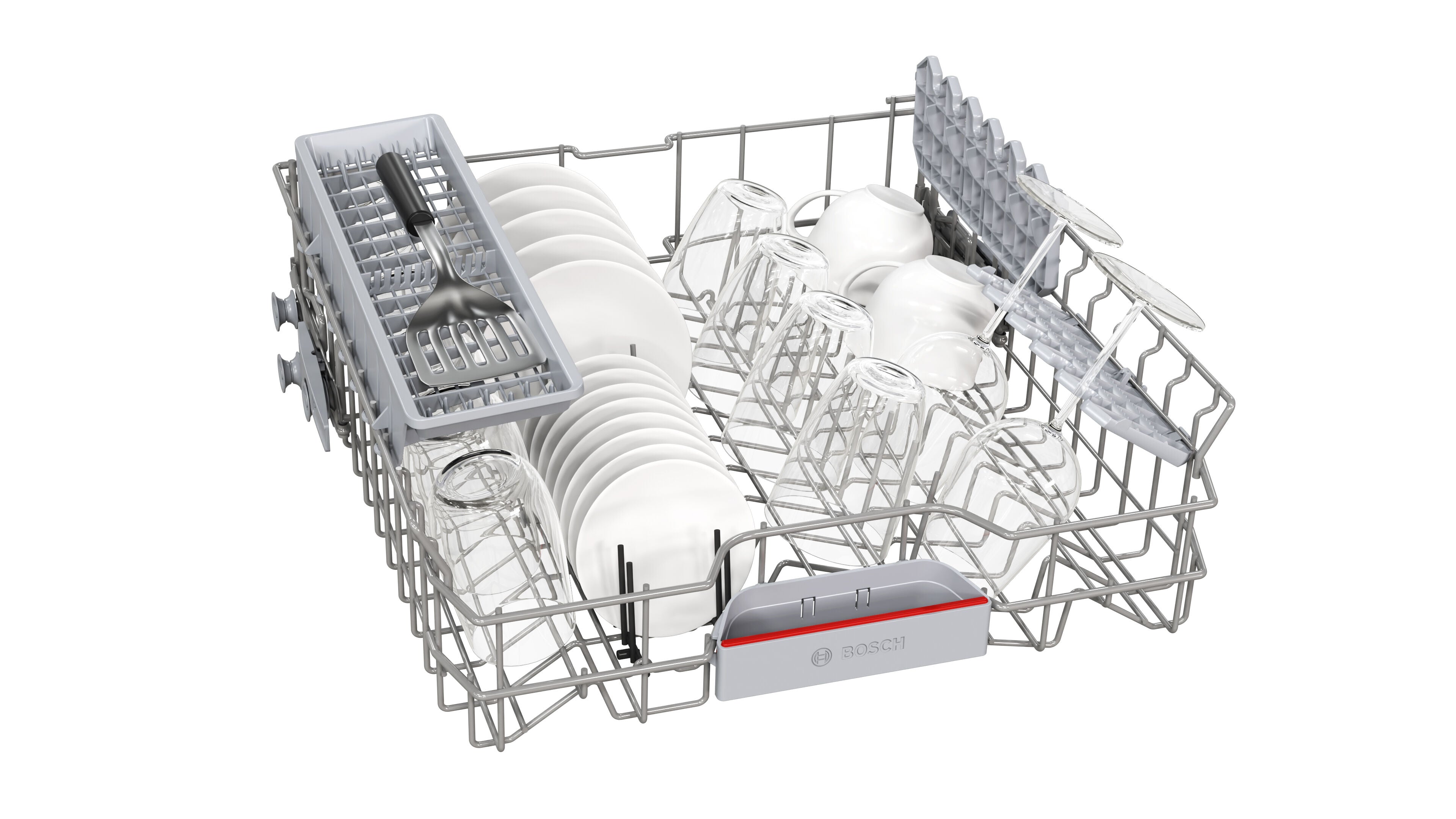

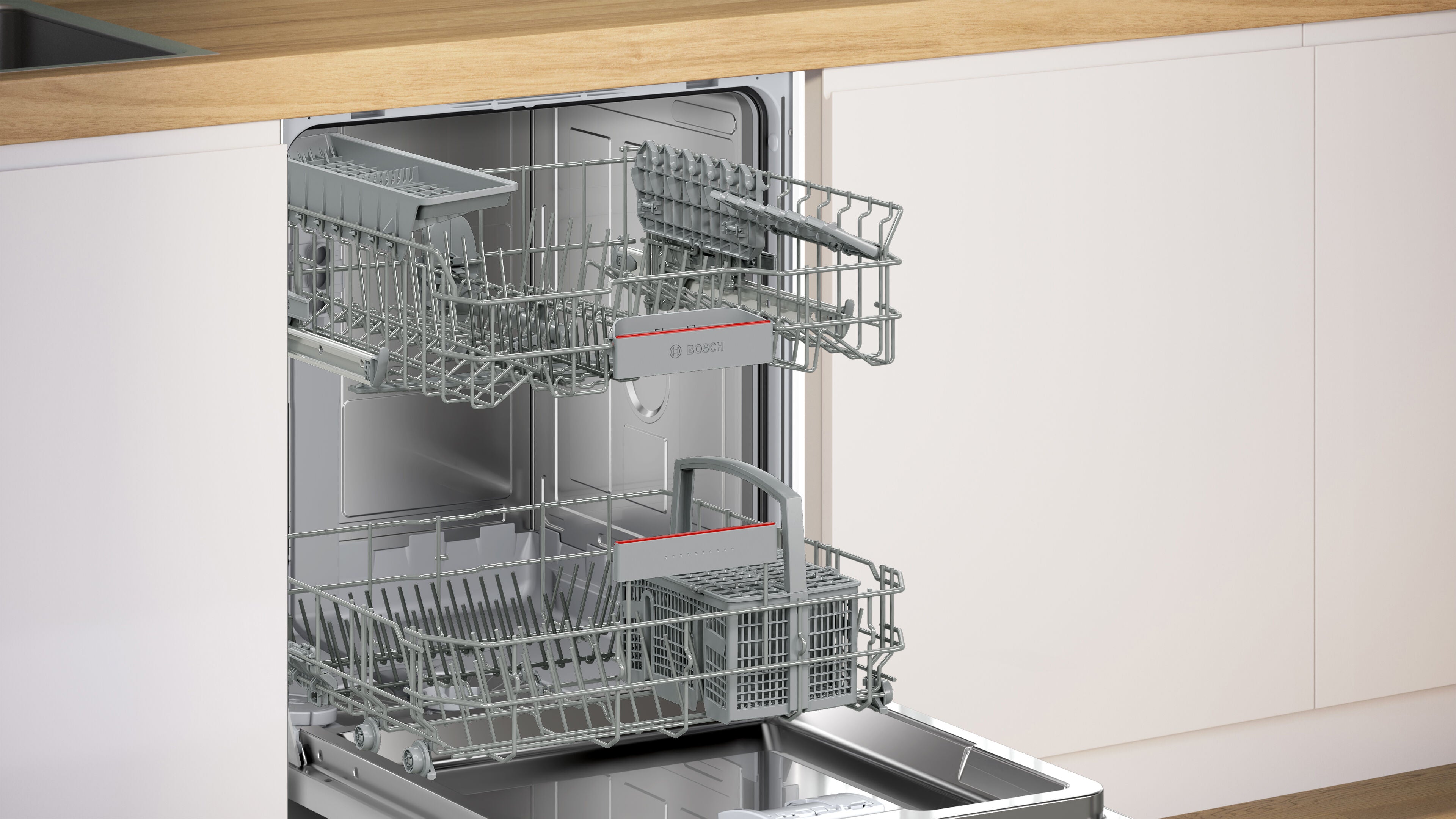

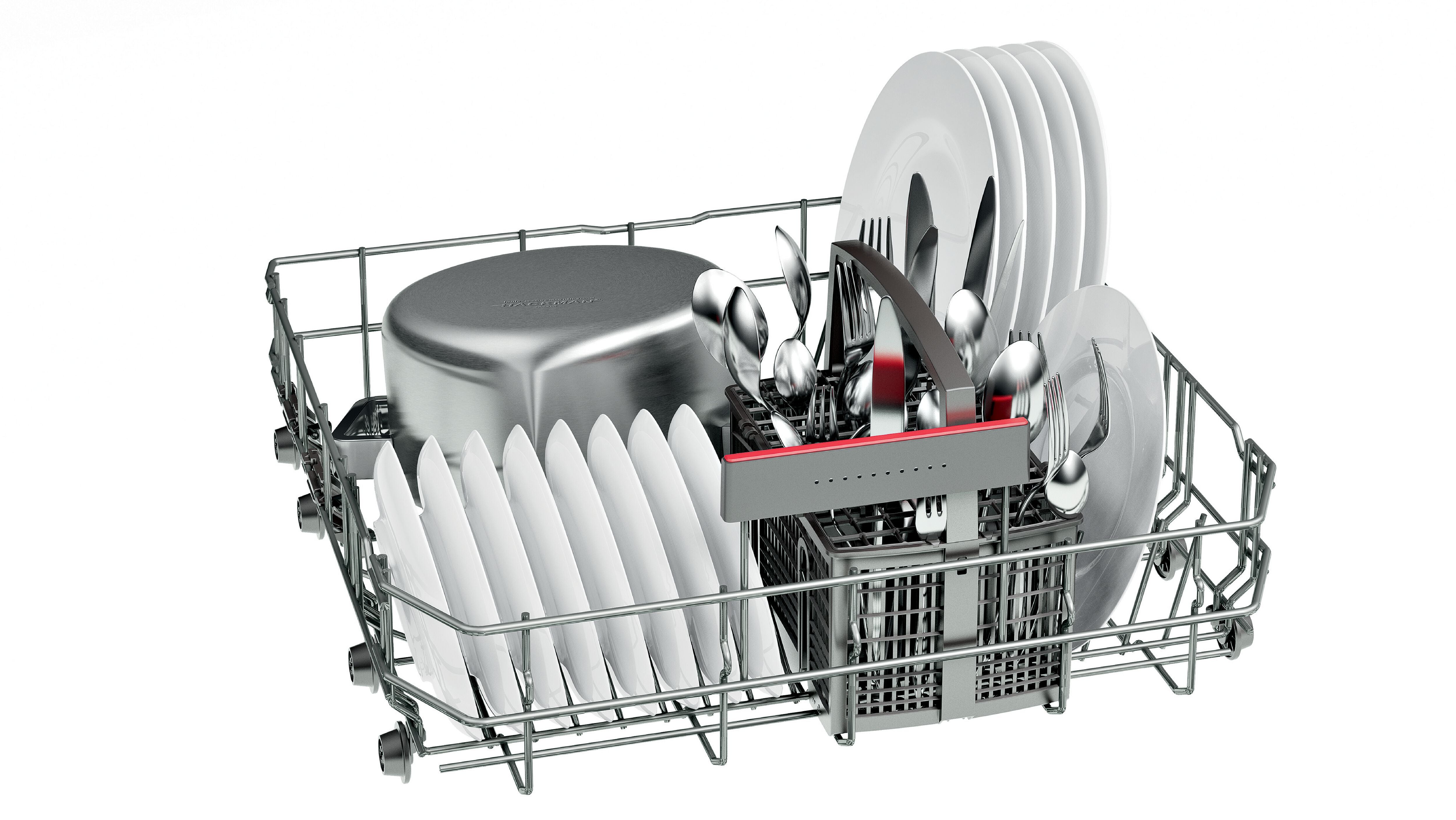

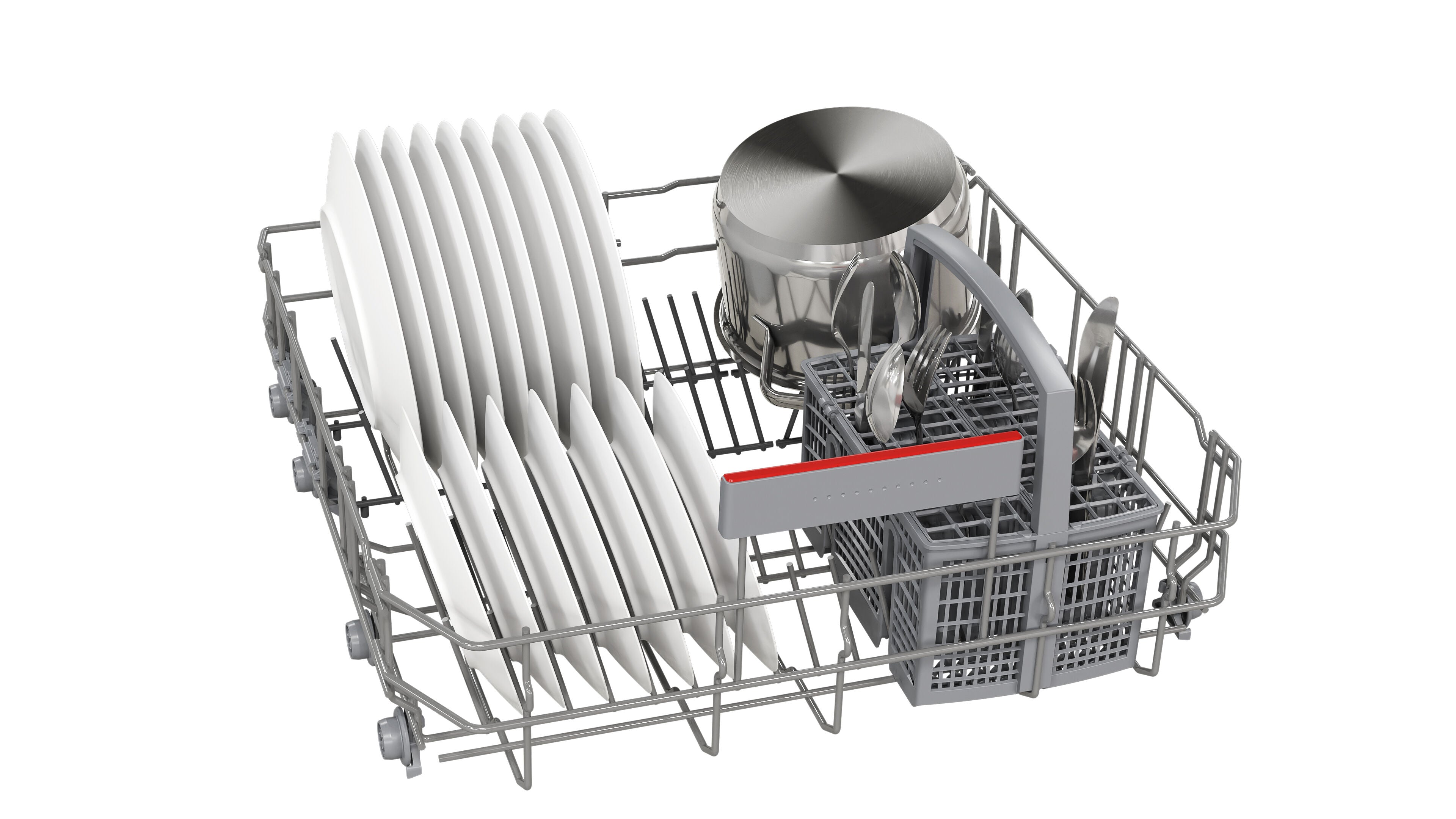

• VarioFlex basket system: flexible basket layout for varied cookware and dish configurations.

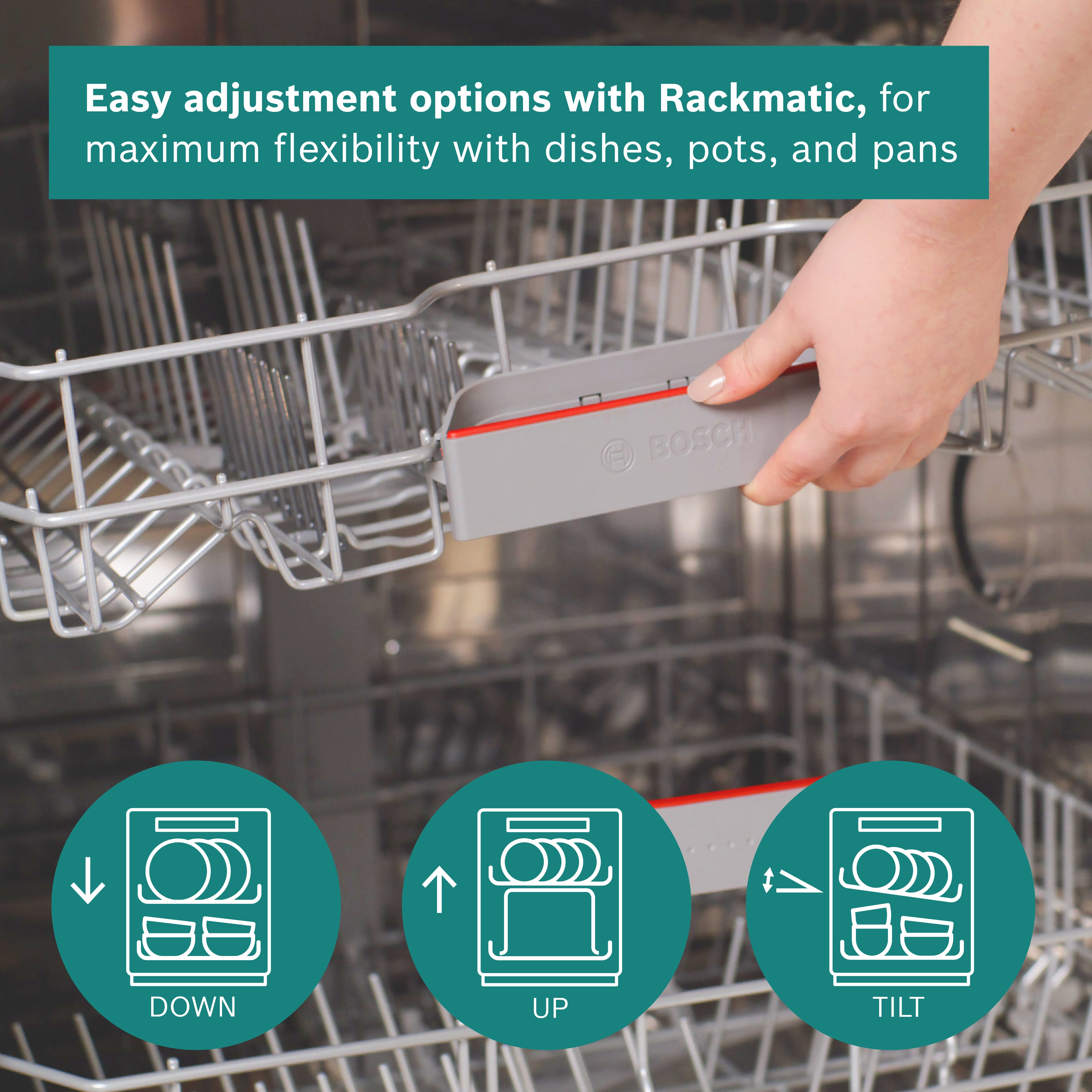

• Rackmatic upper basket: height-adjustable top basket with three adjustment levels.
• Extra Dry function: additional drying phase for plastics and difficult-to-dry items.
• SpeedPerfect+: reduces wash programme duration while maintaining cleaning performance.
• Hygiene Plus: elevated rinse temperature for enhanced hygienic cleaning performance.

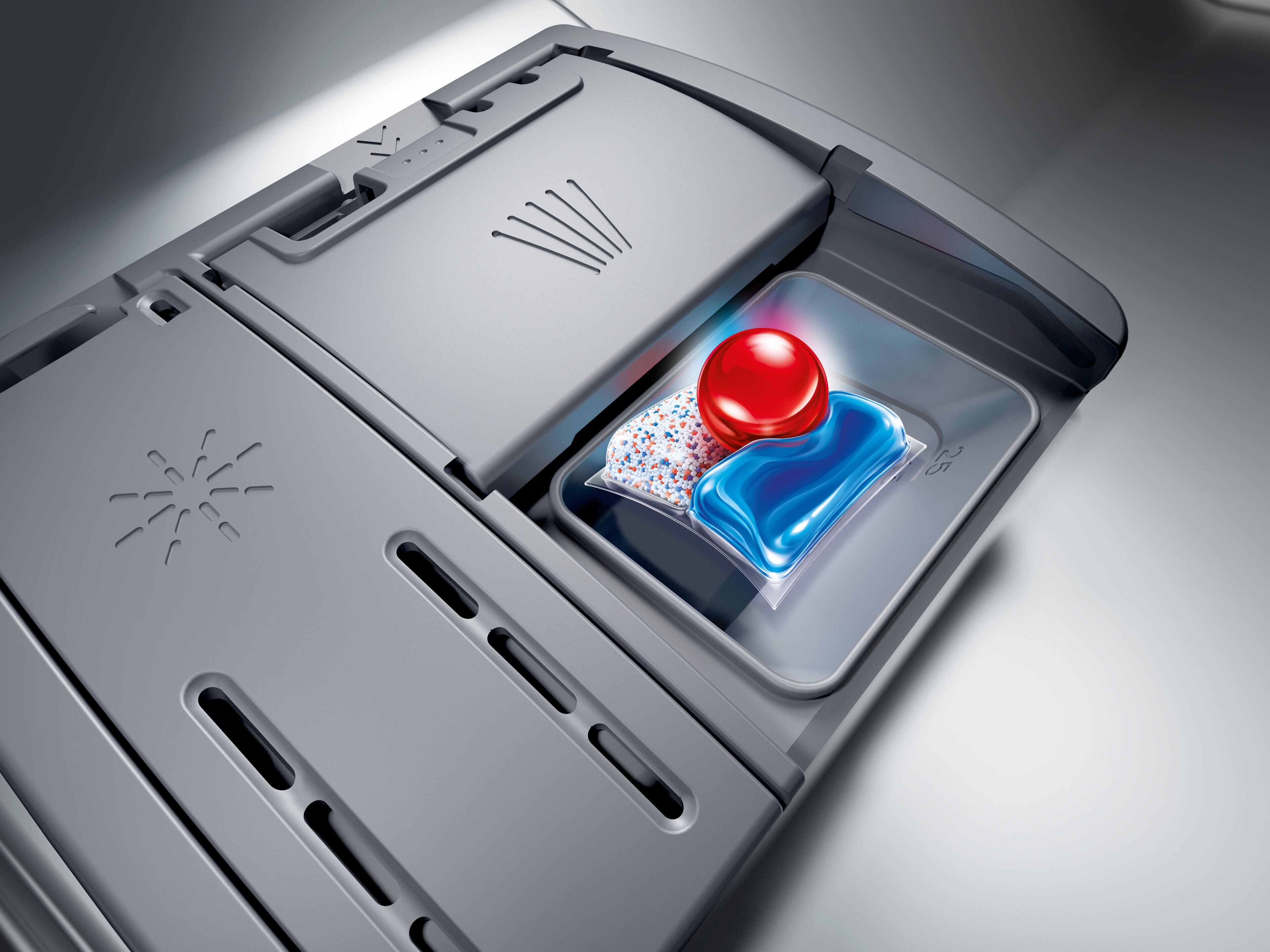

• DosageAssist: detergent tablet dispenser designed for controlled dissolution during the wash cycle.
• AquaStop Plus: anti-flood protection system with Bosch lifetime anti-water damage warranty.
• Machine Care programme: assists with internal cleaning and dishwasher maintenance.
• Heat exchanger drying system: efficient drying performance with controlled temperature management.
• Favourite programme: allows storage of a preferred wash combination via Home Connect.

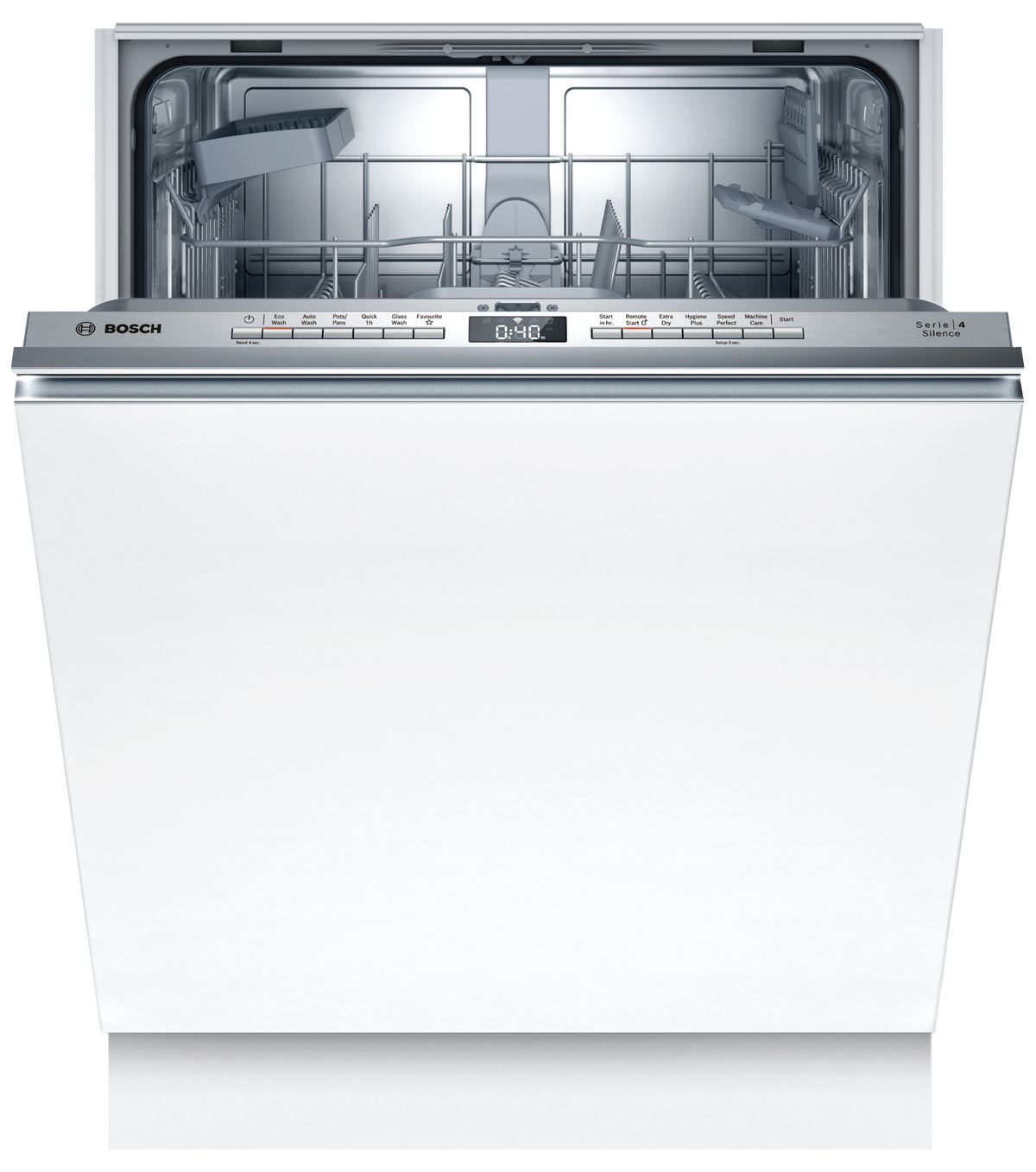

• Dishwasher type: Fully integrated built-in
• Series: Bosch Series 4
• Capacity: 14 place settings
• Wash programmes: 6
• Special options: 5

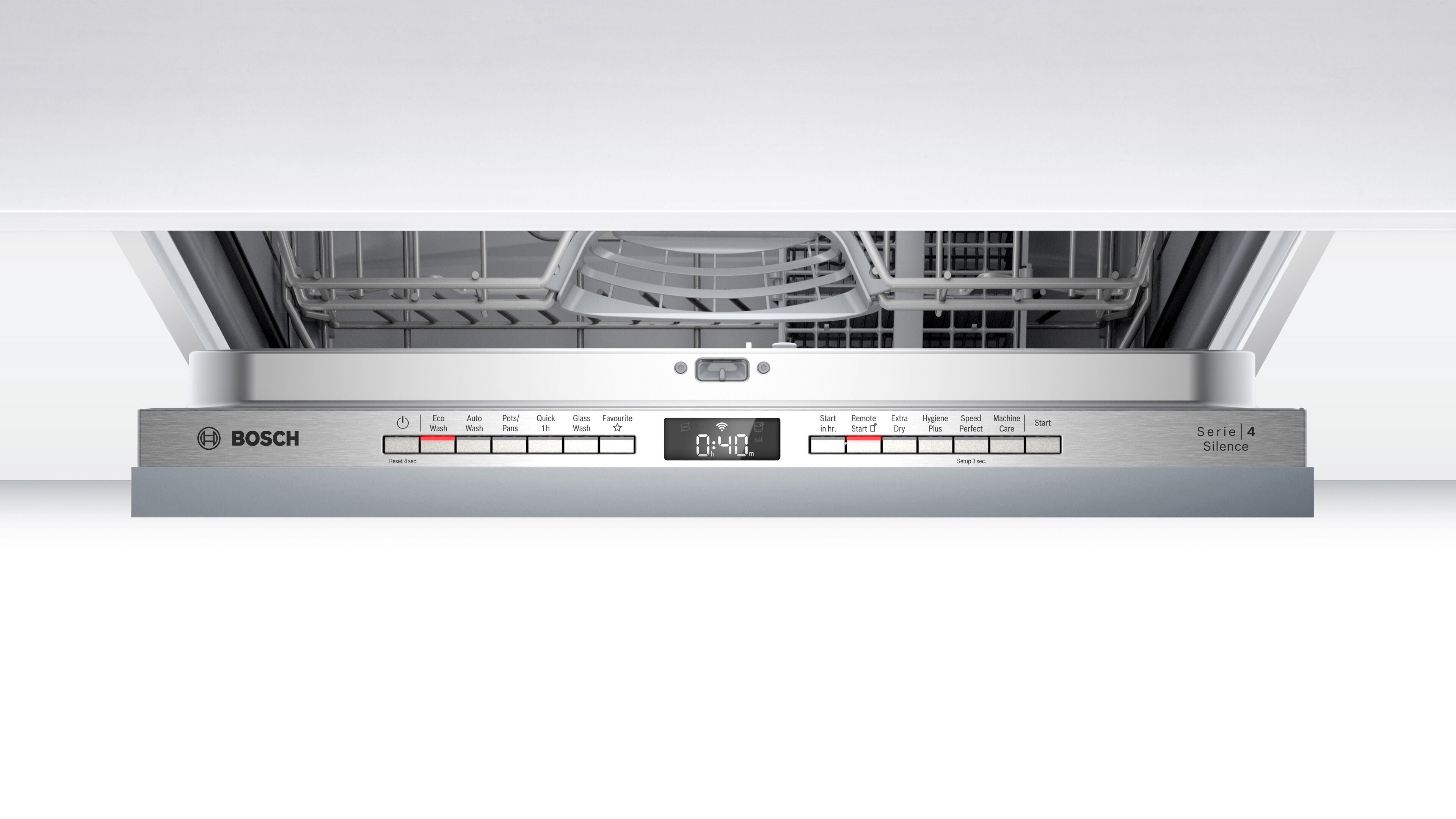

• Control type: Soft-touch concealed controls with LED display
• Connectivity: Home Connect WiFi
• Drying system: Heat exchanger
• Basket system: VarioFlex baskets
• Upper basket adjustment: Rackmatic 3-stage height adjustment
• Water inlet: Cold water only
• Tub material: Polinox inner lower tub base
• Noise level: 46 dB(A)
• WELS rating: 4 stars
• Water consumption per cycle: 13.5 L
• WELS registration number: D02580
• Energy rating: 4 stars
• Energy consumption: 230 kWh per year
• Delay start timer: Yes
• Time remaining display: Yes
• Child lock: Yes
• Floor light indicator: Yes

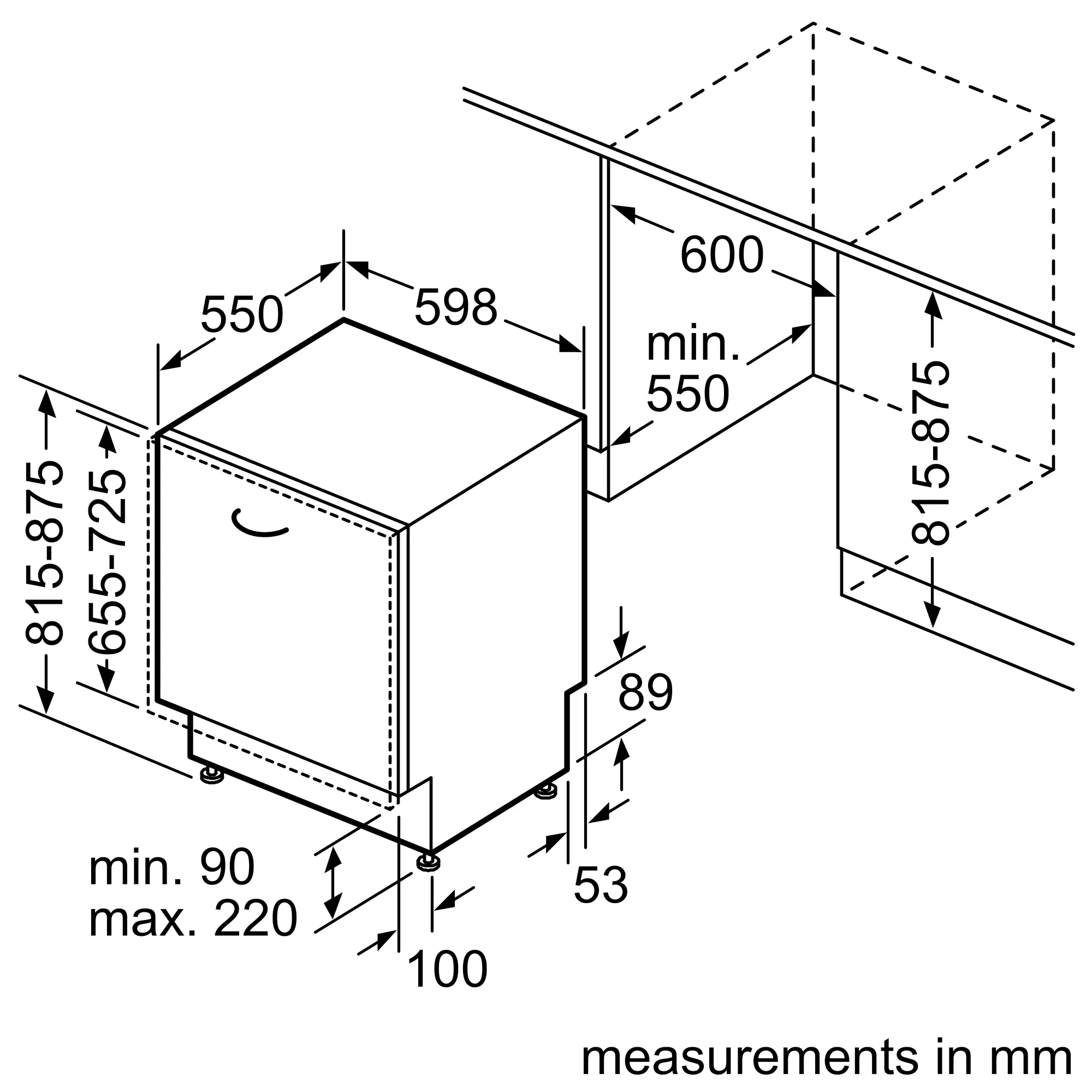

• Installation type: Fully integrated built-in
• Cabinet door panel required: Yes — custom kitchen panel supplied separately
• Connection type: Plug-in
• Power supply: 220–240 V / 50–60 Hz
• Connection rating: 2400 W
• Fuse protection: 10 A

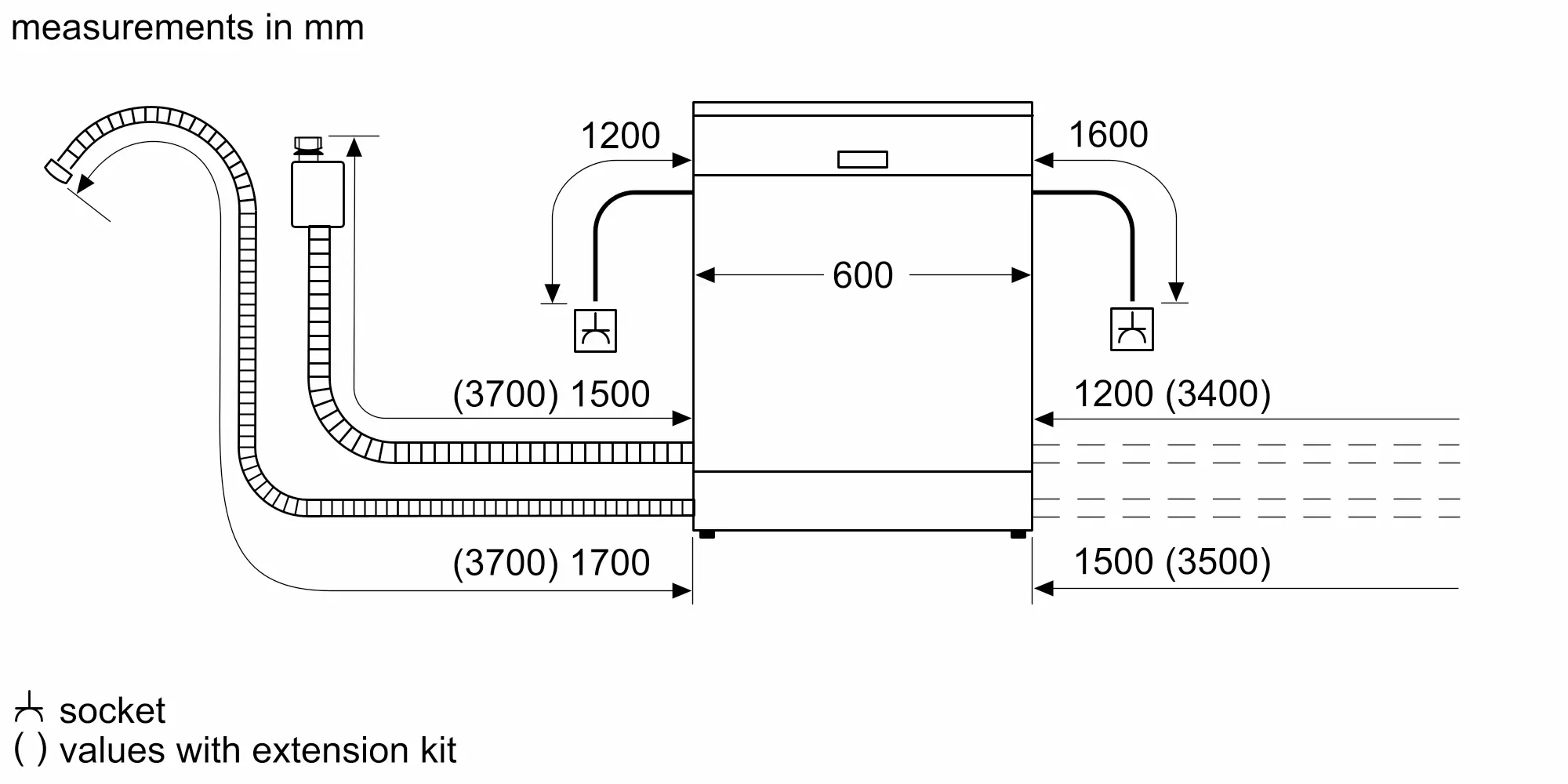

• Power cord length: 175 cm
• Water inlet hose length: 165 cm
• Drain hose length: 190 cm
• Water connection: Cold water connection only
• Adjustable feet: Yes — adjustable from front
• Maximum height adjustment: 60 mm

Bosch Warranty

• Bosch appliances are backed in Australia by BSH Home Appliances Pty Ltd, providing trusted after-sales support and service nationwide.

Warranty Coverage

Domestic Use:

• Bosch appliances are covered by a 2-year manufacturer’s warranty from the date of purchase, covering defects in materials and workmanship.

Commercial Use

• If used for commercial purposes, the warranty period is limited to 3 months.
• This warranty is provided in addition to your rights under Australian Consumer Law.

What’s Covered

Under normal domestic use, the warranty includes:

• Manufacturing defects
• Repair or replacement of faulty components
• Service within Bosch’s authorised service network

For minor failures, Bosch may choose to repair or replace the appliance.

• Proof of purchase is required to make a claim.
• To lodge a claim, contact Bosch Customer Care Australia on 1300 369 744.

What’s Not Covered

The warranty does not apply to damage caused by:

• Incorrect installation or operation
• Unauthorised repairs or non-approved parts
• Incorrect power, gas or water supply
• Commercial use beyond 3 months
• Normal wear and tear (filters, seals, globes, fuses, etc.)
• Blockages, misuse, operator error or storm damage
• Delivery or installation damage
• Appliances exported outside Australia

Travel or transport costs may apply if you are located outside a Bosch service area.

Australian Consumer Law

• Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if they fail to be of acceptable quality and the failure does not amount to a major failure.

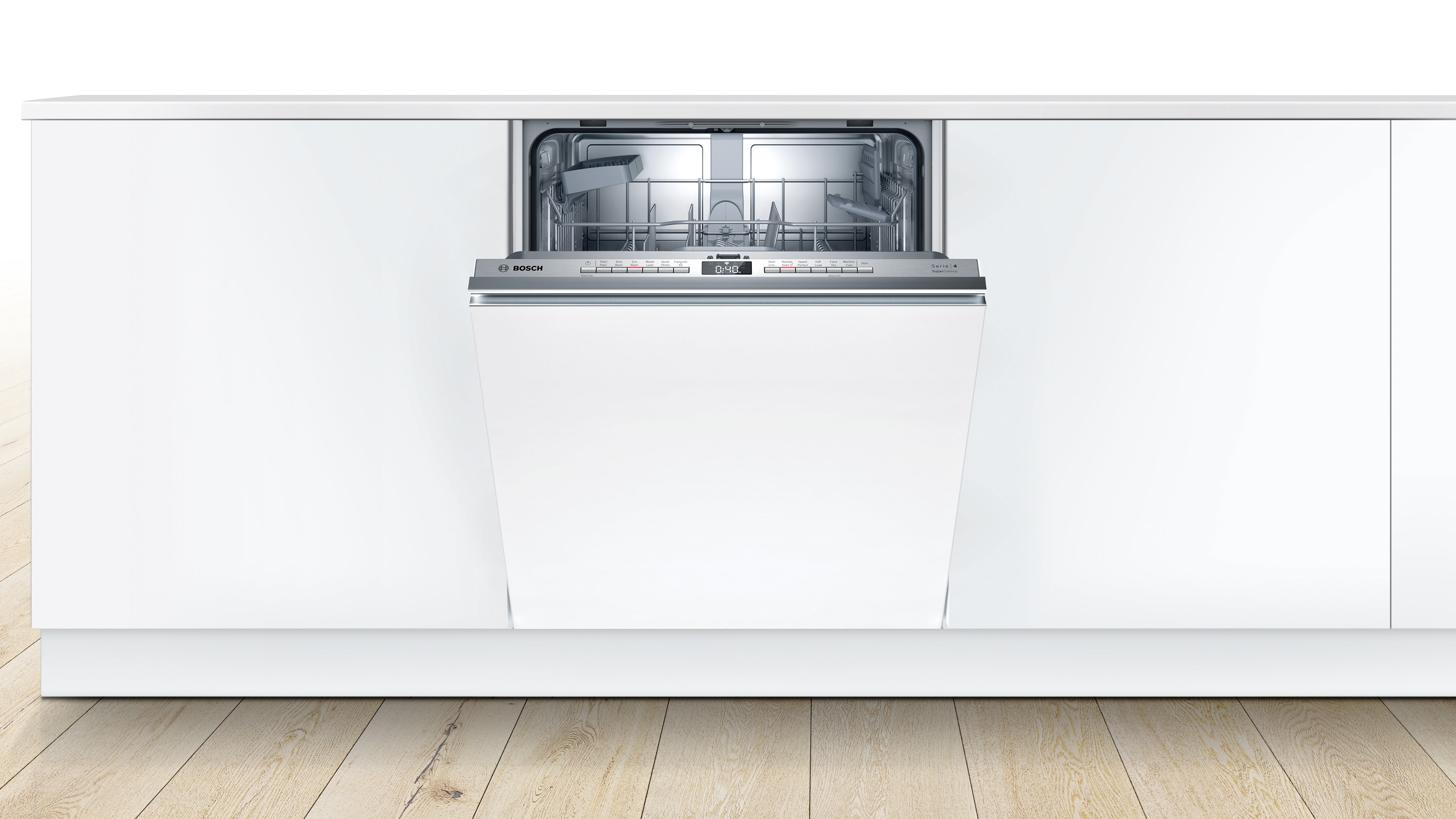

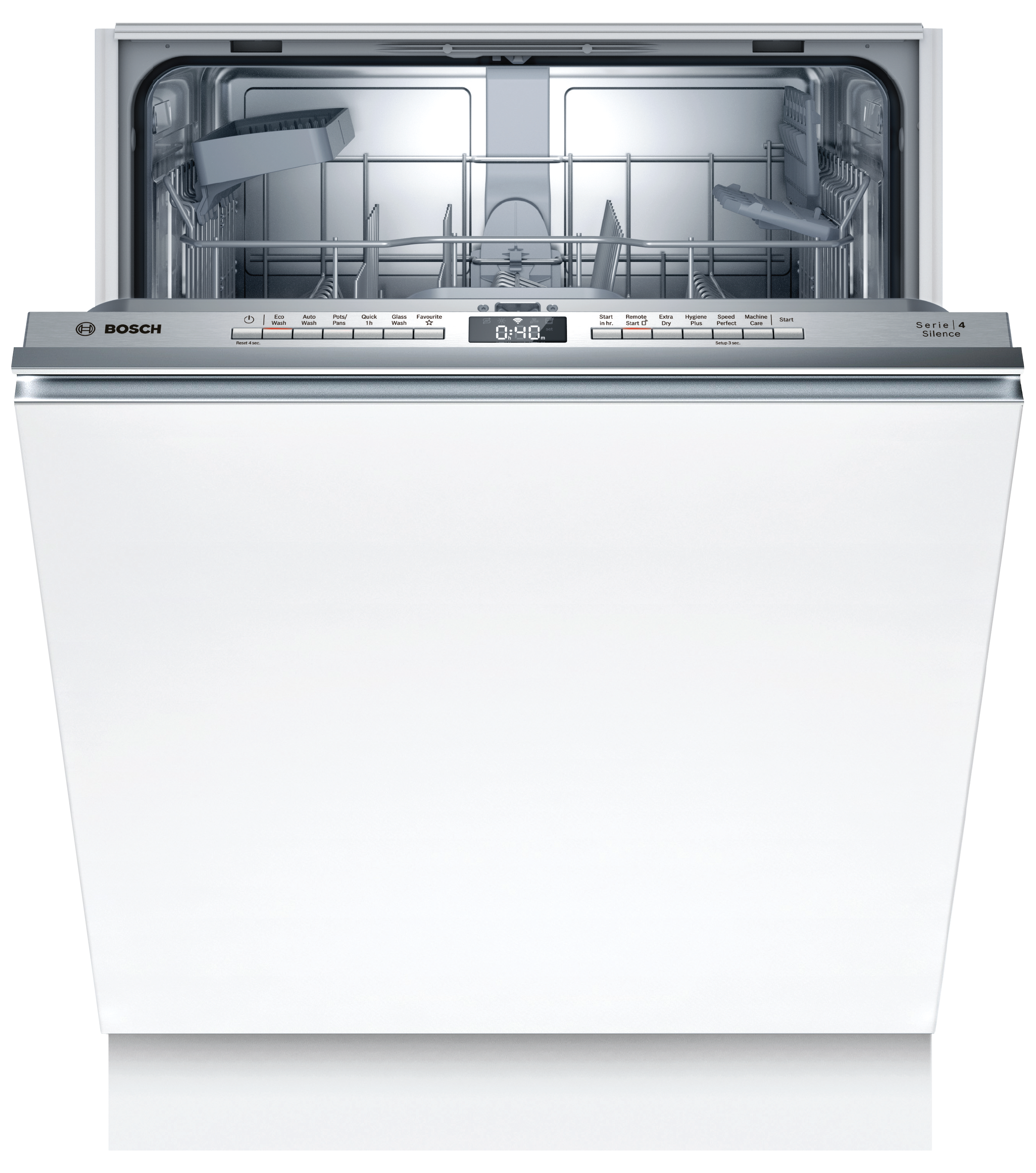

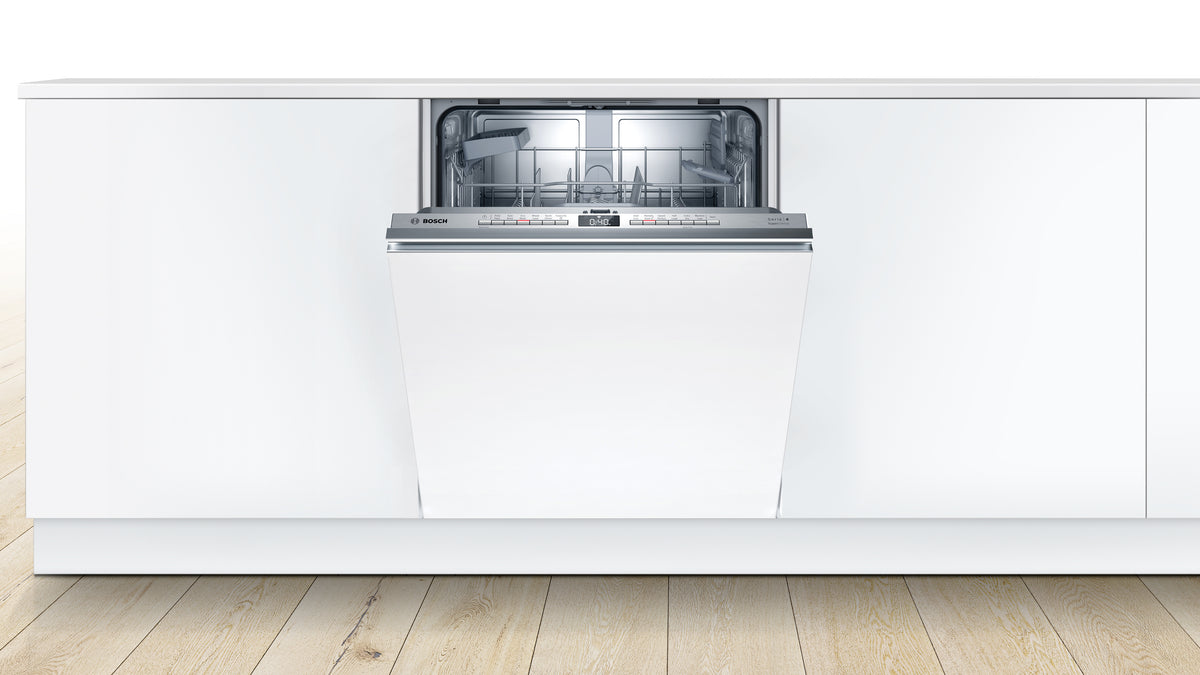

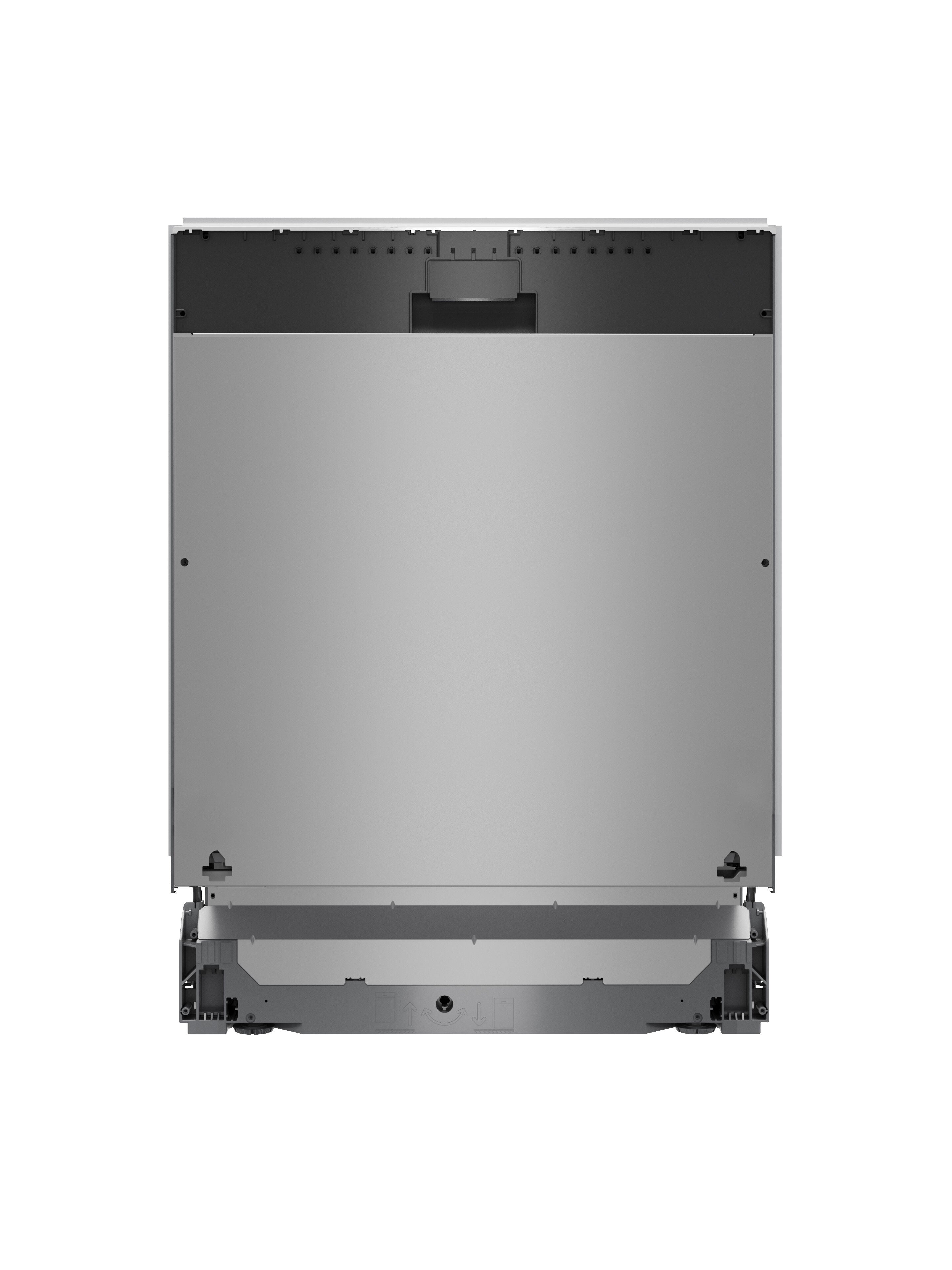

The SMV4HTX01A is supplied without a visible front fascia panel and requires a custom cabinetry door panel to match the surrounding kitchen joinery. Once installed, the dishwasher integrates fully into the cabinetry with no visible external controls.

Bosch Home Connect functionality enables compatible remote operation, programme monitoring and notification control through supported smart devices. The Favourite function allows frequently used wash settings to be saved for faster programme selection.

The EcoSilence Drive motor system uses brushless motor technology designed to reduce friction and operating noise during wash cycles. Combined with the fully integrated cabinet installation, this contributes to quieter operation within open-plan kitchen environments.

• Moveable cutlery basket
• Large item spray head
• Steam protection plate
• Water inlet hose
• Drain hose
• Installation hardware
