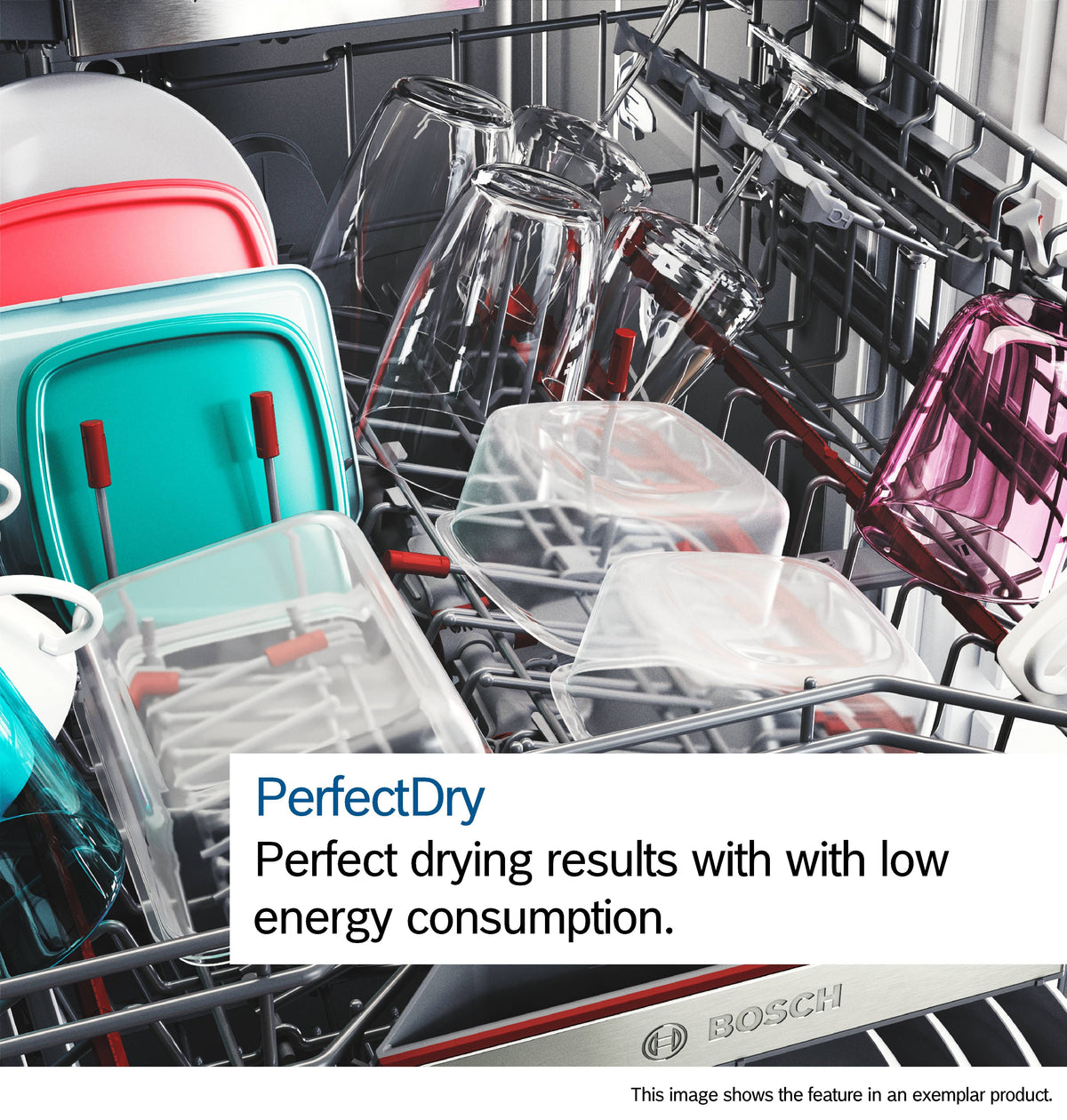

• PerfectDry with Zeolith: advanced mineral-based drying technology for improved cupboard-ready drying performance.
• 15 place setting capacity: accommodates larger household dishwashing loads.

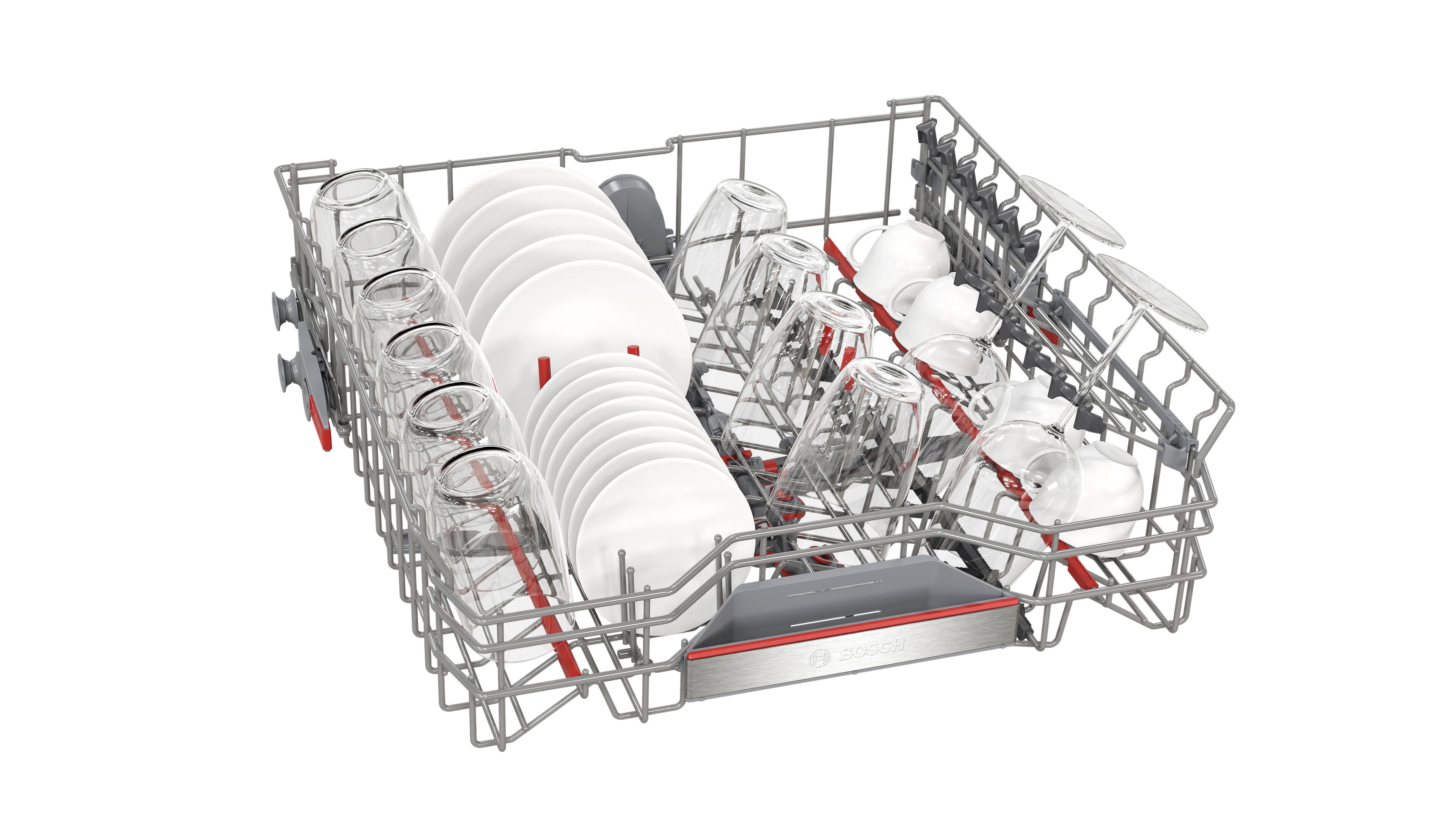

• Max Flex Pro baskets: flexible basket system with improved stability and loading adjustment.
• VarioDrawer Pro: dedicated third loading level for cutlery, cups, and utensils.
• Rackmatic upper basket: adjustable upper basket height across three levels.

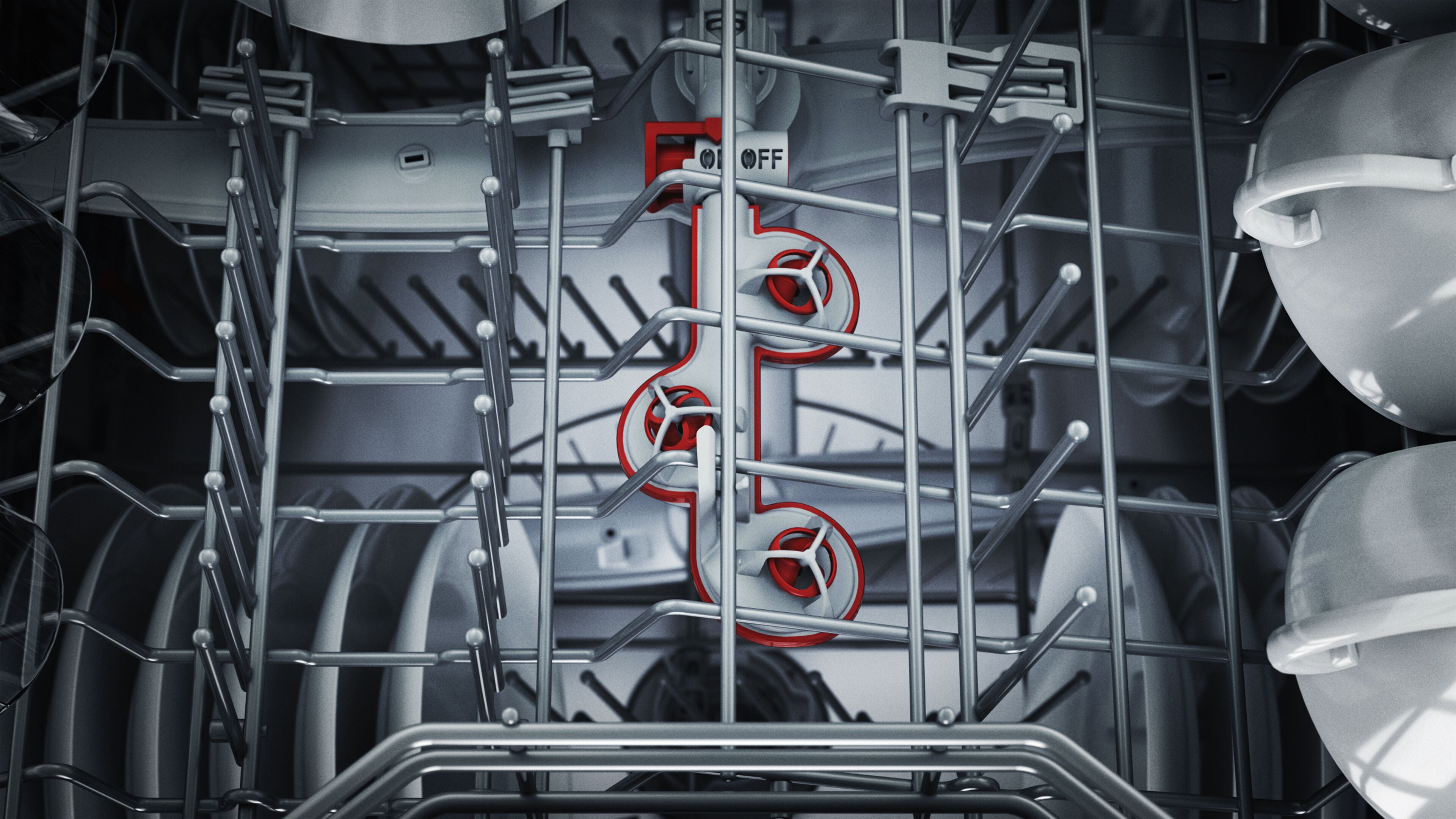

• Extra Clean Zone: additional cleaning support for heavily soiled items in the upper basket.

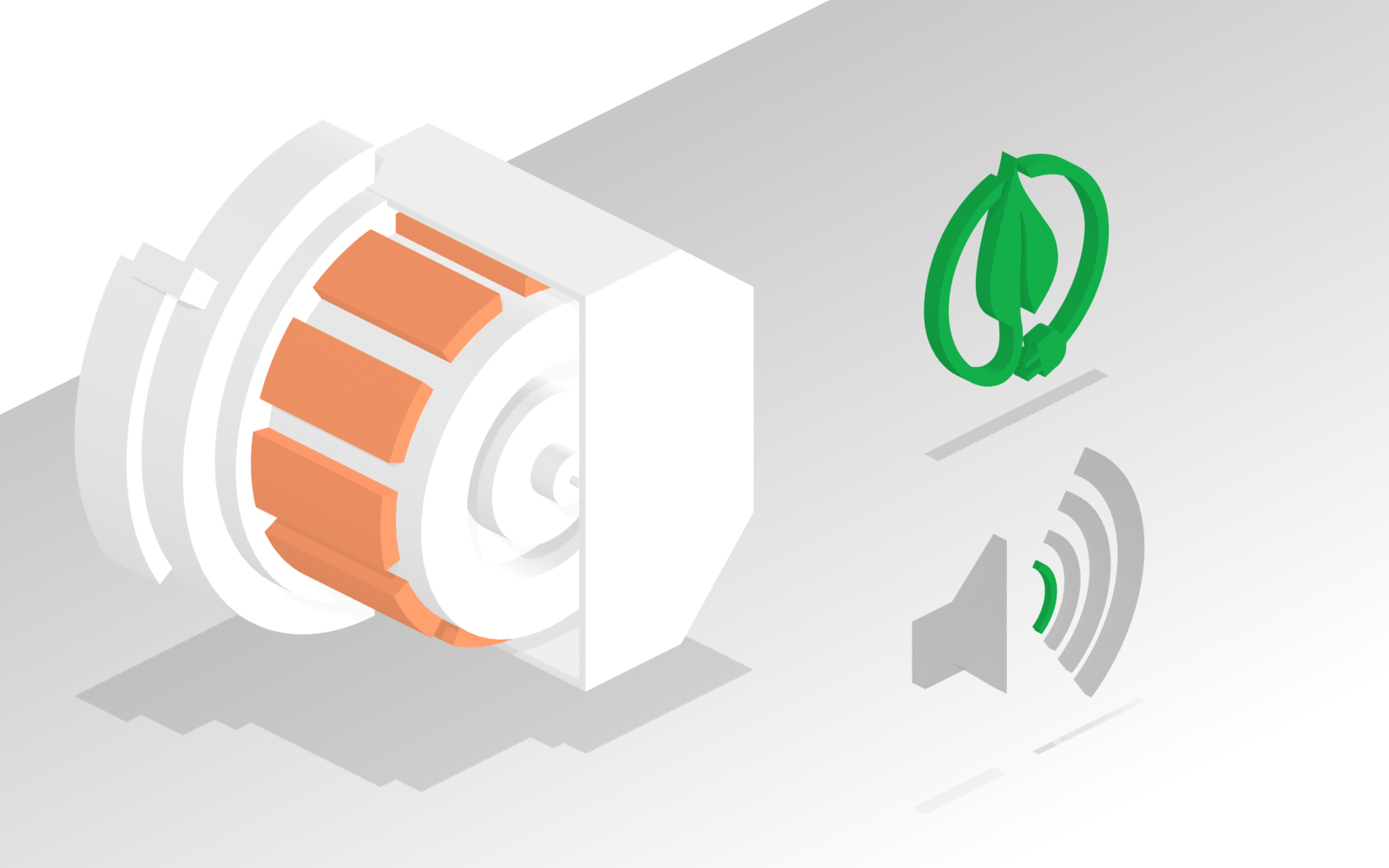

• EcoSilence Drive: brushless motor system designed for quieter and more efficient operation.
• Home Connect: Wi-Fi connectivity for remote monitoring and control.
• AquaStop Plus: Bosch anti-flood water protection system.
• Heat Exchanger drying: controlled drying performance with glassware protection.

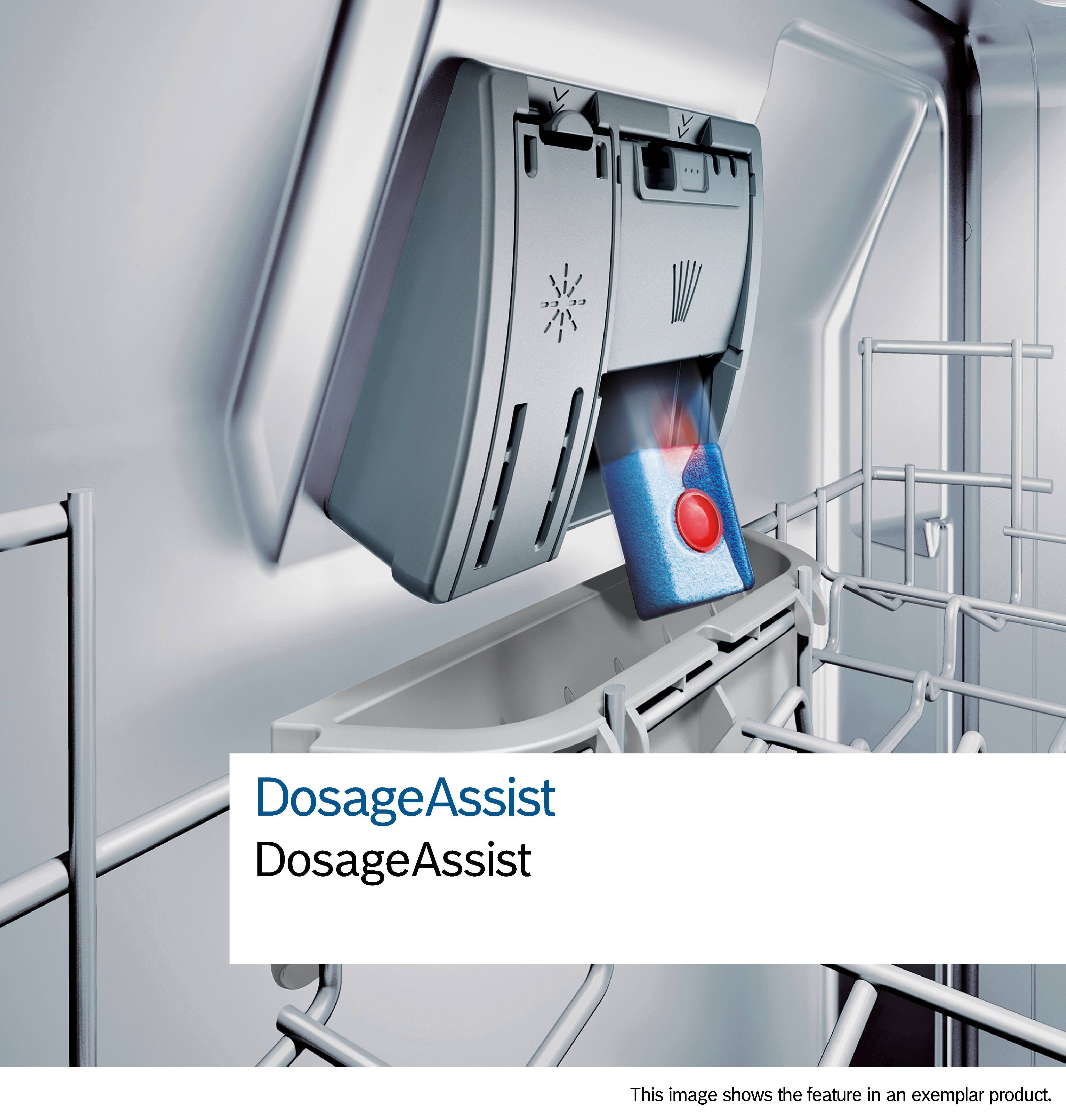

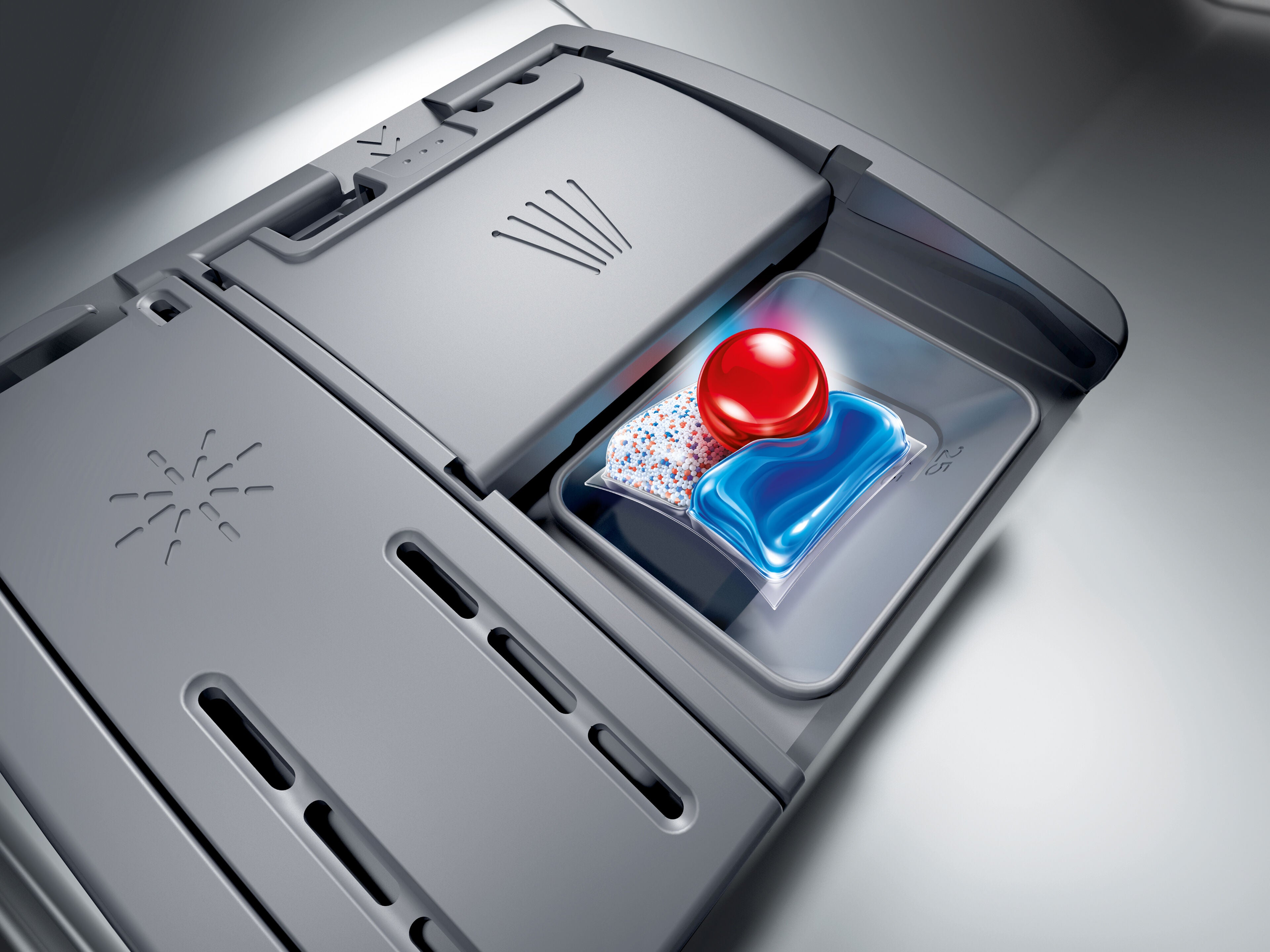

• DosageAssist: optimised detergent dissolution and wash distribution.
• Machine Care programme: dedicated dishwasher maintenance cycle.
• Favourite function: save preferred programme and option combinations.
• TimeLight: remaining cycle time projected onto the floor.
• AntiFingerprint finish: brushed steel exterior designed to reduce visible fingerprints.
• Child lock: prevents unintended operation changes during cycles.

• Dishwasher type: Built-under dishwasher
• Series: Series 8
• Capacity: 15 place settings
• Noise level: 42 dB(A) re 1pW
• Energy rating: 4.5 stars
• Energy consumption: 206 kWh per year
• WELS water rating: 5 stars
• Water consumption: 12.2 L per wash
• WELS registration number: D02846
• Drying system: Zeolith and Heat Exchanger
• Motor type: EcoSilence Drive

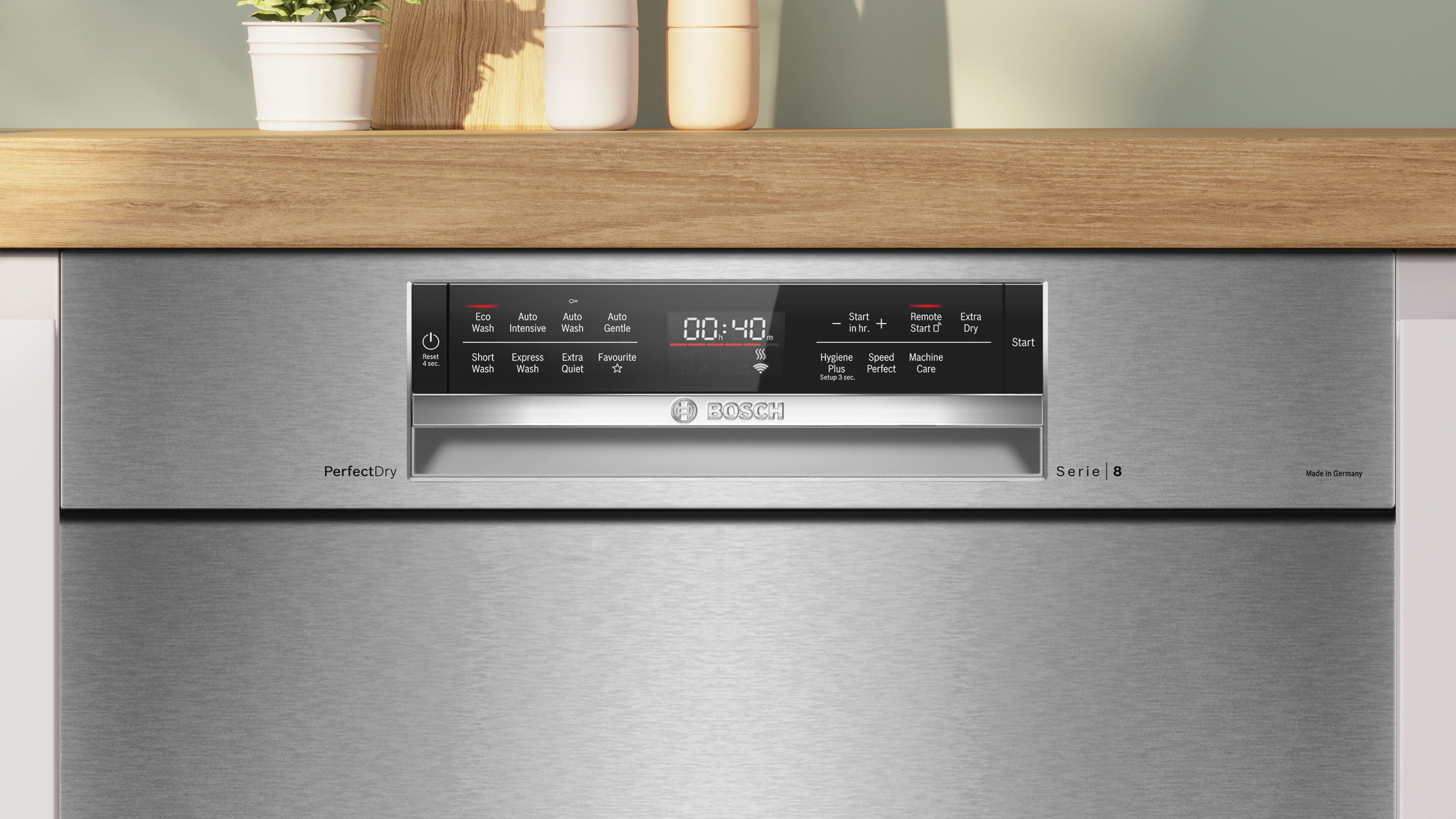

• Control type: Electronic soft-touch controls
• Display type: LED display
• Connectivity: Home Connect Wi-Fi enabled
• Water inlet: Cold water connection
• Tub material: Stainless steel interior tub
• Delay start timer: Yes
• Time delay range: Up to 24 hours
• Programmes: 8
• Wash programmes: Auto 45-65°C, Custom Program, Delicate, Eco, Express, Intensive Plus, Machine Care, Quick L
• Special options: EfficientDry, HygienePlus, IntensiveZone, Remote Start, Shine & Dry, SpeedPerfect+
• Glassware protection system: Yes
• LoadSensor: Yes
• AquaSensor: Yes
• DosageAssist: Yes

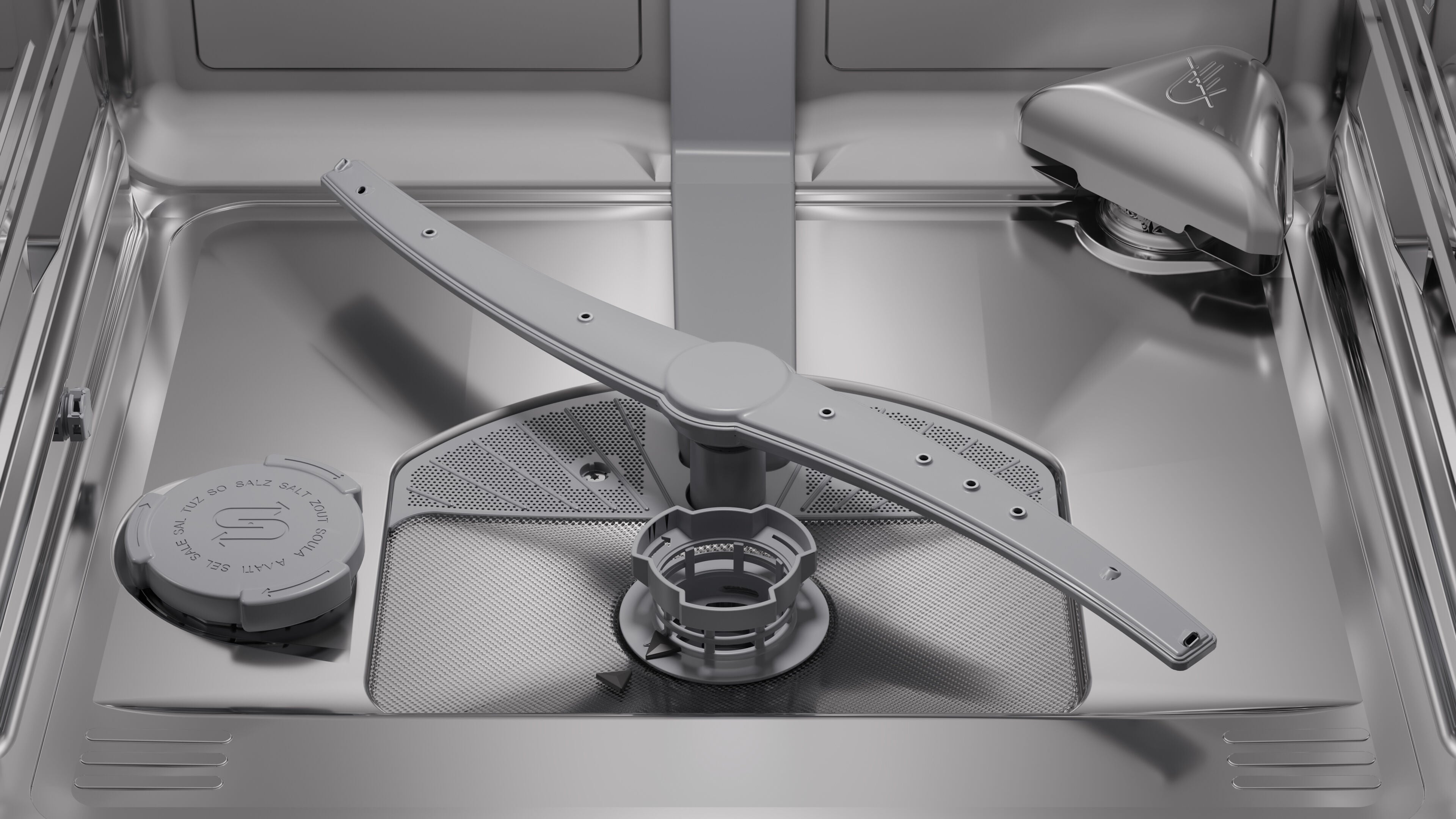

• Self-cleaning filter system: Yes

• Installation type: Built-under
• Connection type: 10 A plug and lead
• Power supply: 220-240 V / 50-60 Hz
• Connected load: 2400 W
• Current rating: 10 A
• Power cord length: 175 cm
• Inlet hose length: 165 cm
• Drain hose length: 190 cm
• Water pressure requirement: 0.05 MPa – 1 MPa
• Adjustable feet: Yes
• Height adjustment: Front adjustable up to 60 mm

Bosch Warranty

• Bosch appliances are backed in Australia by BSH Home Appliances Pty Ltd, providing trusted after-sales support and service nationwide.

Warranty Coverage

Domestic Use:

• Bosch appliances are covered by a 2-year manufacturer’s warranty from the date of purchase, covering defects in materials and workmanship.

Commercial Use

• If used for commercial purposes, the warranty period is limited to 3 months.
• This warranty is provided in addition to your rights under Australian Consumer Law.

What’s Covered

Under normal domestic use, the warranty includes:

• Manufacturing defects
• Repair or replacement of faulty components
• Service within Bosch’s authorised service network

For minor failures, Bosch may choose to repair or replace the appliance.

• Proof of purchase is required to make a claim.
• To lodge a claim, contact Bosch Customer Care Australia on 1300 369 744.

What’s Not Covered

The warranty does not apply to damage caused by:

• Incorrect installation or operation
• Unauthorised repairs or non-approved parts
• Incorrect power, gas or water supply
• Commercial use beyond 3 months
• Normal wear and tear (filters, seals, globes, fuses, etc.)
• Blockages, misuse, operator error or storm damage
• Delivery or installation damage
• Appliances exported outside Australia

Travel or transport costs may apply if you are located outside a Bosch service area.

Australian Consumer Law

• Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if they fail to be of acceptable quality and the failure does not amount to a major failure.

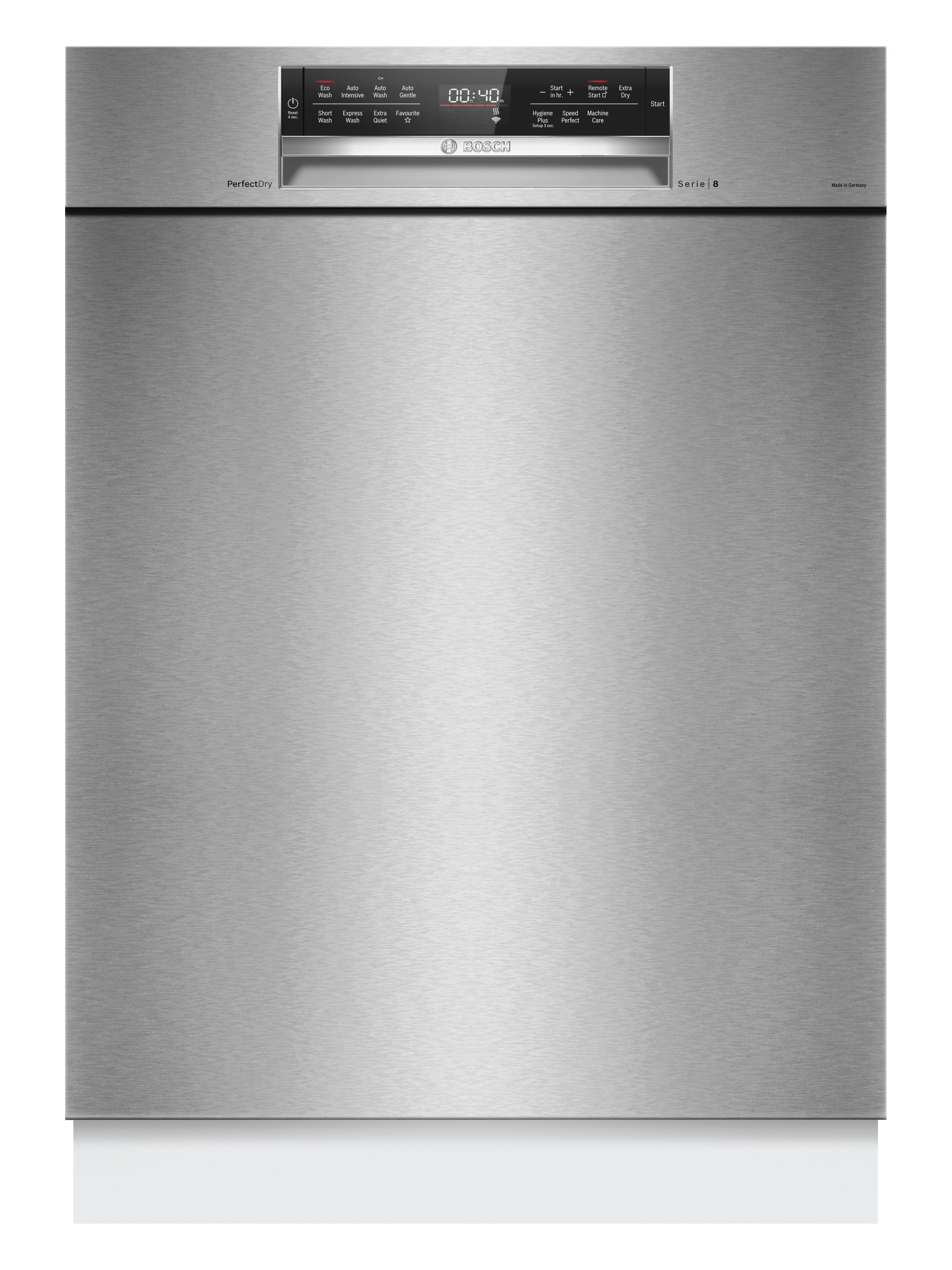

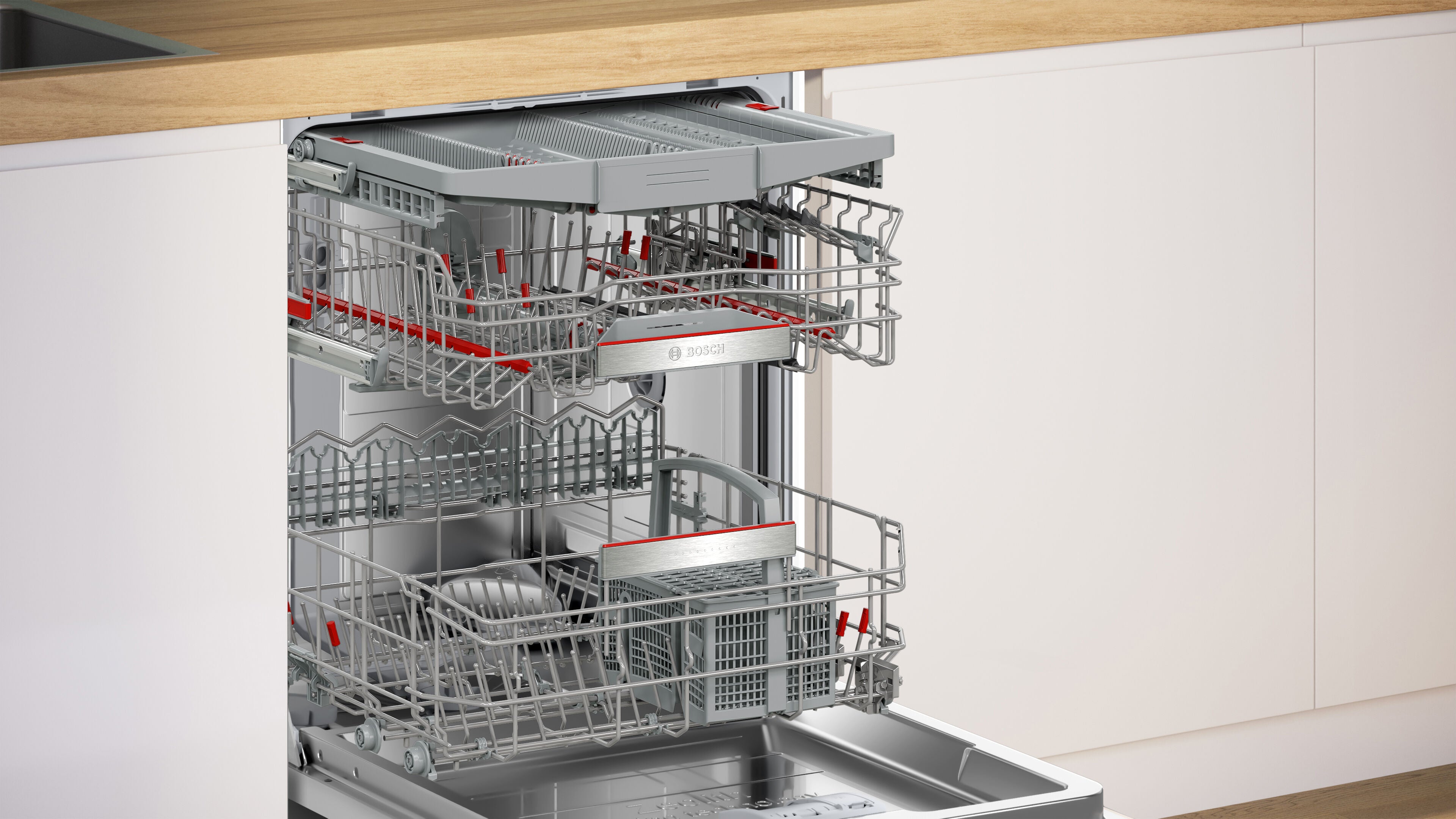

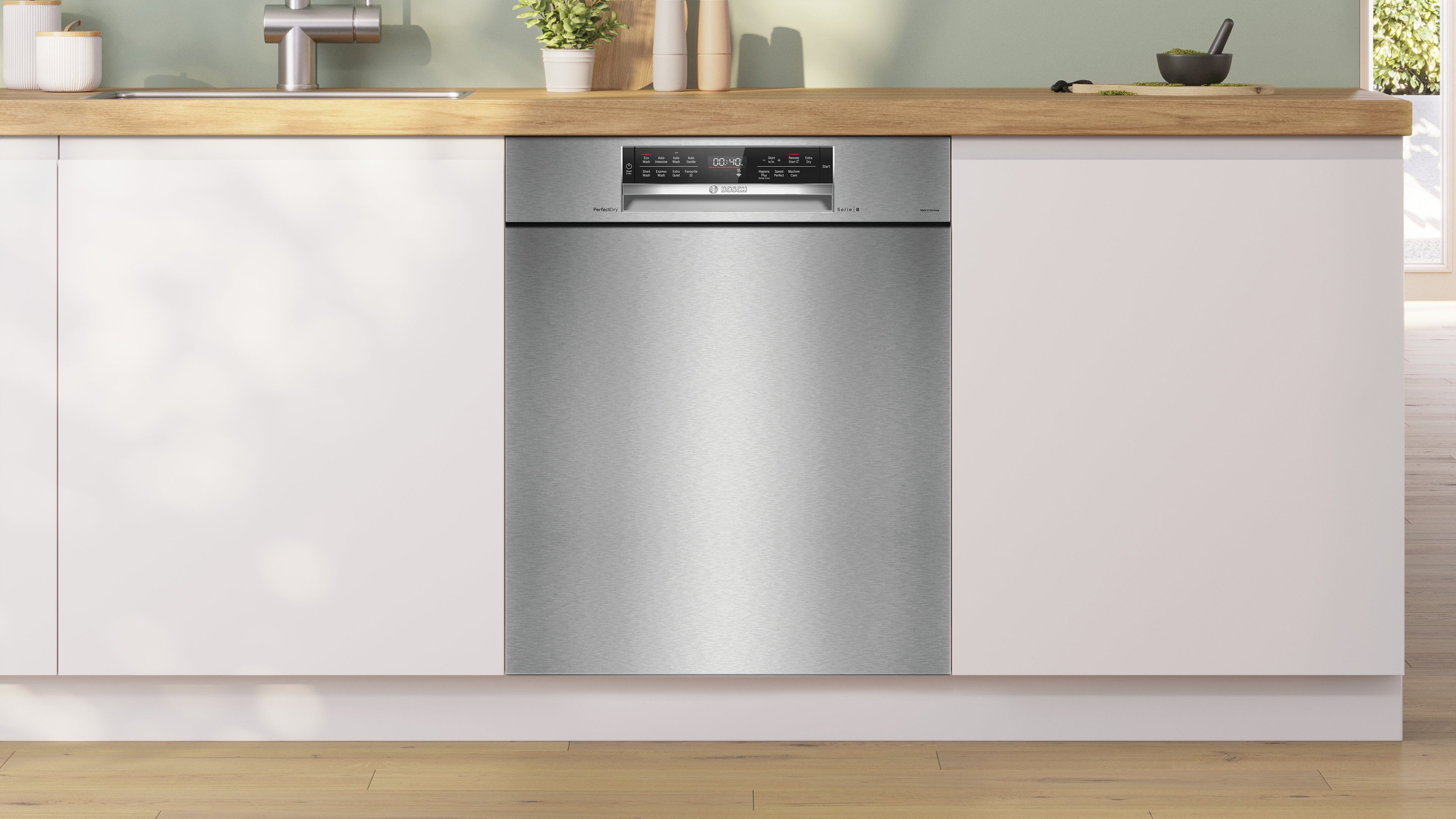

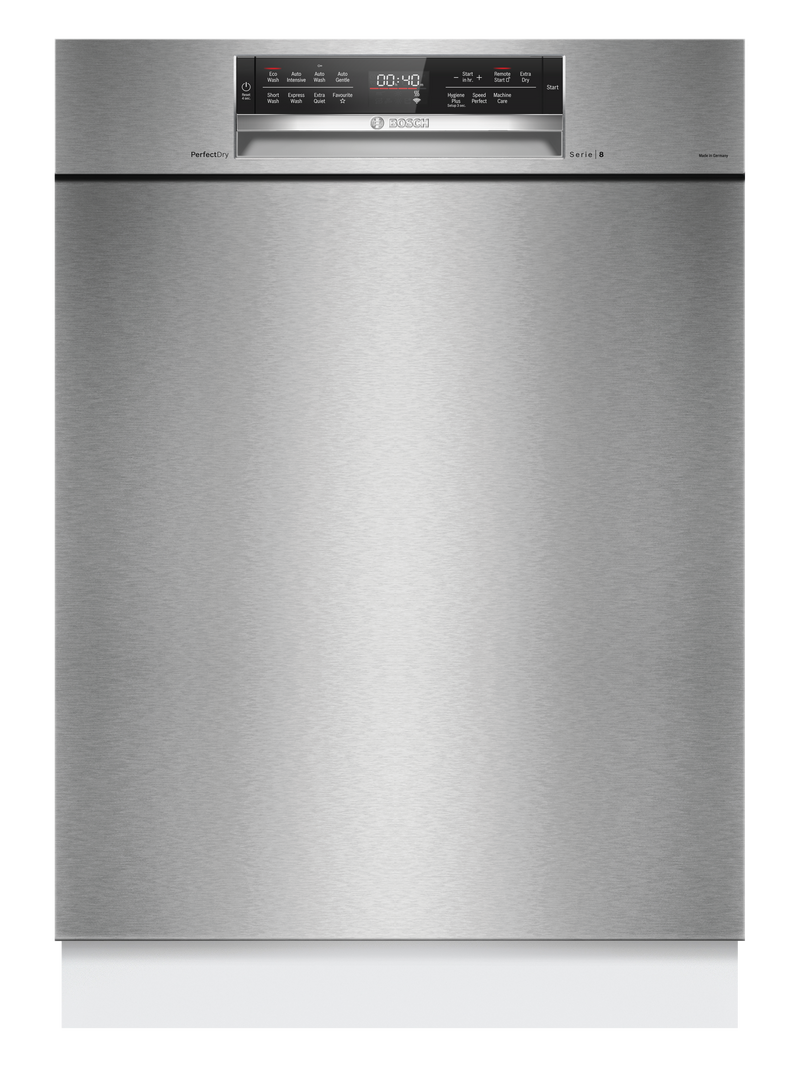

The SMU8ZCS01A is designed for built-under installation beneath standard kitchen benchtops and does not include top or side cabinetry panels. The anti-fingerprint brushed steel finish is intended to minimise visible handling marks in high-use kitchen environments.

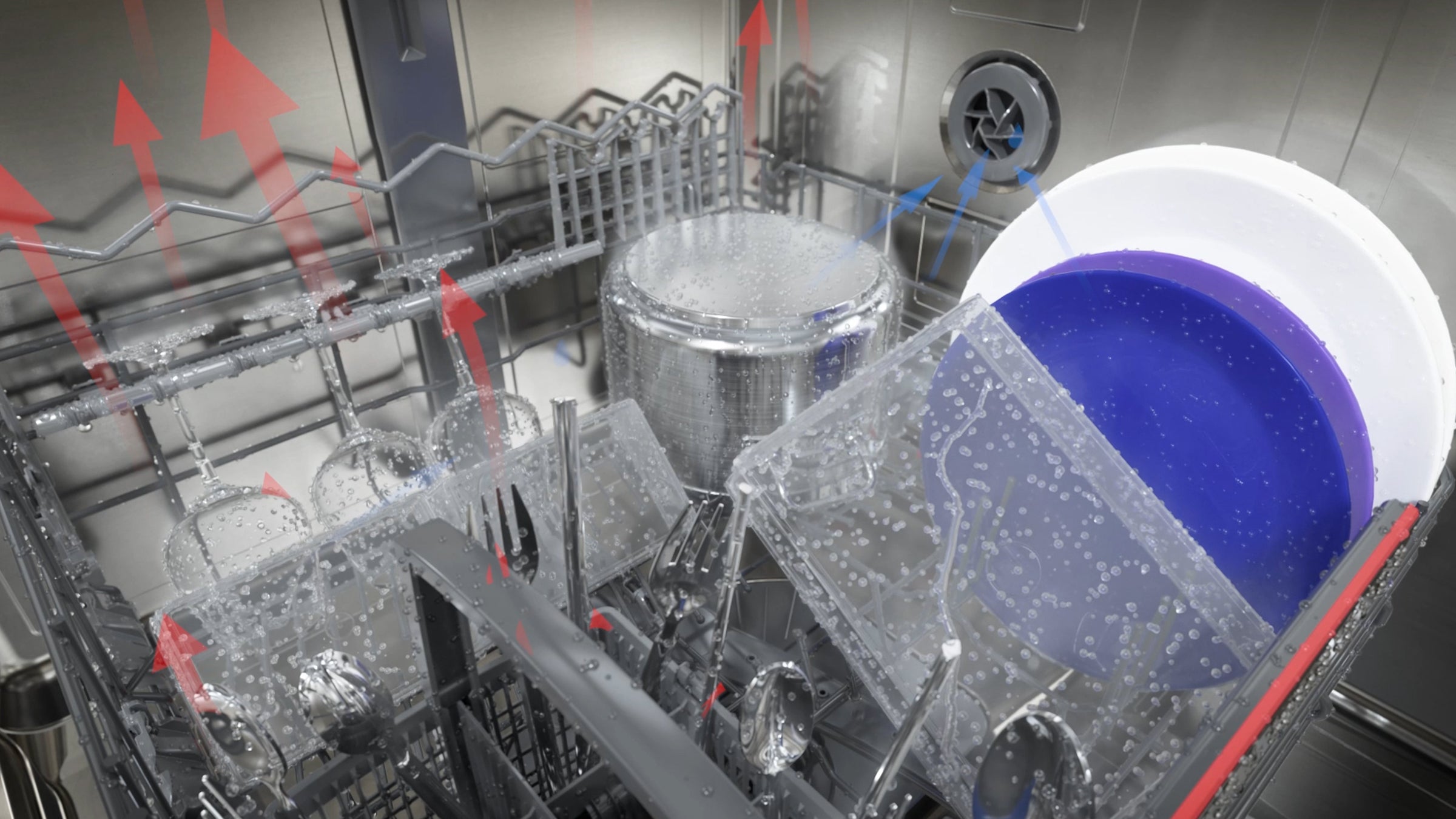

Bosch PerfectDry dishwashers use Zeolith mineral technology to absorb moisture and convert it into warm air during the drying phase. This supports improved drying performance while maintaining lower energy consumption compared to conventional heating systems.

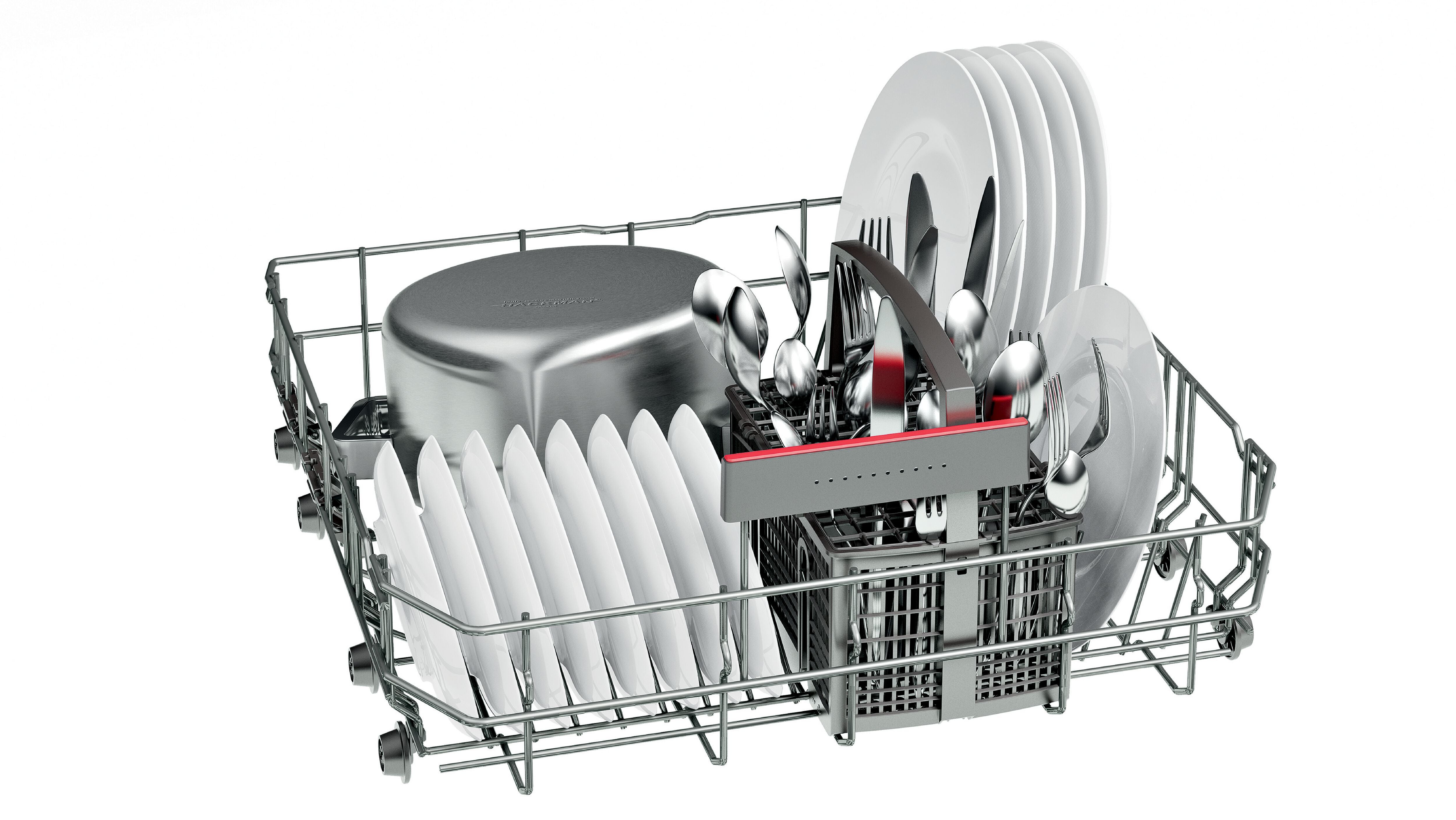

The dishwasher includes Bosch basket flexibility systems with red touchpoints for easier adjustment visibility. The lower basket accommodates plates up to approximately 31 cm depending on upper basket positioning.

Bosch Home Connect allows compatible users to start, monitor, and receive notifications from the dishwasher remotely through the Home Connect app.

• 1650 mm cold water inlet hose
• 1900 mm drain hose
• Large item spray head
• Toe kick panel
• Steam protection plate
• Moveable cutlery basket
• VarioDrawer Pro
• Max Flex Pro basket system

• SPECIFICATIONS SHEET (PDF)
• USER MANUAL (PDF)
• INSTALLATION INSTRUCTIONS (PDF)
• HOME CONNECT (PDF)
