• 14 place setting capacity: Suited to medium and larger household wash loads.

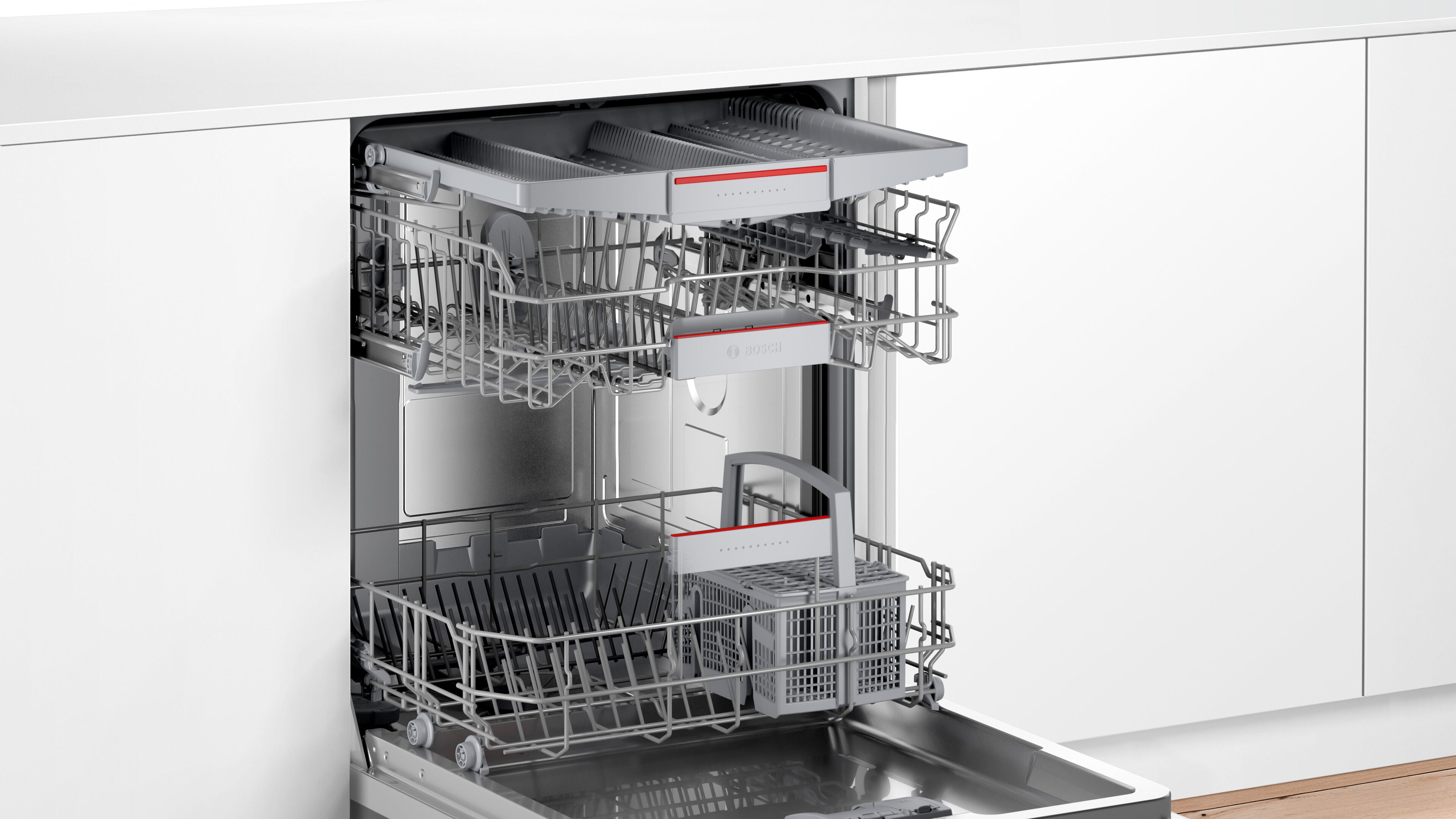

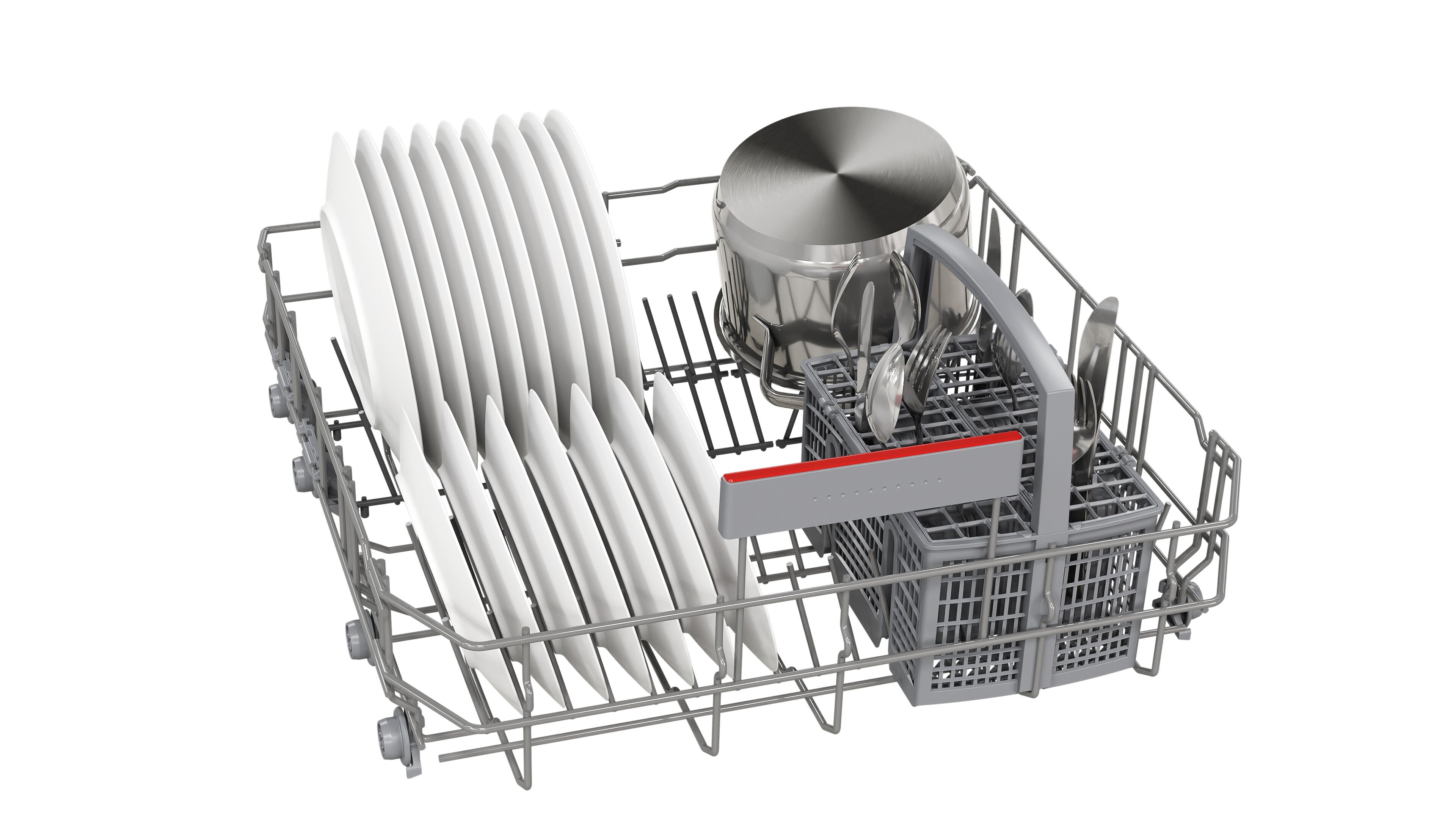

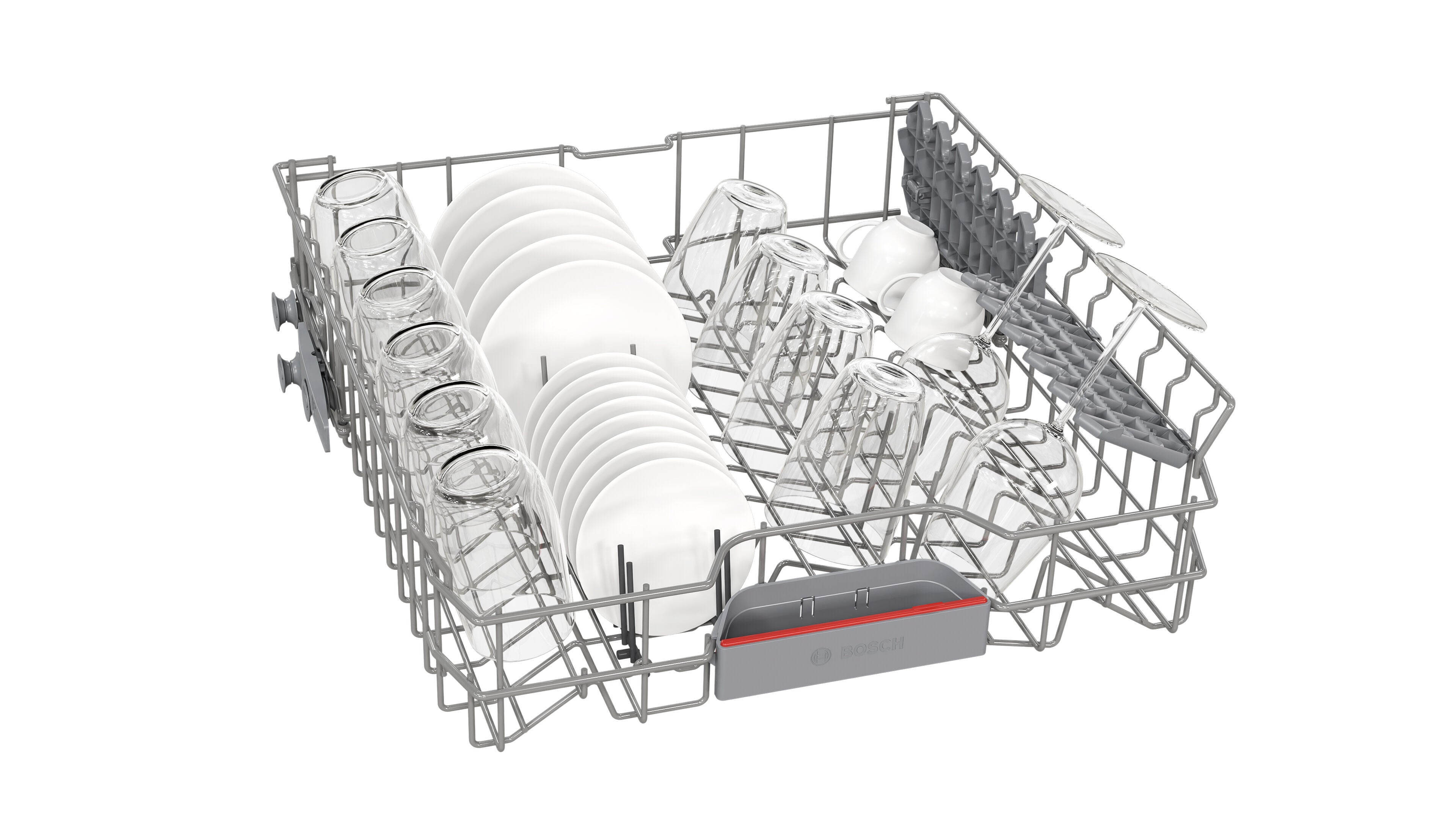

• VarioFlex basket system: Flexible basket configuration with foldable loading elements.

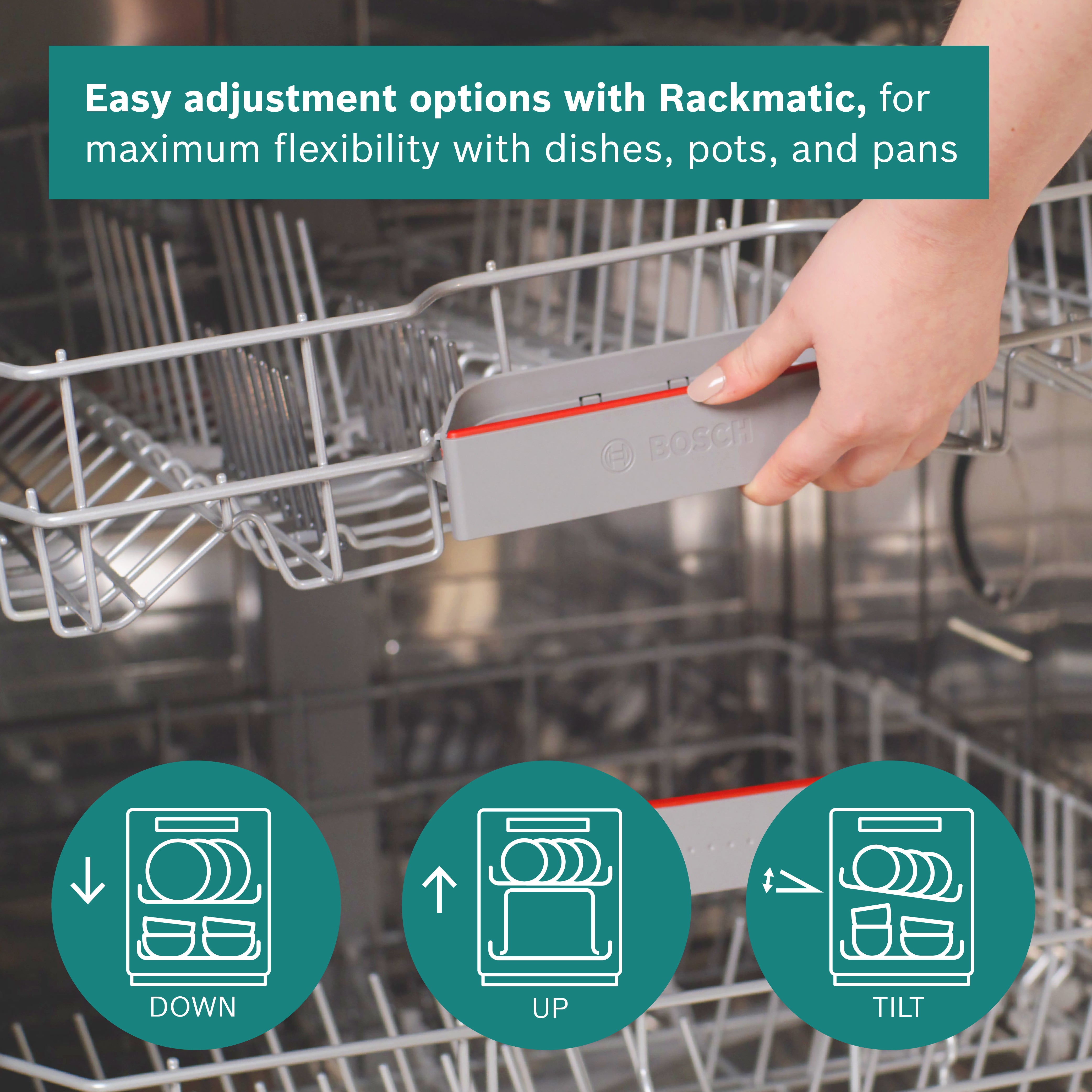

• Rackmatic upper basket: Adjustable upper basket height across multiple positions.

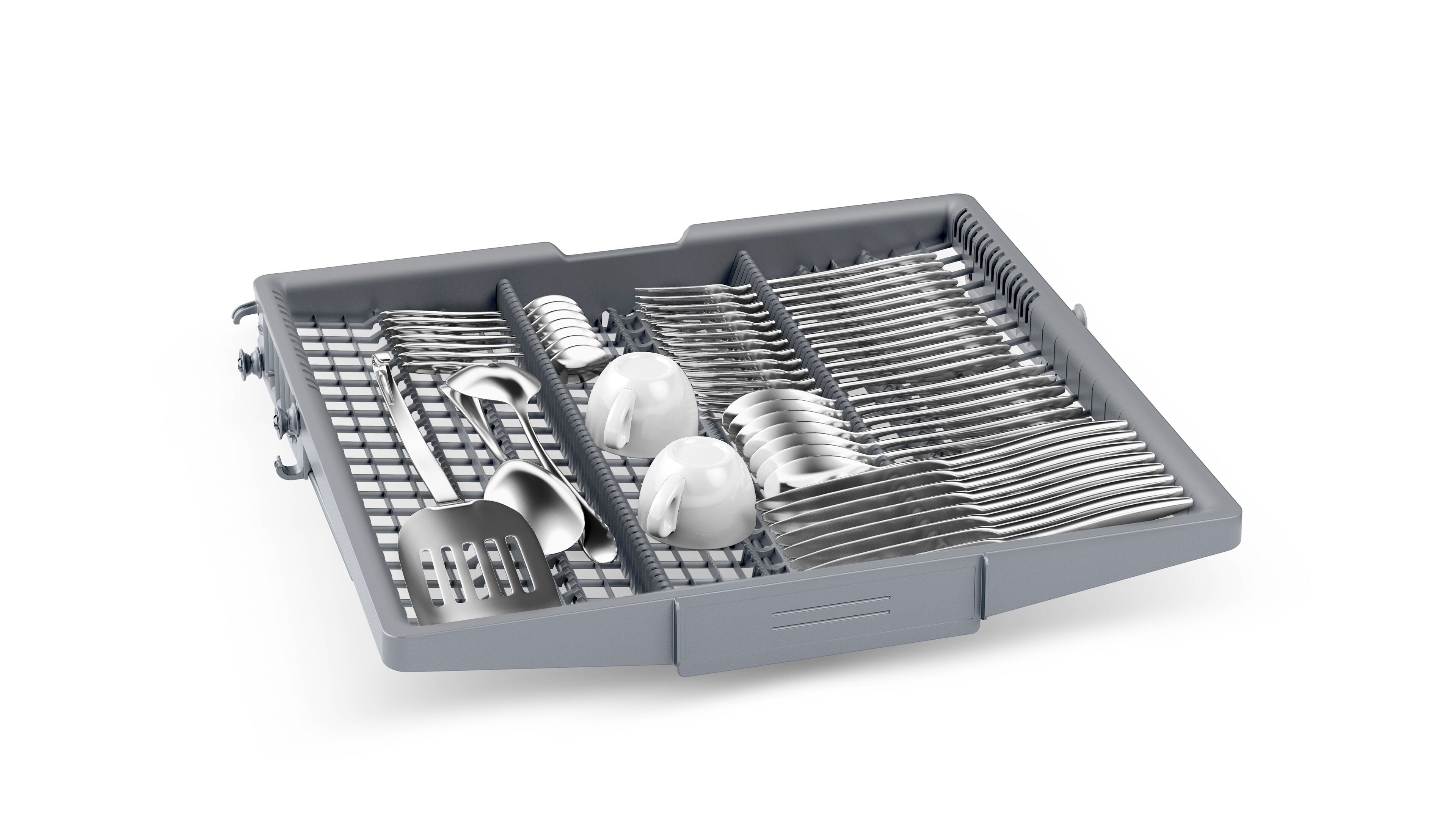

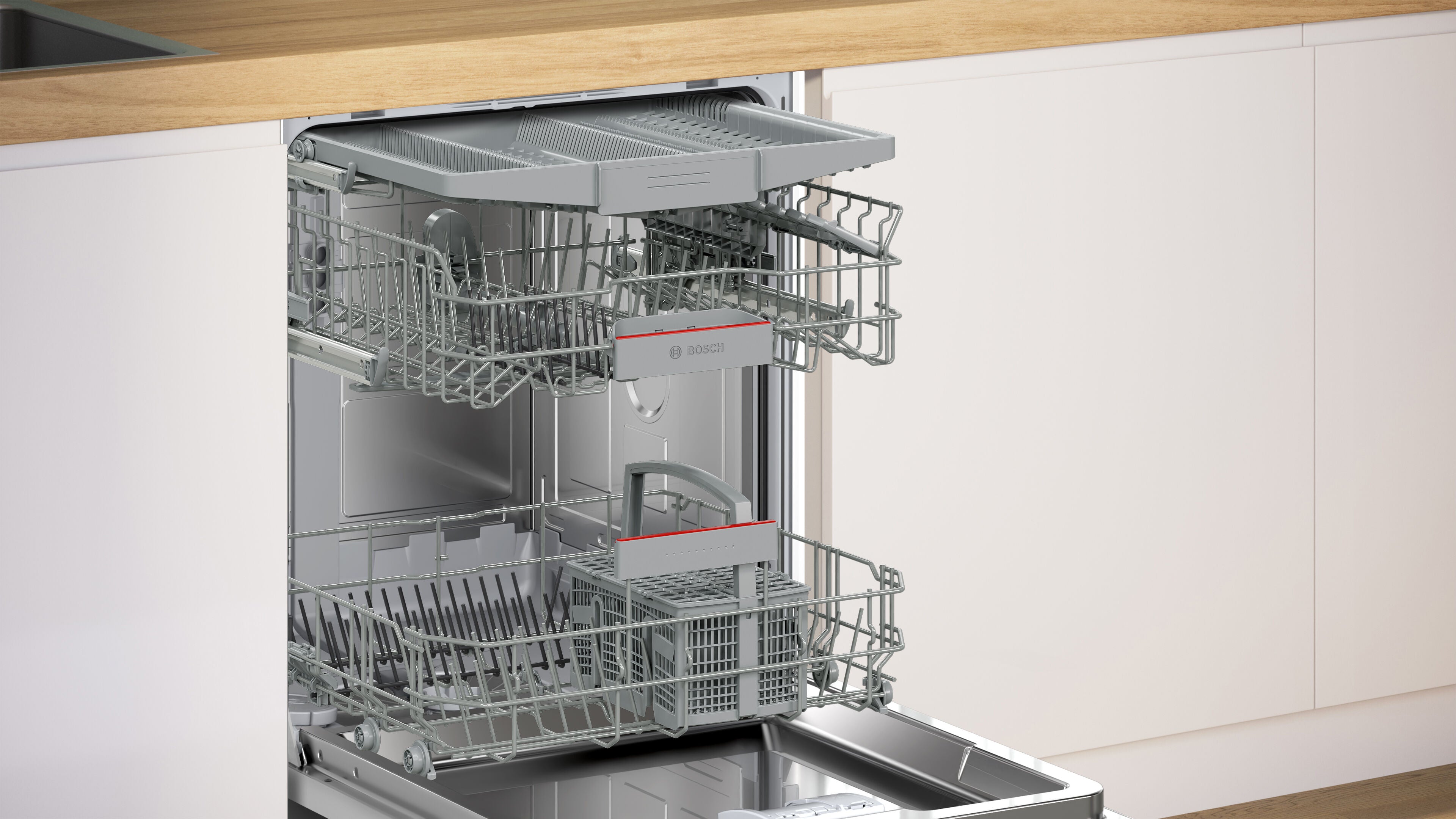

• VarioDrawer: Additional upper loading level for cutlery and utensils.
• EcoSilence Drive: Brushless motor system engineered for quieter and energy-efficient operation.
• Extra Dry function: Enhanced drying cycle for plastics and difficult-to-dry items.
• Home Connect: Wi-Fi connectivity with remote monitoring and programme control.
• Favourite function: Save preferred wash combinations for one-touch access.

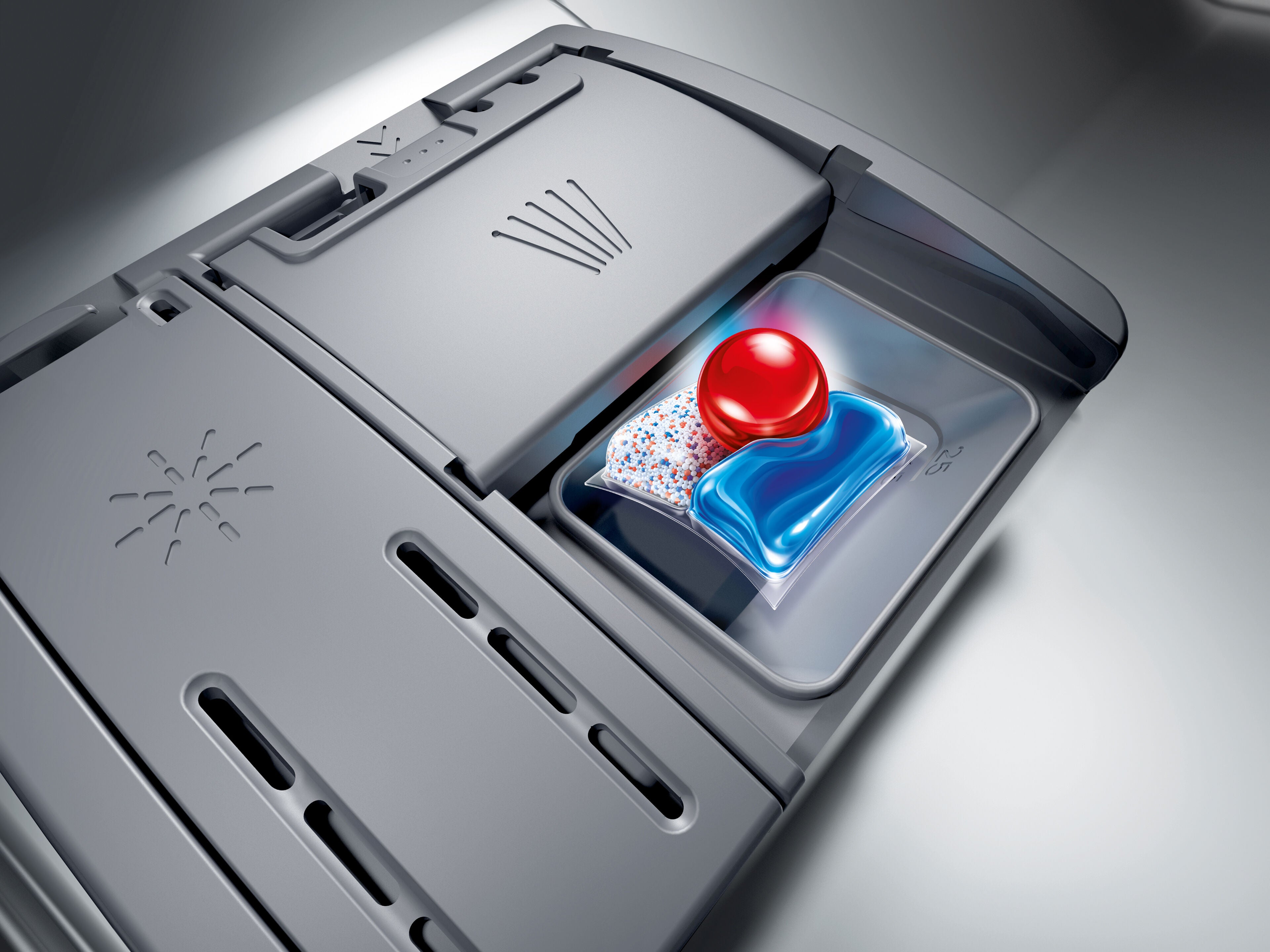

• Dosage Assist: Controlled detergent tablet dissolution for improved wash performance.
• AquaStop protection: Lifetime anti-flood protection system.
• Delay start timer: Delayed wash cycle commencement.
• Heat exchanger drying: Controlled drying system designed to protect delicate items.

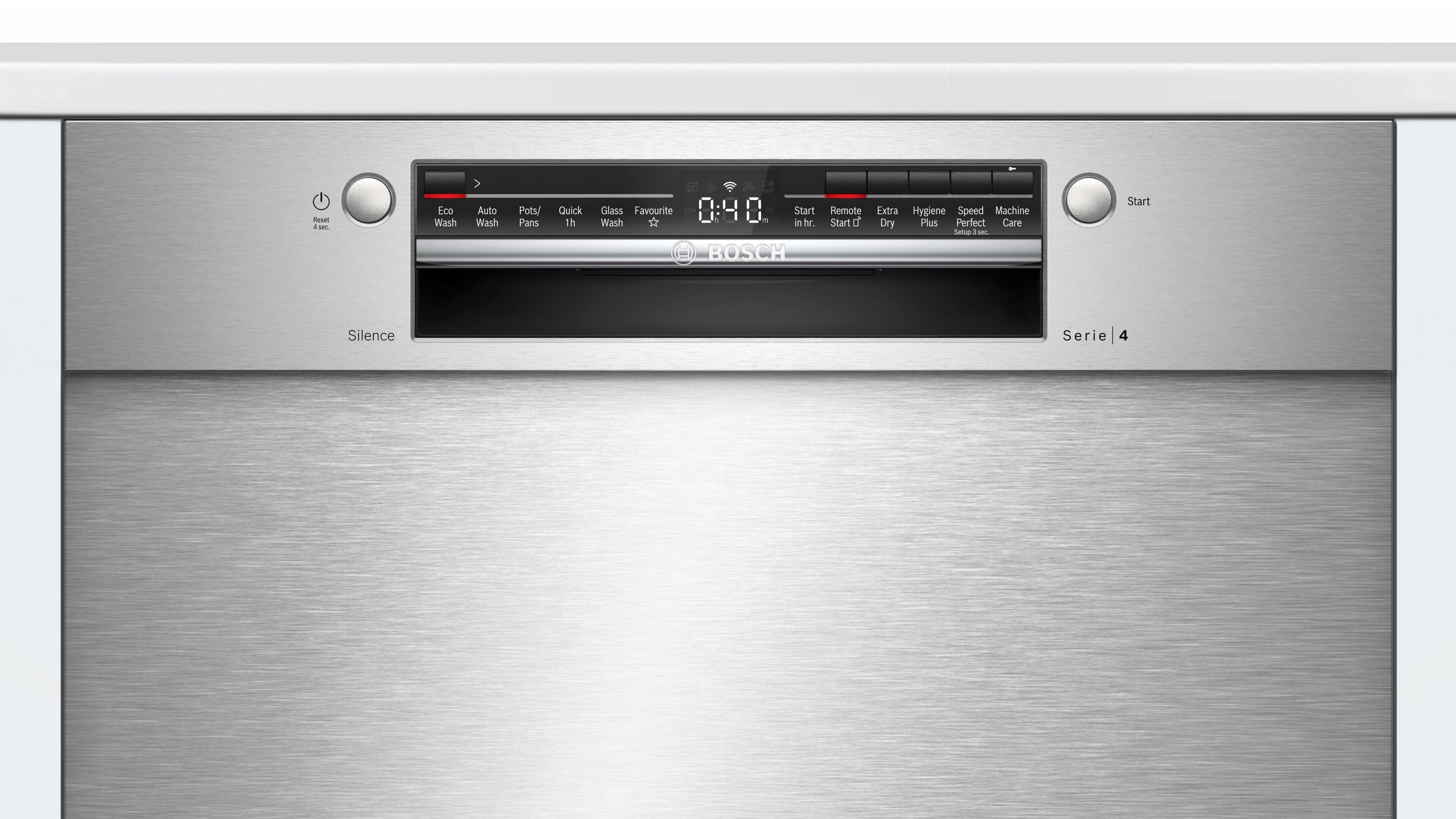

• LED display interface: Programme and cycle status visibility during operation.
• Child lock: Prevents unintended control adjustments during operation.

• Dishwasher type: Built-under dishwasher
• Capacity: 14 place settings
• Energy rating: 4 stars
• Energy consumption: 230 kWh per year
• WELS rating: 4 stars
• Water consumption: 13.5 L per wash
• WELS registration number: D02594
• Noise level: 46 dB(A) re 1pW
• Drying system: Heat exchanger
• Control type: Electronic controls with LED display
• Connectivity: Wi-Fi / Home Connect
• Number of programmes: 6
• Programmes: Auto, Eco, Intensive, Quick, Glass, Favourite
• Basket system: VarioFlex baskets with VarioDrawer
• Number of spray zones: 5
• Water connection: Cold water

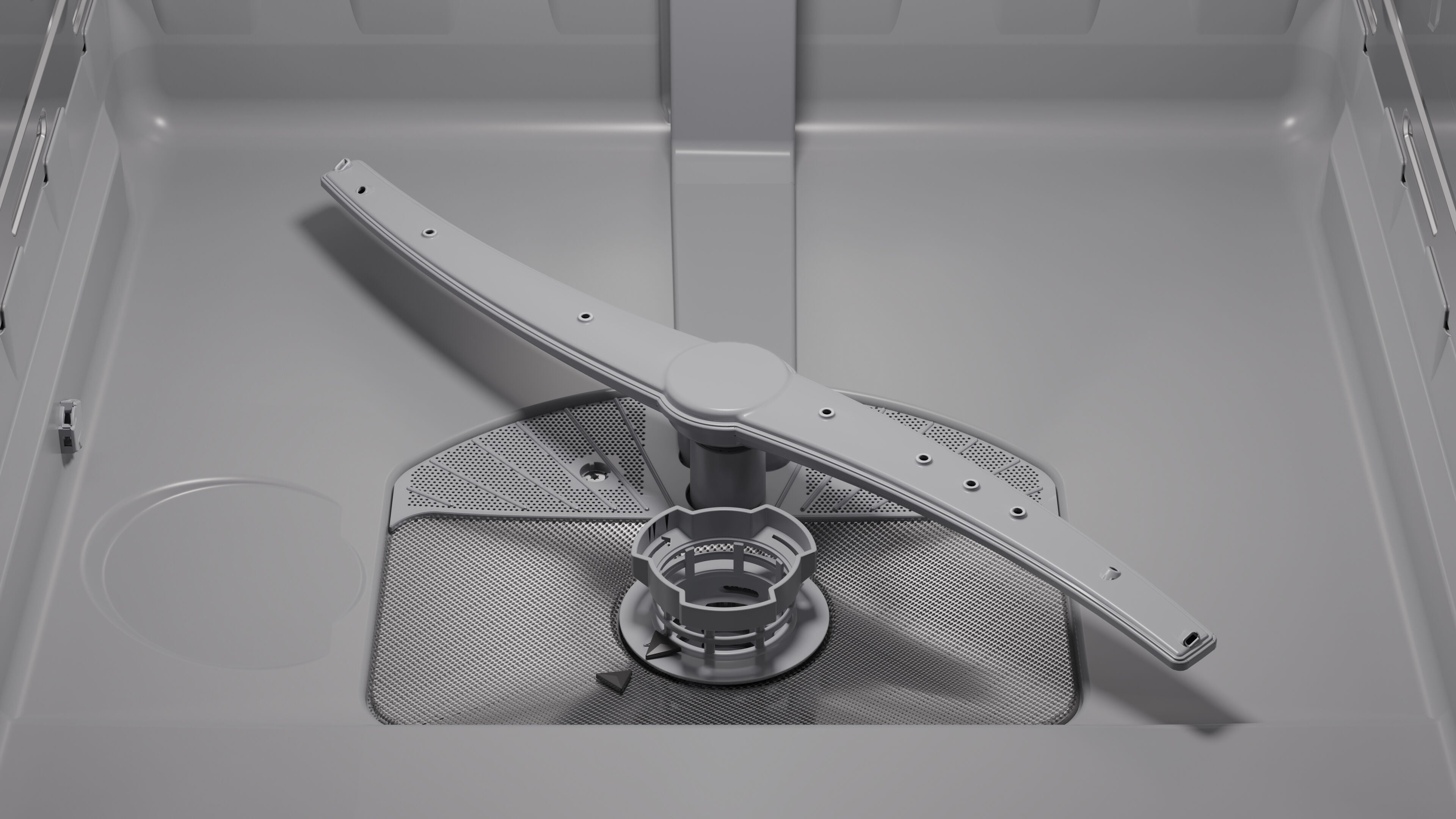

• Filter system: Triple-stage filtration system

• Installation type: Built-under
• Connection type: 10 A plug and lead
• Power supply: 220–240 V / 50–60 Hz
• Connected load: 2400 W
• Fuse protection: 10 A
• Water inlet: Cold water connection
• Permitted incoming water temperature: Maximum 60°C
• Water pressure: 50–1000 kPa

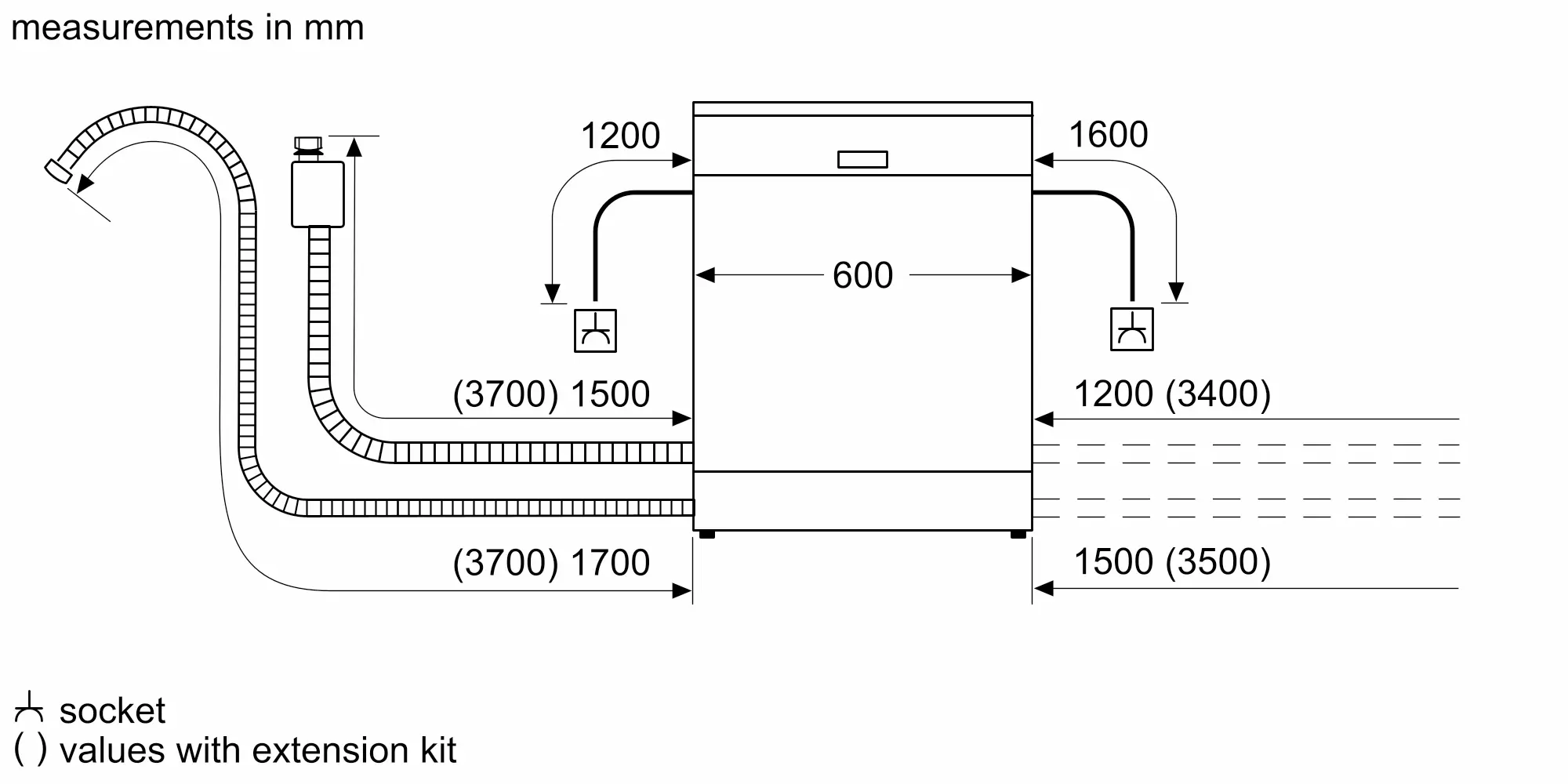

• Power cord length: Approx. 175 cm
• Drain hose length: Approx. 190 cm
• Inlet hose length: Approx. 165 cm

Bosch Warranty

• Bosch appliances are backed in Australia by BSH Home Appliances Pty Ltd, providing trusted after-sales support and service nationwide.

Warranty Coverage

Domestic Use:

• Bosch appliances are covered by a 2-year manufacturer’s warranty from the date of purchase, covering defects in materials and workmanship.

Commercial Use

• If used for commercial purposes, the warranty period is limited to 3 months.
• This warranty is provided in addition to your rights under Australian Consumer Law.

What’s Covered

Under normal domestic use, the warranty includes:

• Manufacturing defects
• Repair or replacement of faulty components
• Service within Bosch’s authorised service network

For minor failures, Bosch may choose to repair or replace the appliance.

• Proof of purchase is required to make a claim.
• To lodge a claim, contact Bosch Customer Care Australia on 1300 369 744.

What’s Not Covered

The warranty does not apply to damage caused by:

• Incorrect installation or operation
• Unauthorised repairs or non-approved parts
• Incorrect power, gas or water supply
• Commercial use beyond 3 months
• Normal wear and tear (filters, seals, globes, fuses, etc.)
• Blockages, misuse, operator error or storm damage
• Delivery or installation damage
• Appliances exported outside Australia

Travel or transport costs may apply if you are located outside a Bosch service area.

Australian Consumer Law

• Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if they fail to be of acceptable quality and the failure does not amount to a major failure.

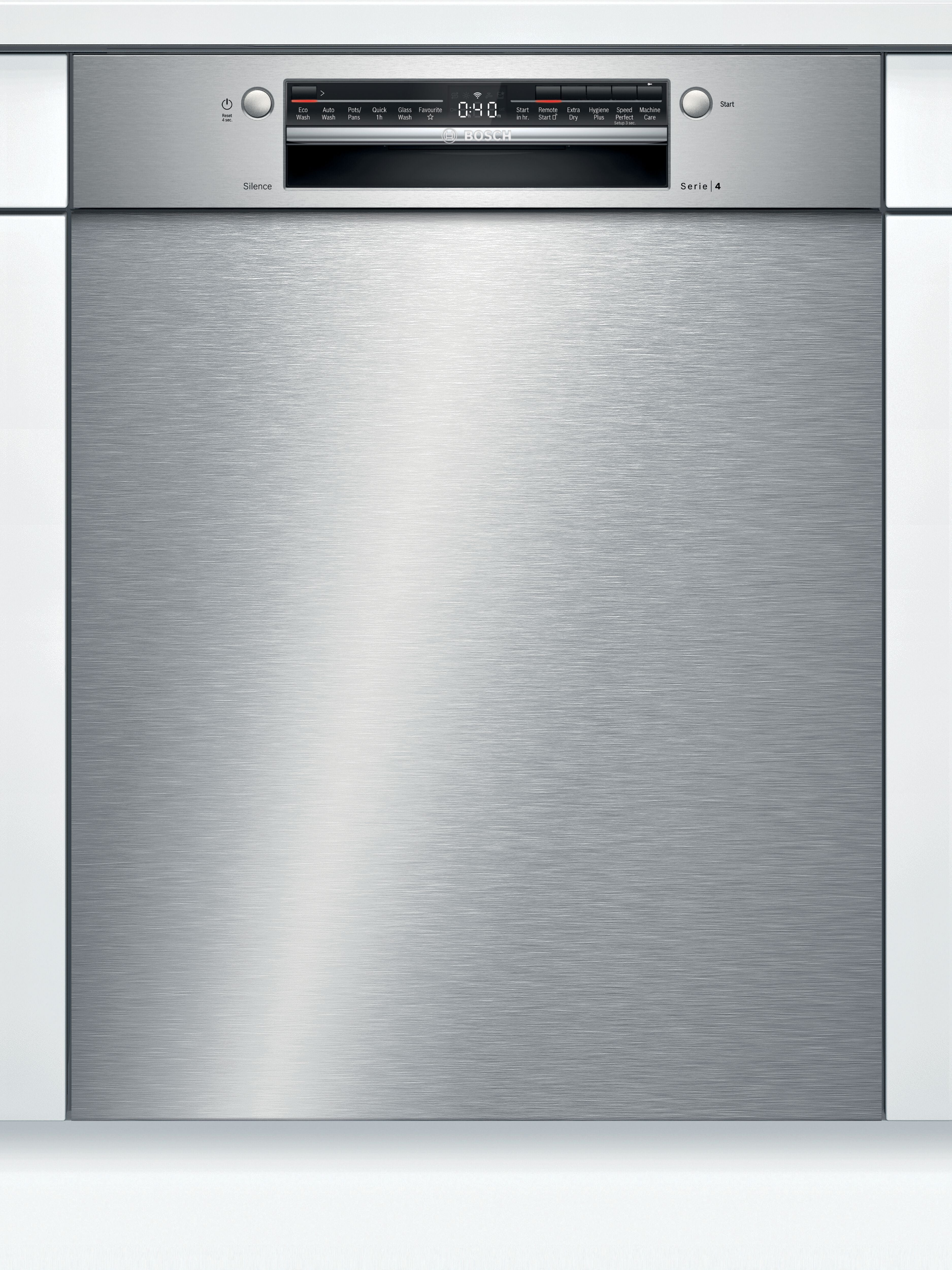

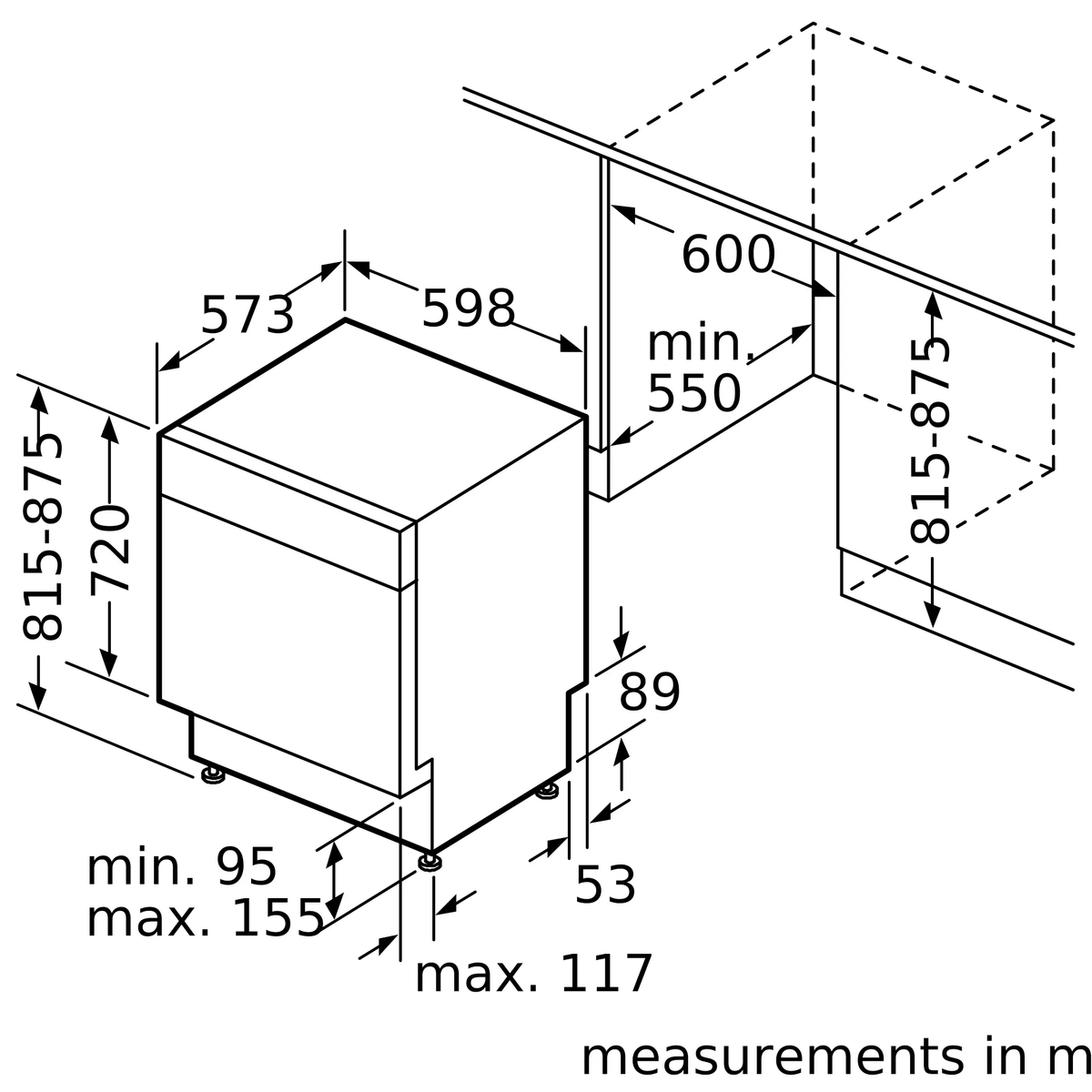

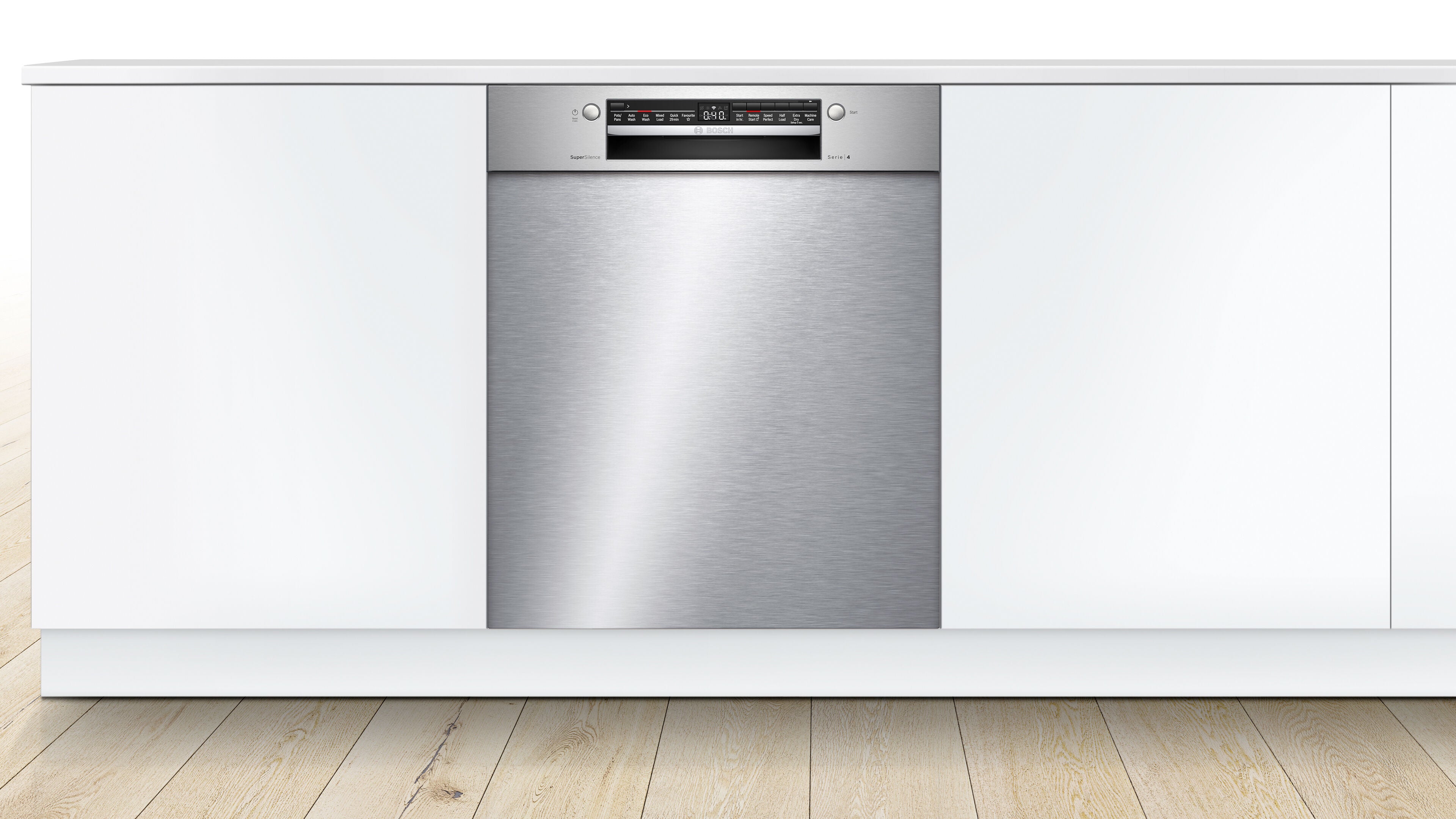

The SMU4HVS01A is designed for built-under installation beneath existing kitchen benchtops and includes a stainless steel kick panel for integrated lower-front presentation. The brushed steel anti-fingerprint finish is designed to reduce visible fingerprint marking during everyday use.

Bosch Home Connect functionality allows compatible smartphone integration for programme monitoring, notifications, remote operation, and Favourite cycle storage through the Bosch Home Connect application. The dishwasher may also be operated normally without Wi-Fi connection.

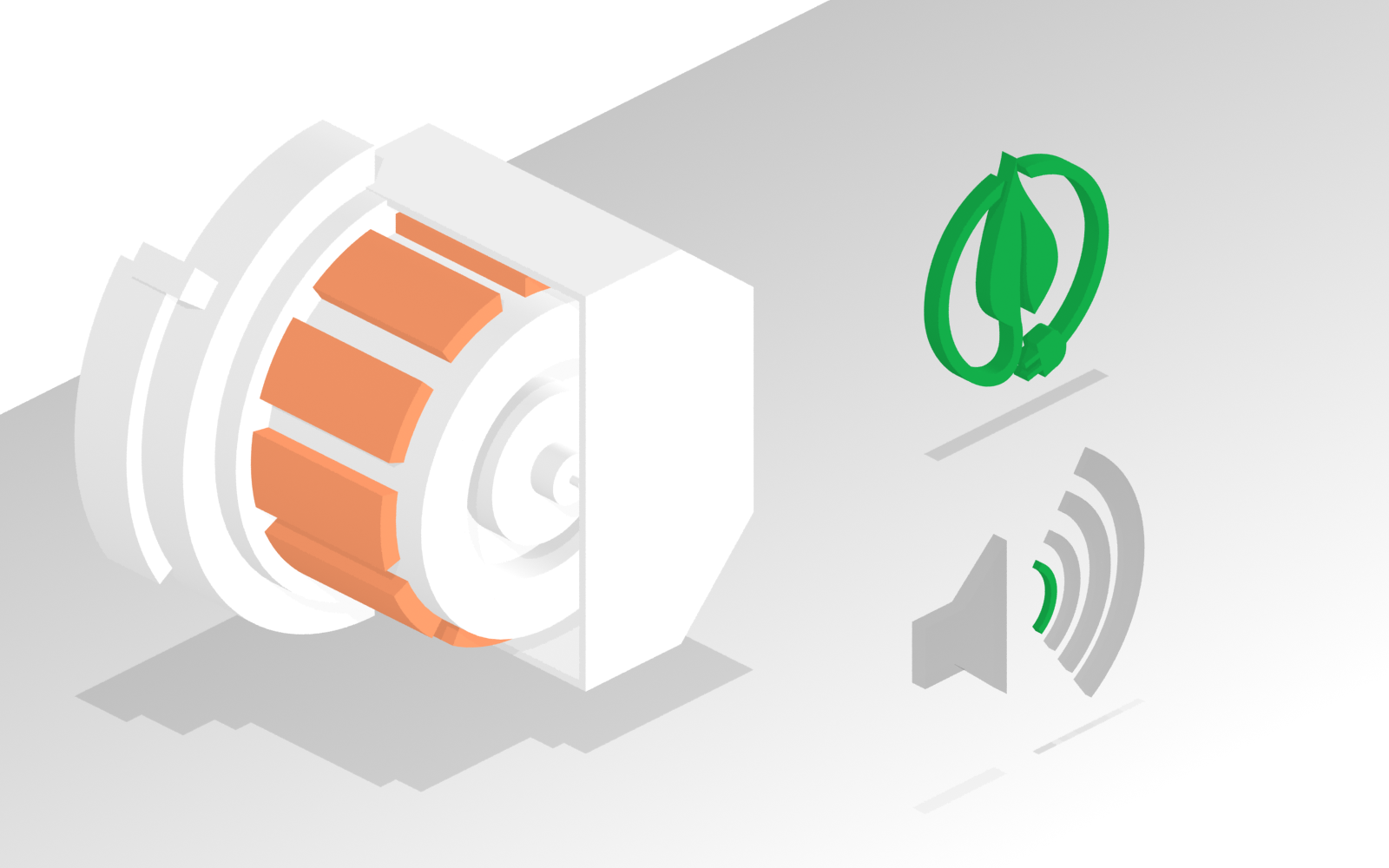

EcoSilence Drive motor technology uses brushless operation to reduce friction and operating noise during wash cycles while supporting long-term energy efficiency and quieter kitchen environments.

• Stainless steel kick panel
• Cold water inlet hose
• Drain hose
• Power cord
• Installation hardware
• User documentation
