• 14 place setting capacity: accommodates full household dishwashing loads in a single cycle.
• 6 wash programmes: multiple programme selections for varying load types and soil levels.
• Home Connect: Wi-Fi enabled smart connectivity for remote monitoring and operation.

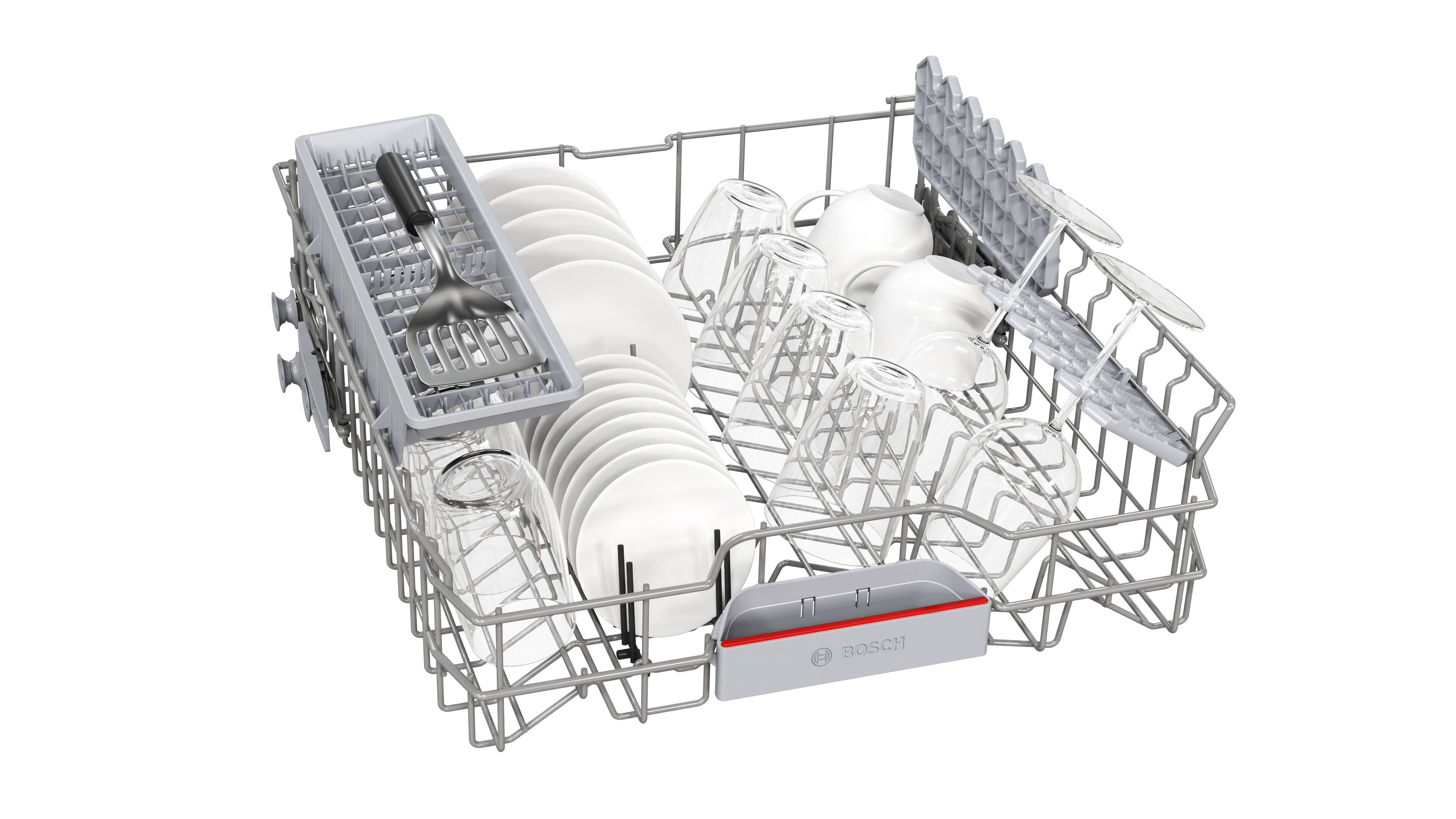

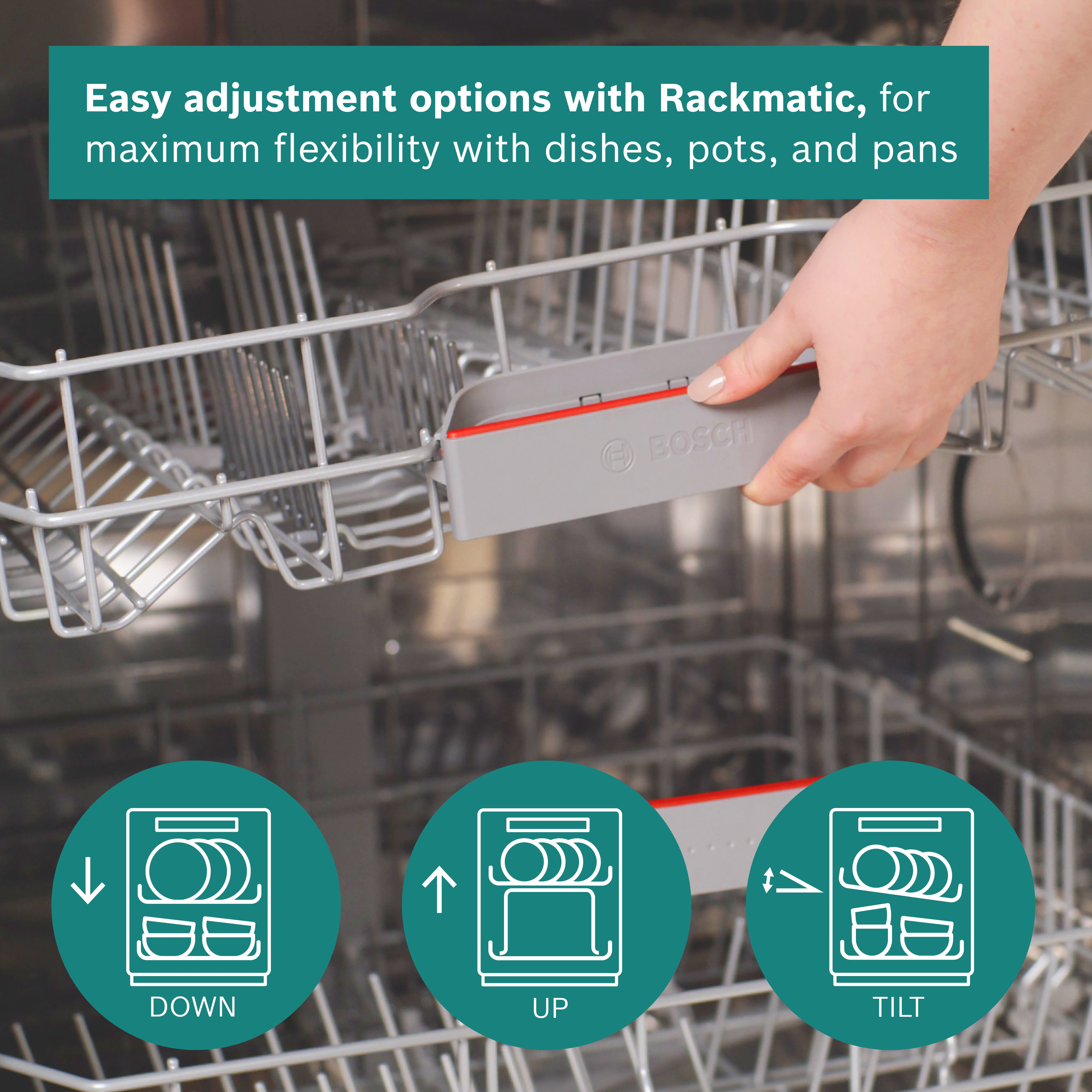

• Rackmatic basket system: 3-level height-adjustable upper basket for flexible loading.

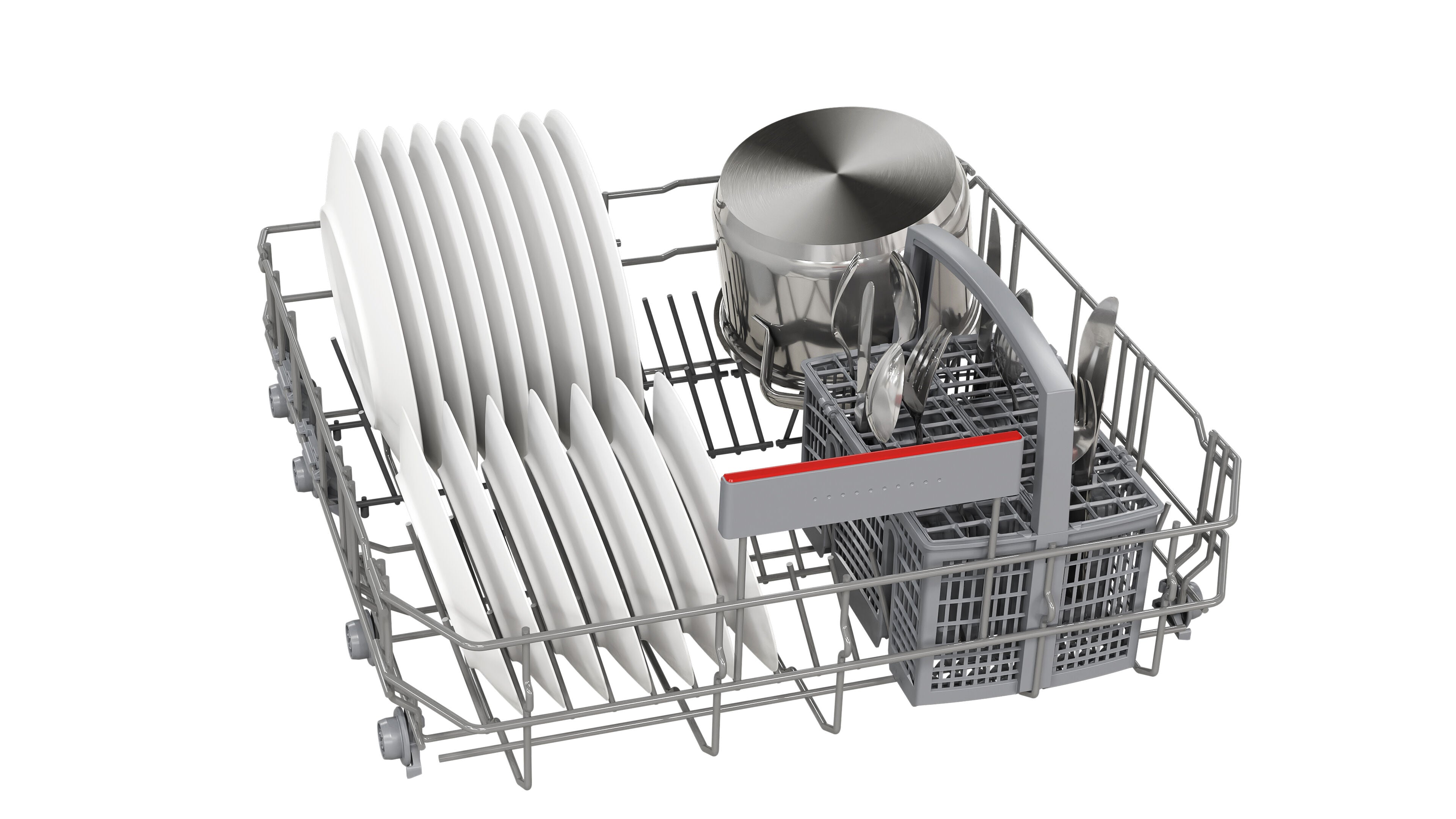

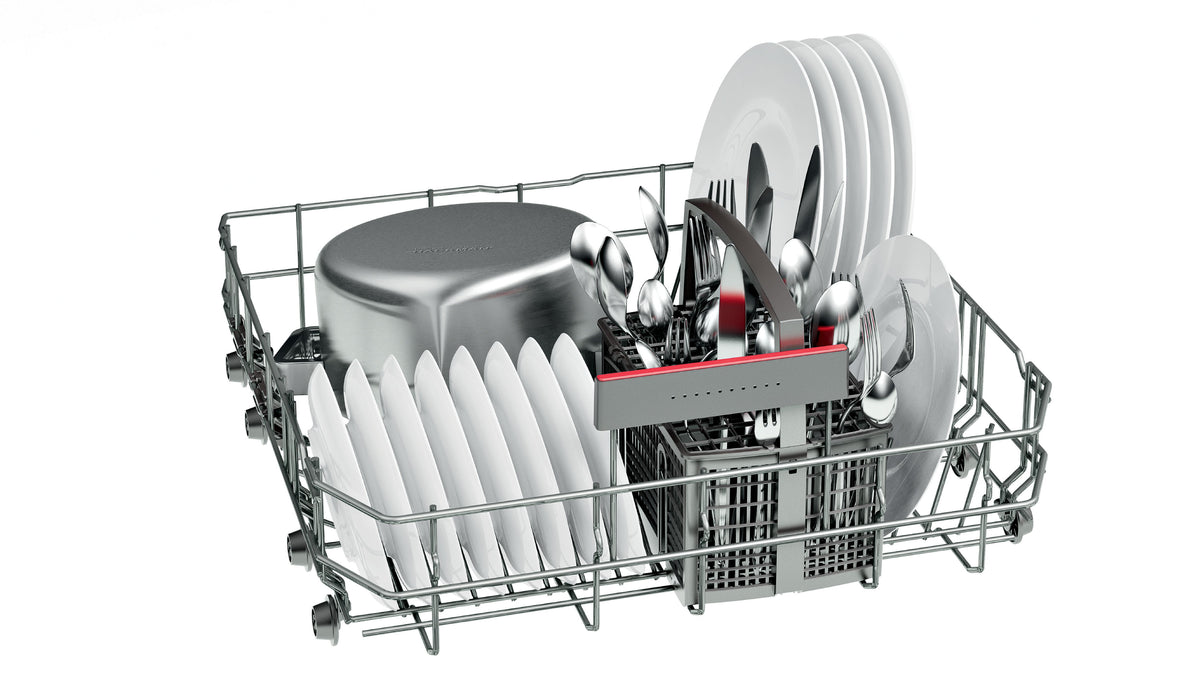

• VarioFlex baskets: adjustable basket configuration for improved loading versatility.
• Extra Dry: enhanced drying cycle designed for plastics and difficult-to-dry items.
• EcoSilence Drive: brushless motor technology for quieter, energy-efficient operation.
• SpeedPerfect: reduces programme duration while maintaining cleaning performance.

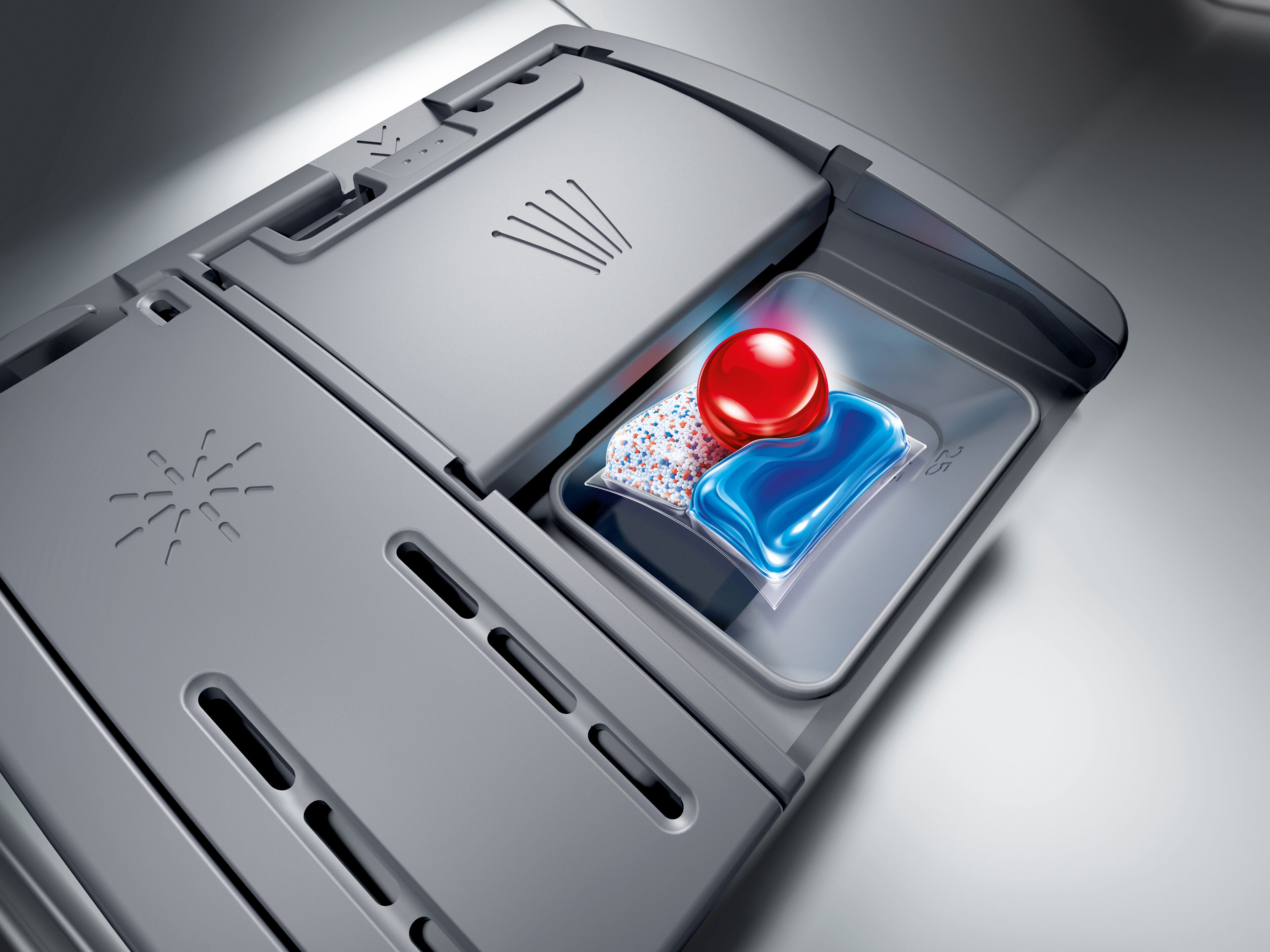

• DosageAssist: optimised detergent tablet dissolution through targeted water flow.
• Heat exchanger drying: gentle drying system helping protect delicate glassware.
• Favourite function: stores preferred programme combinations for one-touch activation.
• Delay start: delayed programme commencement for flexible scheduling.
• Time remaining display: digital programme countdown display.
• AquaStop: water protection system with Bosch lifetime anti-flood warranty coverage.
• Child lock: helps prevent unintended operation changes during cycles.
• Interior light: internal illumination for improved loading visibility.

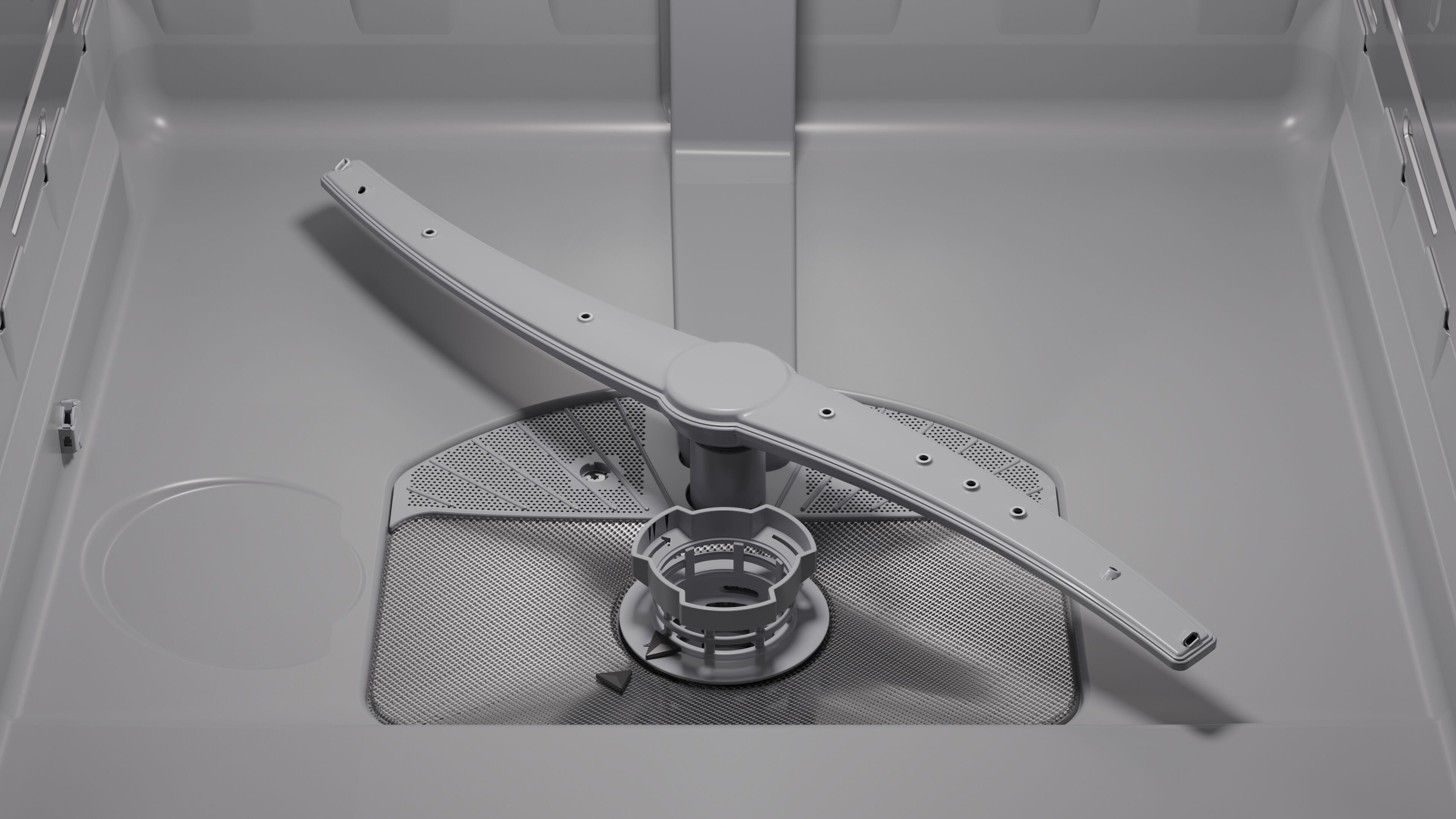

• Triple-stage filtration: multi-stage water filtration system during wash cycles.

• Dishwasher type: Built-under dishwasher
• Series: Bosch Series 4
• Capacity: 14 place settings
• Number of programmes: 6

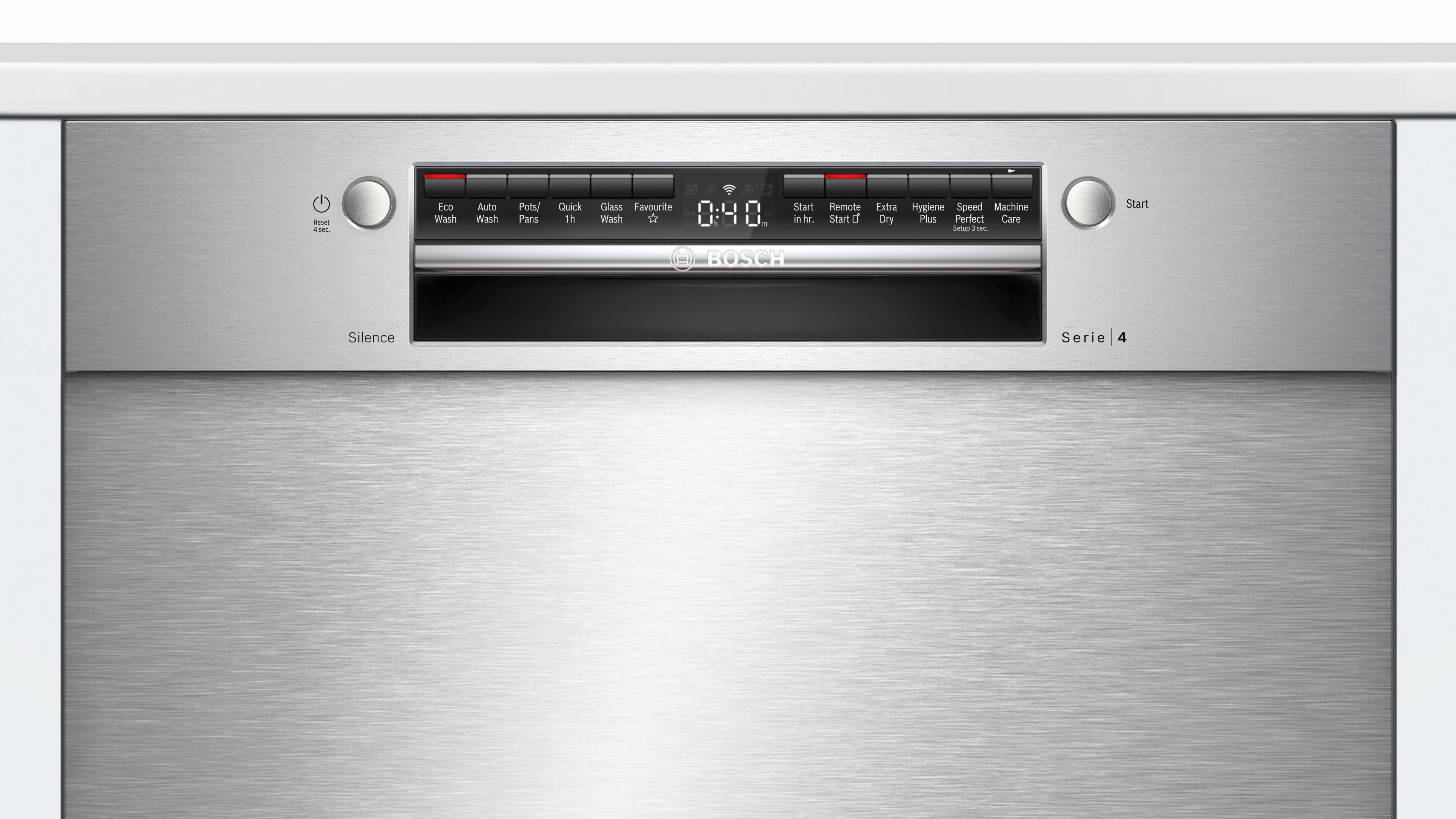

• Control type: Electronic controls with LED display
• Display type: LED
• Drying system: Heat exchanger
• Basket system: VarioFlex baskets with Rackmatic adjustment
• Cutlery system: Cutlery basket
• Water connection: Cold water connection
• Number of spray zones: 5
• Energy rating: 4 stars
• Energy consumption: 230 kWh per year
• Water rating: 4 stars WELS
• Water consumption: 13.5 L per wash
• WELS registration number: D02579
• Noise level: 46 dB(A) re 1pW
• Wi-Fi connectivity: Yes
• Half load function: No
• Auto dosing: No
• Dual wash function: No
• Anti-bacterial programme: No
• Eco mode: Yes
• Quick wash: Yes
• Heavy wash: Yes
• Glass programme: Yes
• Hygiene wash: Yes
• Quick rinse: Yes
• Polinox inner lower tub base: Yes

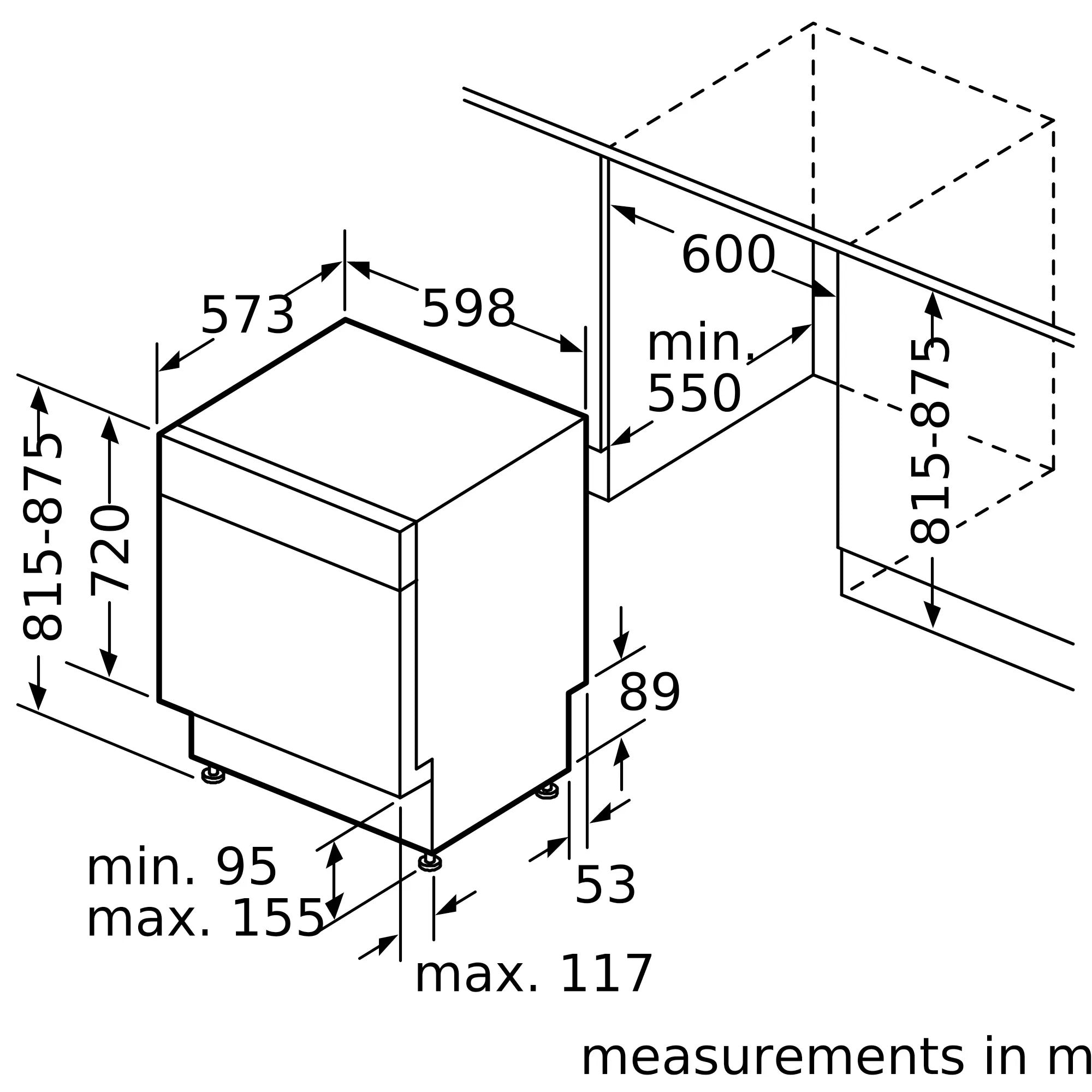

• Installation type: Built-under / under counter
• Connection type: 10 A plug and lead
• Power supply: 220–240 V / 50–60 Hz
• Connected load: 2400 W
• Total amperage: 10 A
• Water pressure range: 50–1000 kPa
• Minimum inlet flow rate: 10 L/min

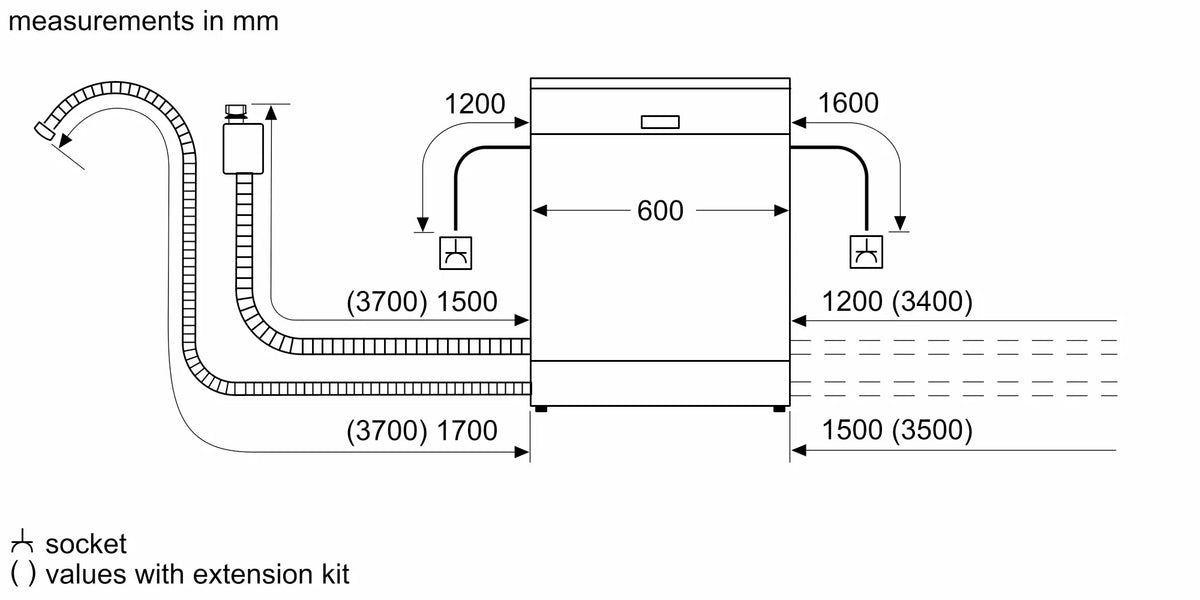

• Water inlet hose length: 1650 mm
• Drain hose length: 1900 mm
• Installation requirement: designed for installation beneath existing benchtops
• Cabinetry note: side and top panels not included

Bosch Warranty

• Bosch appliances are backed in Australia by BSH Home Appliances Pty Ltd, providing trusted after-sales support and service nationwide.

Warranty Coverage

Domestic Use:

• Bosch appliances are covered by a 2-year manufacturer’s warranty from the date of purchase, covering defects in materials and workmanship.

Commercial Use

• If used for commercial purposes, the warranty period is limited to 3 months.
• This warranty is provided in addition to your rights under Australian Consumer Law.

What’s Covered

Under normal domestic use, the warranty includes:

• Manufacturing defects
• Repair or replacement of faulty components
• Service within Bosch’s authorised service network

For minor failures, Bosch may choose to repair or replace the appliance.

• Proof of purchase is required to make a claim.
• To lodge a claim, contact Bosch Customer Care Australia on 1300 369 744.

What’s Not Covered

The warranty does not apply to damage caused by:

• Incorrect installation or operation
• Unauthorised repairs or non-approved parts
• Incorrect power, gas or water supply
• Commercial use beyond 3 months
• Normal wear and tear (filters, seals, globes, fuses, etc.)
• Blockages, misuse, operator error or storm damage
• Delivery or installation damage
• Appliances exported outside Australia

Travel or transport costs may apply if you are located outside a Bosch service area.

Australian Consumer Law

• Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if they fail to be of acceptable quality and the failure does not amount to a major failure.

The SMU4HTS01A uses Bosch heat exchanger drying technology which assists drying performance while helping reduce thermal shock on delicate items such as glassware. The Extra Dry option extends drying performance further for plastics and mixed materials that traditionally retain moisture after standard dishwasher cycles.

Bosch Home Connect functionality allows compatible smart devices to remotely monitor programme status, receive notifications, and control supported dishwasher functions through the Home Connect application.

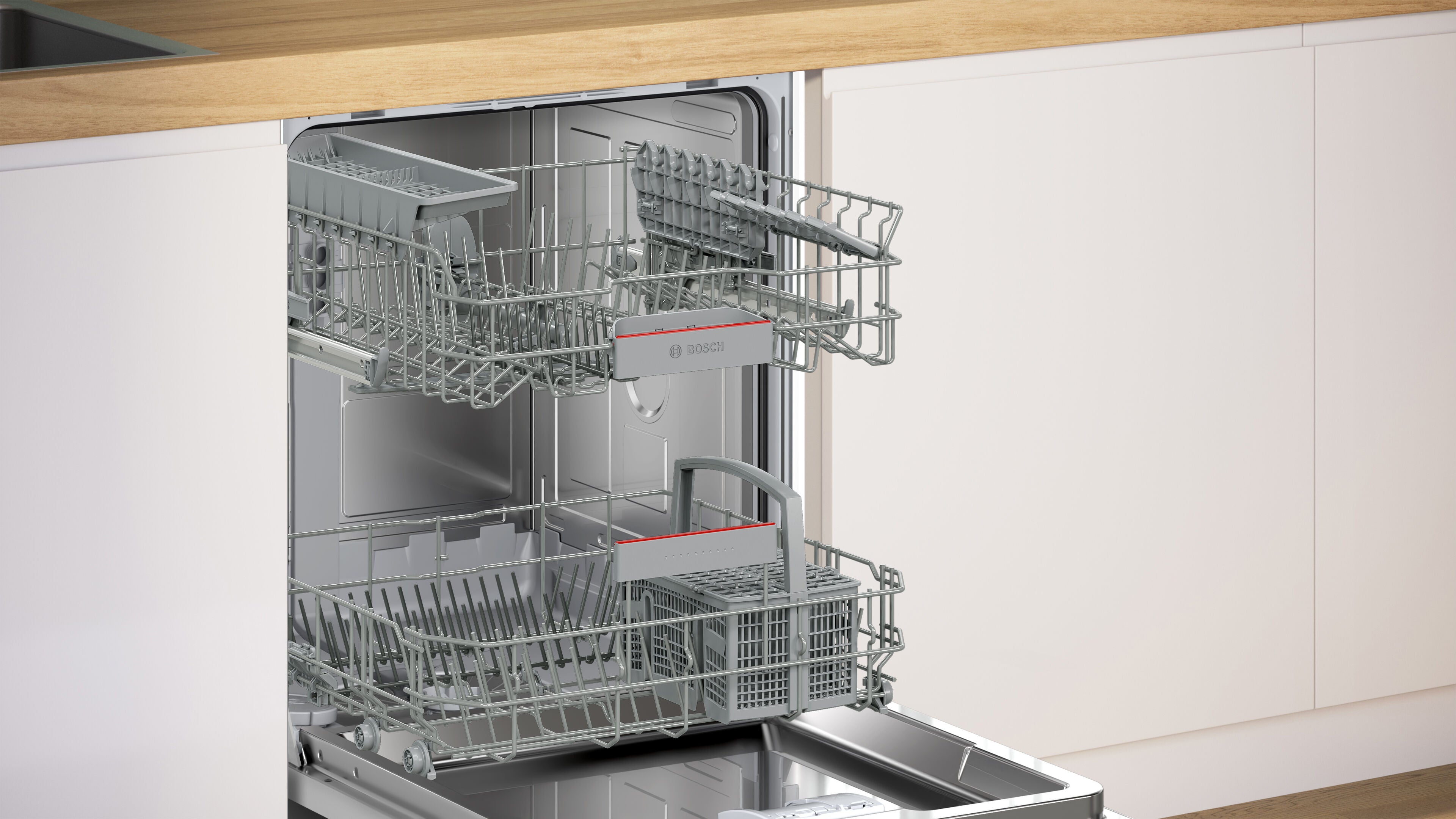

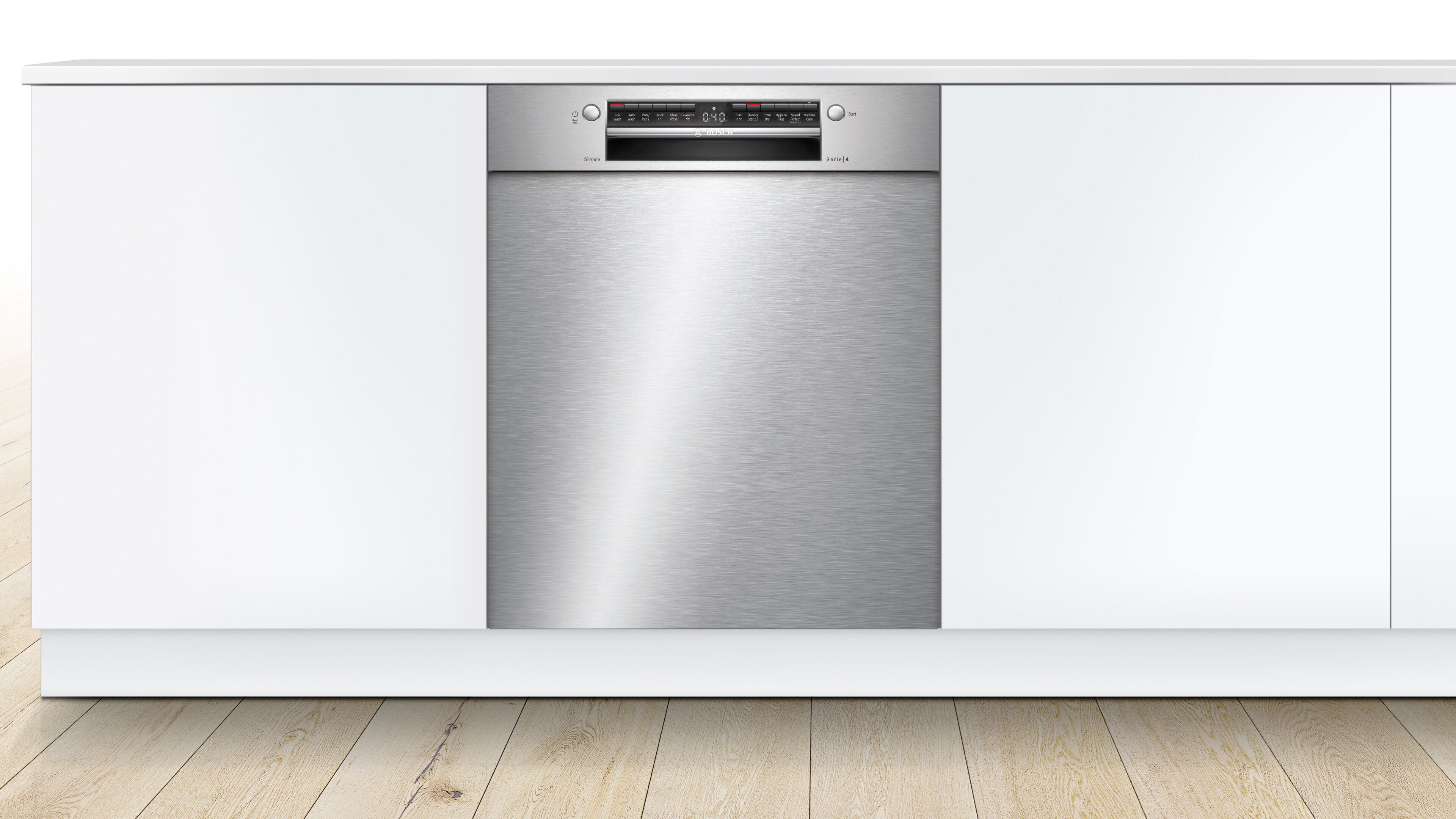

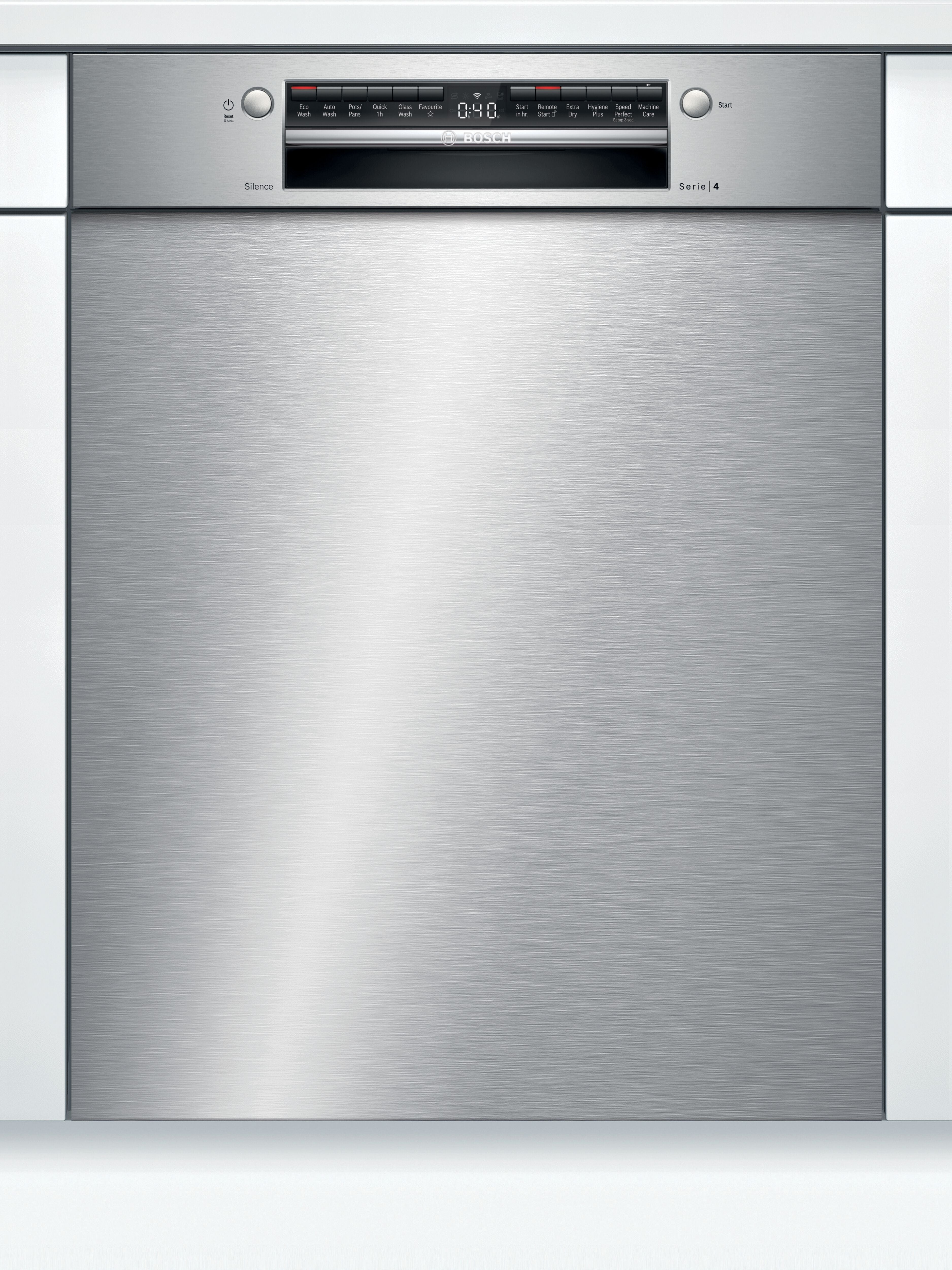

The built-under configuration is designed for installation beneath existing kitchen benchtops while maintaining a visible stainless steel control fascia and door panel. A stainless steel kick panel is included with the appliance.

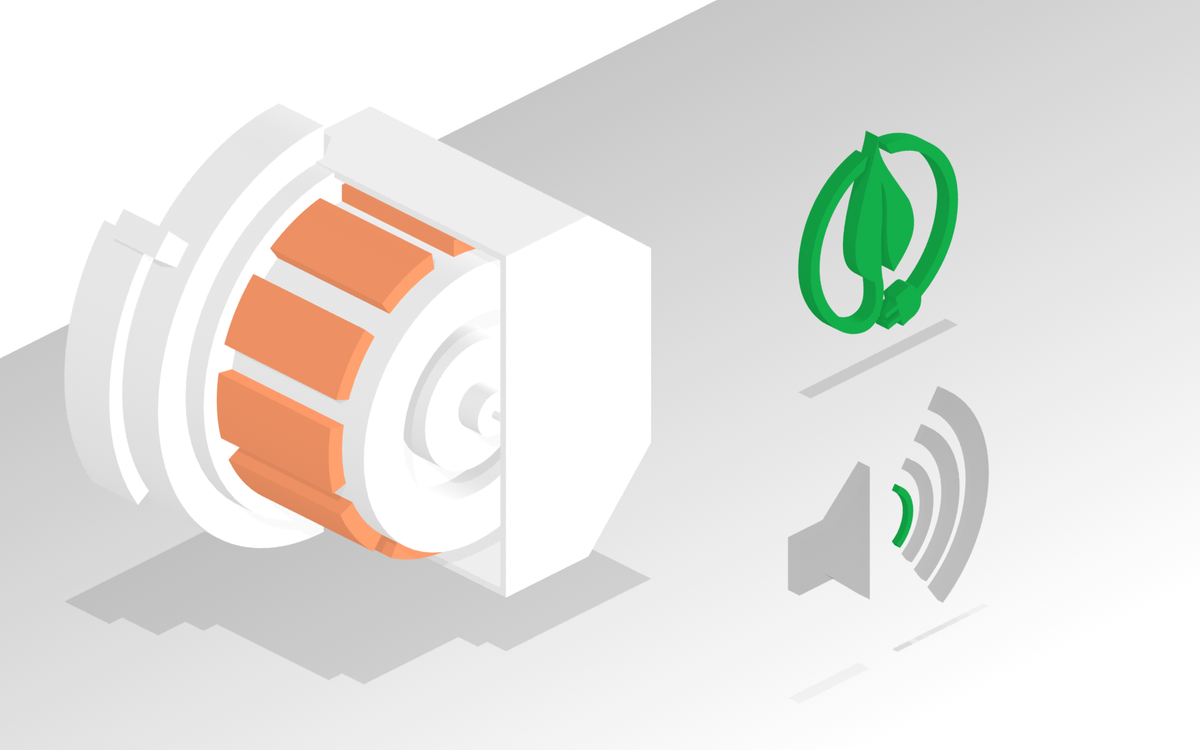

Bosch EcoSilence Drive motor technology operates without traditional carbon brushes, reducing friction and contributing to quieter operation and improved long-term efficiency.

• 1650 mm cold water inlet hose
• 1900 mm drain outlet hose
• Stainless steel kick panel
• Installation components
