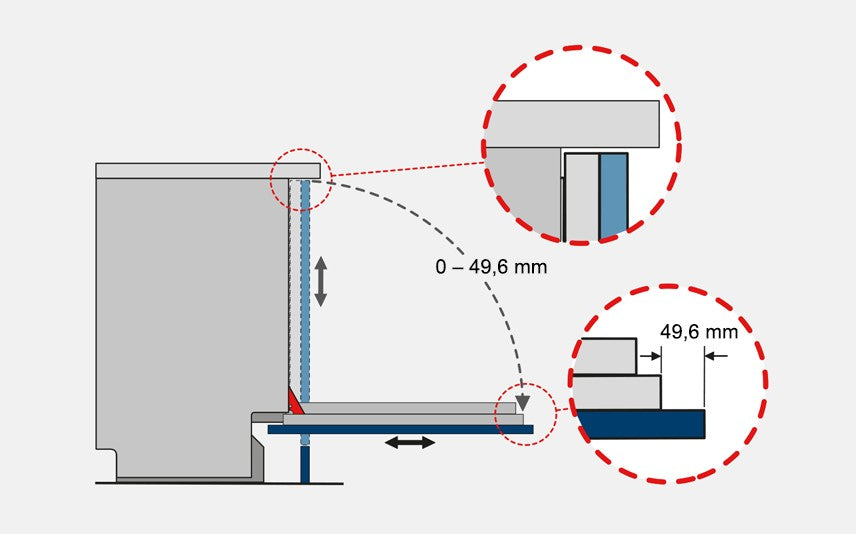

• VarioHinge system: specialised hinge mechanism designed for low plinth and fully integrated kitchen installations.
• PerfectDry with Zeolith: mineral-assisted drying system delivering improved drying performance, including plastics.
• 15 place setting capacity: large-capacity tall tub interior suited to family-sized wash loads.
• Silence Plus: low operating noise level of 42 dB(A).
• EcoSilence Drive: brushless motor system engineered for quiet and energy-efficient operation.

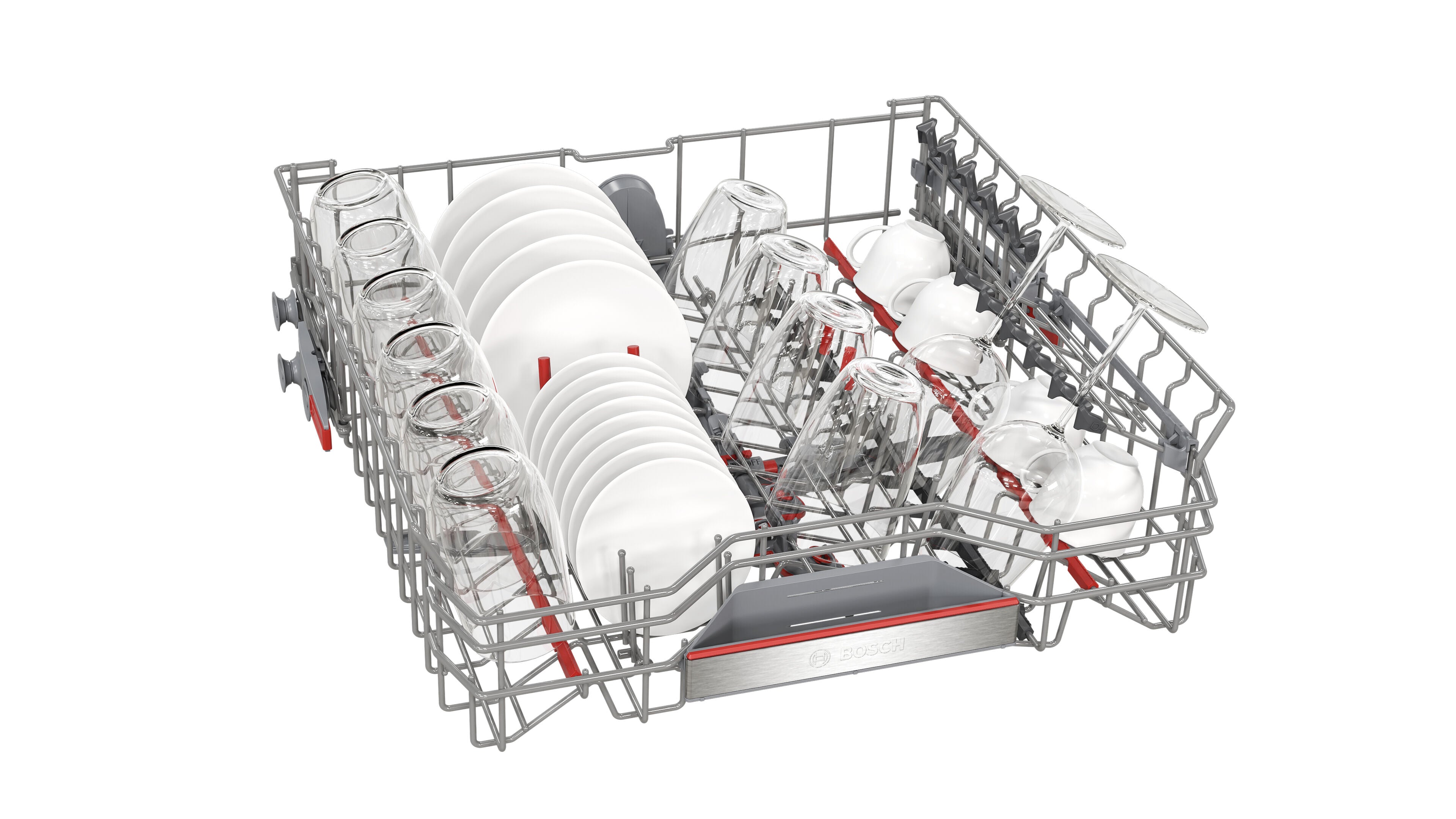

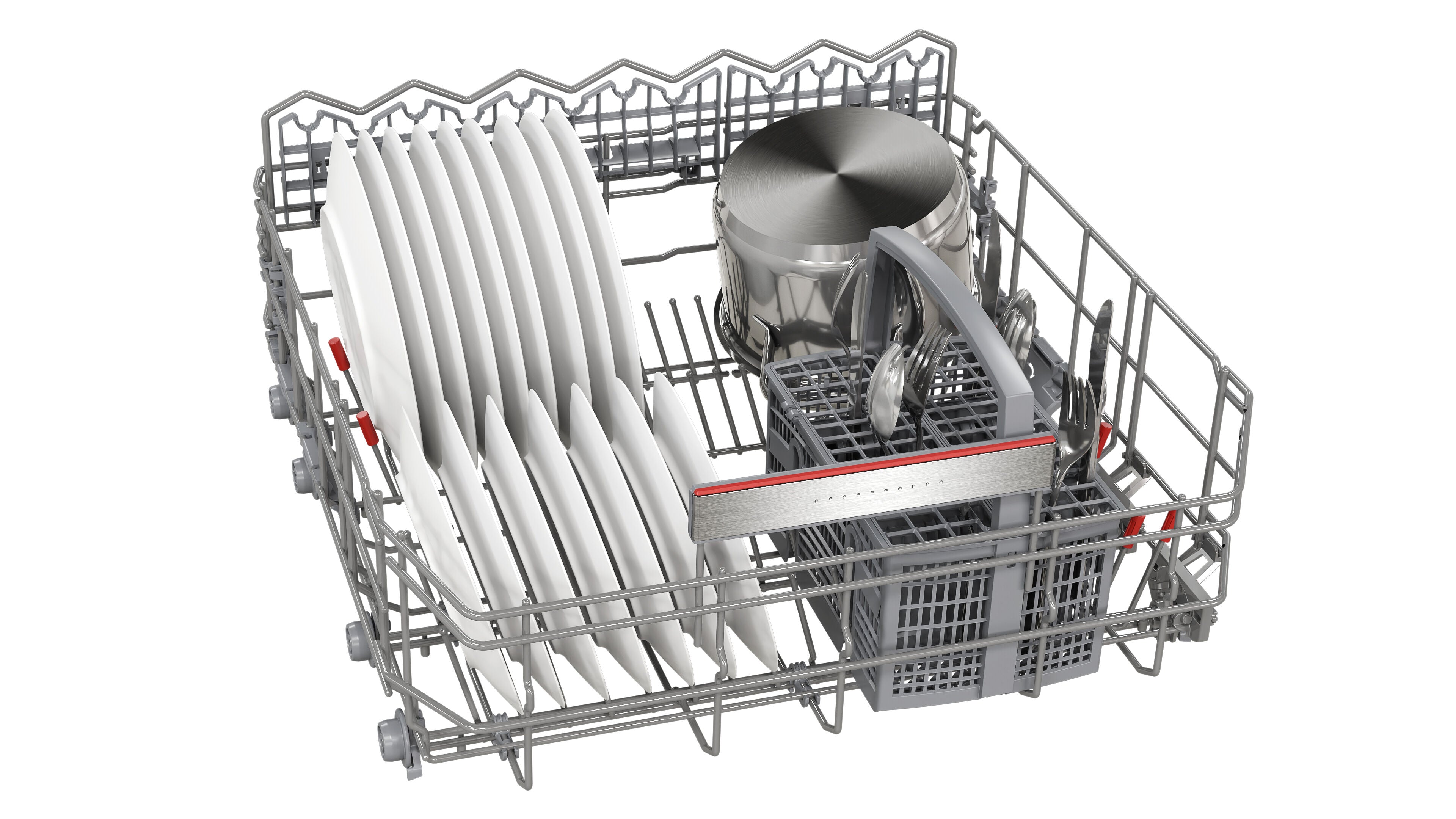

• Max Flex Pro baskets: flexible basket configuration with adjustable loading elements.

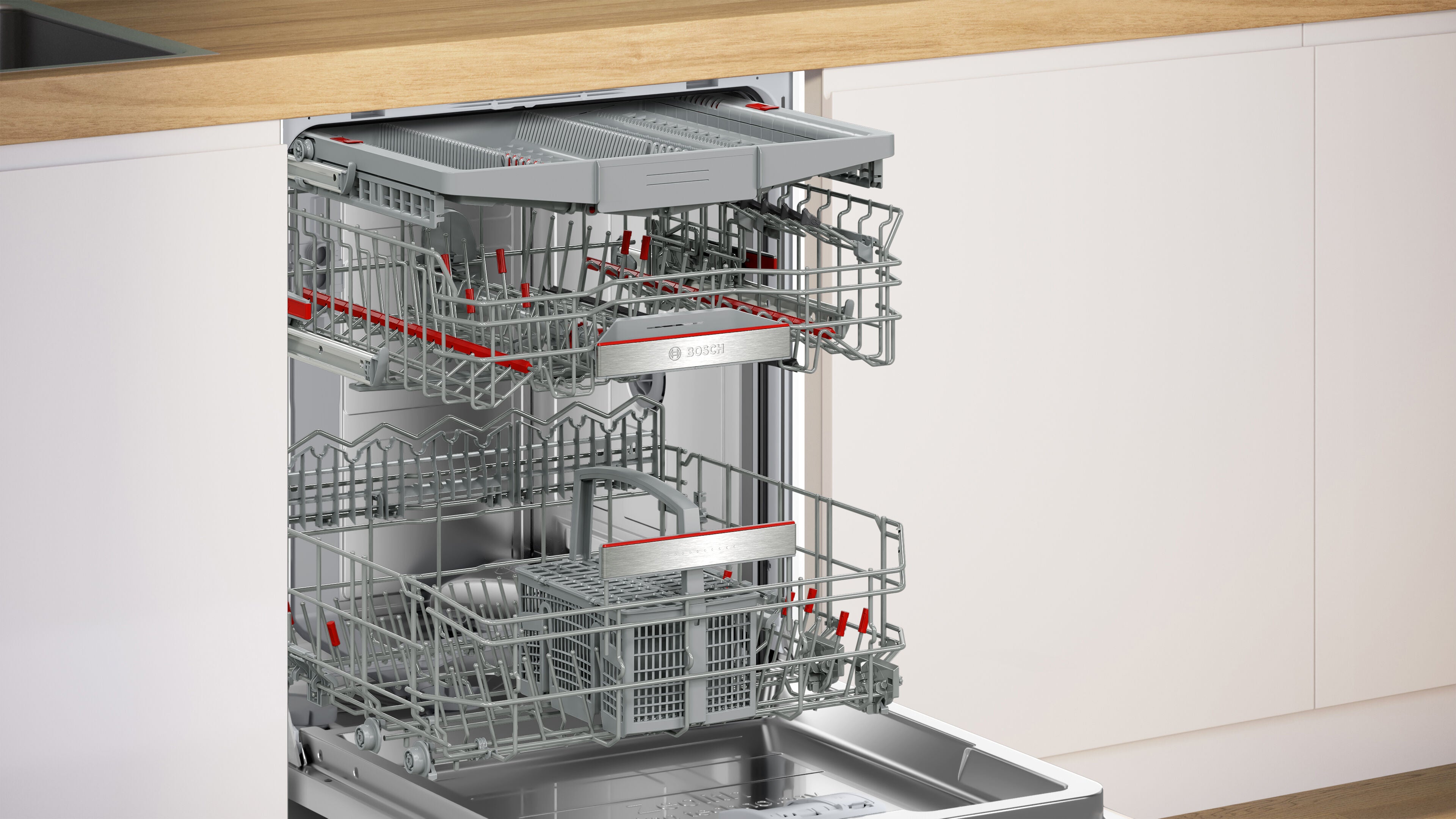

• Rackmatic upper basket: three-stage height adjustment system for taller cookware and dishes.

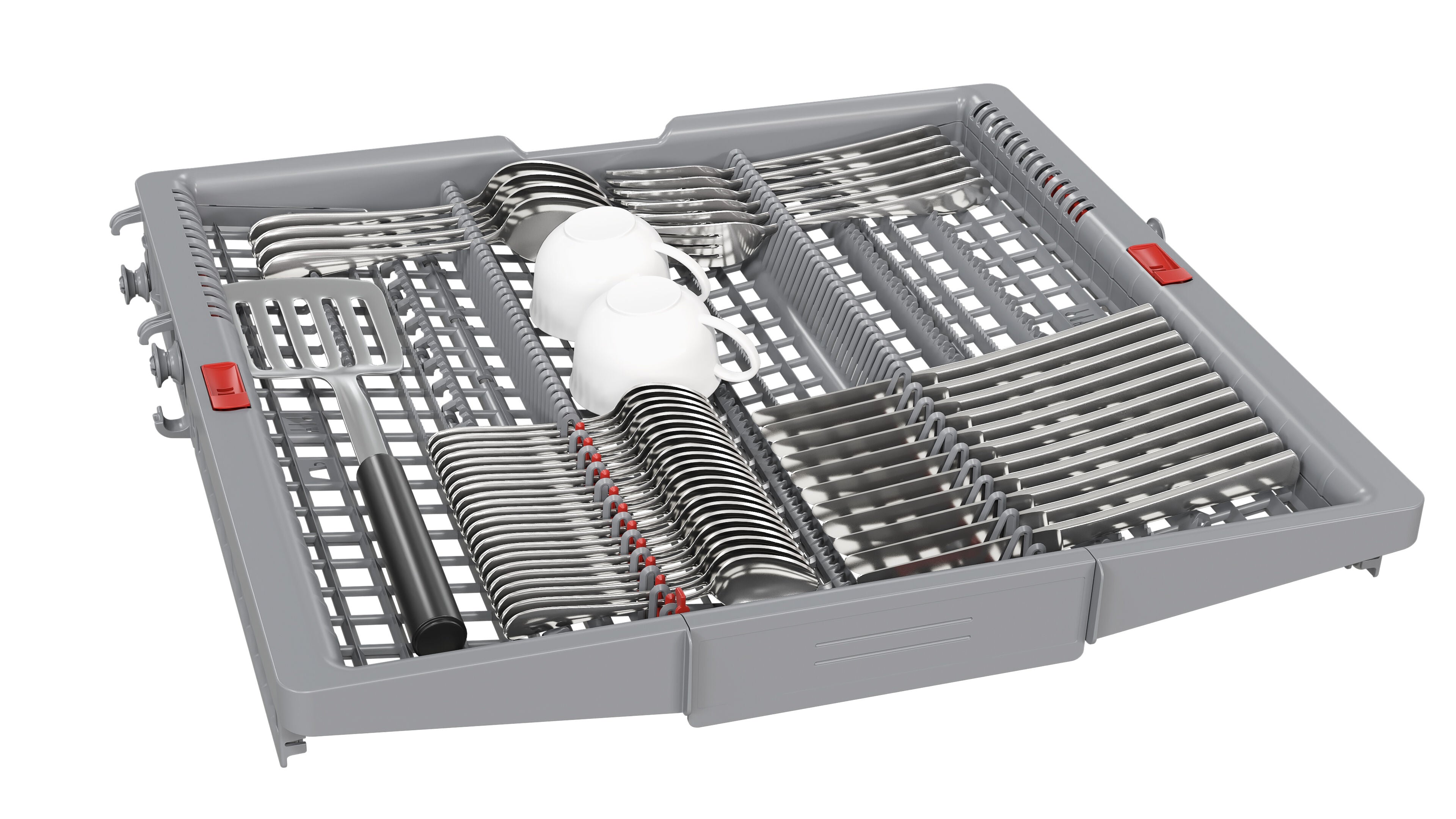

• VarioDrawer Pro: dedicated upper cutlery and utensil drawer.

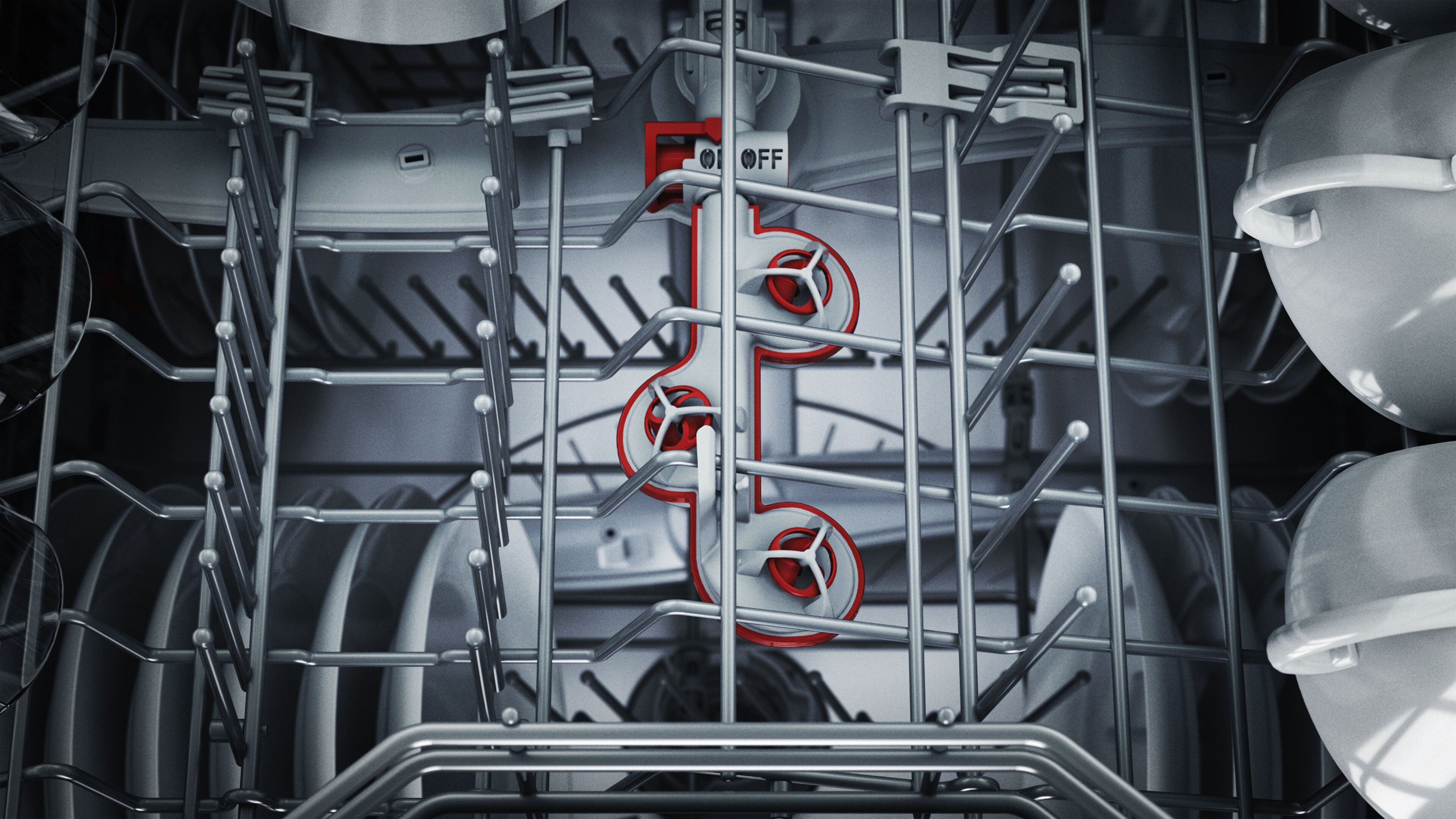

• Extra Clean Zone: intensified cleaning zone for heavily soiled items in the upper basket.
• EfficientDry: automatic door opening at cycle completion to assist drying performance.
• TimeLight: floor projection displaying cycle status and remaining programme time.
• EmotionLight: internal cavity illumination for improved visibility.
• Home Connect: Wi-Fi enabled smart appliance connectivity.
• AquaStop: Bosch water protection system with lifetime anti-leak warranty coverage.
• Delay start: programmable delayed wash commencement.
• Child lock: safety lock functionality for control protection.

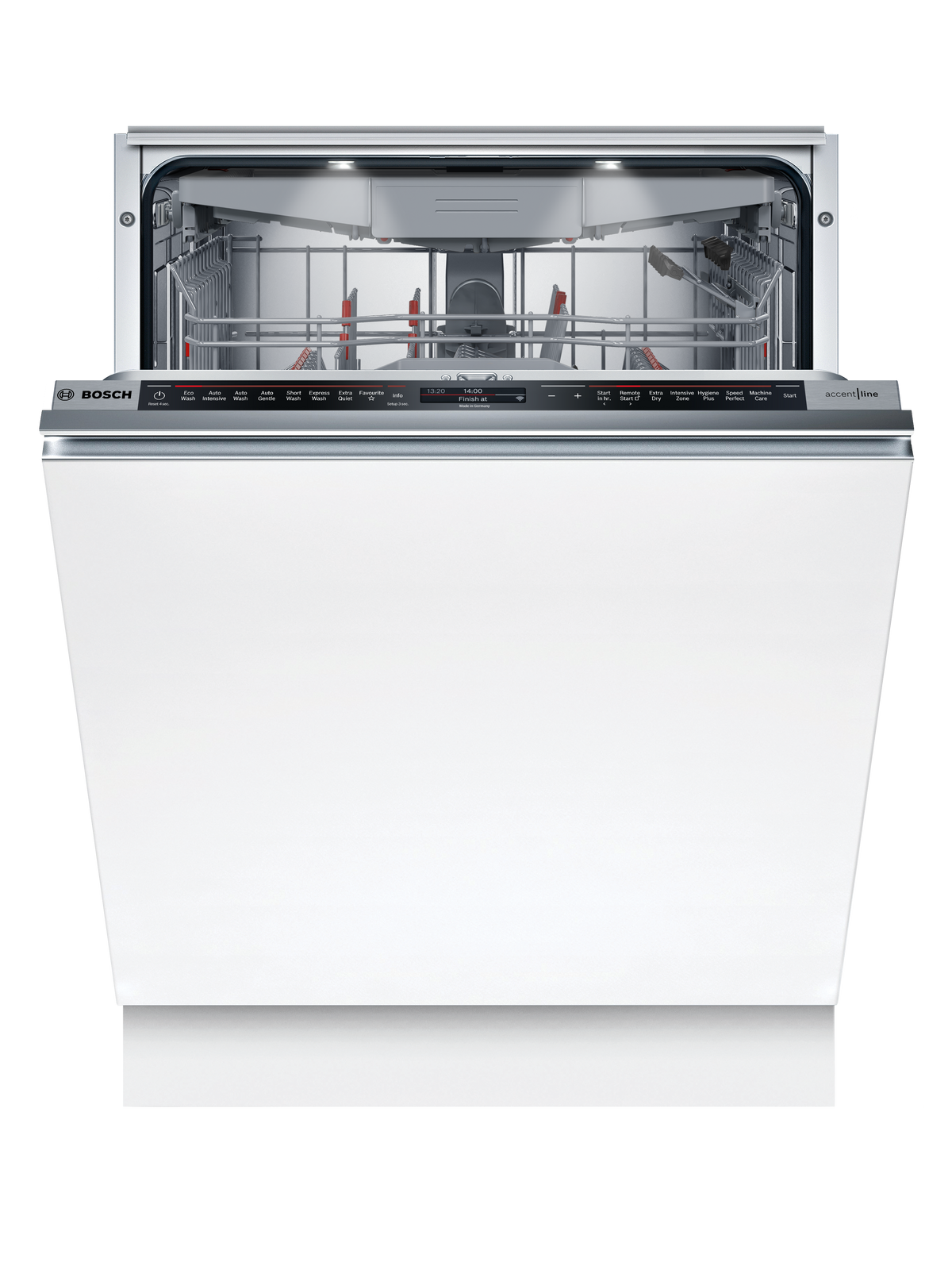

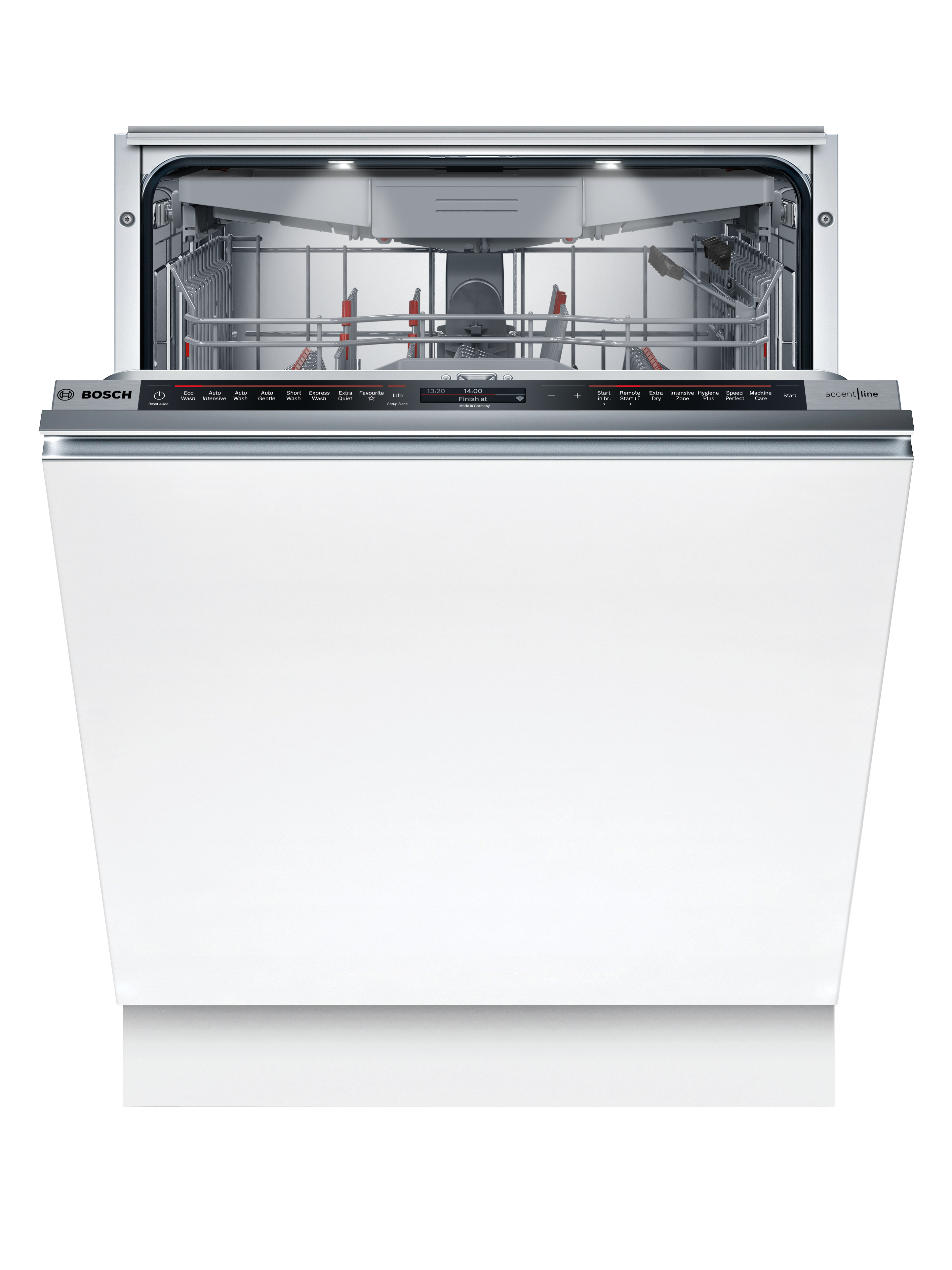

• Dishwasher type: Fully integrated tall tub dishwasher
• Series: Bosch Series 8
• Capacity: 15 place settings
• Programmes: 8
• Drying system: Zeolith with heat exchanger
• Noise level: 42 dB(A)
• Energy rating: 4.5 stars
• Energy consumption: 206 kWh per year
• WELS rating: 5 stars
• Water consumption: 12.2 L per wash
• WELS registration number: D02913

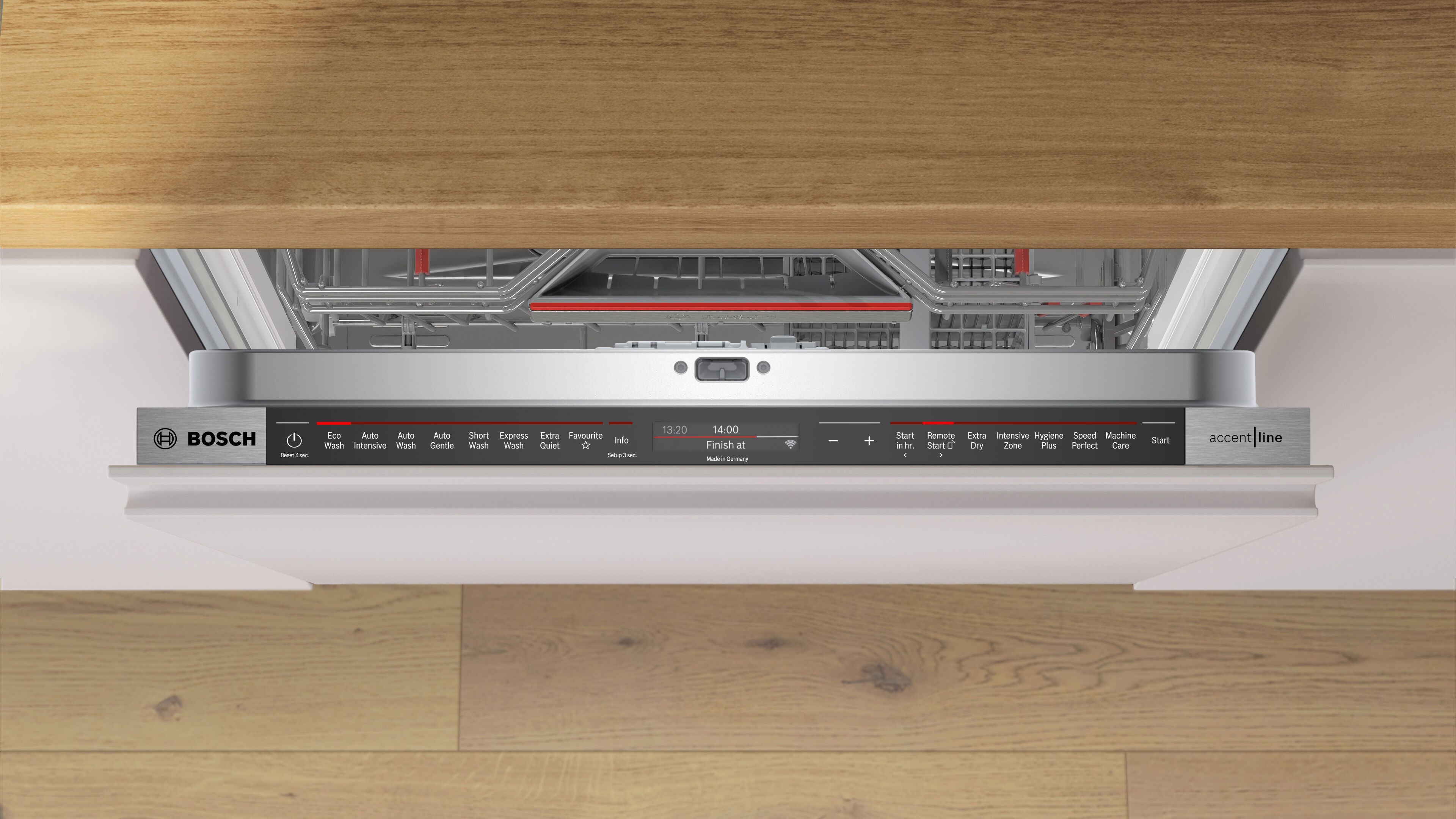

• Control type: TFT display with touch controls
• Basket system: Max Flex Pro baskets
• Cutlery system: VarioDrawer Pro
• Interior lighting: EmotionLight
• Wi-Fi connectivity: Home Connect
• Water protection system: AquaStop
• Heating system: Heat exchanger
• Connection rating: 2400 W
• Fuse protection: 10 A

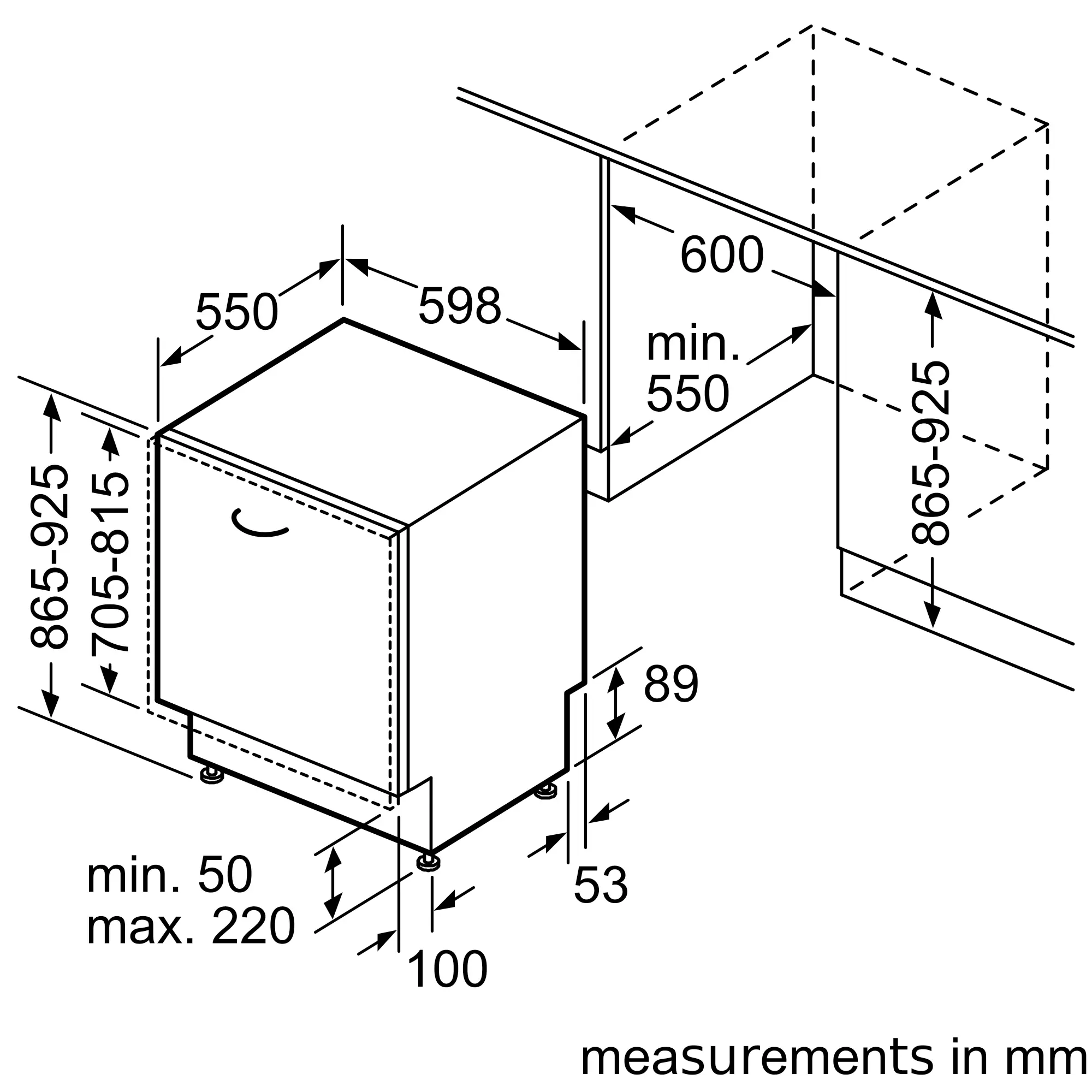

• Installation type: Fully integrated built-in installation
• Door system: VarioHinge
• Cabinetry requirement: Custom cabinetry door panel required
• Power supply: 220–240 V / 50–60 Hz
• Connection type: Standard 10 A plug connection
• Power consumption: 2400 W
• Water inlet: Cold water only
• Water pressure range: 50–1000 kPa
• Maximum inlet water temperature: 60°C
• Minimum inlet flow rate: 10 L/min
• Furniture front weight range: 4.5–11 kg

Bosch Warranty

• Bosch appliances are backed in Australia by BSH Home Appliances Pty Ltd, providing trusted after-sales support and service nationwide.

Warranty Coverage

Domestic Use:

• Bosch appliances are covered by a 2-year manufacturer’s warranty from the date of purchase, covering defects in materials and workmanship.

Commercial Use

• If used for commercial purposes, the warranty period is limited to 3 months.
• This warranty is provided in addition to your rights under Australian Consumer Law.

What’s Covered

Under normal domestic use, the warranty includes:

• Manufacturing defects
• Repair or replacement of faulty components
• Service within Bosch’s authorised service network

For minor failures, Bosch may choose to repair or replace the appliance.

• Proof of purchase is required to make a claim.
• To lodge a claim, contact Bosch Customer Care Australia on 1300 369 744.

What’s Not Covered

The warranty does not apply to damage caused by:

• Incorrect installation or operation
• Unauthorised repairs or non-approved parts
• Incorrect power, gas or water supply
• Commercial use beyond 3 months
• Normal wear and tear (filters, seals, globes, fuses, etc.)
• Blockages, misuse, operator error or storm damage
• Delivery or installation damage
• Appliances exported outside Australia

Travel or transport costs may apply if you are located outside a Bosch service area.

Australian Consumer Law

• Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if they fail to be of acceptable quality and the failure does not amount to a major failure.

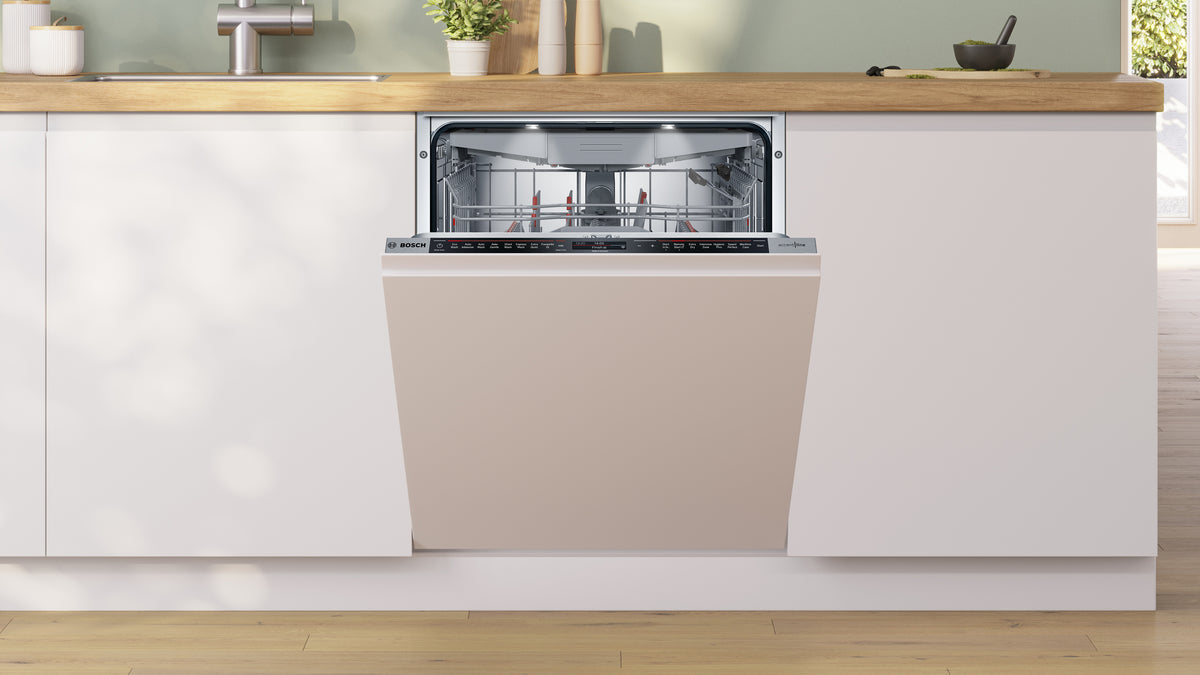

The SBT8ZC801A is designed for fully concealed installation and requires a custom cabinetry door panel and kick panel supplied by the kitchen cabinetmaker or installer. The VarioHinge system is specifically engineered for contemporary kitchens with low plinth heights and integrated cabinetry alignments.

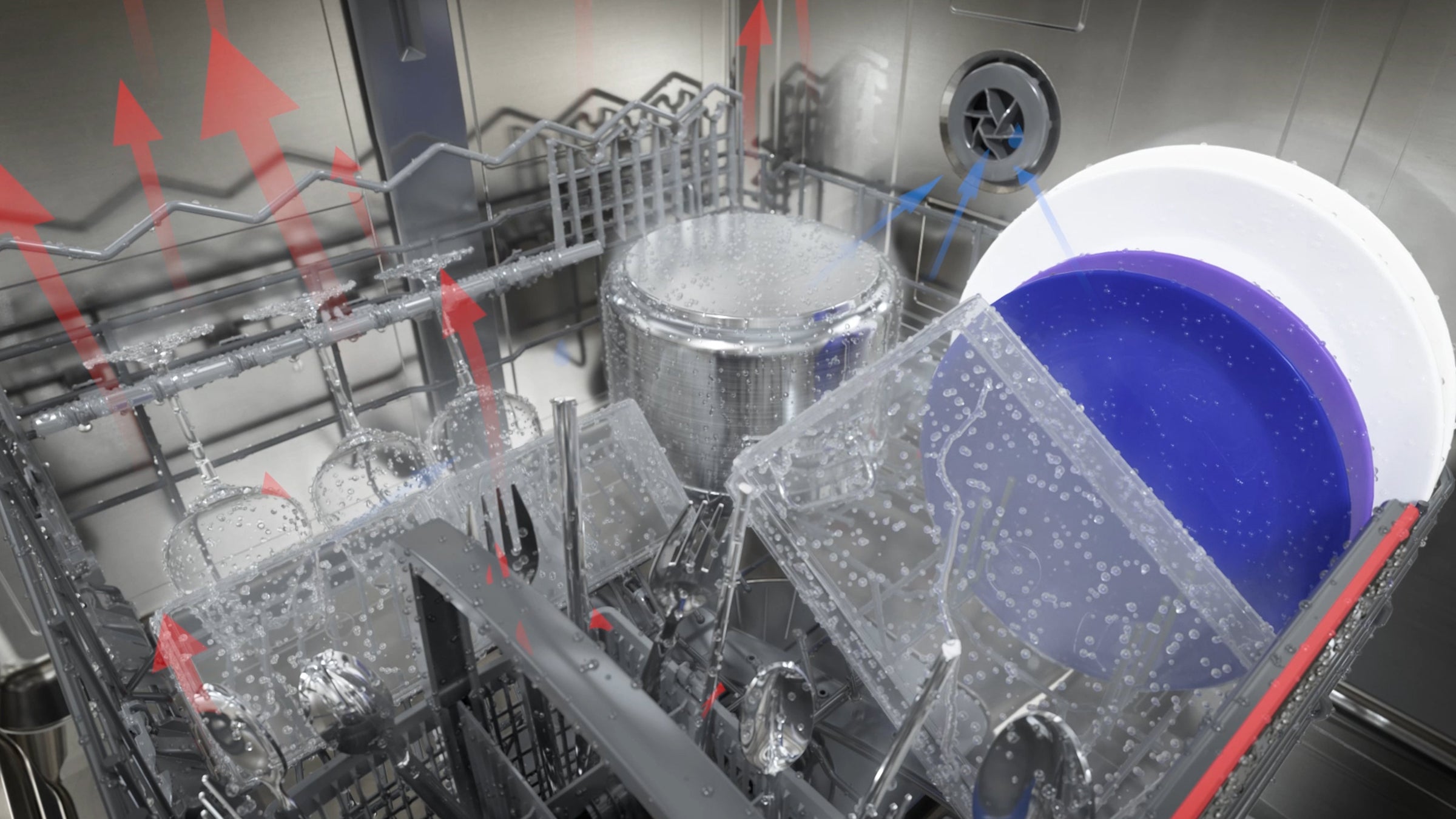

Bosch’s PerfectDry system uses Zeolith mineral technology combined with heat exchange drying to improve drying results while reducing residual moisture on plastics and containers. EfficientDry further supports drying performance through automatic door opening at cycle completion.

The Home Connect platform enables remote monitoring and control through compatible mobile devices, including cycle notifications and programme management. TimeLight projects operational information directly onto the floor due to the fully integrated control panel being concealed behind cabinetry.

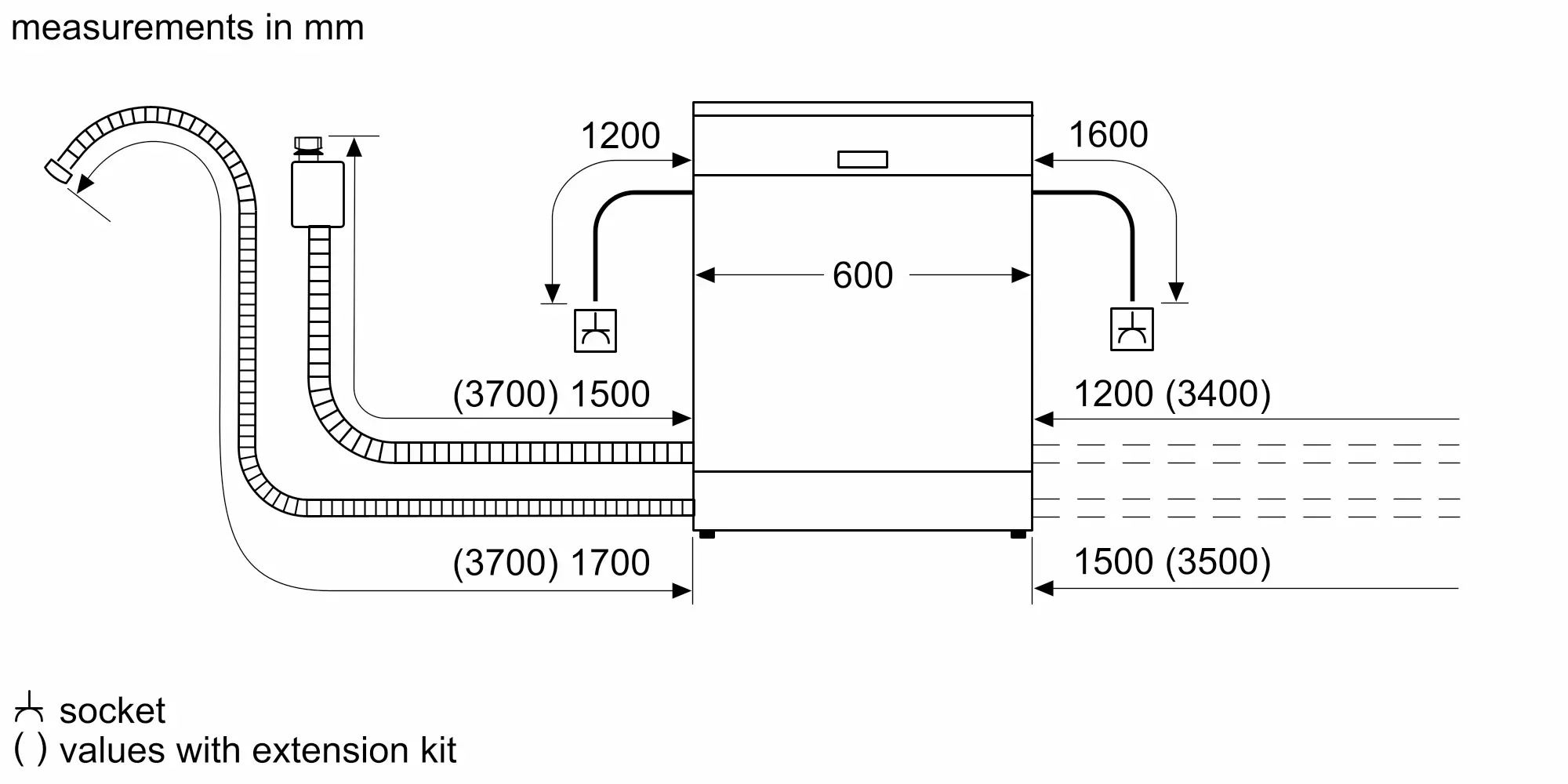

• 1650 mm cold water inlet hose
• 1900 mm drain outlet hose
• Installation hardware
• VarioDrawer Pro cutlery tray
