• FlexInduction zone: Combines cooking zones into one large flexible induction area for oversized cookware, griddles and multiple pans.

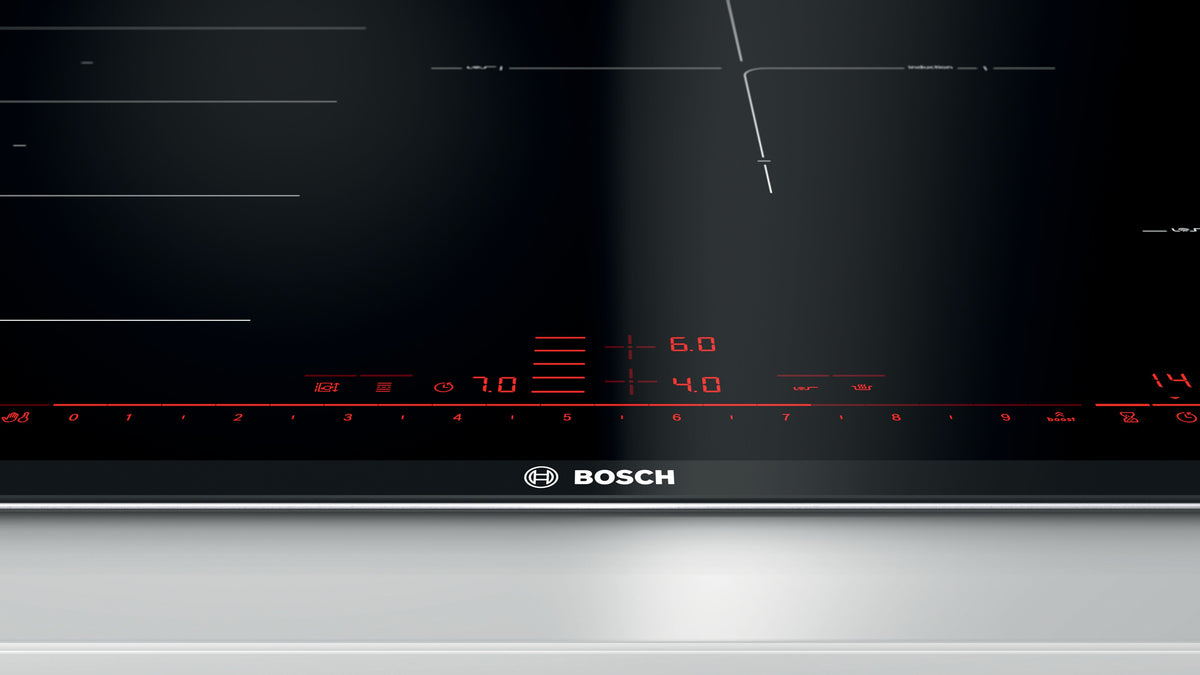

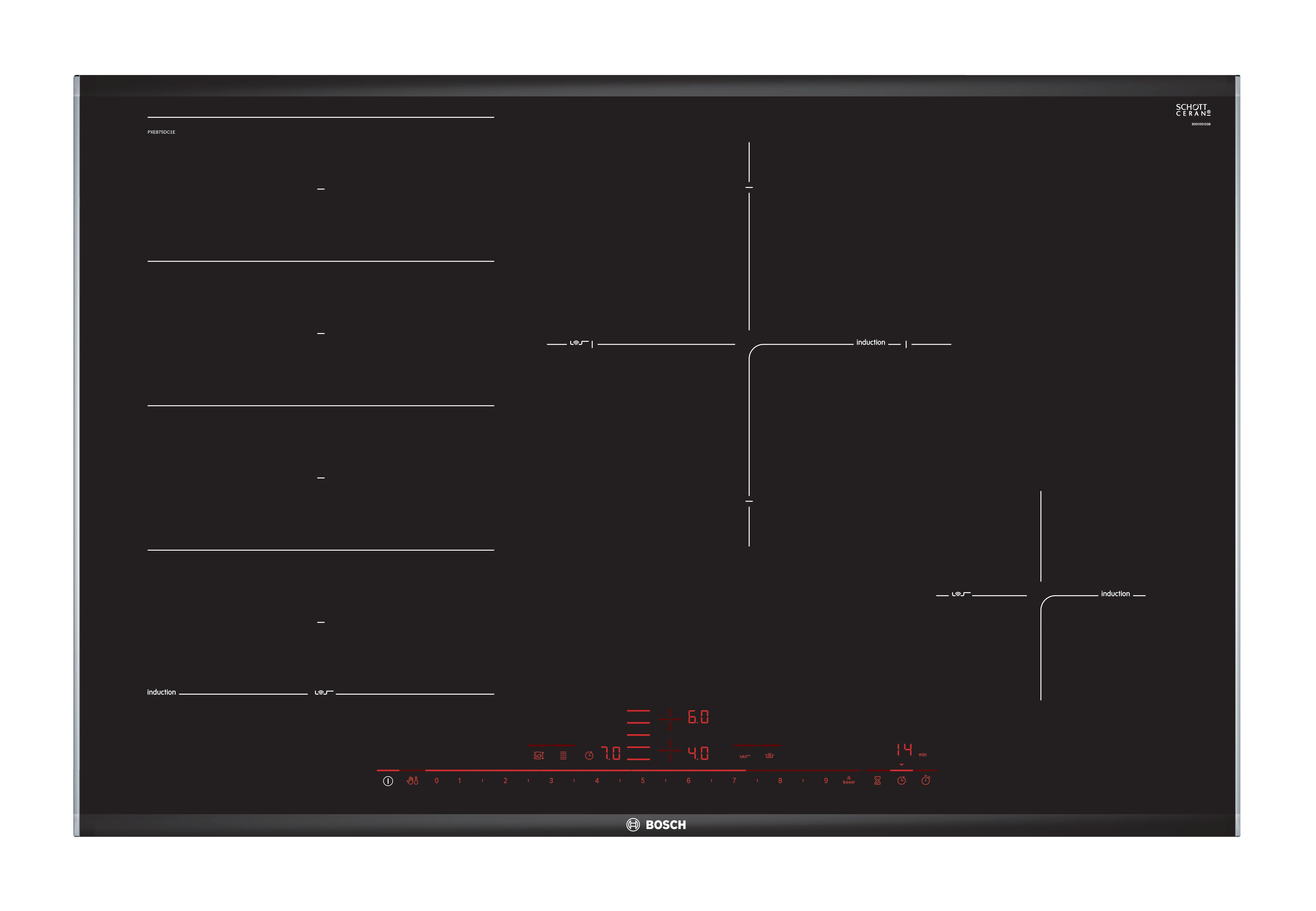

• DirectSelect Premium: Extra-wide illuminated touch control panel with direct access to cooking zones and functions.
• PerfectFry sensor: Monitors pan temperature automatically to help prevent overheating and burning.
• MoveMode: Automatically divides the flex zone into separate preset heat zones for boiling, cooking and simmering.
• PowerBoost: Increases heating output for faster boiling and rapid heat-up performance.
• QuickStart: Automatically detects cookware placement and selects the corresponding cooking zone.
• ReStart: Restores previous settings if the cooktop is switched back on shortly after accidental shutdown.
• 17 power levels: Fine temperature adjustment across each cooking zone.
• Residual heat indicators: Two-stage digital indicators remain active until cooking zones cool to a safer temperature.
• Child lock: Prevents unintended activation or adjustment of the cooktop controls.
• Wipe protection: Temporarily locks the control panel during cleaning.
• Safety shut-off: Automatically switches zones off after extended unattended operation.
• Pan recognition: Cooking zones activate only when compatible cookware is detected.
• Timer function: Individual cooking zone timer control with automatic switch-off.

• FlexInduction: Combines two cooking zones into one larger cooking area for flexible cookware placement.
• PowerBoost: Temporarily increases cooking power for faster boiling and rapid heat-up.
• PerfectFry: Automatically monitors and regulates pan temperature during frying.
• MoveMode: Presets sections of the flex zone to different heat levels for easier cooking transitions.
• QuickStart: Detects cookware placement and automatically selects the corresponding cooking zone.
• ReStart: Restores previous cooking settings after accidental switch-off.
• Keep Warm Function: Maintains low heat output to keep food warm without overcooking.
• Timer with Automatic Shut-Off: Switches cooking zones off automatically once the set time expires.
• Child Lock: Locks the control panel to prevent unintended operation.
• Wipe Protection: Temporarily disables controls while the cooktop surface is being cleaned.
• Pan Recognition: Activates heating only when compatible cookware is detected on the zone.
• Residual Heat Indicator: Displays when cooking zones remain hot after use.
• Safety Shut-Off: Automatically powers down cooking zones after extended unattended operation.

• Cooktop type: Induction cooktop
• Series: Bosch Series 8
• Cooking zones: 4
• Flex zones: 1 FlexInduction cooking area
• Control type: DirectSelect Premium touch control
• Power levels: 17 per cooking zone
• Surface material: Ceramic glass
• Frame design: Comfort profile with brushed aluminium side trims
• PerfectFry sensor: Yes
• MoveMode: Yes
• QuickStart: Yes
• ReStart: Yes
• PowerBoost: Yes
• Pan recognition: Yes
• Keep warm function: Yes
• Residual heat indicator: Yes — 2-stage digital
• Safety shut-off: Yes
• Child lock: Yes
• Timer: Yes
• Cookware compatibility: Induction-compatible cookware required
• Home Connect: No
• Energy rating: Not applicable — induction technology

Cooking Zone Configuration:

• Front left cooking zone: 240 x 190 mm — 2.2 kW (3.7 kW with Boost)
• Rear left cooking zone: 240 x 190 mm — 2.2 kW (3.7 kW with Boost)
• Front right cooking zone: 240 x 190 mm — 2.2 kW (3.7 kW with Boost)
• Rear right cooking zone: 240 x 190 mm — 2.2 kW (3.7 kW with Boost)
• FlexInduction zone size: 400 x 240 mm combined cooking area

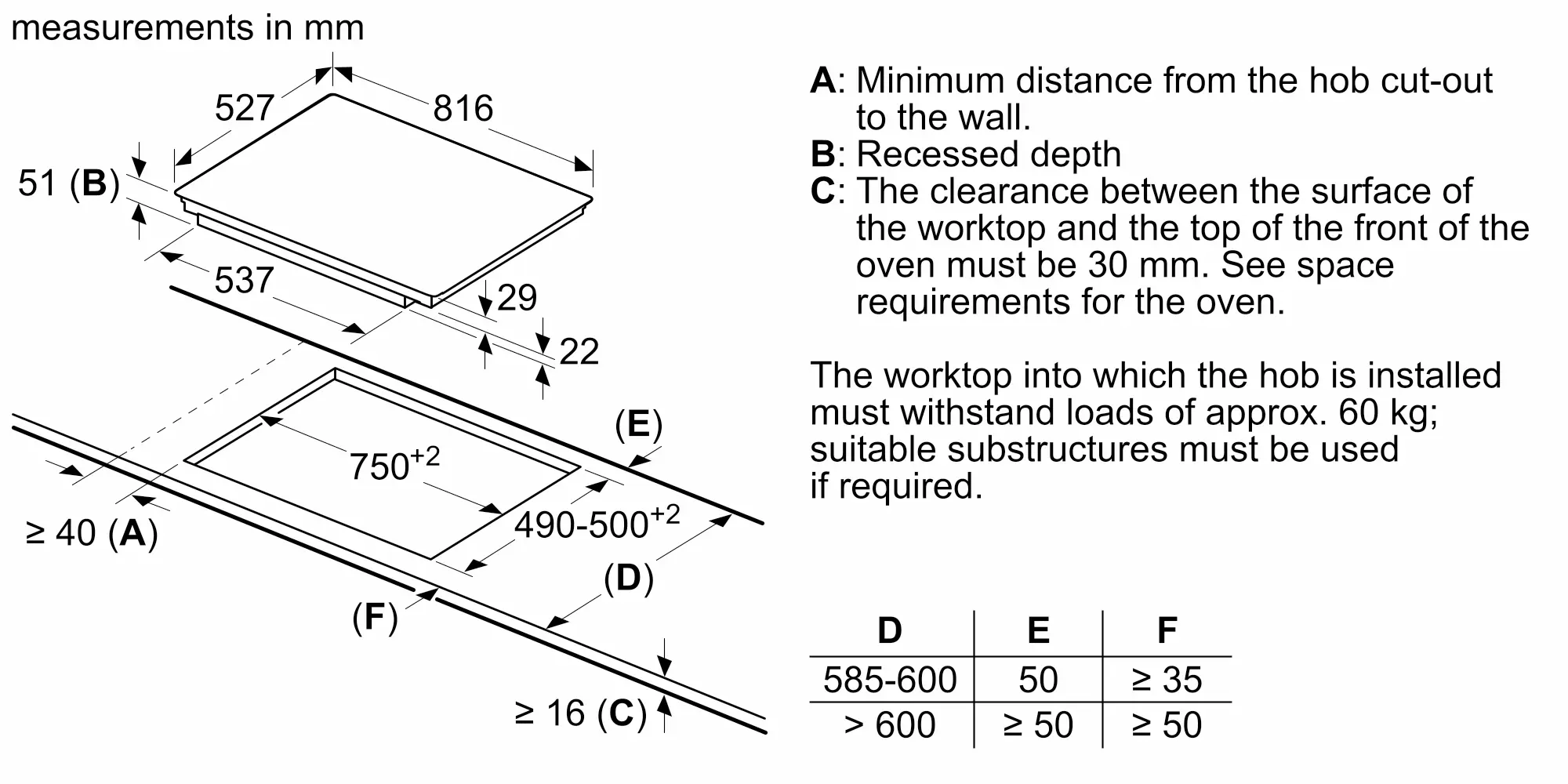

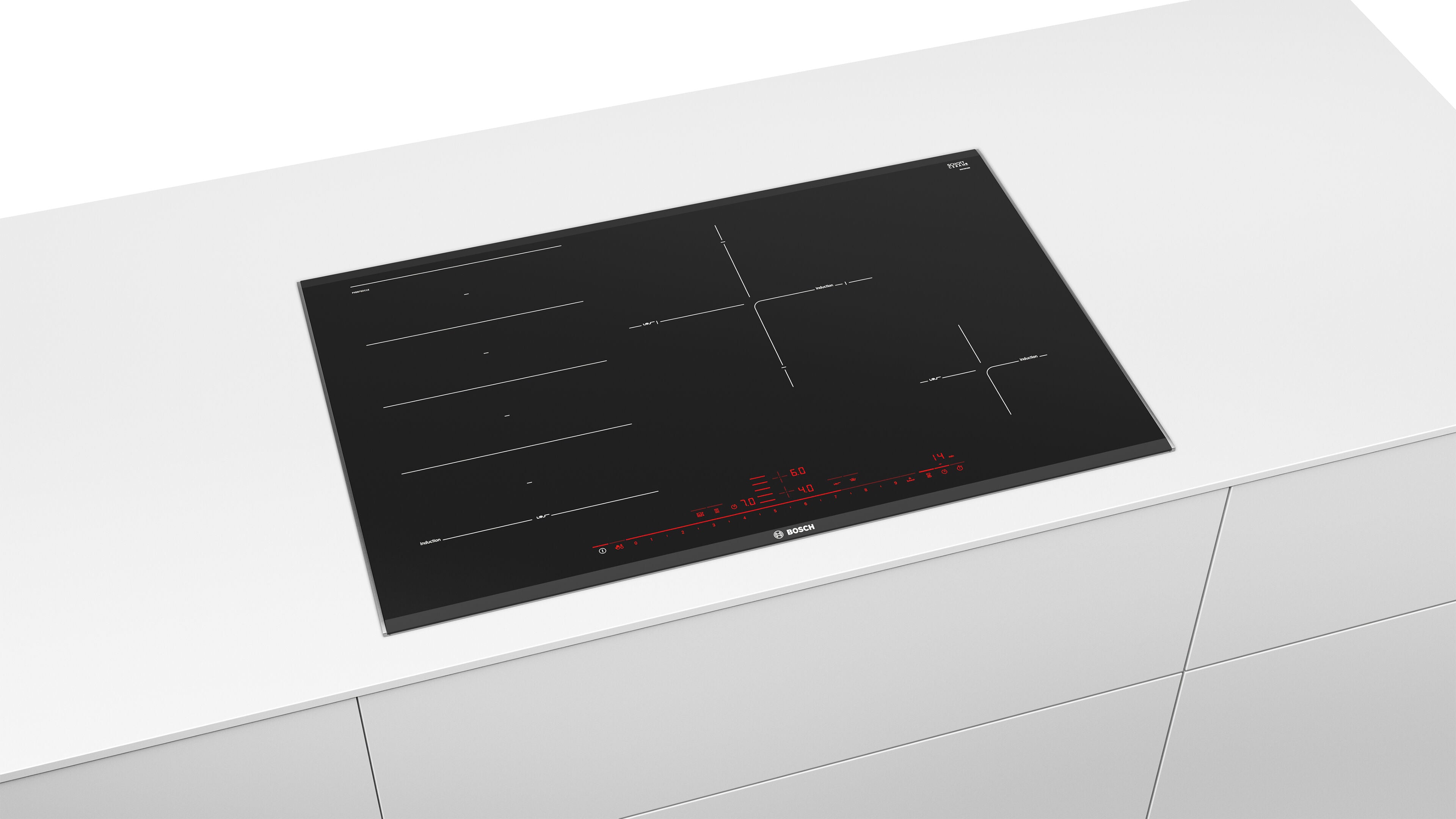

• Installation type: Built-in surface mount
• Connection type: Hardwired
• Power supply: 220–240 V
• Frequency: 50 / 60 Hz
• Connected load: 7.4 kW
• Maximum current rating: 31 A
• Power cord length: 1.1 m
• Installation requirement: Installation must be completed by a licensed electrician

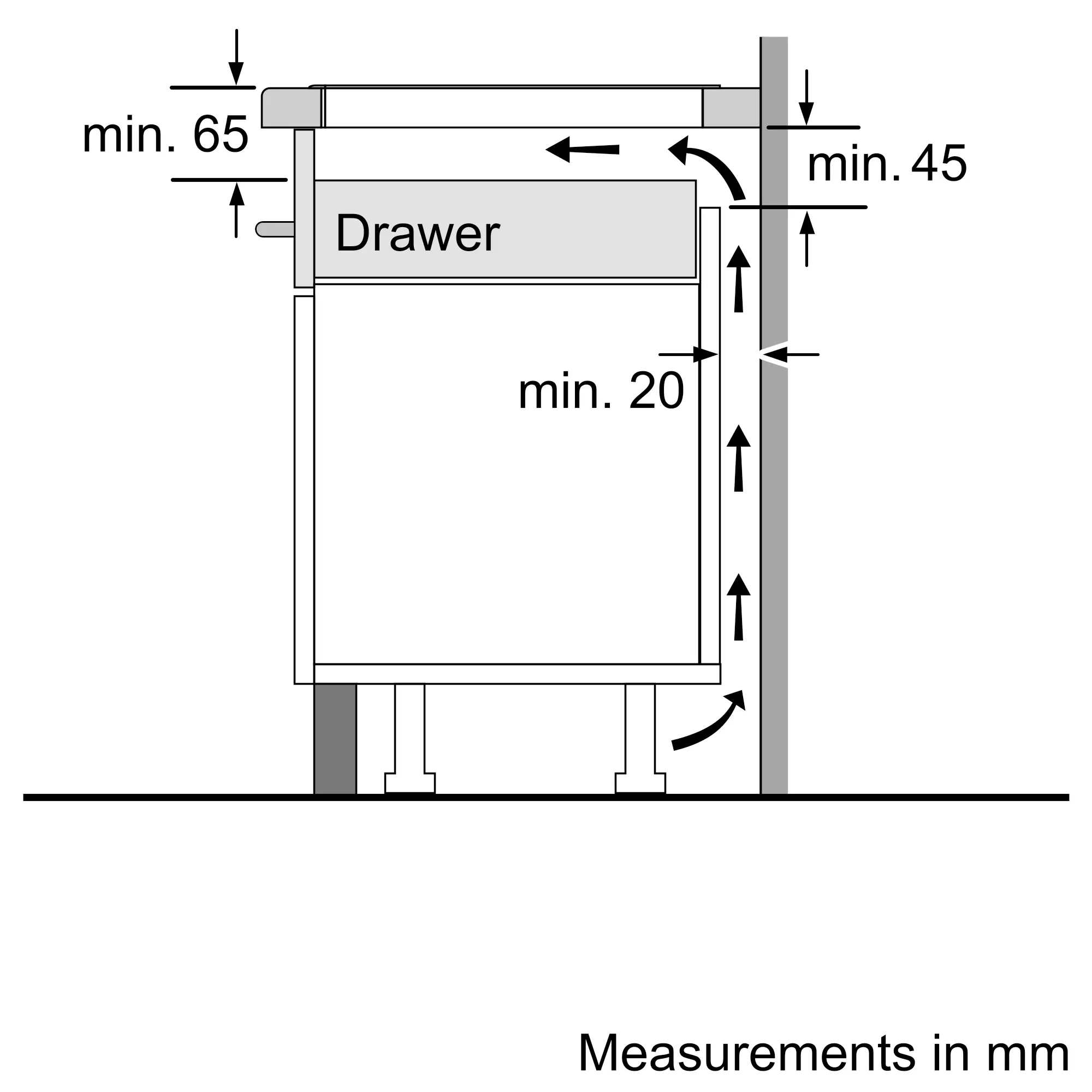

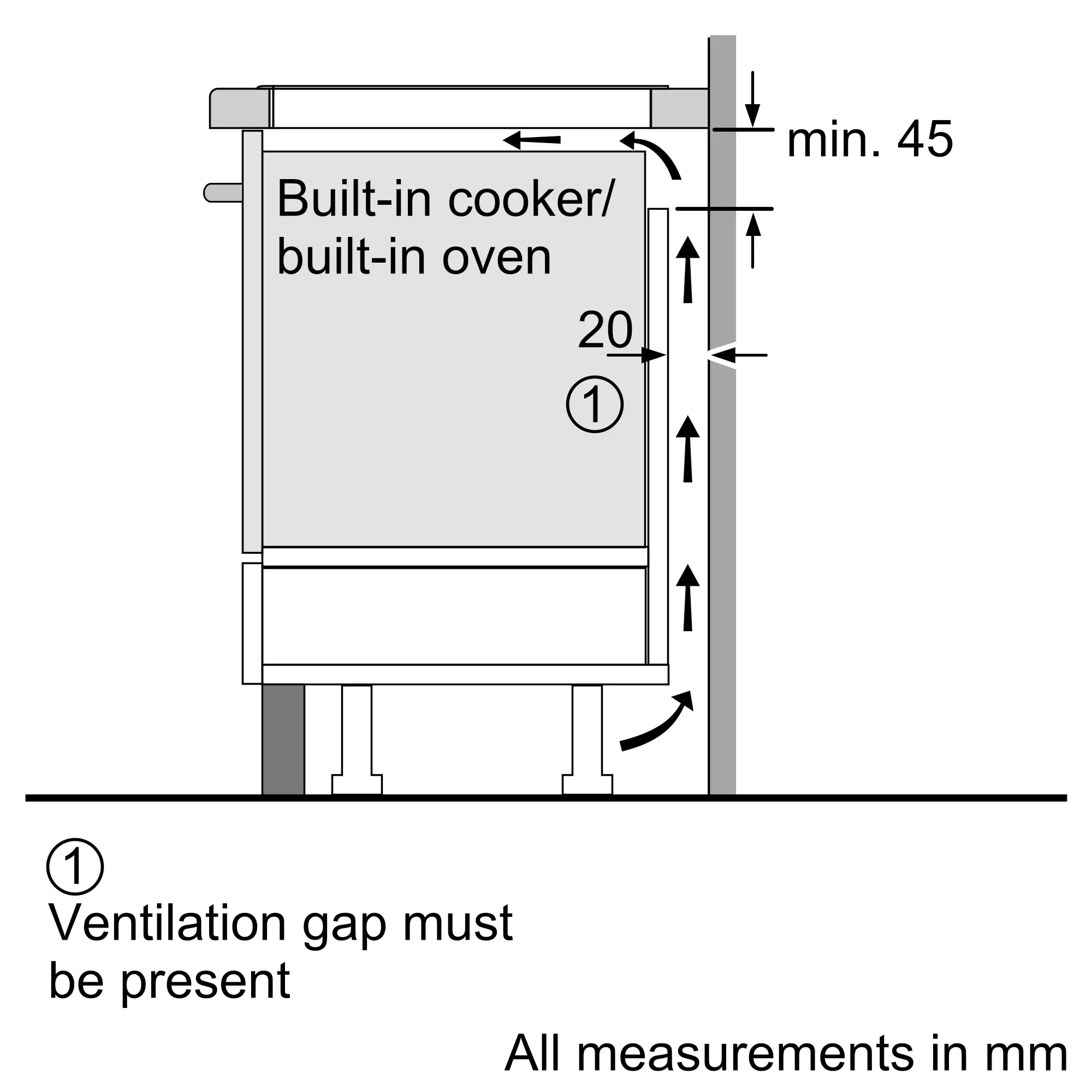

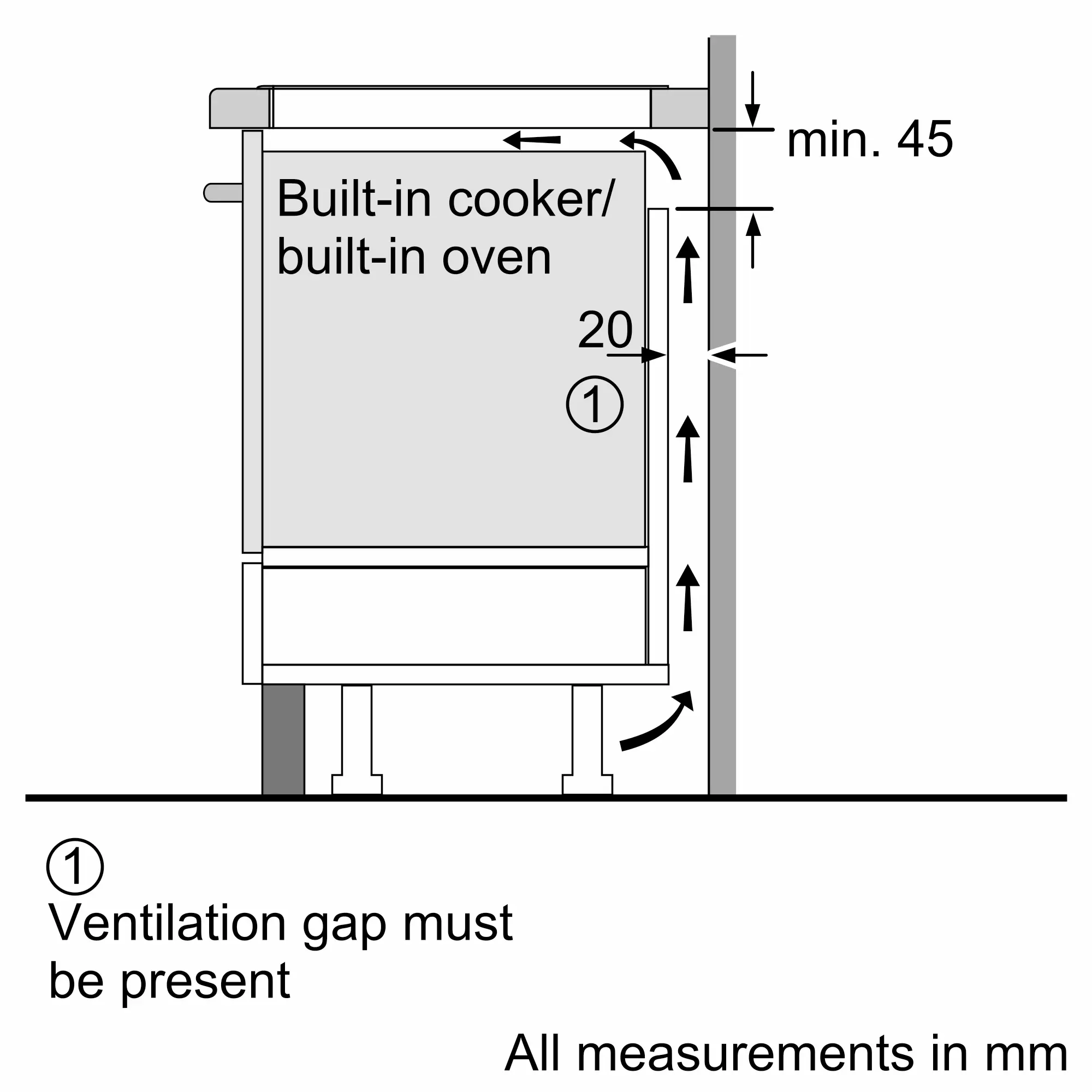

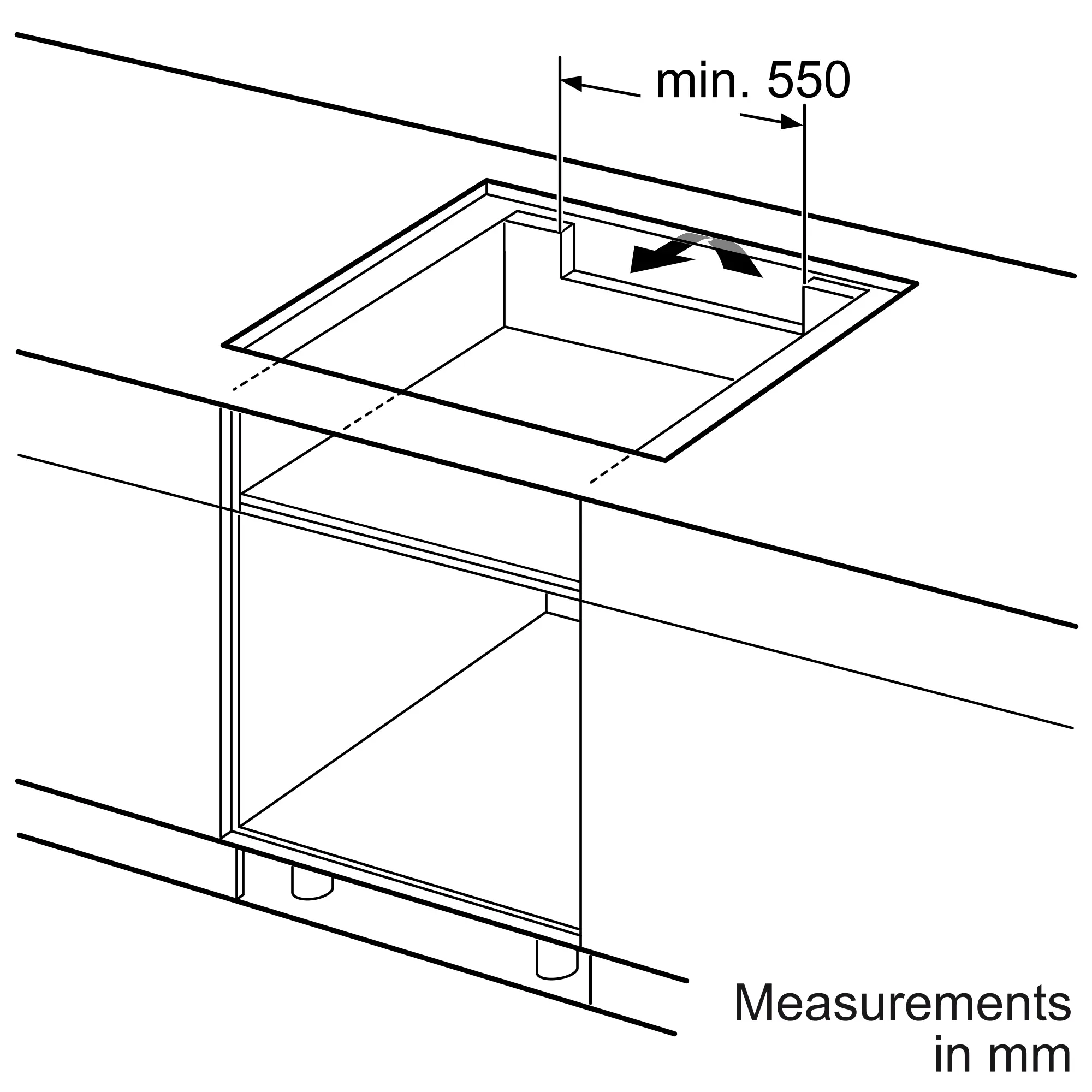

• Ventilation clearance: Refer to Bosch installation instructions for cabinetry airflow requirements

Bosch Warranty

• Bosch appliances are backed in Australia by BSH Home Appliances Pty Ltd, providing trusted after-sales support and service nationwide.

Warranty Coverage

Domestic Use:

• Bosch appliances are covered by a 2-year manufacturer’s warranty from the date of purchase, covering defects in materials and workmanship.

Commercial Use

• If used for commercial purposes, the warranty period is limited to 3 months.
• This warranty is provided in addition to your rights under Australian Consumer Law.

What’s Covered

Under normal domestic use, the warranty includes:

• Manufacturing defects
• Repair or replacement of faulty components
• Service within Bosch’s authorised service network

For minor failures, Bosch may choose to repair or replace the appliance.

• Proof of purchase is required to make a claim.
• To lodge a claim, contact Bosch Customer Care Australia on 1300 369 744.

What’s Not Covered

The warranty does not apply to damage caused by:

• Incorrect installation or operation
• Unauthorised repairs or non-approved parts
• Incorrect power, gas or water supply
• Commercial use beyond 3 months
• Normal wear and tear (filters, seals, globes, fuses, etc.)
• Blockages, misuse, operator error or storm damage
• Delivery or installation damage
• Appliances exported outside Australia

Travel or transport costs may apply if you are located outside a Bosch service area.

Australian Consumer Law

• Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if they fail to be of acceptable quality and the failure does not amount to a major failure.

The PXE875DC1E supports induction-compatible cookware only. Suitable cookware must contain a magnetic base to activate the induction zones correctly. Glass, aluminium and copper cookware without magnetic properties will not operate on the induction surface.

Bosch MoveMode technology automatically segments the FlexInduction area into preset heat zones, allowing cookware to be moved between high, medium and low heat areas without manually adjusting power levels. PerfectFry sensor technology continuously monitors pan temperature to support more controlled frying performance across compatible cookware.

The black ceramic glass surface is designed for straightforward cleaning and lower residual surface heat compared with conventional electric cooking technologies. The cooktop includes Bosch safety systems including child lock, pan detection, wipe protection and automatic safety shut-off functionality.

• Installation documentation
• Power connection cable
• Mounting hardware kit

• SPECIFICATIONS SHEET (PDF)
• USER MANUAL (PDF)
• SHORT INSTRUCTIONS (PDF)
• INSTALLATION INSTRUCTIONS DOC 1 (PDF)
• INSTALLATION INSTRUCTIONS DOC 2 (PDF)
• COOKBOOK (PDF)
