Product Description

Product Overview:

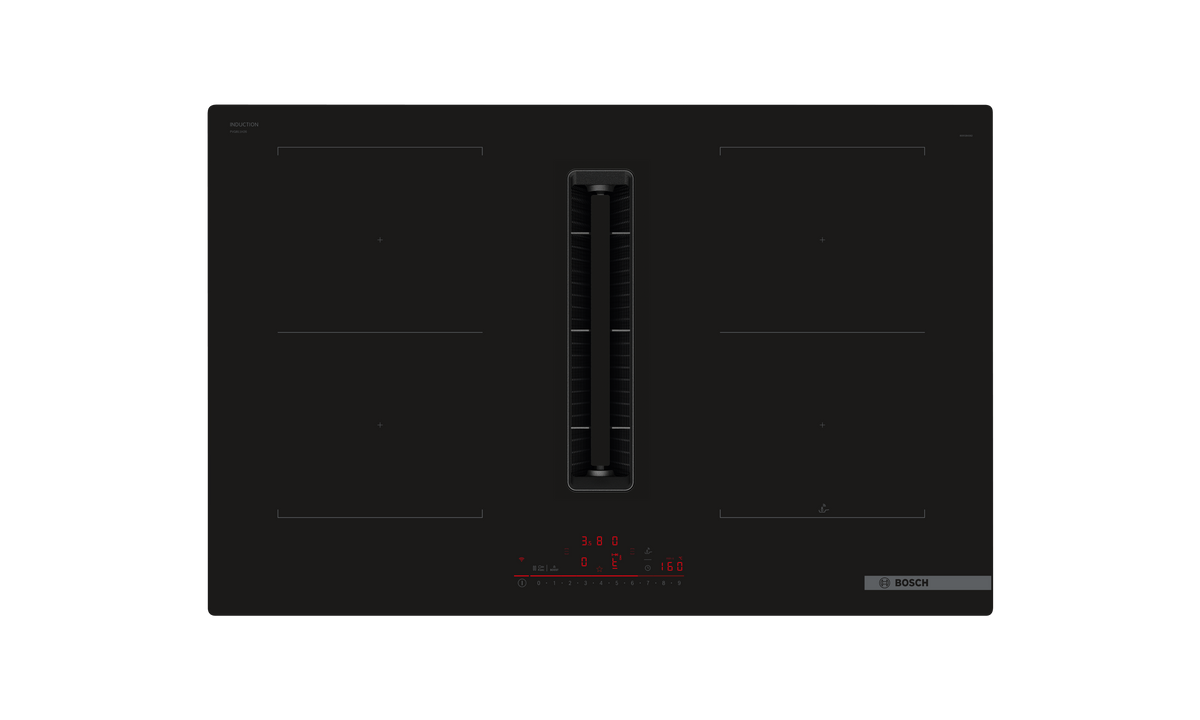

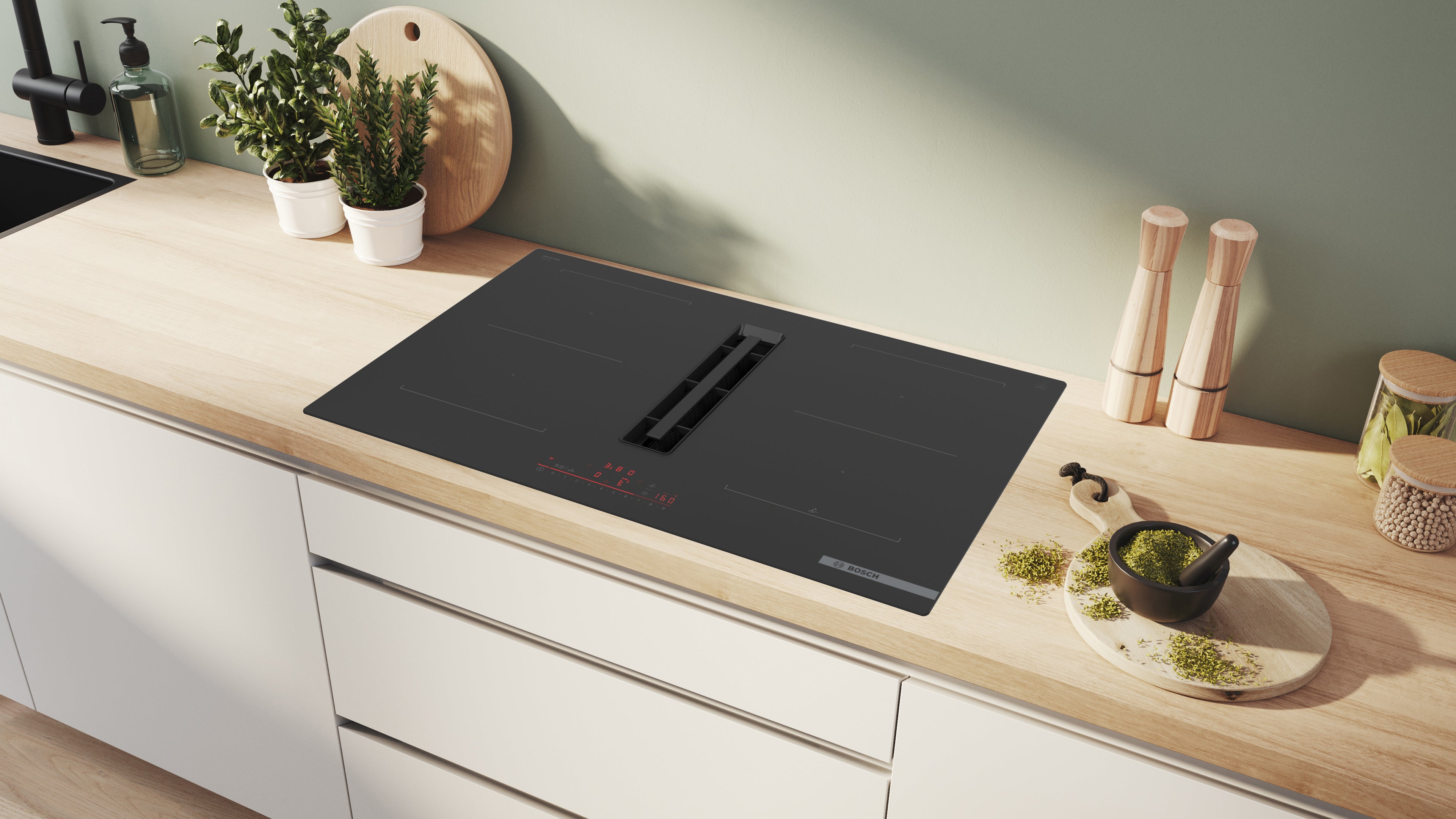

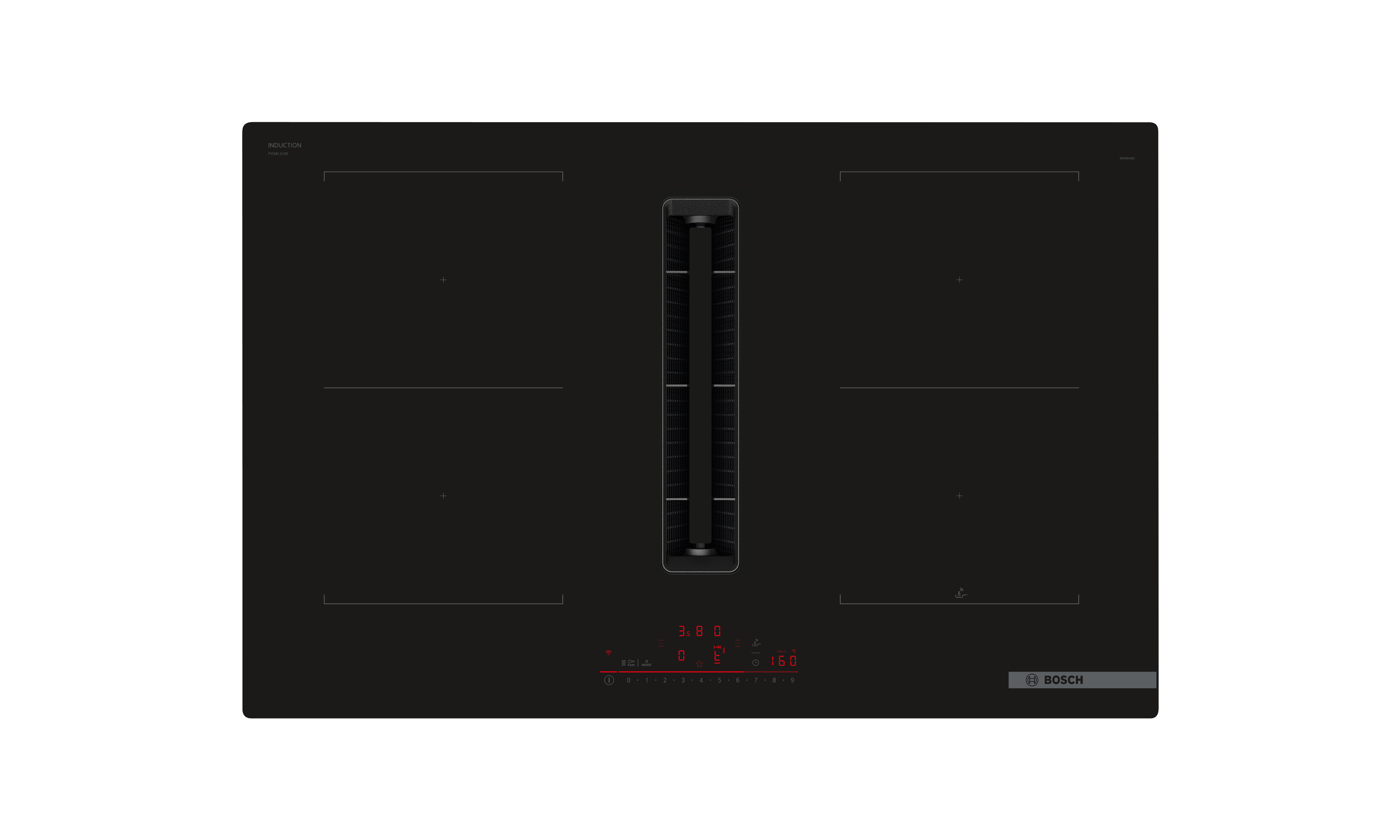

The Bosch PVQ811H26E is an 80cm induction cooktop with an integrated ventilation module, designed to combine precision induction cooking and downdraft extraction into a single streamlined appliance. Finished in frameless black ceramic glass, it delivers a clean flush-mounted appearance suited to contemporary kitchen installations, including island bench configurations where overhead rangehoods may not be desirable.

Four induction cooking zones provide responsive heat control with direct energy transfer to cookware rather than the surrounding glass surface. Two CombiZone cooking areas allow adjacent zones to combine into larger cooking surfaces for oversized cookware, roasting dishes, and griddles. DirectSelect controls provide immediate power adjustment, while Bosch PerfectFry Plus technology helps maintain stable frying temperatures across multiple sensor-controlled heat levels.

The integrated extraction system captures steam, grease, and odours directly at cooktop level using a centrally positioned ventilation module. Suitable for ducted extraction or recirculated installation configurations, the PVQ811H26E offers flexible installation planning for a wide range of kitchen layouts. Home Connect functionality enables smart control integration and personalised settings through compatible mobile devices.

Product Features:

• Integrated ventilation module: combines cooktop and extraction into a single appliance.
• 4 induction cooking zones: responsive induction cooking with rapid heat transfer.
• 2 CombiZone cooking areas: combines adjacent cooking zones for larger cookware.
• DirectSelect controls: direct access touch controls with individual power selection.
• PerfectFry Plus: frying sensor maintains selected pan temperature automatically.
• PowerBoost function: increases zone output for faster boiling and rapid heating.
• QuickStart function: automatically detects cookware position on activation.
• ReStart function: restores previous cooking settings after accidental switch-off.
• AutoOn ventilation: extraction activates automatically during cooking operation.
• Intensive extraction stage: temporary high extraction mode for heavy cooking vapours.
• Favourite button: programmable shortcut for preferred functions and settings.
• Home Connect compatibility: connected appliance functionality via Bosch Home Connect app.
• Residual heat indicators: visual indicators remain active until zones cool sufficiently.
• Child lock: prevents unintended appliance operation or setting changes.
• Pause function: temporarily pauses active cooking settings when required.
• Timer functions: individual cooking timers with automatic shut-off capability.
• Dishwasher-safe grease filters: removable stainless steel filters simplify maintenance.

Colour / Finishes:

• Black Ceramic Glass — PVQ811H26E

Programmes / Functions:

• PowerBoost: temporarily increases cooking zone output for faster boiling and rapid heat-up.
• CombiZone: combines two adjacent induction zones into one larger cooking area for oversized cookware.
• PerfectFry Plus: maintains selected frying temperatures automatically using integrated pan temperature sensors.
• QuickStart: automatically detects cookware placement and activates the selected cooking zone.
• ReStart: restores previous cooking settings after accidental switch-off.
• Keep Warm function: maintains low serving temperature for prepared dishes.
• Timer with automatic shut-off: independently timed cooking zones with automatic deactivation.
• Pause function: temporarily pauses active cooking settings.
• AutoOn ventilation: automatically activates extraction during cooking operation.
• Intensive extraction stage: temporary maximum extraction mode for heavy cooking vapours.
• Automatic delayed ventilation shut-off: continues extraction briefly after cooking to remove residual vapours.
• Home Connect functions: connected appliance control and personalised settings through the Bosch Home Connect app.

Cleaning & Maintenance:

• Dishwasher-safe grease filters: removable stainless steel filters can be cleaned in a dishwasher.
• Easy-clean black ceramic glass surface: flat induction surface allows simplified wipe-clean maintenance.
• Integrated spill protection: cooktop design helps prevent liquids entering the ventilation system during normal cooking use.
• Clean Air Plus filters: replaceable odour filters assist with recirculated air purification where recirculation mode is installed.
• Residual heat indicators: indicates when cooking zones remain hot after use for safer cleaning access.
• Ventilation filter saturation indicator: alerts when grease filters require cleaning or maintenance.
• Smooth frameless surface: minimal joins and edges simplify day-to-day cleaning.
• Removable ventilation inlet components: central extraction components can be removed for cleaning access.
• Automatic delayed fan run-on: assists with clearing residual moisture and cooking vapours from the extraction system after cooking.

Specifications:

• Cooktop type: Induction cooktop with integrated ventilation
• Series: Bosch Series 6
• Cooking zones: 4
• Zone configuration: 2 x CombiZone induction areas

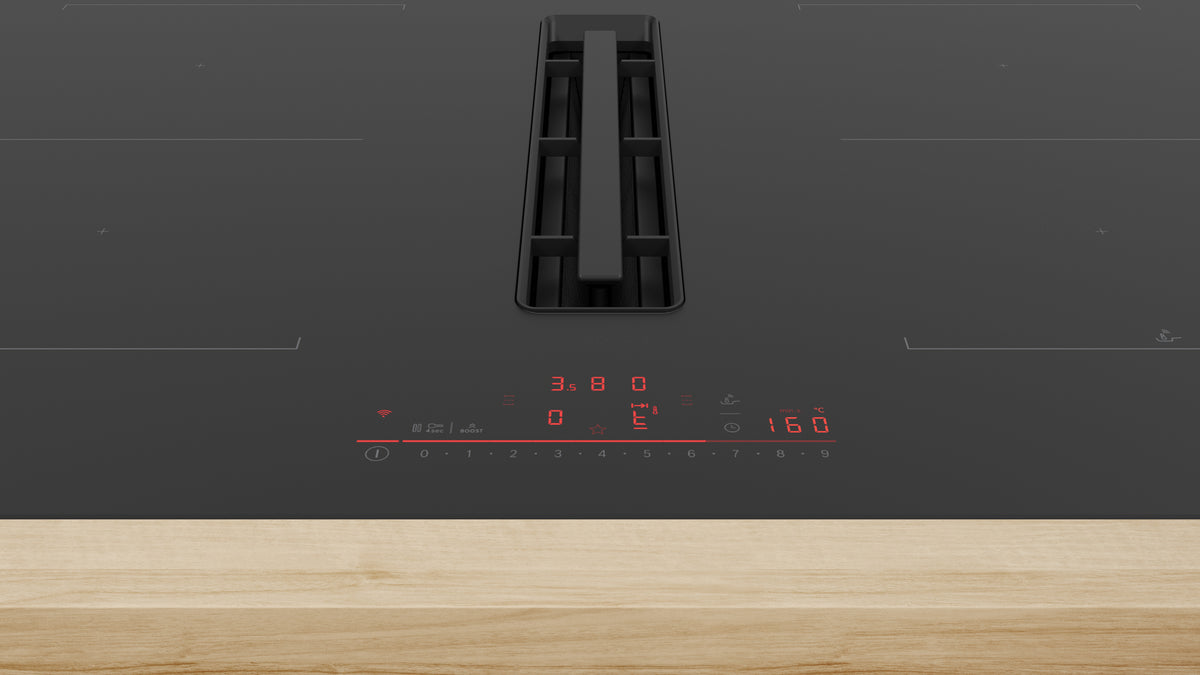

• Control type: DirectSelect touch controls
• Power levels: 17
• Surface material: Black ceramic glass

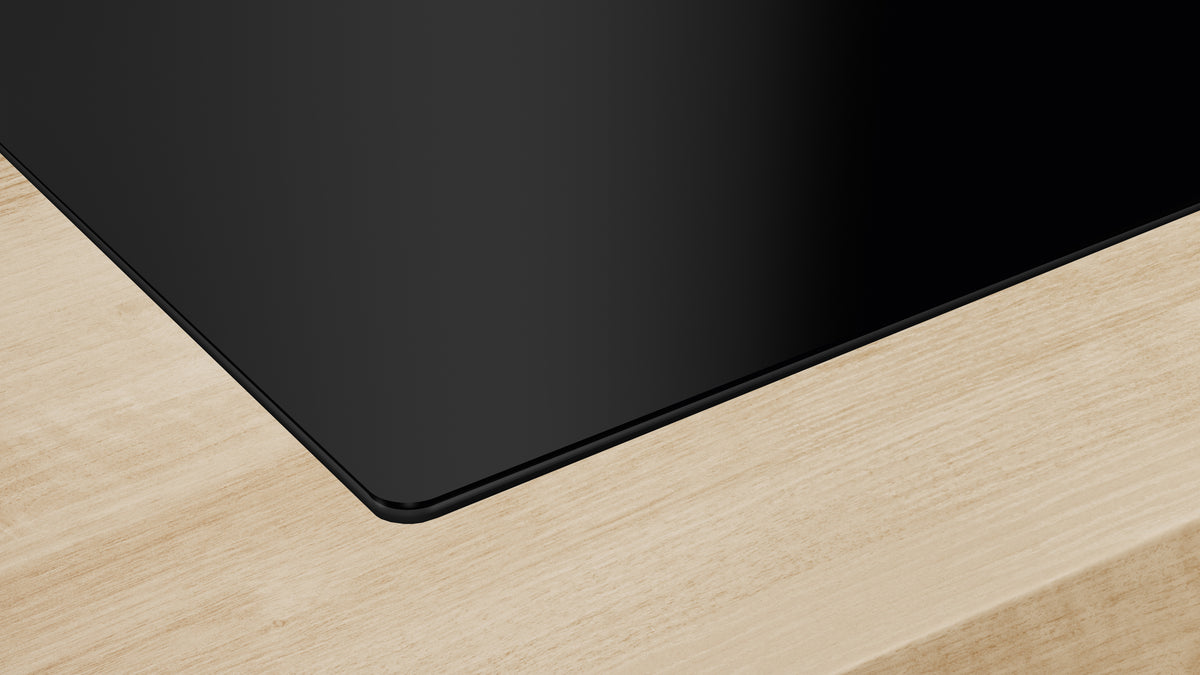

• Frame design: Frameless surface mount
• Ventilation type: Integrated downdraft extraction
• Installation ventilation modes: Ducted extraction or recirculated operation
• Maximum extraction rate (ducted): 622 m³/h
• Maximum extraction rate (recirculated): 595 m³/h
• Fan speeds: 9 + intensive stage
• Noise level: 42–74 dB
• Grease filter material: Stainless steel mesh filters
• Dishwasher-safe filters: Yes
• Energy efficiency class: B
• Home Connect: Yes
• Cookware compatibility: Induction-compatible cookware only
• Energy rating: Not applicable — induction cooking technology

Cooking Zone Details:

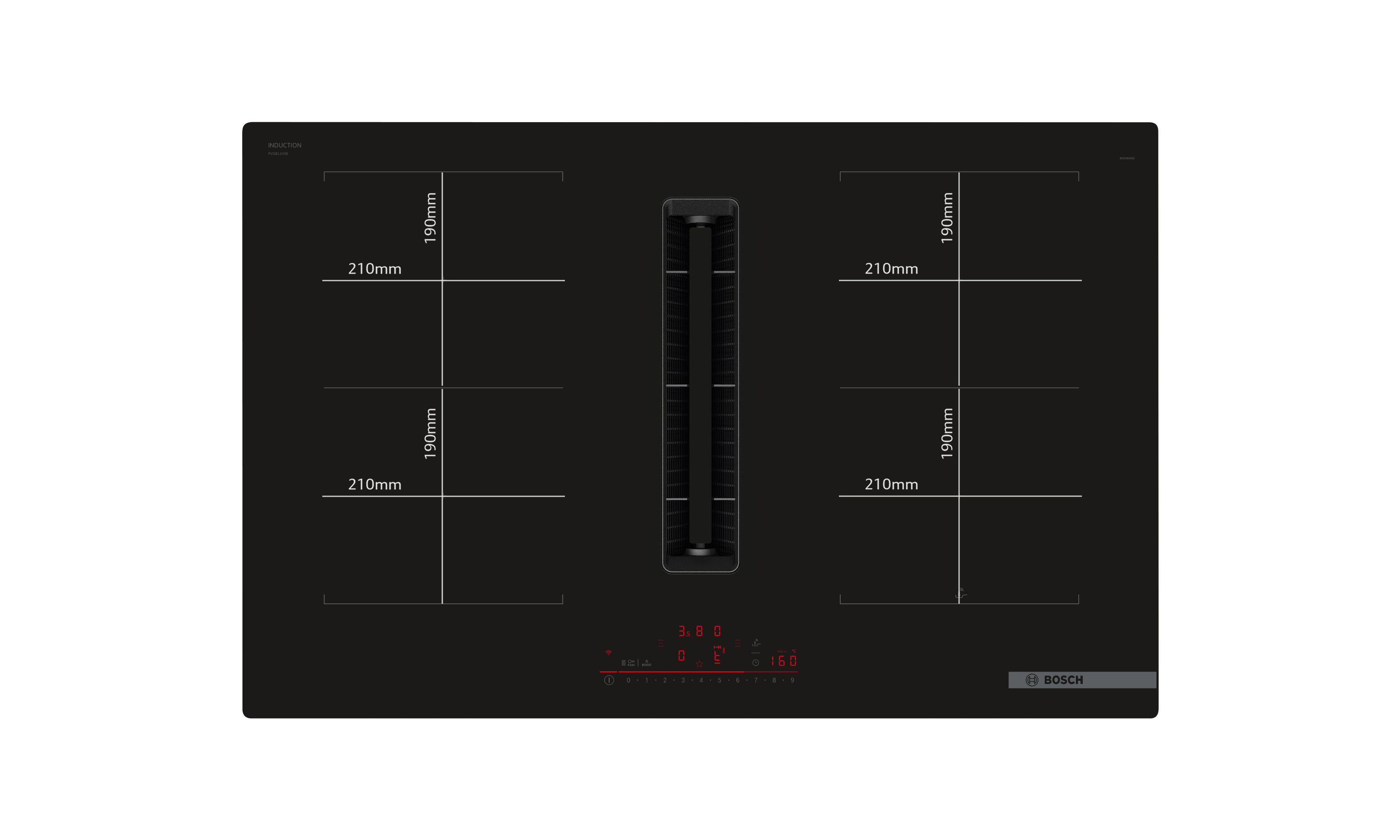

• Front left cooking zone: 190 x 210 mm — 2.5 kW (3.7 kW with Boost)
• Rear left cooking zone: 190 x 210 mm — 2.5 kW (3.7 kW with Boost)
• Front right cooking zone: 190 x 210 mm — 2.5 kW (3.7 kW with Boost)
• Rear right cooking zone: 190 x 210 mm — 2.5 kW (3.7 kW with Boost)

Product Measurements:

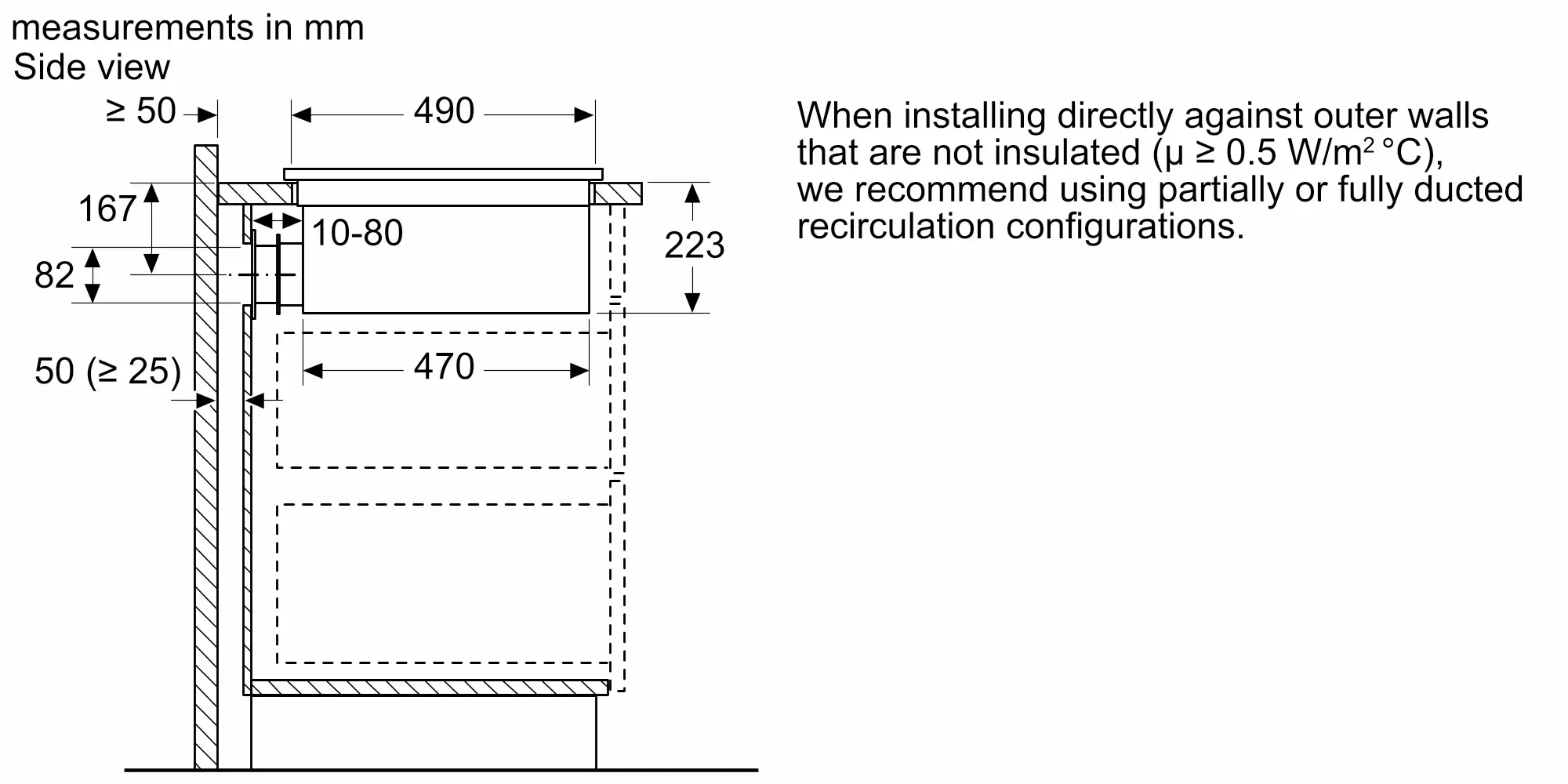

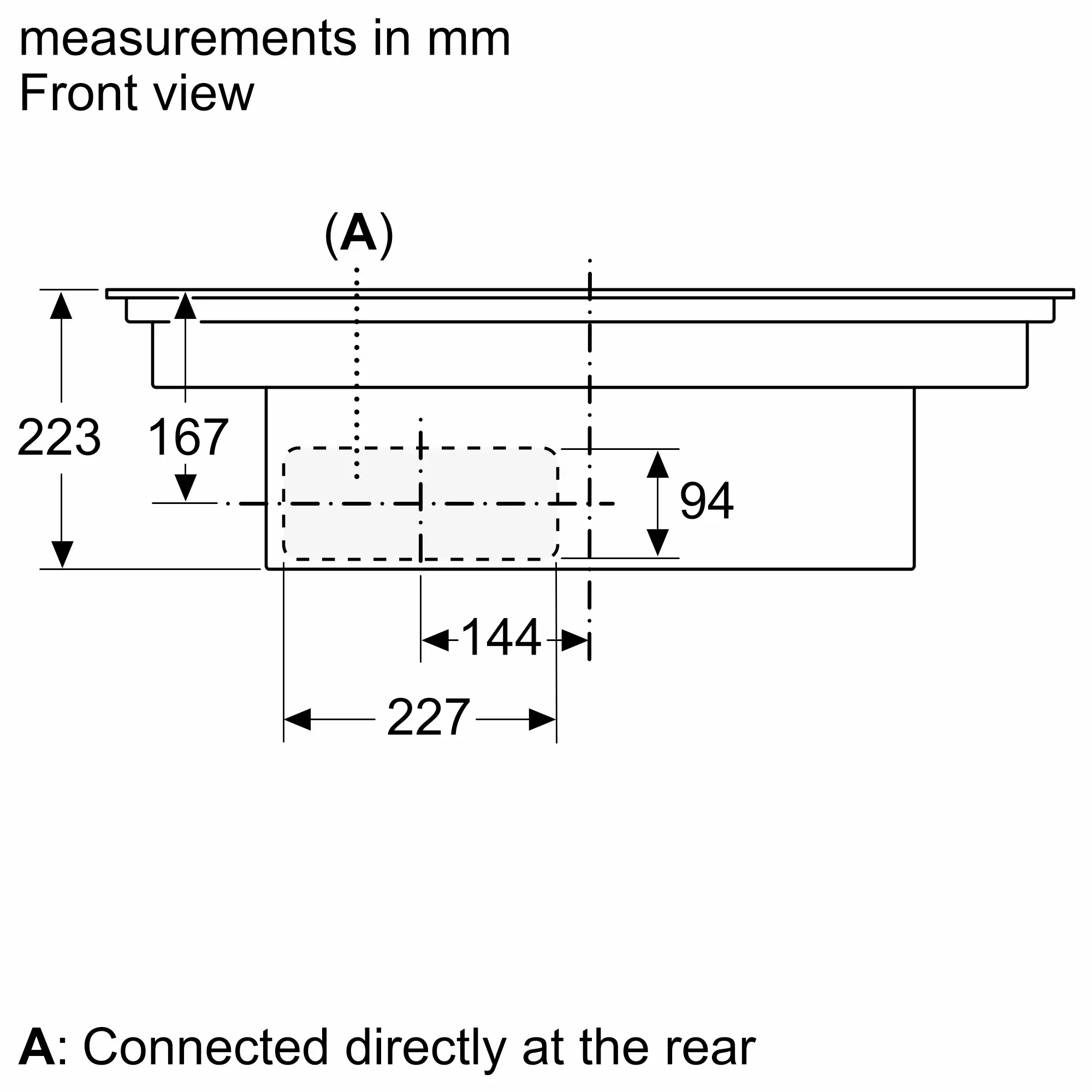

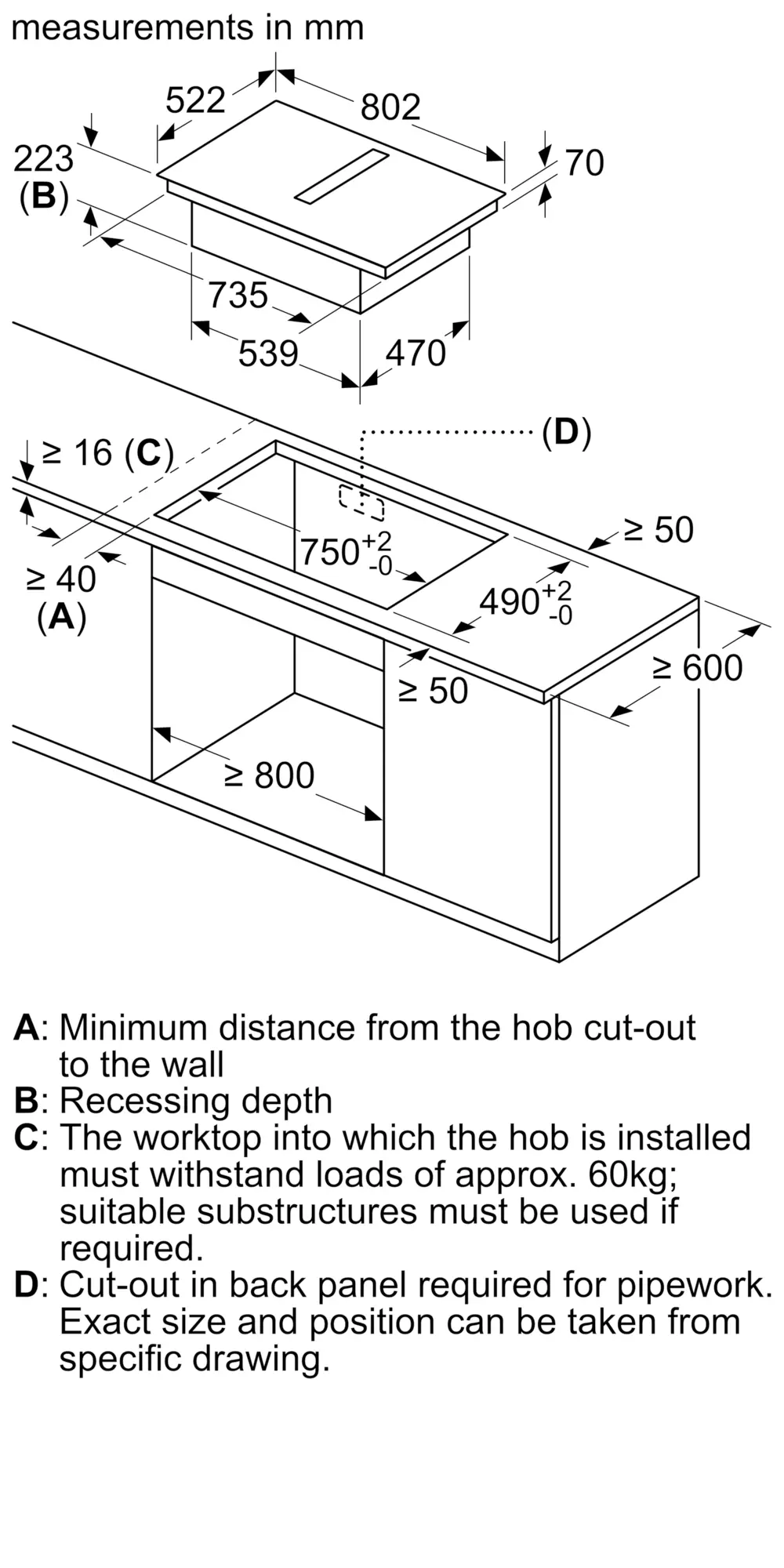

• Dimensions (W x H x D): 802 x 223 x 522 mm

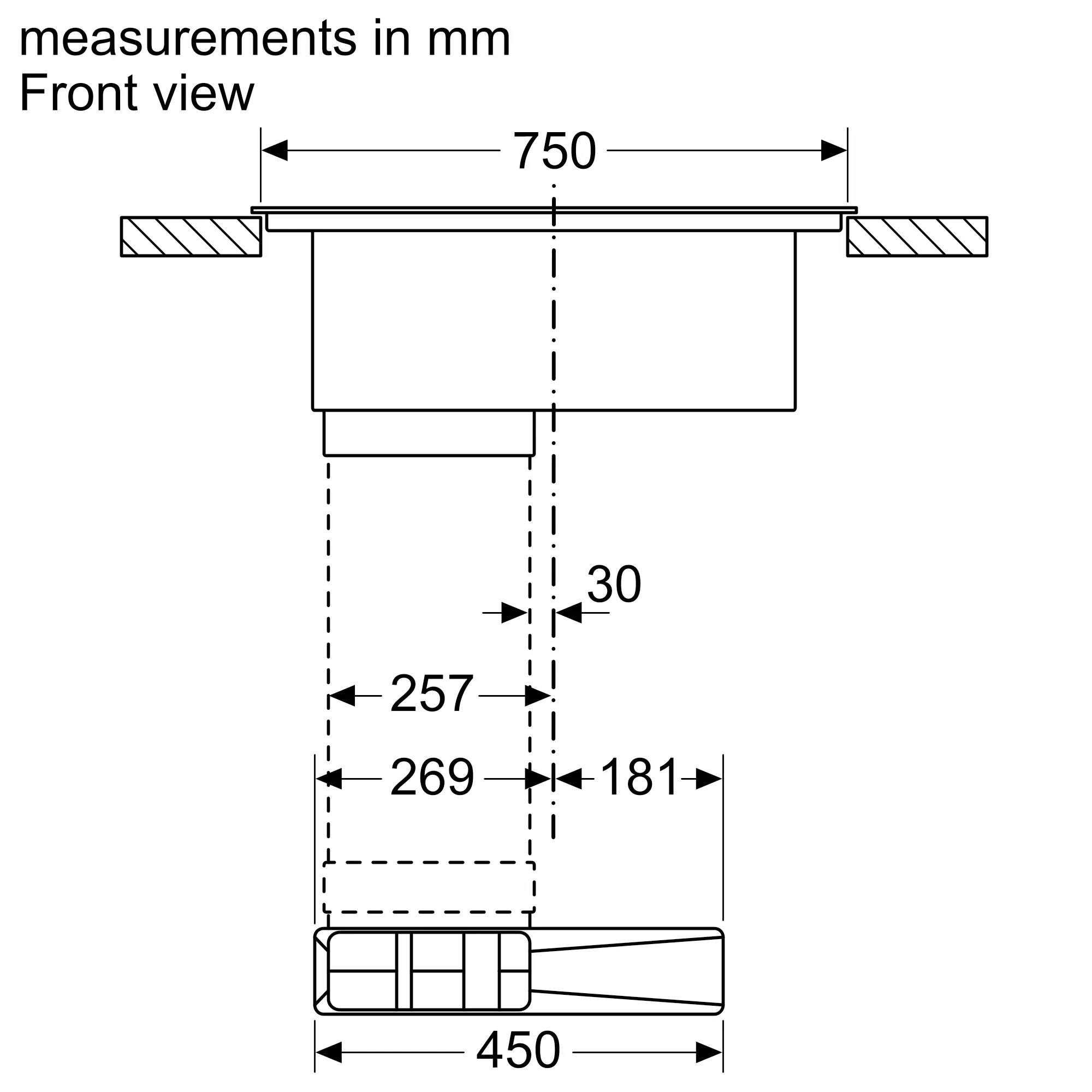

• Cut-Out Size (W x D): 750 x 490 mm
• Minimum benchtop thickness: Refer to installation instructions
• Installation profile: Surface mount without frame

Product Weight:

• Product Weight: 23.6 kg

Installation & Requirements:

• Installation type: Built-in
• Connection type: Hardwired
• Power supply: 220–240 V / 50–60 Hz
• Connected load: 7.4 kW
• Maximum current rating: 31 A
• Ventilation configuration: Suitable for ducted or recirculated installation

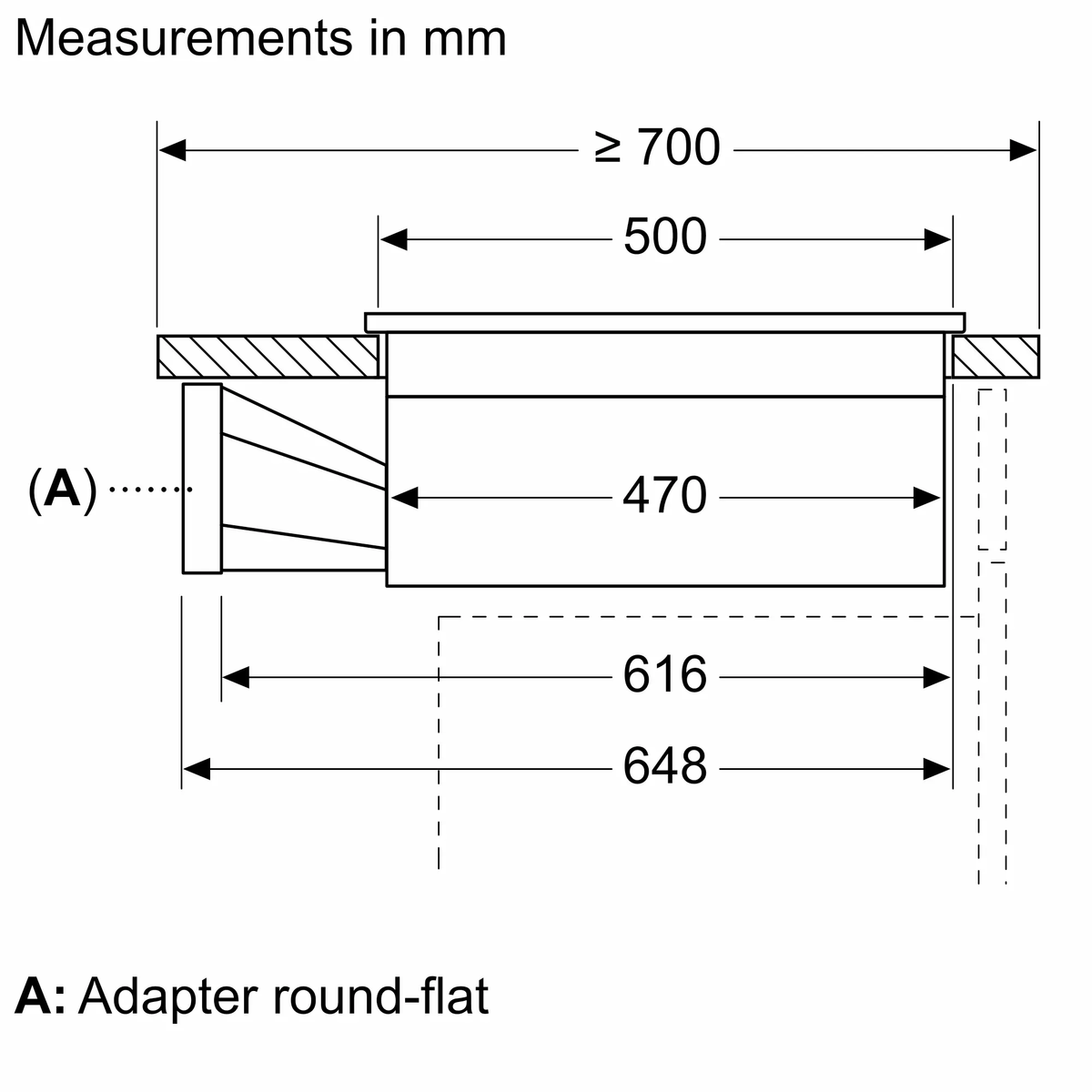

• Duct compatibility: Compatible with Bosch flat duct systems
• Professional installation: Licensed electrician required
• Recirculation installation clearance: Air return opening required for recirculated installations
• Ducting recommendation: Bosch ducting accessories recommended for optimal airflow performance

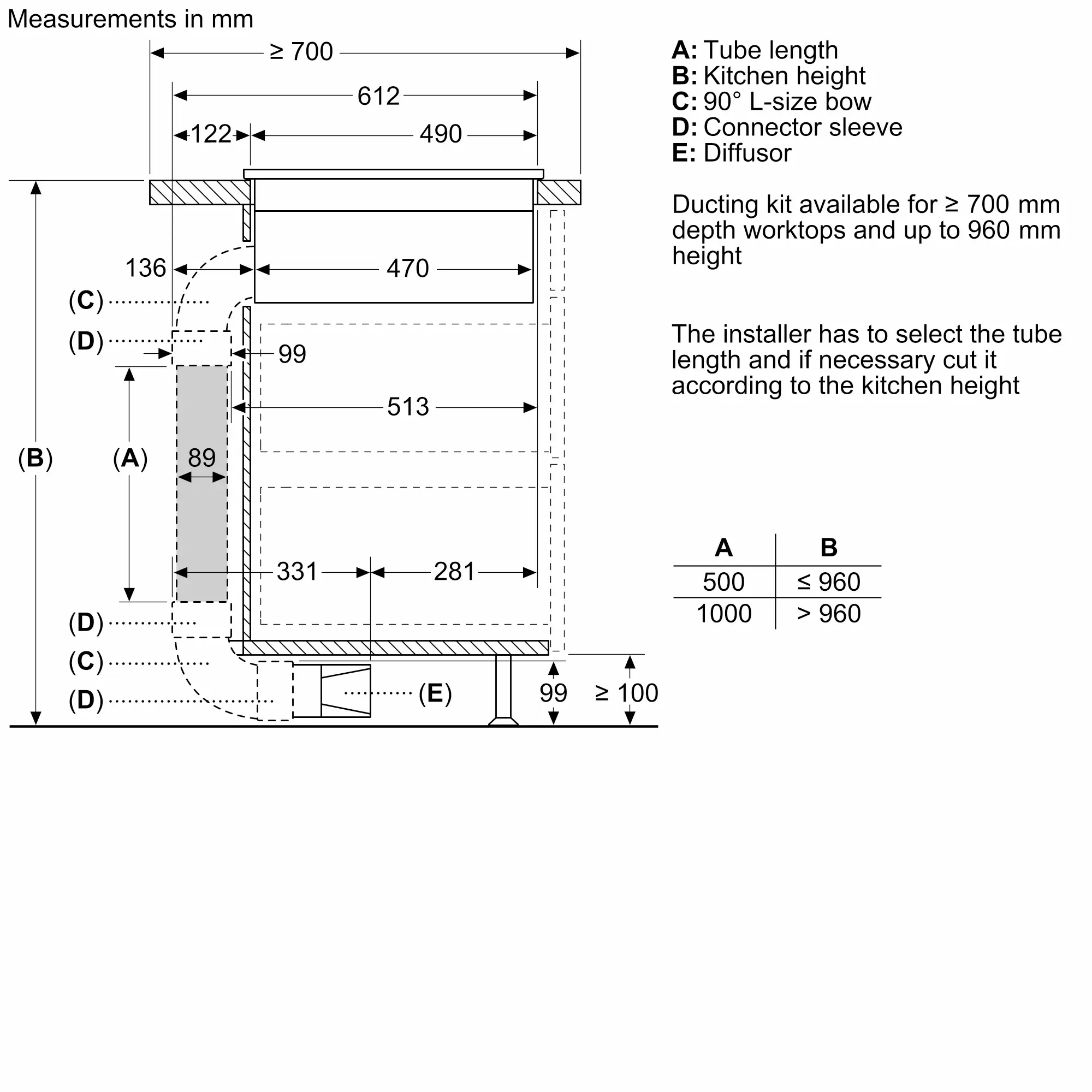

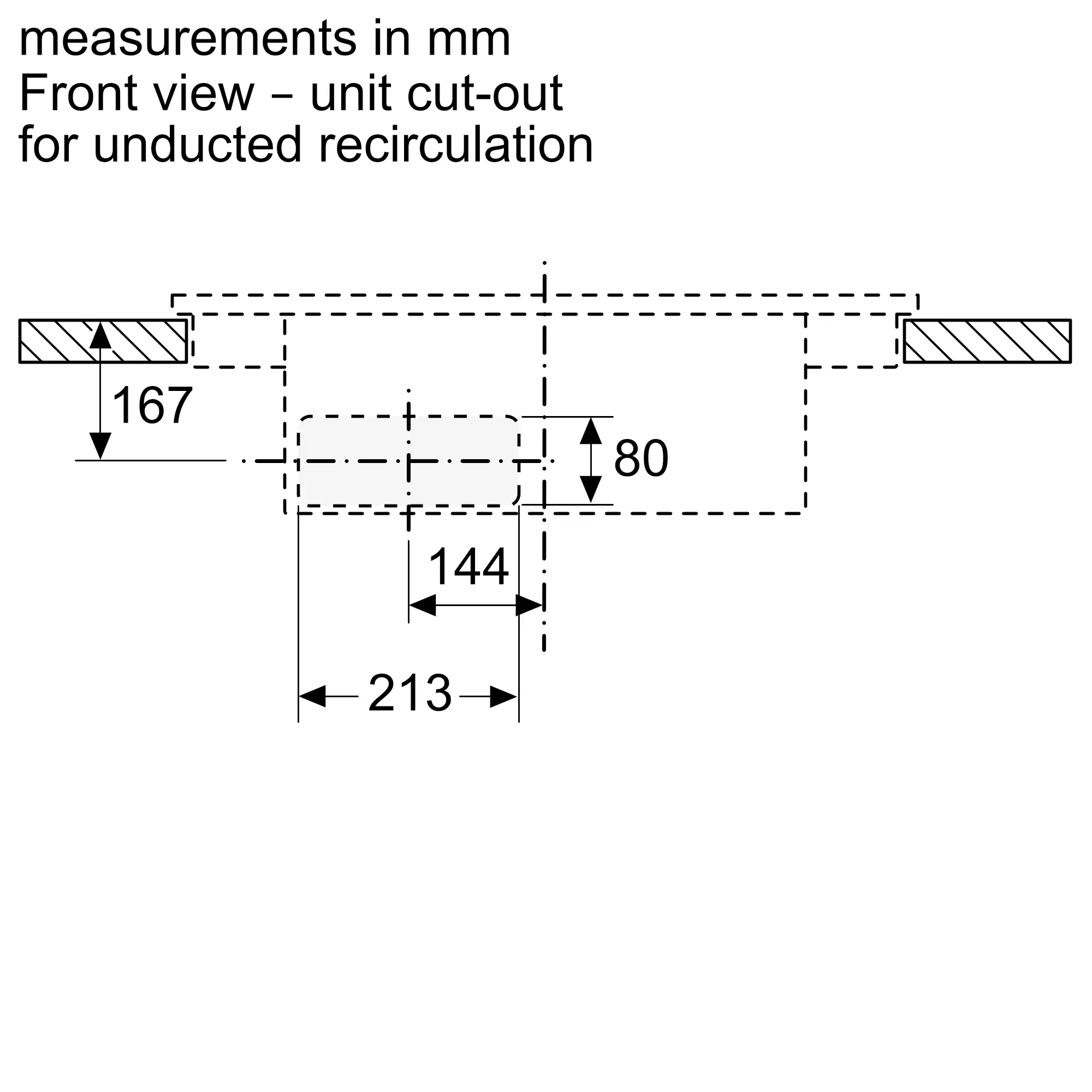

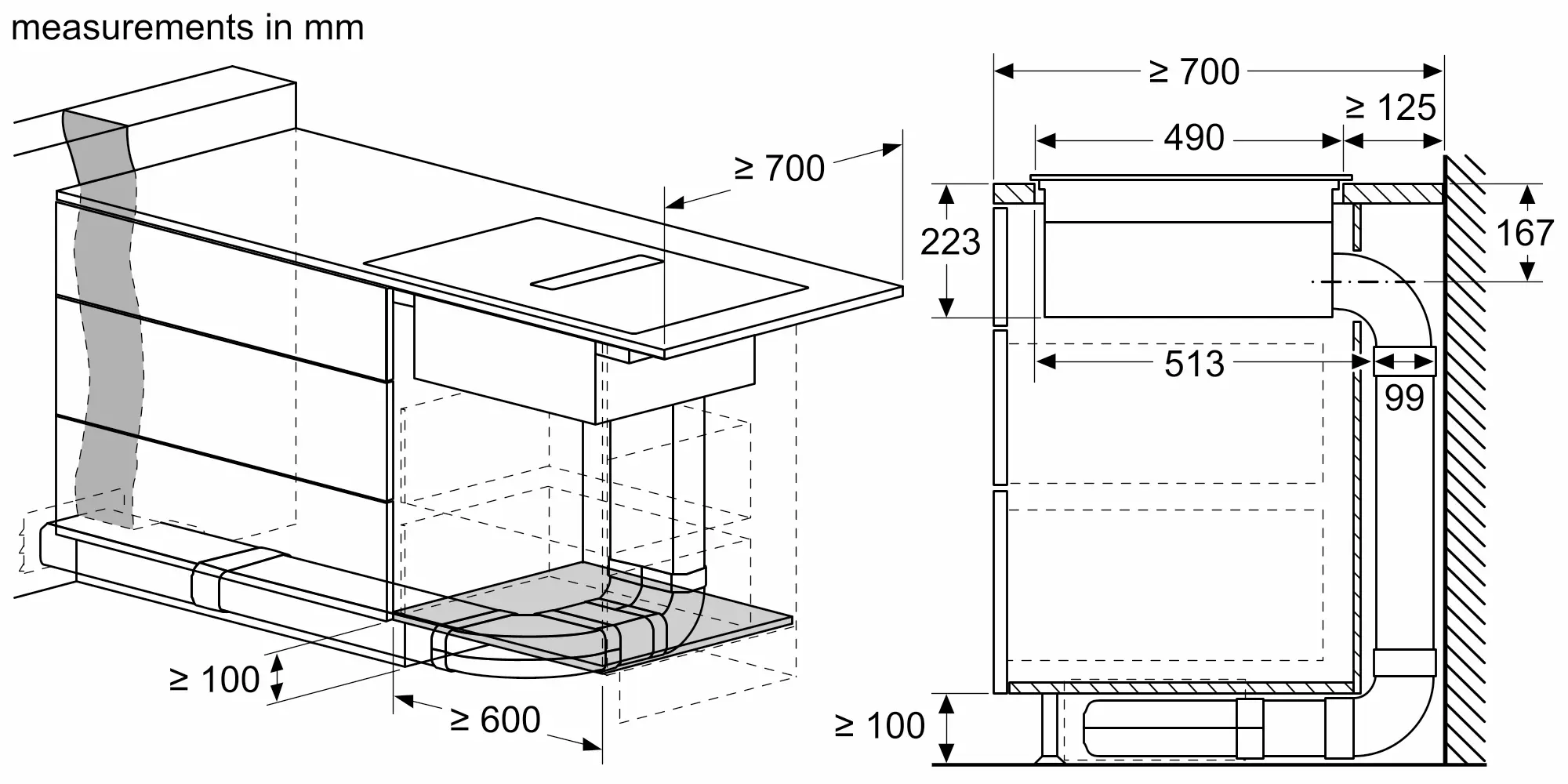

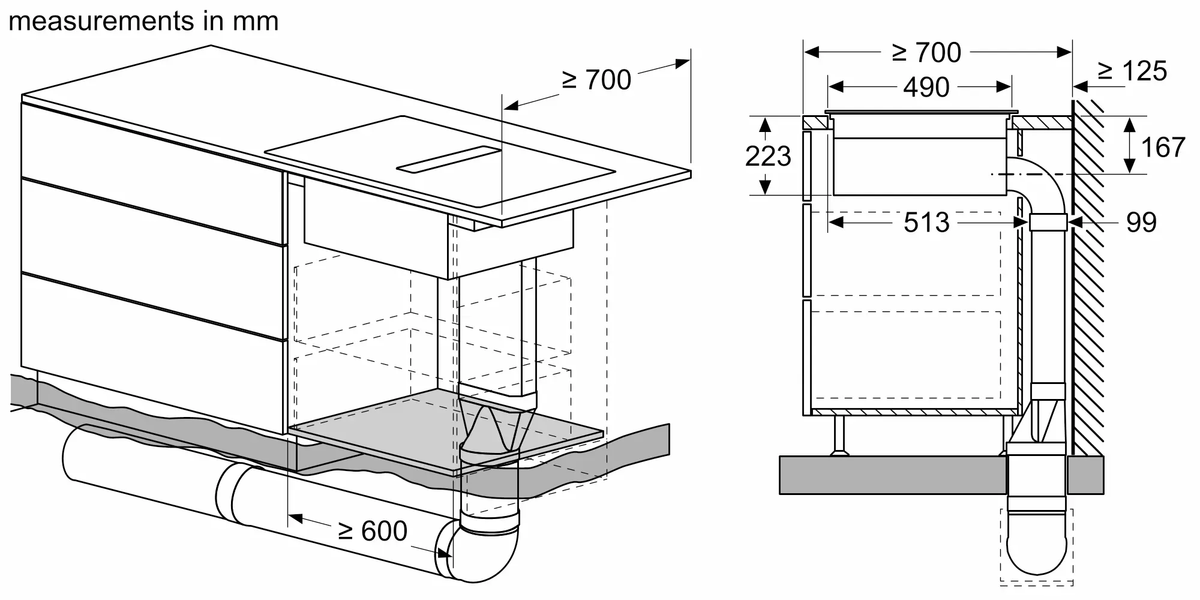

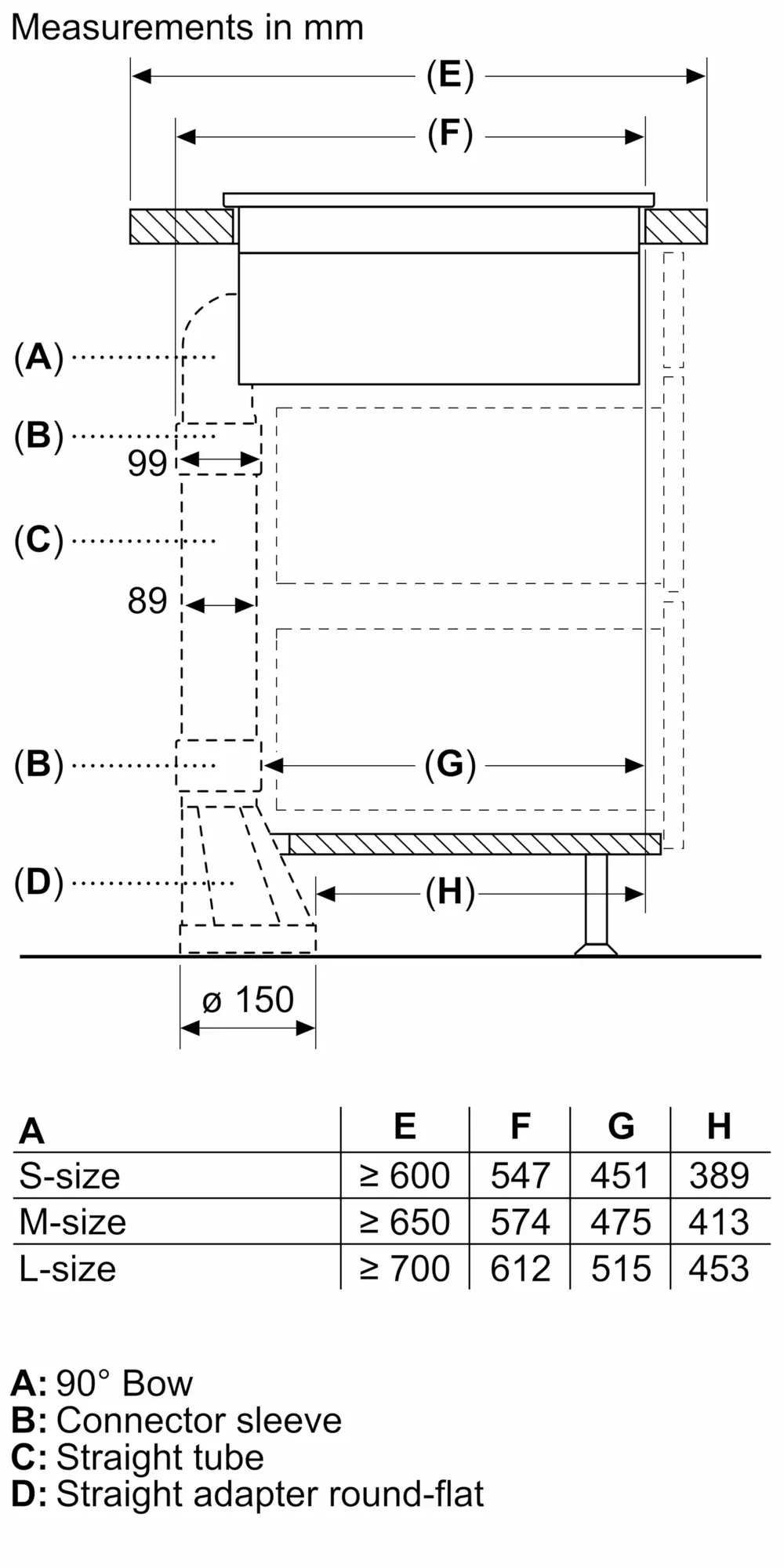

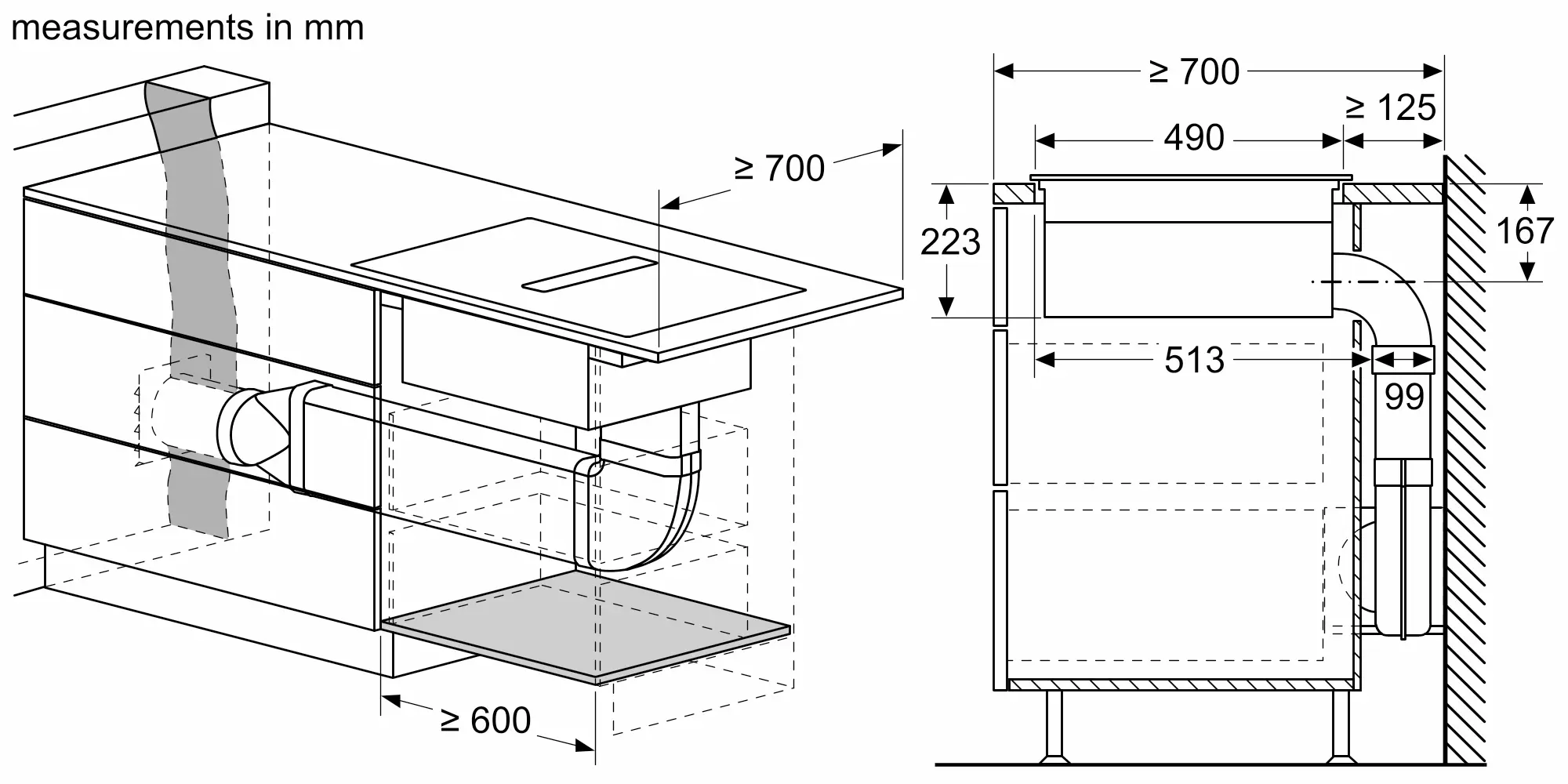

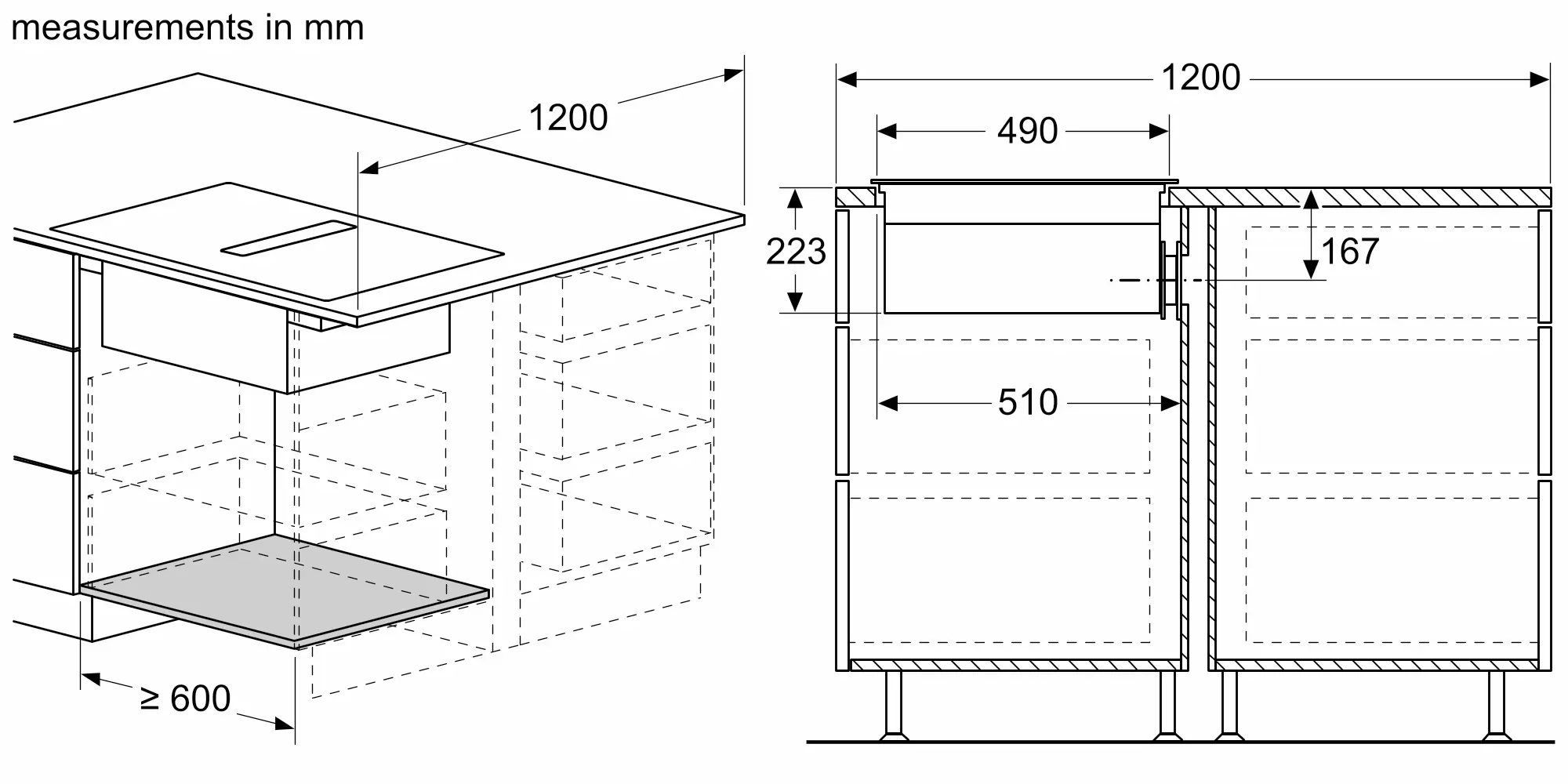

The PVQ811H26E supports multiple installation configurations including unducted recirculation, partially ducted recirculation, fully ducted recirculation, and externally ducted extraction systems. Bosch installation accessories and ducting components are selected according to the kitchen design and airflow configuration.

Country of Origin:

• Made in Spain

Extra Information:

The integrated ventilation module eliminates the need for a separate overhead rangehood, allowing improved sightlines across open-plan kitchen layouts and island bench installations. Extraction occurs directly beside the cookware, helping capture steam and cooking vapours before they disperse throughout the kitchen environment.

Bosch PerfectFry Plus technology monitors pan temperature continuously and helps maintain selected frying temperatures automatically. This assists with reducing overheating during frying applications while improving cooking consistency across different cookware types.

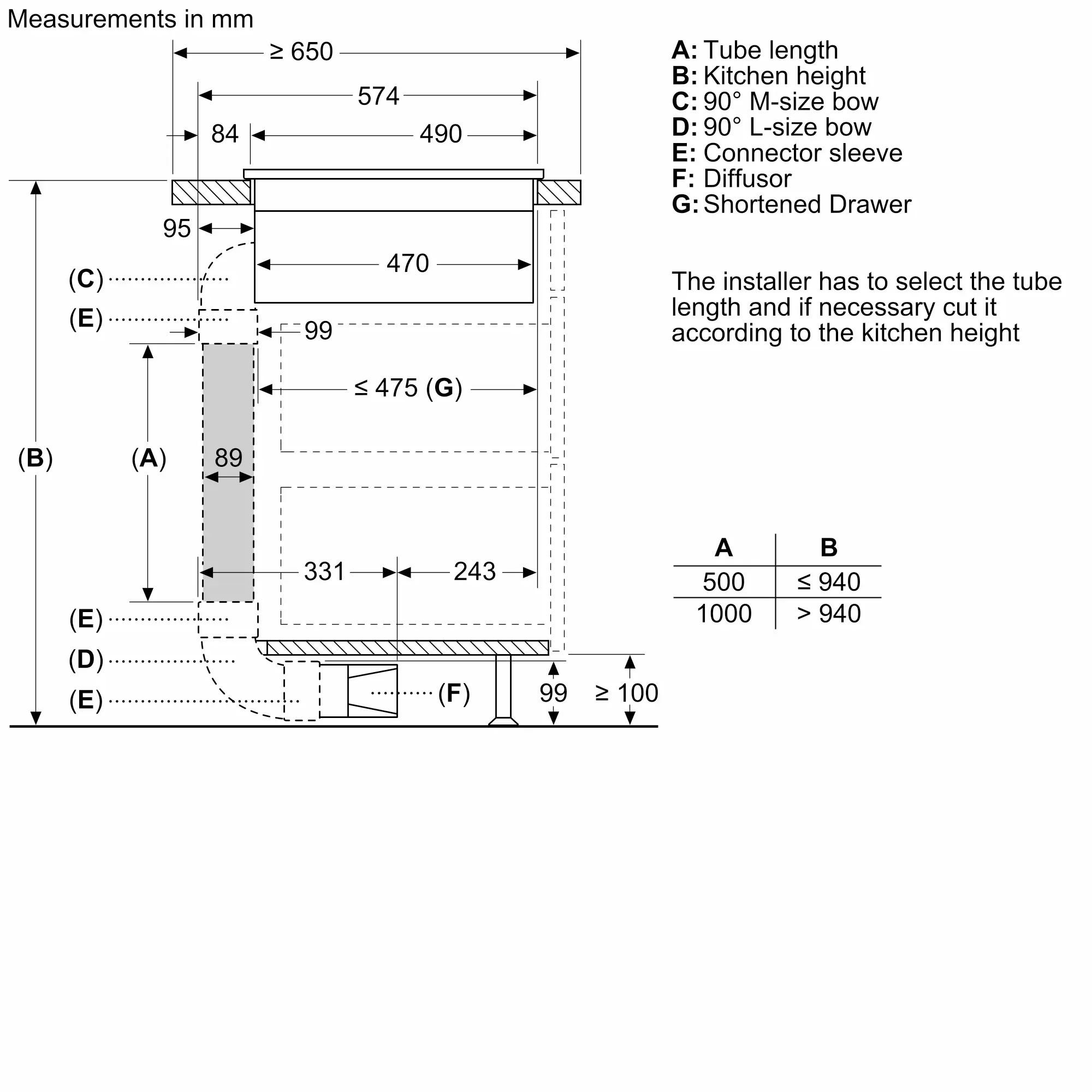

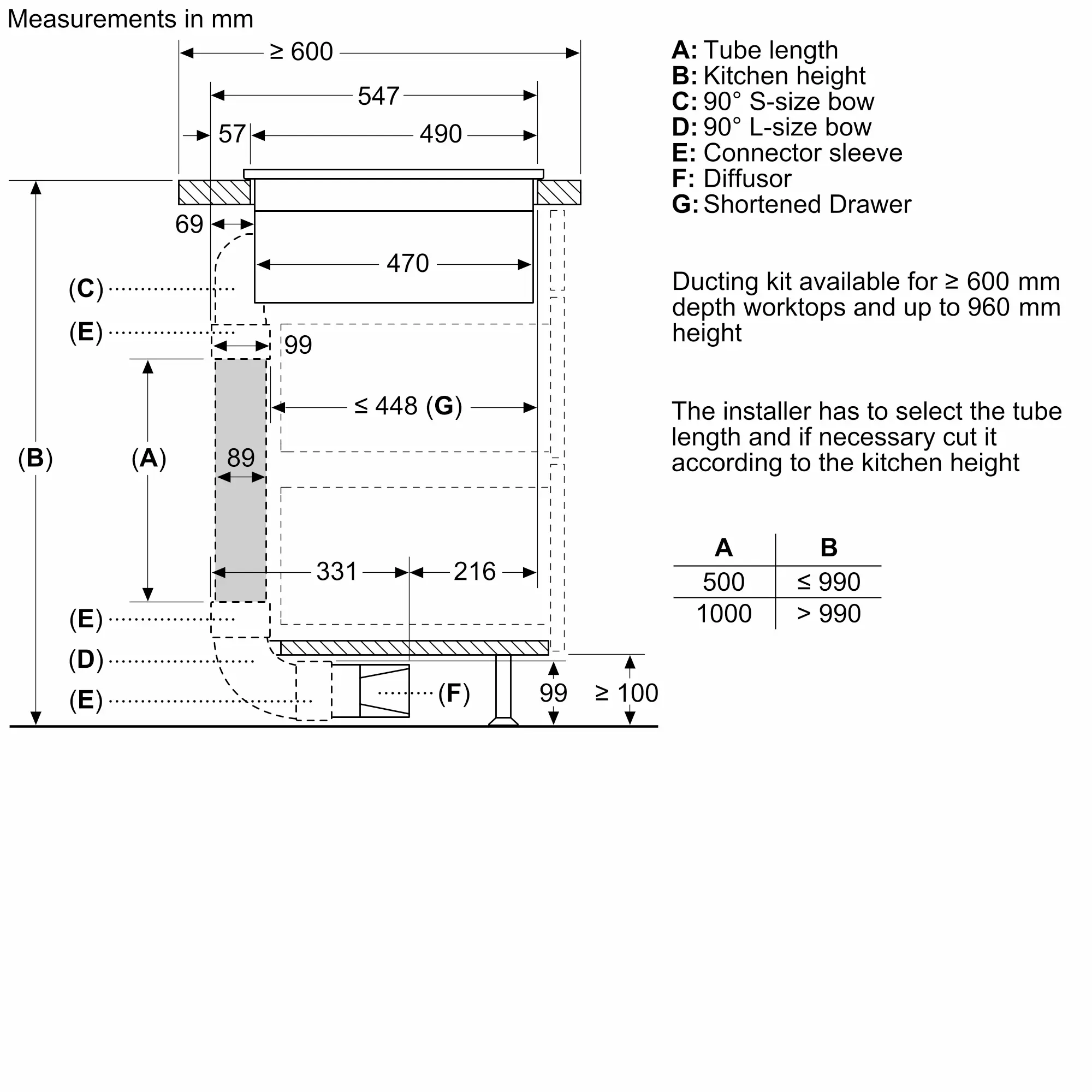

For recirculated installations, Bosch specifies airflow return openings and compatible ducting accessories to maintain extraction performance. Installation planning should occur before cabinetry manufacture to ensure suitable airflow routing and ventilation clearances are incorporated into the kitchen design.

Included Products / Accessories:

• Integrated ventilation module
• Stainless steel grease filters
• Cooktop securing clips
• Installation components
• Clean Air Plus filter components
• Installation documentation

Warranty:

Backed by a 2-year manufacturer's warranty for peace of mind when installed and used according to manufacturer guidelines.
