• Integrated ventilation system: extracts steam and odours directly from the cooktop surface.
• 4 induction cooking zones: supports simultaneous multi-zone cooking.
• 2 CombiZones: combines adjacent cooking zones for larger cookware or griddles.
• DirectSelect controls: direct touch access to cooking zones and power settings.
• 17 power levels: precise incremental temperature adjustment.
• PowerBoost function: increased temporary output for faster boiling and rapid heat-up.
• PerfectFry Plus: frying sensor assistance with 11 preset temperature levels.
• AutoOn ventilation: extraction activates automatically during cooking.
• Automatic fan run-on: continues extraction after cooking to assist odour removal.
• Home Connect: Wi-Fi enabled smart connectivity and appliance status monitoring.
• Pause function: temporarily pauses cooking settings when required.
• Restart function: restores previous settings after accidental switch-off.
• QuickStart: automatically detects cookware placement and activates the selected zone.
• ReStart memory: retains cooking settings for short interruptions.
• Child lock: prevents unintended operation changes.
• Residual heat indicators: visual indication when cooking zones remain hot after use.

• PowerBoost: temporarily increases cooking zone output for faster boiling and rapid heat-up.
• PerfectFry Plus: monitors pan temperature across preset heat levels for controlled frying results.
• QuickStart: automatically detects cookware placement and activates the selected cooking zone.
• Restart: restores previous cooking settings after accidental switch-off.
• Keep Warm: maintains low consistent heat for keeping food warm without overcooking.
• Timer with automatic shut-off: switches the selected cooking zone off automatically when the timer ends.
• Count-up timer: tracks elapsed cooking time for individual cooking zones.
• Pause function: temporarily pauses all active cooking settings during use.
• Automatic ventilation control: adjusts extraction performance automatically based on cooking activity.
• Intensive extraction stages: provides temporary high-power ventilation for heavy steam and odour removal.
• Home Connect remote functionality: enables appliance monitoring and additional functions via compatible smart devices.

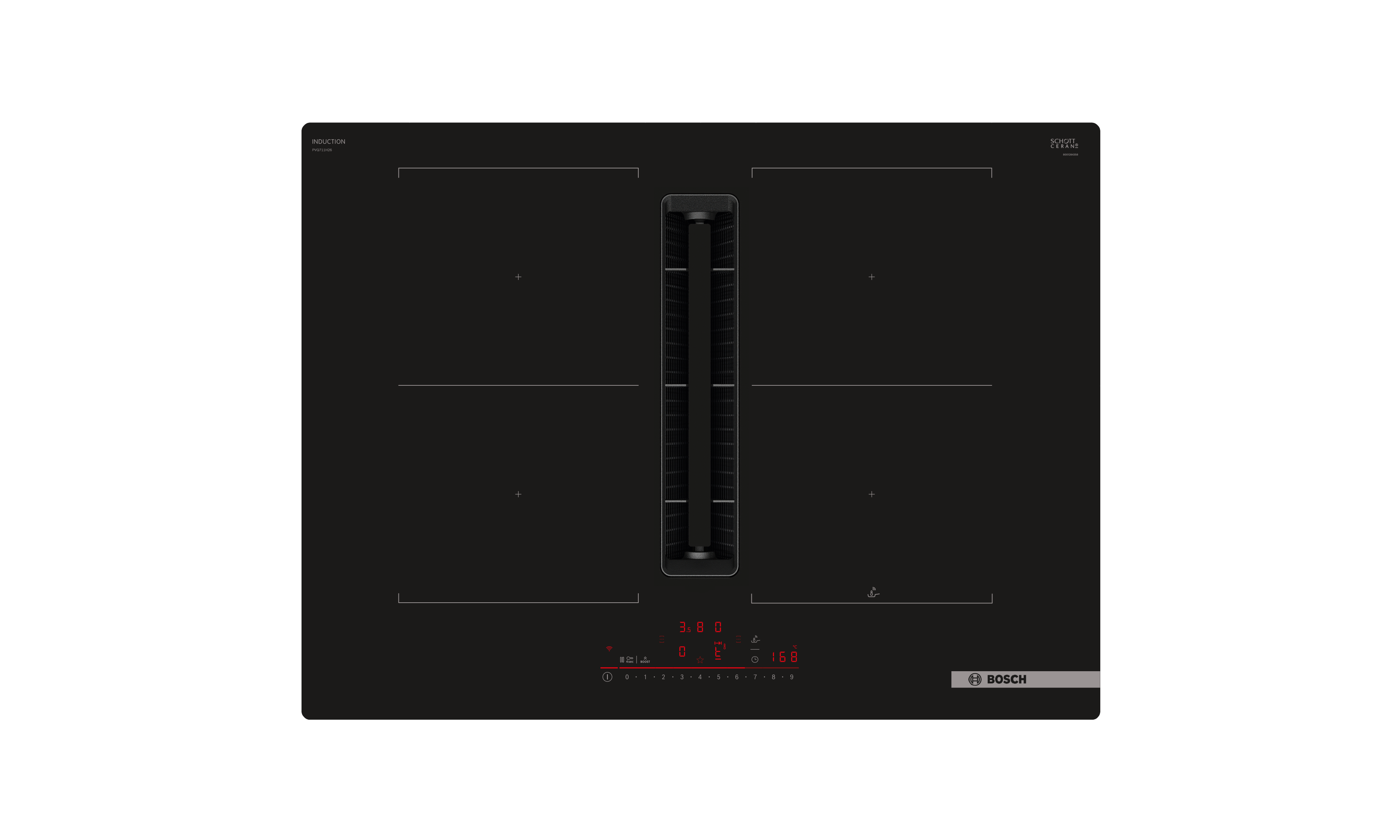

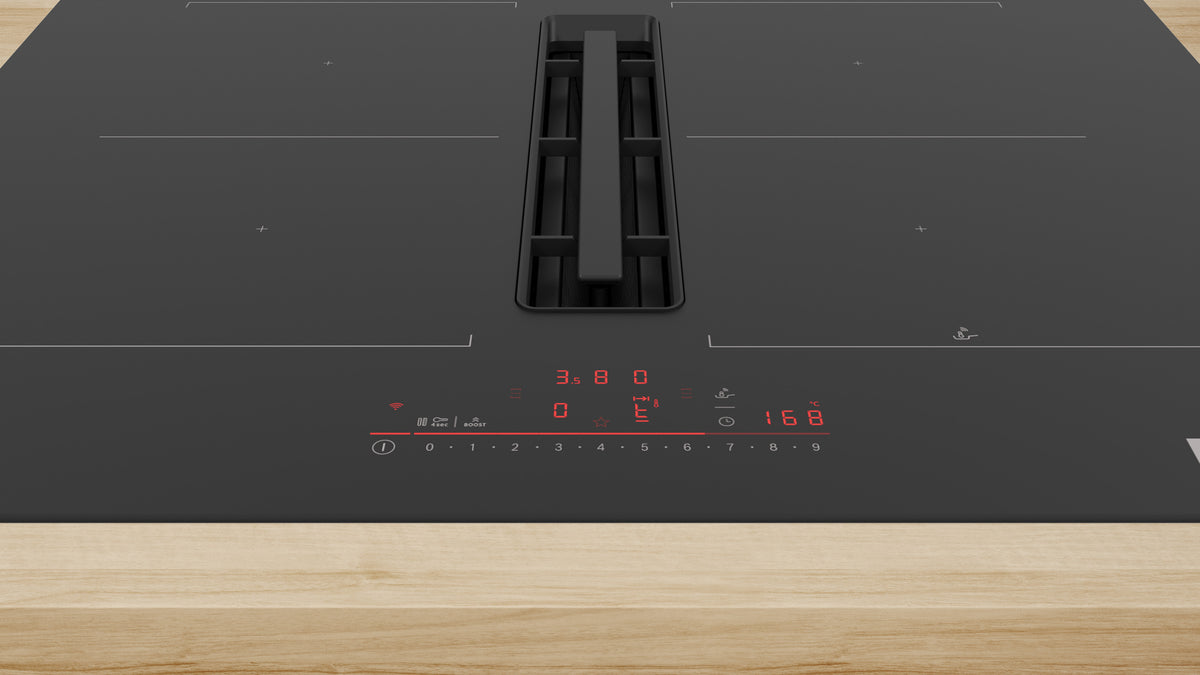

• Cooktop type: induction cooktop with integrated ventilation
• Cooking zones: 4
• Zone configuration: 2 x CombiZones

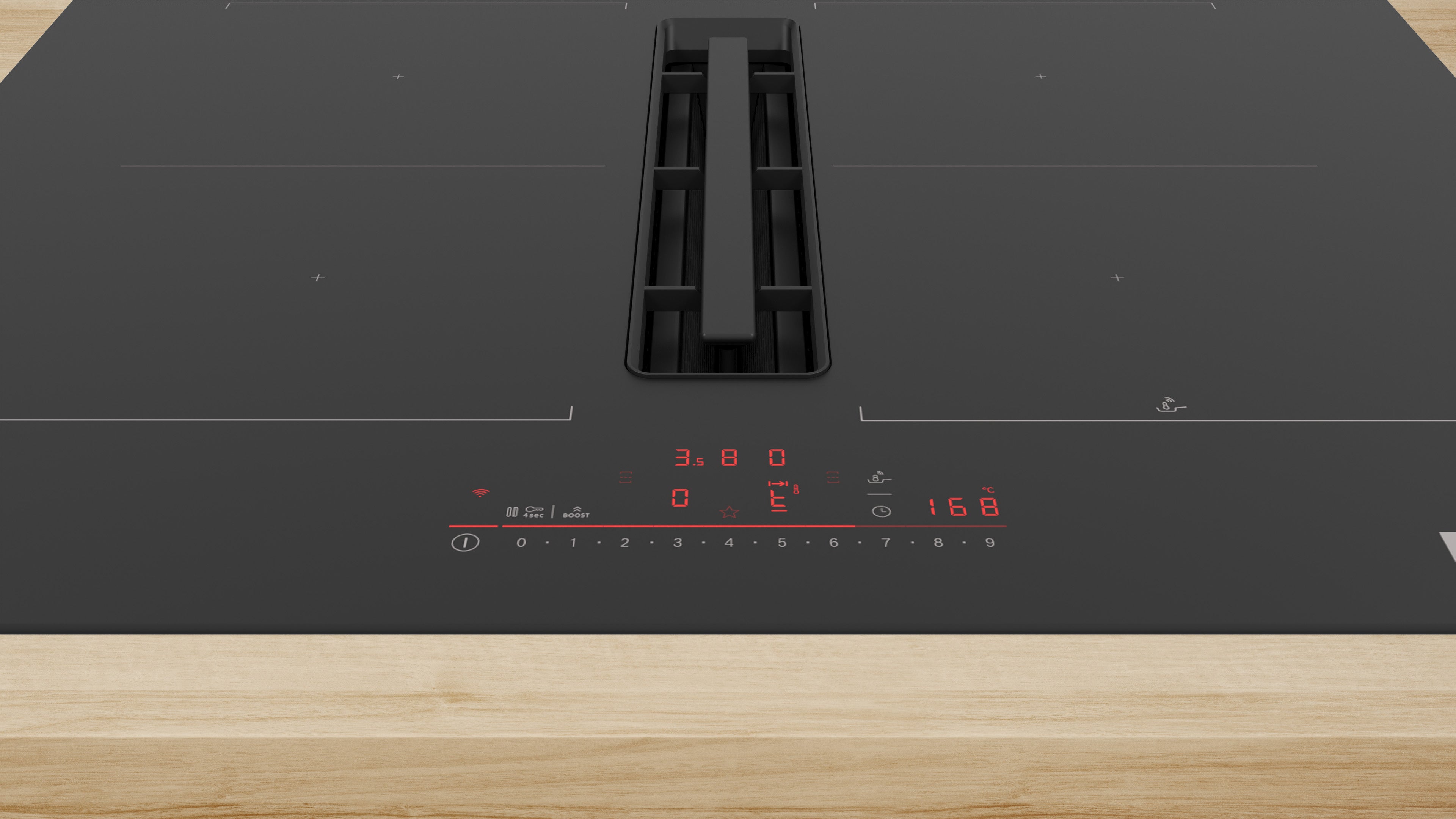

• Control type: DirectSelect touch control
• Power levels: 17

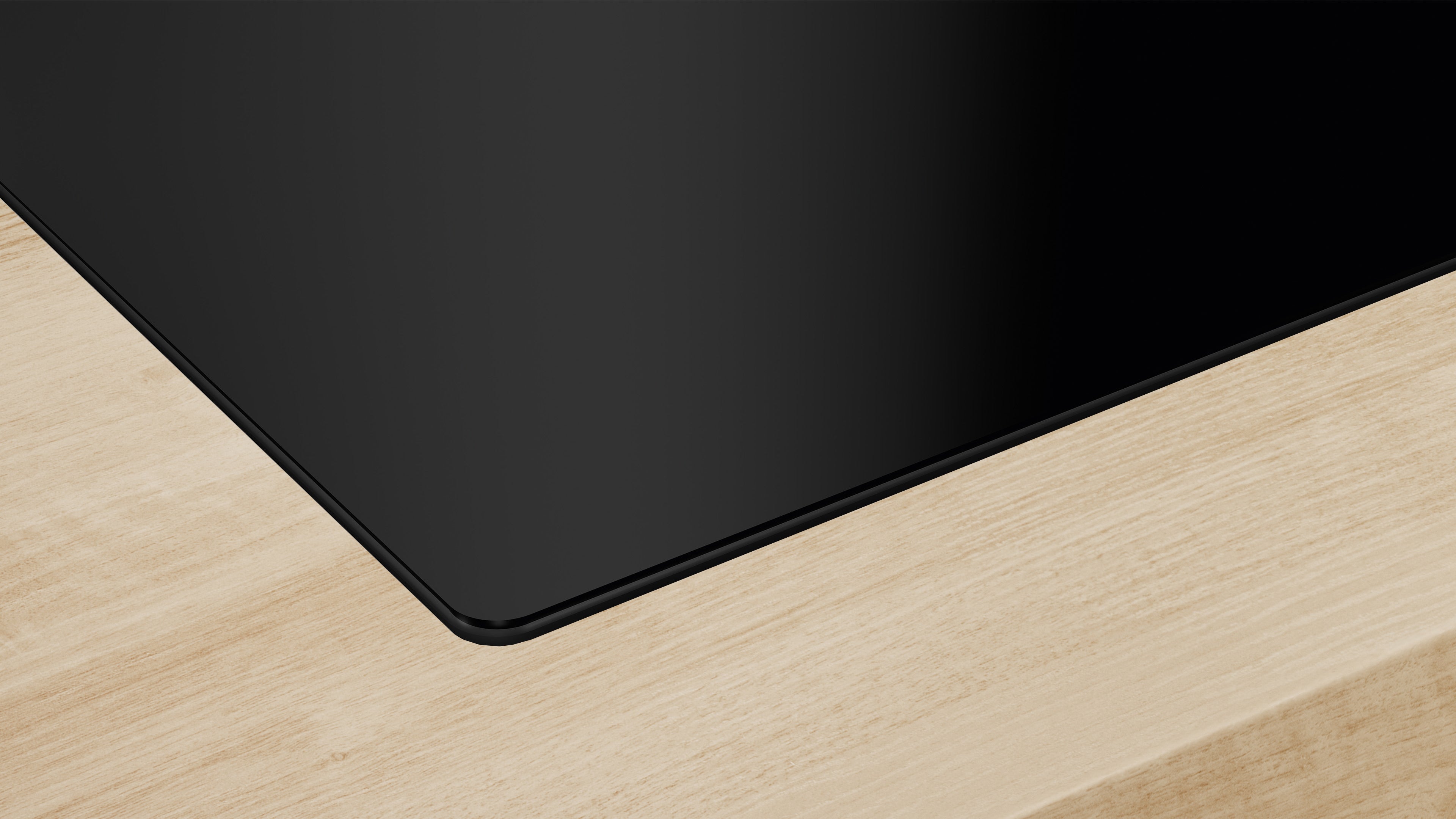

• Frame design: frameless
• Surface material: black ceramic glass
• Ventilation type: integrated downdraft extraction
• Extraction configuration: ducted or recirculated
• Maximum extraction rate: 500 m³/h
• Boost extraction rate: 622 m³/h
• Maximum recirculation rate: 487 m³/h
• Boost recirculation rate: 595 m³/h
• Fan speeds: 9 + 2 intensive settings
• Grease filter type: stainless steel grease filter
• Noise level: 69 dB(A)
• Home Connect: yes
• Energy input: electric
• Cookware compatibility: induction-compatible cookware only

Cooking Zone Details:

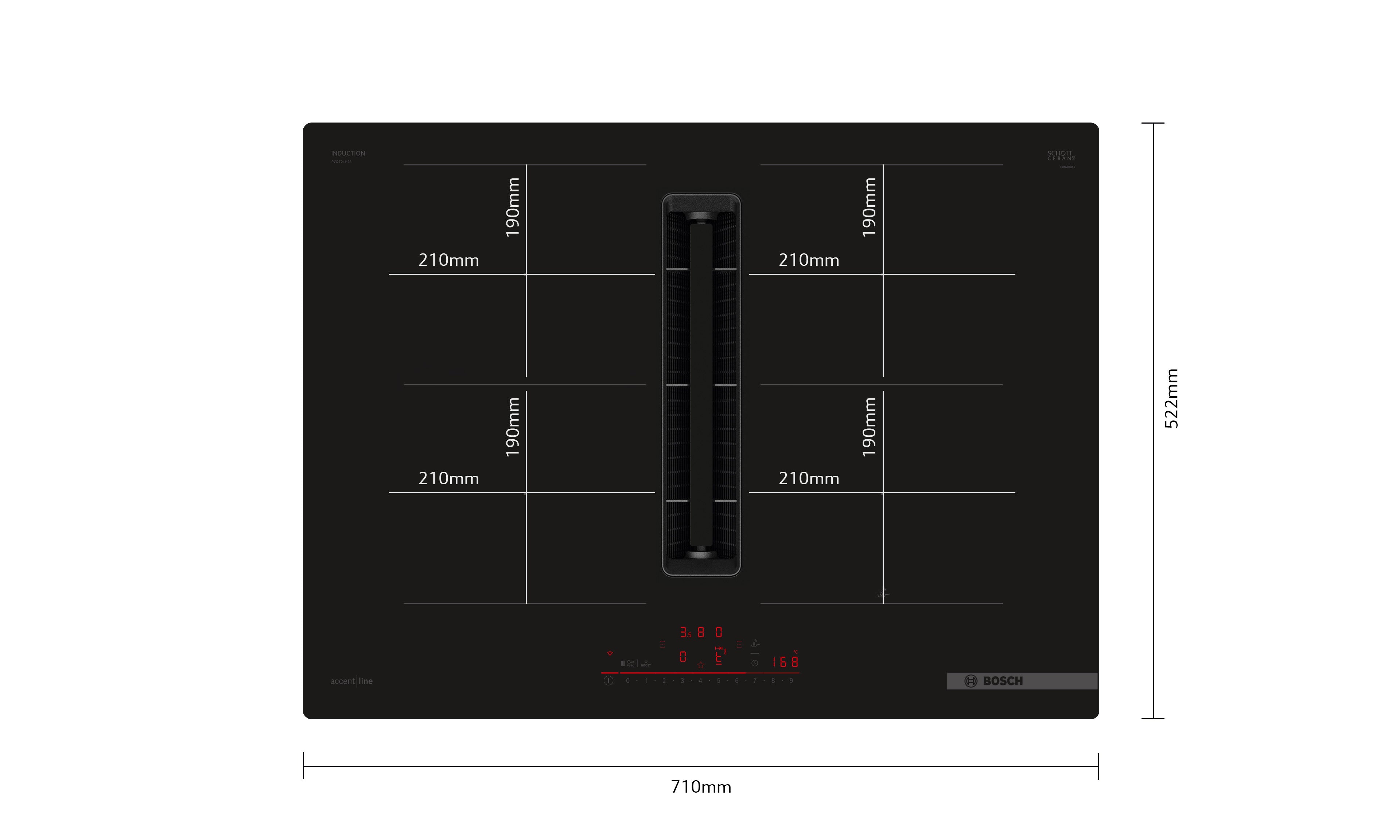

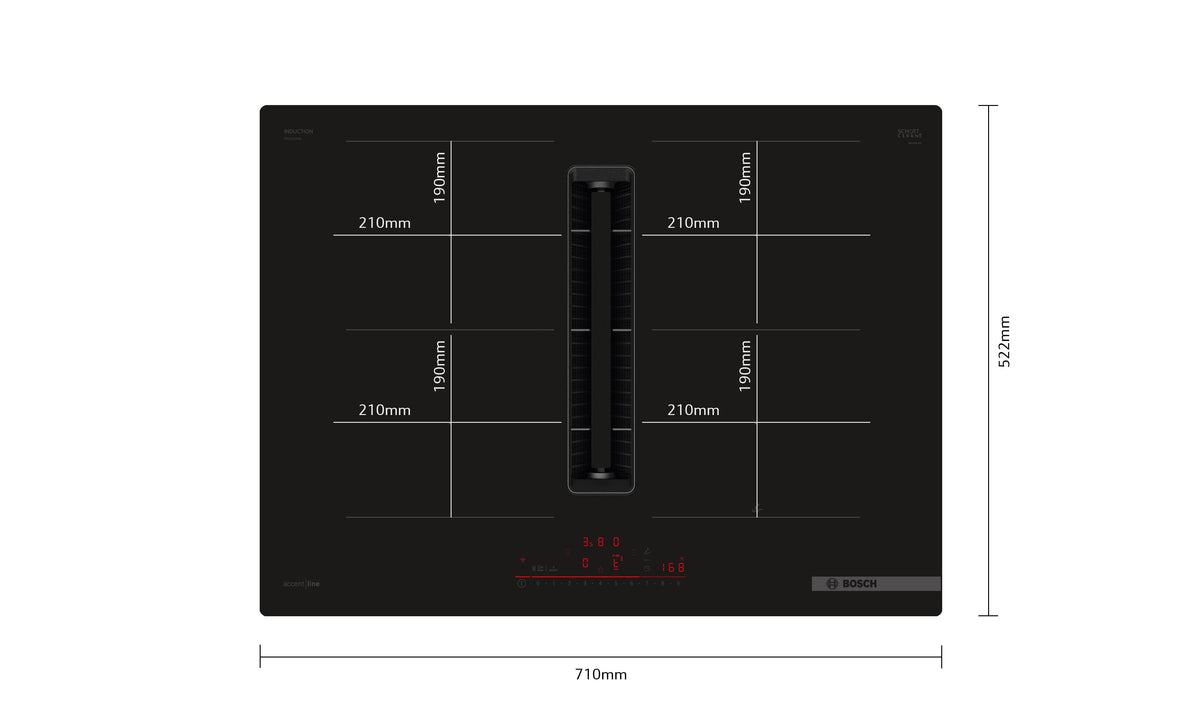

• Front left cooking zone: 190 x 210 mm — 2.2 kW (3.7 kW with PowerBoost)
• Rear left cooking zone: 190 x 210 mm — 2.2 kW (3.7 kW with PowerBoost)
• Front right cooking zone: 190 x 210 mm — 2.2 kW (3.7 kW with PowerBoost)
• Rear right cooking zone: 190 x 210 mm — 2.2 kW (3.7 kW with PowerBoost)
• CombiZone functionality: combines left or right cooking zones for larger cookware and grill plates

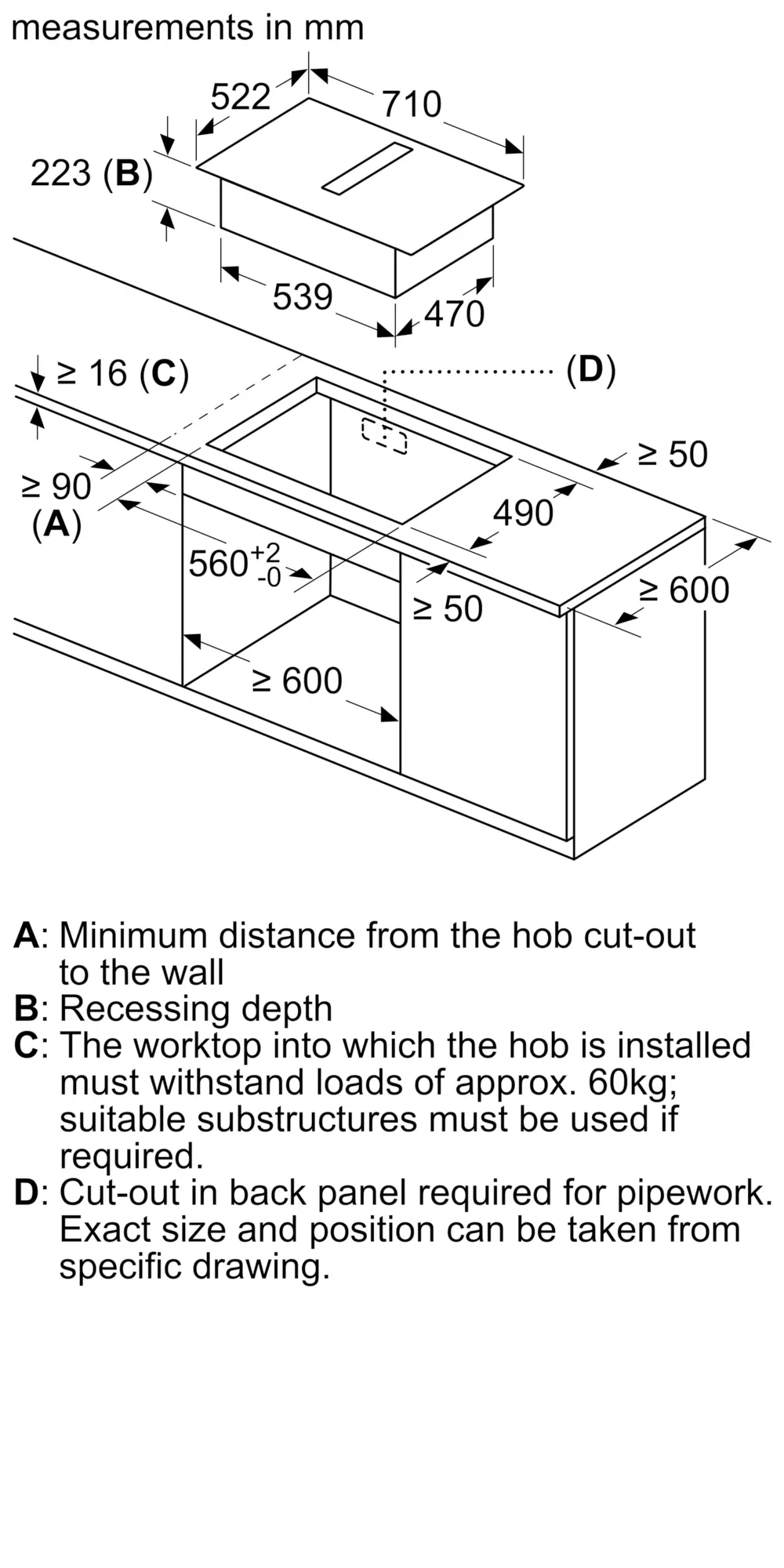

• Installation type: built-in surface mount
• Connection type: hardwired
• Power supply: 220–240 V / 380–415 V
• Frequency: 50–60 Hz
• Connected load: 7.4 kW
• Maximum current rating: 31 A
• Power cord length: 1.1 m

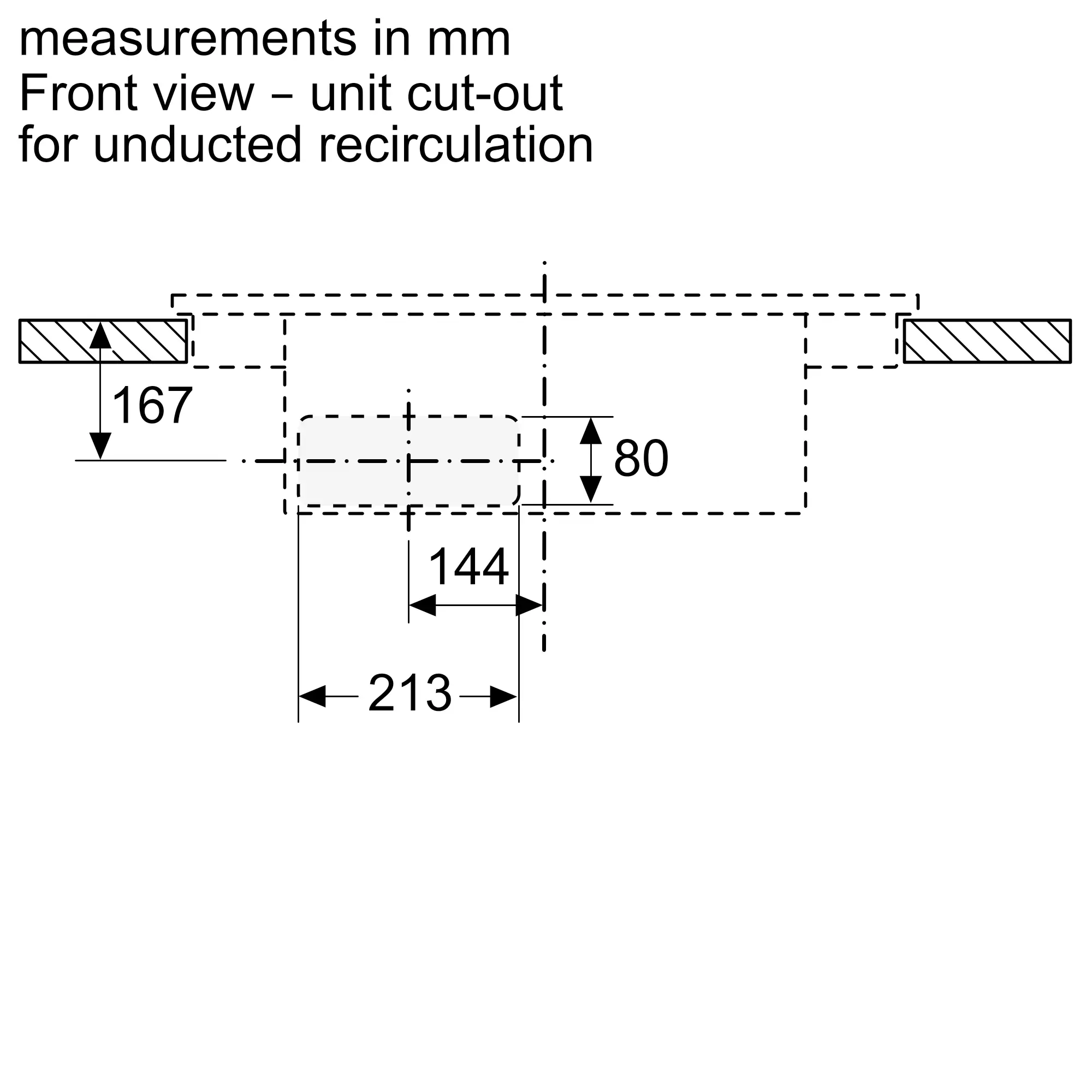

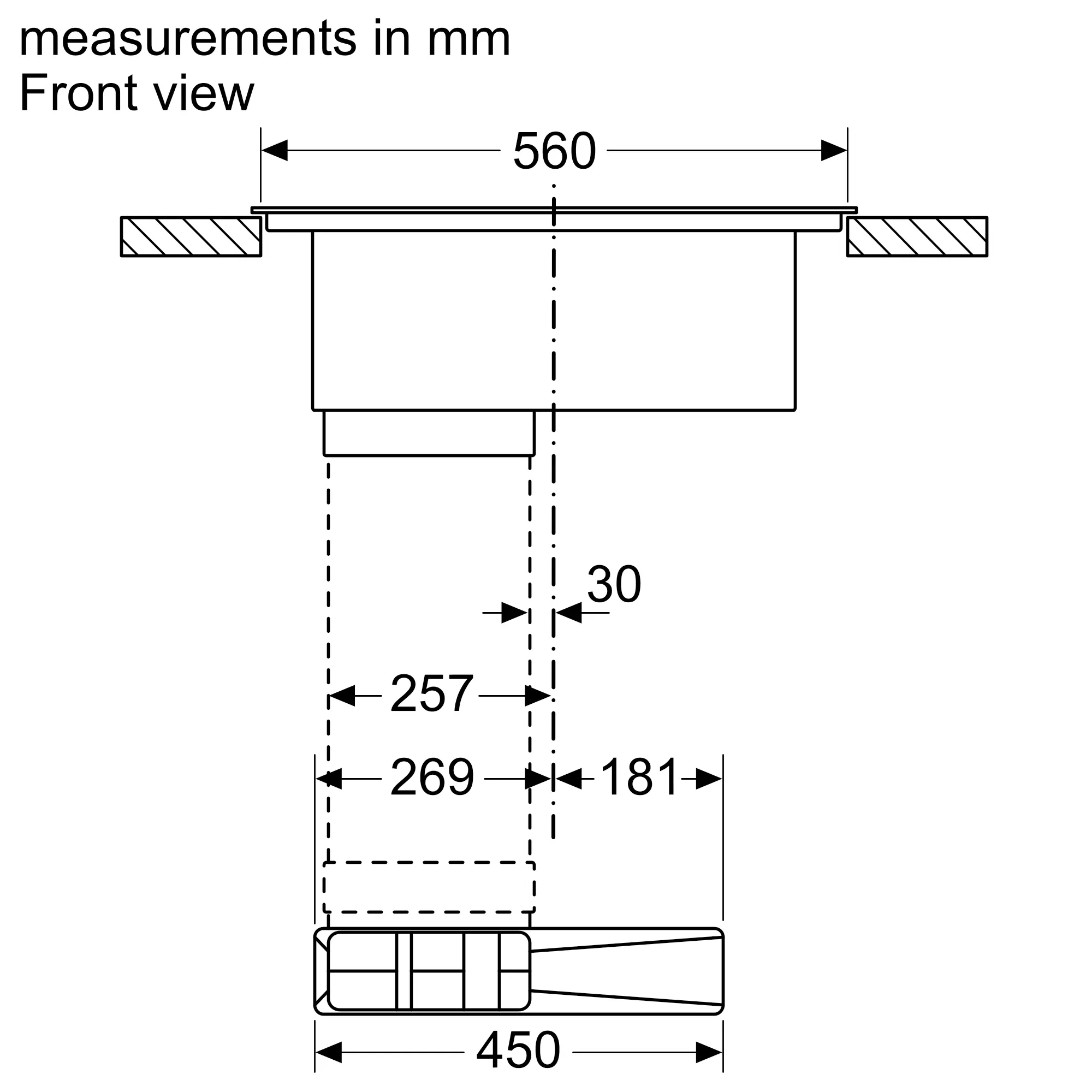

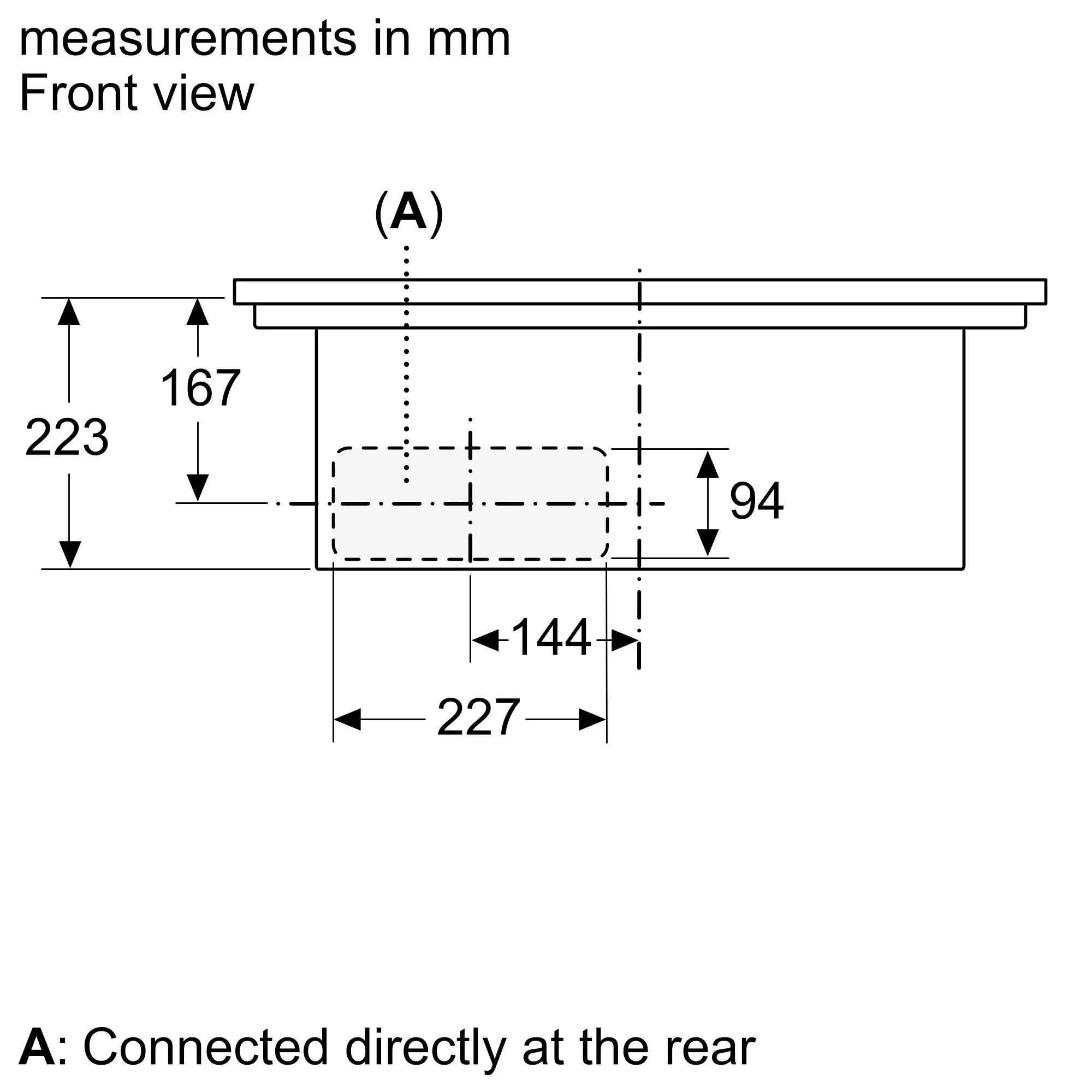

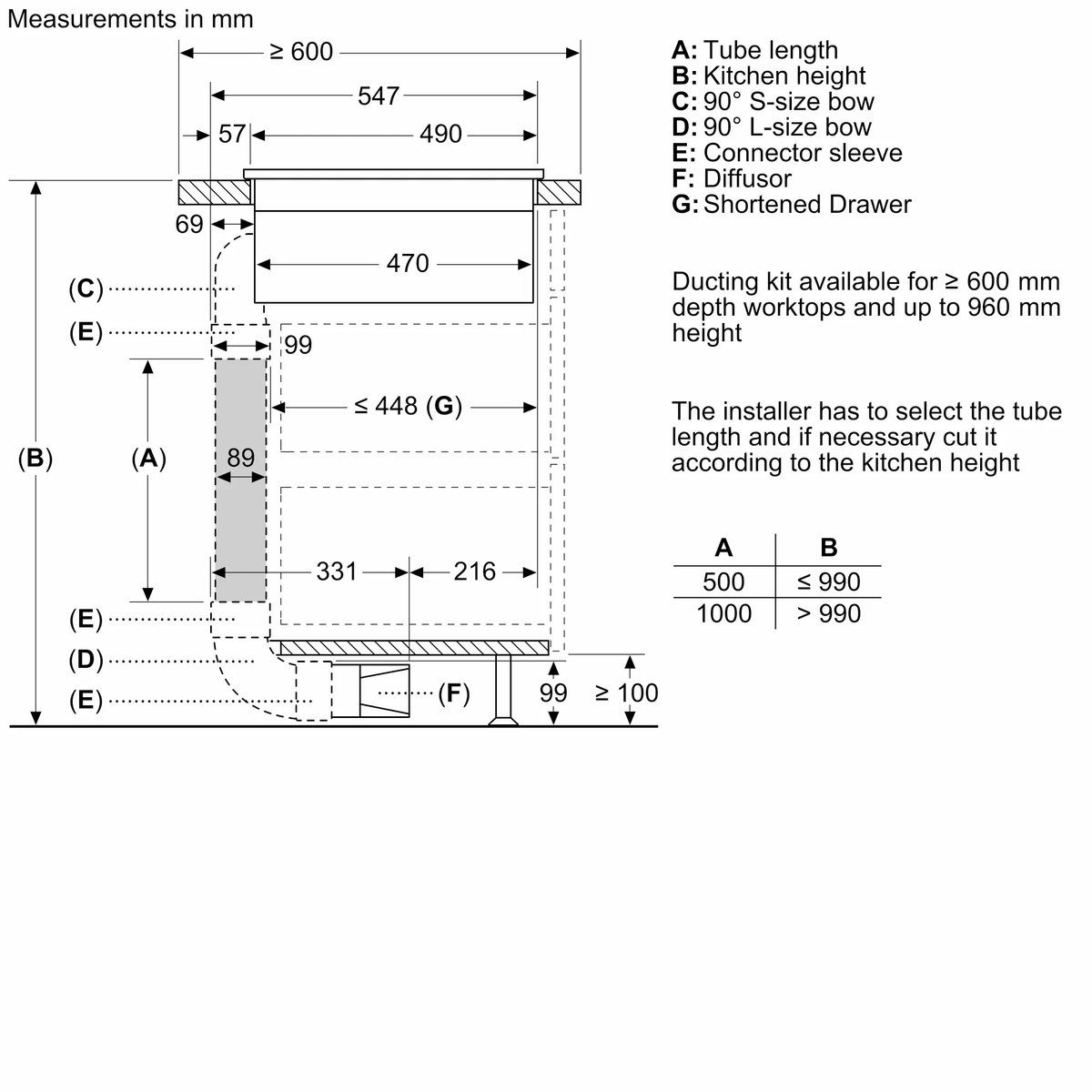

• Ventilation installation: suitable for ducted extraction or recirculated installation
• Professional installation: licensed electrician required

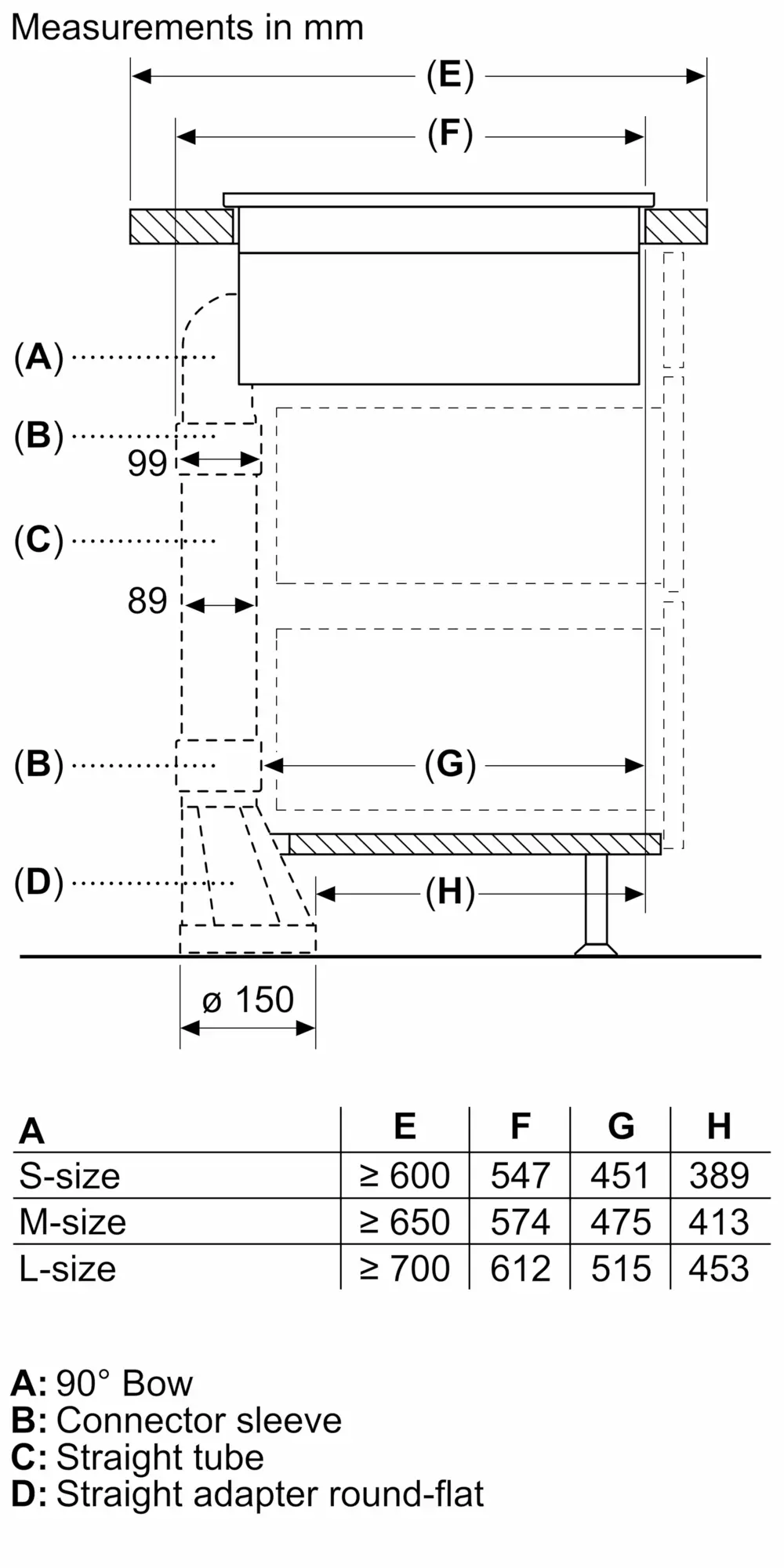

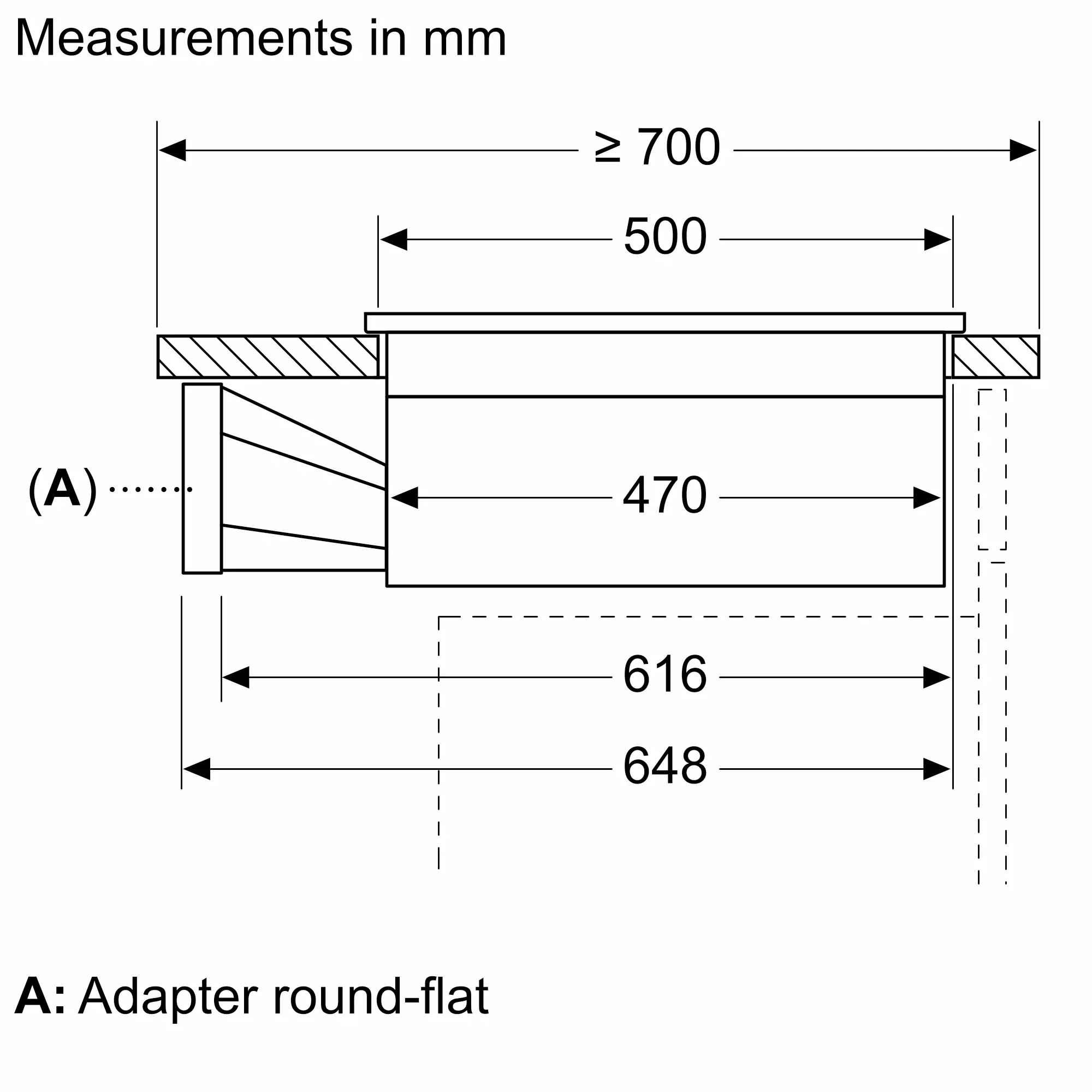

• Ducting accessories: additional Bosch ducting accessories may be required depending on installation configuration

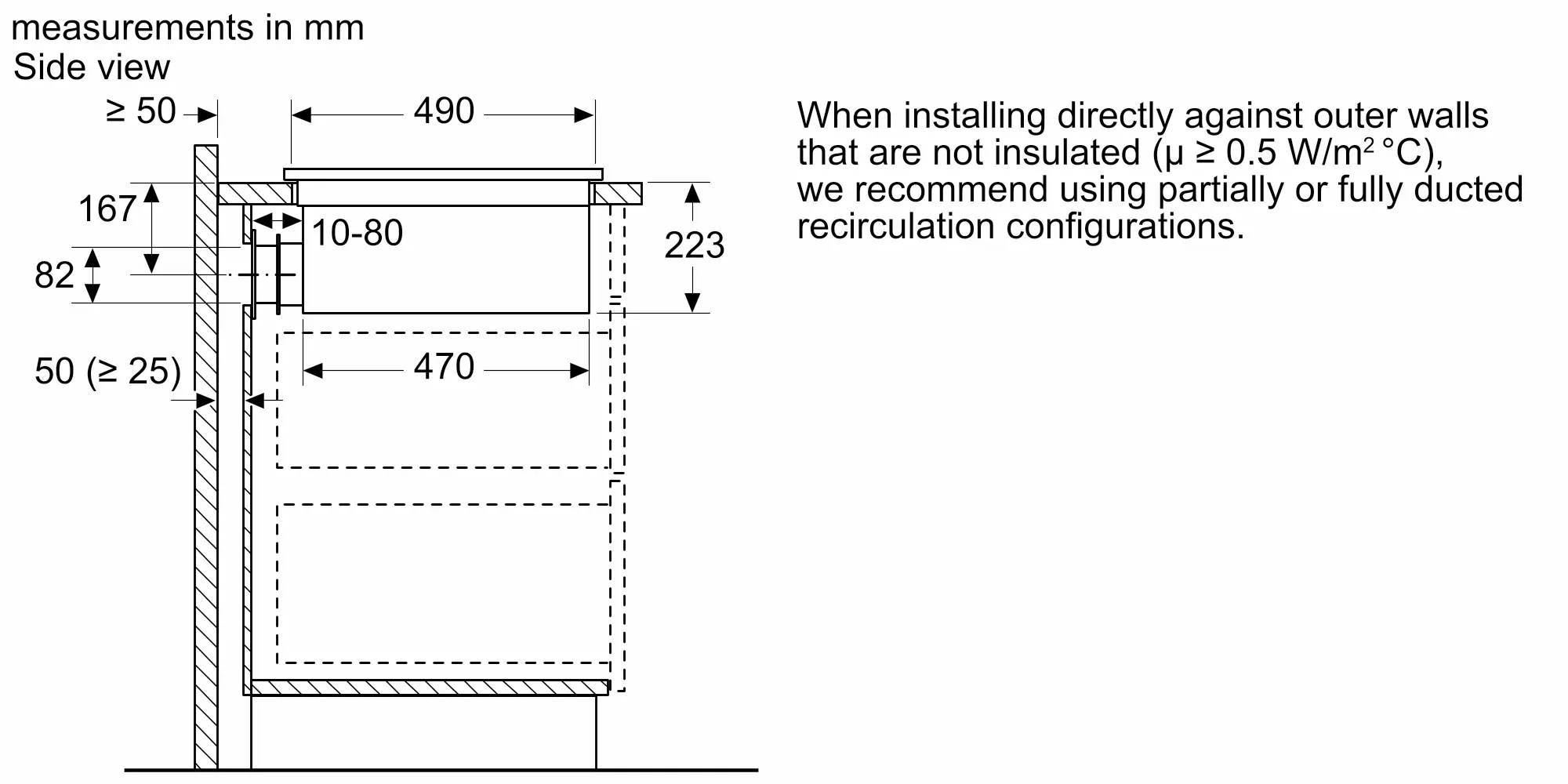

• Minimum rear ventilation gap: refer to Bosch installation instructions for cabinetry ventilation clearances

Bosch Warranty

• Bosch appliances are backed in Australia by BSH Home Appliances Pty Ltd, providing trusted after-sales support and service nationwide.

Warranty Coverage

Domestic Use:

• Bosch appliances are covered by a 2-year manufacturer’s warranty from the date of purchase, covering defects in materials and workmanship.

Commercial Use

• If used for commercial purposes, the warranty period is limited to 3 months.
• This warranty is provided in addition to your rights under Australian Consumer Law.

What’s Covered

Under normal domestic use, the warranty includes:

• Manufacturing defects
• Repair or replacement of faulty components
• Service within Bosch’s authorised service network

For minor failures, Bosch may choose to repair or replace the appliance.

• Proof of purchase is required to make a claim.
• To lodge a claim, contact Bosch Customer Care Australia on 1300 369 744.

What’s Not Covered

The warranty does not apply to damage caused by:

• Incorrect installation or operation
• Unauthorised repairs or non-approved parts
• Incorrect power, gas or water supply
• Commercial use beyond 3 months
• Normal wear and tear (filters, seals, globes, fuses, etc.)
• Blockages, misuse, operator error or storm damage
• Delivery or installation damage
• Appliances exported outside Australia

Travel or transport costs may apply if you are located outside a Bosch service area.

Australian Consumer Law

• Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if they fail to be of acceptable quality and the failure does not amount to a major failure.

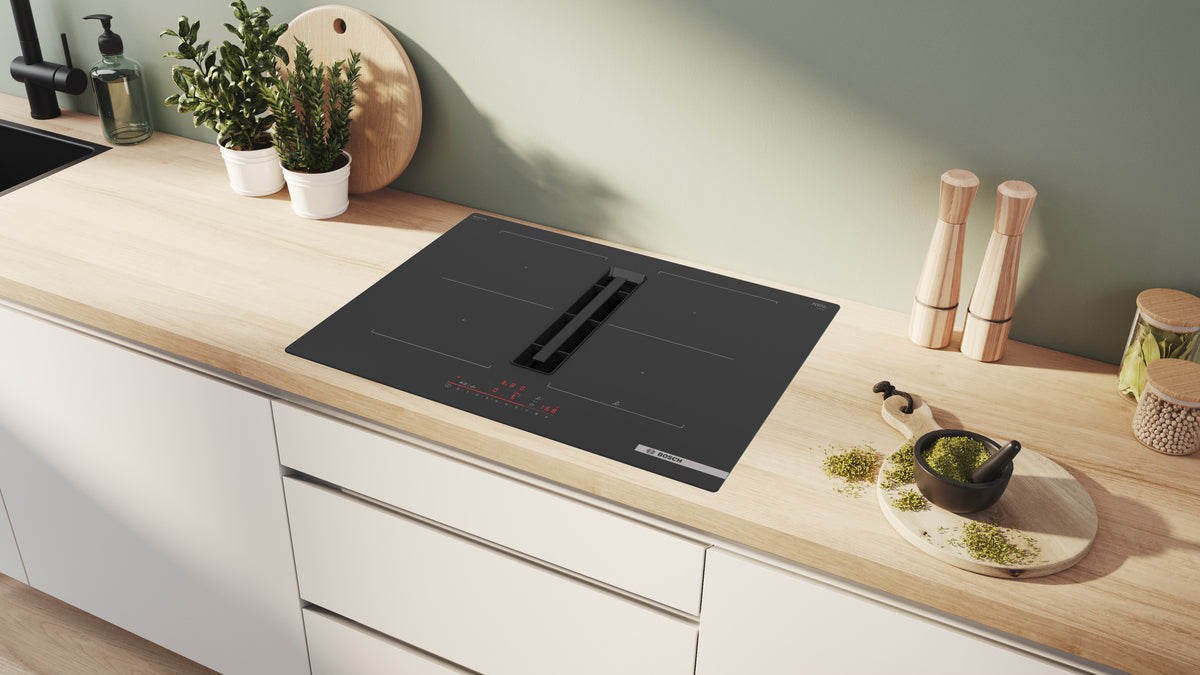

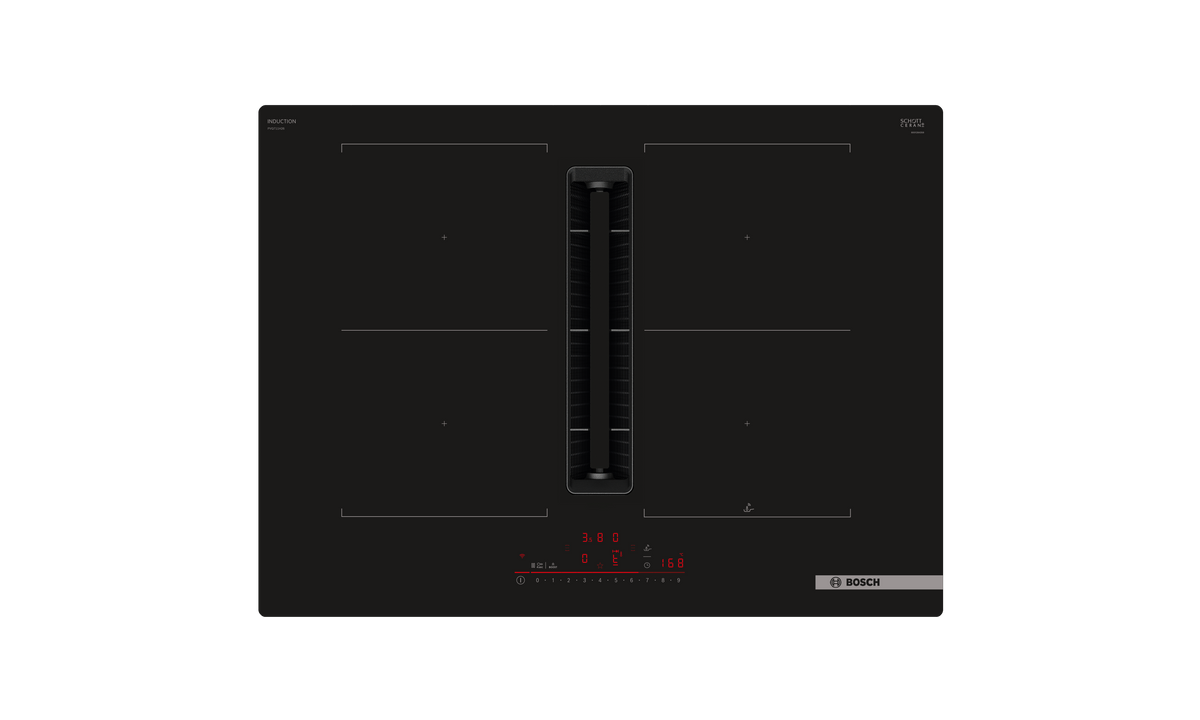

The PVQ711H26E is designed as a combined cooktop and ventilation appliance, removing the need for a separate overhead rangehood in many kitchen layouts. It is particularly suited to island bench installations and open-plan kitchen designs where overhead cabinetry or ceiling-mounted extraction is undesirable.

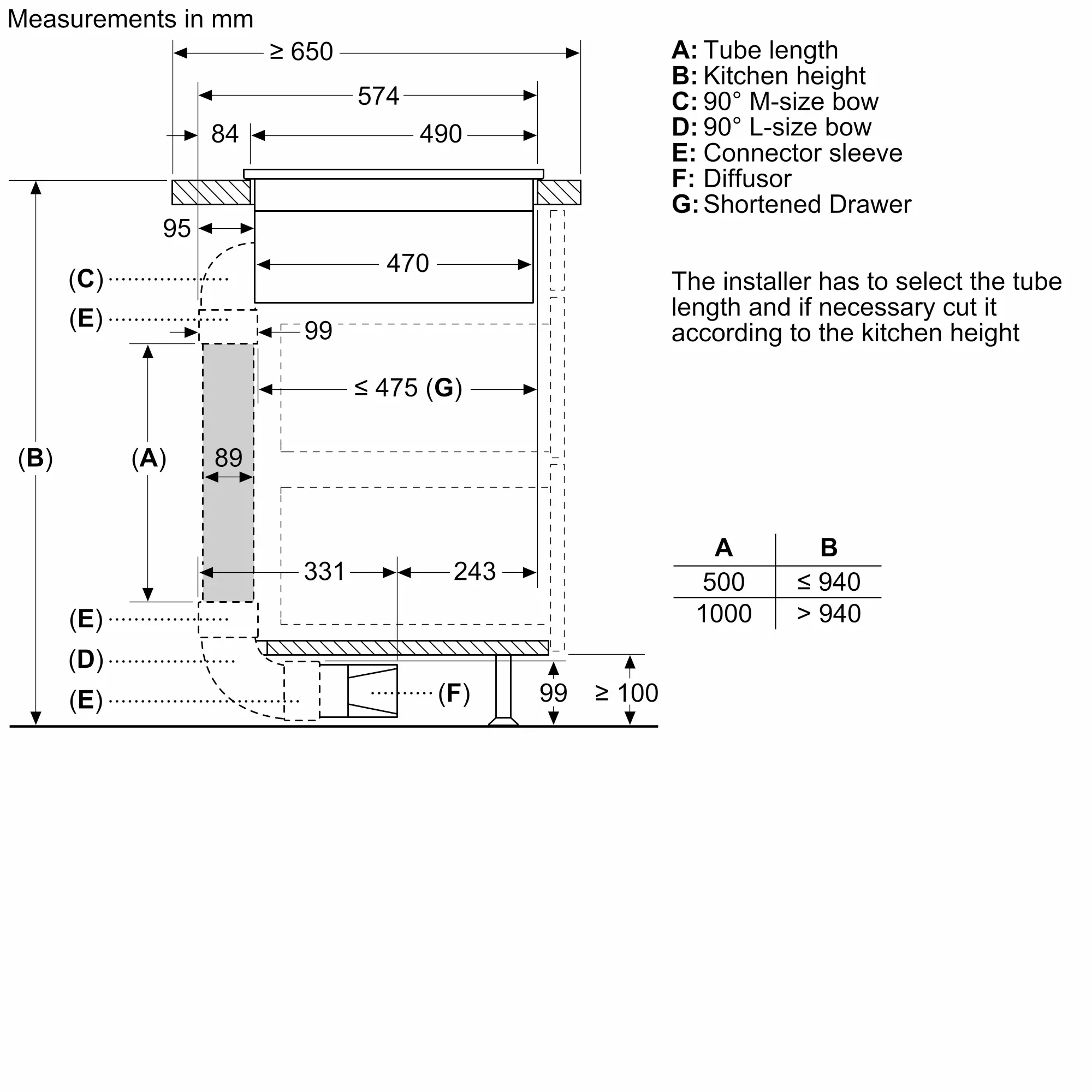

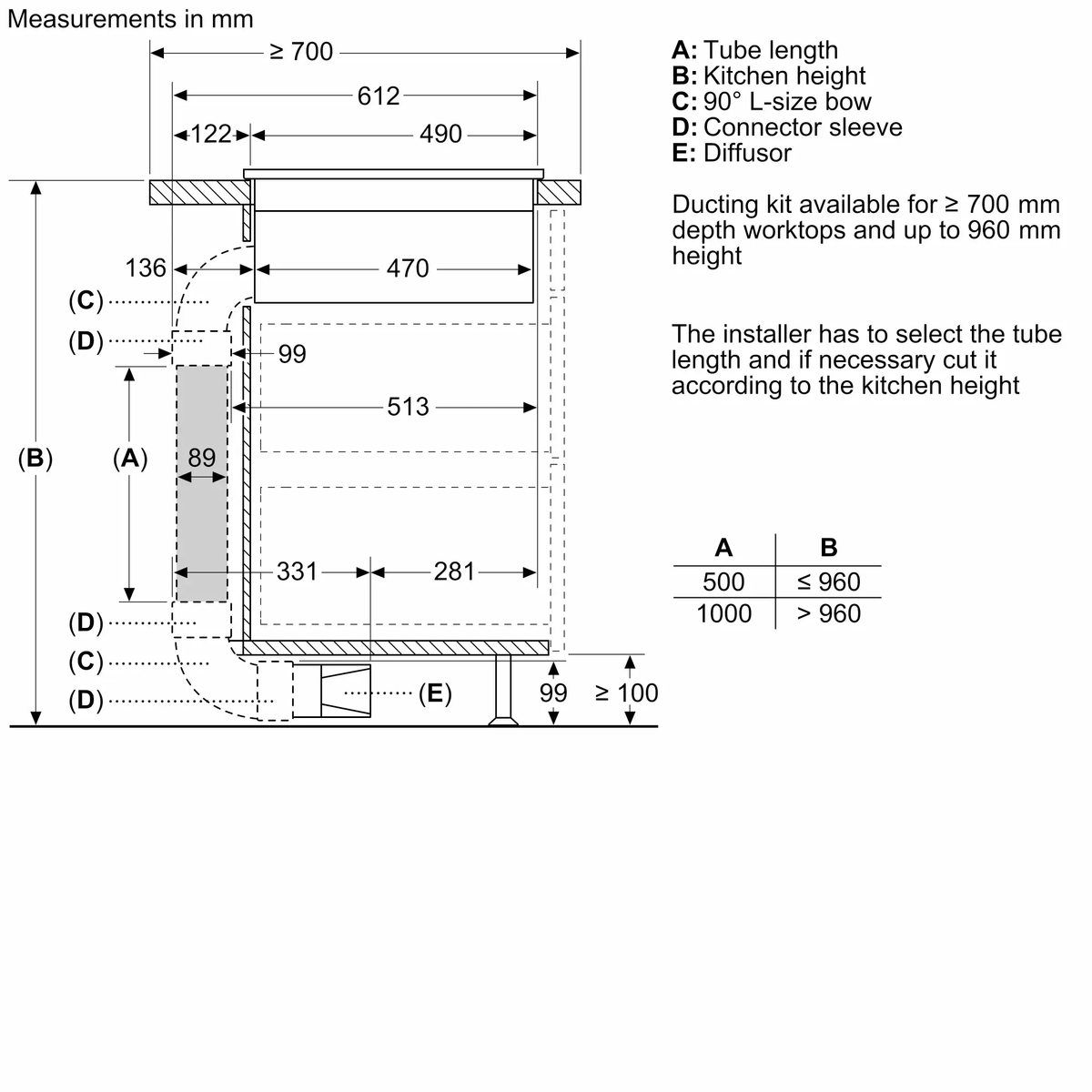

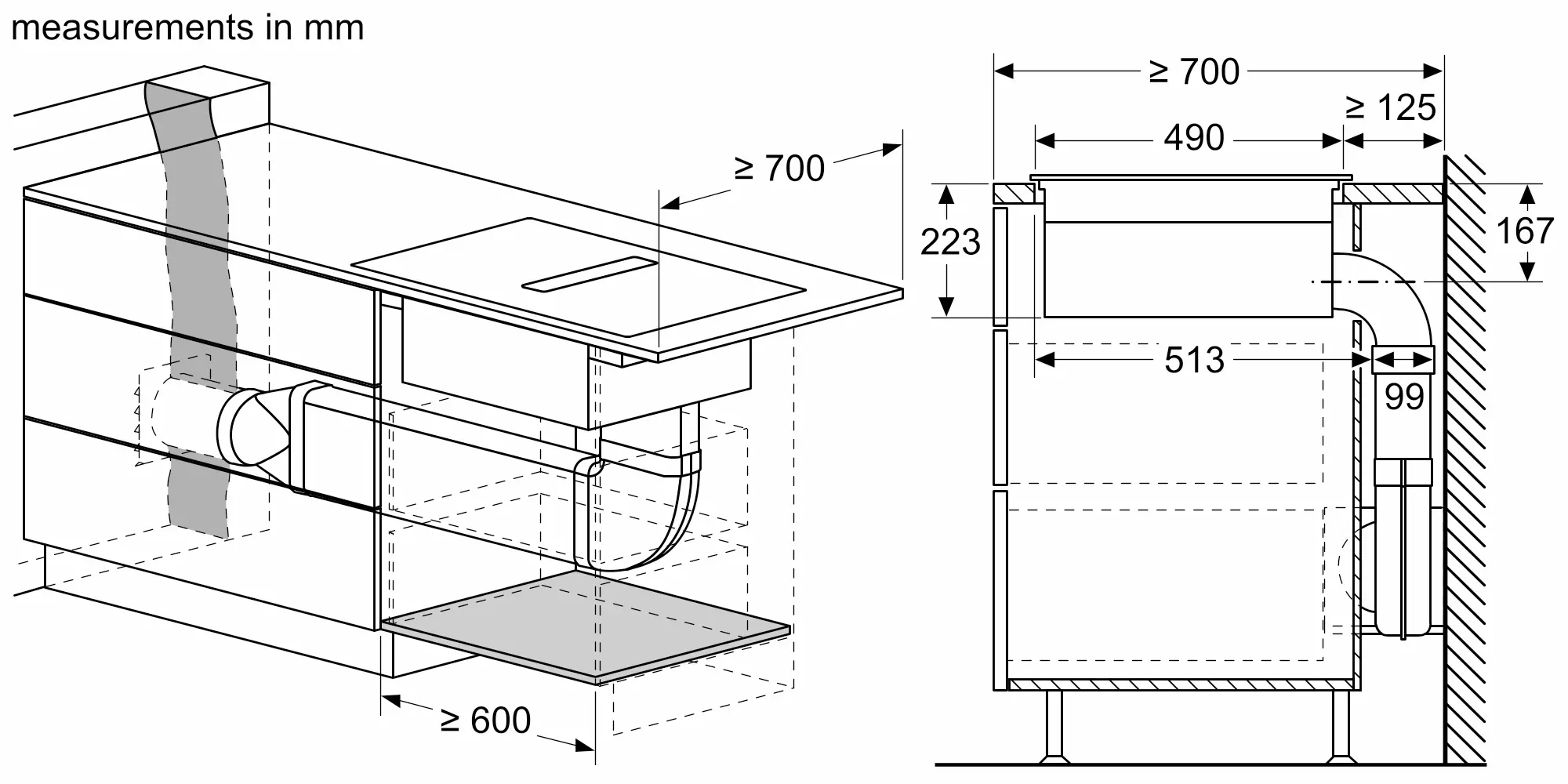

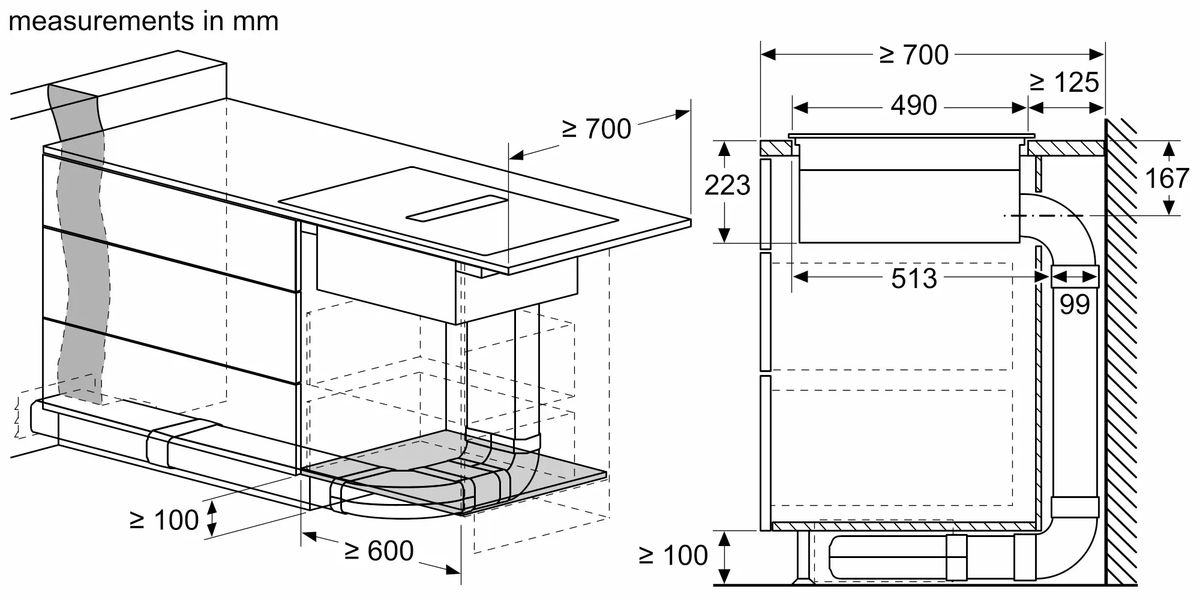

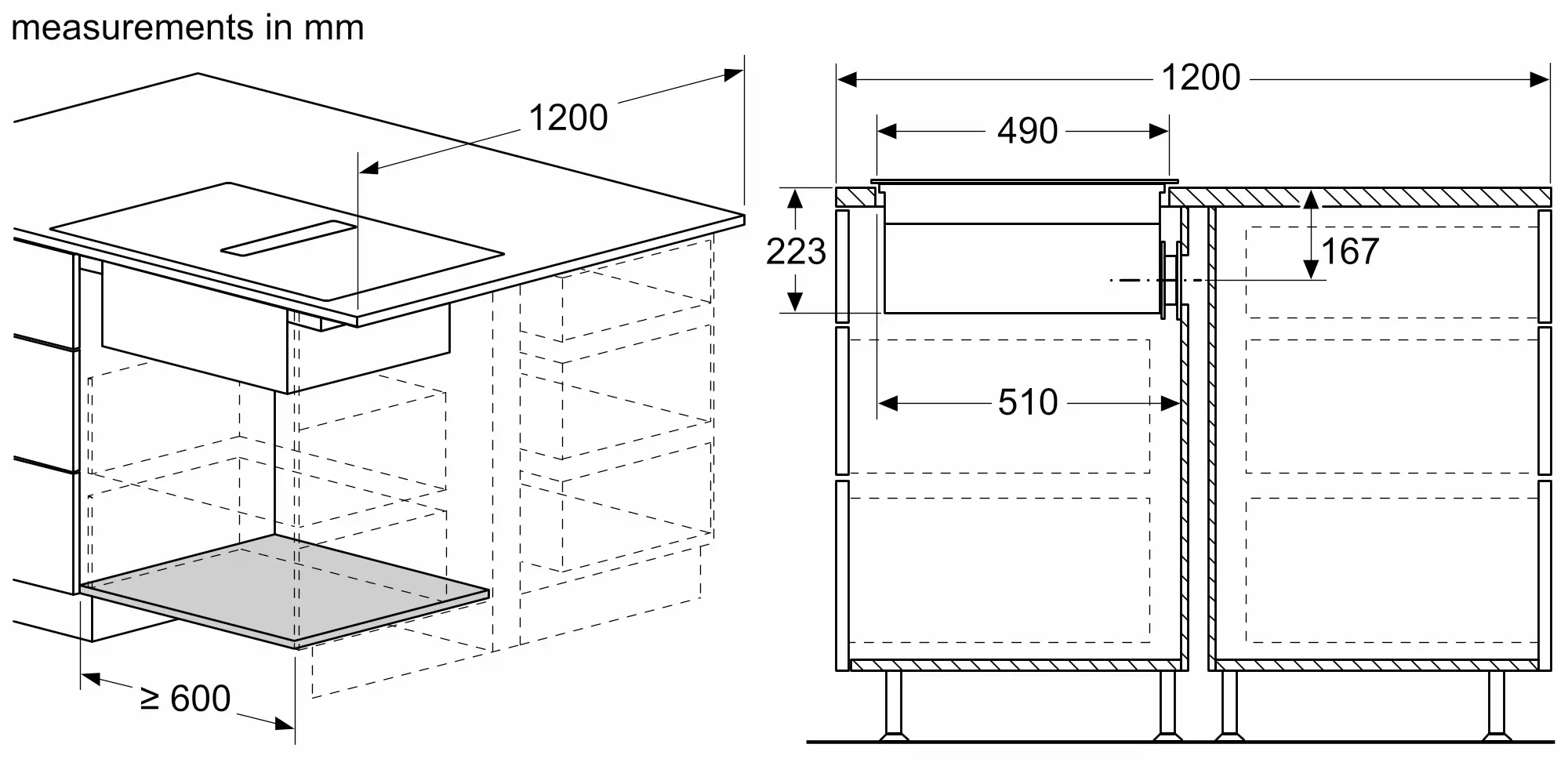

Bosch integrated ventilation cooktops support multiple installation configurations including fully ducted extraction, partially ducted recirculation, and fully recirculated operation when paired with the appropriate Bosch installation accessories and ducting components. Installation planning should occur prior to cabinetry manufacture and benchtop preparation.

Induction cooking requires cookware with a magnetic base. Glass, copper, and aluminium cookware without a magnetic induction-compatible base will not activate the cooking zones.

• Integrated ventilation module
• Metal grease filter
• Clean Air Plus odour filter
• Unducted recirculation slider
• Installation hardware
