• 4 induction cooking zones: accommodates multiple cookware sizes across everyday cooking tasks.

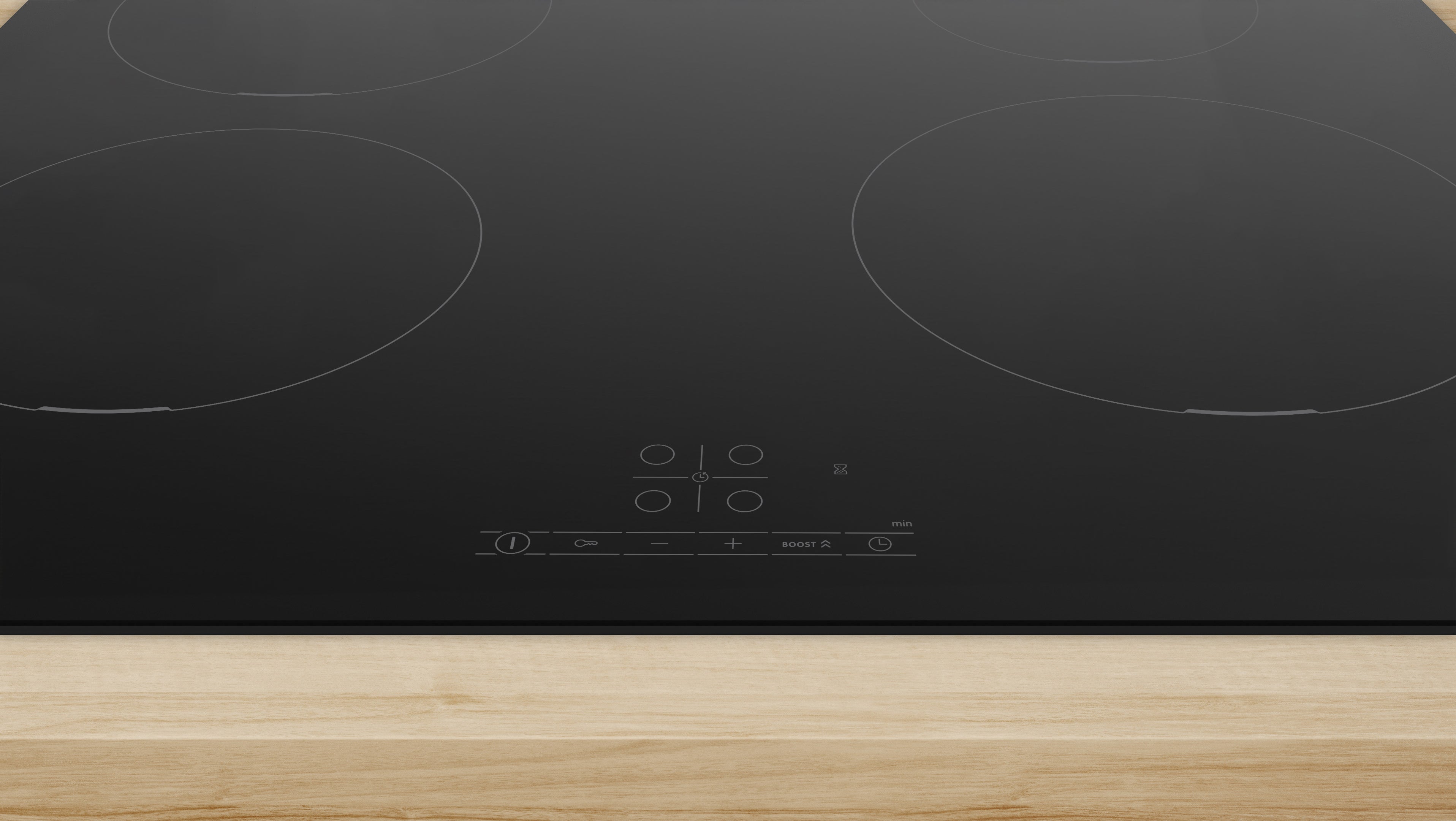

• TouchSelect +/- controls: direct zone selection with responsive touch adjustment of power levels.
• 17 power levels: precise temperature adjustment with fine incremental control.
• PowerBoost function: up to 35% faster heating compared to the highest standard power level.
• QuickStart: automatically detects cookware placement and selects the corresponding cooking zone.
• ReStart function: restores previous cooking settings after accidental switch-off.
• Timer with automatic shut-off: assigned cooking zones switch off automatically once timer duration ends.
• Automatic pan recognition: induction zones activate only when compatible cookware is detected.
• Residual heat indicators: 2-stage digital indicators identify zones that remain hot after cooking.
• Childproof lock: disables the control panel to help prevent unintended operation.
• Automatic safety shut-off: switches zones off automatically during prolonged inactivity or overflow events.
• Ceramic glass surface: durable smooth cooking surface designed for straightforward cleaning.

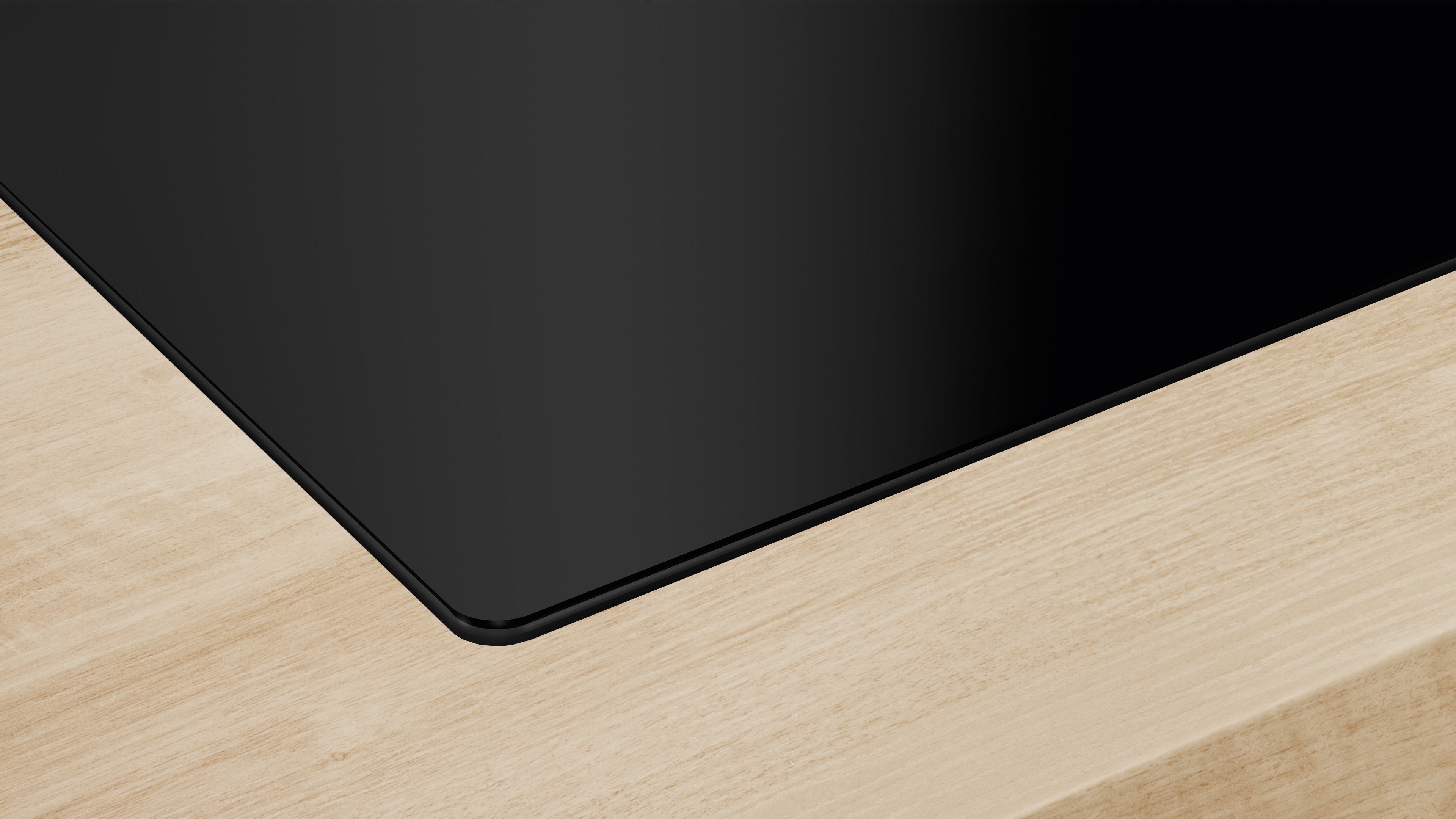

• Frameless edge design: slightly elevated surface profile suited to modern kitchen installations.

• PowerBoost: temporarily increases zone power output for faster boiling and rapid heat-up.
• QuickStart: automatically selects the cooking zone where cookware is detected after switch-on.
• ReStart: restores previous cooking settings after accidental switch-off within a short period.
• Timer with automatic shut-off: switches the selected cooking zone off automatically once the set time finishes.
• Automatic pan recognition: activates heating only when compatible induction cookware is detected.
• Childproof lock: locks the control panel to help prevent unintended operation.
• Residual heat indicators: identifies zones that remain hot after cooking for improved safety.
• Automatic safety shut-off: turns zones off automatically during extended inactivity or fault detection.

• Cooktop type: Induction cooktop
• Fuel type: Electric
• Cooking zones: 4
• Total simultaneous cooking positions: 4

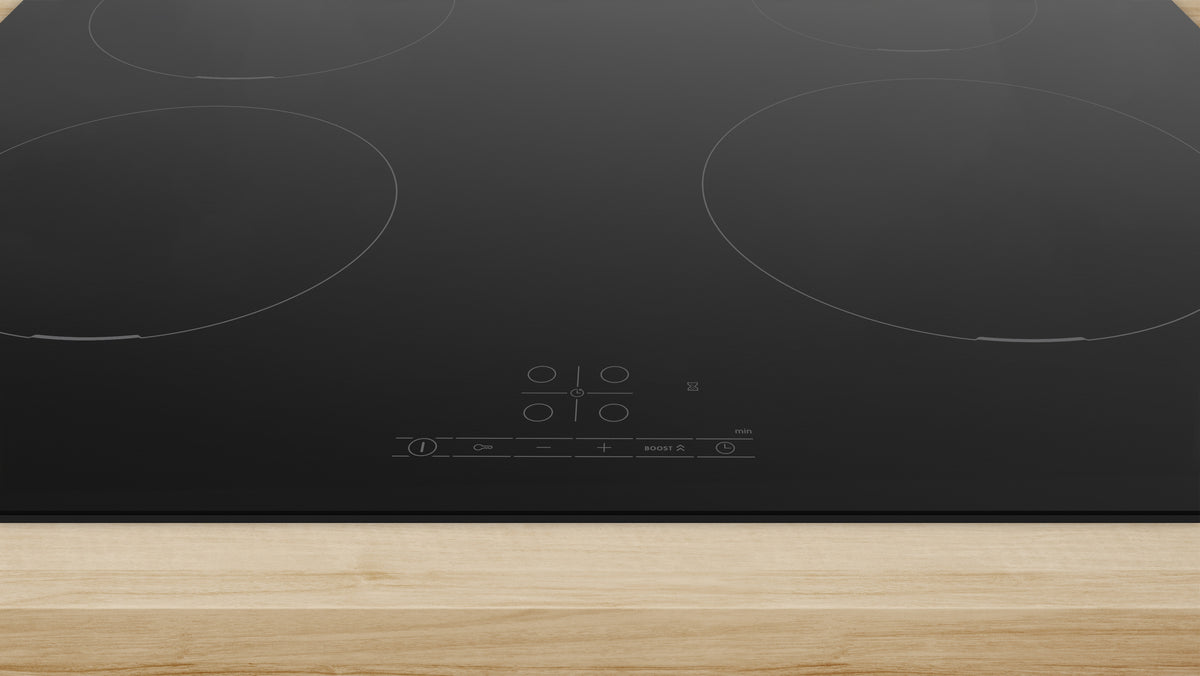

• Control type: TouchSelect +/- electronic touch controls
• Power levels: 17
• Surface material: Ceramic glass
• Frame type: Frameless
• Control panel location: Front mounted
• Automatic pan detection: Yes
• Boost function: Yes
• Timer function: Yes
• Residual heat indicator: Yes — 2-stage digital
• Child lock: Yes
• Automatic safety shut-off: Yes
• Home Connect: No
• PerfectFry sensor: No

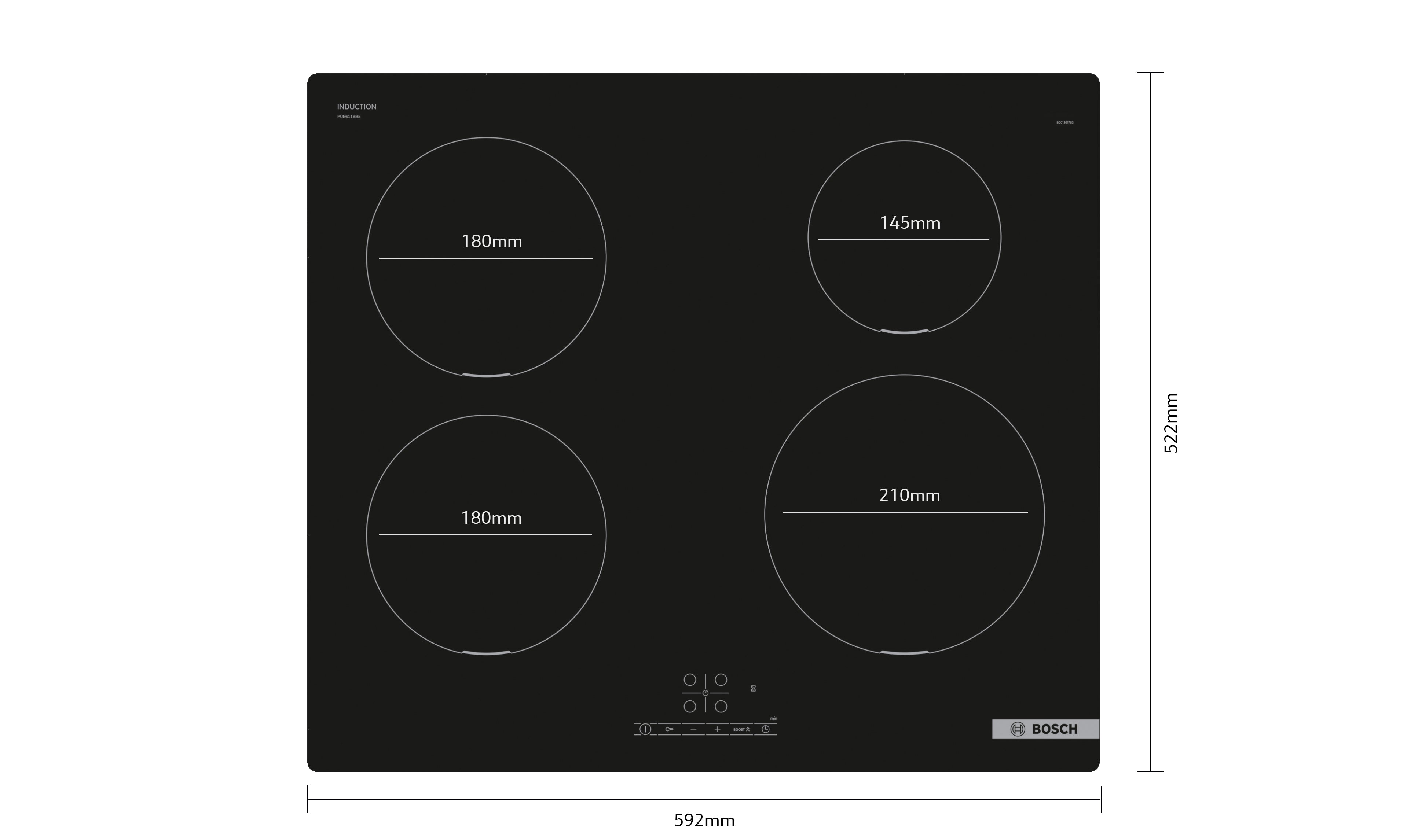

• Front left cooking zone: 180 mm — 1.8 kW (maximum 3.1 kW with PowerBoost)
• Rear left cooking zone: 180 mm — 1.8 kW (maximum 3.1 kW with PowerBoost)
• Rear right cooking zone: 145 mm — 1.4 kW (maximum 2.2 kW with PowerBoost)
• Front right cooking zone: 210 mm — 2.2 kW (maximum 3.7 kW with PowerBoost)
• Connected load: 4.6 kW
• Energy rating: Not applicable — induction cooking technology

• Installation type: Built-in surface mount
• Connection type: Hardwired
• Power supply: 220–240 V / 50–60 Hz
• Maximum current rating: 20 A
• Connected load: 4.6 kW
• Power cord length: 1.1 m
• Cookware compatibility: induction-compatible cookware with magnetic base required

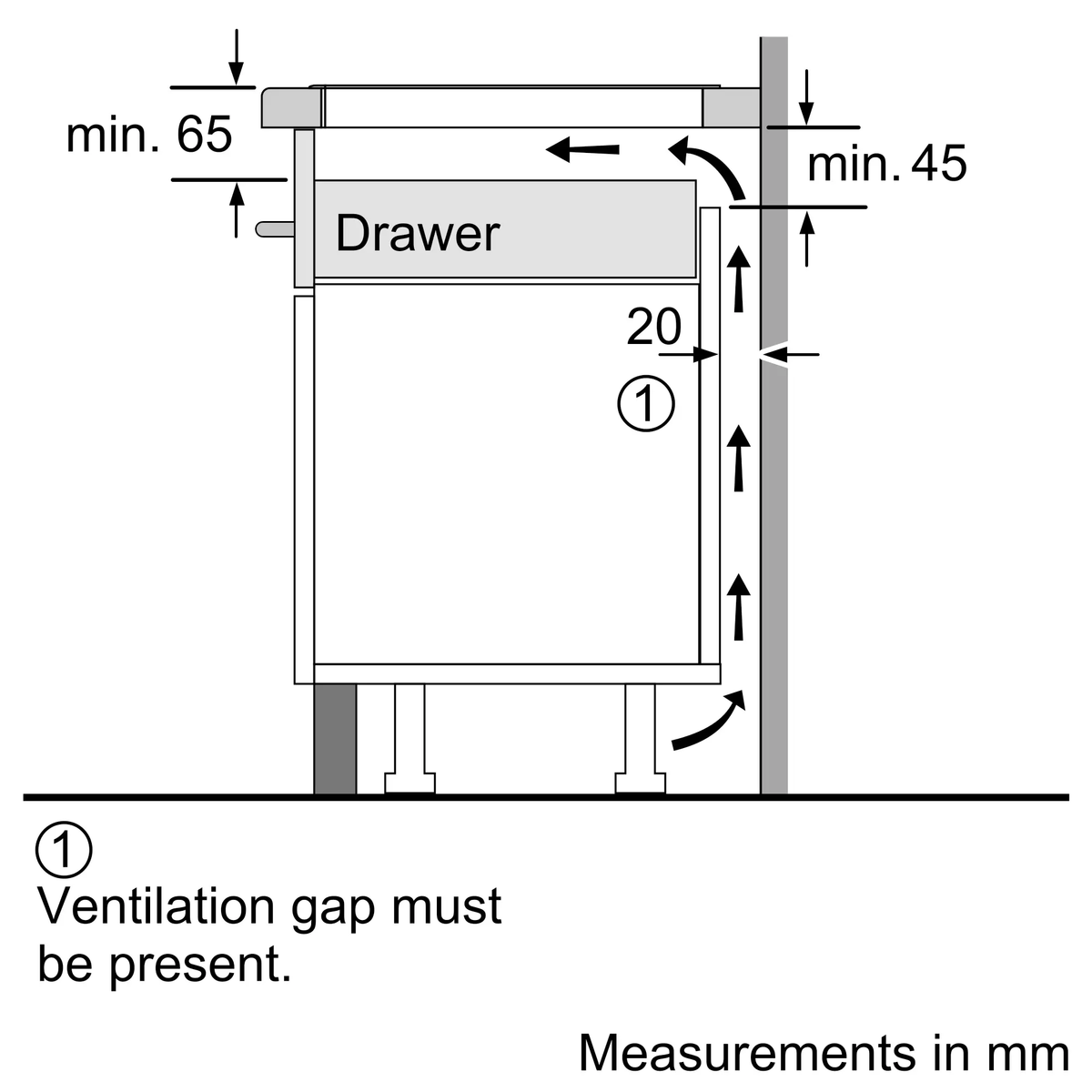

• Installation requirement: must be installed by a licensed electrician

Bosch Warranty

• Bosch appliances are backed in Australia by BSH Home Appliances Pty Ltd, providing trusted after-sales support and service nationwide.

Warranty Coverage

Domestic Use:

• Bosch appliances are covered by a 2-year manufacturer’s warranty from the date of purchase, covering defects in materials and workmanship.

Commercial Use

• If used for commercial purposes, the warranty period is limited to 3 months.
• This warranty is provided in addition to your rights under Australian Consumer Law.

What’s Covered

Under normal domestic use, the warranty includes:

• Manufacturing defects
• Repair or replacement of faulty components
• Service within Bosch’s authorised service network

For minor failures, Bosch may choose to repair or replace the appliance.

• Proof of purchase is required to make a claim.
• To lodge a claim, contact Bosch Customer Care Australia on 1300 369 744.

What’s Not Covered

The warranty does not apply to damage caused by:

• Incorrect installation or operation
• Unauthorised repairs or non-approved parts
• Incorrect power, gas or water supply
• Commercial use beyond 3 months
• Normal wear and tear (filters, seals, globes, fuses, etc.)
• Blockages, misuse, operator error or storm damage
• Delivery or installation damage
• Appliances exported outside Australia

Travel or transport costs may apply if you are located outside a Bosch service area.

Australian Consumer Law

• Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if they fail to be of acceptable quality and the failure does not amount to a major failure.

Induction cooktops require cookware with a magnetic base in order to activate the cooking zones. Cookware manufactured from glass, copper, or aluminium without a ferromagnetic base will not operate on the induction surface. A simple magnet test can confirm cookware compatibility.

Bosch induction technology heats cookware directly rather than heating the cooktop surface itself, helping reduce excess radiant heat around the cooking area while improving energy transfer efficiency. The ceramic glass surface remains easier to clean compared to conventional radiant electric cooktops due to lower residual surface temperatures.

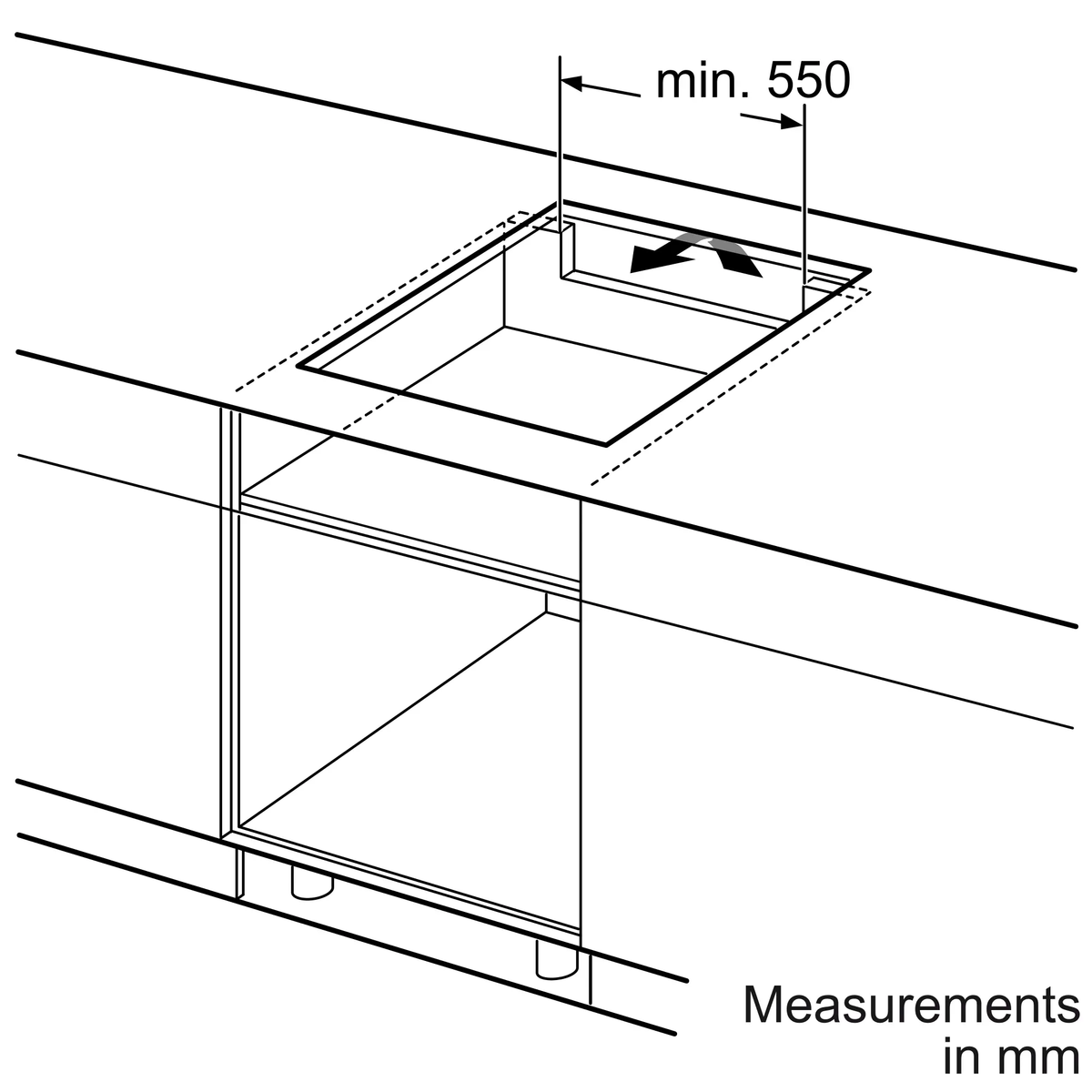

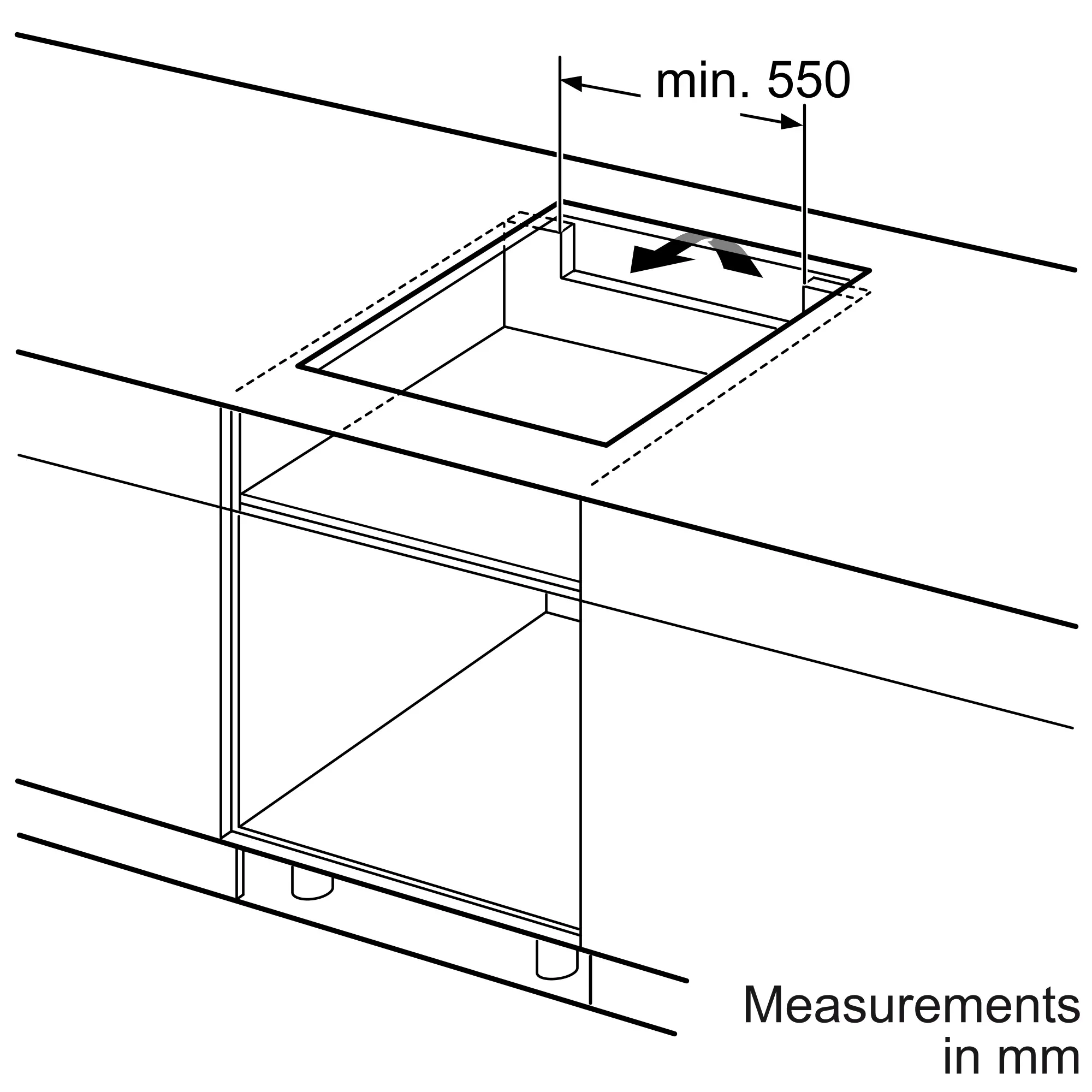

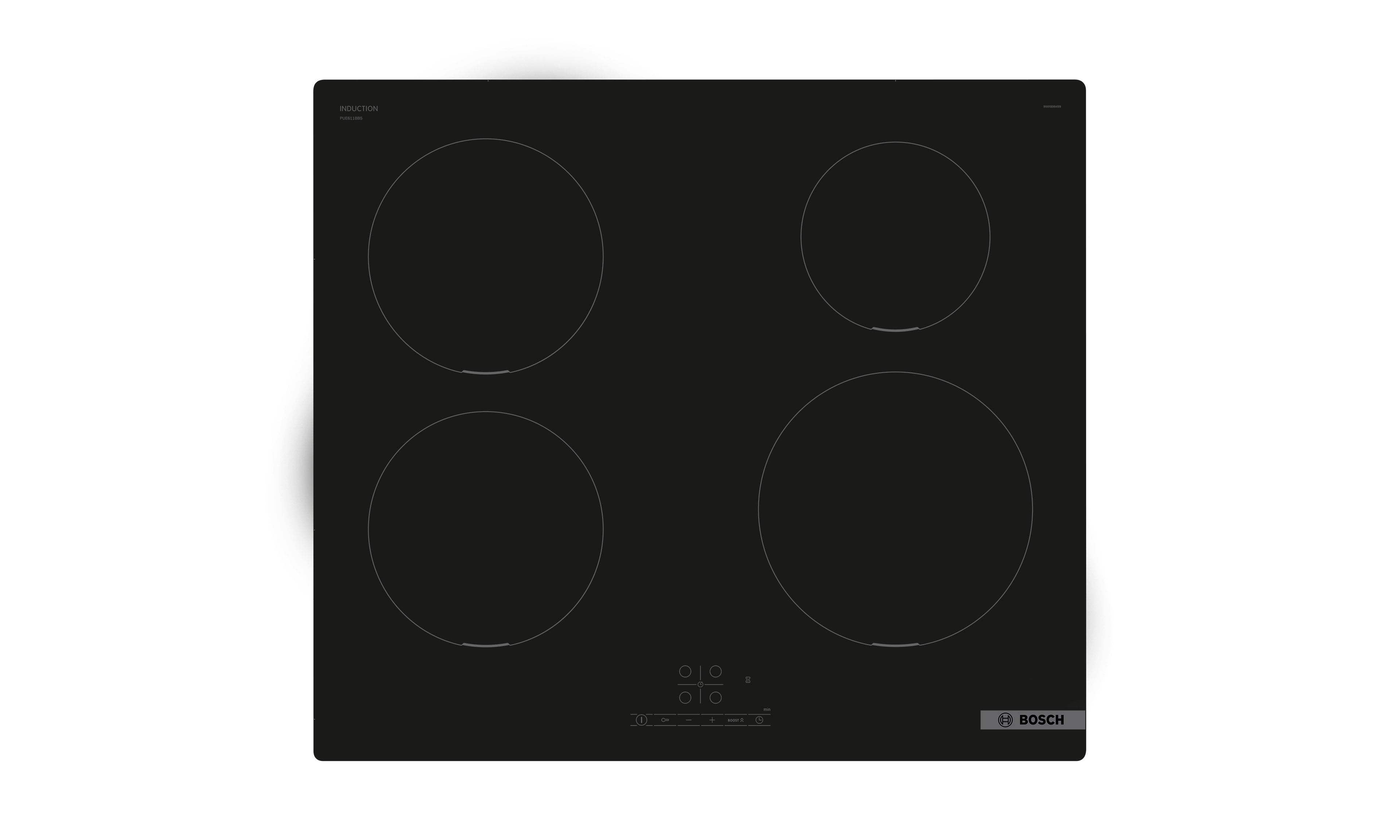

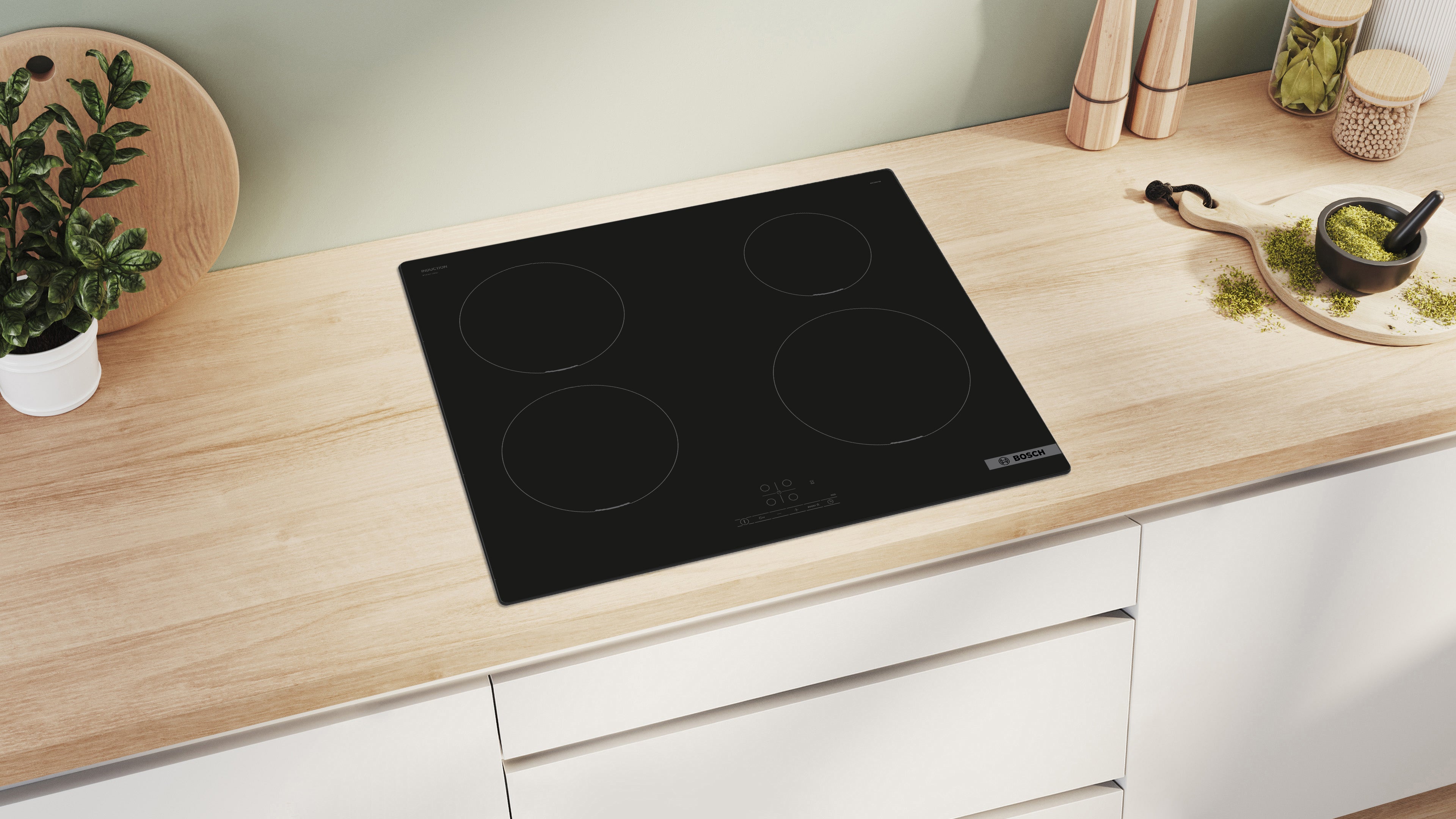

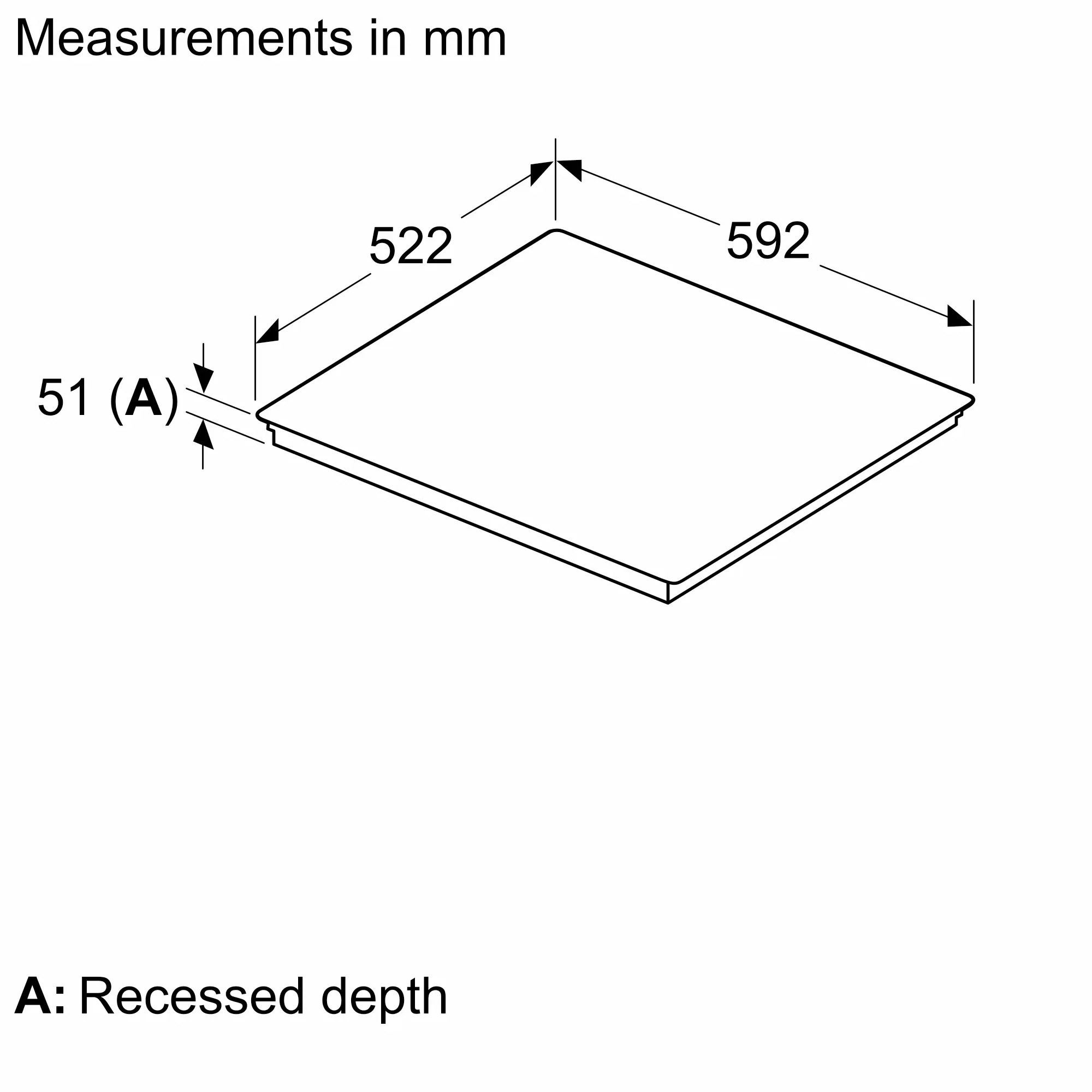

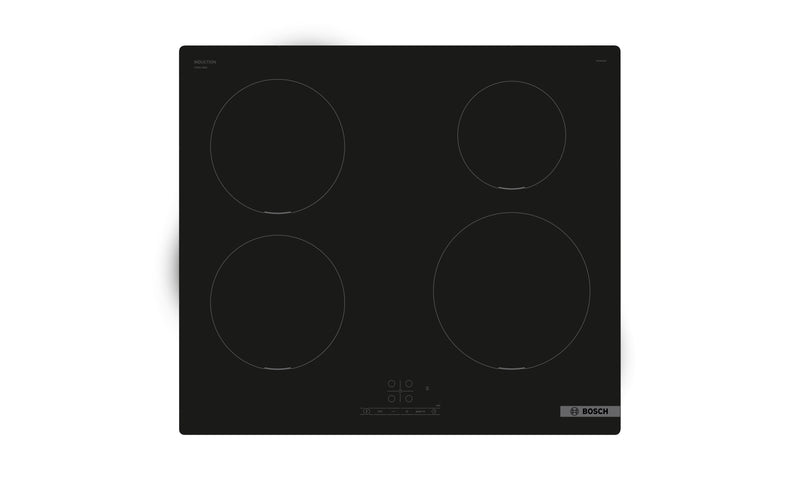

The PUE611BB5H is designed for flush integration into standard 60cm kitchen cabinetry cut-outs and features a frameless black glass presentation suited to contemporary kitchen designs.

• Cooktop secure clips: included
• Seal kit: included
• Installation documentation: included
