• 4 burner configuration: accommodates everyday cooking, simmering, boiling, and wok cooking requirements.
• Dedicated wok burner: higher-output burner designed for intense heat and rapid cooking performance.
• Black tempered glass surface: durable glass cooking surface with a contemporary appearance.
• Frameless design: flush visual presentation within modern benchtop installations.

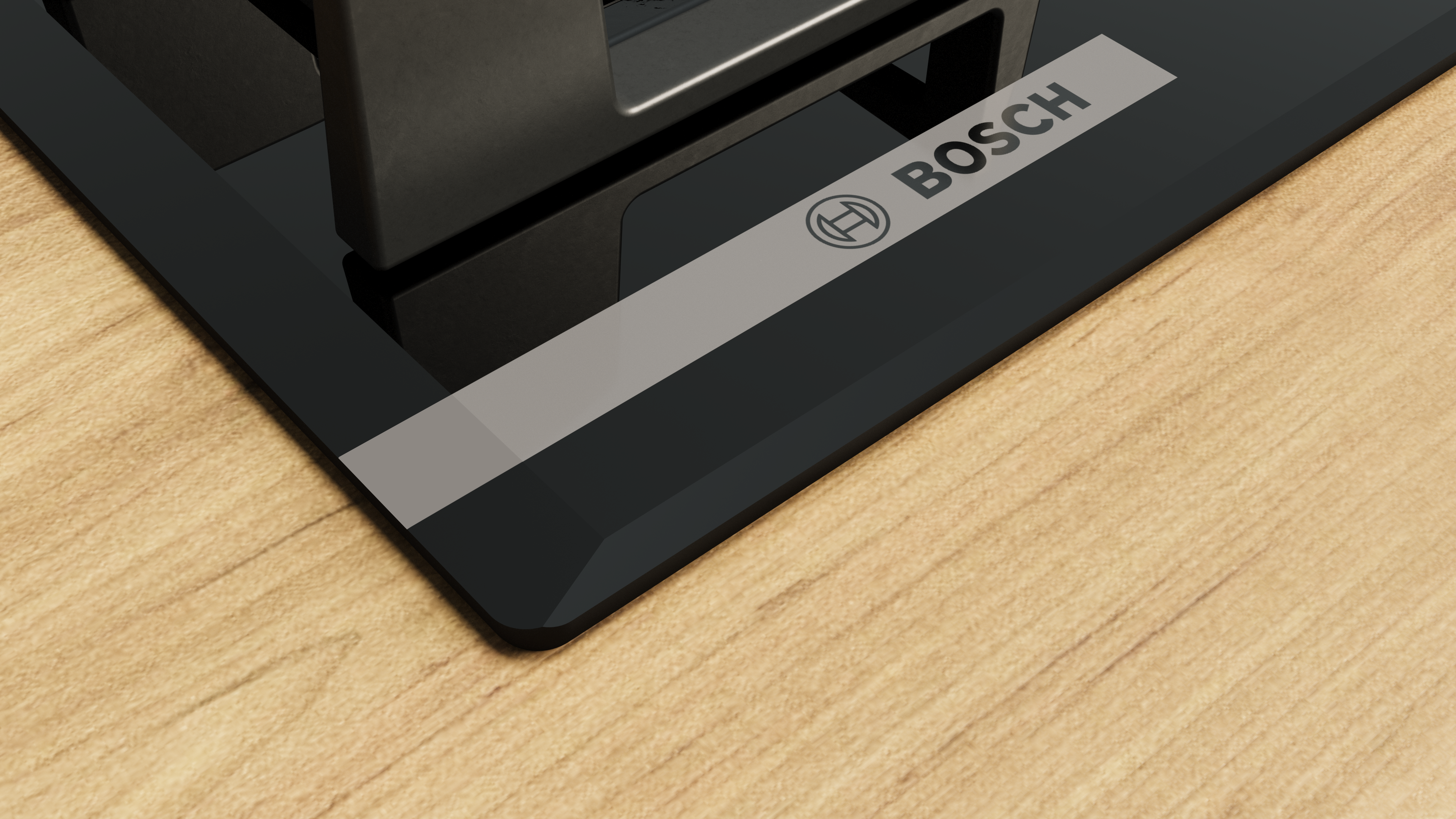

• Bevelled glass edges: angled edge finish for a refined appearance and easier surface cleaning.

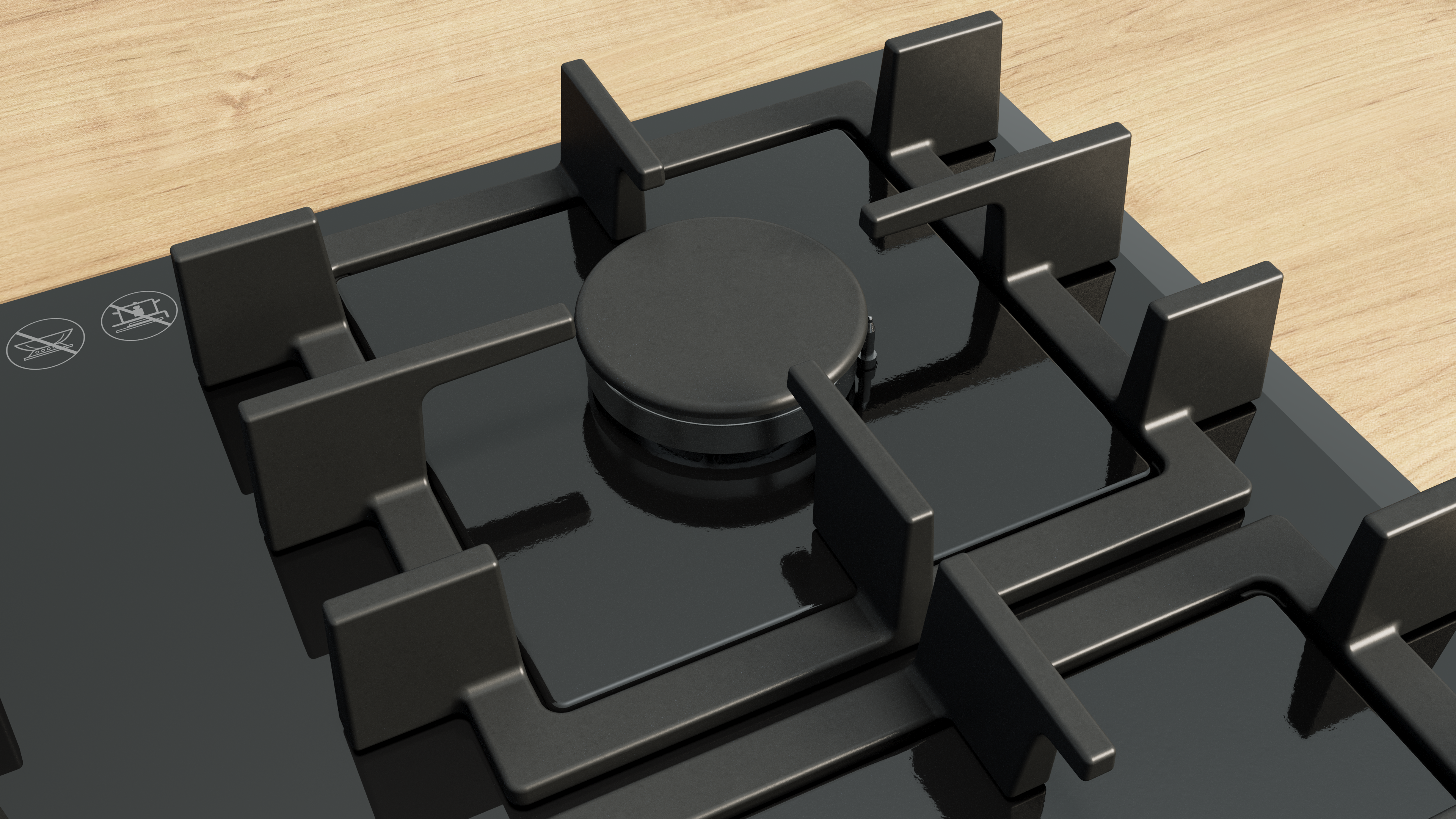

• Cast iron pan supports: stable cookware support across all cooking zones.
• Dishwasher-suitable pan supports: removable supports designed for easier cleaning and maintenance.
• Semi-continuous pan support layout: provides stability while allowing simpler removal and cleaning.

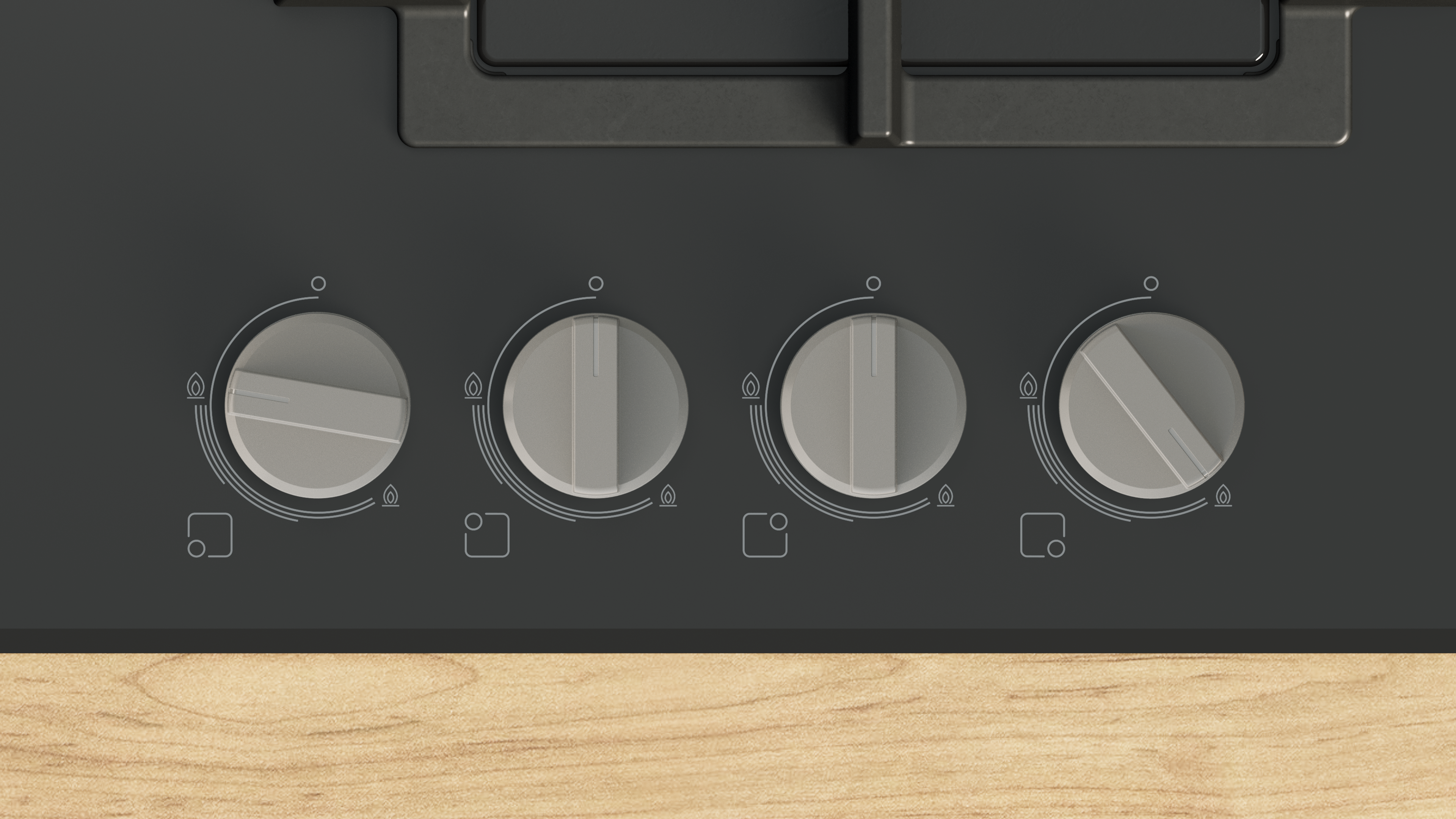

• Front right-positioned sword knobs: ergonomic access with increased cooking space across the cooktop.
• Electronic ignition: integrated ignition activated directly through the control knobs.
• Flame failure protection: automatically shuts off gas supply if the flame goes out.
• Natural gas ready: factory preset for Australian natural gas installations.
• LPG conversion compatible: supplied with liquid petroleum gas nozzle set.

• Wok Cooking Function: High-output burner designed for stir-frying, searing, and rapid boiling.
• Standard Cooking Function: Medium-output burners suitable for everyday boiling, frying, and saucepan cooking.
• Simmer Function: Economy burner designed for gentle heating, melting, and low-temperature cooking.
• Electronic Ignition Function: Integrated ignition system allows burner lighting directly from the control knob.
• Flame Failure Safety Function: Automatically cuts the gas supply if the flame is accidentally extinguished.

• Cooktop type: Gas cooktop
• Series: Bosch Series 4
• Cooking zones: 4
• Total usable cooking positions: 4
• Surface material: Tempered glass
• Frame type: Frameless
• Pan support material: Cast iron separable pan supports
• Control type: Sword control knobs
• Control position: Front right
• Ignition type: Electronic ignition
• Wok burner: Yes
• FlameSelect: No
• Safety feature: Flame failure protection / safety gas cut-off
• Gas type preset: Natural Gas 10 mbar (Australia)
• Alternative gas type: LPG G30/G31 28–30/37 mbar
• LPG nozzle set included: Yes
• Connected gas load: 8000 W
• Energy rating: Not applicable for gas cooktops

• Installation type: Built-in
• Fuel type: Natural Gas
• LPG compatible: Yes — conversion nozzles supplied
• Power supply: 220–240 V / 50–60 Hz
• Connection type: Plug and lead
• Power cord length: 1 m
• Fuse protection: 3 A

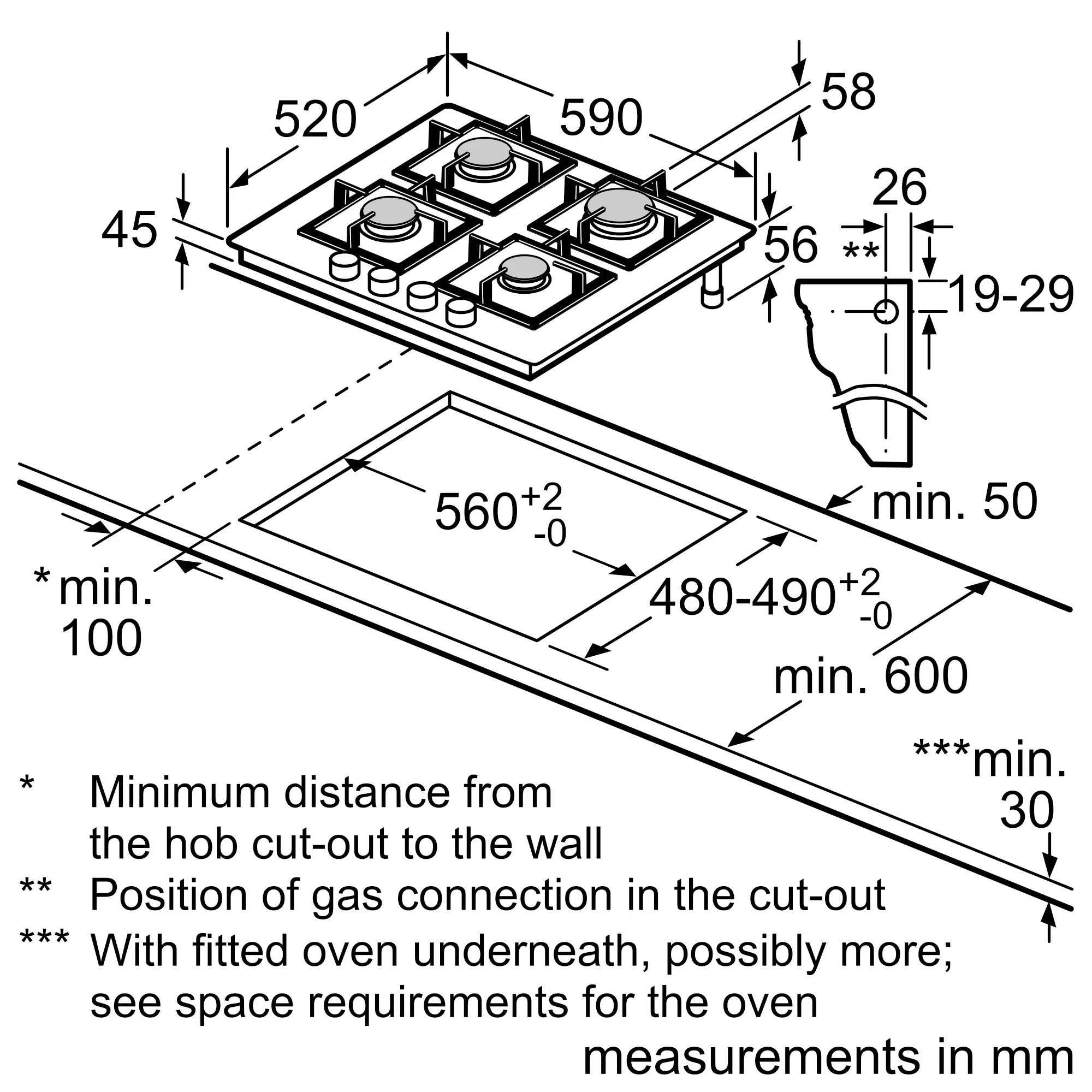

• Minimum benchtop thickness: 20 mm
• Licensed gas fitter required: Yes
• Electrical connection required: Standard power outlet required for ignition system

Bosch Warranty

• Bosch appliances are backed in Australia by BSH Home Appliances Pty Ltd, providing trusted after-sales support and service nationwide.

Warranty Coverage

Domestic Use:

• Bosch appliances are covered by a 2-year manufacturer’s warranty from the date of purchase, covering defects in materials and workmanship.

Commercial Use

• If used for commercial purposes, the warranty period is limited to 3 months.
• This warranty is provided in addition to your rights under Australian Consumer Law.

What’s Covered

Under normal domestic use, the warranty includes:

• Manufacturing defects
• Repair or replacement of faulty components
• Service within Bosch’s authorised service network

For minor failures, Bosch may choose to repair or replace the appliance.

• Proof of purchase is required to make a claim.
• To lodge a claim, contact Bosch Customer Care Australia on 1300 369 744.

What’s Not Covered

The warranty does not apply to damage caused by:

• Incorrect installation or operation
• Unauthorised repairs or non-approved parts
• Incorrect power, gas or water supply
• Commercial use beyond 3 months
• Normal wear and tear (filters, seals, globes, fuses, etc.)
• Blockages, misuse, operator error or storm damage
• Delivery or installation damage
• Appliances exported outside Australia

Travel or transport costs may apply if you are located outside a Bosch service area.

Australian Consumer Law

• Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if they fail to be of acceptable quality and the failure does not amount to a major failure.

The PNK6B6K40A is supplied preset for Australian natural gas installations and includes a liquid petroleum gas conversion nozzle set for compatible LPG installations. Gas conversion and installation must be completed by a licensed gas fitter in accordance with local regulations.

Bosch's dishwasher-suitable cast iron pan supports are designed with a protective surface treatment intended to reduce corrosion and simplify ongoing maintenance. The semi-continuous support layout provides stable cookware positioning while allowing easier removal for cleaning.

The dedicated wok burner is designed to accommodate wok cooking, high-output searing, and rapid boiling applications while still providing controllable flame adjustment for lower-temperature cooking tasks.

• 1 x Wok attachment ring
• LPG conversion nozzle set
• Power cord with plug
• Installation documentation

• SPECIFICATIONS SHEET (PDF)
• USER MANUAL & INSTALLATION INSTRUCTIONS (PDF)
• SUPPLEMENTRY SHEET (PDF)
