• 4 HighSpeed cooking zones: independently controlled radiant ceramic cooking zones.
• DirectSelect Premium controls: direct touch selection of cooking zones, power levels and functions.
• 17 power levels: precise temperature adjustment across the full cooking range.
• RoasterZone: extendable oval cooking zone for larger cookware and roasting pans.
• Dual-circuit cooking zone: adjustable heating area for varying cookware diameters.

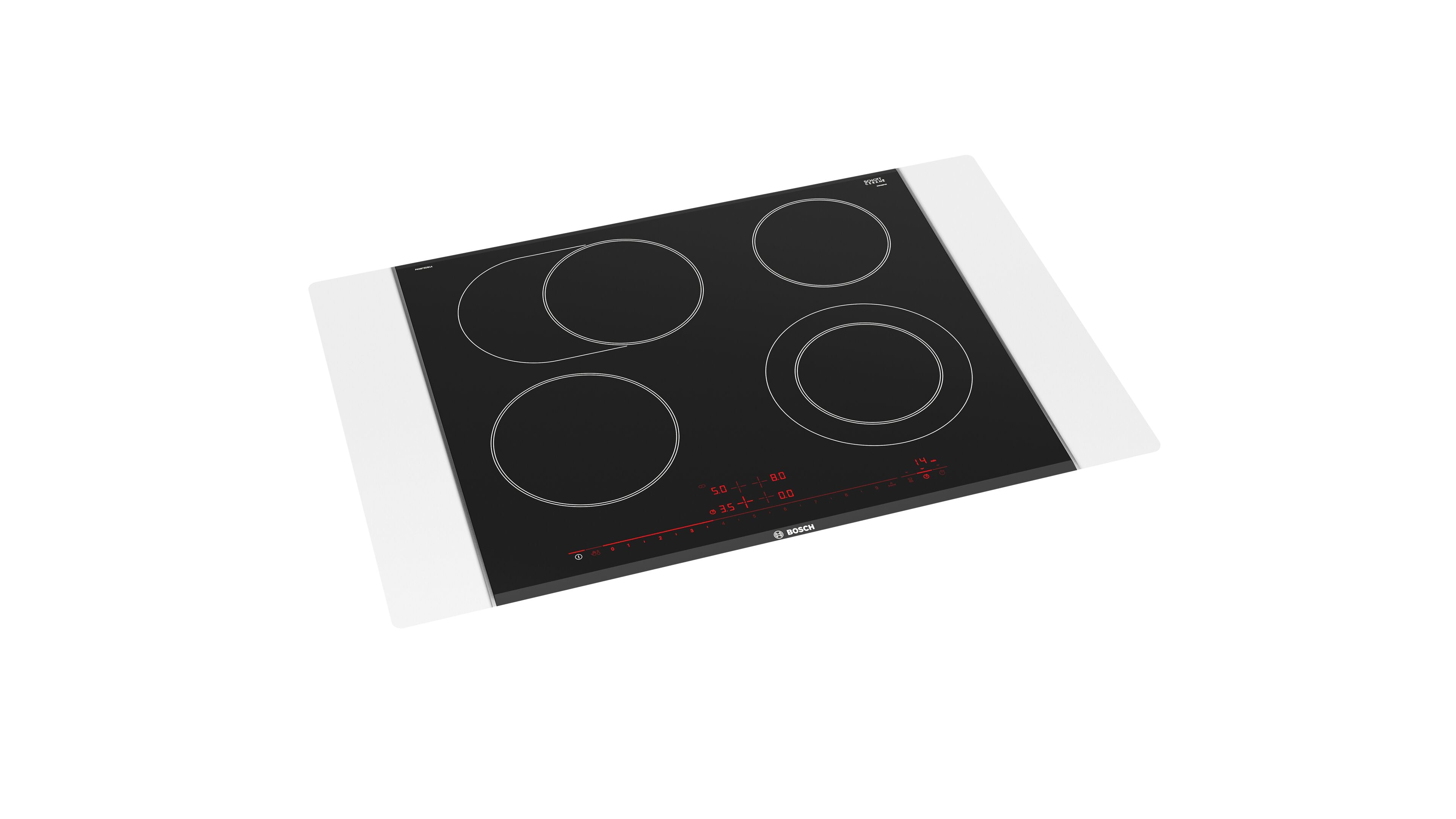

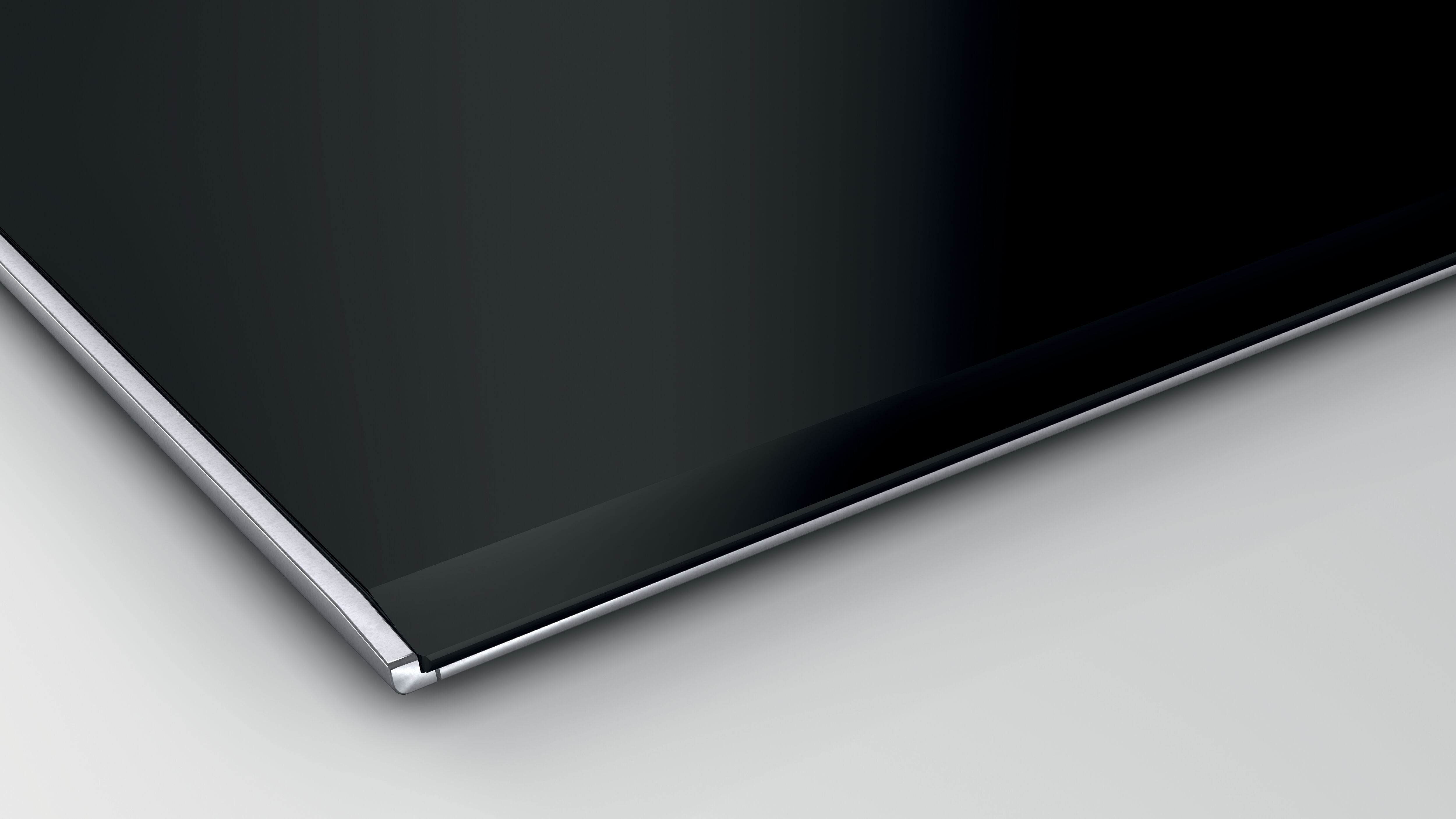

• ComfortProfile design: bevelled front edge with stainless steel side trims.
• Residual heat indicators: separate digital 2-stage residual heat display for each zone.
• Timer functions: includes switch-off timer, cooking timer and count-up timer.
• Automatic safety shut-off: switches zones off after extended unattended operation.
• Childproof lock: prevents unintended activation or setting changes.
• ReStart function: restores previous settings after accidental switch-off.
• Quick stop functionality: immediate deactivation of active cooking zones.
• Easy-clean ceramic surface: smooth glass ceramic finish designed for straightforward maintenance.

• 17 power levels: precise heat adjustment across all cooking zones.
• Switch-off timer: automatically turns off the selected cooking zone after the set time.
• Count-up timer: tracks elapsed cooking time.
• ReStart function: restores previous settings after accidental switch-off.
• Quick Stop: immediate deactivation of active cooking zones.
• Childproof lock: prevents unintended operation.
• Residual heat indicators: separate 2-stage indicators for each cooking zone.

• Cooktop type: Electric ceramic cooktop
• Series: Series 8
• Surface material: Ceramic glass
• Frame type: ComfortProfile stainless steel frame
• Cooking zones: 4
• Cooking zone flexibility: Dual-circuit zone and RoasterZone
• Control type: DirectSelect Premium touch controls
• Power levels: 17 per cooking zone
• Residual heat indicator: Digital 2-stage indicator
• Home Connect: No
• Wok burner: No
• Energy rating: Not applicable

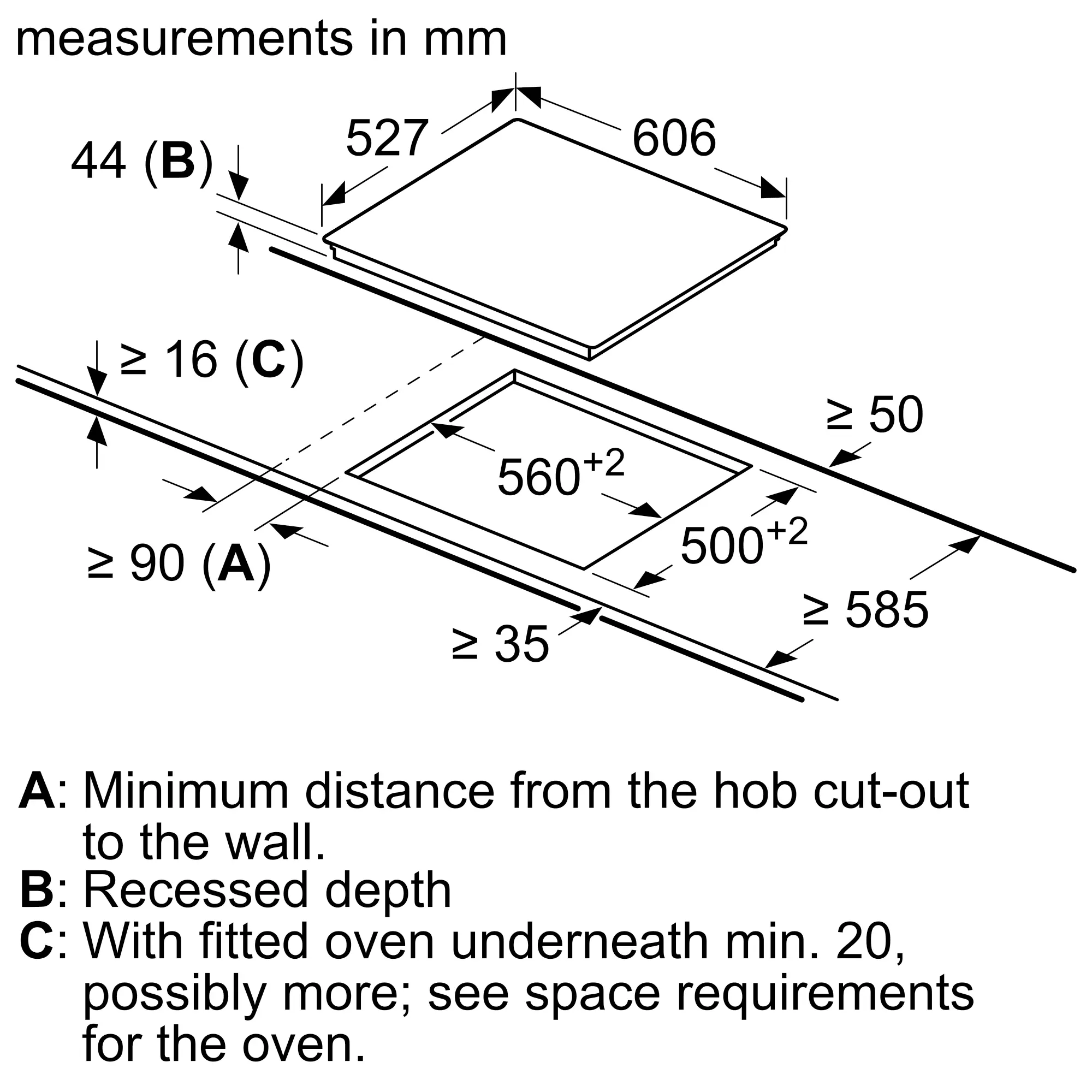

• Installation type: Built-in surface mount with frame
• Connection type: Hardwired
• Power supply: 220–240 V / 50–60 Hz
• Connected load: 7500 W
• Plug supplied: No
• Minimum benchtop thickness: Refer to installation guide
• Professional installation: Licensed electrician required

Bosch Warranty

• Bosch appliances are backed in Australia by BSH Home Appliances Pty Ltd, providing trusted after-sales support and service nationwide.

Warranty Coverage

Domestic Use:

• Bosch appliances are covered by a 2-year manufacturer’s warranty from the date of purchase, covering defects in materials and workmanship.

Commercial Use

• If used for commercial purposes, the warranty period is limited to 3 months.
• This warranty is provided in addition to your rights under Australian Consumer Law.

What’s Covered

Under normal domestic use, the warranty includes:

• Manufacturing defects
• Repair or replacement of faulty components
• Service within Bosch’s authorised service network

For minor failures, Bosch may choose to repair or replace the appliance.

• Proof of purchase is required to make a claim.
• To lodge a claim, contact Bosch Customer Care Australia on 1300 369 744.

What’s Not Covered

The warranty does not apply to damage caused by:

• Incorrect installation or operation
• Unauthorised repairs or non-approved parts
• Incorrect power, gas or water supply
• Commercial use beyond 3 months
• Normal wear and tear (filters, seals, globes, fuses, etc.)
• Blockages, misuse, operator error or storm damage
• Delivery or installation damage
• Appliances exported outside Australia

Travel or transport costs may apply if you are located outside a Bosch service area.

Australian Consumer Law

• Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if they fail to be of acceptable quality and the failure does not amount to a major failure.

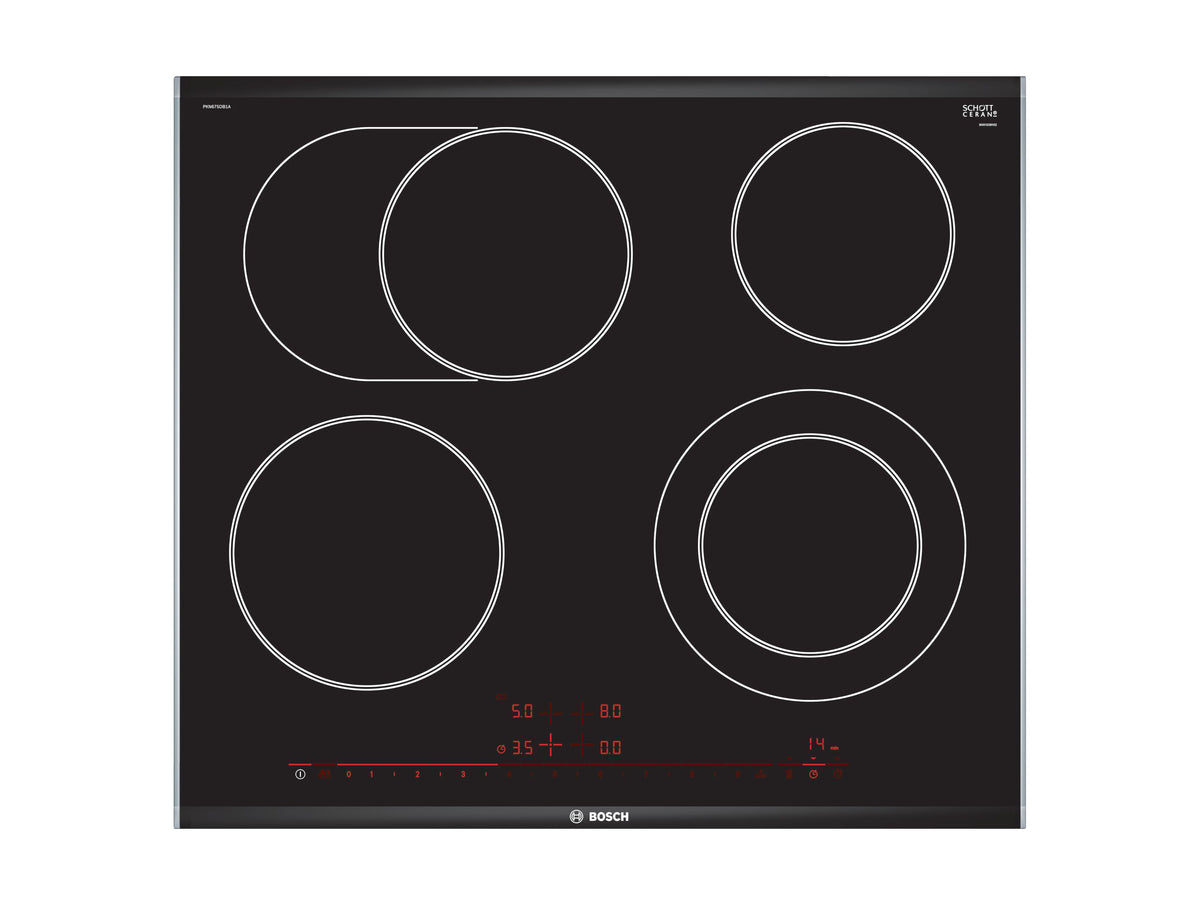

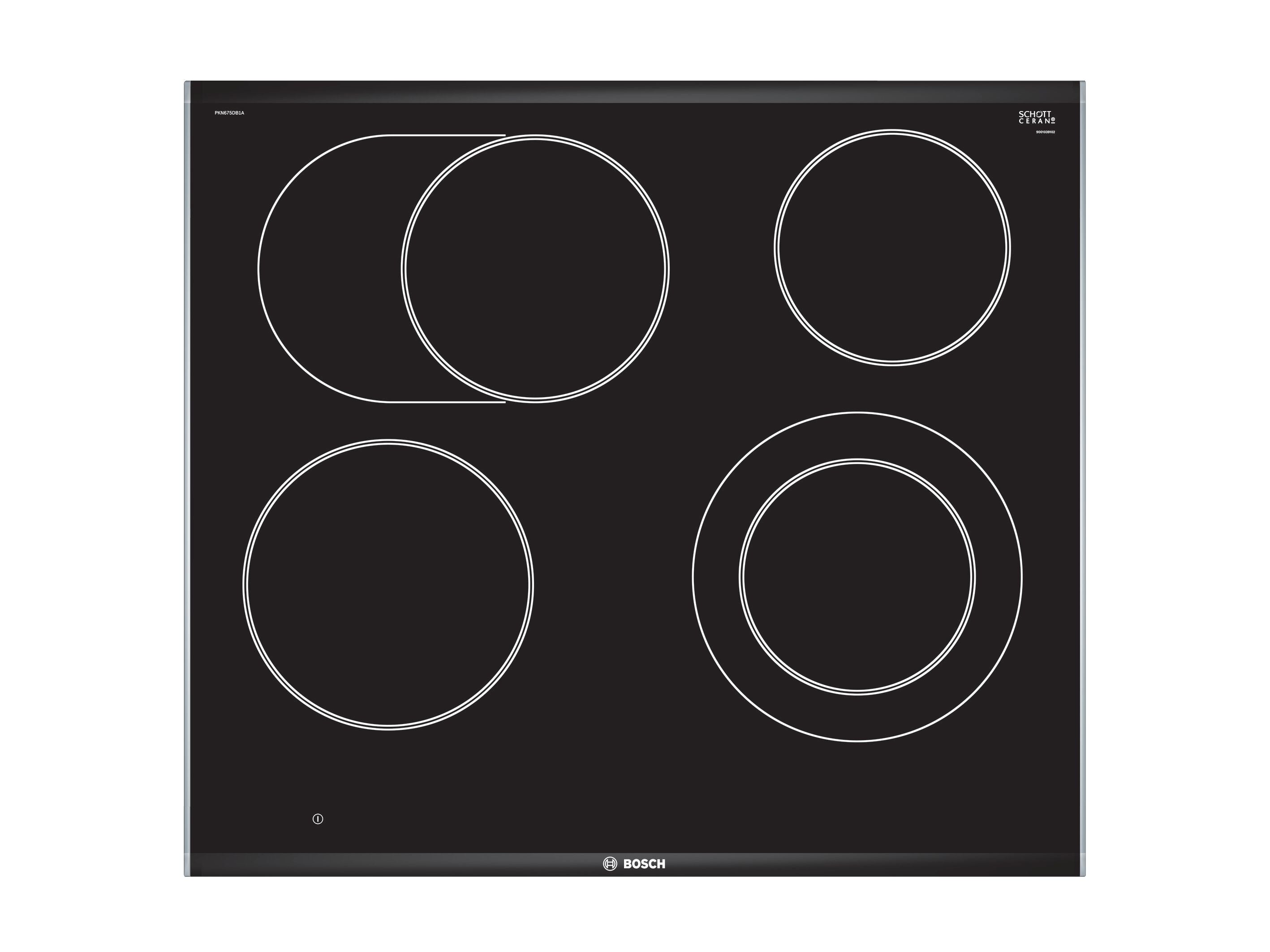

The PKN675DB1A uses radiant ceramic heating technology and is compatible with cookware suitable for electric ceramic cooktops. Unlike induction cooking, cookware does not require a magnetic base.

The RoasterZone allows expansion of the rear-left cooking zone for oversized cookware, while the dual-circuit front-right zone adjusts to accommodate smaller or larger pots as required. The ceramic glass surface remains smooth and uninterrupted for simplified cleaning once residual heat indicators show the zones have cooled.

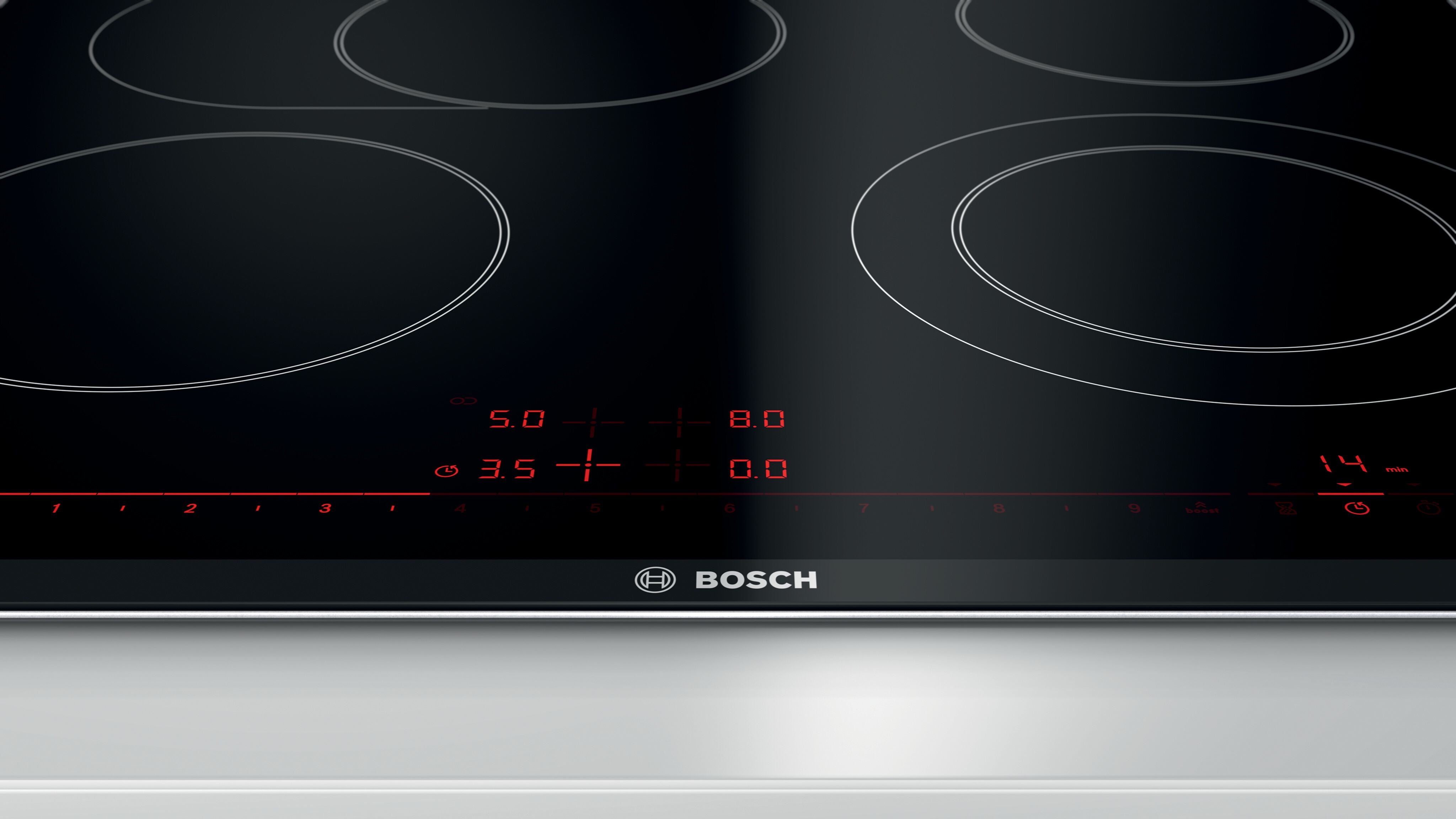

Bosch’s DirectSelect Premium interface provides direct numeric heat selection rather than stepped cycling controls, helping improve precision during cooking adjustments. The cooktop also incorporates audible feedback settings and programmable safety features accessible through the appliance settings menu.

• Installation documentation
• Mounting hardware
• User manual

• SPECIFICATIONS SHEET (PDF)
• USER MANUAL & INSTALLATION INSTRUCTIONS (PDF)
• SUPPLEMENTRY SHEET (PDF)
