• 4 radiant cooking zones: accommodates multiple cookware sizes simultaneously.
• TouchSelect controls: direct touch-operated zone selection with simple +/- power adjustment.
• 17 power levels: precise heat management with 9 primary and 8 intermediate settings.
• ReStart function: restores previous settings after accidental switch-off or spill interruption.
• Quick Stop: allows rapid shut-off of an active cooking zone.
• Ceramic glass surface: smooth black glass finish designed for straightforward cleaning.
• Frameless installation: slim modern profile suited to contemporary kitchen designs.
• Digital 2-stage residual heat indicators: identifies zones that remain hot or warm after cooking.
• Child lock: prevents unintended activation or setting changes.
• Automatic safety shut-off: switches off unattended zones after extended operation.
• Front-mounted controls: accessible touch interface positioned at the front edge of the cooktop.
• Surface mount installation: designed for standard benchtop integration.

• 17 Power Levels: allows precise heat adjustment across low, medium, and high cooking intensities.
• ReStart Function: restores previous cooking settings after accidental switch-off or boil-over interruption.
• Quick Stop: instantly switches off the selected cooking zone when required.
• Residual Heat Indicator: displays whether cooking zones remain hot or warm after use.
• Child Lock Function: prevents unintended activation or changes to cooktop settings.
• Automatic Safety Shut-Off: switches off cooking zones automatically after extended unattended operation.
• TouchSelect Controls: enables direct zone selection and touch-operated power adjustment.

• Cooktop type: Electric ceramic cooktop
• Series: Bosch Series 4
• Cooking zones: 4
• Cookware compatibility: Suitable for standard cookware with flat bases
• Control type: TouchSelect touch controls
• Control position: Front mounted
• Power levels: 17 per zone
• Surface material: Ceramic glass
• Frame type: Frameless
• Cooking zone flexibility: Ring zones
• Cooking assistance: ReStart function
• Connectivity: No Home Connect functionality
• Built-in ventilation: No
• Fuel type: Electric
• Voltage: 220–240 V
• Frequency: 50–60 Hz
• Connected load: 6600 W
• Residual heat indicator: Digital 2-stage
• Child safety lock: Yes
• Automatic safety shut-off: Yes
• Timer function: Yes
• Wok burner: No
• LPG compatible: No
• Energy rating: Not applicable

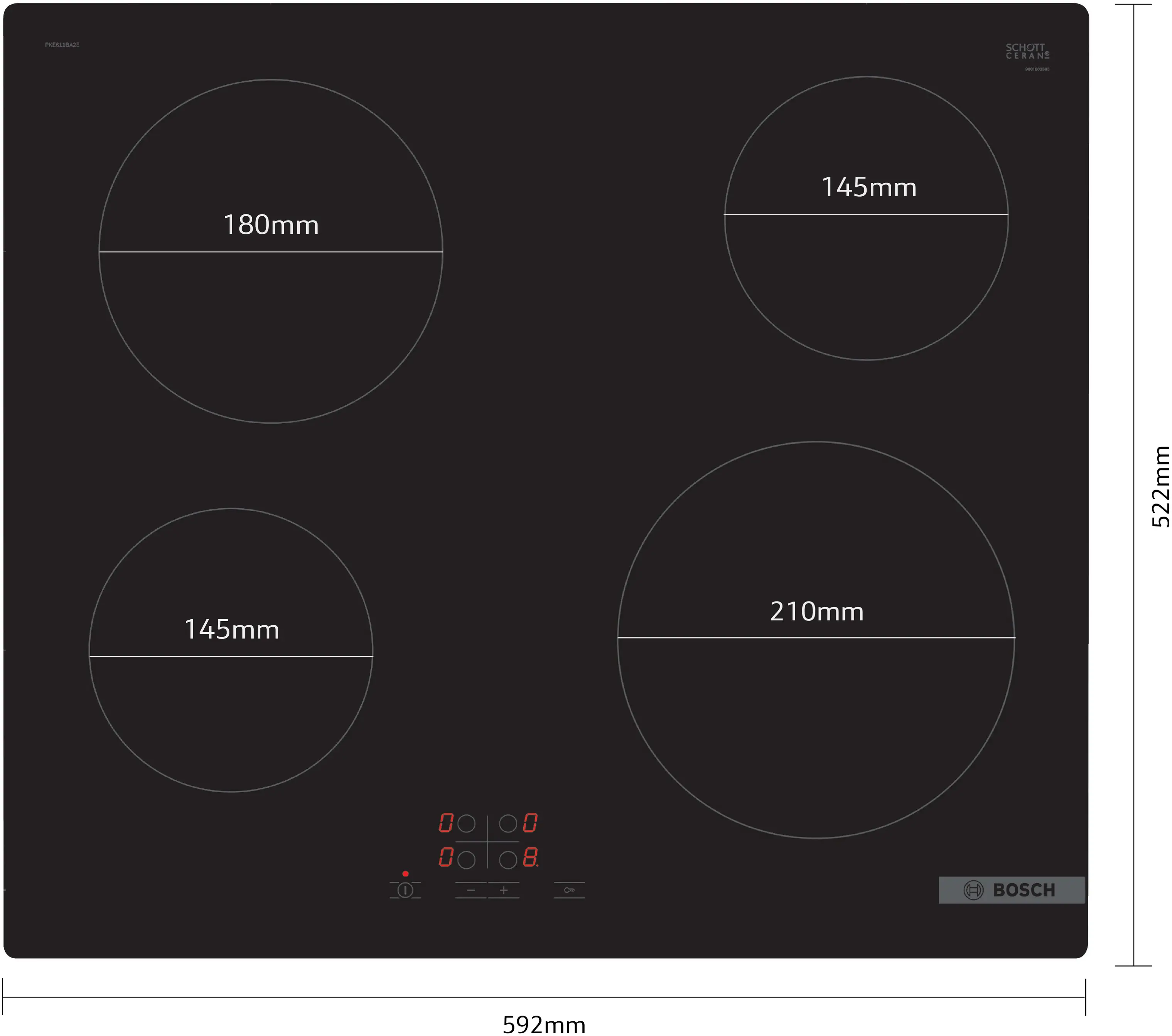

Cooking Zone Configuration:

• Front left cooking zone: 145 mm — 1.2 kW
• Rear left cooking zone: 180 mm — 2.0 kW
• Rear right cooking zone: 145 mm — 1.2 kW
• Front right cooking zone: 210 mm — 2.2 kW

• Installation type: Built-in surface mount
• Connection type: Hardwired
• Power supply: 220–240 V / 50–60 Hz
• Total connected load: 6.6 kW
• Control location: Front
• Electrical installation: Must be installed by a licensed electrician

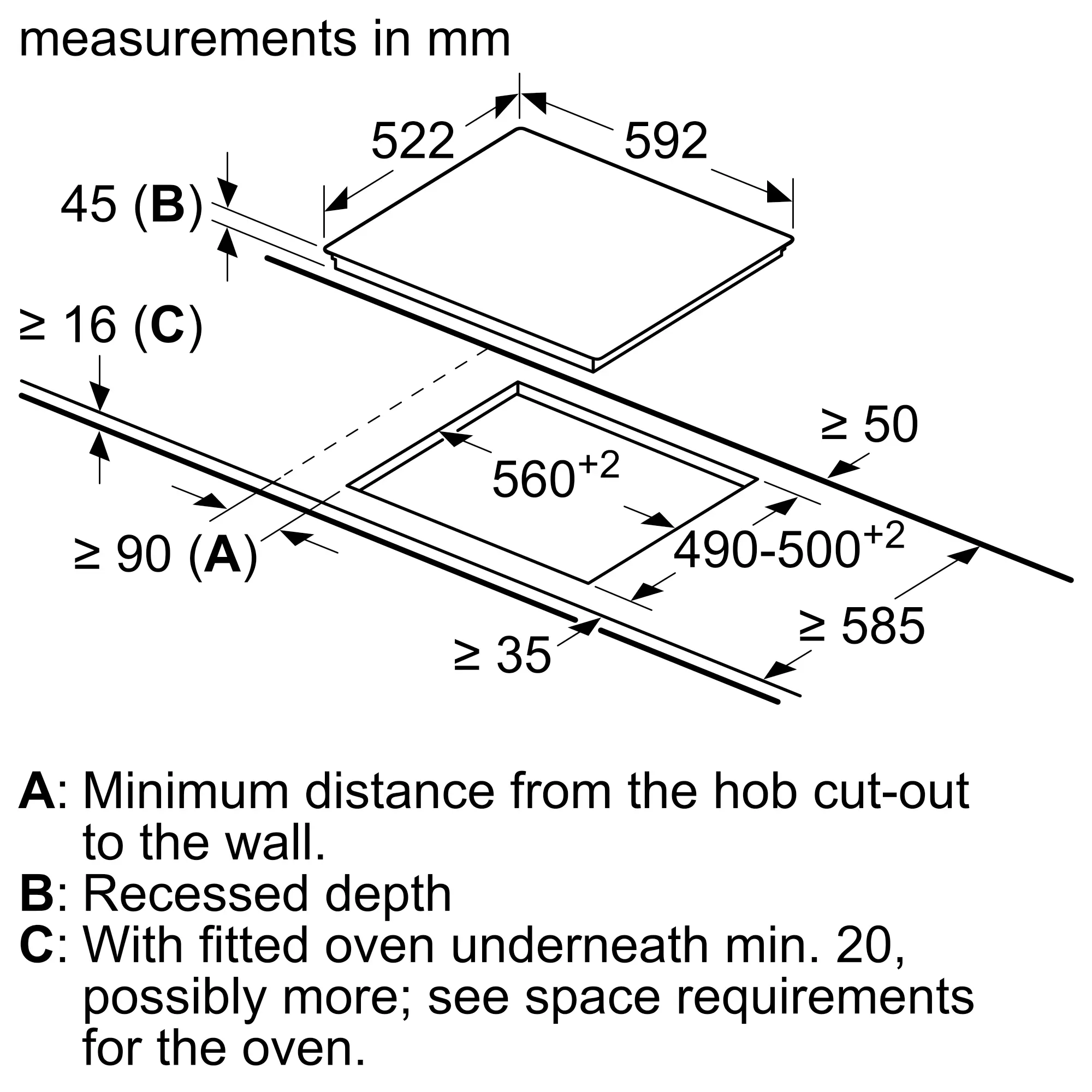

• Benchtop installation: Suitable for standard 60cm cooktop cut-outs
• Frame configuration: Frameless raised-edge installation

Bosch Warranty

• Bosch appliances are backed in Australia by BSH Home Appliances Pty Ltd, providing trusted after-sales support and service nationwide.

Warranty Coverage

Domestic Use:

• Bosch appliances are covered by a 2-year manufacturer’s warranty from the date of purchase, covering defects in materials and workmanship.

Commercial Use

• If used for commercial purposes, the warranty period is limited to 3 months.
• This warranty is provided in addition to your rights under Australian Consumer Law.

What’s Covered

Under normal domestic use, the warranty includes:

• Manufacturing defects
• Repair or replacement of faulty components
• Service within Bosch’s authorised service network

For minor failures, Bosch may choose to repair or replace the appliance.

• Proof of purchase is required to make a claim.
• To lodge a claim, contact Bosch Customer Care Australia on 1300 369 744.

What’s Not Covered

The warranty does not apply to damage caused by:

• Incorrect installation or operation
• Unauthorised repairs or non-approved parts
• Incorrect power, gas or water supply
• Commercial use beyond 3 months
• Normal wear and tear (filters, seals, globes, fuses, etc.)
• Blockages, misuse, operator error or storm damage
• Delivery or installation damage
• Appliances exported outside Australia

Travel or transport costs may apply if you are located outside a Bosch service area.

Australian Consumer Law

• Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if they fail to be of acceptable quality and the failure does not amount to a major failure.

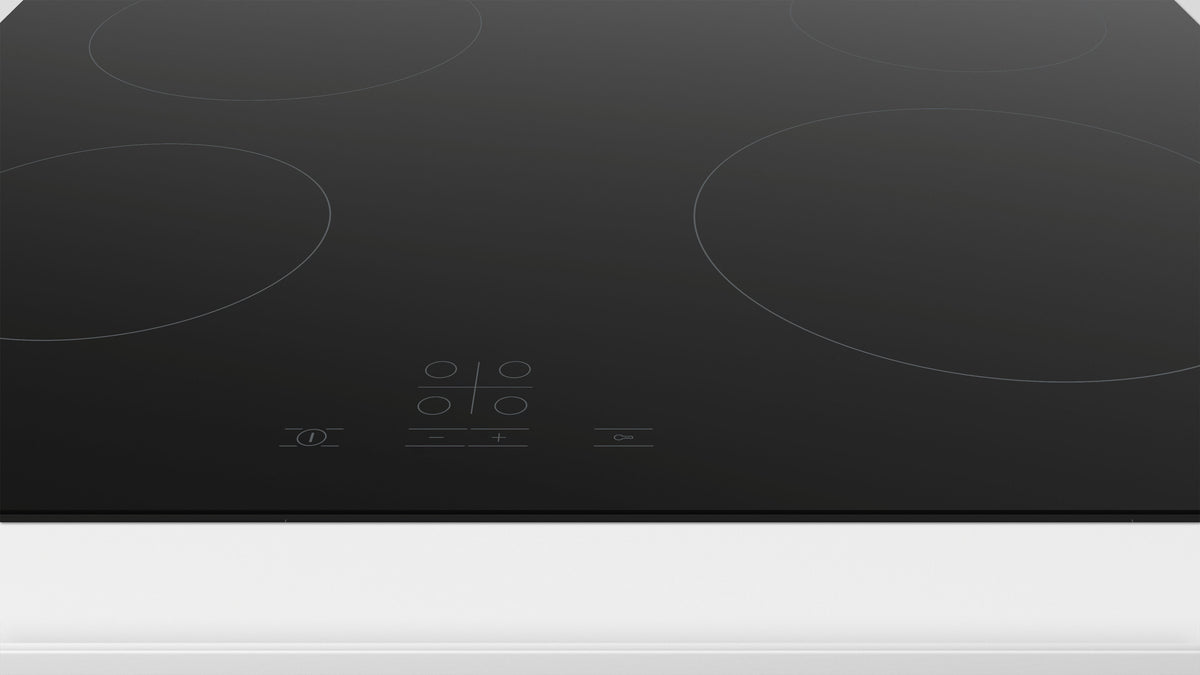

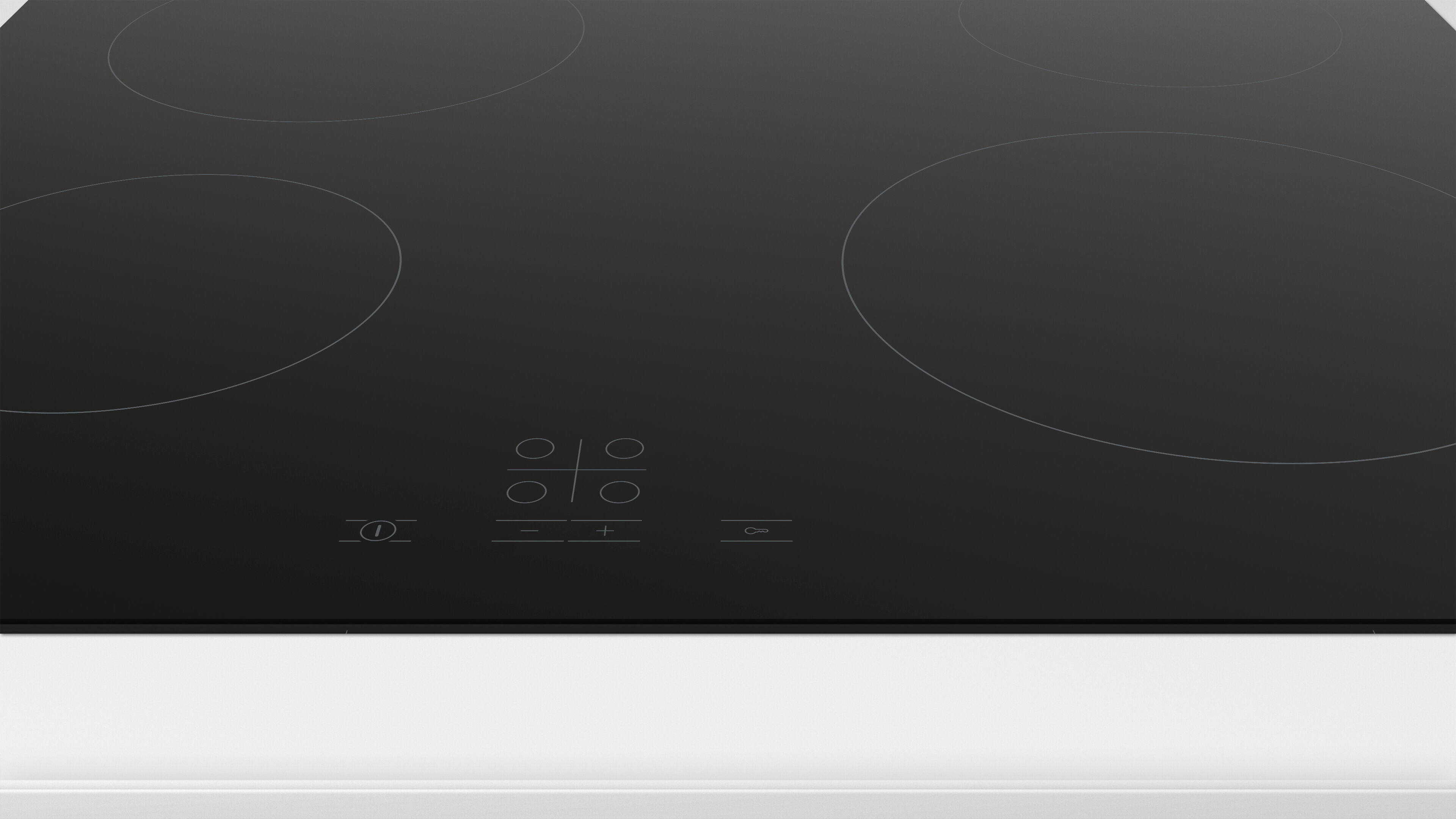

The PKE611BA2A uses Bosch TouchSelect controls with dedicated +/- touch adjustment, allowing direct heat level selection without rotary knobs or physical controls. Bosch’s ReStart function temporarily stores the previous cooking settings if the cooktop switches off due to overflow or accidental interruption.

The ceramic glass cooking surface remains easier to maintain than traditional coil or gas cooktops due to its flat continuous surface design. Residual heat indicators remain illuminated after use until cooking zones have cooled to a safer temperature.

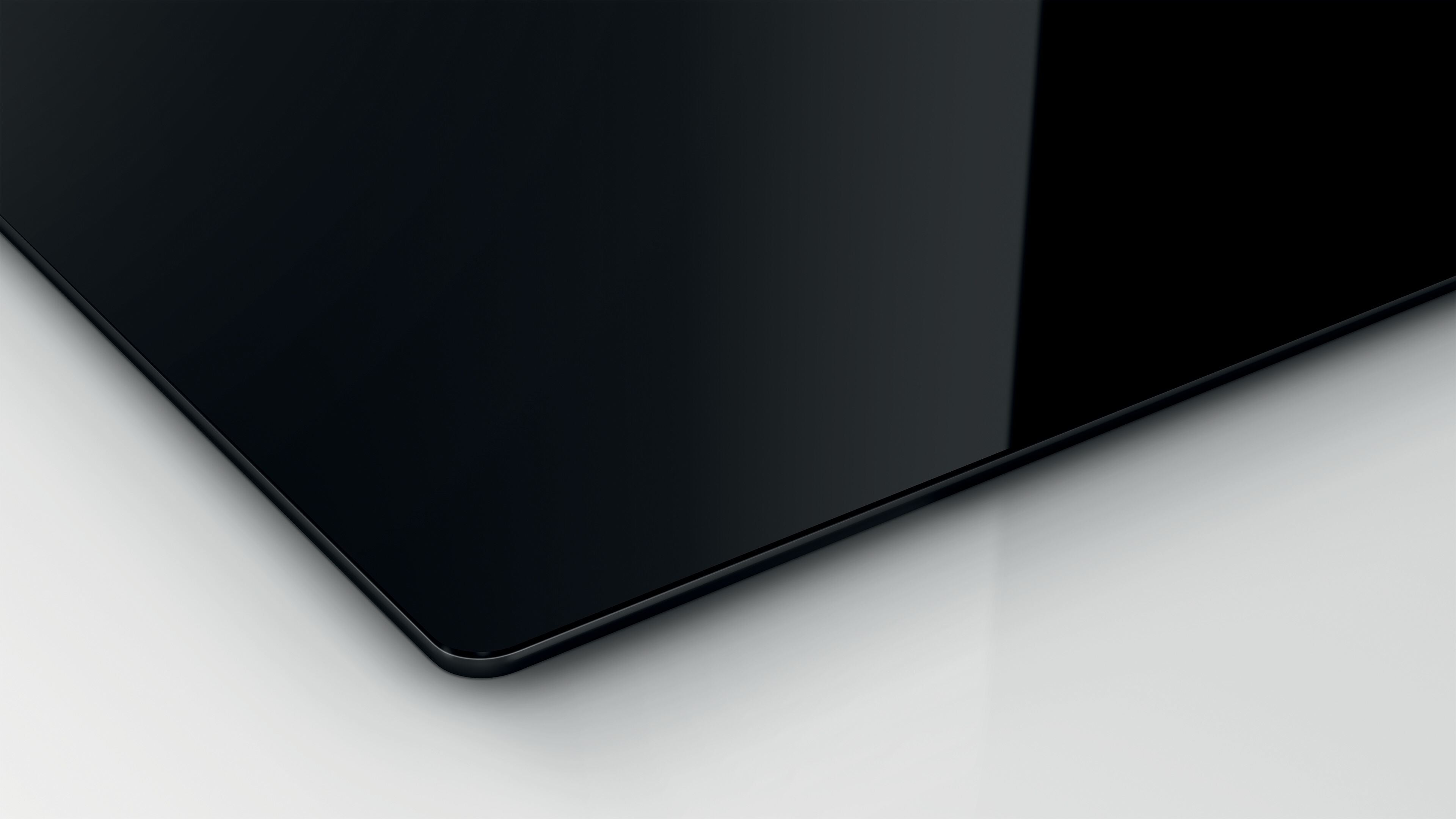

This cooktop is designed for standard built-in kitchen installations and requires hardwired electrical connection. The frameless perimeter allows the black ceramic glass surface to sit slightly proud of the benchtop for a clean architectural appearance.

• Installation documentation
• Mounting hardware
• User manual
• Installation instructions

• SPECIFICATIONS SHEET (PDF)
• USER MANUAL & INSTALLATION INSTRUCTIONS (PDF)
• SUPPLEMENTRY SHEET (PDF)
