• FlameSelect technology: nine precisely defined flame settings for repeatable heat control.
• Five burner configuration: accommodates multiple cookware sizes simultaneously.
• Dual-flame wok burner: separate flame rings provide both powerful heating and low-temperature simmering capability.
• Continuous cast-iron pan supports: stable cooking platform across the entire cooktop surface.

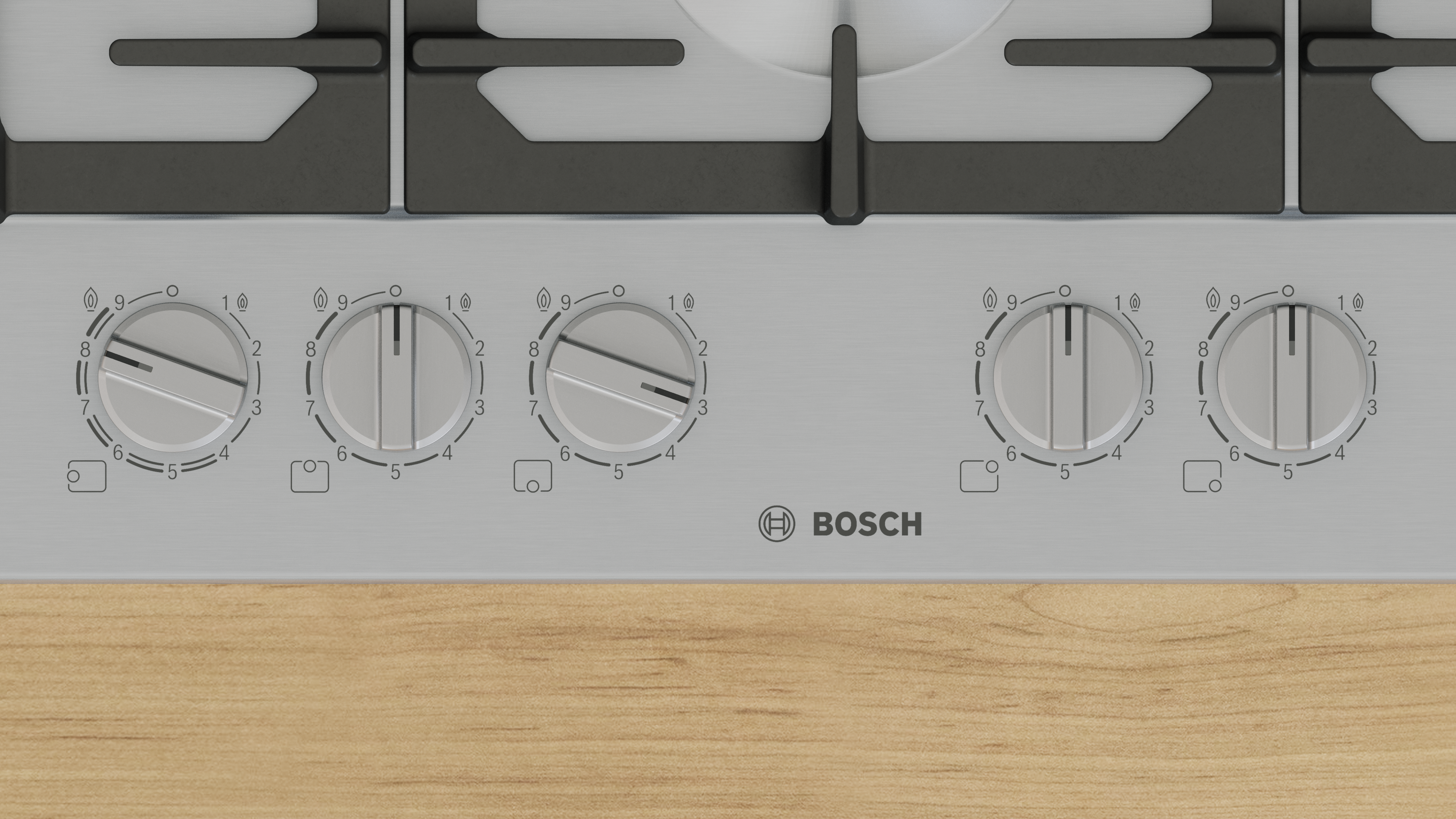

• Metal control dials: durable front-mounted controls with strong grip design.
• One-hand electronic ignition: integrated push-and-turn ignition through the control dials.
• Dishwasher-suitable pan supports: supports easier ongoing cleaning and maintenance.
• Removable control dials: simplifies cleaning around frequently used control areas.
• Flame failure safety system: automatically stops gas flow if a burner flame extinguishes unexpectedly.
• Frameless design: clean installation profile suited to contemporary benchtop finishes.

• FlameSelect: Nine predefined flame levels for precise and repeatable heat control.
• Dual-Flame Wok Burner: Independently controlled inner and outer flame rings for high-power cooking and gentle simmering.
• Electronic Ignition: Integrated push-and-turn ignition built into each control knob.
• Flame Failure Safety Cut-Off: Automatically shuts off gas supply if the burner flame is extinguished.
• Multi-Burner Cooking: Five independently controlled burners allow simultaneous cooking across multiple cookware sizes.

• Cooktop type: Gas cooktop
• Series: Bosch Series 6
• Total cooking zones: 5
• Cooktop surface: Stainless steel
• Frame type: Frameless
• Pan support material: Enamelled cast iron with rubber feet
• Control type: Front-mounted metal control dials
• Ignition system: One-hand electronic ignition
• FlameSelect: Yes
• Flame levels: 9
• Residual heat indicator: Separate
• Safety flame failure device: Yes — fitted to each burner
• Gas type preset: Natural gas H/E/(L) 20 (25) mbar
• Alternative gas compatibility: LPG G30/G31 28–30/37 mbar
• Total gas connection rating: 12,500 W
• Energy rating: Not applicable for gas cooktops

Burners & Power:

• Left wok burner: up to 19.5 MJ/h
• Centre front economy burner: up to 3.8 MJ/h
• Centre rear standard burner: up to 6.85 MJ/h
• Right rear high-speed burner: up to 11 MJ/h
• Right front standard burner: up to 6.85 MJ/h
• Dual-flame wok burner: independently controlled flame rings for wider cooking flexibility

• Installation type: Built-in
• Fuel type: Natural gas (factory preset)
• LPG conversion: LPG nozzle set supplied
• Voltage: 220–240 V
• Frequency: 50 / 60 Hz
• Fuse protection: 3 A
• Connection type: 10A plug and lead
• Power cord length: 1 m

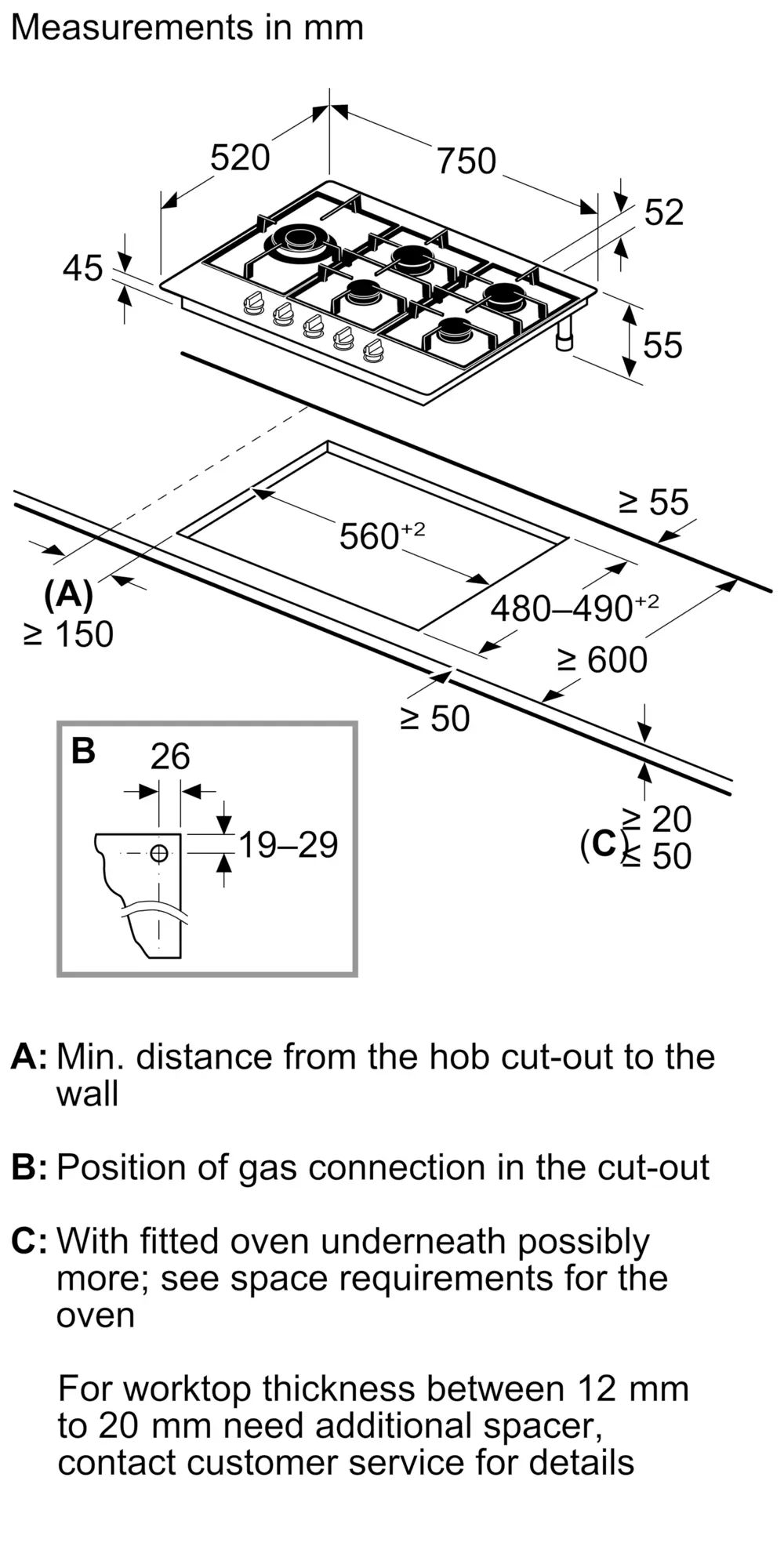

• Required niche dimensions (H x W x D): 45 x 560 x 480–490 mm
• Licensed gas fitter installation required: Yes
• Electrical connection required: Yes

Bosch Warranty

• Bosch appliances are backed in Australia by BSH Home Appliances Pty Ltd, providing trusted after-sales support and service nationwide.

Warranty Coverage

Domestic Use:

• Bosch appliances are covered by a 2-year manufacturer’s warranty from the date of purchase, covering defects in materials and workmanship.

Commercial Use

• If used for commercial purposes, the warranty period is limited to 3 months.
• This warranty is provided in addition to your rights under Australian Consumer Law.

What’s Covered

Under normal domestic use, the warranty includes:

• Manufacturing defects
• Repair or replacement of faulty components
• Service within Bosch’s authorised service network

For minor failures, Bosch may choose to repair or replace the appliance.

• Proof of purchase is required to make a claim.
• To lodge a claim, contact Bosch Customer Care Australia on 1300 369 744.

What’s Not Covered

The warranty does not apply to damage caused by:

• Incorrect installation or operation
• Unauthorised repairs or non-approved parts
• Incorrect power, gas or water supply
• Commercial use beyond 3 months
• Normal wear and tear (filters, seals, globes, fuses, etc.)
• Blockages, misuse, operator error or storm damage
• Delivery or installation damage
• Appliances exported outside Australia

Travel or transport costs may apply if you are located outside a Bosch service area.

Australian Consumer Law

• Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if they fail to be of acceptable quality and the failure does not amount to a major failure.

Bosch's FlameSelect system is designed to improve consistency when cooking with gas by providing nine calibrated flame levels rather than relying on approximate control positioning. This allows recipes requiring repeatable heat settings to be reproduced more accurately between cooking sessions.

The dual-flame wok burner incorporates two independently controlled flame rings, allowing the burner to operate across a broader output range. High-output performance supports rapid heating and stir-frying applications, while lower settings provide improved simmer control for sauces and delicate cooking tasks.

The continuous cast-iron support system extends across the cooking surface, providing a stable platform for cookware movement between burners. Combined with the wider 75cm layout, the cooktop is suited to households regularly using multiple pots, pans, stockpots, or wok cookware simultaneously.

• LPG conversion nozzle set: G30/G31 28–30/37 mbar
• Enamelled cast-iron pan supports
• Installation components
• Product documentation

• SPECIFICATIONS SHEET (PDF)
• USER MANUAL & INSTALLATION INSTRUCTIONS (PDF)
• SUPPLEMENTRY SHEET (PDF)
