• FlameSelect technology: nine precisely defined flame levels for more accurate gas cooking control.

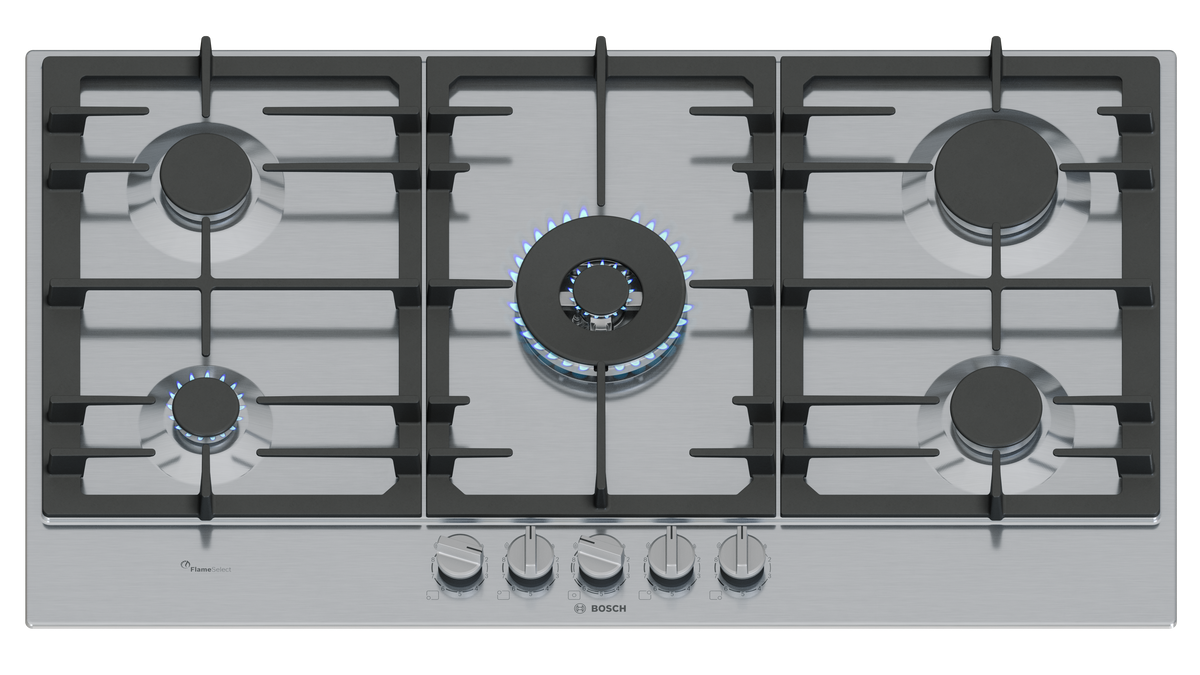

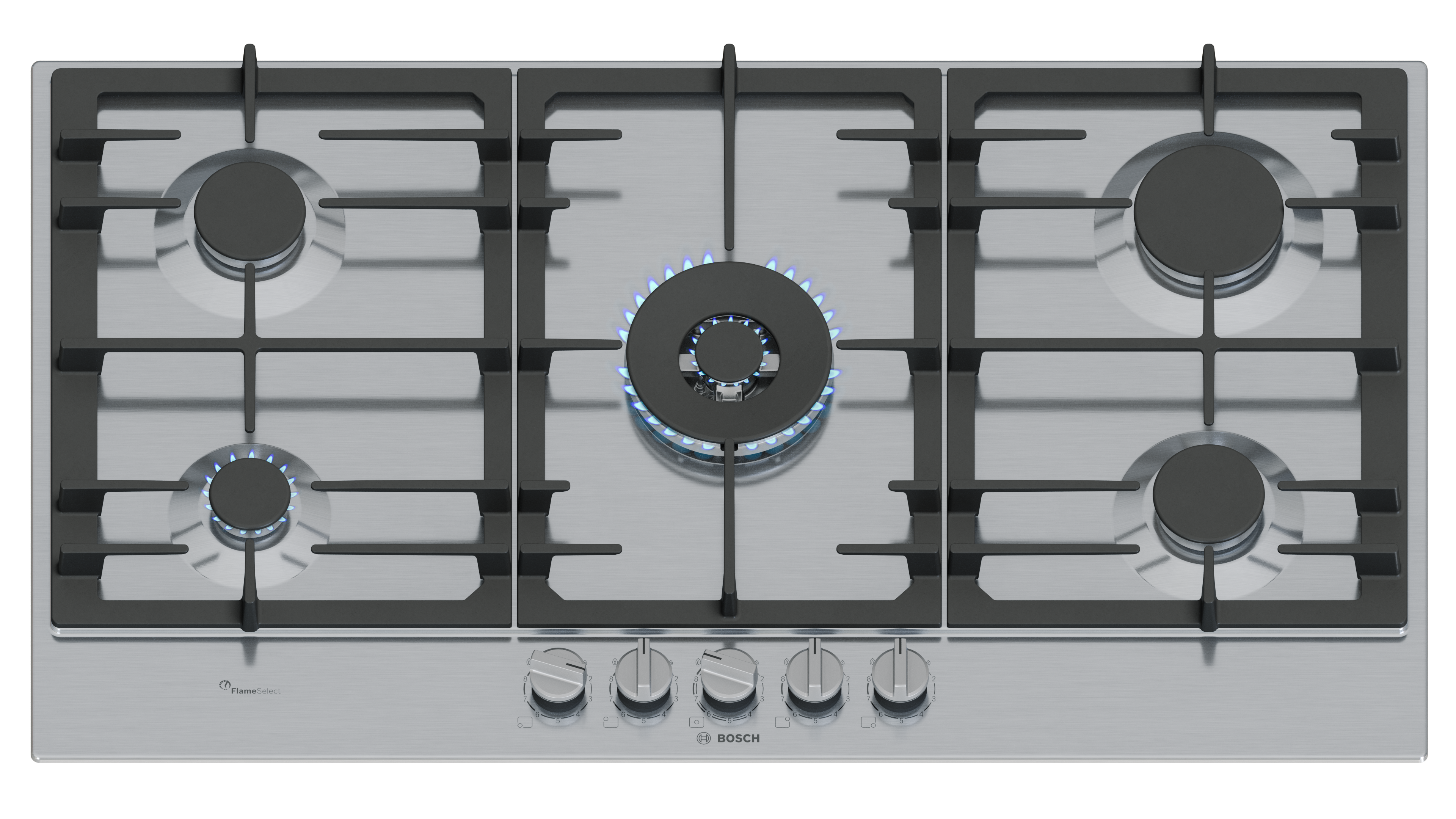

• 5 burner configuration: accommodates multiple cookware sizes simultaneously.
• Dual flame wok burner: high-powered central burner suited to wok cooking and rapid heat output.

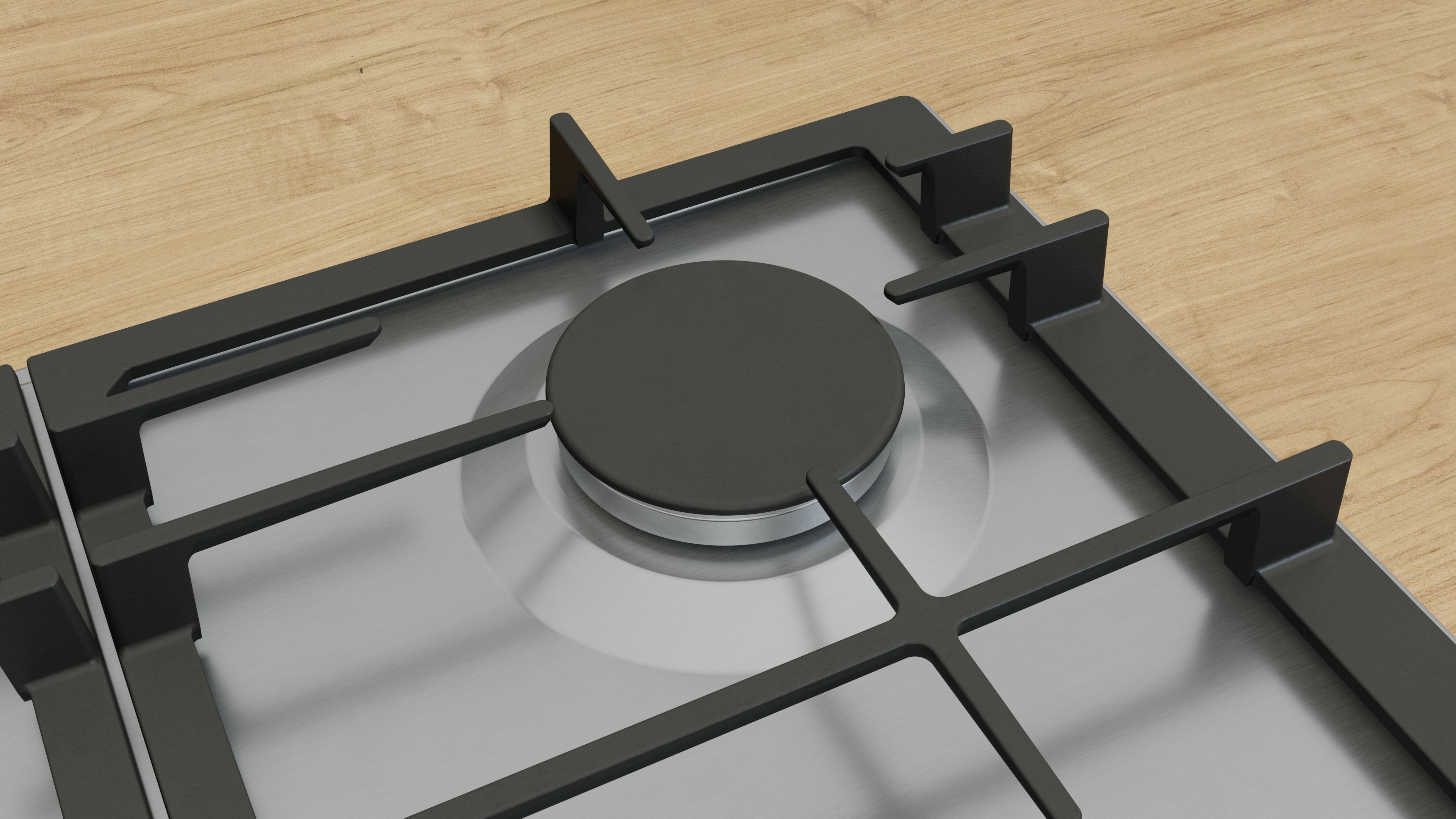

• Continuous cast-iron pan supports: stable cookware support across the cooking surface.

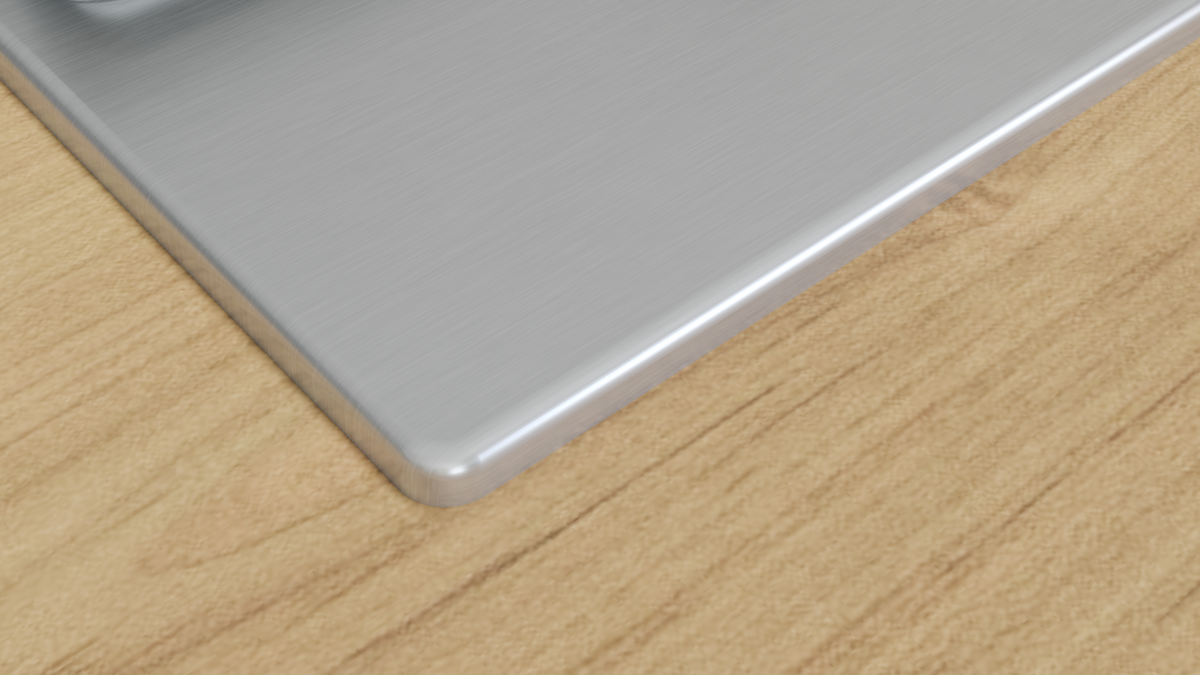

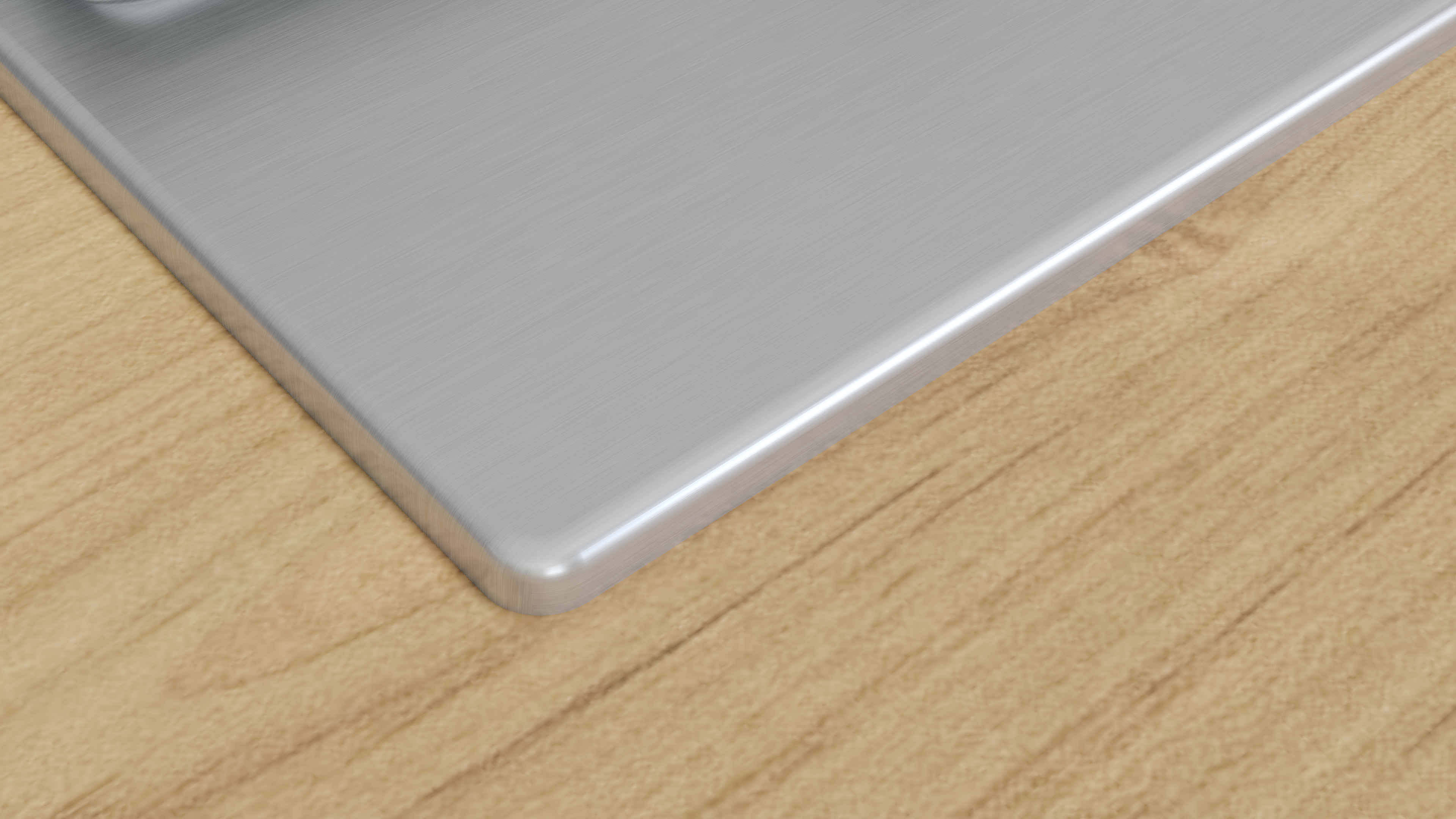

• Low-profile stainless steel design: slim integrated appearance within the benchtop.
• Electronic ignition: integrated ignition through the control knobs.
• Flame failure safety device: automatically cuts gas supply if the flame extinguishes.
• Dishwasher-suitable pan supports: simplified cleaning and maintenance.
• Detachable control knobs: removable controls improve cleaning access around burners.
• Front-mounted controls: accessible control positioning across the front edge.

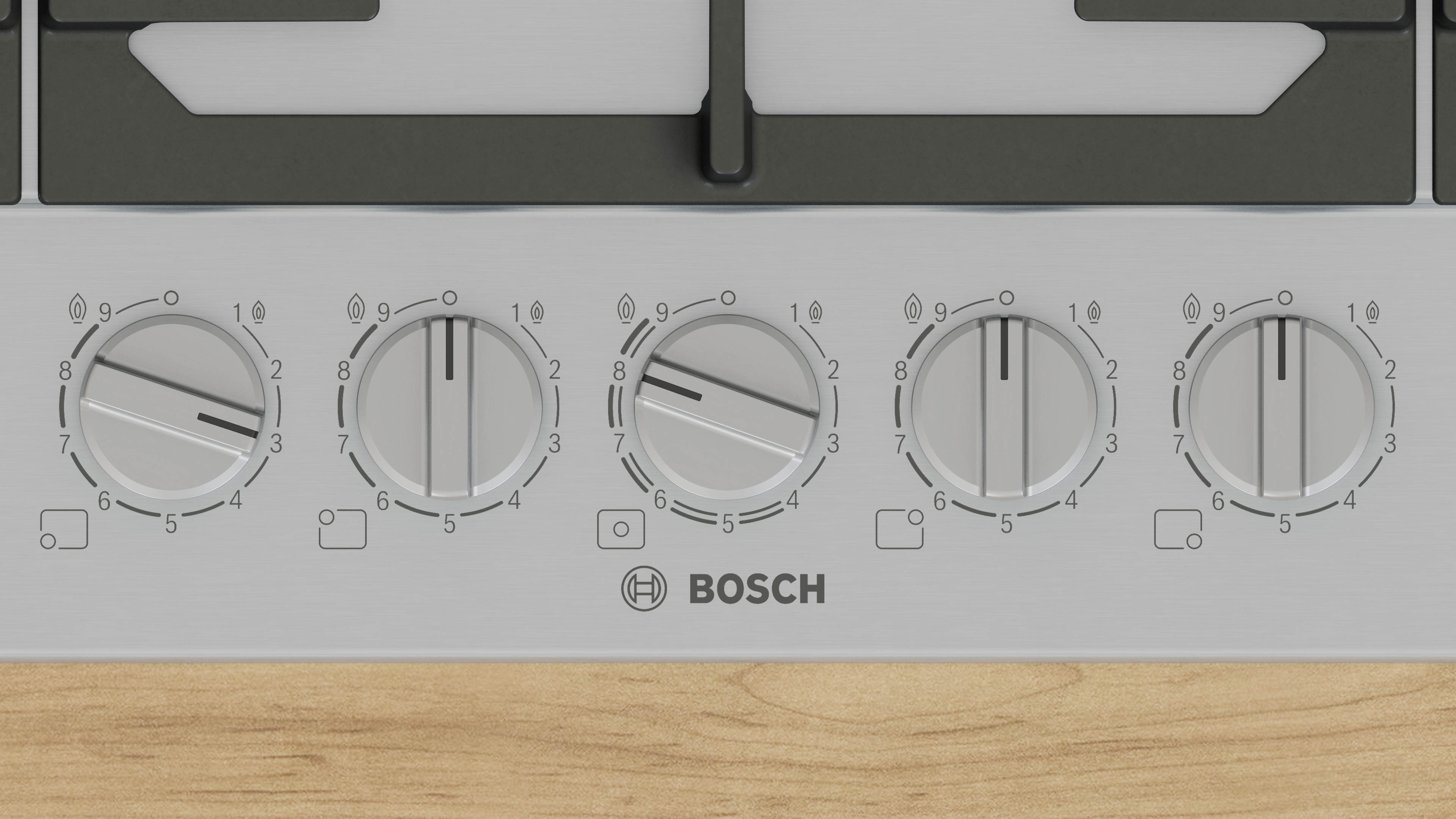

• FlameSelect levels: nine calibrated flame settings for more precise gas heat control.
• Dual flame wok burner: high-output burner designed for wok cooking and rapid heating.
• Economy burner: low-output burner suited to simmering and delicate cooking.
• Standard burners: everyday cooking burners for general cookware use.
• High-speed burner: increased heat output for faster boiling and higher temperature cooking.
• Electronic ignition: integrated push-and-turn ignition through the control knobs.
• Flame failure protection: automatically stops gas flow if the flame extinguishes.

• Cooktop type: Gas cooktop
• Series: Bosch Series 6
• Number of burners: 5
• Control type: Sword control knobs
• Ignition type: Electronic ignition
• Surface material: Stainless steel
• Pan support material: Cast iron
• Frame type: Frameless
• FlameSelect: Yes
• Gas type preset: Natural Gas
• Alternative gas compatibility: Universal LPG conversion compatible
• LPG nozzle set included: Yes
• Total gas connection rating: 12.5 kW
• Power supply: 220–240 V / 50–60 Hz
• Fuse protection: 3 A
• Power cord length: 1 m

• Installation type: Built-in
• Connection type: Plug-in electrical connection
• Gas installation: Must be installed by a licensed gas fitter
• Gas compatibility: Natural Gas and Universal LPG
• LPG conversion kit: Included
• Installation profile: Surface-mounted
• Electrical supply: 220–240 V / 50–60 Hz

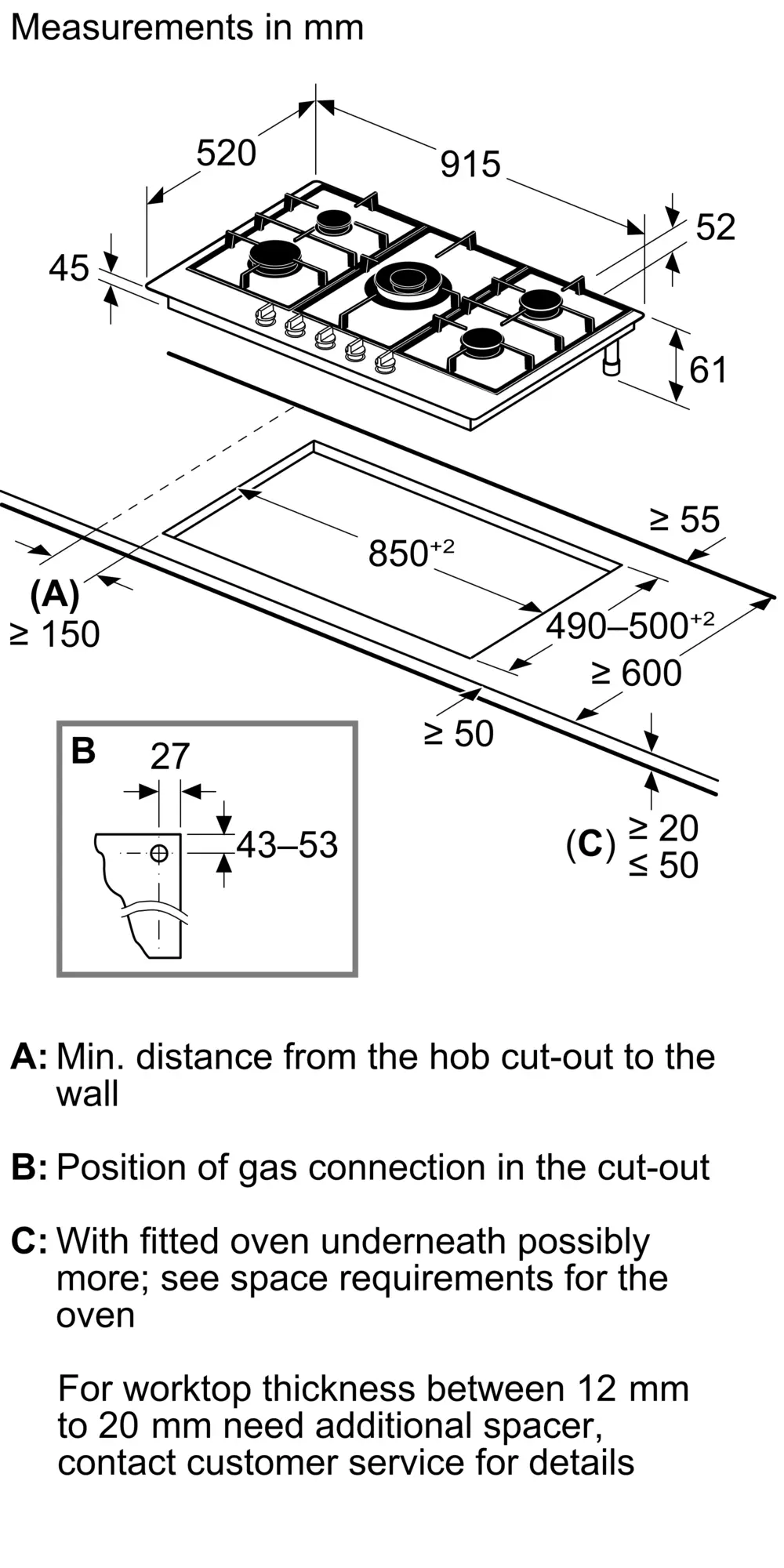

• Minimum clearance requirements: Refer to installation instructions

Bosch Warranty

• Bosch appliances are backed in Australia by BSH Home Appliances Pty Ltd, providing trusted after-sales support and service nationwide.

Warranty Coverage

Domestic Use:

• Bosch appliances are covered by a 2-year manufacturer’s warranty from the date of purchase, covering defects in materials and workmanship.

Commercial Use

• If used for commercial purposes, the warranty period is limited to 3 months.
• This warranty is provided in addition to your rights under Australian Consumer Law.

What’s Covered

Under normal domestic use, the warranty includes:

• Manufacturing defects
• Repair or replacement of faulty components
• Service within Bosch’s authorised service network

For minor failures, Bosch may choose to repair or replace the appliance.

• Proof of purchase is required to make a claim.
• To lodge a claim, contact Bosch Customer Care Australia on 1300 369 744.

What’s Not Covered

The warranty does not apply to damage caused by:

• Incorrect installation or operation
• Unauthorised repairs or non-approved parts
• Incorrect power, gas or water supply
• Commercial use beyond 3 months
• Normal wear and tear (filters, seals, globes, fuses, etc.)
• Blockages, misuse, operator error or storm damage
• Delivery or installation damage
• Appliances exported outside Australia

Travel or transport costs may apply if you are located outside a Bosch service area.

Australian Consumer Law

• Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if they fail to be of acceptable quality and the failure does not amount to a major failure.

The PCR9A5I90A uses Bosch’s FlameSelect burner management system, allowing users to adjust flame intensity through nine calibrated power levels rather than relying solely on visual flame estimation. This enables more repeatable cooking control across simmering, sautéing, and high-output heating applications.

The centrally positioned dual flame wok burner delivers up to 5.0 kW maximum burner output, supporting high-temperature wok cooking and rapid boiling performance. Additional burner configuration includes economy, standard, and high-speed burners distributed across the cooktop surface for flexible cookware positioning.

Continuous cast-iron pan supports span the full cooktop width, improving cookware stability and allowing heavier cookware to move more easily between cooking zones. The detachable control dials and dishwasher-suitable pan supports simplify long-term cleaning and maintenance requirements.

The cooktop is supplied configured for Natural Gas operation and includes a Universal LPG nozzle conversion set for alternative gas installations. Bosch specifies professional gas installation and commissioning in accordance with local installation regulations.

• Wok attachment ring: included
• Universal LPG nozzle set: included
• Installation hardware: included
