• FlameSelect technology: nine predefined flame levels for more precise gas cooking control.
• 4 burner configuration: accommodates multiple cooking tasks simultaneously.

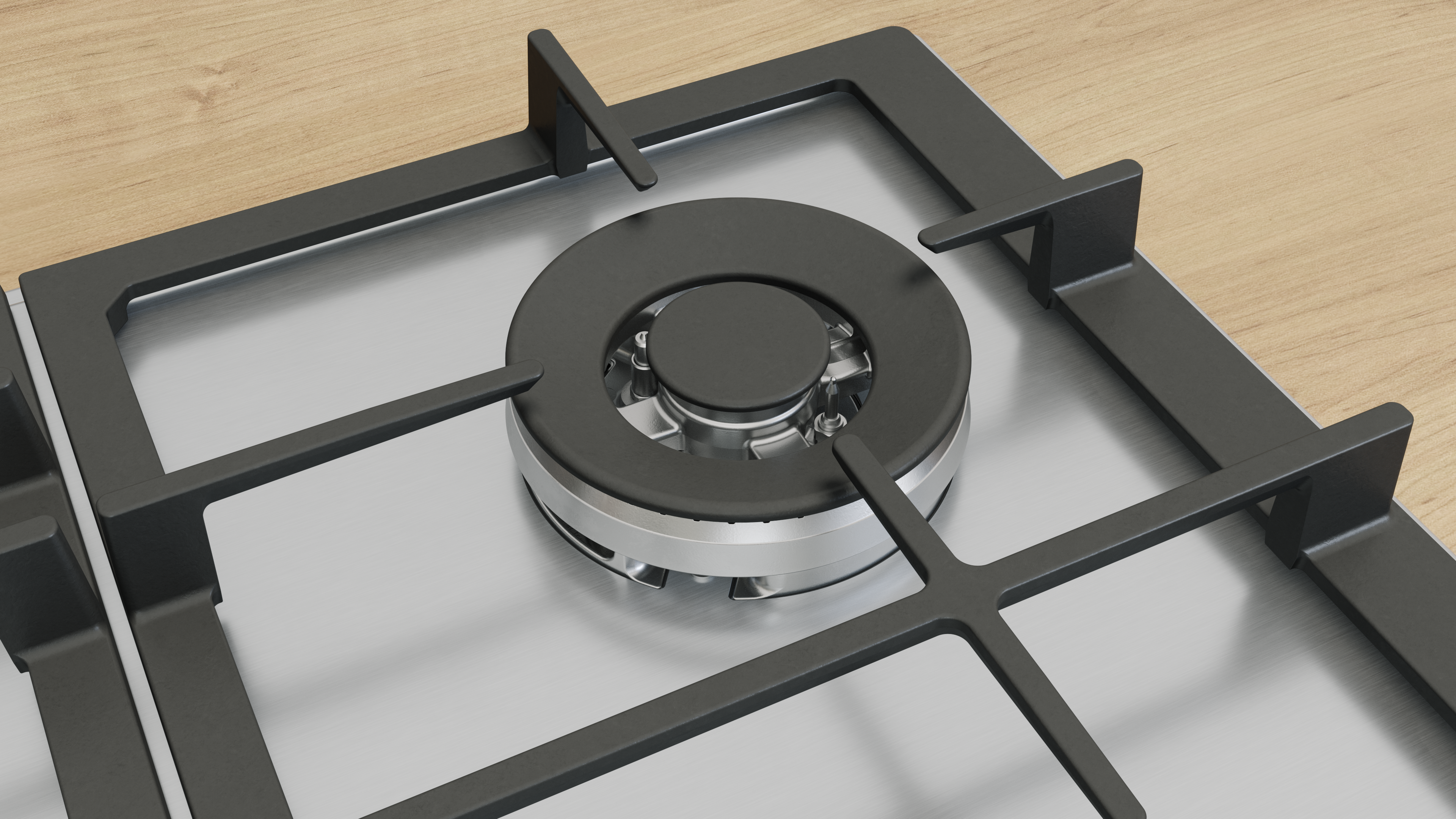

• High-output wok burner: delivers strong heat output for boiling, searing, stir-frying, and wok cooking.
• Dual standard burners: suitable for everyday cookware and general cooking requirements.
• Economy burner: designed for gentle simmering and low-temperature cooking.
• Continuous cast-iron pan supports: provide stable cookware support across the cooking surface.

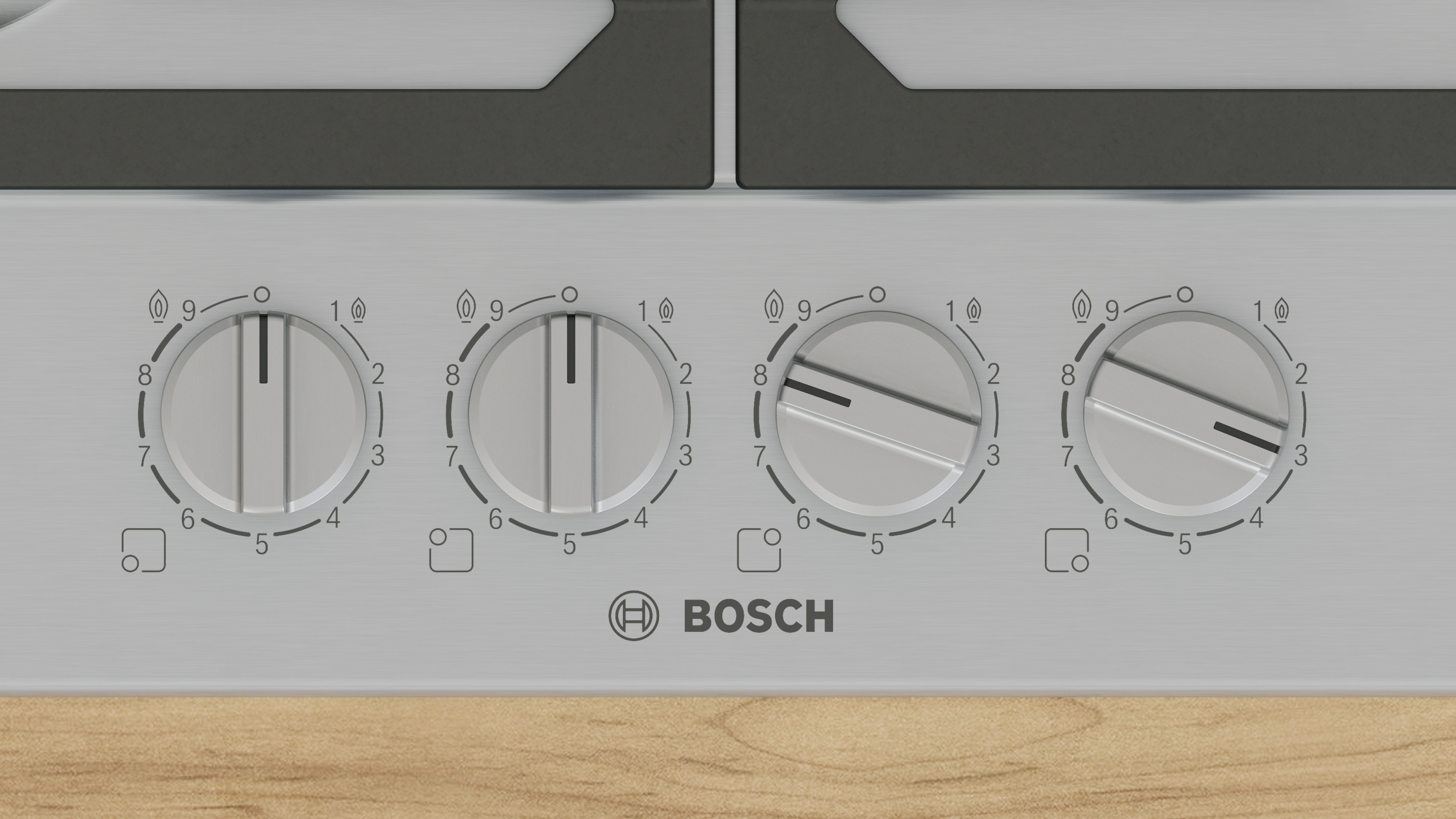

• Metal control dials: durable front-mounted controls with comfortable grip operation.
• One-hand electronic ignition: ignition integrated directly into the control dials.
• Flame failure safety system: automatically cuts gas flow if a flame is extinguished.
• Detachable controls: simplify cleaning around the cooktop surface.
• Dishwasher-safe pan supports: removable cast-iron trivets for easier maintenance.

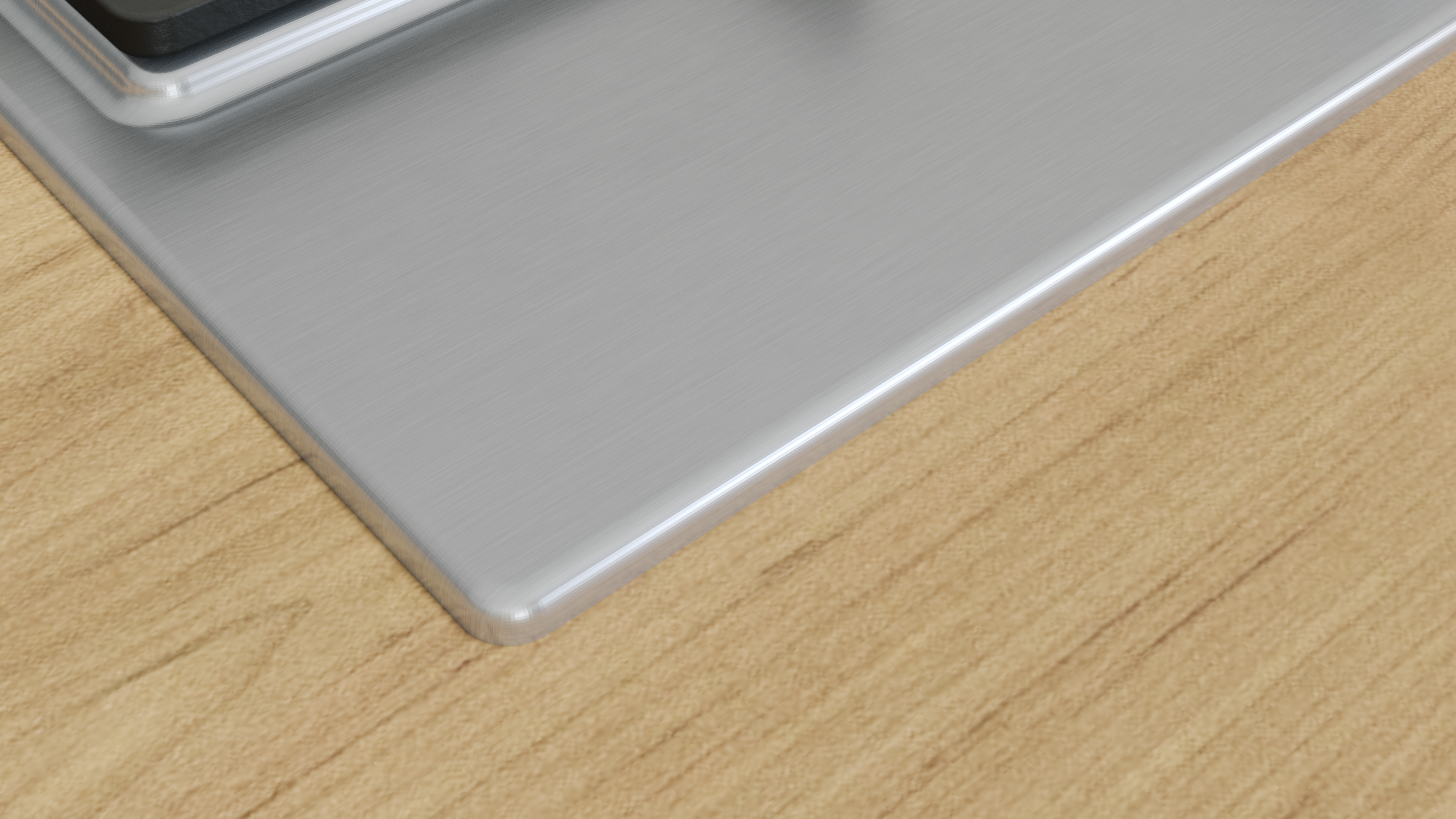

• Frameless design: clean built-in appearance suited to modern kitchen installations.

• FlameSelect: Nine predefined flame levels for more precise and repeatable heat control.
• Wok Cooking Function: High-output wok burner designed for rapid heating, searing, and stir-frying.
• Simmer Function: Economy burner suitable for low-temperature cooking and gentle simmering.
• Multi-Burner Cooking: Four independently controlled burners allow simultaneous preparation of multiple dishes.
• Electronic Ignition: Integrated one-hand ignition system built into the control dials for convenient burner activation.

• Product family: Gas cooktop with integrated controls
• Series: Series 6
• Cooktop type: Gas
• Cooking zones: 4
• Burner configuration: 1 x wok burner, 2 x standard burners, 1 x economy burner
• FlameSelect: Yes
• Flame levels: 9
• Control position: Front mounted
• Control type: Metal control dials
• Surface material: Stainless steel
• Frame type: Frameless
• Pan support material: Enamelled cast iron with rubber feet
• Residual heat indicator: No
• Gas connection rating: 8000 W
• Voltage: 220–240 V
• Frequency: 50 / 60 Hz
• Fuse protection: 3 A
• Preset gas type: Natural Gas 10 mbar (Australia)
• Alternative gas compatibility: LPG G30/G31 28–30/37 mbar
• Energy rating: Not applicable

• Installation type: Built-in
• Energy source: Gas
• Gas preset: Natural Gas 10 mbar
• LPG conversion: Compatible with LPG G30/G31 28–30/37 mbar
• Connection type: Plug-in electrical connection
• Power supply: 220–240 V
• Electrical frequency: 50 / 60 Hz
• Power cord length: 100 cm

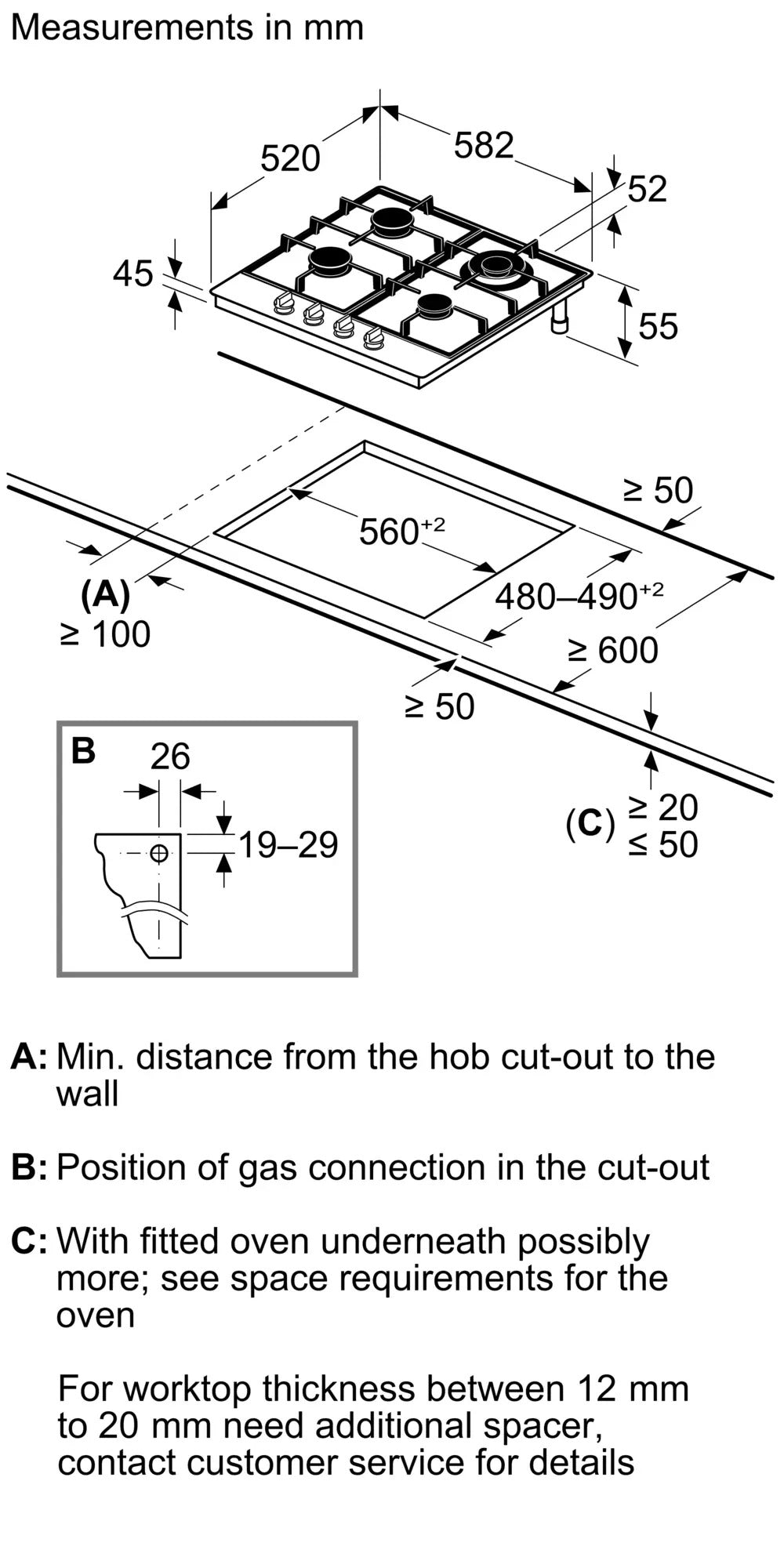

• Cut-out requirement: 560 x 480–490 mm
• Licensed installer required: Gas installation must be completed in accordance with local regulations.

Bosch Warranty

• Bosch appliances are backed in Australia by BSH Home Appliances Pty Ltd, providing trusted after-sales support and service nationwide.

Warranty Coverage

Domestic Use:

• Bosch appliances are covered by a 2-year manufacturer’s warranty from the date of purchase, covering defects in materials and workmanship.

Commercial Use

• If used for commercial purposes, the warranty period is limited to 3 months.
• This warranty is provided in addition to your rights under Australian Consumer Law.

What’s Covered

Under normal domestic use, the warranty includes:

• Manufacturing defects
• Repair or replacement of faulty components
• Service within Bosch’s authorised service network

For minor failures, Bosch may choose to repair or replace the appliance.

• Proof of purchase is required to make a claim.
• To lodge a claim, contact Bosch Customer Care Australia on 1300 369 744.

What’s Not Covered

The warranty does not apply to damage caused by:

• Incorrect installation or operation
• Unauthorised repairs or non-approved parts
• Incorrect power, gas or water supply
• Commercial use beyond 3 months
• Normal wear and tear (filters, seals, globes, fuses, etc.)
• Blockages, misuse, operator error or storm damage
• Delivery or installation damage
• Appliances exported outside Australia

Travel or transport costs may apply if you are located outside a Bosch service area.

Australian Consumer Law

• Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if they fail to be of acceptable quality and the failure does not amount to a major failure.

Bosch FlameSelect technology divides burner output into nine calibrated flame settings, allowing repeatable heat control for a wider range of cooking techniques. Unlike traditional gas controls where flame adjustment can be inconsistent, FlameSelect is designed to provide more predictable cooking performance between settings.

The integrated wok burner delivers up to 13.6 MJ/h depending on gas type, making it suitable for high-temperature cooking applications such as stir-frying, rapid boiling, and searing. The economy burner provides lower heat output for gentle simmering and delicate cooking tasks.

The cast-iron pan supports feature rubber feet to improve cookware stability and reduce movement during use. Both the pan supports and removable control dials have been designed to simplify routine cleaning and maintenance.

• LPG conversion nozzle set
• Cast-iron pan supports
• Wok support ring
• Installation documentation

• SPECIFICATIONS SHEET (PDF)
• USER MANUAL & INSTALLATION INSTRUCTIONS (PDF)
• SUPPLEMENTRY SHEET (PDF)
