• FlameSelect technology: nine defined flame levels for more precise cooking control.
• 4 gas burner configuration: accommodates multiple cookware sizes simultaneously.
• High-output wok burner: suited to stir-fry cooking and rapid boiling applications.

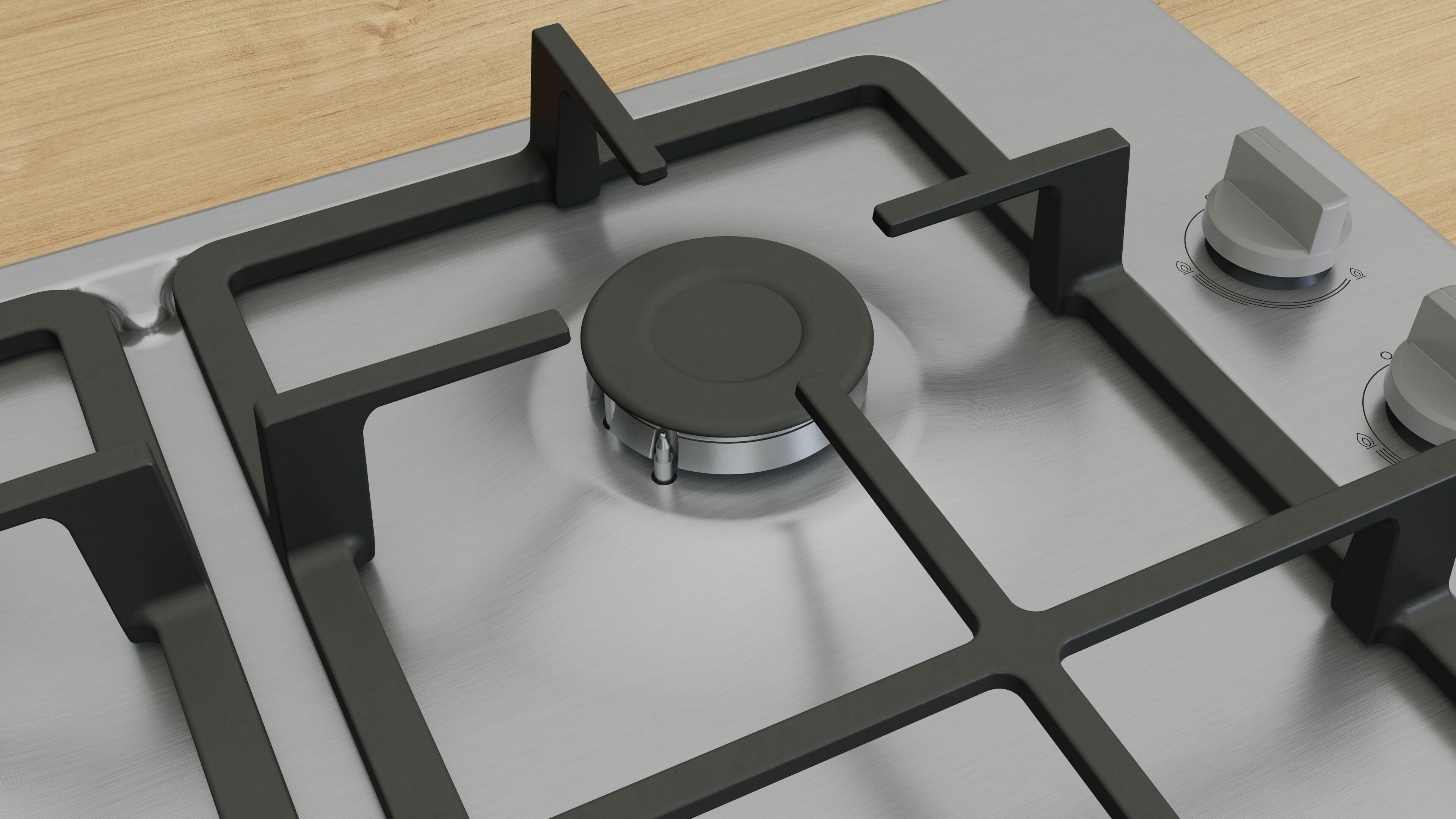

• Cast iron pan supports: durable cookware support with improved stability.

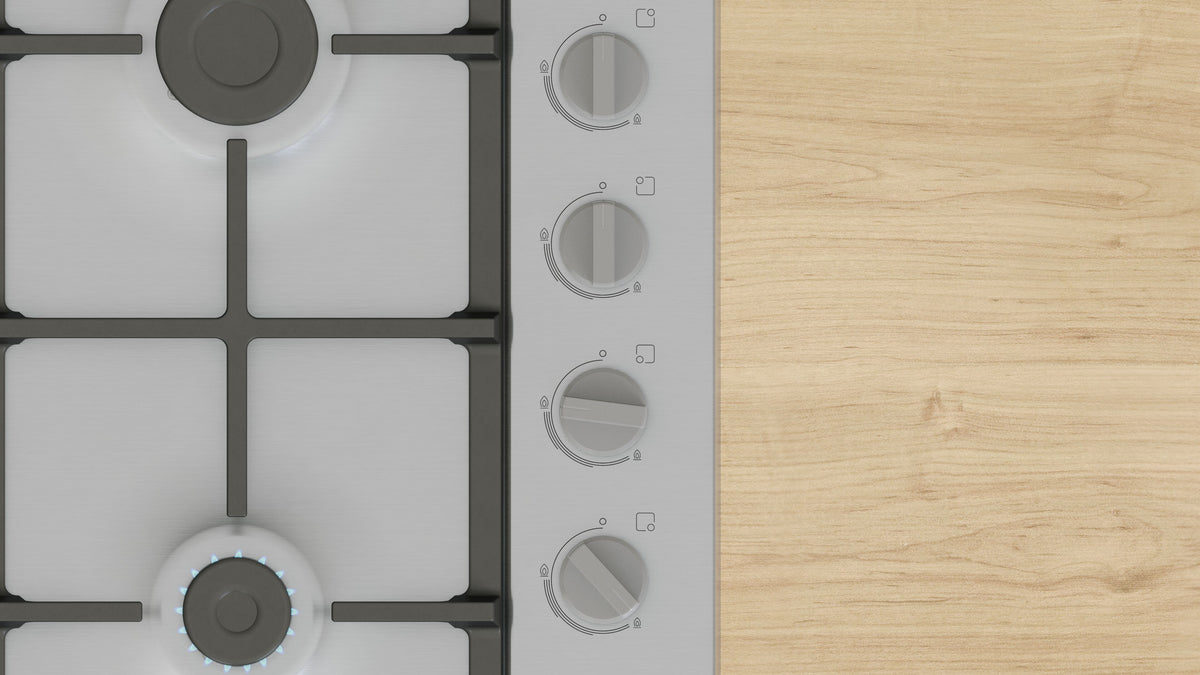

• Sword control knobs: front-mounted controls for direct burner adjustment.
• Automatic ignition: ignition integrated into the control knobs.
• Flame failure safety device: automatically shuts off gas supply if flame extinguishes.

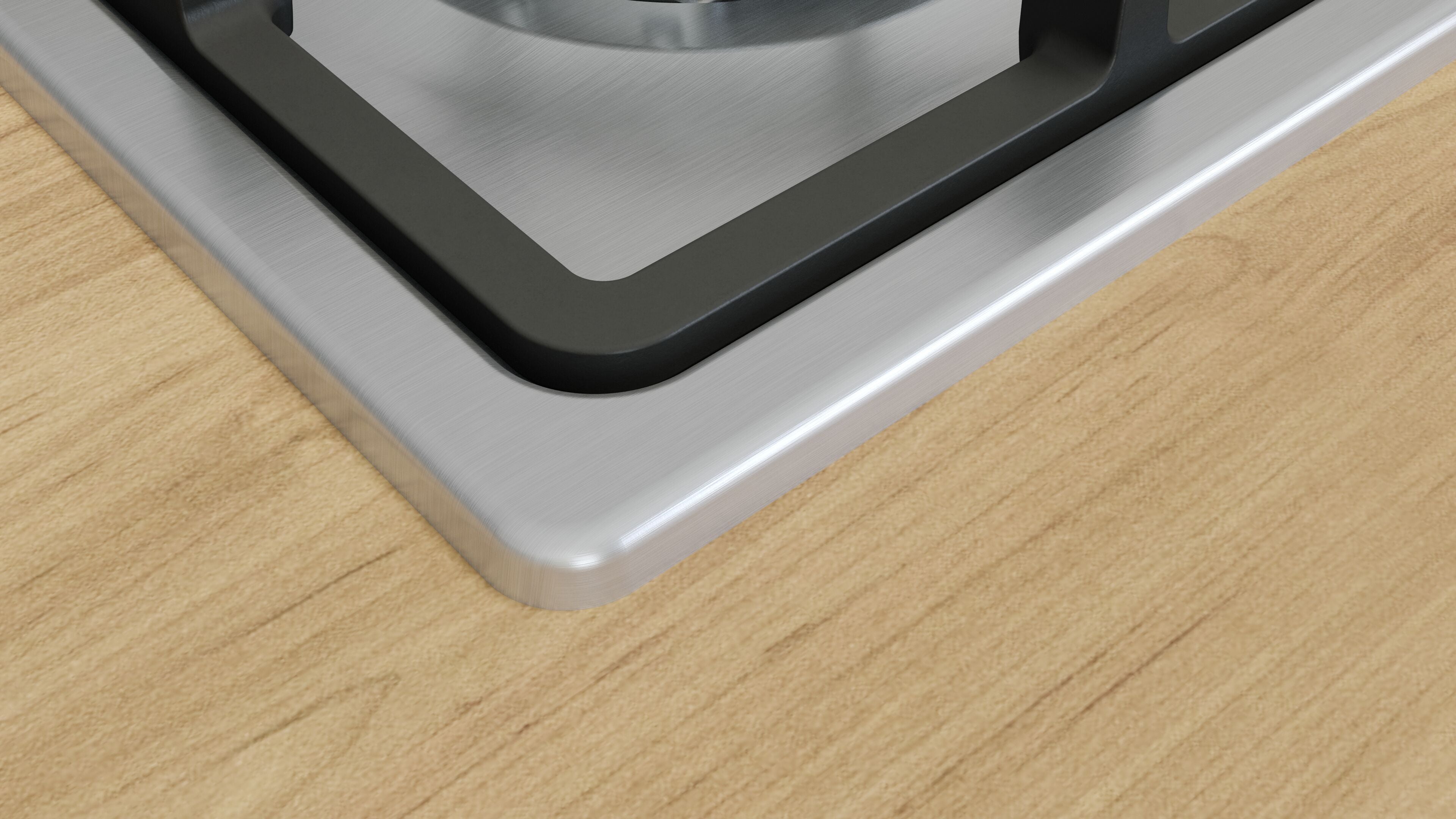

• Low-profile stainless steel design: integrates into contemporary kitchen benchtops.
• Continuous cast iron trivets: allow cookware movement between burners with improved stability.
• Built-in installation: designed for standard 60cm cooktop cabinetry applications.

• Product series: Bosch Series 6
• Cooking zones: 4 gas burners

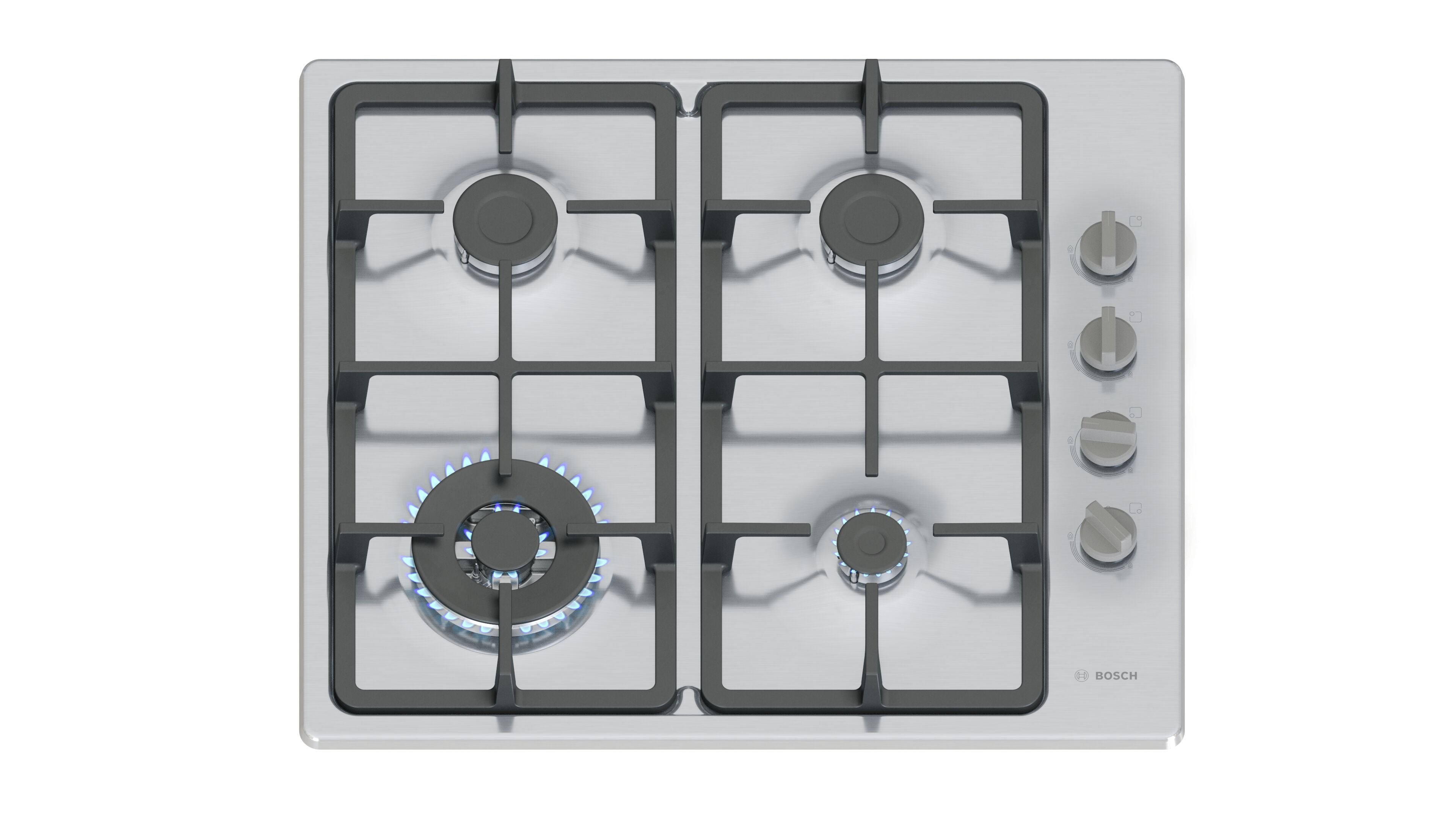

• Burner configuration: 1 x wok burner, 2 x standard burners, 1 x economy burner
• FlameSelect levels: 9
• Control type: Front-mounted sword knobs
• Ignition type: Automatic electronic ignition
• Pan support material: Cast iron
• Surface material: Stainless steel
• Safety device: Flame failure safety shut-off
• Fuel type: Natural gas
• LPG compatible: Yes — conversion kit included
• Installation type: Built-in

• Installation type: Built-in
• Fuel type: Natural gas
• LPG conversion: LPG nozzles supplied
• Connection type: Plug-in ignition connection
• Power supply: 240 V / 50 Hz
• Gas installation: Licensed gas fitter required
• Benchtop suitability: Suitable for standard kitchen benchtop installations
• Minimum clearances: Refer to installation guide for cabinetry clearances and ventilation requirements

Bosch Warranty

• Bosch appliances are backed in Australia by BSH Home Appliances Pty Ltd, providing trusted after-sales support and service nationwide.

Warranty Coverage

Domestic Use:

• Bosch appliances are covered by a 2-year manufacturer’s warranty from the date of purchase, covering defects in materials and workmanship.

Commercial Use

• If used for commercial purposes, the warranty period is limited to 3 months.
• This warranty is provided in addition to your rights under Australian Consumer Law.

What’s Covered

Under normal domestic use, the warranty includes:

• Manufacturing defects
• Repair or replacement of faulty components
• Service within Bosch’s authorised service network

For minor failures, Bosch may choose to repair or replace the appliance.

• Proof of purchase is required to make a claim.
• To lodge a claim, contact Bosch Customer Care Australia on 1300 369 744.

What’s Not Covered

The warranty does not apply to damage caused by:

• Incorrect installation or operation
• Unauthorised repairs or non-approved parts
• Incorrect power, gas or water supply
• Commercial use beyond 3 months
• Normal wear and tear (filters, seals, globes, fuses, etc.)
• Blockages, misuse, operator error or storm damage
• Delivery or installation damage
• Appliances exported outside Australia

Travel or transport costs may apply if you are located outside a Bosch service area.

Australian Consumer Law

• Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if they fail to be of acceptable quality and the failure does not amount to a major failure.

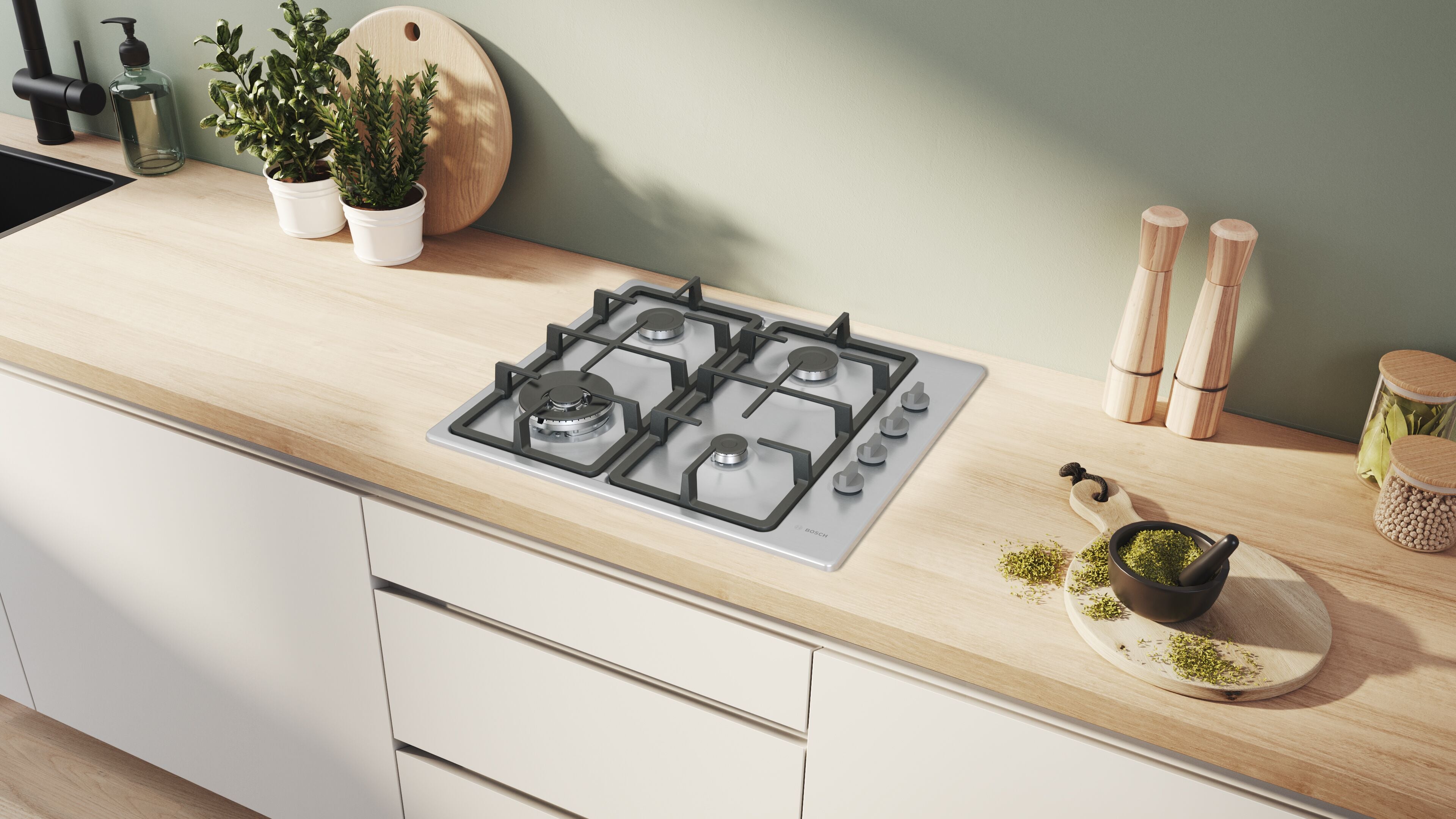

The PBH6B5K90A is designed for installation into standard 60cm cooktop cabinetry cut-outs and combines Bosch gas cooking performance with practical everyday usability. The continuous cast iron supports provide a stable cooking platform across all burner zones and are removable for cleaning access.

Bosch FlameSelect technology is engineered to provide more repeatable flame control by standardising flame output across defined levels. This allows more consistent simmering and controlled heat adjustment across different cooking methods.

Bosch is a German appliance brand recognised internationally for integrated kitchen appliance engineering and long-term product reliability across cooking, laundry, and refrigeration categories.

• Cast iron pan supports
• Natural gas regulator
• LPG conversion nozzles
• Installation hardware kit
• Power cord for ignition connection

• SPECIFICATIONS SHEET (PDF)
• USER MANUAL (PDF)
• INSTALLATION INSTRUCTIONS (PDF)
